Programming Instructions
for YewdaleDefiant® Radio Receiver
(980027)
Programming Instructions
for YewdaleDefiant® Radio Receiver
(980027)

YewdaleDefiant® programming instructions Part no: 9800272
Programming Instructions
YewdaleDefiant®Radio Receiver (980027)
Specification:
Model: 980027
Voltage input: 230v AC / 120v AC
Working Temperature: -40oC to +85oC
Rated Power: 500w max.
Receiving sensibility: -110dBm
Transmitter quality: 20 max.
Operation mode: Remote / Manual
Caution: When wired into a
separate system by means of a data
cable, the “manual” button will be
overridden by a no volt switch but the
function will work in the same way.
Motor
Direction switch
Indicator light
Power
input
PROG
Button
Manual
Button
L LR N N
DOWN Earth Earth
Serial B line Manual COMMON line Manual UP line Manual STOP line Manual DOWN line Serial A line
Neutral
Motor Power Input
Live Common UP

Call: [phone] Fax: [phone] Email: [email protected] Visit: www.yewdale.co.uk 3
Please ensure you follow all recommended electrical
safety procedure. The guideline below also apply:
1. Do not allow the receiver to make contact with metal objects.
2. Minimum distance of 1.5m between receiver and the ground.
3. Minimum distance of 0.3m between receiver and the ceiling.
4. Minimum distance of 0.3m between receiver and the transmitter.
5. For your safety disconnect all sources of power before wiring.
6. Ensure you are earthed to prevent static damage to components.
7. Multi-core flexible cable is recommended.
8. Fix cables with cable clips to prevent receiver damage.

YewdaleDefiant® programming instructions Part no: 9800274

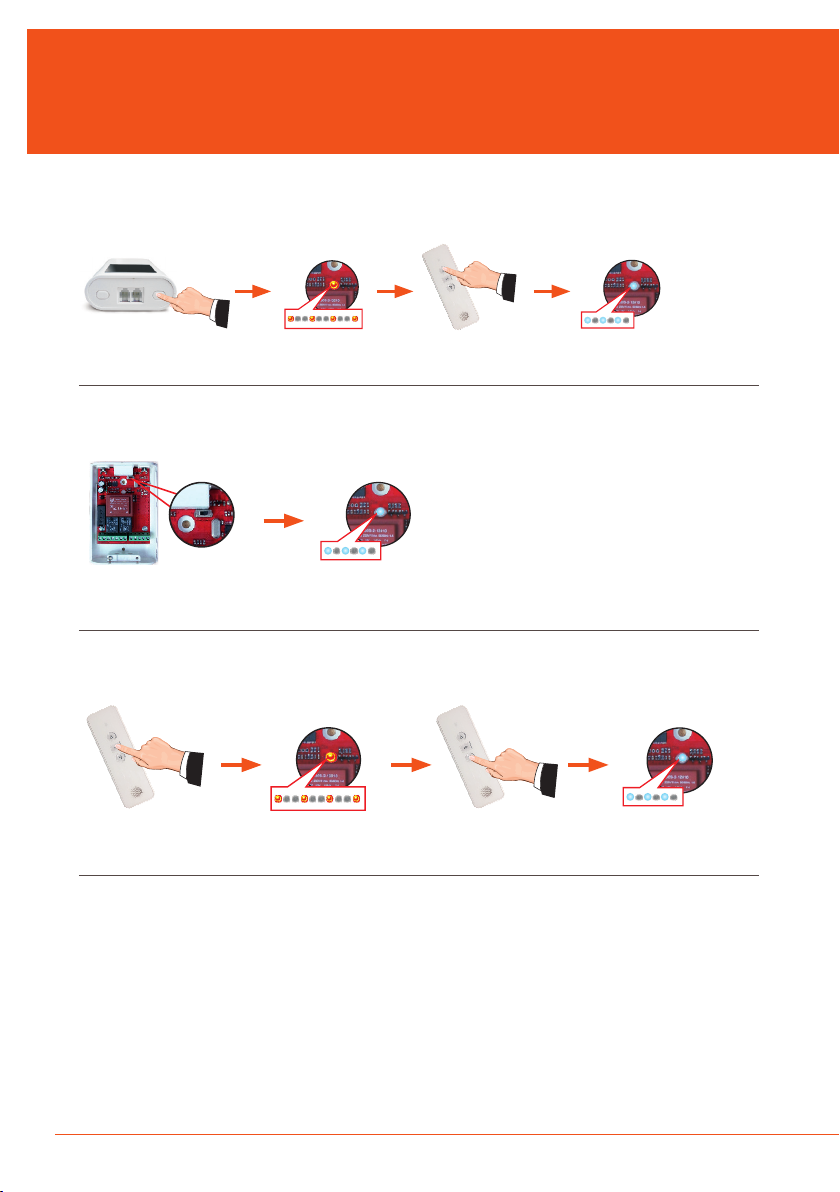

Programming:
The receiver will flash
slowly for 10 seconds.
Press PROG for 1
second.
Press UP within 10
seconds.
The receiver will flash
blue quickly 3 times.
Change direction: (method 1)
Change direction: (method 2)
Switch the directional
changing switch.
Press STOP for 5 seconds.
The blue light will flash 3 times.
The direction has been changed.
The red light will flash
slowly for 10 seconds.
Press DOWN within 10
seconds of pressing STOP.
The blue light will flash 3 times.
Direction has been changed.
Programming Instructions
YewdaleDefiant®Radio Receiver (980027)

Call: [phone] Fax: [phone] Email: [email protected] Visit: www.yewdale.co.uk 5
Delete single channel:
Add a new transmitter:
Press STOP for 5 seconds.
Press STOP for 5 seconds.
The red light will flash
slowly for 10 seconds.
The red light will flash
slowly for 10 seconds.
Press PROG within 10
seconds of pressing STOP.
Press UP within 10 seconds
of pressing STOP.
The blue light will flash 3 times.
Single channel has been deleted.
The blue light will flash 3 times.
Transmitter has been added.
Each receiver can program a maximum of 20 transmitters. In the event of programming a 21st transmitter, the previously programmed
transmitter will be deleted (i.e the 20th).

YewdaleDefiant® programming instructions Part no: 9800276
Programming Instructions
YewdaleDefiant®Radio Receiver (980027)
Reset all channels: (method 1)
Reset all channels: (method 2)
Press STOP for 5
seconds.
The red light will flash
slowly for 10 seconds.
Press PROG for 7 seconds
within 10 seconds of
pressing STOP.
The blue light will
quickly flash 3 times.
The blue light flashes
for an additional 3
times. All channels have
been deleted.
The receiver will flash
slowly for 10 seconds.
Press PROG for 5
seconds.
Press PROG within 10
seconds of pressing PROG.
The red light will dim out. All
channels have been deleted.
Items Problems Solution
1Indicator light is on, but the is no reaction. Check wiring and confirm selected channel.
2Indicator on transmitter is o or lit dimly. Check batteries are correctly installed and fitted.
3Transmitter and receiver work commonly,
motor has no rotation. Check motor wiring and there is no visible damage to the motor.
Trouble Shooting:
