Sears Kenmore 85230 Service manual

MICROWAVE OVEN
R
INSTALLATION
INSTRUCTION
MANUAL
MODEL No.
85230
85238
85239
85240
85248
85249
Read and save these
installation instructions.
INSTALLATION
INSTRUCTIONS
*Sold by Sears Canada Inc. Printed in Korea
Part No. 3828W5U0257 SEARS. CANADA INC., TORONTO. M5B 2B8

YOUR SAFETY FIRST
BEFORE YOU START
• Proper installation is the installer's responsibility!
– Read the entire manual before you begin. The Model number label is located on the oven front.
See Figure 1. Mounting plate is located on back side of microwave oven. See Figure 2.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
FOR YOUR SAFETY:
• You will need TWO people to install this oven. It is heavy and could cause personal injury if not handled
properly. The dimensions of the oven are as follows:
Height : 16 7/16 inches
Width : 29 15/16 inches
Depth : 15 5/8inches
Weight : 60 lbs.
• Avoid Electrical Shock!
– Before you drill into the wall, note where electrical outlets are and where electrical wires might be concealed
behind the wall. YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires
with your drill bit.
– Locate and disconnect the power to any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
• ELECTRICAL RATING OF THIS OVEN : 120V AC 60Hz.
13 Amp / 1,500 W (Microwave oven + Cooktop Lamps + Ventilation Fan)
– You need a DEDICATED 120V, 60Hz, AC only, 15 or 20A, fused electrical supply (located in the cabinet
above the microwave as close as possible to the microwave) serving only the microwave.
— 2 —
Mounting
plate
( Remove from
oven to install. )
Back of oven
Figure 1 Figure 2
Model Number Label
W A R N I N G

• THIS APPLIANCE MUST BE GROUNDED!
– If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape
wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding
plug.
• Place the plug into a properly installed and grounded outlet. See Figure 3.
• Do not use an extension cord.
• Keep the power cord dry and do not pinch or crush it.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE
POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!
If you use the grounding plug improperly, you risk electric shock!
– Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you do not
completely understand the grounding instructions.
DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.
Improper grounding could result in electric shock or other personal injury.
SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
• DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!
– DO NOT try to operate the microwave oven with the door open.
– DO NOT tamper with or defeat the safety interlocks.
– DO NOT place objects between the microwave oven front face and the door.
–
DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.
– DO NOT operate the microwave oven if it is damaged.
– The microwave oven door must close properly to operate safely.
– DO NOT USE THE MICROWAVE OVEN:
• If the door is bent.
• If the hinges or latches are broken or loose.
• If the door seals, sealing surfaces or glass is broken.
– DO NOT ATTEMPT TO ADJUST OR REPAIR THE OVEN YOURSELF!
It should be adjusted and repaired by a qualified technician who can check for microwave leakage after
repairing the oven.
If you do not use the microwave oven as instructed,
you could be exposed to excessive microwave energy.
YOUR SAFETY FIRST
— 3 —
PROPERLY POLARIZED AND
GROUNDED OUTLET
Three-Pronged (Grounding) Plug
Figure 3
W A R N I N G
W A R N I N G
W A R N I N G

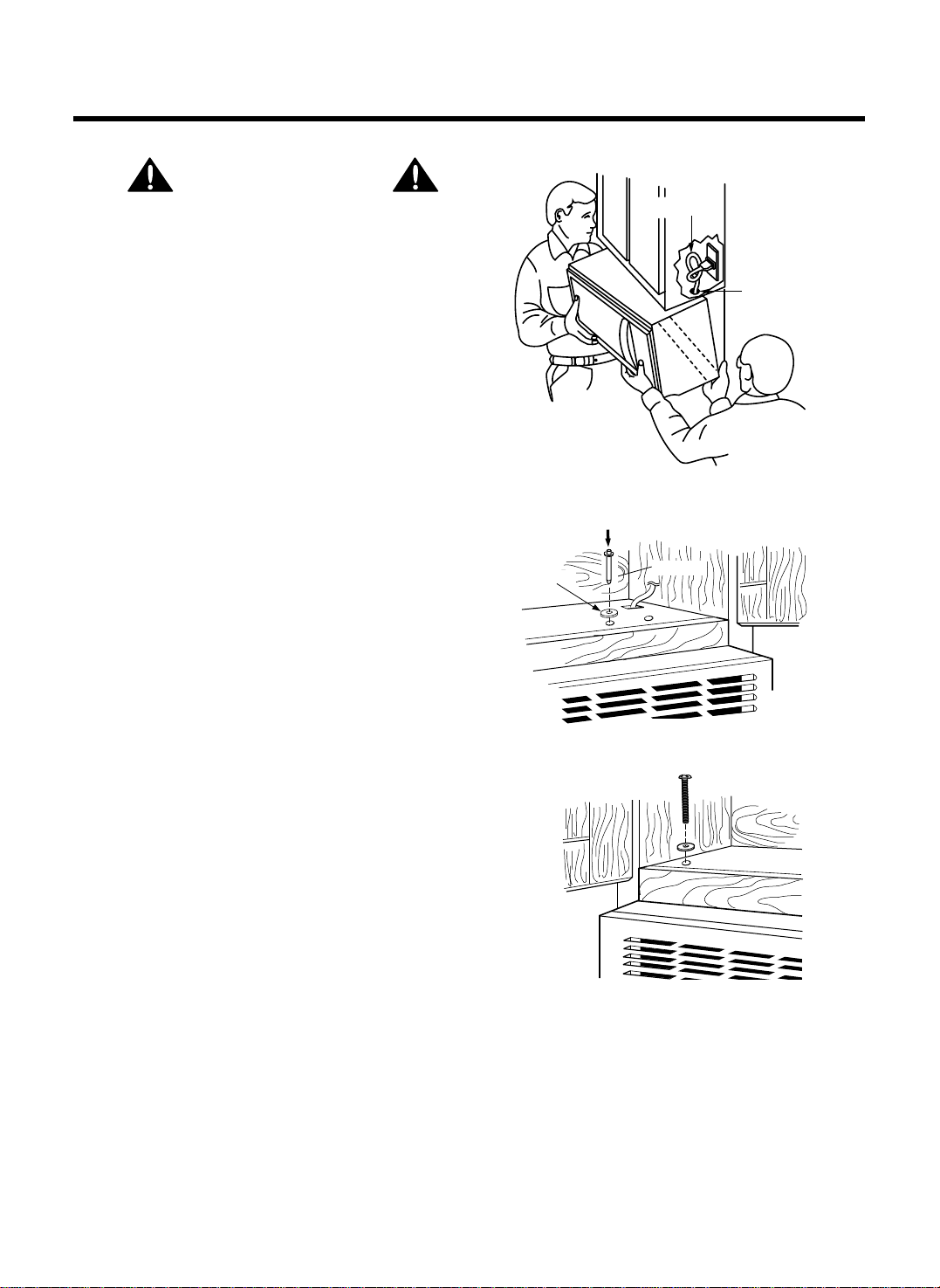

• MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
–Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed of
minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.
–ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
–DO NOT mount the microwave oven to an island or peninsula cabinet.
–BE SURE the upper cabinet and rear wall structures are able to support 150 lbs., plus the weight of any
items you place inside the oven or upper cabinet.
–Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
–BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.
If you do not mount the oven as instructed,
you risk personal injury and/or property damage.
CAUTION
• Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY
MATERIAL (a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.
Failure to protect these surfaces could result in property damage.
YOUR SAFETY FIRST
—4 —
30" min. cabinet opening width
30" min. clearance from bottom
of cabinet to coo ing surface
or countertop
(Use templates included
with installation instructions)
Grounded Outlet
(inside upper cabinet)
Power Supply Cord Hole
Figure 4
W A R N I N G

THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall.
The mounting area must meet the 150 lbs. weight requirement.
—5 —
Damper/duct connector
(for roof-venting or wall-venting installation)
Not Actual Size
One power cord clamp and
One dar -colored mounting screw
(to old t e power cord)
Actual Size
Two tapping screws - Actual Size
(for attac ing t e damper duct connector)
Four 1/4" x 2" lag screws - Actual Size
(for wall stud oles)
Two 1/4" x 2" bolts - Actual Size
(for securing to t e upper cabinet) Four spring toggle heads - Actual Size
(for t e toggle bolts)
Two washers - Actual Size
(for t e two upper cabinet bolts)
Four 1/4" x 3" toggle bolts - Actual Size
(for drywall oles)
One power cord clamp bushing - Actual Size
(for t e cord ole in a metal upper cabinet)
One loc pin and one washer-Not Actual size
PARTS, TOOLS, MATERIALS

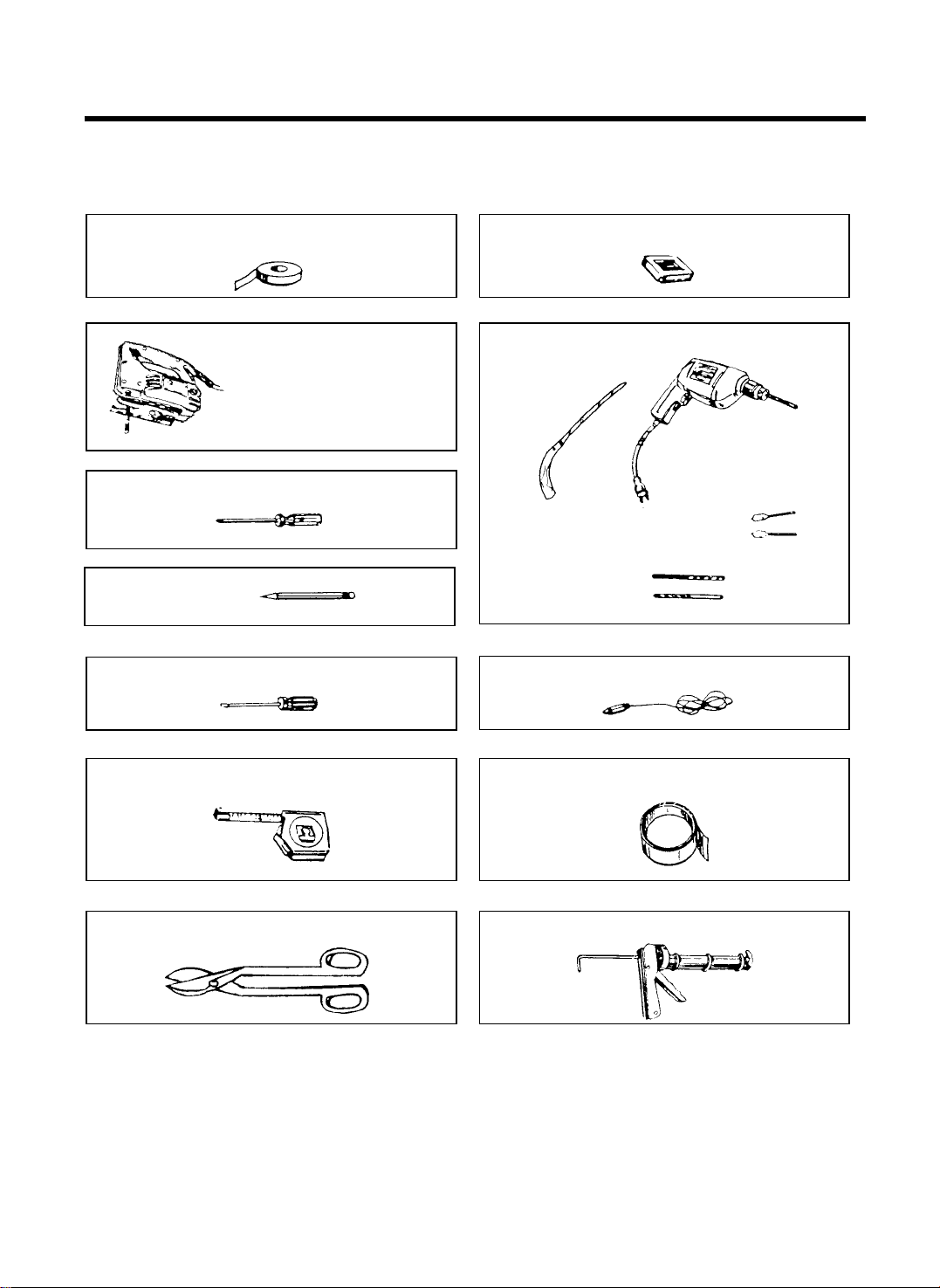

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:
Carton or other heavy material for covering the counter top.
• If you have brick or masonry walls, you will need special hardware and tools.
• The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft
damper.(Shown on page 5.)
PARTS, TOOLS, MATERIALS
—6 —
Clear tape
(for taping the templates to the wall) Stud finder or thin nail.
Saber saw (for cutting vent
holes for roof or wall venting)
Keyhole saw (for the power cord hole)
Electric drill
3/8" and 3/4" wood drill bits
1/2" and 3/16"
drill bits
Phillips screwdriver (for the screws)
Pencil
Flat blade screwdriver (for the toggle bolts)
Measuring tape (metal preferred)
Small side cutters or tin snips Caulking gun
Plumb line
Duct Tape

AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!
1. Locate the grounded electric outlet for this oven in the cabinet
above the oven, as shown in Figure 4.
NOTE: The outlet should be on a circuit dedicated to the
microwave oven 120V, 60Hz., AC only with a
20A fused electrical supply.
IMPORTANT: If you do not have the proper wall outlet, you MUST
have one installed by a qualified electrician.
2. You will cut the power-supply-cord hole (shown in
Figure 4) later when you prepare the wall and upper cabinet in
Step 4.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
Improper grounding could result in
electric shock or other personal injury.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY
CORD GROUNDING PRONG! This appliance MUST be grounded!
STEP 1: PREPARE THE
ELECTRICAL CONNECTIONS
—7 —
Grounded Outlet
( Inside Cabinet )
Upper
Cabinet
Power-Supply-Cord Hole
Figure 4
W A R N I N G
W A R N I N G

NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork
fittings and length are shown in Figure 9, page 9.
THIS OVEN MUST BE PROPERLY VENTED!
You may vent your oven in one of three ways:

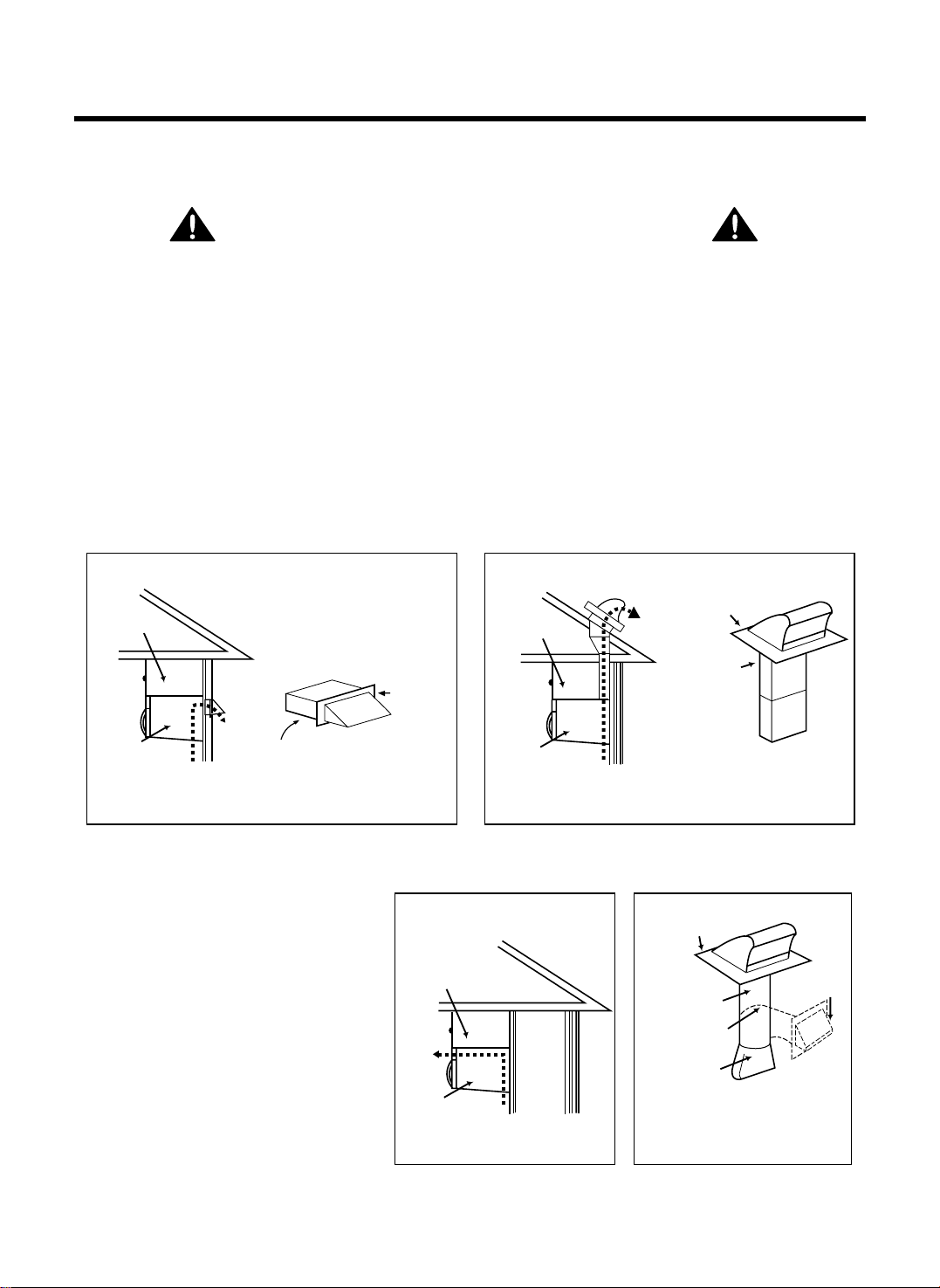

Roof-venting If your oven is located on an outside wall near the roof, as in Figures 6 (31/4" x
10" duct) and 8 (6" round duct.)
Wall-venting If your oven is located on an outside wall on the first floor of your house, as in Figure
5 (31/4" x 10" duct) and Figure 8 (6" round duct.)
Room-venting If your oven is located on an inside wall of your house, as in Figure 7.
NOTE: If you choose the rear exhaust method (roof-or wall-venting), be sure there is enough clearance within
the wall for the exhaust duct.
REMEMBER AS YOU INSTALL THE VENTING:
• Keep the length of the ductwork and the
number of elbows to a minimum to
ventilate your oven efficiently.
See examples on page 9.
• Keep the size of the ductwork the same.
• Do not install two elbows together.
• Use duct tape to seal all joints in the duct
system.
• Use caulking to seal the exterior wall or
roof opening around the cap.
STEP 2:
PREPARE THE VENTING SYSTEM
—8 —
Wall Venting
Wall venting
t roug -t e-wall
wall cap
3 1/4"x10"
duct
Figure 5
cabinet
oven
Roof Venting
t roug -t e-roof
3 1/4"x10"
duct
Figure 6
roof cap
Roof venting
cabinet
oven
6" min.
diameter
round duct
3 1/4" to round
duct transition
3 1/4" to round
ductwork transition
Figure 8
roof cap
wall cap
elbow
W A R N I N G -F I R E H A Z A R D
Room Venting
Figure 7
cabinet
oven

STEP 2:
PREPARE THE VENTING SYSYTEM

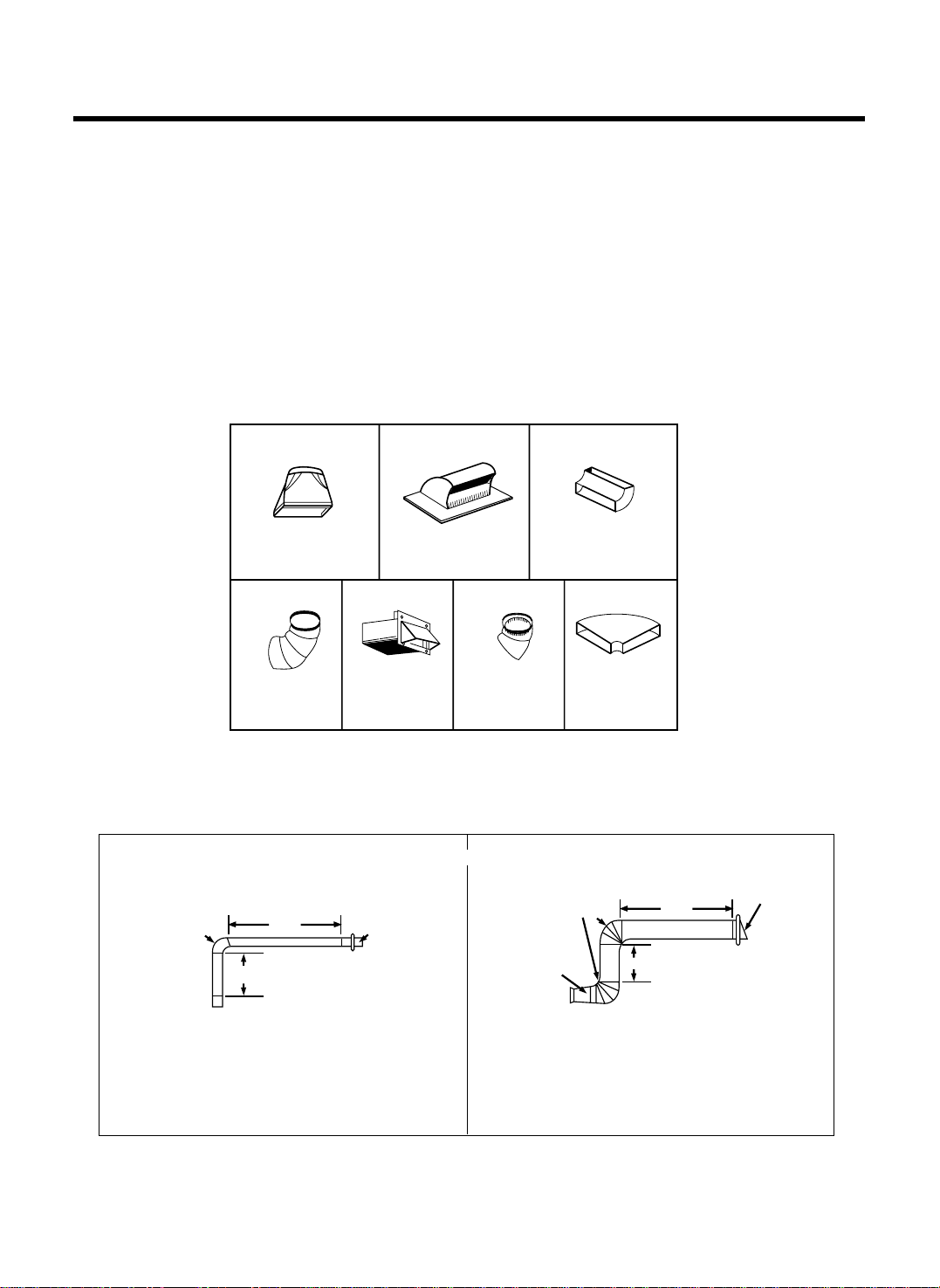

STANDARD FITTINGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"
extension duct installed between the damper assembly and the adapter to prevent the exhaust
damper’s sticking.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows.
Below are the standard fittings and their equivalent length in feet.
To calculate the equivalent length of each ductpiece used, see the examples below.
—9 —
Figure 9
1
4567
2 3
3 1/4"x10"
to 6"=5ft.
90˚ elbow
=10ft. 45˚ elbow =5ft.
3 1/4"x10"
wall cap
=40ft.
3 1/4"x10"
flat elbow
=10ft.
3 1/4"x10" roof
cap=24ft. 3 1/4"x10" 90˚ elbow=25ft.
Examples
For 3 1/4"x10" SYSTEMS
1-3 1/4" x 10" 90˚elbow
1-Wall Cap
8 feet straight duct
TOTAL LENGTH
1-transition
2-90˚elbows
1-Wall Cap
8 feet straight
TOTAL LENGTH
For 6" ROUND SYSTEMS
6ft.
2ft. 2ft.
3 1/4"x10"
90˚elbow wall cap 6ft.
90˚elbows
transition
wall cap
= 25 ft.
= 40 ft.
= 8 ft.
= 73 ft.
= 5 ft.
= 20 ft.
= 40 ft.
= 8 ft.
= 73 ft.

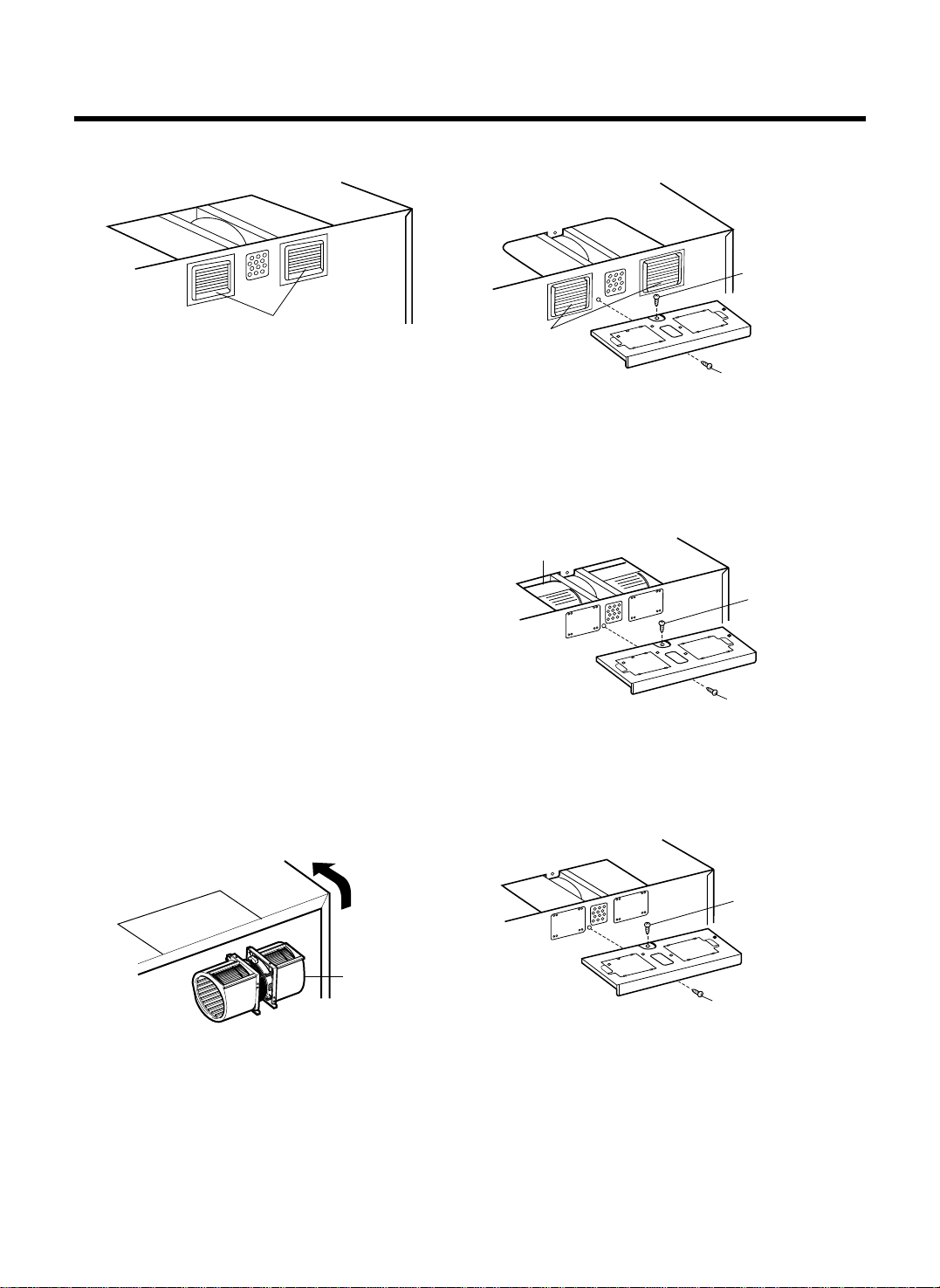

Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower if
you want wall-venting or room-vented (recirculating) installation.
ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.
• DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result in
electrical shock.

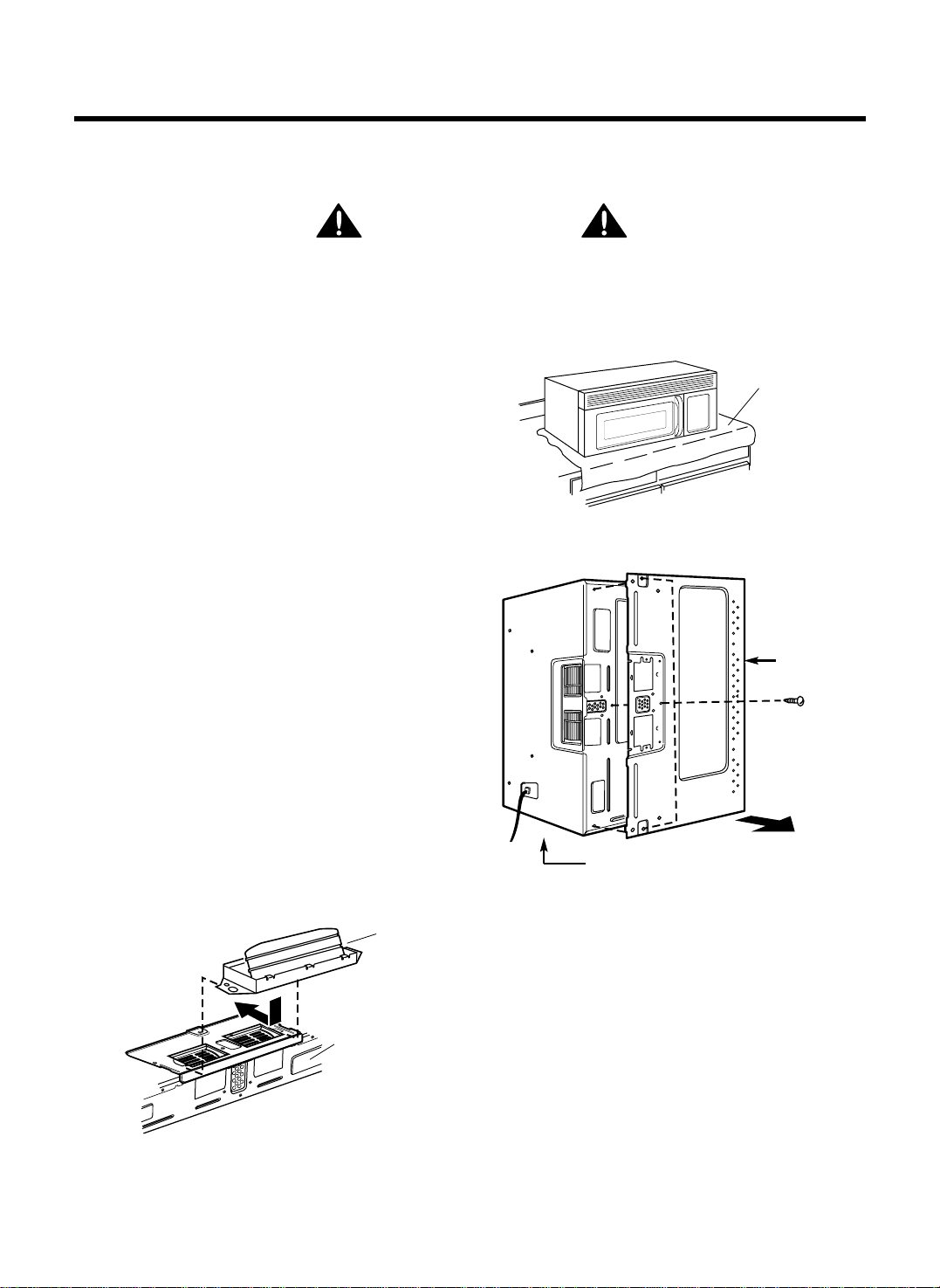

REMOVE THE MOUNTING PLATE:
1. Remove any shipping materials and parts from inside
the microwave oven.

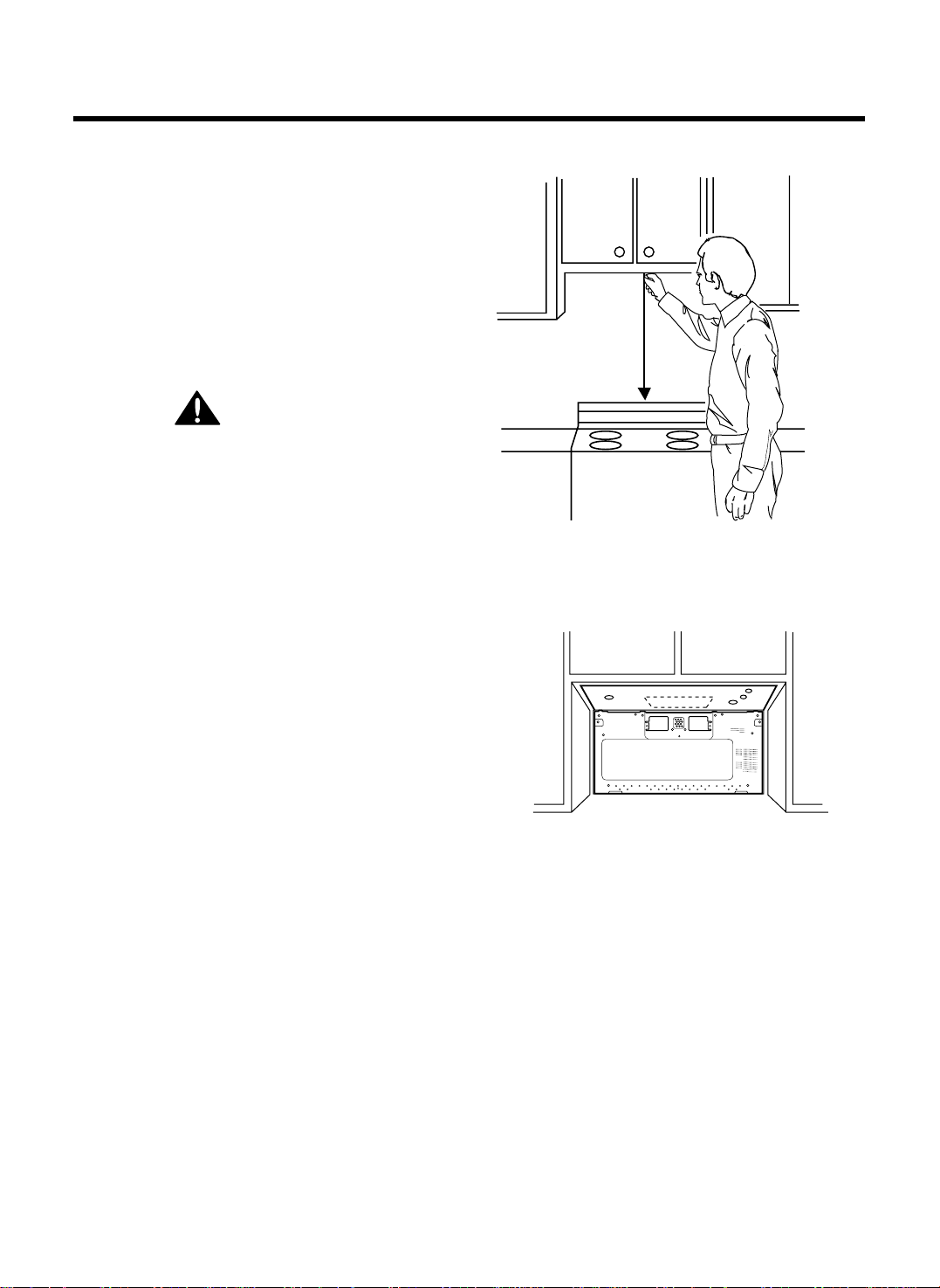

2. Cover the counter top or cooktop with a thick,
protective covering to protect it from damage and
dirt. See Figure 10.
NOTE: If you have a free-standing range, disconnect
it, move it onto a piece of cardboard or
hardboard and pull it away from the wall, so
that you can get closer to the upper cabinet
and back wall for easier measuring and
drilling.
3. Remove mounting plate screw(s) (1 or 2 screws)
from the mounting plate as shown and discard.
(See Figure 11.)
4. This plate will be used as the rear mounting plate.
(It will be used to locate and mark the mounting
holes on the rear wall.)

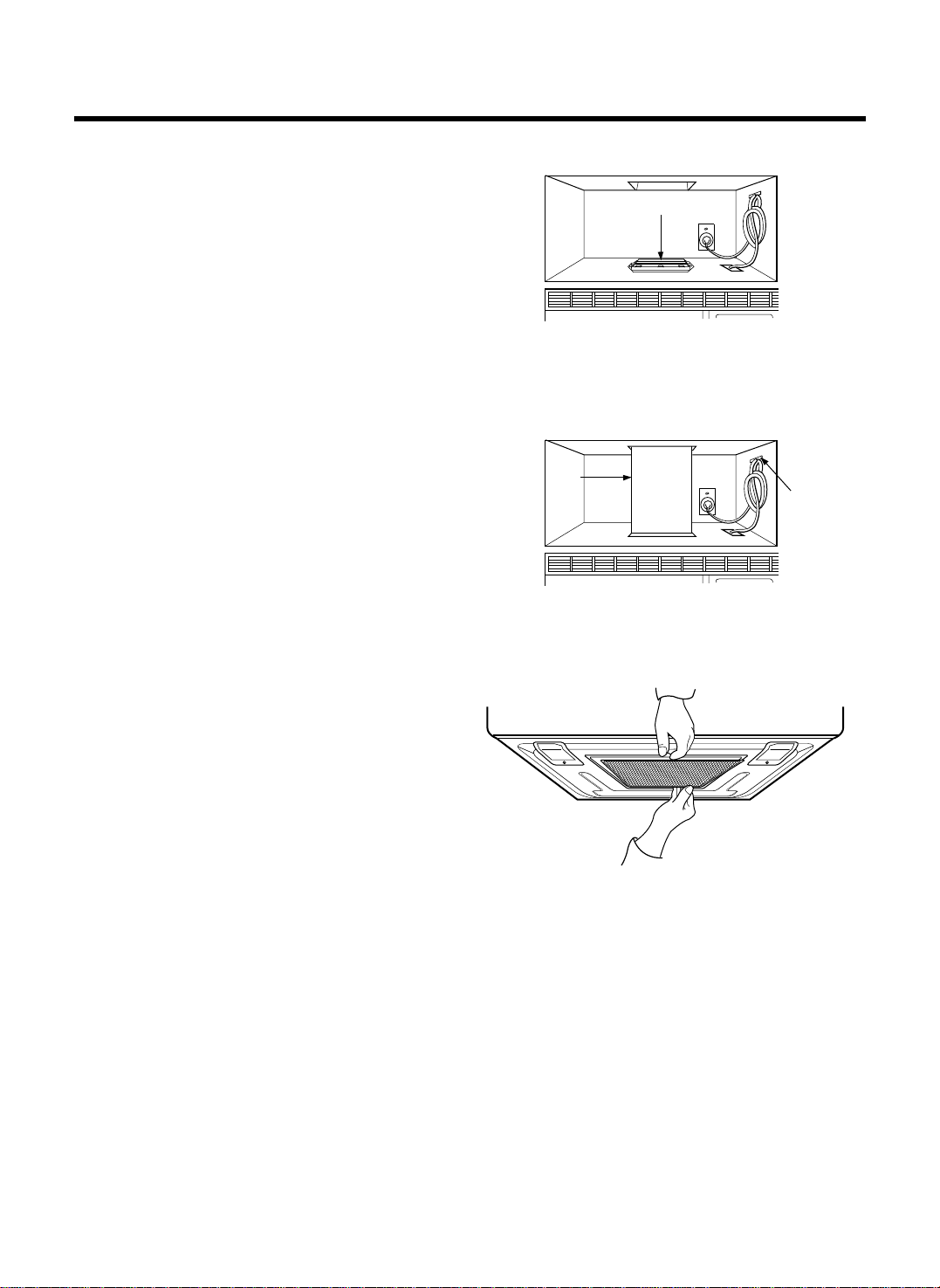

5. Locate exhaust adaptor, grease filters and hardware
packet.
6. At this point, remove any adhesive tape (if there is
any), on the exhaust adaptor, the grease filters and
the power supply cord.
ROOF-VENTED INSTALLATION:
This oven is shipped assembled for roof-vented. You
will need to install the exhaust adaptor regardless of
cabinet.
1. Attach the exhaust adaptor to the blower plate by
sliding it into the guides. (See Figure 12.)
STEP 3:
PREPARE THE VENTING BLOWER
—10 —
Figure 10
A t ick, protective
covering
Figure 11
Mounting
plate
Mounting plate
screw(s)
(1 or 2 screws)
Control panel side
Figure 12
Back
of oven
Ex aust
adaptor
W A R N I N G

WALL-VENTED INSTALLATION:
1. Remove one blower unit mounting screw and one
blower plate screw. Remove the blower plate from
cabinet. See Figure 13.
2. Carefully lift the blower unit out of the microwave oven.
3. Use side cutters or tin snips to cut and remove
knockouts “B” from Back plate. Discard knockouts.
Be careful not to distort the plate. See Figure 14.
4. Reassemble the blower wire. See Figure 15.
5. Rotate the unit so that the exhaust ports face the rear
of the cabinet. See Figure 16. When you insert blower
unit, blower wire must be like figure 16.
6. Place blower unit back into cabinet. Check that the
exhaust ports face towards the rear of the cabinet.
See Figure 17.
7. Reattach the blower plate to cabinet so the exhaust
ports and blower plate opening are aligned. Attach with
one blower unit mounting screw and then one blower
plate mounting screw. See Figure 18.
STEP 3:
PREPARE THE VENTING BLOWER
—11 —
Figure 13
blower plate
mounting screws
blower unit
mounting screw
blower unit
Parts "B"
back plate
blower
unit
ex aust
ports
Figure 14
Figure 16
Knockouts Parts "B"
Parts "B"
Figure 15

STEP 3:
PREPARE THE VENTING BLOWER
ROOM-VENTED (Recirculating)
INSTALLATION:
1. Remove one blower unit mounting screw and one
blower plate screw. Remove the blower plate from
cabinet. See Figure 19.
2. Carefully lift the blower unit out of the microwave
oven.
3. Rotate blower unit 90˚so the exhaust ports face the
front of the cabinet. See Figure 20.
4. Place blower unit back into microwave oven.
5. Reattach blower plate to microwave oven. Attach with
the one blower unit mounting screw and then the one
blower plate mounting screw. See Figure 21.
—12 —
Figure 20
Figure 19
blower unit
ex aust ports
Figure 18
Figure 21
blower
unit
blower unit
ex aust
ports
Figure 17
blower plate
mounting screws
blower unit
mounting screws
blower plate
mounting screws
blower unit
mounting screws
blower plate
mounting screws
blower unit
mounting screws

MEASURE AND TACK / TAPE UP THE
TEMPLATES
1. Using a plumb line and (metal) measuring tape, find
and mark the vertical center line on the back wall, as
in Figure 22.
2. Find and mark one or two points where the studs are
on the wall (Studs are normally 16 inches apart.) and
then measure and mark the stud locations. If you
cannot find any wall stud, consult a local building
contractor.
DO NOT ATTEMPT TO INSTALL THE MICROWAVE
OVEN IF YOU CANNOT FIND A WALL STUD.
3. Line up the plumb line on the wall with the center line
on the mounting plate.
NOTE: Be sure the minimum width is 30 inches and
the distance from the top of the mounting plate
to the range or counter top is at least 30
inches. See Figure 4 on page 4.
4. Center mounting plate in operating by lining up the
plumb line on wall with centerline on mounting plate.
Make sure the minimum width is 30 inches and that the
top of the mounting plate is located a minimum of 30
inches above the cooking surface.
See Figure 23.
NOTE: If the cabinets are not plumb, adjust the
mounting plate to the cabinets. If the front
edge of the cabinet is lower than the back
edge, adjust the mounting plate to be level
with the cabinet front.
5. Measure the bottom of the upper cabinet frame. Trim
the edges "A" "B" and "C" on the upper cabinet
template so that the template will fit on the bottom of
the upper cabinet. If upper cabinet has a recessed
frame, trim template so that it fits inside the recessed
area. Align the centerline of the upper cabinet
template with the centerline of the mounting plate;
then securely tape or tack the upper cabinet template
in place. See Figure 23
—13 —
Figure 22
Figure 23
upper cabinet template
mounting plate
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
CAUTION

DRILL THE HOLES IN THE WALL AND UPPER CABINET.
BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL.
Electrical wires could be concealed behind the wall covering
and if the drill hits them you could get an electric shock.
1. Find the points on the mounting plate labeled "A", "B", "C", and "D". Drill a 3/16" diameter hole at any points
that are over a wall stud. Drill a 3/4" diameter hole at any points over drywall.
2. Drill a 3/8" hole at points "J", "K", and "N" on the upper cabinet template.
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you will need 2"x2" filler blocks (not
included) to provide additional support for the bolts. See Figure 24.
•Mark the center of each filler block and drill a 3/8" diameter hole at the marks.
•Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to
cabinet with masking tape. See Figure 25.
3. Cut or drill a 2" diameter hole at the area marked "M".
Power supply cord hole on the upper cabinet template. If the upper cabinet is metal, you will need to cover the
edge of the hole with the power supply cord bushing (supplied) to prevent damage to the cord from the rough
metal edge.
YOU MUST COVER THE EDGE OF
THE POWER SUPPLY CORD HOLE
IN A METAL CABINET WITH THE
POWER SUPPLY CORD BUSHING.
FAILURE TO DO SO COULD RESULT
IN DAMAGE TO THE CORD AND
ELECTRIC SHOCK.
4. Cut out the venting areas (with the saber saw):
• Roof-Vented: cut out the shaded area marked "L"
on the upper cabinet template.
• Wall-Vented: go to STEP 5, INSTALL THE
MOUNTING PLATE, located on page 16.
5. Complete whichever venting system you have
chosen. Use caulking compound to seal the exterior
wall or roof opening around the wall cap or roof cap.
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
—14 —
Figure 24
Figure 25
cabinet front filler block cabinet
bottom s elf
filler
block
W A R N I N G
W A R N I N G

STEP 5:
INSTALL THE MOUNTING
PLATE TO THE WALL
—15 —
THE OVEN MUST BE CONNECTED TO
AT LEAST ONE WALL STUD.
1. Draw a vertical line on the wall at the center of the
30″wide space.
Use the mounting plate as the template for the rear
wall. Place the mounting plate on the wall, making
sure that the tabs are against the bottom of the
cabinet. Line up the notch and center line on the
mounting plate to the center line on the wall.
2. While holding the mounting plate with one hand, draw
circles on the wall at holes A, B, C and D. Four holes
must be used for mounting. If the holes are not used,
the installation will not be secure. Installer must use
these holes for proper installation. Use toggle bolts
through these holes unless one of them lines up with
a stud. Use a wood screw for studs.
NOTE: Draw a fifth circle inside area E, through one
of the bottom holes to match the location of a stud.
For wall-vented: The oven requires a rear wall cutout
opening for the rear wall duct and the exhaust adaptor
must be attached to the mounting plate. See the next
page on how to prepare the rear wall cutout opening
and the exhaust adaptor/mounting plate for wall-vented.
3. Drill holes on the circles. If there is a stud, drill a 3 /
16″hole for lag screws. If there is no stud, drill a
5/8″hole for toggle bolts. Make sure to use at least
1 lag screw in a stud, and 4 toggle bolts in the drywall
or the plaster.
4. Attach the plate to the wall. To use spring toggle
head bolts: Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate and replace
the spring toggle head to 3 / 4″past the bolt ends.
Insert the spring toggle head into the holes in the wall
to mount the bracket. You may pull forward on the
bracket to help in tightening the toggle bolts. Tighten
all bolts.
Center Line
A
C
B
3/16" Hole on Studs
5/8" Hole on Drywall Only
Draw
Center Line
Draw Lines
on Studs
Wall
Mounting
Plate
Space More T an Wall T ickness
Bolt
End
Toggle Bolt
Toggle Wings
For Wall-
Vented Only
Minimum 66 "
From t e Floor
Support Tab Support Tab
E
Mounting
Plate
Figure 26
Figure 27
D

STEP 5:
INSTALL THE MOUNTING
PLATE TO THE WALL
TO PREPARE THE REAR WALL
CUTOUT OPENING AND EXHAUST
ADAPTOR/MOUNTING PLATE FOR
WALL-VENTED:
1. Place the mounting plate against the rear wall as
described in step 5 item 1 (page 15).
2. Using a pencil, put dots through slots F and G, and
through holes H and I. Remove the mounting plate
and draw lines extending through the points. This will
give the location and size of the box cutout for the
rear wall duct.
•Attach the exhaust adaptor to the rear mounting plate
by sliding it into the guides at the top center of the
plate on the wall side. Push in securely until it is past
the top locking tabs and in the lower locking tabs. Take
care to assure the damper hinge is installed so that it
is at the top and that the damper swings freely.
•Carefully guide the exhaust adaptor, now attached to
the mounting plate, into the house duct, before using
the screws to attach the plate to the wall. This will
assure proper alignment for installation.
•Return to step 5, item 3 (page 15) to continue. After
completing the installation of the mounting plate, again
check the rear damper for free movement to assure it
will operate properly.
—16 —
Slide exhaust
adaptor into
guides on
rear panel.
Exhaust Adaptor Damper
(hinge side up)
Locking
T abs Guides
Mounting Plate
(wall side)
Figure 28
Figure 29

STEP 6:
ATTACH THE OVEN TO THE WALL
You will need two people to lift this
microwave. Failure to use more than
one person could result in personal
injury.
1. Carefully lift microwave oven and hang it on
support tabs (See Figure 26) at the bottom of the
mounting plate. Reaching through upper cabinet,
thread power supply cord through the power
supply cord hole in the bottom of the upper
cabinet. See Figure 30.
2. Rotate the microwave oven upward so the top of
oven is against the bottom of the upper cabinet or
cabinet frame.
3. Drop the lock pin and washer assembly into hole
"N" (left side hole) and push the pin down as far
as it will go. See Figure 31.
4. Place washers over two 1/4"x3" bolts. Then insert
a bolt down through each hole in the upper
cabinet bottom.
Tighten the bolts until the gap between the upper
cabinet and microwave oven is closed. See Figure
32.
5. Remove lock pin and washer.
If wall-vented or room-vented installation is used,
go to No. 8 on the next page.
—17 —
Figure 30
Figure 32
was er
Figure 31
lock pin
power cord
power cord
ole
W A R N I N G

STEP 6:
ATTACH THE OVEN TO THE WALL
6. Roof vented installation:See Figure 33
Install ductwork through the vent opening in the
upper cabinet. Complete the venting system through
the roof according to the method needed.
See “PREPARE THE VENTING SYSTEM,”STEP 2
on the page 8. Use caulking to seal exterior roof
opening around the exhaust cap. See Figure 6 on
page 8.
7. Use power supply cord clamp to bundle the power
supply cord. Install the power supply cord clamp,
using a screw as shown in Figure 34, to inside of the
cabinet.
8. To install the grease filter: Slide it into the slide slot,
then push up and toward oven center to lock.
See Figure 35.
9. Plug in the power supply cord.
10. Read your Owner’s Manual, then check the
operation of your microwave oven.
—18 —
Figure 33
Figure 35
damper
duct power
supply
cord
clamp
Figure 34
