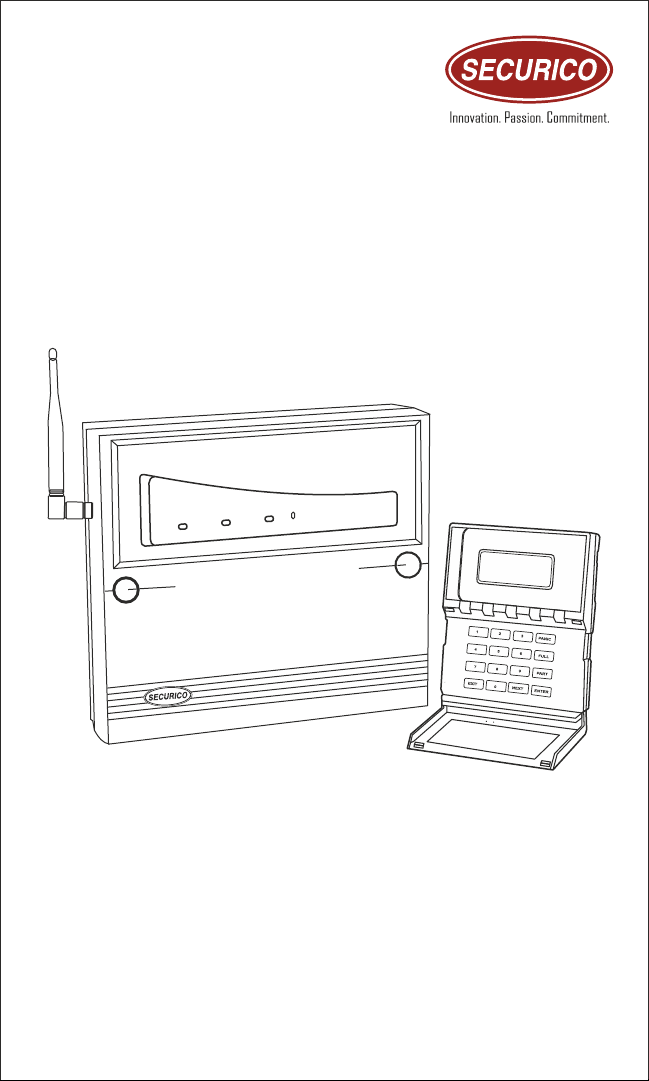

GALAXY 4016 GSM A6 / A7
USER MANUAL
GALAXY
GALAXY
GALAXY
MAINS ARM
POWER
DIALING ARMED
GALAXY
GALAXY
GALAXY
SMS / DIALING

Please read this manual carefully before operating your security
system and retain it for future reference. If you have any
questions related to our products, kindly write to us at
[email protected].
Document No.:
This product is sold subject our standard warranty conditions
and is warranted against defects in workmanship for a period of
one year. In the interest of continuing improvement of quality,
customer care and design, the company reserves the right to
amend specifications and features without giving prior notice.
The company also reserves the right to replace existing devices
with new upgraded versions under the warrantee policy.
WARRANTY
GALAXY 4016 GSM

INTRODUCTION
Congratulations on being the proud owner of Galaxy GSM, a step
into ultramodern protection. Panel was created to meet today's
technologically advanced demands of integrating security with
automation. Galaxy GSM, our super control panel is 04 / 12 zone
panel with a built-in 2 message 20 number GSM auto dialer,
which will automatically call you, your friends, your family and the
police in case of an emergency. Its automatic arming and
disarming facility brings easy security to your door step. The
ability to protect your lifestyle and automate it all at the same
time. We wish you a peaceful life and an enjoyable Galaxy
experience!
ABOUT SECURICO
Securico has completed 36 successful years of manufacturing
excellence and offers a complete range of Electronic Security
Solutions including Intruder Alarms, CCTV Systems, Fire
Alarms, Video Door Phones, Energy Saving Devices and a State
of the Art 24X7 Video & Alarm Monitoring Station. Securico is
the chosen brand of more than 3000 security system
integrators in over 250 cities across India. With a highly qualified
in house R&D team and modern manufacturing plant, Securico is
totally committed to providing the security industry with high
tech, multi functional, top quality, low cost yet world class
products. Securico is privileged to have a large number of Indian
and multinational banks along with thousands of corporate,
commercial, retail and residential users as satisfied clients
which has been achieved through three decades of impeccable
customer service and care.

FEATURES
Ÿ Micro-controller based
Ÿ 04 / 12 wired zones control panel
Ÿ Can connect wireless sensors by adding wireless
receiver module (only in A6 model)
Ÿ Inbuilt GSM based speech and SMS dialer module
Ÿ Separate remote key pad with 16x4 LCD display and 16 key
back lit key pad
Ÿ Can attach up to 3 additional LCD display remote key pads
Ÿ Android app to operate and program panel
Ÿ Automatic arming and/or disarming, optional and
programmable
Ÿ One day holiday programmable for automatic disarming
feature
Ÿ GSM dialer module supports 2 speech / voice messages
Ÿ Separate intrusion message
Ÿ Separate fire message
Ÿ 10 telephone numbers for intrusion message
Ÿ 10 telephone numbers for fire message
Ÿ 20 second recording time for each message
Ÿ Multiple Alarm and Status SMS
Ÿ Alarm SMS with alarm type, zone number, time and date
information
Ÿ Alarm SMS types - intrusion alarm, panic alarm, fire alarm,
tamper and wrong code
Ÿ Status SMS sent to admin user on first number - system
arm, admin disarm, user disarm, system on, AC power on,
AC power off, low battery, admin or user code change,
telephone number/s added, telephone number/s deleted,
daily health status.
GALAXY 4016 GSM

Ÿ Daily System On health status SMS sent once a day to
admin user on first number
Ÿ Power status SMS for AC power on/off, low battery
Ÿ User editable name and address for alarm SMS
Ÿ Message playback
Ÿ Android App is SMS based, no internet required for daily use
Ÿ All key panel functions and features programmable from app
Ÿ All alarm alerts and status events received, displayed and
logged in the app
Ÿ Panel can also be operated through mobile via simple SMS
commands
Ÿ Automatic temporary bypass of open 24 hour zones in case
of open zone
Ÿ Detectors connected to fire zones are automatically reset
after one hour in case of an alarm
Ÿ Built in provision for 12V 7AH SMF battery
Ÿ Zone omitting facility
Ÿ Silent arming
Ÿ Night mode arming
Ÿ Intrusion log with time and date
Ÿ 500 Event log for alarms and menu access
Ÿ Open and close information for alarm zones
Ÿ Dedicated panic, fire and quick arm keys
Ÿ Silent dialing
Ÿ Power failure indication
Ÿ Battery strength display on LCD display
Ÿ Blown fuse indication on LCD display
Ÿ Last open zone status is indicated on LCD display
Ÿ GSM signal strength display
Ÿ 3 status LED – armed, power and dialing
Ÿ Automatic re-arming after an intrusion

Ÿ System goes into alarm state after three incorrect code
attempts
Ÿ Previous state (armed or disarmed) retained when panel is
re-powered
Ÿ Independent entry delay time 2 to 255 seconds
Ÿ Independent exit delay time 2 to 255 seconds
Ÿ Sounder time 2 to 20 minutes
Ÿ Non-volatile memory
Ÿ Inbuilt SMPS with short circuit, over load and thermal shut
down protection
Ÿ Inbuilt tamper switch for advanced tamper detection
Ÿ Control panel and remote keypad in premium white ABS
housing
GALAXY 4016 GSM

CONTENTS
1 GETTING STARTED 01
1-1 GET TO KNOW YOUR GALAXY 01
1-2 CONFIGURATION 03
1-2-1 PREVIOUS SETTING MODE 03
1-2-2 FACTORY SETTING MODE 04
1-3 FACTORY SETTING 05
1-4 SYSTEM STATUS 07
1-5 OPERATING PROCEDURES 07
1-6 ZONES 07
2 OPERATING PROCEDURE 1 -
THROUGH REMOTE KEY PAD 09
2-1 TO ARM THE SYSTEM 09
2-1-1 FULL ARMING 09
2-1-2 NIGHT ARMING 1 0
2-1-3 SILENT ARMING 10
2-2 TO DISARM THE SYSTEM 11
2-3 MENU OPTIONS 11
2-4 OMIT ZONES & ARM SYSTEM 12
2-5 INTRUSION LOG 14
2-6 CHANGE CODE 15
2-6-1 CHANGE ADMIN CODE (ONLY IN A6 MODEL) 15
2-6-2 CHANGE USER CODE 17
2-7 SET TIME & DATE 18
2-7-1 SET TIME 18
2-7-2 SET DATE 19

2-8 TIMER SETTING 20
2-8-1 ENTRY TIME 21
2-8-2 EXIT TIME 21
2-8-3 SOUNDER TIME 22
2-9 AUTO OPERATION 22
2-9-1 ARMING TIME 23
2-9-2 DISARMING TIME 24
2-9-3 SET HOLIDAY 24
2-10 TEXT SMS 25
2-11 BUTTONS ON THE KEY PAD 26
2-11-1 PANIC BUTTON 26
2-11-2 FIRE ALARM 26
3 OPERATING PROCEDURE 2 - THROUGH SMS 26
3-1 FULL ARM THE SYSTEM 27
3-2 DISARM THE SYSTEM 27
3-3 CHANGE THE ADMIN CODE 27
3-4 CHANGE DELAY TIME 28
3-4-1 CHANGE ENTRY TIME 28
3-4-2 CHANGE EXIT TIME 28
3-5 CHANGE SOUNDER TIME 28
3-6 SET AUTO OPERATION 29
3-6-1 SET AUTOMATIC ARMING 29
3-6-2 SET AUTOMATIC DISARMING 29
3-6-3 SET HOLIDAY 30
3-7 EDIT SCHEDULE 30
3-8 EDIT NUMBERS 31
3-8-1 EDIT INTRUSION NUMBERS 31
GALAXY 4016 GSM

3-8-2 EDIT FIRE NUMBERS 33
3-9 EDIT NAME AND ADDRESS 34
3-10 ALARM RESET 34
3-11 SOUNDER STOP 35
3-12 RECORD VOICE MESSAGE 35
3-12-1 RECORD INTRUSION VOICE MESSAGE 35
3-12-2 RECORD FIRE VOICE MESSAGE 36
3-13 PLAY VOICE MESSAGE 36
3-13-1 PLAY INTRUSION VOICE MESSAGE 36
3-13-2 PLAY FIRE VOICE MESSAGE 37
4 OPERATING PROCEDURE 3 -
THROUGH MOBILE APP 37
5 OTHER USEFUL INFORMATION 37
5-1 FORGOTTEN CODE 37
5-2 KEY PAD AND LCD LIGHTING 38
5-3 SAFETY FUSES 38
5-5 RETRIEVAL OF PREVIOUS SETTINGS 38
5-6 UNIQUE BYPASS FEATURE OF 24 HOUR
ACTIVE ZONE 39
6 TECHNICAL SPECIFICATIONS 40
7 CONNECTION DIAGRAM 42

14
15
2
3
4
5
6
7
8
9
11
10
1
16
01
BACK VIEW
1 - GETTING STARTED
1-1 GET TO KNOW YOUR GALAXY
FRONT VIEW
GALAXY 4016 GSM

02
14. Buzzer
15. Wire Opening Slots
16. Flexible Slots for Screw Mount Installation
1. On Screen LCD Display with back light
2. Armed Indication LED
3. Dialing Indication LED
4. Power Indication LED
5. Panic Button - Onboard Panic Switch
6. Full Button - For full arming
7. Enter Button
8. Next Button
9. Dial Button
10. Exit Button
11. Key Pad Cover
BACK VIEW
FRONT VIEW

1-2 CONFIGURATION
The Remote Keypad(s) must be connected to the main
control station prior to connecting it to a power supply.
When the Remote Key Pad is connected to the main
control station, the screen will display:
Press for (in the previous setting 1 PREVIOUS SETTING
mode, system will retrieve its last status of ARM/
DISARM ADMIN CODE with previous
GALAXYGALAXY GALAXY
POWER DIALING ARMED
1- PREVIOUS
SETTING
2- FACTORY
SETTING
GALAXYGALAXY GALAXY
POWER DIALING ARMED
RESTORING
PREVIOUS
SETTINGS
GALAXYGALAXY GALAXY
POWER DIALING ARMED
UPDATING DATA...
1-2-1 PREVIOUS SETTING MODE
03
GALAXY 4016 GSM

Press to , The system will reset to 2 FACTORY SETTING
Factory Setting Mode.
(In this MODE, system will reset to Factory Default
Settings.)
Note: For factory setting, please see 1-3 FACTORY
SETTING
GALAXYGALAXY GALAXY
POWER DIALING ARMED
RESTORING
FACTORY
SETTINGS
GALAXYGALAXY GALAXY
POWER DIALING ARMED
UPDATING DATA...
1-2-2 FACTORY SETTING MODE
04
The screen will display:
GALAXYGALAXY GALAXY
POWER DIALING ARMED
00:00 SUN 01 JAN

1-3 FACTORY SETTING
CODES
ENTER + USER ID + USER CODE
ENTER + UI + XXXX
UI = USER ID XXXX = USER CODE
USER IDs
User IDs are fixed and cannot be changed.
ADMIN : 00
USER 1 : 11
FACTORY SETTINGS:
ADMIN CODE : ENTER + 00 + 1234
USER 1 CODE : ENTER + 11 + 1234 (Only in A6 model)
ZONE NO DESCRIPTION USER SIREN / SILENT
Zone 1 Delay (D1) ADMIN/USER-1 SIREN / SILEN
Zone 2 Delay (D2) ADMIN/USER-1 SIREN / SILENT
Zone 3 Delay (D3) ADMIN/USER-1 SIREN / SILENT
Zone 4 Immediate (I1) ADMIN/USER-1 SIREN / SILENT
Zone 5 Immediate (I2) ADMIN/USER-1 SIREN / SILENT
Zone 6 Immediate (I3) ADMIN/USER-1 SIREN
Zone 7 Immediate (I4) ADMIN/USER-1 SIREN
Zone 8 Immediate (I5) ADMIN/USER-1 SIREN
Zone 15 Panic (P1) ADMIN SIREN
Zone 16 Panic (P2) ADMIN SIREN
Zone 17 Fire (F1) ADMIN SIREN
Zone 18 Fire (F2) ADMIN SIREN
Zone 24 Tamper (TMPR) ADMIN SIREN
GALAXY 4016 GSM A6 ZONE DETAILS
GALAXY 4016 GSM

TIMER SETTINGS
ENTRY TIME : 30 SECONDS
EXIT TIME : 30 SECONDS
SOUNDER TIME : 2 MINUTES
06
ZONE NO DESCRIPTION USER SIREN / SILENT
Zone 1 Delay (D1) ADMIN/USER-1 SIREN / SILEN
Zone 4 Immediate (I1) ADMIN/USER-1 SIREN / SILENT
Zone 15 Panic (P1) ADMIN SIREN
Zone 17 Fire (F1) ADMIN SIREN
Zone 24 Tamper (TAMP) ADMIN SIREN
GALAXY 4016 GSM A7 ZONE DETAILS
1-4 SYSTEM STATUS
DISARMED/DAY MODE
The system is in day mode when it is not armed. In this
mode, only 24 hours active zones will be actively
operational. The time, day and date will be displayed on the
remote key pad LCD screen.
ARMED MODE
The system is in the armed mode when all active* zones
are operational and can be triggered to raise an alarm.
1-5 OPERATING PROCEDURES
Galaxy panel can be operated through three procedures:
1. From the remote key pads
2. Through a SMS facility using a GSM SIM card inside the
control panel. All functions can be executed through the
remote key pads and some main functions can be
operated through the SMS facility.
3. Through Android Mobile App

1-6 ZONES
There are six types of zones in the control panel:
ENTRY/EXIT (also called Delay): An entry/exit zone will
actively raise an alarm only if the system is armed.
However, an entry / exit zone allows for a programmed
delay during which the user can enter the code and
prevent the alarm from sounding. If the user does not
enter the code in the programmed amount of time, the
alarm will sound. The main entrance is usually the
entry/exit zone so as to allow the user to enter the
premises without raising the alarm. Entry/Exit zones are
also referred to as delay zones.
IMMEDIATE: An immediate zone will actively raise an
alarm only if the system is armed. If anyone enters the
premises through an immediate zone while the system is
armed, the alarm will sound immediately. Immediate zones
usually include all the doors and windows other than the
main entry, since the user is unlikely to enter the
premises through these.
PANIC: A Panic zone is a 24 hour active zone and will raise
an alarm when the panic switch is pressed irrespective of
whether the system is armed or disarmed.
FIRE: A Fire zone is a 24 hour zone and will raise an alarm
in case a fire is detected irrespective of whether the
system is armed or disarmed.
TAMPER: A Tamper zone is a 24 hour active zone and will
raise an alarm in case of tamper violation in the panel or
sensors (if connected) and if the tamper wire is cut
irrespective of whether the system is armed or disarmed.
07
GALAXY 4016 GSM

08
Delay arming beeps will sound from the remote keypad
during the exit delay.
Once the system is armed, the screen will display:
GALAXYGALAXY GALAXY
POWER DIALING ARMED
22:30
ARMING...
SUN 01 JAN
AC
GALAXYGALAXY GALAXY
POWER DIALING ARMED
22:30
FULL ARM
SUN 01 JAN
AC
2 - OPERATING PROCEDURE 1 - THROUGH REMOTE KEY PAD
Arming options:
FULL ARM: The system is fully armed when all existing
zones have been armed.
2-1 TO ARM THE SYSTEM
Press ENTER
Press FULL
All zones will be armed and the screen will display:
2-1-1 FULL ARMING

09
GALAXY 4016 GSM
This unique feature enables you to temporarily make all
delay (entry/ exit) zones into immediate zones. In the case
that all users are within the premises when the system is
armed at night and no delay zones are required, the Night
Arming feature can be used. This feature is particularly
helpful when the system is installed in a residence.
Full Night Arming:
Press ENTER
Press FULL
Press NIGHT/9
All zones will be armed and all delay zones will temporarily
become immediate zones and the screen will display:
GALAXYGALAXY GALAXY
POWER DIALING ARMED
22:30
FULL ARM
MON 01 JAN
AC
2-1-2 NIGHT ARMING
2-1-3 SILENT ARMING
If the delay arming beeps are not required, They can be
silenced. The system will arm itself silently ending with a
long ending beep to indicate the system is armed.
Full Silent Arming:
Press ENTER
Press FULL
Press 6 / SILENT

10
GALAXYGALAXY GALAXY
POWER DIALING ARMED
22:30
FULL ARM
MON 01 JAN
AC
2-2 TO DISARM THE SYSTEM
Press to disarm all zonesENTER+00ADMIN CODE
Important : If the system is in alarm state,
ENTER+00ADMIN CODE has to be entered twice. The
first time will switch off the sounders. The second time will
stop the automatic speech dialer. Therefore, if you wish to
stop the sounders but want the speech dialer to continue
calling the programmed numbers, enter the code only
once.
Note: The control panel will only accept the admin code
once the first number has been dialed.
2-3 MENU OPTIONS
To access the Menu, Press ENTER+ 00ADMIN CODE
The admin code is used to program the entire system as
well as fully disarm it.
The following options are the main menu options.
OMIT ZONES & ARM SYSTEM
INTRUSION LOG
All the zones will be armed silently and the screen will
display :

11
GALAXY 4016 GSM
CHANGE CODE
SET TIME & DATE
TIMER SETTING
AUTO OPERATION
PLAY & RECORD MESSAGES
To select a menu option, scroll down using the NEXT
button and press ENTER
To skip and go to the next menu option press NEXT
To skip and go to the previous menu option press 0
To exit the menu and return to Day Mode, press EXIT
This option allows you to omit zones temporarily and arm
the system.
GALAXYGALAXY GALAXY
POWER DIALING ARMED
OMIT ZONES
& ARM SYSTEM
2-4 OMIT ZONES & ARM SYSTEM
Press ENTER
GALAXYGALAXY GALAXY
POWER DIALING ARMED
SELECT WINDOW
1 - ZN 01 - 15
2 - ZN 16 - 30
3 - ZN 31 - 40
