Sensa Sound THX Select Series User manual

TP800F user's manual
@SensaSound USA LLC. ALL RIGHTS RESERVED www.sensasound.com Warren, New Jersey, USA

TABLE OF CONTENTS
Preface
Cautions
Unpacking Instruction
Important Safety Notice
Product Features
About THX and THX Select Certication
Supplied Accessories
Connection and Installation
Golden Rule Placement
Specications
Warranty

SensaSound USA LLC TP800F user's manual 1
Dear Valued Customer,
Thank you for your purchasing of SensaSound Professional THX Select Certified TP800F Series Speakers.
You are about to experience the beauty and charm of nature sound with the latest advancements in
sound technology. Before you unpack and install the product, we encourage you to read through this
user’s manual to learn all the features and capabilities of your new speakers. From correct system
connection, placement and optimized performance, this manual will guide you through from the beginning
to the end. Should you still have any questions about the products, please contact your local dealer or
directly contact us about your inquiry. Welcome to our SensaSound family, it is time to enjoy your home
entertainment!
SENSASOUND TEAM
This symbol warns the presence of dangerous voltage inside the enclosure. There is a high risk of
electric shock if the product is opened at which the symbol appears. Please follow all instructions
specified in this manual.
1. Before unpacking the box, check the integrity of the package and ensure that there is no visual signs
of damage. Otherwise you should consult your SensaSound dealer before you start the installation.
2. When unpacking the box, handle with care in order to avoid any damage to the product.
3. Keep the original carton for future shipping.
Preface
Cautions
Unpacking Instruction

SensaSound USA LLC TP800F user's manual 2
Read and follow these instructions:
1. Do not use the speakers anywhere near water or in any wet environment.
2. Clean the speakers only with a dry cloth.
3. Keep the speakers away from any sources that produce heat.
4. The speakers should be properly installed so that its location or position does not block any ventilation
openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet which may
impede the air flow.
5. Power cords should be protected so that they are not likely to be walked on or pinched especially near
the plugs, convenience receptacles, and the point where they exit from the speakers.
6. Do not defeat the safety purpose of the polarized or grounding-type plug.
7. Only use accessories that are specified by the manufacturer.
8. In order to prevent the damage to the product during lightning or power-line surges, unplug the
speakers from wall outlet.
9. Use the appropriate shipping tools when moving the speakers to avoid the injury from tip-over and
fall-off.
10. Do not overload wall outlet and extension cords in order to avoid the risk of fire or electric shock.
11. Ask for service assistance from qualified personnel when the speaker has been damaged, such as
damage to the supply cord or plug, liquid spillage into the speaker, damage to the speaker from fallen
objects, significant change in performance, malfunctions or water exposure etc.
12. Unplug the power cord from the speaker when unused for a period of time.
13. The objects which are filled with water, such as vases, should not be placed on the speaker.
14. Do not place the speaker on unstable stand, shelf, bracket or table. This may cause a serious injury
and product damage. Please follow all instructions in this manual.
Important: Turn off all equipment before you making any connection.
Important Safety Notice

SensaSound USA LLC TP800F user's manual 3
THX Select Certified
TP800F passed over 500 THX laboratory tests ensure full impact experiences in living rooms and home
theaters of all sizes; THX Reference Level matches the exact volume level used in the mix room by the
sound designer so that you hear precisely what the artist hears.
Controlled directivity
Function well both as LR and center channel and can also used as a direct radiating surround speaker,
to ensure the highest performance of the whole system while have no compromise on the installation.
Advanced tweeter and woofer design
Fully leverage the world-class unit engineering technology. All tweeters use the most advanced Danish
engineered tweeters and all woofers use the cutting-edge US engineering technology.
Special high transparency grill
All speakers use high transparency grill design to improve details that participate in obtaining low
resonance frequency, low distortion and very high frequency extension.
Computer optimized asymmetrical crossover
To compensate the inter driver time delay and achieve the highest balanced performance of the system
as a whole.
Product Features

SensaSound USA LLC TP800F user's manual 4
THX , standing for “Tomlinson Holman’s eXperiment,”, is an American high-delity audio/visual reproduction standard
and certication system, developed by the sound technicians behind the Star Wars movies, by its namesake at
Lucaslm studios. They have developed a series of certications for movie theaters, screening rooms, home
theaters, computer and car audio systems etc.
THX certication is an assurance to consumers of uncompromised quality, best-in-class performance and
consistency. In order to get THX Certied, all products need to go through the industry’s most rigorous performance
testing in order to meet the highest qualications for quality.
THX Select is specied and designed for home theaters or living rooms capable of THX reference Level in a room
up to 2,000 cubic feet. In order to get THX Select Certied, all speakers need to go though continuous output tests
and the dynamic tests. All in all, THX Certication is a guarantee that products truthfully deliver the artist’s intention.
Important: Turn off all equipments before you making any connection.
Properly connect the system for achieving the best performance. If possible, choose the highest quality
cable within your budget. You need thicker cable for longer runs.
You have several options for connection. SensaSound Gold-Plated binding post is easily matched to
different connectors such as bare wire, banana plugs, flat cable, round cable and spade lugs. Commonly
we recommend to use bare wire or banana plugs.
About THX and THX Select Certication
Supplied Accessories
Connection and Installation
Glove 1
User‘s Manual 1
Warranty Card 1
Sponge 1
Spikes 4

SensaSound USA LLC TP800F user's manual 5
1.If you choose to use bare wire, first separate your wire into two pieces and strip ½” of insulating layer
off from the end of each wire.
2.Twist the exposed copper strands until they are tightly unified.
3.Unscrew the binding posts cap in a counter-clockwise direction.
4.Insert the bare speaker wire into the hole of binding post and tighten it in a turning-clockwise direction.
Make sure that you will not insert the insulation section into the hole as it may interfere the connection.
5.Note that there is a red (+) and a black (-) terminal on the rear of each speaker. Make sure that you
connect the positive (+) terminal of your amplifier or receiver to the red (+) terminal on your speaker, and
connect the negative (-) terminal of your amplifier or receiver to the black (-) terminal on your speaker.
If you prefer to have a flexible location with different speakers, you can choose banana plugs connection
for a convenient connect and disconnect.
1.Most banana plugs has obvious color-coding for red (+) indicates positive terminal and black (-)
indicates negative terminal.
2.Insert the banana plugs respectively into the right end of binding posts on rear of speaker.
3.Make sure that the banana plugs are completely connected with the binding posts.
4.Connect the positive (+) terminal of your amplifier or receiver to the positive(+) terminal on
Bare Wire
Banana Plugs

SensaSound USA LLC TP800F user's manual 6
Single wiring is the most conventional connection.
1. Keep the terminal links in place, you can also use
bare wire to link the terminal.
2. Just connect one pair of terminals to the amplifier.
Always make sure the connection consistency of
terminal polarity.
There are 2 pairs of binding posts on the rear of TP800F so you can have several connected options.
Bi-wiring can improve the low-level details and overall
transparency.
1.Remove the terminal links from the speakers.
2.Connect one set of speaker wires to the upper
terminals on speaker and one set to the lower
terminals on speaker. Connect them independently to
the amplifier output.
Bi-amping allows you to use two amplifiers for greater
dynamics.
1.Remove the terminal links from the speakers.
2.Connect the upper set terminals on speaker to one
amplifier output and follow the same principle to do the
lower set terminals on speaker. We recommend you to
use identical amplifiers and identical gains.
1.Enter into the receiver’s setup menu and go to “speaker setup”. Select “small” for surround and center
speakers, and select “large” for floor standing speakers.
2.Choose the proper crossover point according to your speaker specification.
3.In the speaker distance menu, you should measure the distance between your speakers and your
mainly listening position, then input the distance into the menu.
4.When you set up the volume level menu, you should adjust the volume level carefully until each
speaker is at the same loudness and at a comfortable listening volume. A SPL meter can help you do the
setup more accurate.
Single–Wiring
Bi-Wiring
Bi-Amping
System Set Up

SensaSound USA LLC TP800F user's manual 7
1.If your AV receiver supports Dolby Atmos technology, you can upgrade your home theater system into Dolby
Atmos 7.1.2 or Dolby Atmos 7.1.4 system.
2.Dolby Atmos system is exible for surround speaker placement. This system can deliver a much greater enveloped
sound eld by adding surround speakers into the ceilings.
3.The theater room ceiling should be at with no arches, edges or corners for a smooth response.
4.The ceiling height is ideal between 94” to 106” for a best audio performance.
1.The front speakers should always be kept at the same horizontal level with the audience ear height, if not,
then they should be kept their height difference at least within 24”. This is because man’s ear is more sensitive
to horizontal position rather than vertical position.
2.Do not place any sofa or furniture between the speakers and listening positions.
3.For surround speakers, the best height is above 26” from listener's ears which is generally 70”to 80”above
the ground.
4.Surround speakers should form a 90°-110° angle to center speaker, while the rear speakers form a 135°-
150° angle to the center speaker.

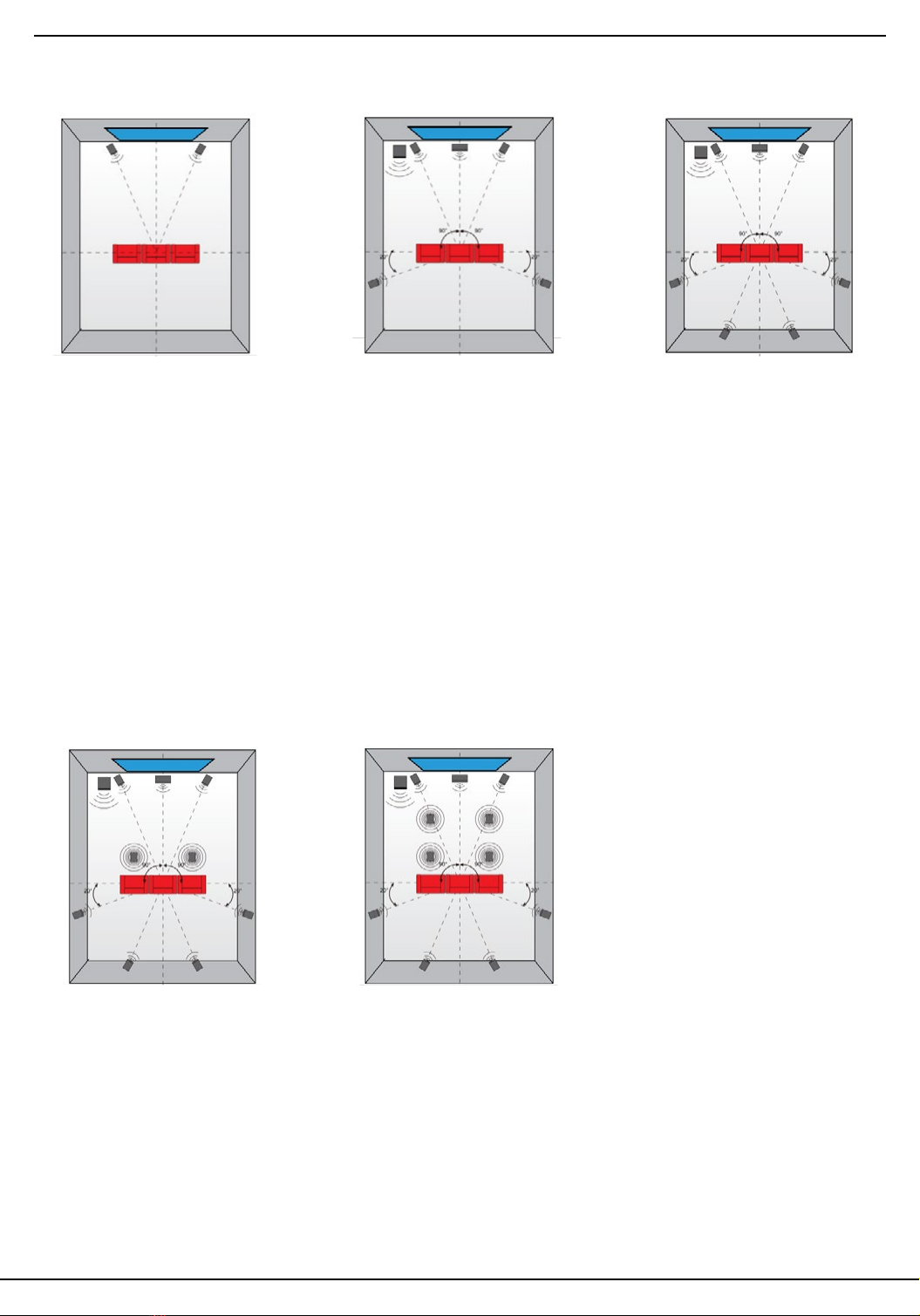

Golden Rule Placement
Dolby Atmos Placement
HiFi Stereo
Dolby Atmos 7.1.2
Home Theater 5.1
Dolby Atmos 7.1.4
Home Theater 7.1

SensaSound USA LLC TP800F user's manual 8
TP800F Series Specication
Frequency Response.......................................................................................................70Hz~20KHz
Impedance.....................................................................................................................................4Ω
Sensitivity...................................................................................................................................89dB
Recommend Power......................................................................................................................80W
Max Power.................................................................................................................................160W
Crossover................................................................................................................................2.0KHz
Tweeter.....................................................................................................................1.2” Silk Tweeter
Woofer.........................................................................................................................5.25” P.P Cone
Enclosure Type.........................................................................................................Sealed Enclosure
Dimensions (W*H*D)..............................................................7.28"*46"*8.46" (18.5cm*117cm*21.5cm)
Weight......................................................................................................................41.9 lbs(19.0 Kg)

SensaSound USA LLC TP800F user's manual 9
We promise that all SensaSound products are elaborately designed and manufactured with the most strict quality
requirements. Under normal use we warranty them free from defects in materials and workmanship for 1 year from
the original purchase date. The warranty for TP800F is valid for 3 years.
If any defects in materials and workmanship occur within the limited warranty period, you can get immediate help
from the following ways:
Contact the dealer from whom you purchased the product
Or you can send an email to [e-mail]
However, after the warranty period, you will be responsible for the charges incurred from spare parts, labor service
and shipments, etc.
No matter which way you choose to obtain the service, we need the information of model, serial number, original
purchase date and detailed problem description from you. Once we have conrmed that any parts need to be
repaired or replaced, it is required that you carry or send your products to the SensaSound dealer where you bought
them. Please note, that we also need your warranty card and purchase proof, so keep them in a secured place after
your purchasing of SensaSound products.
Important:
Please do not entrust any repair work to unauthorized person or party. Only the authorized SensaSound dealers
and distributors can provide the original components necessary for servicing the products. We do not warranty any
service to any modied parts that are not from authorized ways.
Warranty does not include (but are not necessarily limited to) :
·Those caused by force majeure and acts of nature.
·Damages caused by any use other than correct use described in the user manual.
·Damage caused by improper installation, adjustment or was installed in seal up environment.
·Damage caused by shipment other than arranged by SensaSound.
·Bought, repaired, modied or use of parts that are not made or authorized by SensaSound.
·If the serial number has been altered, defaced or removed.
·For deterioration of component parts, the nature of which is to become worn or depleted with use.
Shipping charge:
If the repairs are covered by the warranty, you need to pay for the charge incurred from sending the product to the
maintenance point, and SensaSound will pay for the return shipping charge. We provide all support and guidance
to make sure the process moves smoothly.
Warranty

SensaSound USA LLC TP800F user's manual 10

SensaSound USA LLC
P.O. Box 4137, Warren, NJ 07059, USA
www.sensasound.com
