Server Racks Australia LKD-15X User manual

PACKING LIST
The complete LKD-151TP/ 151TB package consists of:
One 1U 19” rack mount console
Rear mounting kit
¾2 x short L brackets
¾2 x long L brackets
¾2 x short extending bracket
¾2 x long extending brackets
¾2 x supporting bracket
2 x PS/2 cables & 1 x VGA cable
1 x power cord
2 x Key to lock / screw pack
The complete LKD-158TP/ 158TB package consists of:
One 1U 19” rack mount console-
Rear mounting kit
¾2 x short L brackets
¾2 x long L brackets
¾2 x short extending bracket
¾2 x long extending brackets
¾2 x supporting bracket
1 x 1.8m KVM cable: 3 in 1 cable ---PS/2 mouse, PS/2 keyboard, DB 15 VGA;
DB25 VGA male to console.
1 x power cord
2 x Key to lock/ screw pack
Check to make sure that the unit was not damaged in shipping. If you encounter a
problem, contact your dealer.
Please read this manual thoroughly, and follow the installation and operation
procedures carefully to prevent any damage to the LKD-15X, and/or any of the
devices that connect to it.

LKD-15X User Manual
1
SAFETY INSTRUCTIONS
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Don’t use
liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for
cleaning.
4. For pluggable equipment, the socked-outlet shall be installed near the equipment
and shall be easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment on a reliable surface when install. A drop or fall could cause
injury.
7. Do not leave this equipment in an environment unconditioned, storage
temperature above 40º C, it may damage the equipment.
8. The opening on the enclosure are for air convection hence the equipment from
overheating. DO NOT COVER THE OPENING.
9. Make sure the voltage of the power source connect the equipment to the power
outlet.
10. Please the power cord such a way that people can not step on it. Do not place
anything over power cord. The power cord must rated fro the voltage and current
marked on the product’s electrical ratings lable. The voltage and current rating of
the cord should be greater than the voltage and the current rating marked on the
product.
11. All cautions and warning on the equipment should be noted.
12. If the equipment is not in use for long time, disconnect the equipment from mains
to avoid being damaged by transient over-voltage.
13. Never pour any liquid into ventilation openings, this could cause fire or electrical
shock.
14. Never open the equipment. For safety reason, qualified service personnel should
only open the equipment.
15. If one of the following situations arises, get the equipment checked by service
personnel.

LKD-15X User Manual
2
The Power Cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you can not get it work according
to User’s Manual.
The equipment has dropped and damaged.
If the equipment has obvious signs or breakage.
16. Never open the equipment. For safety reason, qualified service personnel should
only open the equipment.

LKD-15X User Manual
3
INDEX OF CONTENTS
PACKING LIST.........................................................................................................................................0
SAFETY INSTRUCTIONS........................................................................................................................1
INDEX OF CONTENTS.............................................................................................................................3
CHAPTER 1 GENERAL INFORMATION..............................................................................................6
1.1 Overview ...................................................................................................................6
1.2 Product Specification.................................................................................................7
1.3 Hardware Requirement..............................................................................................9

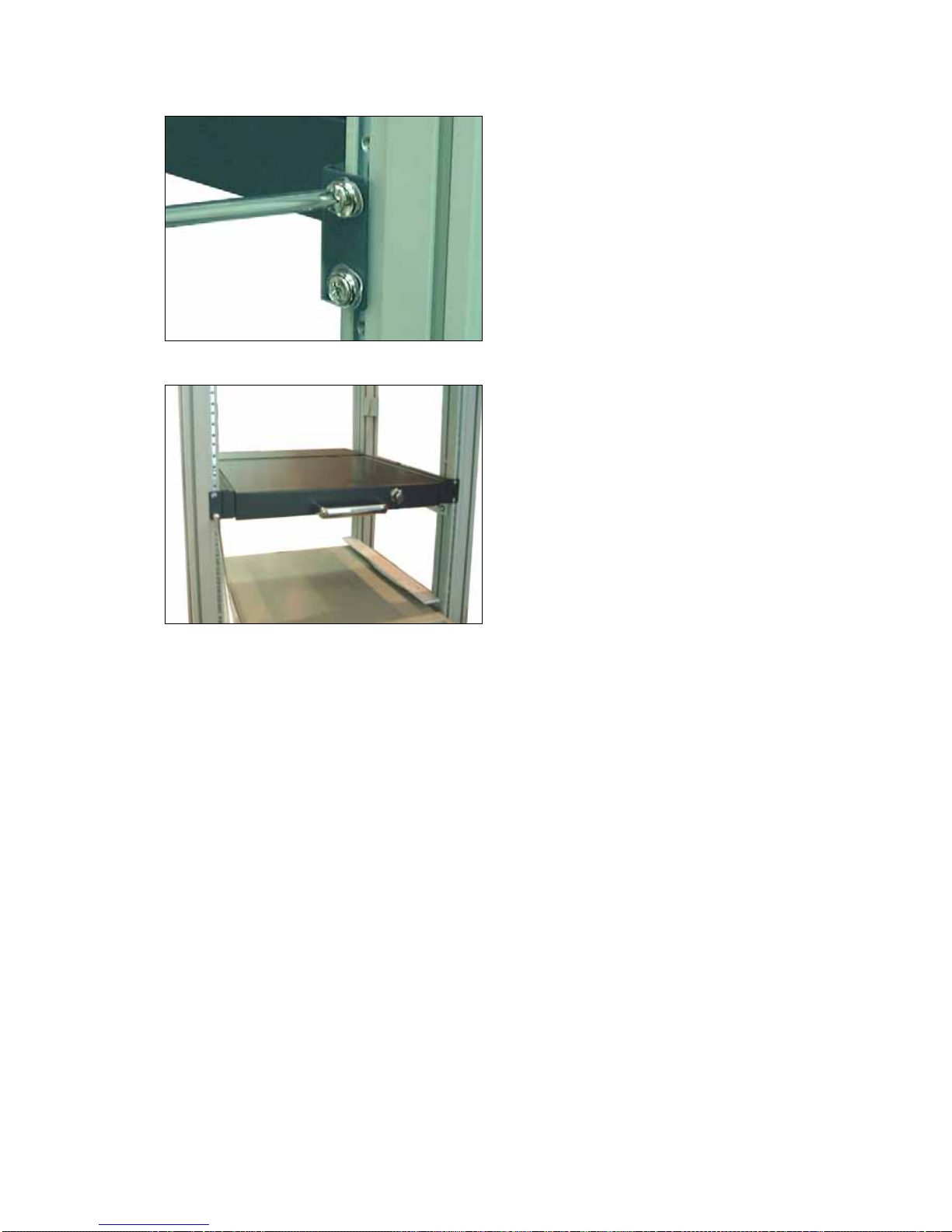

1.4 Mounting the unit to your cabinet ...........................................................................10
1.4.1 Mounting the LKD-15X into 750 mm cabinets...........................................................11
1.4.2 Mounting the LKD-15X into 900 mm cabinets...........................................................12
CHAPTER 2 15” MATRIX LCD FLAT PANEL....................................................................................13
2.1 Introduction.............................................................................................................13
2.1.1 Specifications.............................................................................................................13
2.1.2 Factory Preset Timing for Reference.........................................................................14
2.2 Panel Controls and OSD Functions ........................................................................14
2.2.1 Auto tune....................................................................................................................14

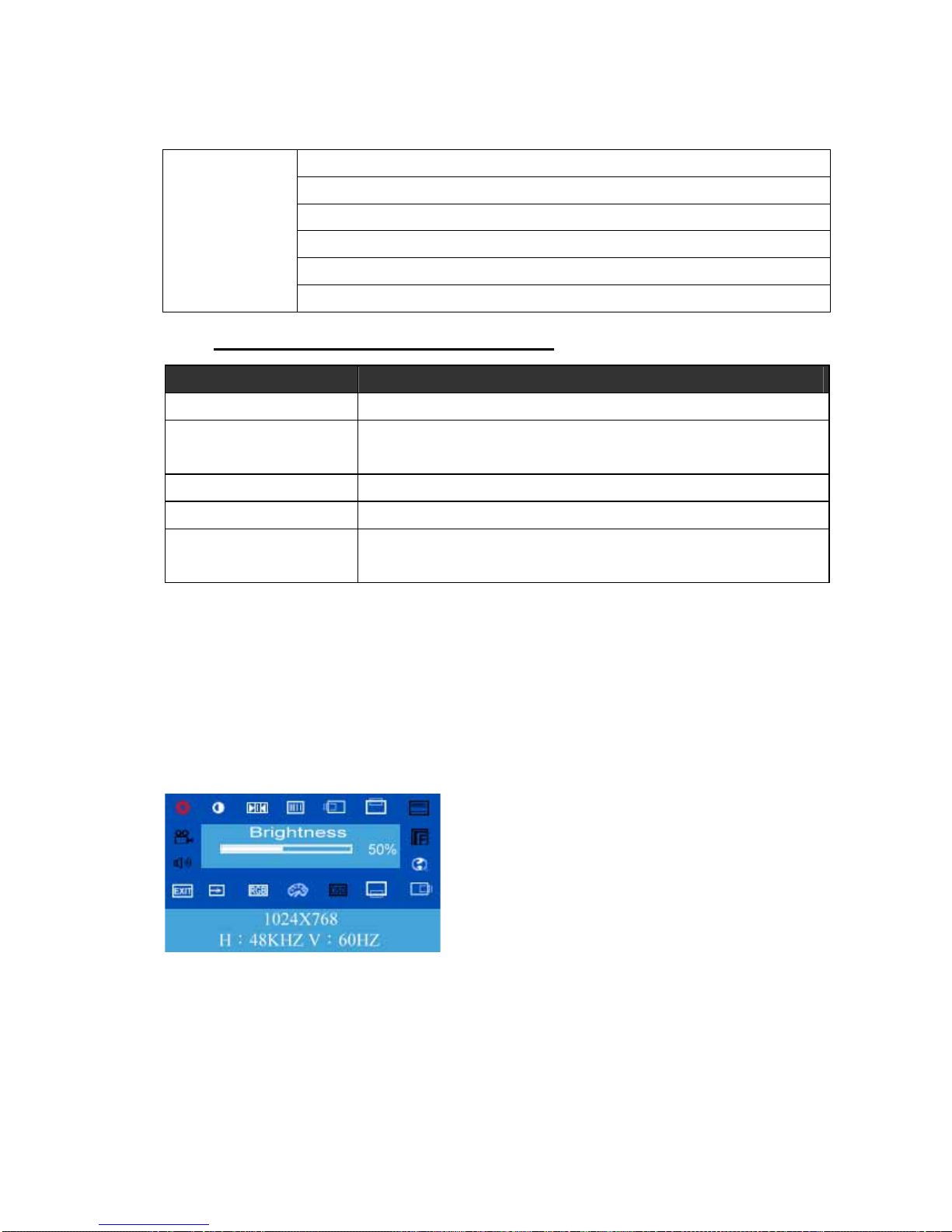

2.2.2 Brightness..................................................................................................................14

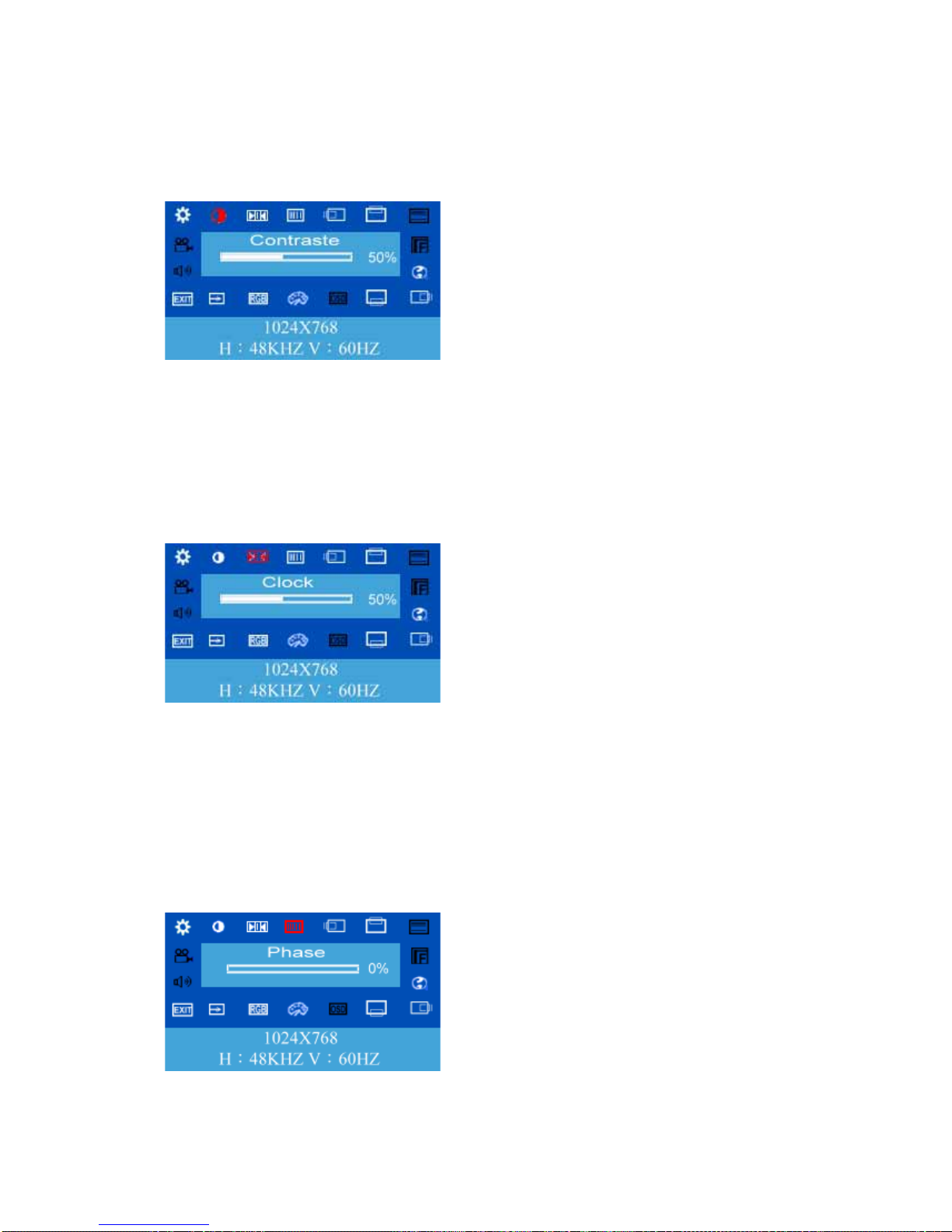

2.2.3 Contrast .....................................................................................................................15
2.2.4 Clock.........................................................................................................................15
2.2.5 Phase.........................................................................................................................15
2.2.6 Horizontal Position.....................................................................................................16
2.2.7 Vertical Position.........................................................................................................16
2.2.8 OSD Language..........................................................................................................16

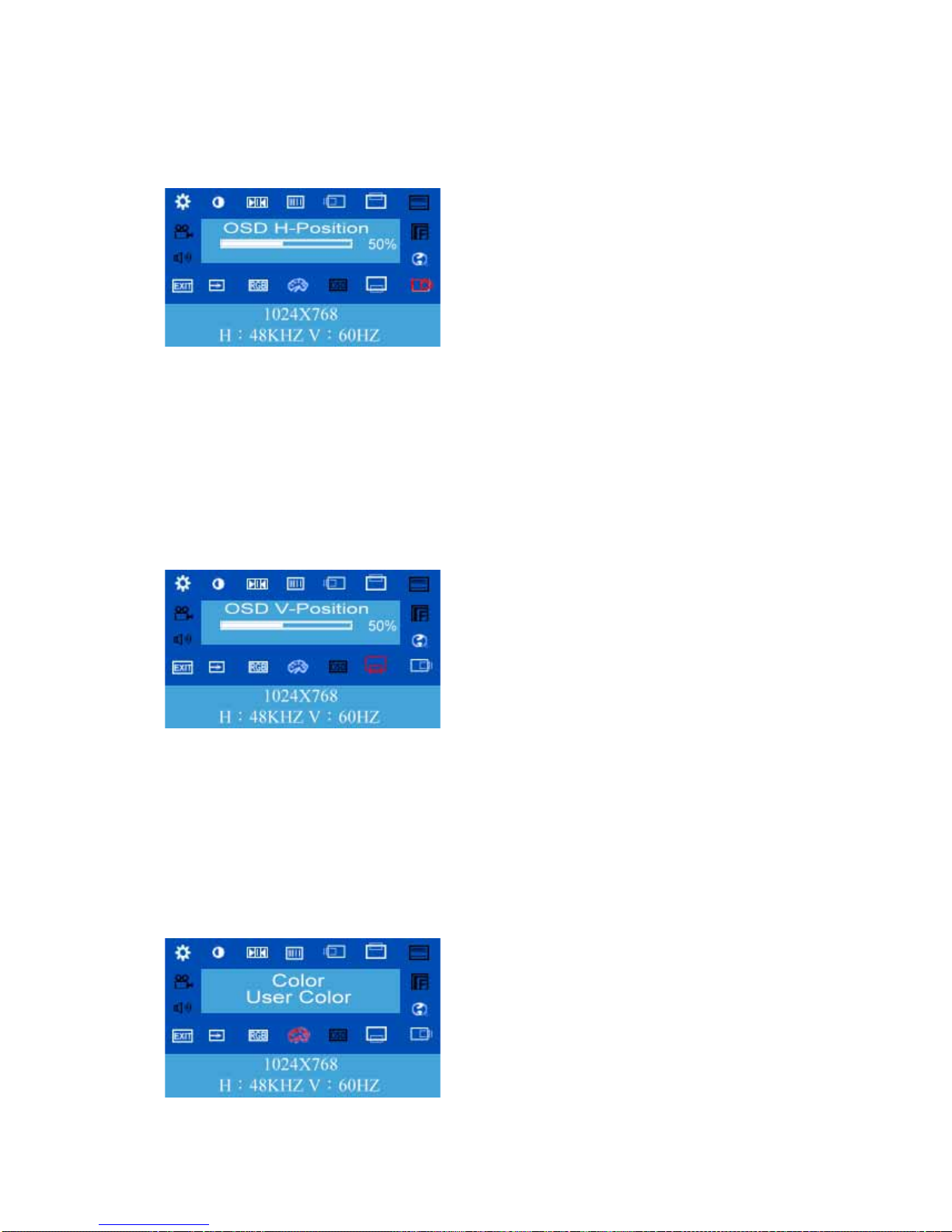

2.2.9 OSD H-Position .........................................................................................................17

LKD-15X User Manual
4
2.2.10 OSD V-Position........................................................................................................17

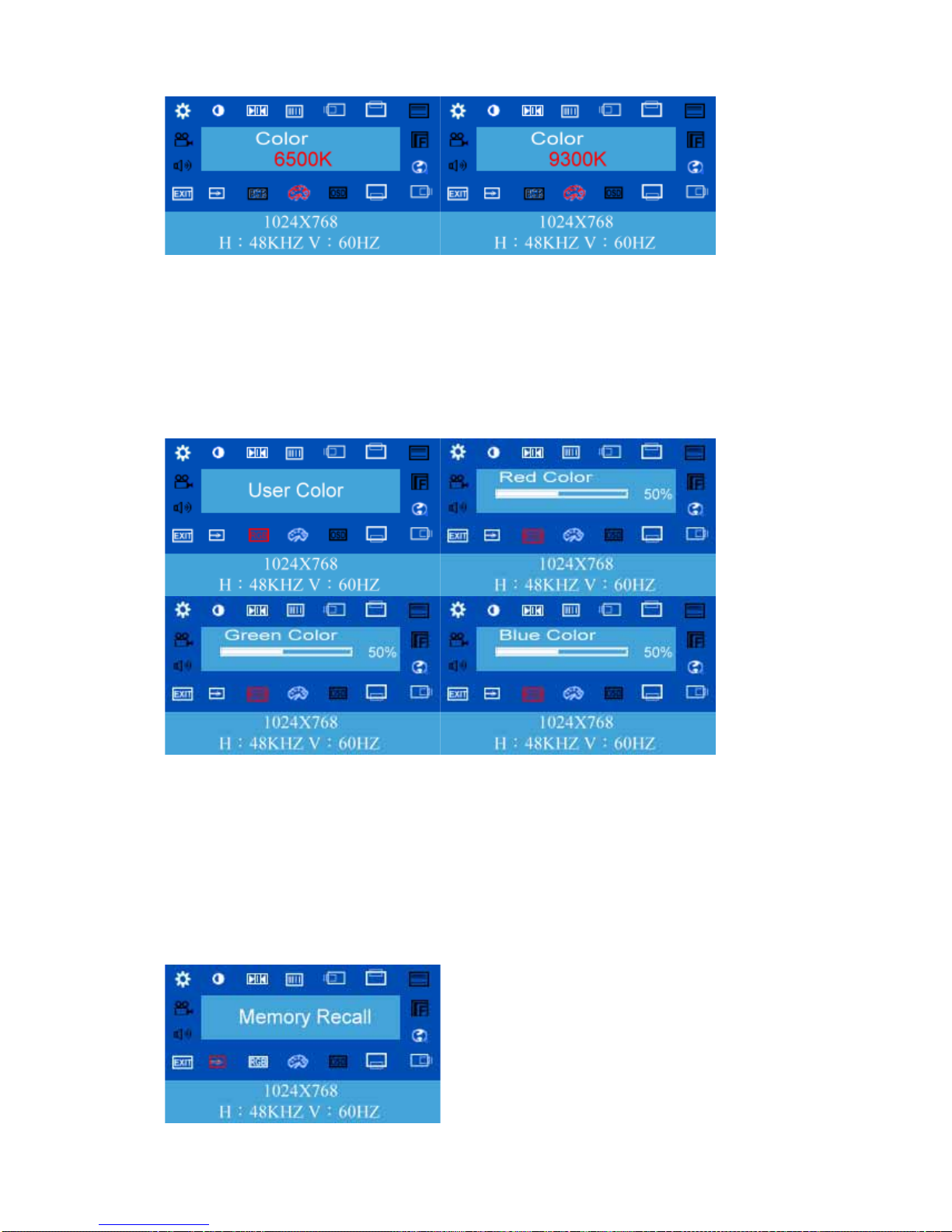

2.2.11 Switch Color.............................................................................................................17
2.2.12 Set User Color..........................................................................................................18
2.2.13 Memory Recall .........................................................................................................18

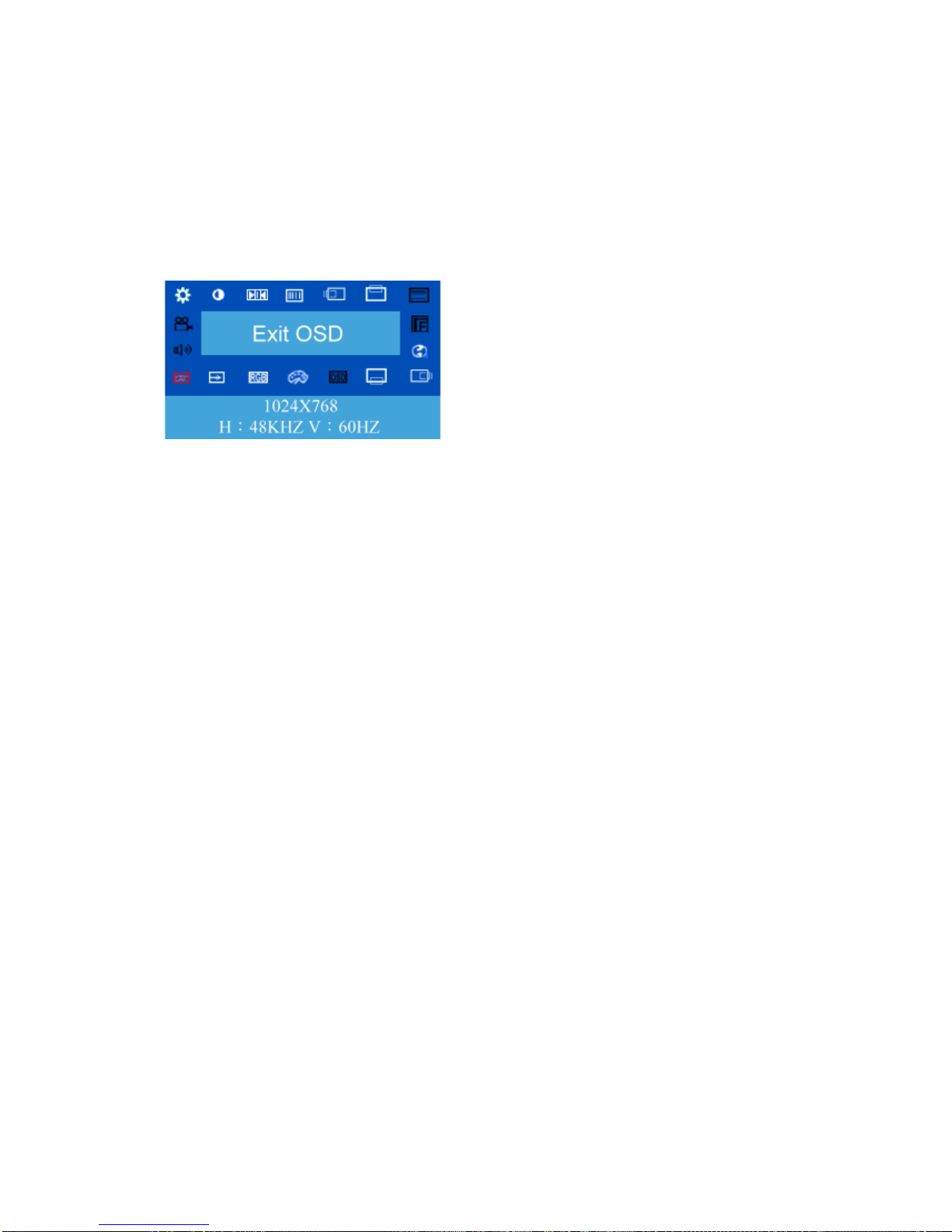

2.2.14 Exit OSD...................................................................................................................19
CHAPTER 3 INSTALLATION.................................................................................................................20
3.1 Installing the Video Card and Video Driver...........................................................20
3.1.1 Configuring the Display Settings ...............................................................................20
3.2 Connecting the Drawer...........................................................................................21
3.3 Turning On the Drawer...........................................................................................21
3.4 Testing the Drawer..................................................................................................22
CHAPTER 4 TOUCH SCREEN (LKD-151T)..........................................................................................23
4.1 Installation of LKD-151T.......................................................................................23
4.1.1 Software installation for Win95/98.............................................................................23
4.1.2 Software installation for DOS and Win 3.1................................................................25
4.2 Basic Touchscreen Operation.................................................................................27
4.2.1 Opening menu...........................................................................................................27
4.2.2 Single tapping............................................................................................................27
4.2.3 Double tapping...........................................................................................................27
4.2.4 Dragging ....................................................................................................................27
4.2.5 Right clicking..............................................................................................................27
CHAPTER 5 KVM Switch (LKD-158 only) .........................................................................................28
5.1 Features...................................................................................................................28
5.2 Installation of LKD--158 ........................................................................................28
5.2.1 Before You Begin.......................................................................................................28
5.2.2 Single Station Installation ..........................................................................................29
5.2.3 Two Station & Three Installation................................................................................29

LKD-15X User Manual
5
5.2.4 Front View..................................................................................................................30
5.3 Hot Plugging...........................................................................................................30
5.3.1 Powering Off and Restarting......................................................................................31
5.3.2 Port Selection ............................................................................................................31
5.4 Port ID Numbering .................................................................................................32
5.4.1 Overview....................................................................................................................32
5.4.2 Port Key In Examples:...............................................................................................32
5.4.3 Hotkey Summary Table.............................................................................................32
5.5 OSD Operation .......................................................................................................32
5.5.1 Overview....................................................................................................................32
5.5.2 OSD Navigation.........................................................................................................33
5.5.3 Hotkey Navigation......................................................................................................33
5.5.4 OSD Main Menu Headings:.......................................................................................34
5.5.5 The Function Keys:....................................................................................................34
5.5.6 Factory Default Settings ............................................................................................38
5.5.7 OSD Security.............................................................................................................38
5.6 Trouble Shooting.....................................................................................................40

LKD-15X User Manual
6
CHAPTER 1 GENERAL INFORMATION
1.1 Overview

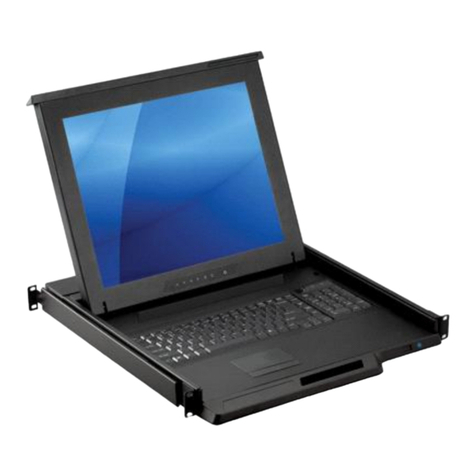

The LKD-15X is an ideal solution for network administration with multiple servers /
platforms. Their 15-inch large size TFT LCD color display and ultra-low-profile
compact industrial keyboard / trackball provide the user-friendliest and most reliable
environment for network administrators. All these functions are integrated in a 19-inch
1U space with rugged construction design to achieve ultra space saving and high
reliability for high quality industrial/network applications.
The built-in KVM switch of the LKD-158 enables easy accessibility to 8 servers /
platforms and supports PS/2 keyboard, PS/2 mouse, and DB15 VGA with eight DB25
connectors. By cascading function, it can connect up to 512 computers or servers.
The LKD-15X monitor / keyboard drawers provide superior picture quality and
state-of-the-art features mounted in an industrial grade, rack mount drawer. The
drawer forms a rugged enclosure that protects the monitor from industrial hazards and
permits easy access to monitor controls.
The LKD-15X monitors provide flicker-free color images at optimal resolutions. The
monitors’ 0.297mm pixel pitch ensures crisp images with clear definition, even at high
resolutions. The LKD-15X monitors are intelligent, microprocessor-based, and have
an ergonomically designed display.
The LKD-15X monitors employ the latest in active matrix thin film transistor (TFT)
technology, providing crisp screen images and wide viewing angles. Unlike CRT
monitors, LCD monitors are inherently immune to the magnetic fields commonly found
on the plant floor or communications centers. LCDs are also typically brighter than
conventional CRT technology, making them ideal for the high ambient lighting
conditions found in many of today's factory environments. On-screen menus allow for
display adjustments. In addition, the monitors' Plug-n-Play+ features support
Windows 95/98 and NT, while a universal power supply ensures global applicability.
The LKD-15X monitors are compatible with most analog RGB (red, green, blue)
display standards, including PS/V, PS/2, optional for Apple Macintosh Centris,
Quadra, and Macintosh II family signals. The LCD monitor is capable of displaying
crisp and vibrant color graphics with VGA, SVGA, XGA (non-interlaced), and most
Macintosh compatible color video cards.

LKD-15X User Manual
7
1.2 Product Specification
Standard Meets EIA RS-310C 1U 19” rack mount standard
Dimension (H x W x D) 44 x 440 x 492 (mm)
LCD Panel 15” Active-Matrix TFT LCD
Anti-reflection Glass for
LCD 2 x 249 x 333 (mm)
Maximum Resolution 1024 x 768 pixels
Input signal format RGB Analog Video
Display control Auto Tune, Brightness, Contrast, Color, Quality, Position,
Language, Recall
Keyboard PS/2, (87 + 17) keys (US version) or other requested
version
Trackball PS/2, High-quality 16 mm trackball
Gross Weight 17 Kg
Certification CE, FCC

LKD-15X User Manual
8

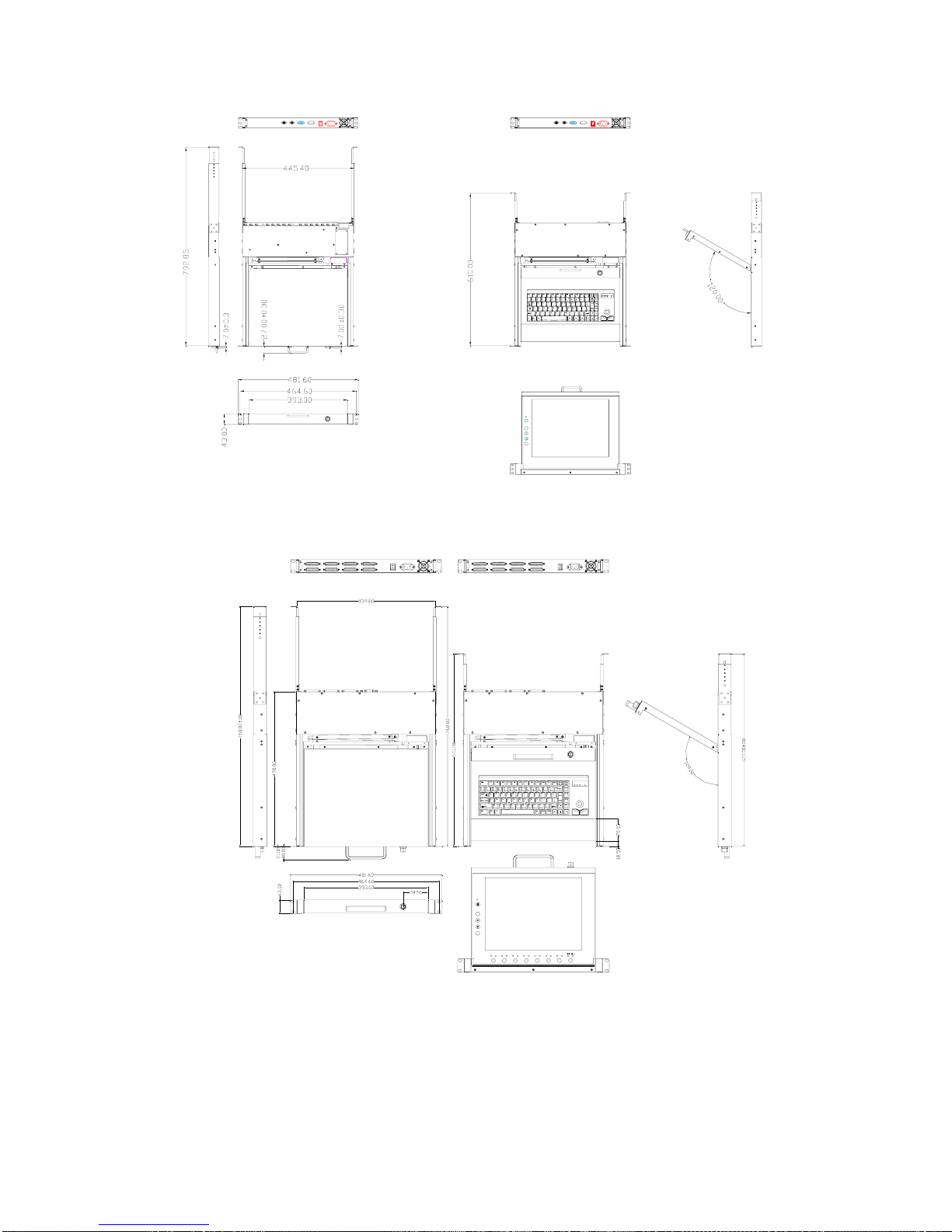

TOUCHPANEL KEYBOARDMOUSEVGAAC/IN 90V ~264V POW ER O N/OF F
MENU
AUTO
POWERON/OFF KEYBOARDMOUSEVGATOUCHPANELAC/IN90V~264V
The LKD-151 Series
The LKD-158 Series
Num Caps Scroll Pad
SYSTEM5
SYSTEM1
AC/IN90V~264VPOWERON/OFF
SYSTEM8
SYSTEM4
SYSTEM7
SYSTEM3
SYSTEM6
SYSTEM2
SYSTEM5
SYSTEM1
AC/IN90V~264V
SYSTEM6
SYSTEM2
SYSTEM7
SYSTEM3
SYSTEM8
SYSTEM4
POWERON/OFF
1
MENU
AUTO
62345 7 8

LKD-15X User Manual
9
1.3 Hardware Requirement
Computers
Your PC must have a VGA, SVGA, or Multi sync video card and video driver already
installed for the monitor. If you need to install a video card or a video driver, refer to
your computer documentation for instructions.
Your Macintosh will require a “mac adapter” for video.
Your computer must have a 6-pin mini-DIN (PS/2 style), mouse port
Your computer must have a 6-pin mini-DIN (PS/2 Style) keyboard port with +5V
DC on pin 4 and and Ground on pin 3.
KVM Cables
For optimum signal integrity and to simplify the layout, we strongly recommend that
you use the following high quality custom cable sets:
PS/2 (6 pin mini-DIN) Keyboard and Mouse, VGA
(15 pin HDB) 2L-1601P, 2L-1603P, 2L-1605P, 2L-1610P
Daisy Chain LKD-158 and other KVM switches 2L-1601P, 2L-1603P,
2L-1605P, 2L-1610P

LKD-15X User Manual
10
1.4 Mounting the unit to your cabinet
The unit is designed for standard 700mm ~900mm cabinets*. You may find the rear
mounting kit in the carton.
Please use the following combination (or more combination rather than below two) to
fit in different cabinets.
For 750mm cabinets
Short L-bracket x 2
Extended bracket x 2
Supporting bracket x 2
For 900mm cabinets
Long L-bracket x 2
Long Extended bracket x 2
Supporting bracket x 2

LKD-15X User Manual
11

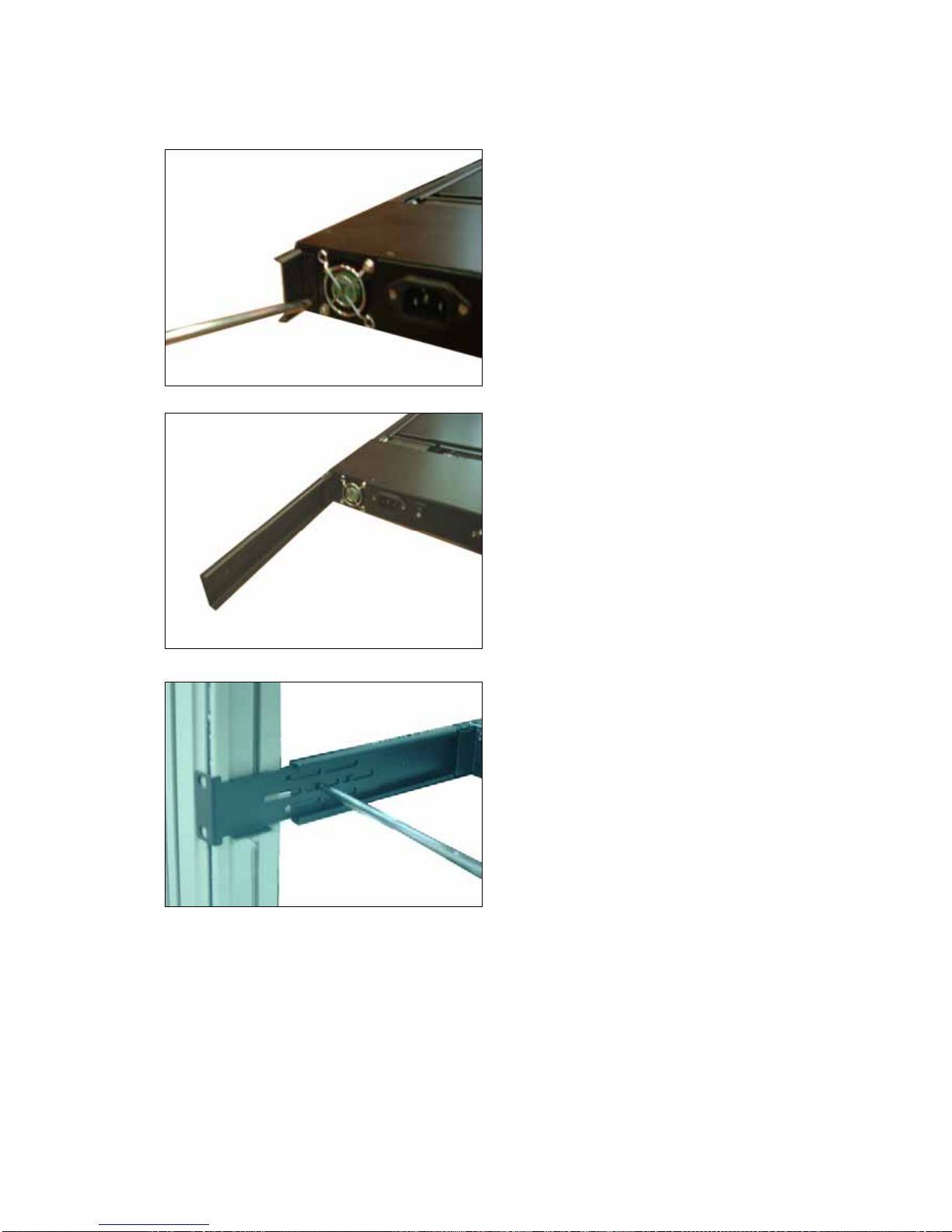

1.4.1 Mounting the LKD-15X into 750 mm cabinets
1. Fasten the supporting brackets
with the chassis.
2. Fasten the extended brackets
with the supporting brackets
and the chassis.
3. Screw the L brackets with the
extended brackets. Adjust the
length of L brackets according
to your needs.

LKD-15X User Manual
12
4. Mount the brackets to the
cabinet loosely.
5. Fasten the front screws and
the rear ones.
1.4.2 Mounting the LKD-15X into 900 mm cabinets
Follow the same procedure as mounting the LKD-15X into the 900 mm cabinet, but
exchange the short L-brackets with the long L-brackets.

LKD-15X User Manual
13
CHAPTER 2 15” MATRIX LCD FLAT PANEL
2.1 Introduction
2.1.1 Specifications
Screen Type TFT LCD
Display Area 304.128mm(H) ×228.096mm(V)
Contrast Ratio 350:1
ViewingAngle Up/down: 100 degree
Left/right:120 degree
Number of pixels 1024 ×768
Pixel pitch (H x W) 0.297mm ×0.297mm
Response Time Rising/ Falling: 20 ms
Brightness 260cd/m2
Panel Color 16.7M
LCD
Back Light 2 Lamps
Power Management VESA DPMS
Plug ＆Play DDC1 ＆DDC2B
Power Consumption 24 watts
Power Supply
Power saving VESADPMS Standard, EPA/Energy
Star compliant
Regulations CE, FCC

LKD-15X User Manual
14
2.1.2 Factory Preset Timing for Reference
VGA 640×350 @ 70Hz
VGA 640X400@70Hz
VGA 720×400 @ 70Hz
VGA 640×480 @ 60/ 72/ 75Hz
SVGA 800×600 @ 56/ 60/ 72/ 75Hz
Preset mode
XGA 1024×768 @ 60/ 70/ 72/ 75Hz
2.2 Panel Controls and OSD Functions
Controls Description
Power On/Off switch Soft power on/off button. Adjacent LED is lit when on.
Auto Auto-synchronize and scale down display to any valid
factory preset timings.
Press to scroll the function you want to adjust.
Press to scroll the function you want to adjust.
Menu To access the main menu. This bottom also acts as the
“Enter” bottom.
2.2.1 Auto tune
1. Press the “auto tune” bottom. The panel will adjust the display size
automatically and also tune the panel to its best condition.
2.2.2 Brightness
1. Press the “menu” button.
2. Use the ▼and ▲button to scroll.
3. Press the “menu” button to enter.
4. Use the ▼and ▲button to adjust the brightness of the display.
5. Press the “auto” button to exit.

LKD-15X User Manual
15
2.2.3 Contrast
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to adjust the contrast of the display.
5. Press the “auto” button to exit.
2.2.4 Clock
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to adjust the video distortion. It will appear
horizontal noise on the screen while adjust the clock.
5. Press the “auto” button to exit
2.2.5 Phase
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter
4. Use the ▼and ▲bottom to adjust the video distortion. It will appear vertical
noise on the screen while adjust the phase.

LKD-15X User Manual
16
5. Press the “auto” button to exit.

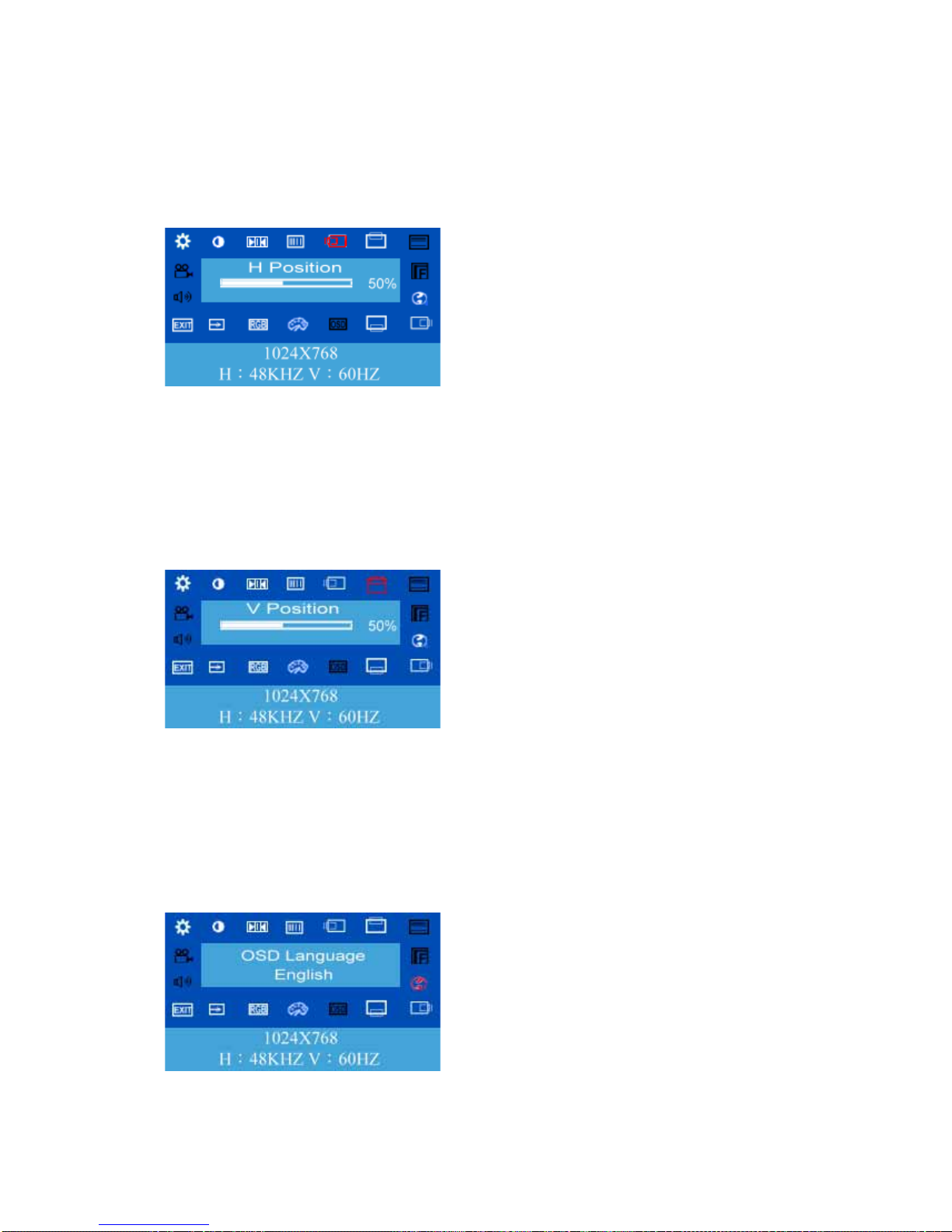

2.2.6 Horizontal Position
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to move the display picture left or right.
5. Press the “auto” button to exit.
2.2.7 Vertical Position
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to move the display picture up or down.
5. Press the “auto” button to exit.
2.2.8 OSD Language
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to choose the language
5. Press the “auto” button to exit.

LKD-15X User Manual
17
2.2.9 OSD H-Position
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to move the OSD position left or right.
5. Press the “auto” button to exit.
2.2.10 OSD V-Position
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to move the OSD position up or down.
5. Press the “auto” button to exit.
2.2.11 Switch Color
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.

LKD-15X User Manual
18
4. Use the ▼and ▲bottom to choose the color temperature mode.
5. Press the “auto” button to exit.
2.2.12 Set User Color
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼and ▲bottom to adjust the color temperature for user mode.
5. Press the “auto” button to exit.
2.2.13 Memory Recall
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.

LKD-15X User Manual
19
4. Restore the default value (factory mode). Press ‘’ Menu’’ to executing.
5. Press the “auto” button to exit.
2.2.14 Exit OSD
1. Press the “menu” bottom.
2. Use the ▼and ▲bottom to scroll.
3. Press the “menu” bottom to enter.
4. Exit the OSD menu and save the values. Press ‘’Menu’’to execut.
