Shinemate ES516 User manual

Supplier:
K&FP Limited
[e-mail]
www.ShineMate.com
Manufacturer:
Yongkang Meiloy-K&FP Tools Co.,Ltd.
No.218 Meilong Rd., Yongkang, Zhejiang, China
To reduce the risk of injury, user must read and understand operator's manual.
OPERATOR'S MANUAL
MANUAL del OPERADOR
ELECTRIC SANDER
ES502
ES516
ES550
ES517

CAUTION: Precautions
▶Normal use of this product is likely to expose the user
to dust and/or microscopic particles containing
chemicals that may cause cancer, birth defects or other
reproductive harm. Always wear appropriate personal
protection equipment and clothing when using this
product. Before operation, firstly read carefully and
follow all instructions provided with this product. Failure
to follow any warnings and operating instructions may
result in damages and serious injury or death.
▶Always wear approved safety goggles when using
this product. (Users and Bystanders)
▶Never use this tool for any application that is
inconsistent with intended purpose.
▶Only use accessories designed for this tool.
▶Any alteration or modification is forbidden.
▶Improper operation and/or maintenance of the tool,
modification of the tool, or use of the tool with accesso-
ries not designed for it could result in serious injury or
death.
▶Always select the correct accessories of the correct
size and design for the nature of work that is to be
delivered.
▶Always work in a clean, well-lighted, organized and
adequately equipped area to ensure total safety.
▶Before any repairs, firstly check that the tool is in a
secure position that prevents any displacement.
INFORMATION REGARDING PRODUCT
▶Tool for professionals purposed for sanding and other
works in terms of preparation for painting.
▶Special design reduces vibration, fatigue, also during
prolonged operation- (use of original accessories is
recommended).
▶Constant speed: tool keeps stable output speed even
under heavy load.
▶Soft-start function for a smooth and safe start.
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING
BEFORE USE AND OPERATION, FIRSTLY READ CAREFULLY THIS MANUAL. KEEP THE MANUAL IN
A SAFE PLACE FOR FURTHER REFERENCE (THIS MANUAL THE GUARANTEE CARD PROVIDES THE
BASIS FOR ANY CLAIMS).
ASSIGNMENT
This tool is designed to be used as a sander.
Before work and operation, user shall read carefully all warnings, instructions, guidelines, drawings
and tool specifications.
This tool is not intended to be used for brushing, polishing or cutting. Any misuse or use inconsistent
with intended purpose may result in hazard and body injuries.
ES516 ELECTRIC SANDER
ES550 ELECTRIC SANDERES502 ELECTRIC SANDER
Before operation, firstly read carefully this manual.
Failure to follow all instructions listed below may result
in electric shock, fire and/ or serious injury. The term
“power tool” in all of the warnings listed below refers to
your mains operated (corded) power tool or battery
operated (cordless) one.
WORK AREA
▶Keep work area clean and well-lighted. Cluttered or
dark areas invite accidents.
▶Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the
dust or fumes.
▶Keep children and bystanders away while operating a
power tool.
CAUTION! Distraction can cause you to lose control over
the power tool.
ELECTRICAL SAFETY
▶Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools.
WARNING

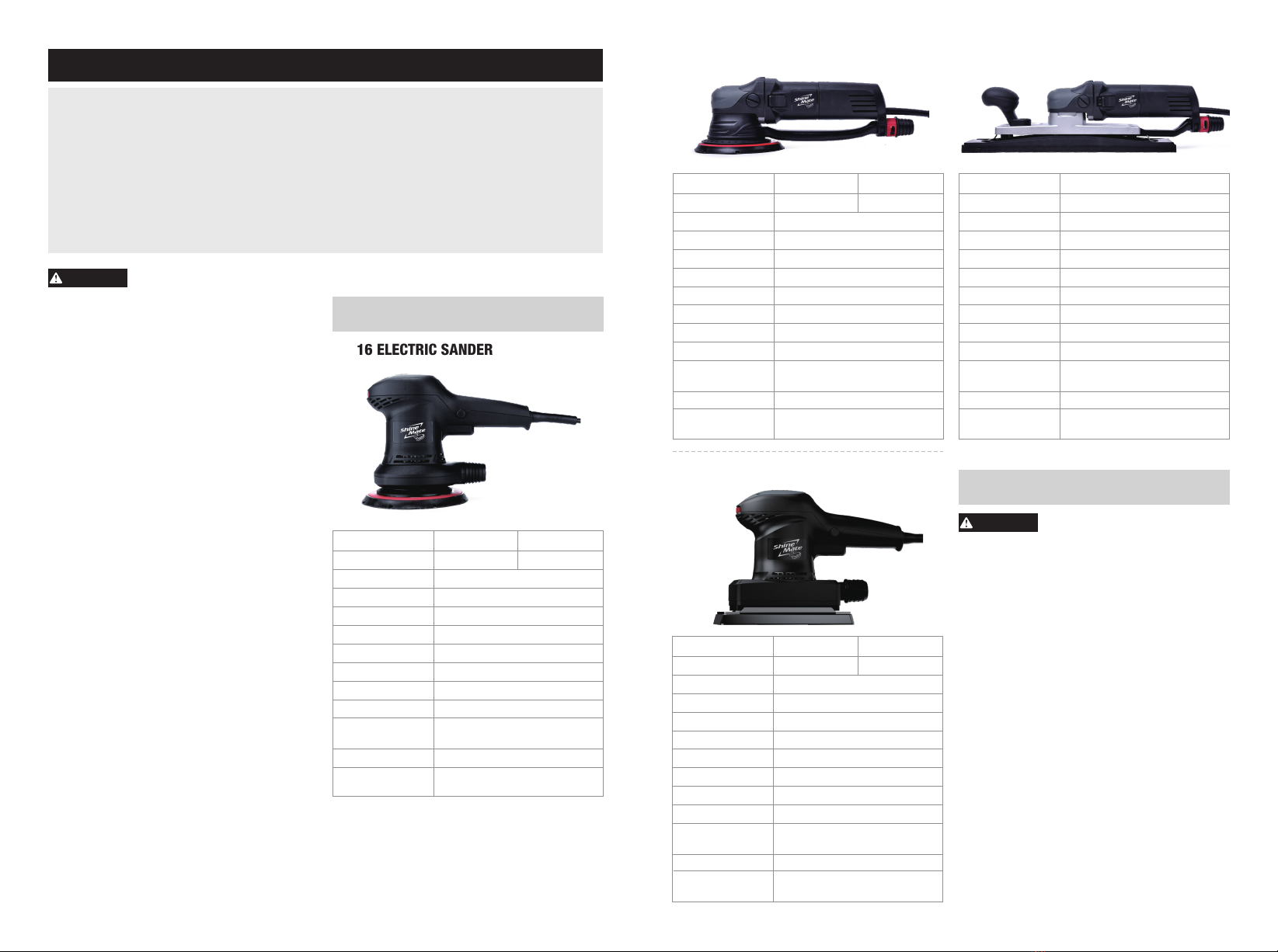

2. TECHNICAL DATA
3. SAFETY RULES
Model
Orbit Diameter
Product
Backing Plate
Power
Free Speed
Dust Removal
Power Cord
Thread
Accessories
ES502-6/9
9mm
ES502-6/12
12mm
Random Orbital Electric Sander
6"(148mm)
600W
4000-7000/min
Central vacuuming
5M
M8
Carbon brush, wrench
Dia. of dust exhaust
adaptor
220-240V~ 50/60Hz (CE/CN/SAA)
100-120V~ 50/60Hz (US/JP)
30mm
Input Voltage
Weight 2.2kg
ES517 ELECTRIC SANDER
Model
Orbit Diameter
Product
Backing Plate
Power
Free Speed
Dust Removal
Power Cord
Thread
Accessories
ES517-3
3mm
ES517-5
5mm
Oscillating electric sander
93x175mm
400W
4000-10000/min
Self-vacuuming+Central vacuuming
5M
M4
Carbon brush, wrench
Dia. of dust exhaust
adaptor
220-240V~ 50/60Hz (CE/CN/SAA)
100-120V~ 50/60Hz (US/JP)
30mm
Input Voltage
Weight 1.9kg
ES516-6/3
3mm
ES516-6/5
5mm
Random Orbital Electric Sander
6"(148mm)
400W
4000-10000/min
Self-vacuuming+Central vacuuming
5M
M8
Carbon brush, wrench
220-240V~ 50/60Hz (CE/CN/SAA)
100-120V~ 50/60Hz (US/JP)
30mm
1.6kg
ES550-5
5mm
Oscillating electric sander
70x400mm
600W
4000-7000/min
Central vacuuming
5M
M8
Carbon brush, wrench
220-240V~ 50/60Hz (CE/CN/SAA)
100-120V~ 50/60Hz (US/JP)
30mm
3.2kg
Model
Orbit Diameter
Product
Backing Plate
Power
Free Speed
Dust Removal
Power Cord
Thread
Accessories
Dia. of dust exhaust
adaptor
Input Voltage
Weight
Model
Orbit Diameter
Product
Backing Plate
Power
Free Speed
Dust Removal
Power Cord
Thread
Accessories
Dia. of dust exhaust
adaptor
Input Voltage
Weight

▶Avoid body contact with earthed or grounded
surfaces such as popes, radiators, heaters and refriger-
ators. There is an increased risk of electric shock if your
body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions.
Any contact with water poses the risk of electric shock.
▶Any modification of power cord is forbidden. Never
use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase
the risk of electric shock.
▶When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor reduces the risk of electric shock.
PERSONAL SAFETY
▶Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not use
the power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention
while operation power tools may result in serious
personal injury.
▶During operation personal protection equipment is
required. Always wear safety goggles. Personal
protection equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce risk of body injuries.
▶Avoid accidental starting. Ensure the switch is in the
OFF position before plugging in. Carrying power tools
with your finger on the switch or plugging in power
tools that have the switch on invites accidents and
serious body injuries.
▶Do not overreach. Keep proper foot position and
balance at all times. This enables better control of the
power tool in unexpected situations.
▶During operation proper clothing is required. Do not
wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught or trapped by
moving parts.
▶If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly operated. Use of such devices
can reduce dust related hazards.
PRECAUTIONS DURING OPERATION
▶Do not force the power tool. Use and operate the
power tool according to its intended purpose. The
correct power tool will do the job better and will ensure
safety.
▶Do not use the power tool, if the switch does not turn
on and off. Any power tool with inoperative switch poses
hazard and must be repaired.
▶Before any adjustments, changing accessories or
4. INSTRUCTIONS REGARDING SANDING
ACCESSORIES INSTALLATION AND
DISMANTLING
1. To install the backing disk, firstly unplug the power
tool and place it on tool rest with the spindle upright.
2. Attach the backing disk to the spindle, and make sure
the key aligns into the recessed slot.
3. Lock the backing disc with the bolt supplied with the
power tool, with Allen wrench.
4. Align the backing disc with the sanding pad Velcro,
attach the sanding pad to the backing disk, and make
sure the backing disk fastens the sanding pad
positioned centrally.
5. To remove the sanding pad, just peel off the pad and
unscrew with the Allen wrench.
START, STOP AND SPEED CONTROL
▶The sander features with a dial speed control, which
controls the sander's maximum rotations per minute.
You can control speed with trigger switch. Available
speed range is from 1 to 6. Generally, lower speeds are
recommended for tight work areas and higher speeds
are ideal for large surface areas. Use the setting that
best suits your job. To control the speed, set the dial to
the desired number.
Speed/Level
ES516/ES517ELECTRIC SANDER
7200
6400
5600
4800
4000
Speed/Level
ES502/ES550ELECTRIC SANDER
SURFACE PREPARATION
▶For best results, clean, dry and degrease the surface
before sanding to remove stubborn dirt, dust, insect
related stains.
▶Select the correct grit number of sanding disc as per
work requirements.
SANDING
▶While holding the sander firmly against the surface,
turn on the sander to begin operation at desired speed.
Always start and stop the sander positioned on or
against the surface being sanded. Begin by sanding
large flat surfaces, such as bonnet, trunk and roof. Do
not press down the sander against the surface with
force. Move the sander back and forth in long, sweeping
strokes. Too much pressure, the wrong angle or
improper motion may result in cavities, marks or
burning.
DUST COLLECTION
▶The sander is equipped with a multi-hole backing
disc. To ensure dust-free sanding, the user shall use the
sanding disc provided with holes. To ensure dust-free
sanding, holes of sanding pad shall be aligned with ones
of backing disc.
▶The sander is provided with dust extraction function
that ensures effective dust collection.
WARNING
▶To reduce the risk of injury, keep the power cord away
from the path of the sander. Otherwise the sanding pad or
backing disk may damage the cord and expose live wires.
▶When sanding, apply small pressure and keep the
sander moving constantly, especially when working near
an edge or where there are abrupt changes in the contour
of the work surface.
PREVENT DISK DAMAGE
▶Any contact of sanding pads with rough edges of a
work surface may result in damages, cavities and sudden
kick-back. To prevent such risk, operate the sander at low
speed when sanding rough surfaces, tricky areas such as
near trimming or between a mirror and car window. Do
not take chances with a sander. Sand these surfaces by
hand. Or use the "coast-down" technique to avoid
snagging or kickback risk. To coast-down, turn the motor
ON for a few seconds, then turn it OFF and apply the
sanding pad to the surface. This way the rotating speed of
the pad will be lower when the pad is in contact with the
surface. Coast-down technique is recommended when
working in areas with crevices or pockets.
MAINTENANCE
▶Keep your tool in good repair and conduct maintenance
on regular basis. Before use, firstly check the power tool
in respect of the general condition, switches, power cord
along with the extension for damage. Check for loose
screws, misalignment, operation of moving parts,
improper mounting, damaged part sand any other
abnormalities that may affect safety during operation. If
abnormal noise or vibration is evident, turn the tool off
immediately and ensure repairs are provided before
reuse. Operation of damaged power tool is forbidden.
Until repair is completed, the power tool shall be labelled
with “DO NOT USE” plate. During operation in normal
conditions, re-lubrication is not necessary until the motor
brushes needs replacement.
WARNING
▶To prevent the risk of body injury, always before any
works related to maintenance, firstly unplug the power
tool. Never disassemble the tool or do any rewiring, if
the power tool is connected to power source.
CLEANING
▶Clean all vents and remove dust and debris. Keep the
tool handle clean, dry and free of oil or grease. For
cleaning use a soft cloth lightly moistened with a mild
detergent.
▶CAUTION! Some cleaning agents and solvents
including gasoline, turpentine and paint dedicated
thinners containing ammonia or chlorinated cleaning
solvents for household are harmful to plastics and other
insulated parts. Never use flammable or combustible
solvents around the power tool.
1 2 3 4 5 6
1 2 3 4 5 6
3200
10000
8800
7600
6400
5200
4000
▶To start the tool, pull the trigger. To stop the tool,
release the trigger.
▶For continuous operation, press the button that locks
the trigger and pull this button again to stop continuous
operation.
storing power tools, firstly disconnect the plug from the
power source. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
▶Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools pose hazard when operated by untrained or
unauthorized users.
▶User shall regularly perform maintenance inspections
and check in respect of misalignment, clearance, play,
defects, damages, excessive wear of other irregularities
that may affect power tool operation. In case of any
damage, power tool shall be repaired before use. Many
accidents are caused by poor maintenance.
▶Keep cutting tools sharp, clean and in good repair.
Properly maintained cutting tools with sharp cutting
edges ensure control over the power tool during
operation.
▶Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking into
account the working conditions and the work to be
performed. Use of the power tool inconsistent with
intended purpose can result in a hazard or accident.
SERVICE
▶Any works related to power tool servicing shall by
performed by qualified person. For repairs and service
use only original spare parts to ensure safety during
power tool operation.

5. Service
5.1 Warranty Service
During the warranty period, ShineMate is only due to
material defects in the product or process problems
caused by the failure to give free repair, the user
requires warranty must be presented with purchasing
bills and warranty cards, clear statement of the full
name of the purchased product model, the body of the
nameplate on the product code, the date of purchase,
while providing the machine and accessories requires
warranty, and are authorized by the maintenance center
to verify, or do not have warranty rights.
During the warranty period, the foll ow ing
consumable parts are not covered by the warranty due
to natural wear and tear in use:
·Wear in service: commutator, carbon brush, bearing,
bushing, gear, O-ring, etc..
·Consumables: Power cord, plug, cable sheath, handle,
housing, polishing pads, backing plate of sander, etc..
*Non-warranty parts and maintenance labor costs are
the responsibility of user.
The following are not covered under warranty:
·Failure to present a valid warranty card and proof of
purchase, or the information on the warranty card does
not match the physical object.
5.2 EXEMPTION FROM LIABILITY
The manufacturer and his representative are not liable
for any damage and lost profit due to interruption in
business caused by the product or by an unusable
product.
The manufacturer and his representative are not liable
for any damage which was caused by improper use of
the power tool or by use of the power tool with products
from other manufacturers.
(1)
DECLARATION OF CONFORMITY
We hereby declare under our responsibility that the said
electrical device (sander) remains in compliance with
the Essential Requirements for Safety Directives
2006/42 / EC concerning machines, 2014/35/EU low
voltage, 2014/30/EU concerning electromagnetic
compatibility.
Moreover the device fulfils the requirements of
standards:
Statement of Warranty Card
This product is guaranteed from defects in material and workmanship, for the detailed guarantee period, subject
to your local distributor and legal warranty regulations, effective and evidenced from date of original invoice or
delivery note.
Defects caused by normal wear and tears, unauthorized/improper maintenance/handling or overload are
excluded from this guarantee.
In the event of malfunction within the guarantee period, please return the product UNDISMANTLED to your dealer
with the warranty card.
Your statutory rights in respect of defective products remain unaffected by the warranty.
(1)
(2)
(3)
(4)
You now own a quality
product manufactured by
ShineMate.
Warranty Card
Distributed by:
DETAILS OF PRODUCT:
Machine
Voltage
Customer name and address
Post Code
Model
Purchase Date
Serial No.
WARNING
▶To prevent the risk of body injury, electric shock and
tool damage, do not immerse tool in water or any other
liquid and protect the tool against any contact with water.
REPAIRS
▶In case of any damage or when repair is necessary,
contact the nearest authorized service.
PRECAUTIONS
Always use the backing disk recommended by the
manufacturer.
Any works related to cutting with this tool and
grinding wheels is forbidden.
Max. operating speed of the backing disk shall be
always higher than the rated speed of the power tool.
During tool operation always wear approved personal
protection equipment including safety goggles, gloves,
hearing protectors and use of protective clothing is
recommended.
Personal protection equipment and dust collection
devices shall be chosen according to the type of material
purposed for sanding. For further instruction please
consult system manufacturer.
In case of power supply failure, release the trigger and
disconnect the device from power source.
Only use the carbon brush and lubricants
recommended by the manufacturer.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
·Damage caused by failure to use, maintain and store
the product in accordance with the instructions for use.
·Damage caused by drooping, water ingress, etc., due to
improper use, storage or transportation.
·Damage caused by failure to use original ShineMate
parts(e.g. carbon brush) or recommended accessories
and lubricants.
·The user disassembles, or causes damage by repairing,
rebuilding, disassembling, or maintaining in non-
ShineMate authorized service points.
·Damage caused by forcing the brakes or exerting
excessive pressure on power tools when they are
operated at high speed.
·Damage caused by starting a power tool without
reaching a constant speed or stopping it completely
before it starts to process a work piece or change
functions.
·Working in dusty or humid environments for long
periods of time without timely maintenance due to the
entry of foreign objects.
·Battery damage caused by frequent under-charging or
under-discharging of the battery or by being hit or
changing the charger plug on its own.
ShineMate reserves the right to modify the above
terms and conditions at any time without notice, and
has the final interpretation of the above warranty terms.
Visit the official website www.ShineMate.com for the
latest product information.
(4)
(5)
(2)
(3) EN 62841-1,
EN 61000-3-2,
2014/30/EU,
EN 62841-2-4, EN 55014-1,
EN 61000-3-3, EN 55014-2,
2006/42/EC
