WASHING MACHINE
USER MANUAL
SWM-FA70R
SWM-WSFR7
SL-SWMFR72
SWM-FAR75
SL-RFA75
SWM-FATL7R-BB
2
CONTENTS
SAFETY INSTRUCTIONS 3
Important safety precautions ........................................................................................................ 3
INSTALLATION 8
Parts identication ........................................................................................................................ 8
Installation environment ................................................................................................................ 9
Levelling ...................................................................................................................................... 10
Installation of the water inlet pipe ............................................................................................... 11
Assembling the rat guard............................................................................................................. 12
OPERATIONS 13
Adding detergent ........................................................................................................................ 14
Adding fabric softener ................................................................................................................. 15
Preparation for washing .............................................................................................................. 16
Caring of clothes ......................................................................................................................... 16
Control panel .............................................................................................................................. 18
Fully automatic operations .......................................................................................................... 24
Child lock .................................................................................................................................... 25
Fully automatic program ............................................................................................................. 27
Special features .......................................................................................................................... 28
Manual functions ......................................................................................................................... 29
MAINTENANCE 31
Cleaning ...................................................................................................................................... 31
Cleaning the lint lter .................................................................................................................. 32
Cleaning the detergent compartment ......................................................................................... 32
TROUBLESHOOTING 33
Malfunction display and solutions ............................................................................................... 33
Troubleshooting of washer ......................................................................................................... 35
SPECIFICATION 36
3
SAFETY INSTRUCTIONS
Please note that the intention of following the precautions for safety is to prevent unpredictable danger
and damage caused to the property and read these contents carefully before use.
This symbol represents [cause attention], and detailed cautions will be displayed inside
the graphics. r
This symbol represents [operation prohibited], and detailed prohibitive items will be
displayed inside the graphics. f
JThis symbol represents [compulsory execution], and detailed forcible execution
items will be displayed inside the graphics.
IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of fire, electric shock,
or injury to persons when using your appliance, follow
basic precautions, including the following:
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities or without experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. The new hose-sets supplied with the appliance are to be used and old hose-sets should not be re-used.
4. For washing machines having ventilation openings in the base, the installation instructions shall state
that the openings must not be obstructed by a carpet.
5. Please make sure that the water used for washing should not exceed 50°C. Plastic parts may be
deformed or damaged and an electric shock or a re may take place.
6. This appliance is intended to be used in households (domestic) only and it is not intended to be use
such as:
✱staff kitchen areas in shops, ofces and other working environments
✱farm houses, restaurant type environments
✱by clients in hotels, motels and other residential type environments
✱areas for communal use in blocks of flats or in launderettes
7. The product you have purchased is designed for domestic use only. The use for business purposes
qualies as product misuse, in which case, the product will not be covered by the standard warranty
provided by Singer and no responsibility can be attributed to Singer for malfunctions or damages
resulting from such misuse.
4
SAFETY INSTRUCTIONS

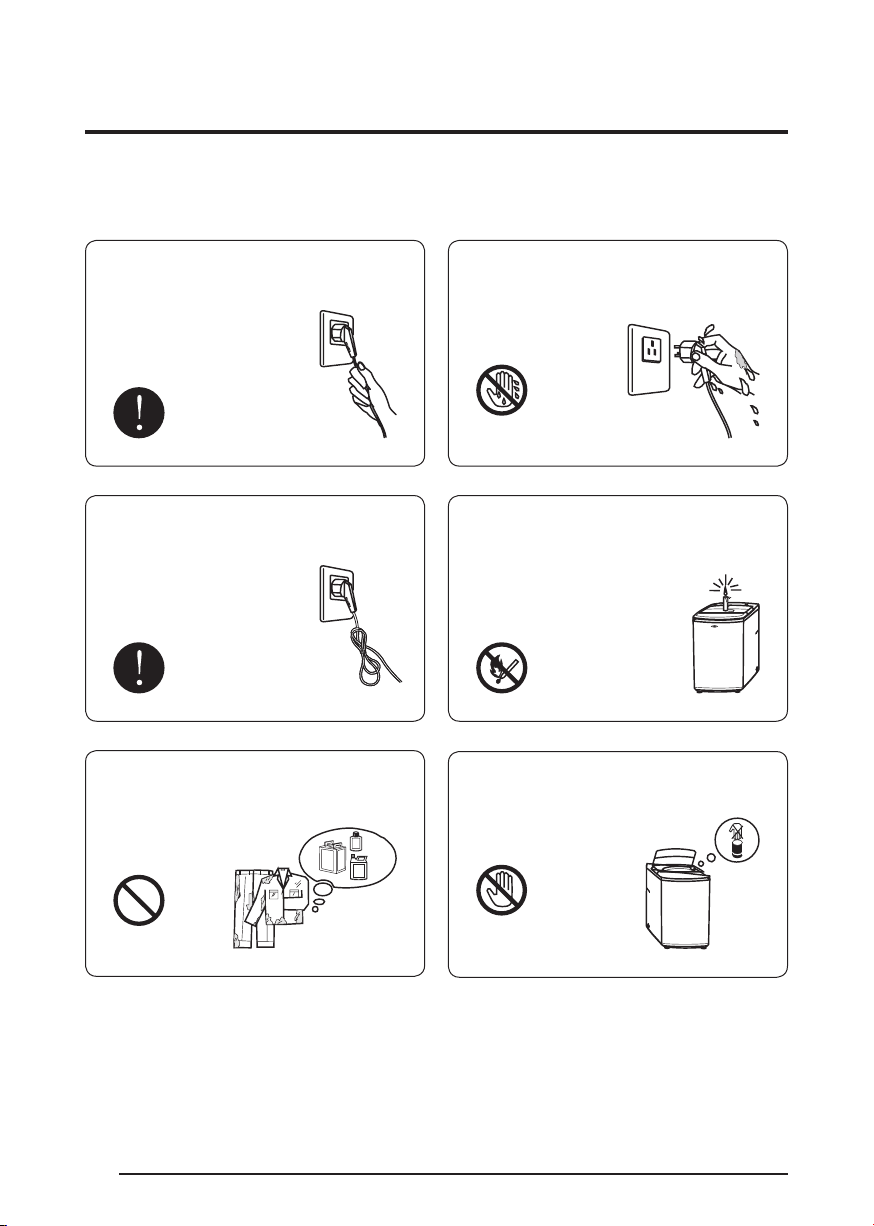

Please do not pull out or insert the plug
with wet hands.
An electric shock or re
may take place.
Wet hands are prohibited
Please do not place on the washer a
burning candle, mosquito-repellent, incense,
cigarette and other flammable things, as well
as an electric stove, air heating
fan and other heating sources.
A re may take place.
Smoke and re
prohibited
小天
Prohibited
Do not insert your hand and take out
clothes inside the spin barrel before it is fully
stopped.
It may hurt your hands
No touching
Please do not pull the electric cord
when pulling out the plug.
An electric shock or re may
take place.
Do not bend the power supply cord by force
or press it with heavy things.
An electric shock or a re may
take place.
WARNING !There might be serious injury or fatal accident
when you violate these instructions
Do not put to the wash clothes, which have
touched with kerosene, gasoline, benzene,
alcohol and other flammable materials.
An explosion or a
re may take place
5
SAFETY INSTRUCTIONS
This appliance has to be connected to the
plug endurable to proper power consumption
and correct power source.
No dismantling
There are no user-serviceable parts are
inside. Refer any servicing to qualied service
personnel. Otherwise, this may cause a
mechanical error, electric
shock, re or physical damage.
Prohibited
小天
Do not place or let children
(or pets) play on the washer or
lay weights on the washer.
Prohibited
Prohibited
Please do not let children climb on the
machine or peer into the rotating spin barrel
to avoid accidents.
During operation, do not put your hands or
any metal materials inside the washer.
You may be hurt by the
spinning board beneath the
washer.
Stay away from the washer when the water
at the bottom is still draining away from the
washer.
There might be an electric
shock. Please wait until the
water drains out completely.
Please pull-out the plug from the socket if the
machine is not in use
Pull out the plug
Prohibited
6
SAFETY INSTRUCTIONS
CAUTION: In order to avoid a hazard due to inadvertent re-
setting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by
the electricity providers.
CAUTION !There might be a injury or damage when you violate
these instruction.

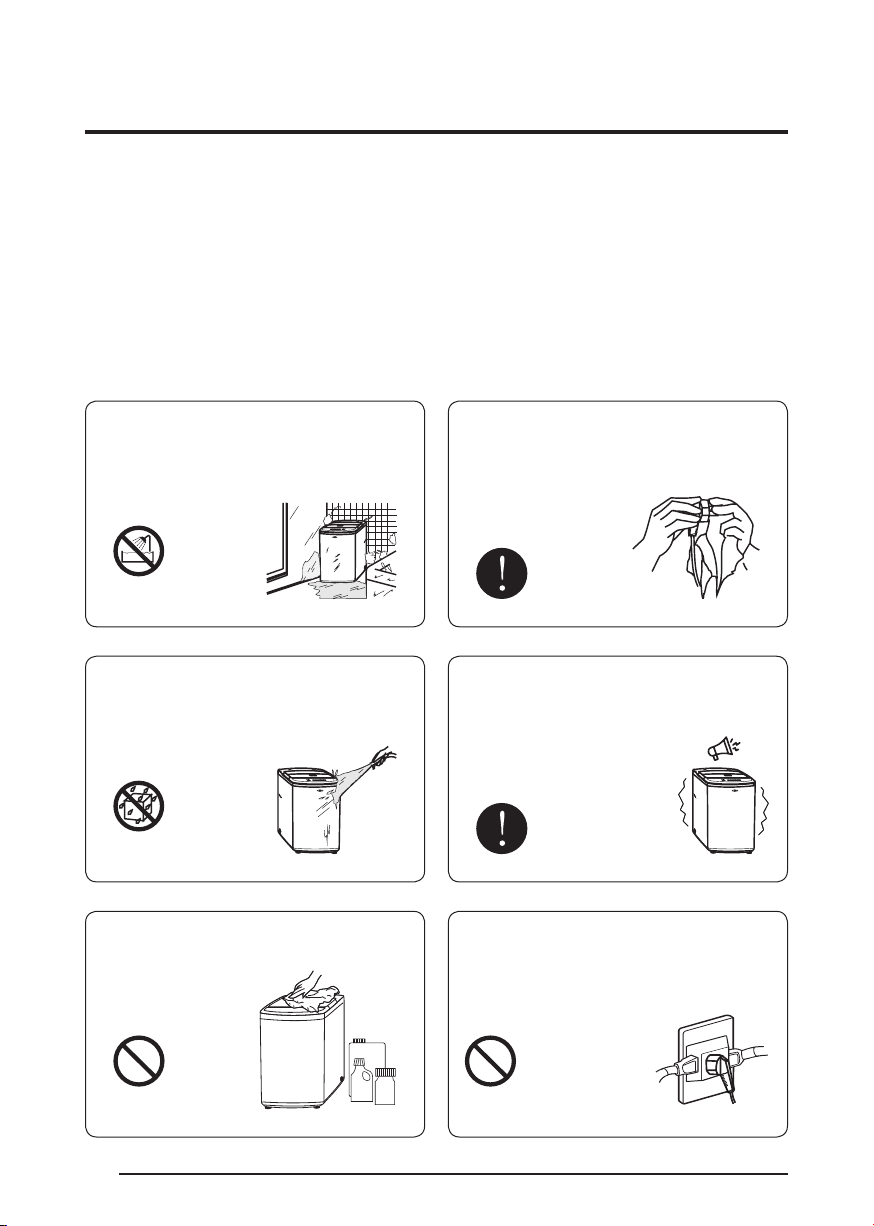

Do not install the machine in an
environment with moisture, rain or
outdoors to avoid electric shock, catching
re, faults and distortion accidents.
No dampness
小天
Regularly clean the power plug
to remove dust and dirt to avoid
contact failure.
Do not directly rinse or spray the machine
with water when cleaning.
It may make its life span to shorten and
an electric shock or re
may take place
No rinsing
小天
Prohibited Prohibited
If the washer makes a strange noise, emits
a smell or smoke, unplug it promptly and call
the service agent.
An electric shock or a re may
take place.
Do not use a the strong acid cleaning agent. Do not connect several appliances together
with an outlet.
A re may take place due to unusual heat.
ACID
ACID
ACID
小天
7
SAFETY INSTRUCTIONS

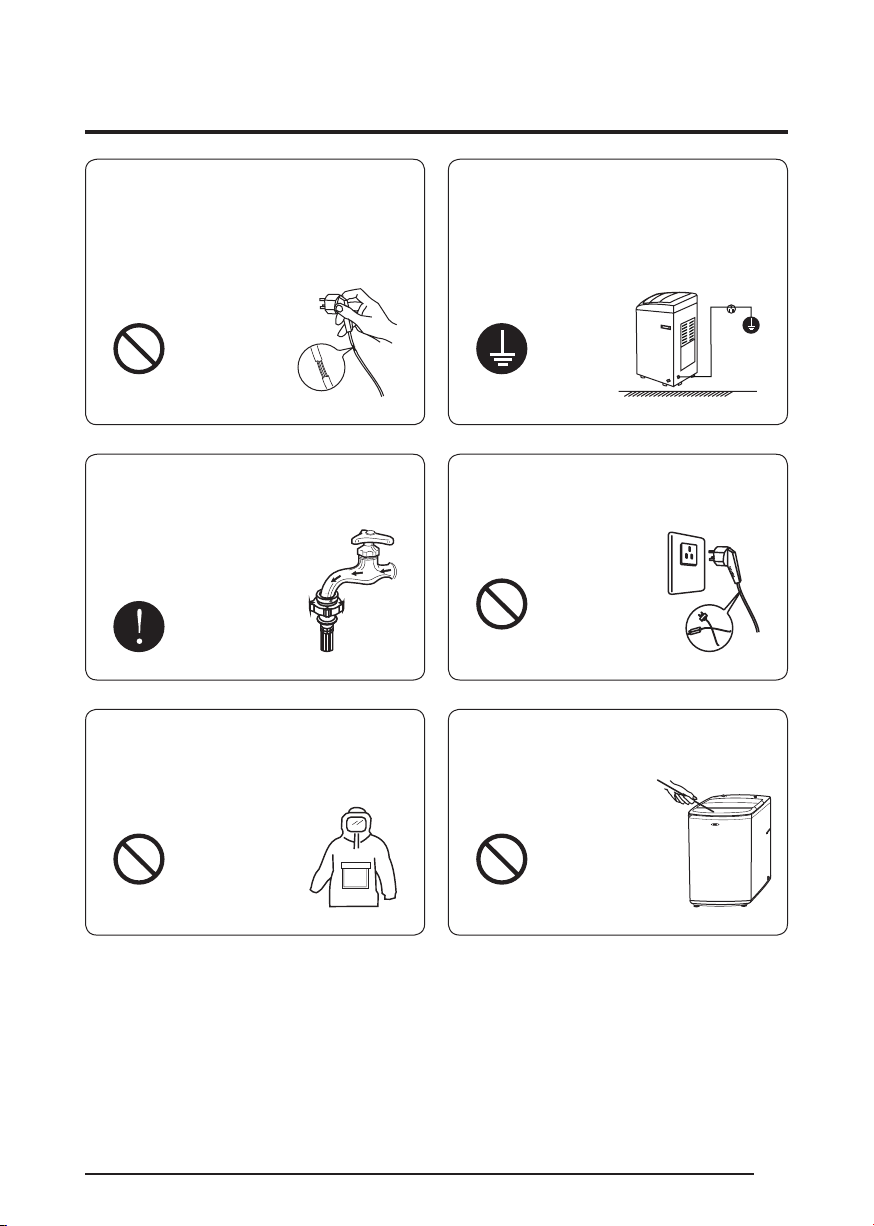

Do not use a damaged flexible power cord
and power plug to avoid electric shock,
short circuit and catching re.
It should be replaced by the manufacturer,
service center or an authorized person in
order to avoid the risk.
The earth line of the socket should be
well connected to avoid electric shock by
accidental leakage. (Earthing)
EarthingProhibited
Make sure that the water inlet pipe is
connected and the tap is open before
washing clothes.
Customers are not allowed to change
the power line without permission.
+
+
Prohibited
Please do not wash down jacket,
raincoats, shing coats and similar
clothes in the washer.
Prohibited
Do not press the button with a nail or pin.
An electric shock or a re
may take place.
小天
Prohibited
8
INSTALLATION

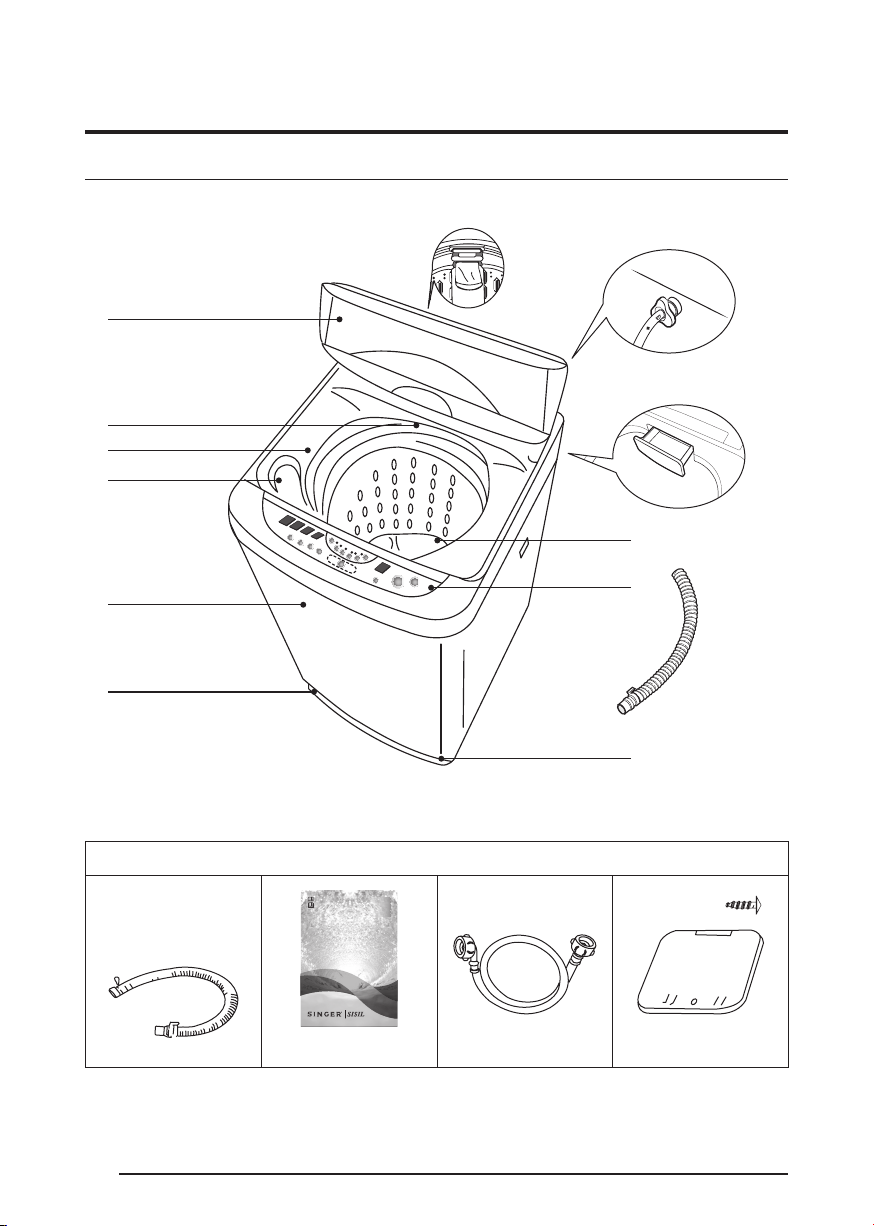

PARTS IDENTIFICATION
Top lid
Be sure to keep the lid
closed during washing
and spinning.
Adjust the height of the
legs when installing the
washer
Pulsator
Detergent Box
Water supply hose (Cold)
Control panel
Adjustable foot
Washing tub
Top frame
Softener Dispenser
Cabinet
Base
Filter lint will be collected in the lter
during washing
Water drain
hose
Accessories
Fixing ring is used
for the xation when
installing the drain
hose.
Drain hose
WASHING MACHINE
USER MANUAL
SWM-FA70R
SWM-WSFR7
SL-SWMFR72
SWM-FAR75
SL-RFA75
SWM-FATL7R-BB
Manual
Water inlet hose
assembly (1)
Rat guard (1)
Self-tapping screws (3)
9
INSTALLATION
Unpacking the washing machine
Remove package and take out the bottom board of the
cabinet on the foam cover.
Open the lid of the washer's door and take out
accessories. A trial operation or washing on the foamed
cushion is strictly forbidden.
Base foamed
cushion
This User’s Manual is a common document. Please use this as per your washing machine model.
INSTALLATION ENVIRONMENT
Leave some space
Maintain at least 10 cm between the washer and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak surface, noise or vibration occurs.
(Allowable angle is 1˚)
Adjust the legs for even placement.
Never install the washer near water.
Do not place the washer in steamy rooms or where the washer is directly exposed to rain.
Moisture may destroy the electrical insulation causing an electrical shock hazard.
Avoid direct sunlight or heaters.
As plastic and electrical components are affected by direct heat, never place the washer near
furnaces, boilers, etc. Do not place under direct sunlight also.
10
INSTALLATION
If the water drain hose
needs to be extended, its
length should not exceed
3 meters, otherwise it will
affect the water discharging
time
Do not bend the water drain
hose and place it under the
washer.
The placed height of the water
drain hose shall not exceed
15 cm.
Completely sleeve the
drain hose over the
sewer.
Fix and tighten it with a
hoop. (As shown in the
gure)
Placement of water drain hose
Installation of drain hose
LEVELLING
If the washer is not levelled with the ground, it makes the machine vibrate more and result
it being out of order. So, make sure that the washer is levelled
properly.
ENSURE THAT THE MACHINE IS PROPERLY LEVELLED BY
CHECKING THE POSITION OF THE WASHING TUB.
Open the lid of the machine, pour water into the tub up to the
level just below the pulsator, and adjust the legs so that the
pulsator is positioned at the center of the water as shown in the
gure.
Place the machine more than 10 cm away from the wall.
Adjust the legs on feet for levelling.
Water
Loosen Lock
11
INSTALLATION

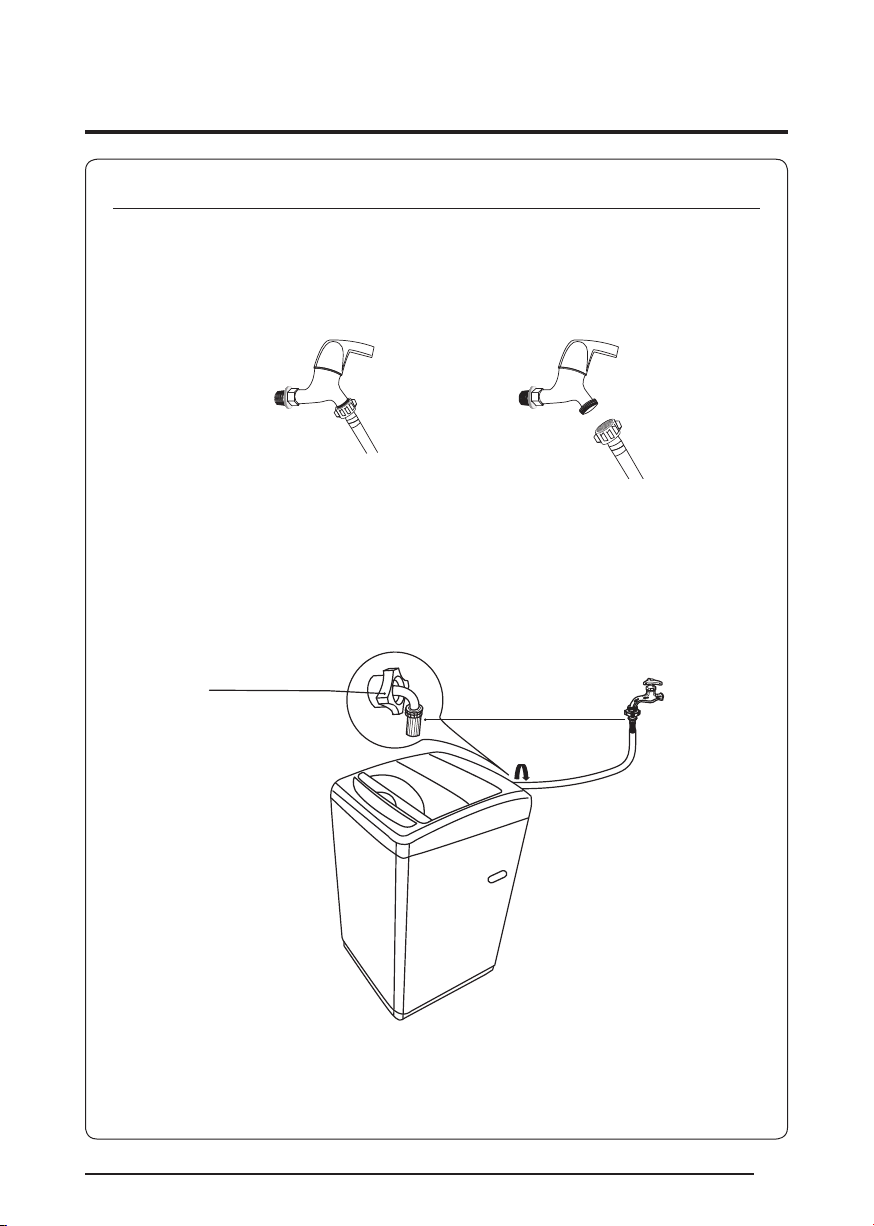

INSTALLATION OF THE WATER INLET PIPE
Fix the water inlet pipe to the tap.
Tightly screw the other end of the water inlet hose on to the water inlet valve (with rubber seal
ring inside).
Connect: Tightly screw the clamping nut (with straight connector side) on the water inlet hose
to the water tap (with thread for garden nozzle). If it is required to feed water, simply
open the water tap.
Separate: Close the water tap and tightly unscrew the clamping nut.
Note: When tightening the clamping nut, evenly apply the force and do not twist the water inlet
valve to avoid breaking of water inlet valve joint.
+
Water inlet hose
Clamping nut
Connect Separate
12
INSTALLATION
Connect the other end of the water supply hose to the inlet water
valve at the back of the washer. Screw the hose clockwise all the
way in.
Connect the other end of the water supply hose to the inlet water
valve at the rear of the washer. Unscrew the hose anti-clockwise
all the way out.
If the water tap is a screw type, assemble a water supply hose
that ts to the tap as shown. After completing connection, if
water leaks from the hose, then repeat the same steps.
After completing connection, if water leaks from the hose, then repeat the same steps. Use the
most conventional type of faucet for water supply.
ASSEMBLING THE RAT GUARD
Tilt the washer a little and lift up the panel until it clicks as shown in the gure.
Front
1. Insert the rat guard to the
assembling hole on the
front side till it reaches the
end.
2. If you have difculty
inserting the panel lift up
the washer a little and
insert it.
3. Fix the shutter with three
screw to the base.
13
OPERATIONS
1. Adjust the adjustable foot to make the washer stable.
Slightly incline the washer rst and loosen the adjustable foot knob. Adjust the adjustable foot
so as to ensure the four corners of washer are steadily contacted with the ground. Then tighten
the adjustable foot knob and lock it. If the ground is obviously not flat, correction should be
made on the ground surface, otherwise the washer barrel will incline and knock the cabinet.
2. Install the water inlet hose.
Connect the water inlet hose before washing.
3. Connect with power source.
4. Open water tap.
5. Put the drain hose into the down comer.
6. Put in clothes and suitable amount of washing powder
+
+
Adjustable foot (extends when
rotating clockwise and shortens when
rotating counter-clockwise).
14
OPERATIONS
Test run
Make sure that you install your washing machine correctly by running the Rinse+Spin cycle after
the installation is complete.
ADDING DETERGENT
1. Open the detergent box by pulling in the direction of the arrow
as shown in the gure and then put the powder detergent in the
detergent box.
2. Put in the correct amount of detergent in one-time and evenly so
that the detergent may not brim over the box.
About Detergent
Use an appropriate amount of washing and detergent as bellow table.
Water
Level
Water
volume
(L)
Washing
of weight
(kg)
Standard dosage of detergent
The contracted washing
powder The
common
washing
power
Liquid
detergent
Standard
of washing
power
Dosage of
washing
power
8 About 65 <7.0kg About 54g About 87g About 87ml
7 About 61 <6.5kg About 50g About 82g About 82ml
6 About 56 <6.0kg About 45g About 72g About 72ml
5 About 50 <5.0kg About 41g About 67g About 67ml
4 About 42 <4.0kg About 34g About 55g About 55ml
3 About 35 <3.0kg About 30g About 47g About 47ml
2 About 27 <2.0kg About 23g About 36g About 36ml
1 About 22 <1.0kg About 19g About 30g About 30ml
15
ADDING FABRIC SOFTENER

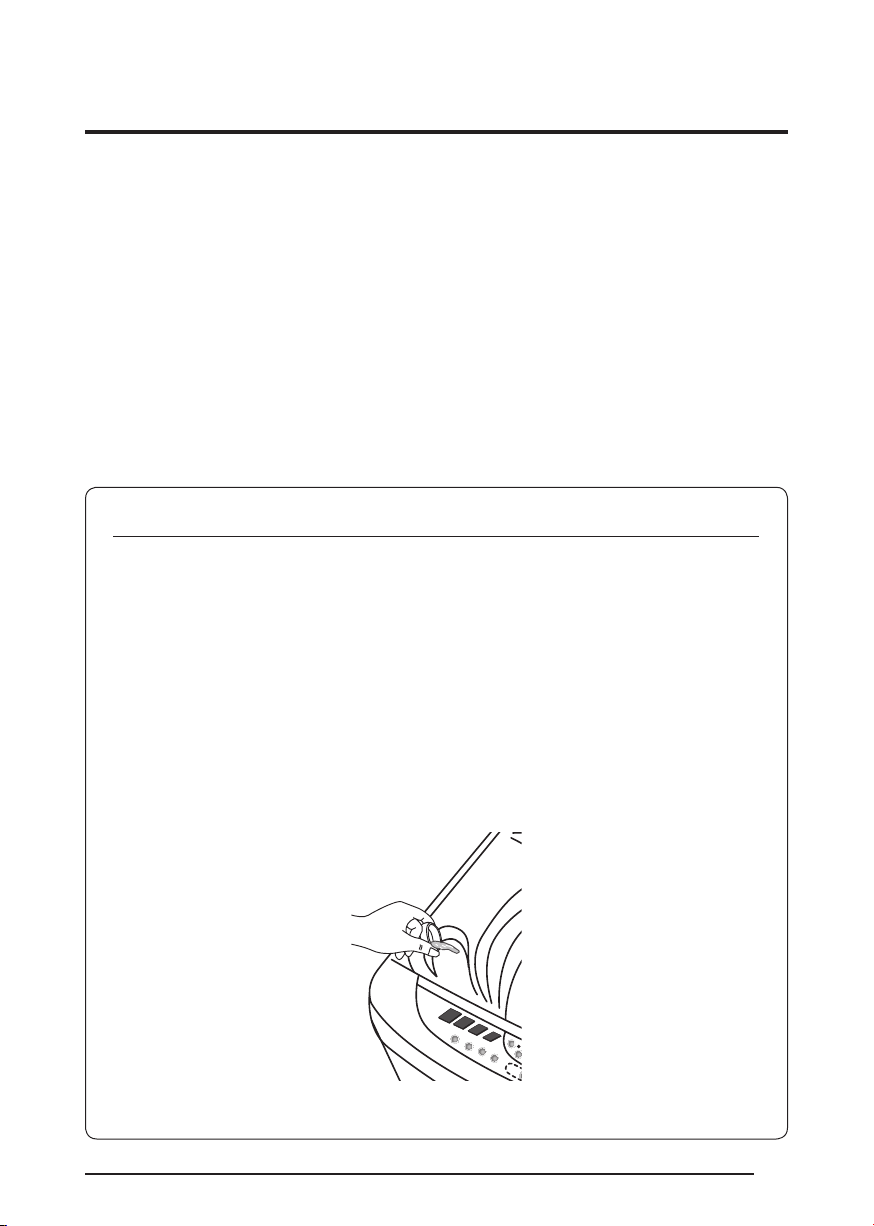

Apply fabric softener to the softener dispenser as appropriate. Then, the softener is
automatically dispensed in the rinse cycle.
Do not use detergent, bleach or starch into the softener dispenser.
Using too much softener may produce unsatisfactory results.
Do not open the lid during the spin dry cycle and if add softener, its effectiveness will decrease.
OPERATIONS
CAUTION !
The use of excess amounts of detergent does not change the washing
result. It may cause to damage the garments due to not enough rinsing.
Bleaching agent may cause damages to garments due to strong alkali.
Insufficient rinsing may result in the powder detergent remaining on the
garment causing a bad odur.
If excess detergent is used, it doesn’t dissolve completely and remains on
the garments, hose or spin tub, causing contamination on clothes.
16
OPERATIONS
PREPARATION FOR WASHING
You must follow the instructions given below in order to avoid machine problems or damages to garments.
Laundry that is not washable
Clothes those are easily transformable even by soaking in water.
Even by soaking in water, neckties, brassieres, jackets, suits and coats can be easily transformed like
shrinking and discoloring on the garment surfaces because they are mostly made of rayon, polynosic,
cuff and their blend fabrics.
The wrinkle-processed, embossed, or resin processed products are easy to transform even by soaking
in water.
Easily discoloring products made of cotton and wool, wrinkled silk, leather products, leather accessory,
leather ornamented clothes and its accessory.
Waterproof clothes (waterproof clothing, diapers. raincoats, umbrella covers, skiwear, car cover sheets,
jackets, shing coats and sleeping bags, etc) are not allowed to be washed and this may cause the
laundry to be ejected or cause the washing machine to vibrate abnormally. This may result in personal
injury or damage the washing machine

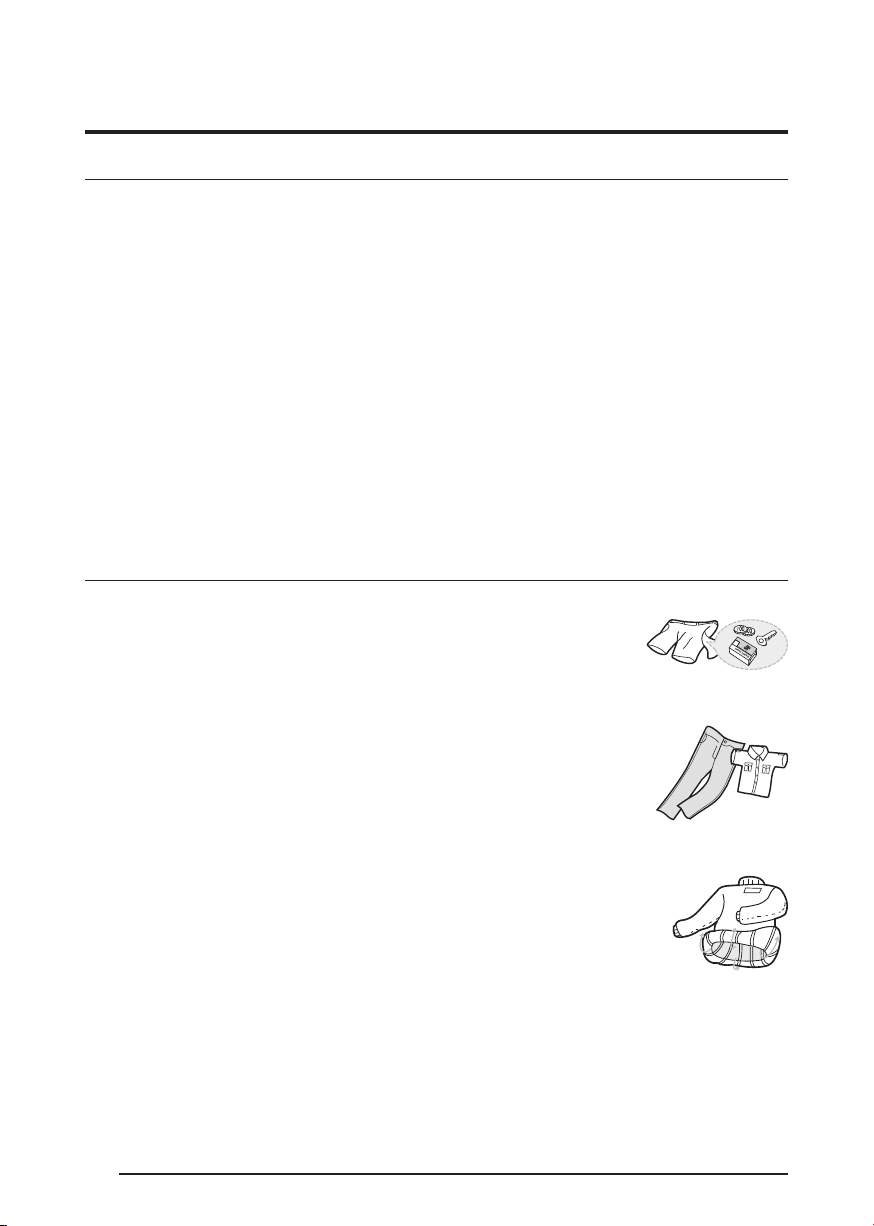

CARING OF CLOTHES
Remove all personal belongings from the pockets such as coins, hair pins,
screws, wire nails, keys and other hard goods. These cause damages to
clothes and to the washing machine.
If pants zippers are open while washing, the spin tub may be damaged.
The zipper should be closed and xed with a string before washing.
Metal on the clothing may cause damage to the clothes, rotating pulsator and
the tub.
Turn clothing with buttons and embroidered clothes inside out before washing
them.
Clothing with long strings may become entangled with other clothes and may
cause damage to the clothing. Make sure to x the strings before washing.
Shake dirt, soil, sand and small particles from clothes. These may rub
against delicate garments to cause damages and the washing result may be
unsatisfactory.
Pre-wash for stains and dirt on collars, sleeves, hems, pockets and white clothes.
Apply some detergent and apply it lightly with a brush for a better wash.
Use powdered or liquid detergent. Do not use soap as the tub gets dirty from the
dirt on it.
Curtains, floating garments or blue jeans shall be pressed so as not to float on the water. If they float
on the water, press Start/Pause button to stop and press them to soak into the water. Washing with
floating clothes may cause damages to the clothes and the washing machine also.
17
OPERATIONS
CAUTION !Make sure to soak inflatable items (such as
blankets, and cotton-filled or micro-fibre, quilts) in water before
you run a cycle.
Regardless of the size, blankets or quilts are safer and cleaner to wash
one item at a time. Two different-sized blankets in the same load may
compromise the drying performance due to unbalanced loads.

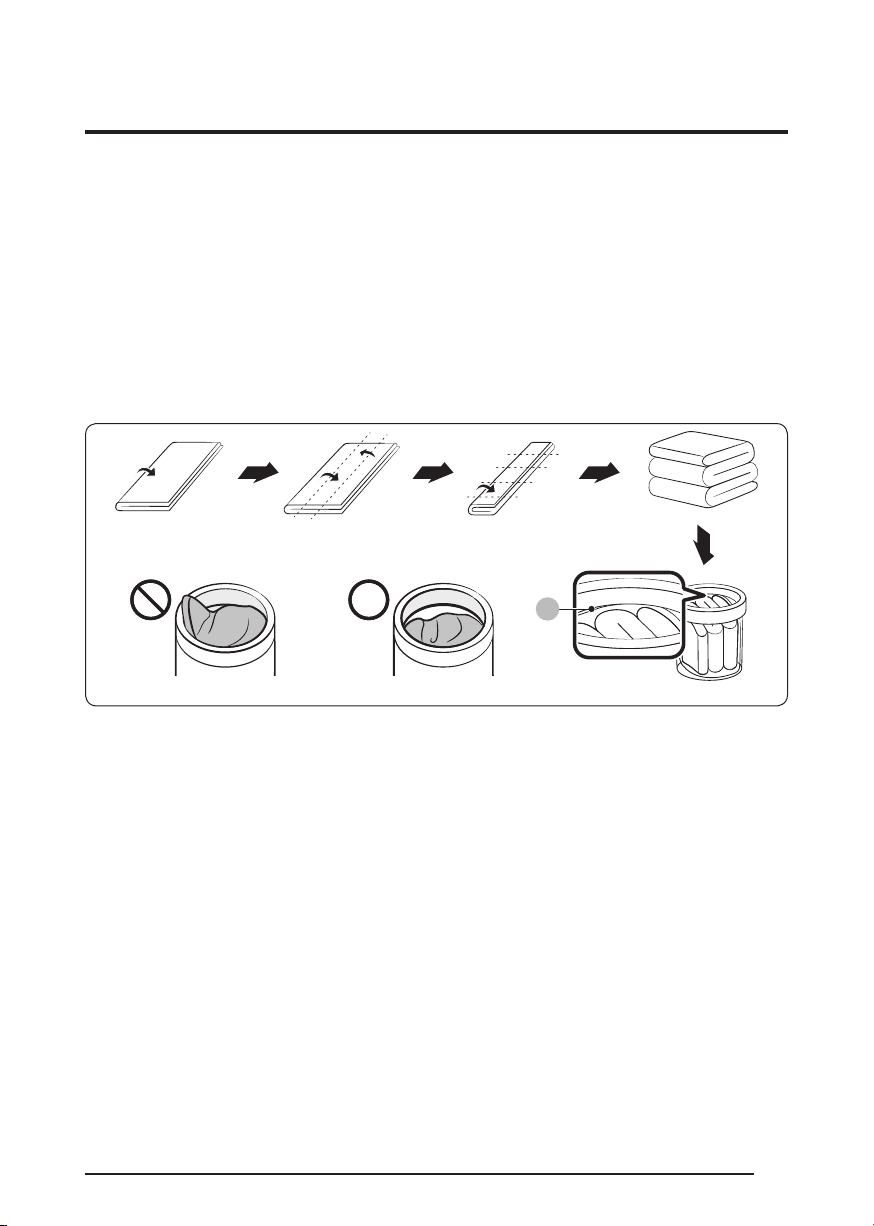

To input a blanket
Fold the blanket as shown below and then insert into the plastic ring level (A) of the tub.
A
CAUTION !Make sure the laundry is inserted completely.
Any exposed part of the laundry may cause damage to the machine or the
laundry itself, or it may result in a water leak.
Make sure the laundry does not exceed the plastic ring level at the tub
marked as (A) in the above figure.
18
OPERATIONS
CONTROL PANEL
For models SWM-FA70R, WM-WSFR7 and SL-SWM-FR72
1
Digital
graphic
display
Displays the remaining time of the programs.
Displays the error state if a problem occurs while operation of the washing
machine.
2Water Level Press the button, you can reset water level according to the quantity of
clothes. At each press, the water level indicator light moves in turn.
3Child Lock
Press the “Water Level” and “Wash “at the same time to lock buttons on
control panel.
Press the “water level” and “Wash “at the same time again to unlock buttons.
4Wash
Press the button, you can reset wash time of the current program by
yourself, the corresponding wash time and surplus time are shown in the
corresponding
5Rinse Press the button to select the process of rinse among 1-2-3-0 times.
6Spin
Press the button and you can reset the spin time of current program by
yourself. The corresponding spin time and surplus time are shown in the
corresponding indicator
7Power
When the power socket is plugged in, press the Power button. The washer
enters the working state and automatically sets up for standard program.
In the course of working, press the button to end the current program and the
washer enters the stopping state.
8Start/Pause
After program selection, press the button to start. The flashing indicator light
means that the washer is working at the current state. Press the button to
pause in the course of operation, and the program continues at another press
till the program is nished.
1 2
3 4
5 6
7 8
SPIN
PRESET
POWER
START/PAUSE
RINSEWASH
WATER LEVEL
PROGRAM
REMAINING TIME
(MINS)
PRESET (HOURS)
NORMAL
ECONOMY
WOOL
JEAN
SOAK
CHID GARMENT
19
OPERATIONS
9Program
Select full program of “Normal”, “Economy”, “Wool”, “Child’s clothes”, “Jean”
and “Soak”.
At each press, the indicator lights move in turn in the set up program. The
preset time for wash and spin, rinse times and expected total times are
shown in the indicator.
10 Preset Press the button to set up the preset time. At each press of the button, the
preset time adds an hour in the indicator
11 Cycle
Fuzzy Rotate the pulsator three turns to left and right
automatically before water enter to washing tub.
Normal Powerful in washing and widely applicable for more
dirty cloths.
Economy
Wash for frequently used towels or less dirty laundry,
due to washing time is short. It is suitable for light or
less stained laundry.
Wool The washing ability is weaker. Finally hydrates with
low speed to avoid the clothes getting shrunked.
Child’s garment
The wash time is short, rinses many times and the
water level of rinse is high. Thoroughly washes away
the child garment, prevents the remaining detergent
from hurting the skin of the child.
Jeans
Powerful in washing, applicable for seriously stained
clothes such as dirty union suit, jeans and etc. This
is applicable for washing blankets, wool towels, slip-
covers and other items.
Soak Normal program of water flow and dynamic soak,
applicable for the dirtier clothes
20
OPERATIONS
1Speed Used to adjust the variable speed laundry flow. NO Speed Low Speed
MID Speed HIGH Speed
2Water level Press the button, you can re-set the water level according to the quantity of
clothes. At each press, the water level indicator light moves in turn.
3Child Lock
Press the “Water level” and “Program “at the same time to lock buttons on the
control panel.
Press the “Water level” and “Program “at the same time again to unlock
buttons.
4Wash
Press the button, you can re-set the wash time of the current program by
yourself. The corresponding wash time and the surplus time are shown in the
corresponding indicator.
5Rinse Press the button to select the process of rinse among 2-3-4-1-0.
6Spin
Press the button, you can re-set spin time of current program by yourself. The
corresponding spin time and the surplus time are shown in the corresponding
indicator.
7Power
The power socket is plugged in. Press the button, the washer enters to the
working state and automatically sets up for the standard program.
In the course of working, press the button to end the current program, then
the washer enters to the stopping state.
When program is nished or no program is selected within 10 minutes after
power on, the washer power off automatically.
8Start/Pause
After program selection, press the button to start. The flashing indicator light
means that the washer is working at the current state. Press the button to
pause in the course of operation, and the program continues at another press
till the program is nished.
For model SWM-FATL7R-BB
POWER
PROGRAM
PRESET
WASH RINSE SPIN SPEED
WATER
LEVEL
START
PAUSE
Child Lock
High
Middle
Low
This manual suits for next models
5
Table of contents
Other Singer Washer manuals
