1. Safety instructions
•Read the safety instructions and also this manual carefully.
•Keep the manual.
•Observe all red flags.
•Observe the manual.
•To prevent fire or electric shocks, protect the device against rain and
humidity
•Pull the plug before opening the housing.
•To prevent an electric shock you should not remove the cover.
•Do not operate the device in the near of water.
•Use only a dry cloth for cleaning.
1.1.FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32°F /0°C, or exceeding 104°F /35°C.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt. Pull the plug before
cleaning.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing, do not
open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure to hold the plug. When not
using the device for an extended period of time, be sure to disconnect the plug from the receptacle.
Ventilation
It is not allowed cover fans and air in and outlets.
Safety
Do not remove the grounding. It is for your safety. If you remove the grounding it can cause electric
shocks.
Hearing
To avoid hearing damages, you should not operate a sound system with high levels. This applies to
monitor systems, which are in the near of the ear, headphones or IEMs also.
Accessory
Please use only the accessory which is set by the manufacturer.
Important
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not
accept liability for any resulting defects or problems. Make sure the electrical connection is carried out

4 / 8
by qualified personnel. All electrical and mechanical connections have to be carried out according to
the European safety standards.
2.Introduction
Thank you very much for buying the Compact System Super Column. This set of active speakers was
developed for professional applications and enables a high quality at an affordable price. Please read
and keep this manual carefully.
2.1.1. Set
The set of the compact system is made up as follows:
- 2x Speaker SSC-4‘‘
- 2x Subwoofer SSC-12‘‘
- 2x Distance bar
2.1.2. Features
Speaker SSC-4‘‘
- 2-way 4‘‘ Fullrange speaker
- 1“ Neodymium Tweeter
- Speakon input
Subwoofer SSC-12“
- 1x12“ Subwoofer
- Line Input (XLR + ¼‘‘ jack)
- Line Output (XLR)
- Speakon output for satellite
2.1.3. Technical Data
Speaker SSC-4“
Frequency Response 140Hz – 20kHz
RMS Power 200W
Voltage 100-240V/AC
Tweeter 1“ Driver
Woofer 4“
Subwoofer SSC-12“
Frequency Response 35Hz – 140Hz
RMS Power 400W
MAX Power 600W
Voltage 100-240V/AC
Subwoofer 12“
Class D Amplifier

5 / 8
3.Setup und Wiring
3.1.Before using
1. When first powering-up the product, keep the controls all the way off, in order to prevent from
being potentially damaged and from producing annoyed sounds caused by defective cables or
hookup. When turning up controls, do it gradually, until normal operation is verified. These
precautions are necessary for all speaker system with high power amplifiers, since they have
enough power to blow most speakers in abnormal situations.
2. Check the AC Voltage before connecting the Ac plug.

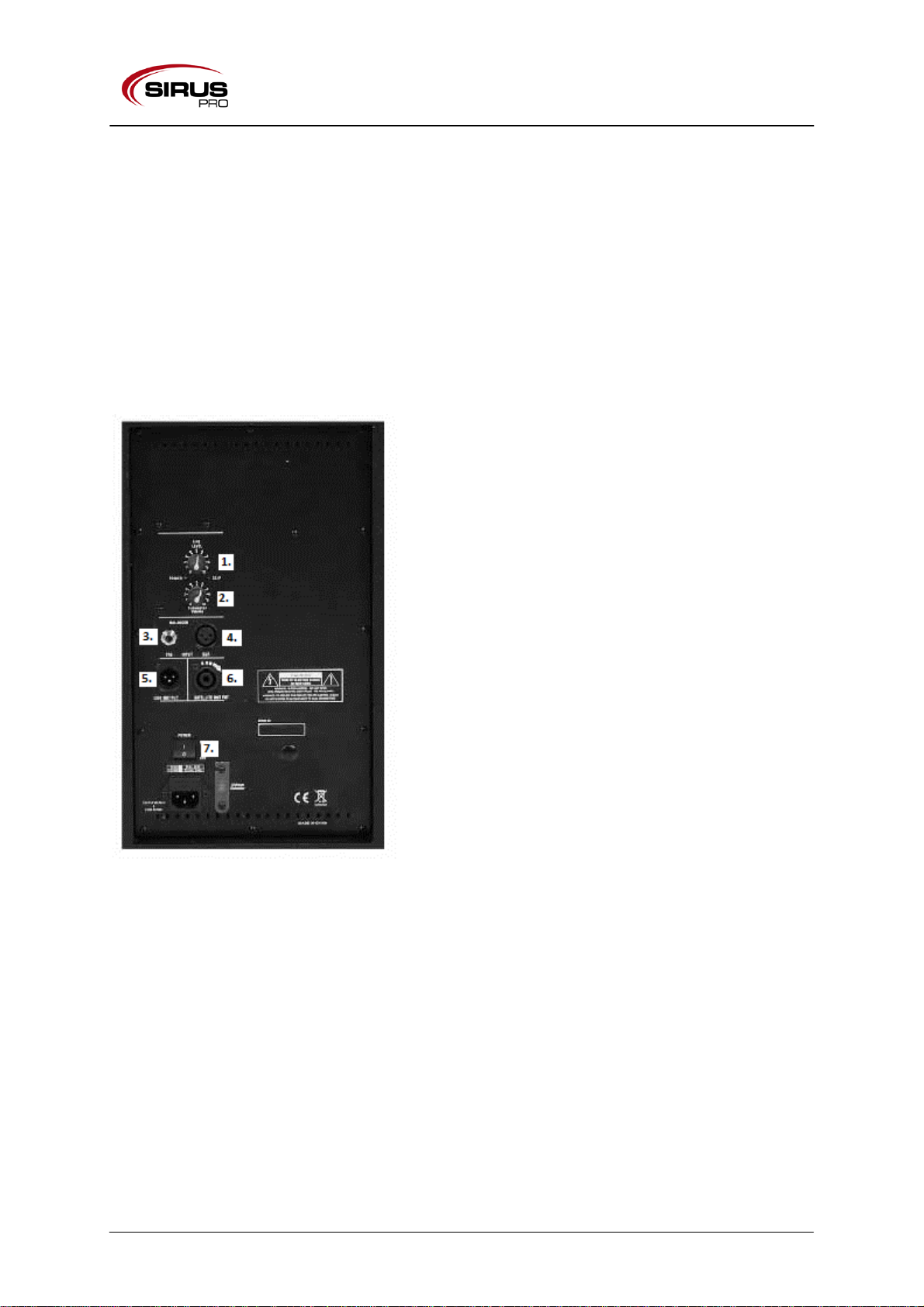

3.2.Subwoofer SSC-12“
1) Level control
Adjusts the output level of the satellite.
2) Sub Volume
Adjusts the output volume of the subwoofer.
3) LINE IN
Input for balanced or unbalanced jacks.
4) XLR IN
Input for balanced or unbalanced XLRs.
5) XLR OUT
XLR output connector balanced or unbalanced, to be used
to input connector paralleled and output to other speakers.
6) SPEAKON OUT
The speakon out is for connecting the satellite.
7) POWER main switch
8) Power supply (not illustrated)
Powercon in
3.3.Tips
Do not expose electronic circuitry to moisture! When you set the system up outdoors, be sure to
protect it against rain. Keep soft drinks, beer and all other liquids well away from the cabinets to
protect their electronic components from short circuits.
Ensure that the ducts on the enclosures rear panels are free of dirt and the devices are ventilated
properly. Otherwise, electronic components may overheat and suffer damage.

6 / 8
4.Connections
4.1.The balanced signal
The system has a female XLLR input that accepts a balanced line-level signal. When connecting a
balanced signal, be sure it´s wired as follows:
4.2.The unbalanced signal
4.3.AC Power cord connect
4.4.Placement
The system is not designed to sit on the floor; it has no rigging points and is not suitable for rigging.
Never attempt to suspend the system by its handles. As with any powered components, protect the
system from exposure to moisture. If you are setting them up outdoors, make sure that they are under
cover if you expect rain.
