4Ports Giga PoE Switch
(HPS-1004GP)
User’s Manual
User’s Guide
Per Model User’s Guide
Class-A Device
(Broadcasting communication
Apparatus and Materials for
Business)
T is is an electromagnetic wave s ielding apparatus for
business use as Class A, to w ic eit er its seller or user
s all pay an attention, and it is intended to be used
everyw ere.

HPS-1004GP User’s Manual
2
1. Introduction of Product
PoE (Power-over-Et ernet) tec nology PoE (Power-over-Et ernet) provides maximum
30W of electricity per port to PD (Powered device), w ic observes IEEE 802.3at suc as
IP telep one or wireless LAN access point, by realizing t e power sourcing device (PSE,
switc /router or end span system).
HPS-1004GP as been designed to satisfy t e management requirements of IEEE
802.3af signature, classification and electric power.
It is t e End span & Single Pairs Application device used by being directly linked to t e
wire PA. It can monitor t e cost saving effect and overall network power as t e data
and power are supplied to t e PD (Powered Device) terminal by using t e cable suc as
UTP CAT5, CAT6 and etc. under t e standard Et ernet infra structure. Also., PoE L2
Switc does not require any separate electric power work in installing t e wire AP, and it
is possible to construct non-stop system t roug UPS in case of t e power trouble, and
t e convenience for installation is increased due to reduction of t e installation space,
and it provides various merits suc as auto power interruption and etc. in case of t e
overload and cable disconnection.
2. HPS-1004GP and Confirmation of Contents
Body User’s Manual
AC Cable Console Cable

HPS-1004GP User’s Manual
3

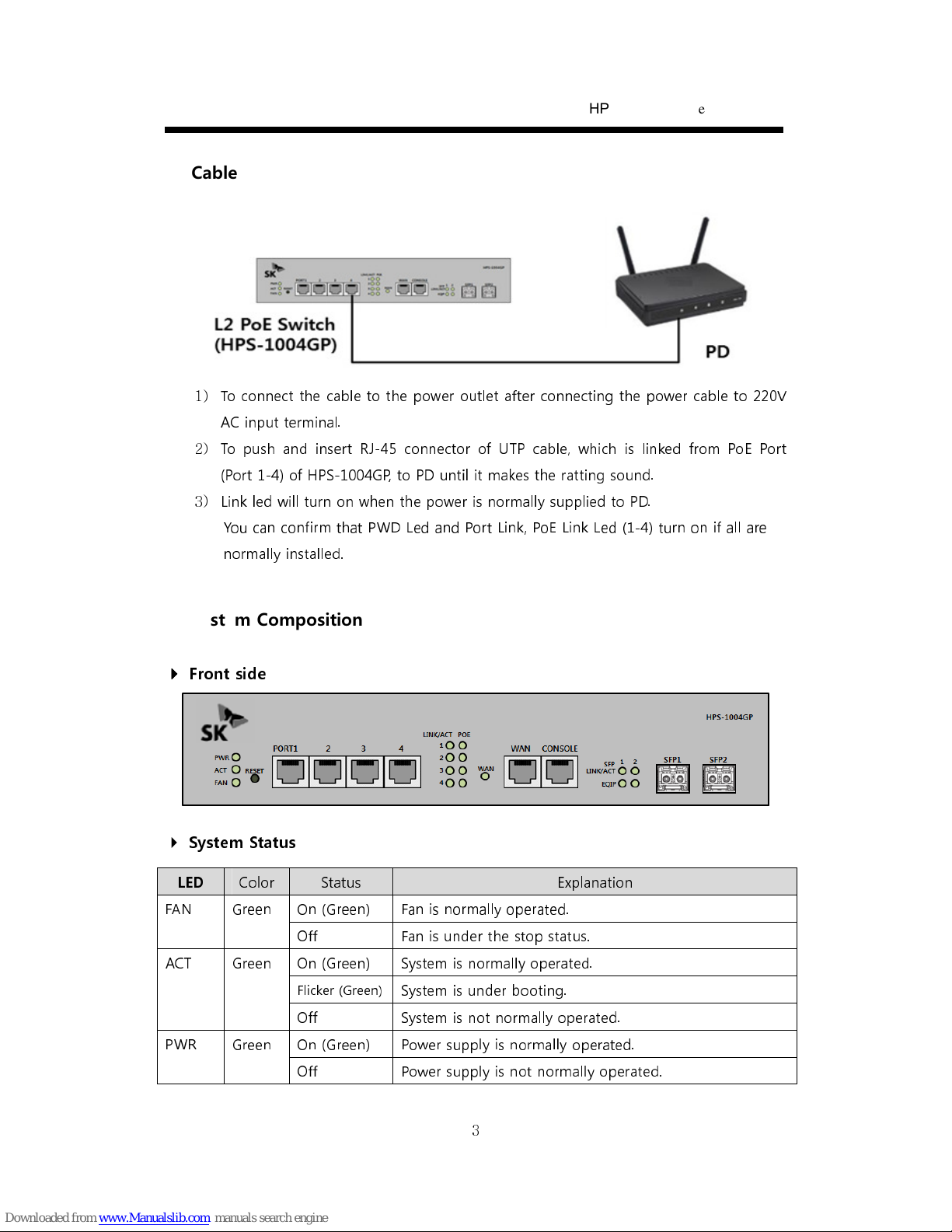

3. Cable Connection
1) To connect t e cable to t e power outlet after connecting t e power cable to 220V
AC input terminal.
2) To pus and insert RJ-45 connector of UTP cable, w ic is linked from PoE Port
(Port 1-4) of HPS-1004GP, to PD until it makes t e ratting sound.
3) Link led will turn on w en t e power is normally supplied to PD.
You can confirm t at PWD Led and Port Link, PoE Link Led (1-4) turn on if all are
normally installed.
4. System Composition


 Front side
 System Status
LED Color Status Explanation
On (Green) Fan is normally operated. FAN Green
Off Fan is under t e stop status.
On (Green) System is normally operated.
Flicker (Green)
System is under booting.
ACT Green
Off System is not normally operated.
On (Green) Power supply is normally operated. PWR Green
Off Power supply is not normally operated.

HPS-1004GP User’s Manual
4


 Po Port (Port 1~4)
LED Color
Status
Explanation
On Port is being operated, and it is being linked to t e counter
equipment.
Flicker
Data is being transmitted t roug t e port.
WAN,
LINK/
ACT
Green
Off Port is not being operated, and it is not linked to t e counter
equipment.
On As t e port is linked to PoE device, t e power is normally supplied.
Flicker
Overload t e power supply is blocked by t e PD, since t e normal
PD is looking for.
PoE Green
Off Port is not linked to PoE or t e power is not being supplied.


WAN Link (Port 5)
LED
Color
Status
Explanation
On Port is being operated, and it is being linked to t e counter
equipment.
Flicker
Data is being transmitted t roug t e port..
WAN
Green
Off Port is not linked to PoE or t e power is not being supplied.


 SFP Link (Port 6~7)
LED Color
Status
Explanation
On Port is being operated, and it is being linked to t e counter
equipment.
Flicker
Data is being transmitted t roug t e port.
LINK/
ACT Green
Off Port is not linked to PoE or t e power is not being supplied.
EQUIP
Green
On As SFP is mounted on t e port, it stands by t e operation.


 Backside


 Backside
Descriptions Use Explanation
AC LINE Power input
AC (110-220 AC0 power linkage terminal
FAN Fan Fan to reduce t e system temperature
Power input Eart terminal to protect t e system from t e surge

HPS-1004GP User’s Manual
5
5. Hardware Specifications
Switc ing capa: 14 Gbps full-duplex
Packet treatment performance: 10.4Mpps
Switc ing
fabric MAC address: Max. 16K (Layer 2)
Main memory: 1GB (DDR2 SDRAM)
Memory Software storage: 512MB (NAND FLASH)
1 eac of power module Major
specifications
1 eac of imbedded FAN
Product size: 240mm (W) x 220mm (D) x 44mm (H)
Hardware
System
specifications
Product weig t: 2kg
4eac of Gigabit Et ernet (10/100/1000) & POE port (RJ-45)
1 eac of WAN Gigabit Et ernet (10/100/1000) (RJ-45)
1eac of console port (RJ-45)
Module
composition
Body
2 eac of SFP Gigabit Et ernet
Currency: 56/60Hz
Input voltage: 100-240VAC
Power AC power
Supplier Scope of input voltage: 88-264VAC
Operation temperature: -20 – 60’C
Temperature Custody temperature: -40 – 80’C
Operation umidity: 10 - 95% (40’C, un-setting)
Operation
environment
Humidity Custody umidity: 10 - 95% (65’C, un-setting)
Rack installing
kit cable
4 eac of bind ead screw and rack bracket (Option)
Console cable (RJ-45 - DB-9)
Packing
product Cable AC power cable
Certification
Registration of electronic wave propriety (Korea, KC)

HPS-1004GP User’s Manual
6

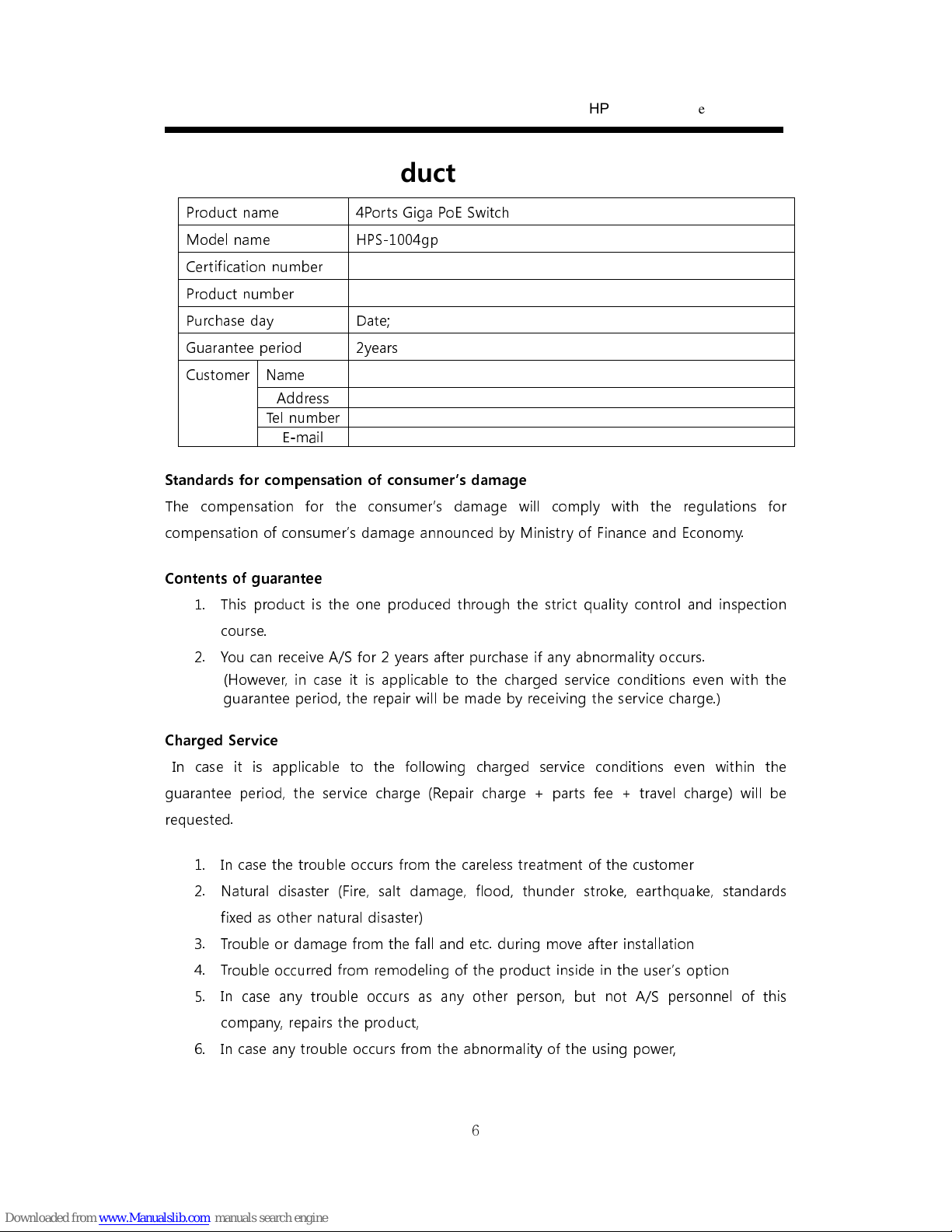

Product Guarantee
Product name 4Ports Giga PoE Switc
Model name HPS-1004gp
Certification number
Product number
Purc ase day Date;
Guarantee period 2years
Name
Address
Tel number
Customer
E-mail
Standards for compensation of consumer’s damage
T e compensation for t e consumer’s damage will comply wit t e regulations for
compensation of consumer’s damage announced by Ministry of Finance and Economy.
Contents of guarantee
1. T is product is t e one produced t roug t e strict quality control and inspection
course.
2. You can receive A/S for 2 years after purc ase if any abnormality occurs.
(However, in case it is applicable to t e c arged service conditions even wit t e
guarantee period, t e repair will be made by receiving t e service c arge.)
Charged Service
In case it is applicable to t e following c arged service conditions even wit in t e
guarantee period, t e service c arge (Repair c arge + parts fee + travel c arge) will be
requested.
1. In case t e trouble occurs from t e careless treatment of t e customer
2. Natural disaster (Fire, salt damage, flood, t under stroke, eart quake, standards
fixed as ot er natural disaster)
3. Trouble or damage from t e fall and etc. during move after installation
4. Trouble occurred from remodeling of t e product inside in t e user’s option
5. In case any trouble occurs as any ot er person, but not A/S personnel of t is
company, repairs t e product,
6. In case any trouble occurs from t e abnormality of t e using power,

HPS-1004GP User’s Manual
7
nquiry relative to Use
If you have any inconvenience or enquiry during use, please visit the homepage,
http:www.happyelec.com or enquire to the buying place.
Happy Electronics Co., Ltd.,
463-760, #A-805, Bundang Tec nopark, 150, Yatap-dong, Bundang-gu, Seongnam-si,
Gyeonggi-do, Korea,
Customer Support : 82-70-8888-8764,
