SKAR Audio RP-350.10 User manual

Congratulations and thank you for purchasing SKAR AUDIO amplifiers, the logical choice in
mobile audio amplification. Your amplifiers have been designed and engineered with
the highest quality components and top of the line workmanship to help you reach
the superior sound you are after.
To achieve optimal performance of your system, please take a few moments to read over this
Owner’s manual or visit authorized dealer if needed before starting your installation.
VARIABLE SUBSONIC FILTER
6dB / 12dB SELECTABLE BASS BOOST
REMOTE CONTROL
COMPACT DESIGN
Rated power output
- RMS power @ 4 ohm
- RMS power @ 2 ohm
- RMS power @ 1 ohm
Working impedance
Input Sensitivity
Low Pass Filter
Subsonic Filter
Bass Boost
Frequency Response
Signal to Noise Ratio
Efficiency @ 4ohm
THD @ 4ohm
Damping Factor
Fuse Rating
Dimensions ( L inches )
6.30 W x 2.20 H inches
RP-800.1D
370Watts x 1
600Watts x 1
800Watts x 1
1ohm stable
6V ~ 0.2V
50Hz ~ 220Hz
Off ~ 50Hz
6dB / 12dB
20 ~ 250Hz
85 <
Over 90%
< 0.1%
150 <
80A
10.13 inches
RP-1500.1D
550Watts x 1
930Watts x 1
1500Watts x 1
1ohm stable
6V ~ 0.2V
50Hz ~ 220Hz
Off ~ 50Hz
6dB / 12dB
20 ~ 250Hz
85 <
Over 90%
< 0.1%
150 <
120A
13.267 inches
All features are subject to change in the continuing effort to improve the products without notice.
INTRODUCTION
DIGITAL MONOBLOCK FEATURES
DIGITAL MONOBLOCK SPECIFICATIONS
STABLE INTO 1OHM LOAD
HIGH SPEED MOSFET POWER SUPPLY
24dB/OCT, VARIABLE CROSSOVER
VARIABLE LOW PASS FILTER
4 CHANNEL AMPLIFIER 5 CHANNEL AMPLIFIER
CH1 ~ CH4 STABLE INTO 2OHM STEREO
CH5 STABLE INTO 1OHM
12dB/OCT, HIGH PASS FILTER FOR CH1 ~ CH4
24DB/OCT, LOW PASS FILTER FOR CH5
24DB/OCT, SUBSONIC FILTER FOR CH5
VARIABLE BASS BOOST FOR CH5
MULTI-CHANNEL FEATURES
STABLE INTO 2OHM STEREO OR 4OHM MONO
HIGH SPEED MOSFET POWER SUPPLY
12dB/OCT, HIGH PASS FILTER
12dB/OCT, LOW PASS FILTER
6dB / 12dB SELECTABLE BASS BOOST
BAND-PASS CAPABLE
RP-350.1D
150Watts x 1
250Watts x 1
350Watts x 1
1ohm stable
6V ~ 0.2V
50Hz ~ 220Hz
Off ~ 50Hz
6dB / 12dB
20 ~ 250Hz
85 <
Over 90%
< 0.1%
150 <
30A
6.23 inches
RP-2000.1D
800Watts x 1
1400Watts x 1
2000Watts x 1
1ohm stable
6V ~ 0.2V
50Hz ~ 220Hz
Off ~ 50Hz
6dB / 12dB
20 ~ 250Hz
85 <
Over 90%
< 0.1%
150 <
200A
17.71 inches

MULTI-CHANNEL SPECIFICATIONS

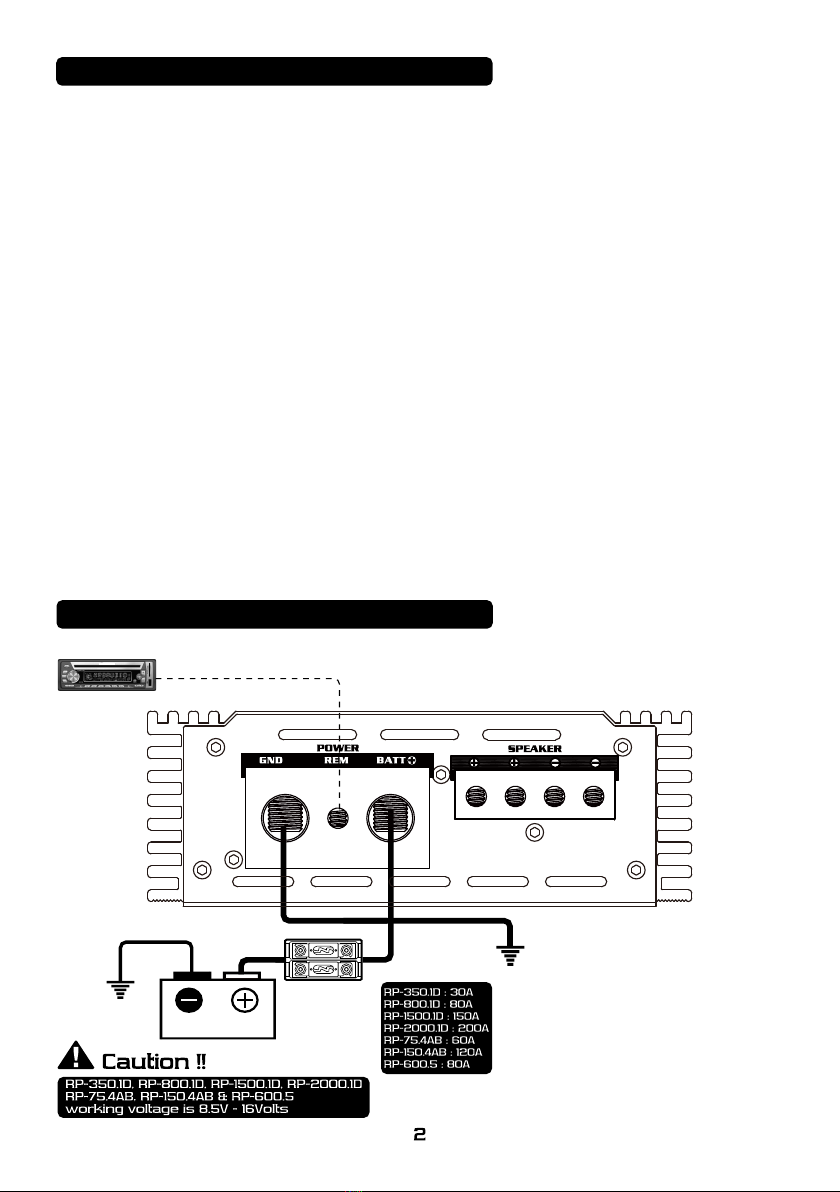

POWER CONNECTION
HEAD UNIT
BATTERY
Fuse rate
GROUND
Rated power output
- RMS power @ 4 ohm
- RMS power @ 2 ohm
- RMS power @ 1 ohm
- RMS power @ 4 ohm mono
Working impedance
Input Sensitivity
High Pass Filter
Low Pass Filter
Subsonic Filter
Bass Boost
Frequency Response
Signal to Noise Ratio
Efficiency @ 4ohm
THD @ 4ohm
Damping Factor
Fuse Rating
Dimensions ( L inches )
6.30 W x 2.20 H inches
RP-150.4AB
150Watts x 4
250Watts x 4
na
500Watts x 2
2ohm stable
6V ~ 0.2V
20Hz ~ 5KHz
50Hz ~ 500Hz
na
6dB / 12dB
20Hz ~ 20KHz
105 <
Over 65%
< 0.1%
150 <
120A
17.72 inches
RP-600.5
60Watts x 4 + 170Watts x 1
90Watts x 4 + 270Watts x 1
370Watts x 1
180Watts x 2
2ohm for CH1/4, 1ohm for CH5
6V ~ 0.2V
20Hz ~ 5KHz - CH1/2 & CH3/4
50Hz ~ 250Hz for CH5
10Hz ~ 50Hz for CH5
0dB ~ 12dB for CH5
20Hz ~ 20KHz for CH1/4,
20Hz ~ 250Hz for CH5
105 < for CH1/4, 85 < for CH5
Over 65% for CH1/4,
Over 90% for CH5
< 0.1%
150 <
80A
16.93 inches
All features are subject to change in the continuing effort to improve the products without notice.
RP-75.4AB
75Watts x 4
115Watts x 4
na
250Watts x 2
2ohm stable
6V ~ 0.2V
20Hz ~ 5KHz
50Hz ~ 500Hz
na
6dB / 12dB
20Hz ~ 20KHz
105 <
Over 65%
< 0.1%
150 <
60A
13.78 inches

BATT ( 12V POWER )
Before mounting amplifiers, disconnect the negative cable from the battery to protect
any accidental damage to your awesome amplifiers and audio system.
All amplifiers are designed to use 4 gauge power and ground connection.
Connect the power cables to power terminal 12V.
All RP-series amplifiers are not equipped with fuses so that external fuses should be used.
Connect one end of fuse holder to the power cable going into the amplifiers and the other
end of fuse holder to positive battery. This fuse location will protect the system and
the vehicle against the possibility of a short circuit in the power cable.
Be sure to use fuses and fuse holder adequate for the application.
GND ( GROUND )
Locate a secure grounding connection as close to amplifier as possible.
Make sure the location is clean and provides a direct electrical connection to the frame of
the vehicle. The ground needs to have as low of a resistance as possible.
Connect one end of a short piece of the same size cable as the power cable to
the grounding point or to one of your batteries or battery bank. Run the other end of 4 ga
cable to the mounting location of the amplifiers for connection to the amplifiers’ ground
terminals and connect the ground cable to the GND ( ground terminal ).
REM ( REMOTE )
Run a remote turn on cable from the switched 12V source . This may be a toggle switch,
a relay, your source unit's remote trigger cables, or power antenna trigger cable.
Connect the remote turn on cable to the REM ( remote ) terminal.
Input
Power
Protect
Remote
R
L
GAIN LPF SUBSONIC
Bass EQ
0dB 12dB
MIN MAX 50Hz 220Hz OFF 50Hz
6dB
Wired Remote Control
DIGITAL MONOBLOCK INPUT CONNECTION
HEAD UNIT

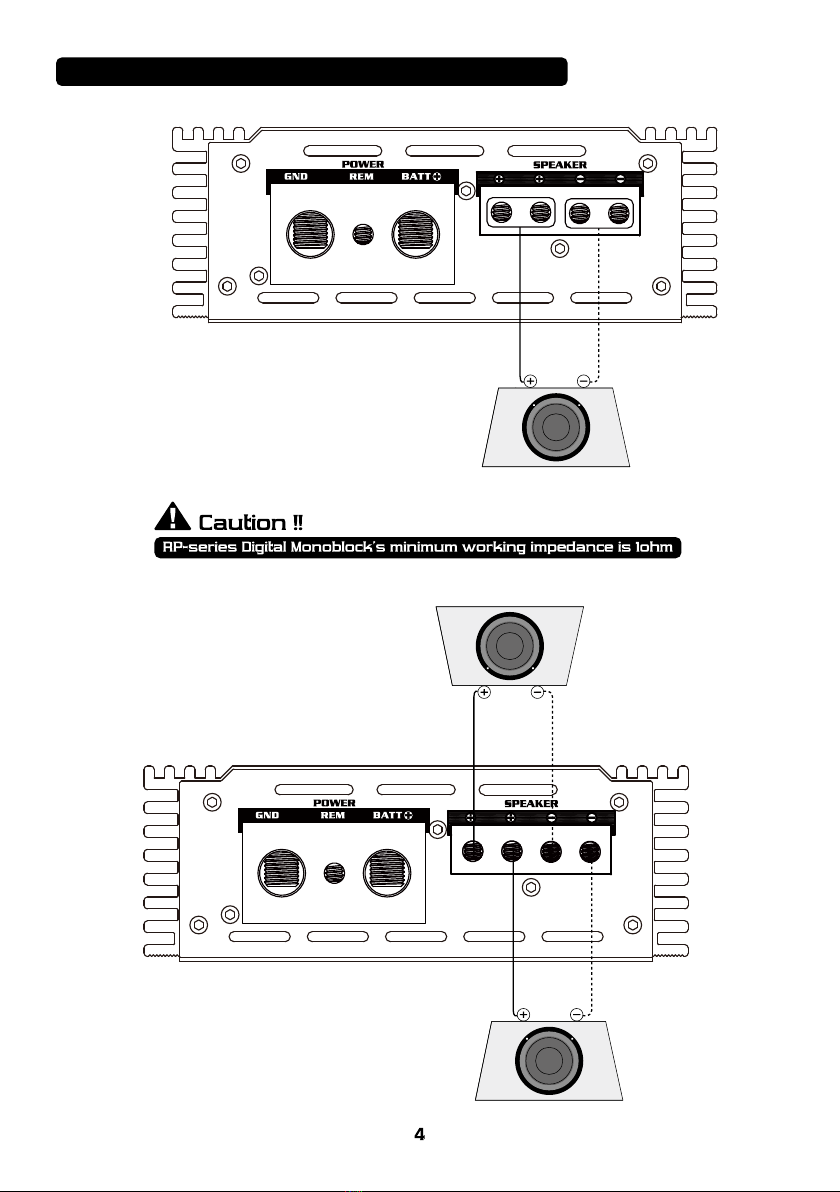

DIGITAL MONOBLOCK SPEAKER CONNECTION
4 ~ 1 ohms
4 ~ 2 ohms
4 ~ 2 ohms

Input
Ch3 Ch1
Ch4 Ch2 Ch3/4
Ch1/2
GAIN HPF LPF X-Over Bass EQ Power
Protect
Remote
Min Max 20Hz 5KHz 50Hz 500Hz
Min Max 20Hz 5KHz 50Hz 500Hz
HPF LP/BP
Full
HPF LP/BP
Full
0dB 12dB
6dB
0dB 12dB
6dB

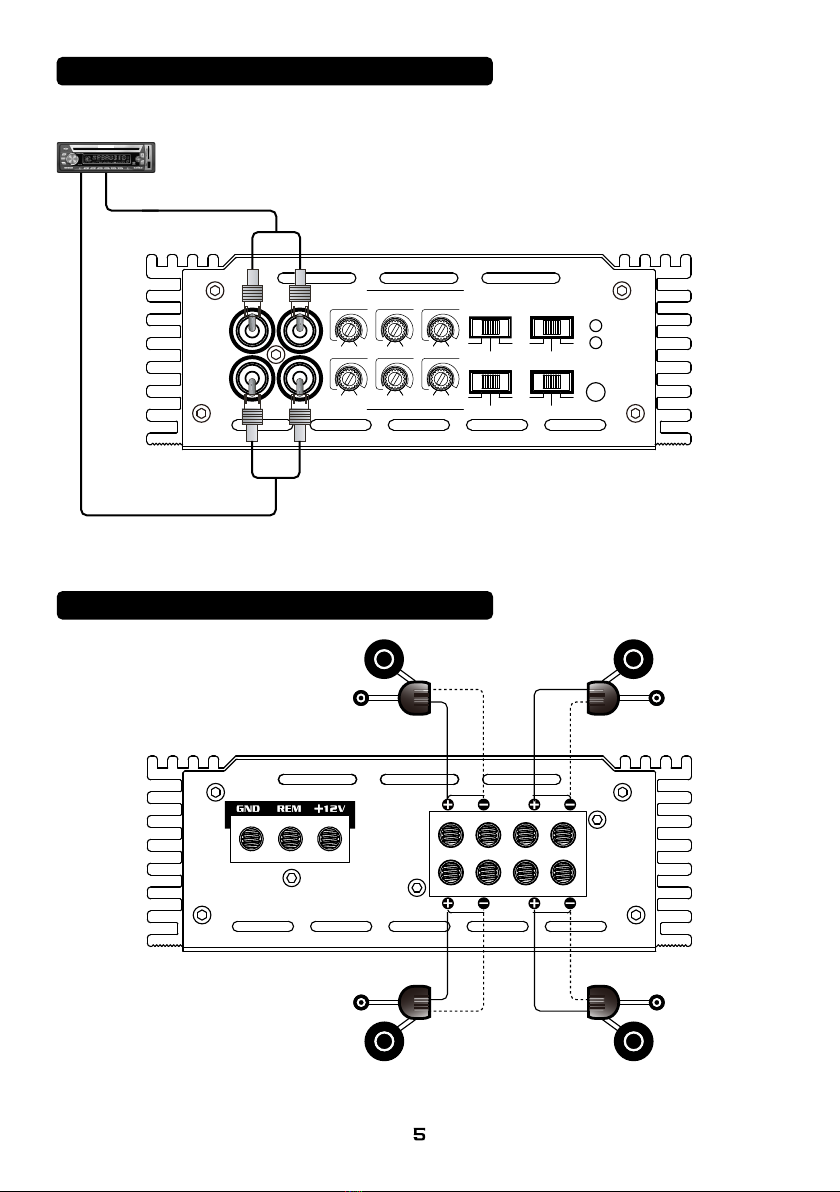

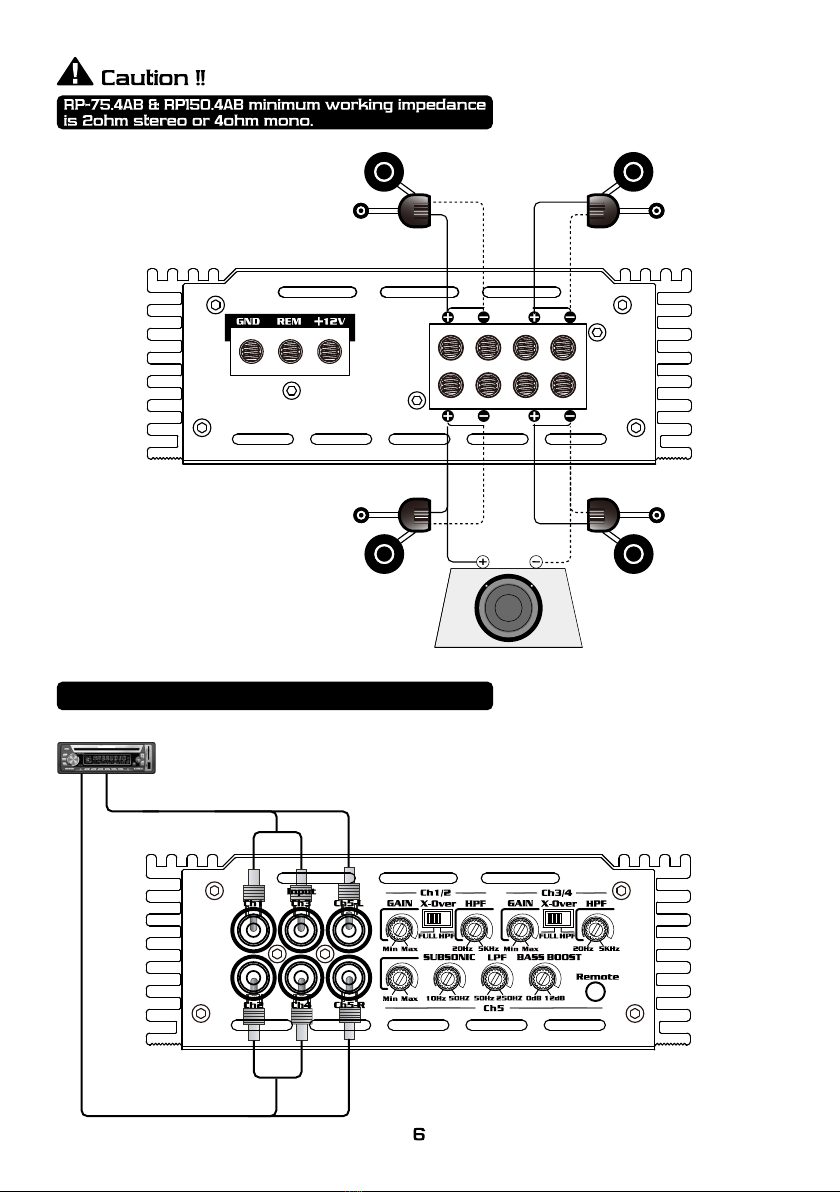

4 CHANNELS RCA INPUT CONNECTION
HEAD UNIT
4 CHANNELS SPEAKER CONNECTIONS
POWER Bridged
Bridged
Ch2
Ch1
Ch4
Ch3
Mid Range
Passive
Tweeter

5 CHANNELS RCA INPUT CONNECTION
HEAD UNIT
POWER Bridged
Bridged
Ch2
Ch1
Ch4
Ch3
Mid Range
Passive
Tweeter
8 ~ 4 ohms

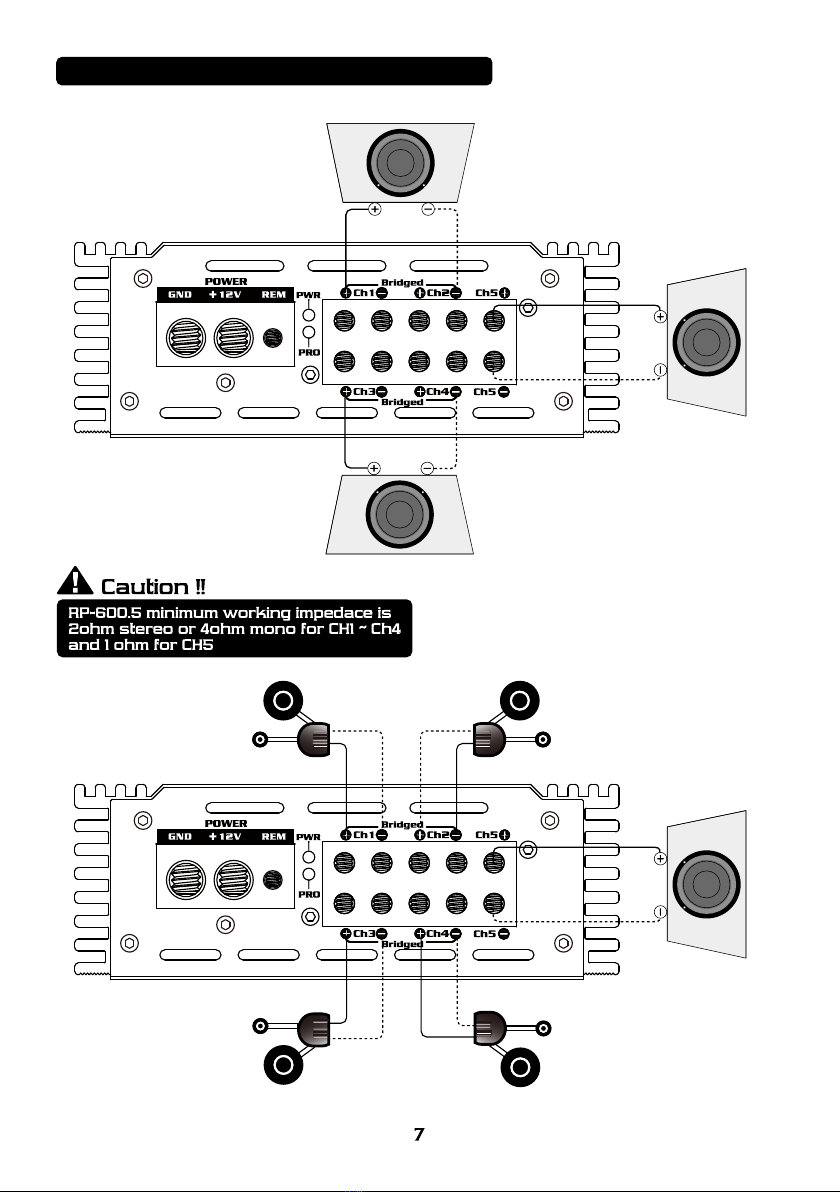

5 CHANNELS SPEAKER CONNECTIONS
4 ~ 1 ohms
8 ~ 4 ohms
8 ~ 4 ohms
Mid Range
Passive
Tweeter
4 ~ 1 ohms

RP-series amplifiers have the protection features to prevent any damages from misuse or
faulty conditions.
If RP-series amplifiers sense excessive heat, short circuited speakers DC, or voltage
the protection indicator will light, and the system will be turned off.
In order to check the problem, you should turn all levels down and all power off and carefully
check the installation for wiring mistakes or short.
If RP-series amplifiers shuts down due to excessive heat, They will be working later
when it is cooled down
Before removing your amplifier, refer to the list below and follow the suggested procedures.
TROUBLE SHOOTINGS
NO SOUND ( NO OUTPUT )
@ Please check all connections, cables, routing of cables, short & voltage.
@ Please check the fuses , If they are blown, please replace with new one.
@ Please check whether speakers work well, you can test speakers by connecting to
another amplifier
PROTECTION
@ Please check overload, overheat ( thermal ), short and voltage, DC offset.
@ Minimum working impedance is 1 ohm for RP-350.1D, RP-800.1D, RP-1500.1D and RP-2000.1D.
RP-75.4AB and RP-150.4AB is 2ohm stereo or 4ohm mono.
RP-600.5 is 2ohm stereo or 4ohm mono for CH1 ~ CH4 and 1ohm for CH5.
@ If amplifiers are shut down due to heat, they will be on some minutes later after cooling down.
Please make better airflow and no obstruction around amplifiers for thermal protection.
@ RP-350.1D, RP-800.1D, RP-1500.1D, RP-2000.1D, RP-75.4AB, RP-150.4AB & RP-600.5’s working voltage
is 8.5 ~ 16Volts.
@ When over 4V DC comes into amplifiers, then, they will be DC protected. Check whether amplifiers
work after removing RCA-Input.
If amplifiers work, then check DC by checking RCA-input .
When DC is over 4V at input, try by replacing +12V source unit .
DISTORTION & NOISE
@ Readjust input level and check the speaker quality at another amplifier.
Replace poor quality speakers with good quality ones.
@ Check amplifiers and head unit’s ground contact. all grounds should be common.
@ Check RCA Jack, then replace with new one or reroute RCA Jack.
@ Engine noise is caused by poor grounding of amplifiers, head unit, other components, battery or
alternator, so please check all grounding connection.
POOR BASS RESPONSE
@ Please check speaker cables and reverse polarity.
