SMA Solar Technology AG 1 Information on this Document
Installation Manual BTREPOUT-IA-en-11 5
1 Information on this Document
Validity
This document is valid for the following device types as of hardware version A1 and firmware version
V 1.07.R:
• BTREP-OUT.GR1
• BTREP-OUT.GR2
Target Group
This document is for skilled persons. Only qualified personnel with the appropriate skills are allowed
to perform the tasks described in this manual (see Section2.2 "Qualification of Skilled Persons",
page8).
Additional Information
Links to additional information can be found at www.SMA-Solar.com:
Symbols
Document title Document type
SMA Bluetooth® Wireless Technology Technical description
SMA Bluetooth® Wireless Technology in Practice Technical information
Symbol Explanation
Indicates a hazardous situation which, if not avoided, will result in death
or serious injury
Indicates a hazardous situation which, if not avoided, could result in death
or serious injury
Indicates a hazardous situation which, if not avoided, could result in minor
or moderate injury
Indicates a situation which, if not avoided, could result in property damage
Information that is important for a specific topic or goal, but is not
safety-relevant
☐ Indicates an essential requirement for achieving a specific goal
☑ Desired result
✖ A problem that might occur

1 Information on this Document SMA Solar Technology AG
6 BTREPOUT-IA-en-11 Installation Manual
Typographies
Nomenclature
Abbreviations
Typography Usage Example
bold • Display messages
• Elements of a user interface
•Connections
• Elements to be selected
• Elements to be entered
• The value can be read
from the Energy field.
• Select Settings.
•Enter the value 10 in the
Minutes field.
>• Connects several elements that
are to be selected
• Select Settings > Date.
[Button/Key] • Button or key to be selected or
pressed
• Select [Next].
Complete designation Designation in this document
PV plant Plant
Small wind turbine system Plant
SMA Bluetooth Piggy-Back Bluetooth Piggy-Back
SMA Bluetooth Piggy-Back Plus Bluetooth Piggy-Back Plus
SMA Bluetooth Repeater Outdoor Bluetooth Repeater Outdoor
Sunny Beam with Bluetooth® Wireless Technology Sunny Beam with Bluetooth
Abbreviation Designation Explanation
AC Alternating Current ‒
DC Direct Current ‒
LED Light-Emitting Diode ‒
WLAN Wireless Local Area Network ‒

SMA Solar Technology AG 2 Safety
Installation Manual BTREPOUT-IA-en-11 7
2 Safety
2.1 Intended Use
The Bluetooth Repeater Outdoor is used in outdoor installations to close dead zones under
unfavourable installation conditions between SMA Solar Technology AG devices by means of
Bluetooth or to improve poor wireless connections.
The Bluetooth Repeater Outdoor is intended for private and industrial use. Use the
Bluetooth Repeater Outdoor in outdoor installations.
The SMA Bluetooth Repeater Outdoor may only be used with supported products:
For safety reasons, it is not permitted to modify the product or install components that are not explicitly
recommended or distributed by SMA Solar Technology AG for this product.
The enclosed documentation is an integral part of this product.
• Read and observe the documentation.
• Keep the documentation in a convenient place for future reference.
Only use the SMA Bluetooth Repeater Outdoor in accordance with the information provided in the
enclosed documentation. Any other use may result in personal injury or property damage.
Supported Products
The SMA Bluetooth Repeater Outdoor may only be used with the following SMA Solar Technology AG
products:
• All SMA communication products with Bluetooth
• All inverters with SMA Bluetooth Piggy-Back upgrade. A list of supported inverters can be found
in the SMA Bluetooth Piggy-Back installation manual.
• All inverters with SMA Bluetooth Piggy-Back Plus upgrade. A list of supported inverters can be
found in the SMA Bluetooth Piggy-Back installation manual.
• SMA PV inverters with integrated Bluetooth:
– SB (Sunny Boy) 3000TL-20/SB 4000TL-20/SB 5000TL-20: from software package 2.06
– SB 3000TL-21/SB 4000TL-21/SB 5000TL-21
– SB 2000HF-30/SB 2500HF-30/SB 3000HF-30
– STP (Sunny Tripower) 10000TL-10/STP 12000TL-10/STP 15000TL-10/STP 17000TL-10
• SMA wind power inverters with integrated Bluetooth:
– WB (Windy Boy) 3600TL-20/WB5000TL-20
– WB 2000HF/WB 2500HF/WB 3000HF

2 Safety SMA Solar Technology AG
8 BTREPOUT-IA-en-11 Installation Manual
2.2 Qualification of Skilled Persons
The work described in this document must be performed by skilled persons only. Skilled persons must
have the following qualifications:
• Training in the installation and commissioning of electrical devices and plants
• Knowledge of how to deal with the dangers and risks associated with the installation and
operation of electrical devices and plants
• Knowledge of all applicable standards and directives
• Knowledge of how an inverter works and is operated
• Knowledge of and adherence to this document and all safety precautions
2.3 Safety Precautions
Electric Shock
Lethal voltages are present in the conductive parts of the inverter.
• Prior to performing any work on the inverter, disconnect the inverter from any voltage sources
on the AC and DC sides (see inverter installation manual). Observe the waiting time to allow
the capacitors to discharge.
Burn Hazards
Some parts of the inverter enclosure can get hot during operation.
• During operation, touch the inverter on the enclosure lid only.
Environmental Influences
When closed, the Bluetooth Repeater Outdoor has the degree of protection IP54.
The Bluetooth Repeater Outdoor is thus protected against dust intrusion and water penetration. Dust
intrusion and water penetration can damage the Bluetooth Repeater Outdoor.
• When the enclosure of the Bluetooth Repeater Outdoor is not closed, protect the
Bluetooth Repeater Outdoor against dust intrusion and water penetration.
• Close the enclosure of the Bluetooth Repeater Outdoor again after performing any work on the
Bluetooth Repeater Outdoor.
Electrostatic Discharge
By touching electronic components, you can damage or even destroy the inverter or the
Bluetooth Repeater Outdoor through electrostatic discharge (ESD).
• Earth yourself before touching any components of the inverter or the Bluetooth Repeater
Outdoor.

SMA Solar Technology AG 3 Scope of Delivery
Installation Manual BTREPOUT-IA-en-11 9
3 Scope of Delivery
3.1 Order Option Top-Hat Rail Power Supply Unit
Check the scope of delivery for completeness and any externally visible damage. Contact your
specialist dealer if the scope of delivery is incomplete or damaged.
Figure1: Components included in the scope of delivery with order option top-hat rail power supply unit
Item Quantity Description
A1Bluetooth Repeater Outdoor (device type „BTREP-OUT.GR1“),
pre-assembled
B4Screw
C 4 Wall plug

3 Scope of Delivery SMA Solar Technology AG
10 BTREPOUT-IA-en-11 Installation Manual
3.2 Order Option Power Module
Check the scope of delivery for completeness and any externally visible damage. Contact your
specialist dealer if the scope of delivery is incomplete or damaged.
Figure2: Components included in the scope of delivery with order option Power Module
3.3 Identifying the SMA Bluetooth Repeater Outdoor
You can identify the SMA Bluetooth Repeater Outdoor by means of the type label. The type label is
on the right-hand side of the SMA Bluetooth Repeater Outdoor.
Item Quantity Description
A1Bluetooth Repeater Outdoor (device type „BTREP-OUT.GR2“),
pre-assembled
B 1 Power Module for the voltage supply (for scope of delivery see the
installation manual of the Power Module)
C4Screw
D 4 Wall plug

SMA Solar Technology AG 4 Product Description
Installation Manual BTREPOUT-IA-en-11 11
4 Product Description
4.1 Range of Usage
Figure3: Use of the Bluetooth Repeater Outdoor (example)
The Bluetooth Repeater is used in outdoor installations to close dead zones under unfavourable
installation conditions between SMA Solar Technology AG devices with Bluetooth or to improve poor
wireless connections.
4.2 Functions
• Connection to SMA devices with Bluetooth via Bluetooth Class 1
• Maximum range of up to 100 m in free-field conditions with direct visual contact
• Can be used outdoors, thanks to weatherproof enclosure
Item Description
A Inverter with Bluetooth
B Bluetooth Repeater Outdoor
C Communication device with Bluetooth

4 Product Description SMA Solar Technology AG
12 BTREPOUT-IA-en-11 Installation Manual
4.3 Device Overview

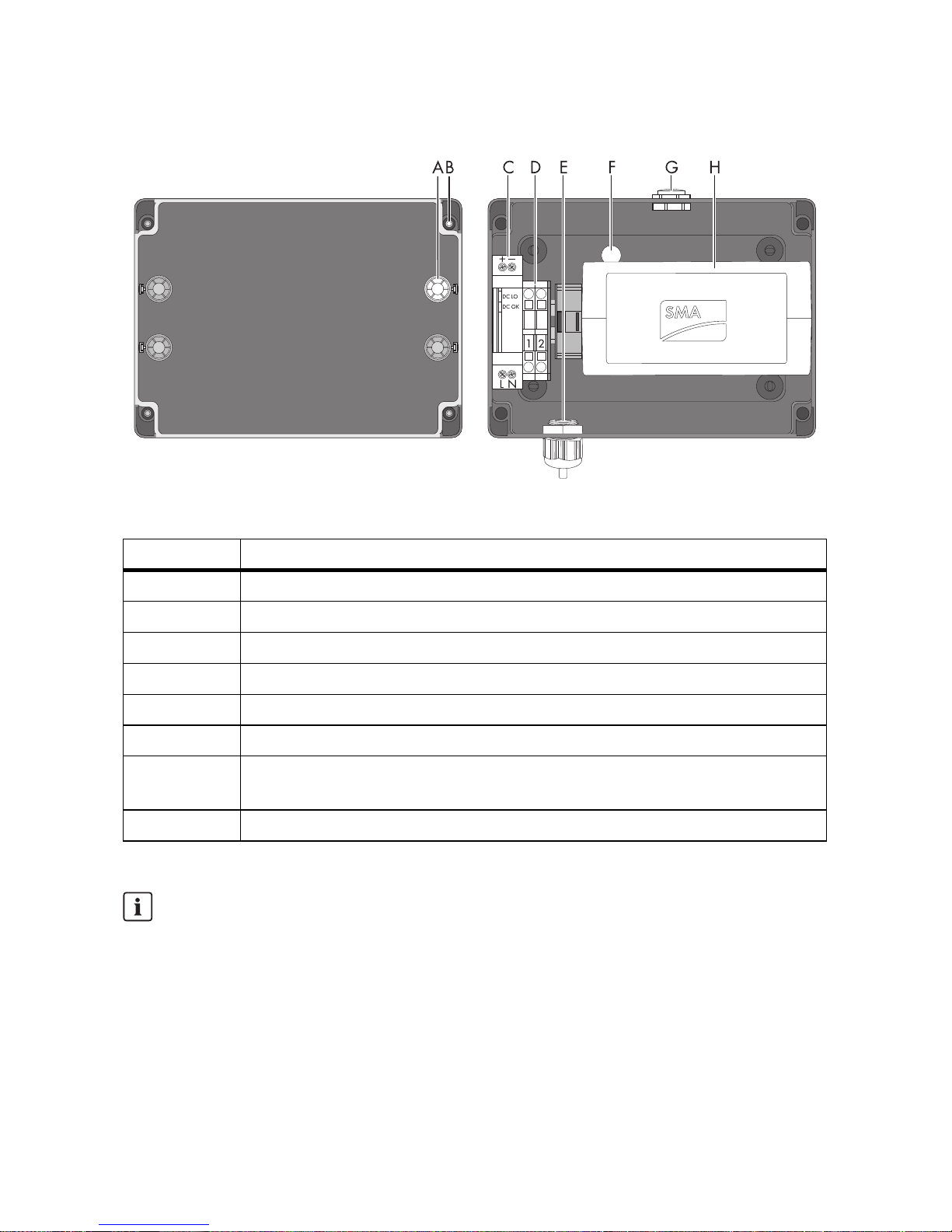

Figure4: Overview of the enclosure elements (with enclosure lid (left-hand) and enclosure bottom (right-hand))
Item Description
ASeal
B Enclosure lid screw
C Top-hat rail power supply unit*
* only included in order option top-hat rail power supply unit
D Feed-through terminal for the connection to the voltage supply
E Enclosure opening for voltage supply
F Opening with self-adhesive membrane for pressure equalisation
G Screw seal with screwable seal insert, by means of which there is access to the
rotary switches MODE and NetID
HBluetooth Repeater
Do not damage or remove the self-adhesive membrane
The self-adhesive membrane is a pressure membrane balance element, e. g. for heat
generation in the inside of the enclosure, and ensures the tightness of the enclosure in
accordance with the degree of protection IP54* .
* according to IEC 60529

SMA Solar Technology AG 4 Product Description
Installation Manual BTREPOUT-IA-en-11 13

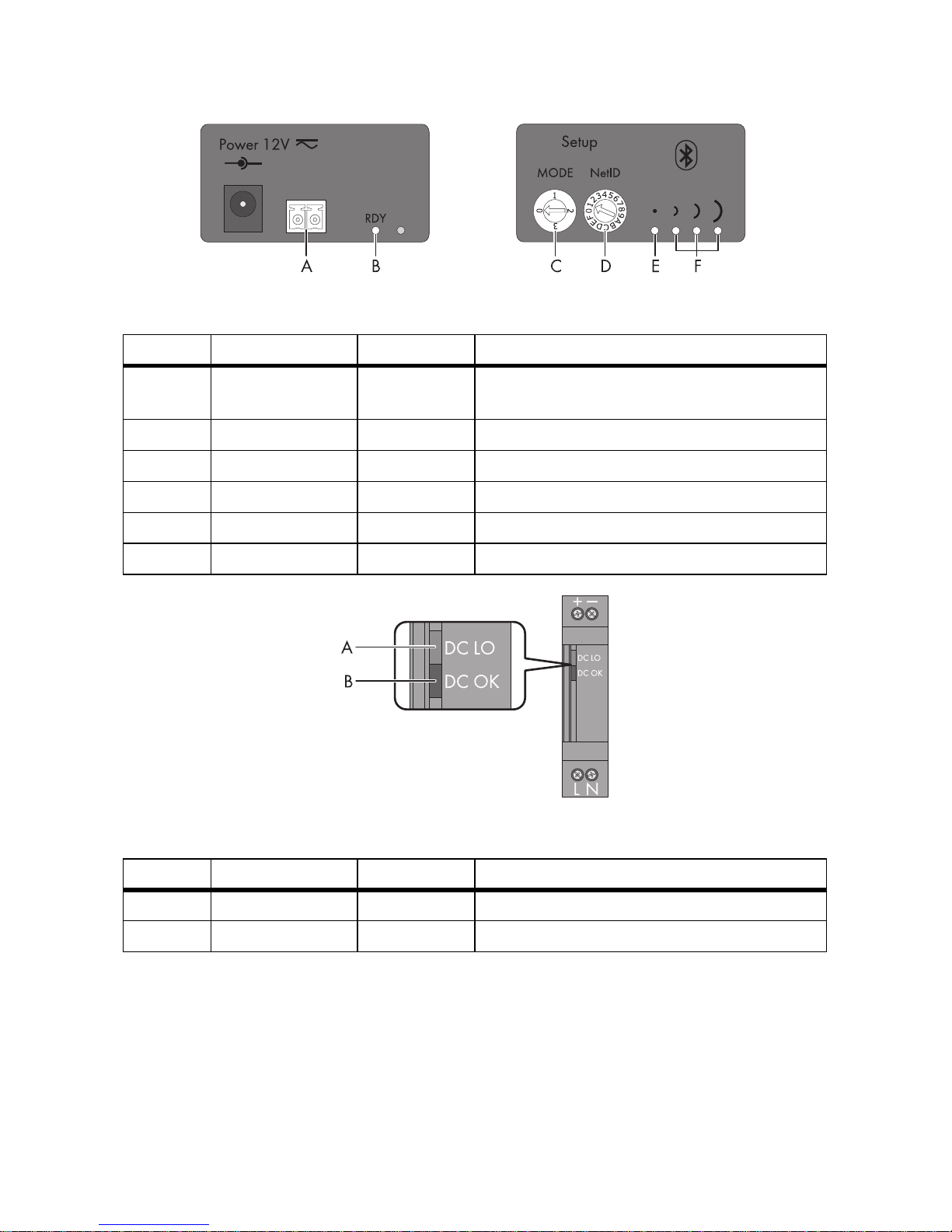

Figure5: Overview of the device elements on the Bluetooth Repeater Outdoor
Figure6: Overview of the LEDs of the top-hat rail power supply unit
Item Description Colour Explanation
A − − Terminal DC source (top-hat rail power supply
unit or Power Modul)
BRDY Green LED for voltage supply
CMODE − Rotary switch for configuring the MODE
DNetID − Rotary switch for configuring the NetID
E− Blue Bluetooth LED
F− Yellow Bluetooth LEDs
Item Description Colour Explanation
ADC LO Yellow LED for voltage supply
BDC OK Green LED for voltage supply

4 Product Description SMA Solar Technology AG
14 BTREPOUT-IA-en-11 Installation Manual
Figure7: Overview of the terminals on the feed-through terminal
Item Description
A Terminal 1 for the connection of the voltage supply cable
B Terminal 2 for the connection of the voltage supply cable

SMA Solar Technology AG 5 Assembly
Installation Manual BTREPOUT-IA-en-11 15
5 Assembly
5.1 Selecting the Mounting Location
Requirements for the mounting location:
☐ If the top-hat rail power supply is used, the mounting location must be in the vicinity of a
socket-outlet in the interior area.
☐ The mounting location must be protected against dust, moisture and corrosive substances.
Observe the maximum cable length:
☐ If a Power Module is used, observe the maximum cable length of 10 m for the voltage supply
cable.
Observe minimum clearances:

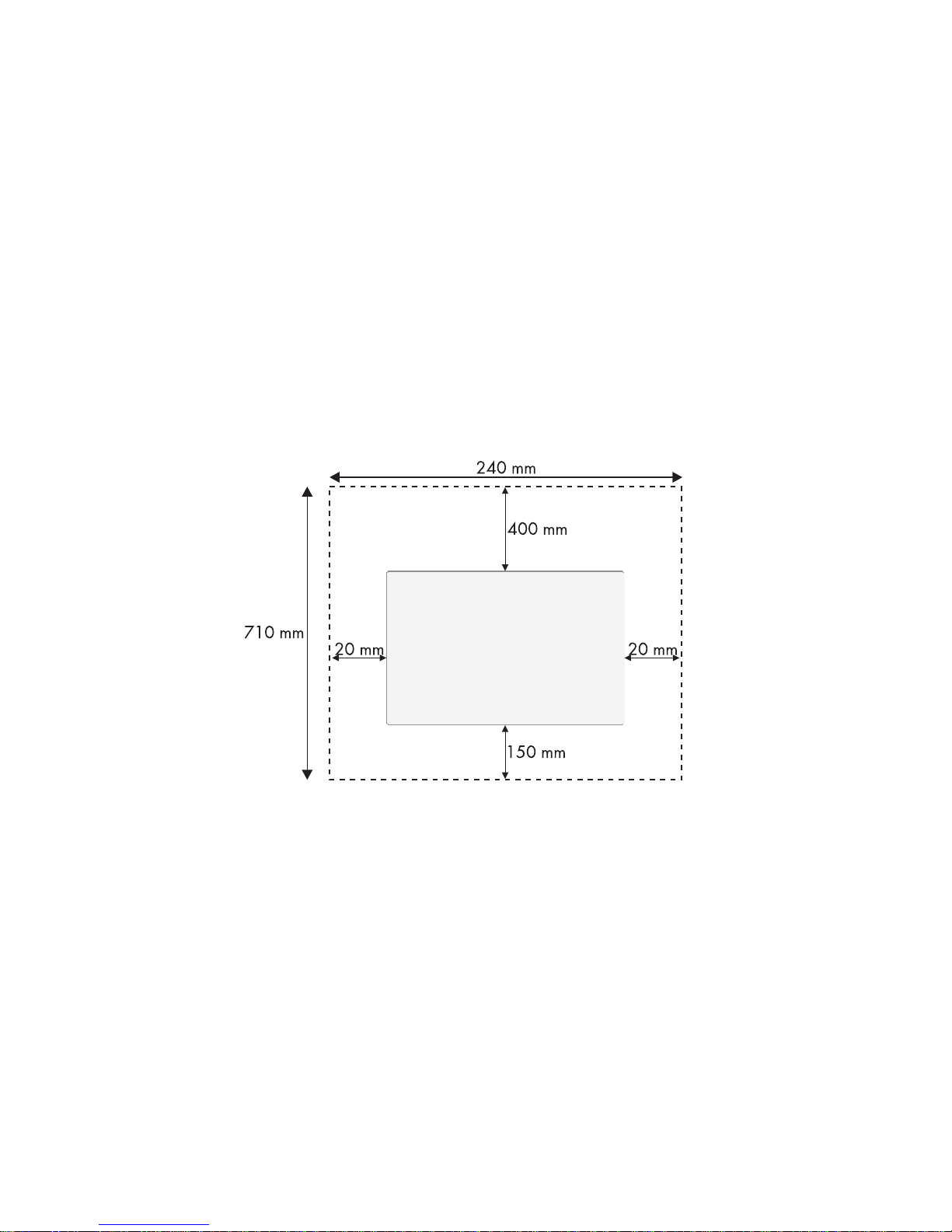

Figure8: Minimum clearances to be observed
• Observe the minimum clearance to walls and other devices or objects.
• Observe the minimum clearance of 1 m to devices using the 2.4 GHz frequency band, e. g.
WLAN devices or microwave ovens. This is to prevent any reduction in connection quality or
data transmission speed.

5 Assembly SMA Solar Technology AG
16 BTREPOUT-IA-en-11 Installation Manual
Determining the Mounting Location
Determine the mounting location by varying the distance between the Bluetooth Repeater Outdoor
and devices with a critical connection signal until all devices display at least a "good" signal.
Requirements:
☐The rotary switch MODE is at position 0 (see Section7.1 "Setting the MODE", page23).
☐The rotary switch NetID is set to the NetID of the plant (see Section7.2 "Setting the NetID",
page23).
1. Decommission the plant (see the manual of the inverter and of the communication product).
Thus, you ensure that the Bluetooth Repeater Outdoor is integrated into the SMA Bluetooth
network at the point where the dead zone is, thus improving the Bluetooth connection at that
point.
2. Position the Bluetooth Repeater Outdoor half way between the devices with critical connection
quality.
3. Connect the voltage supply (see Section6 "Electrical Connection", page19).
4. Recommission the plant (see the installation manual of the inverter and of the communication
product).
5. Repeat the plant search with the communication device (see the communication product
manual, e.g. Sunny Beam with Bluetooth, Sunny Explorer).
Danger to life due to electric shock when opening the inverter
Lethal voltages are present in the conductive parts of the inverter.
• Prior to performing any work on the inverter, disconnect the inverter from any voltage sources
on the AC and DC sides (see inverter installation manual). Observe the waiting time to allow
the capacitors to discharge.

SMA Solar Technology AG 5 Assembly
Installation Manual BTREPOUT-IA-en-11 17
6. Check that the connection quality for all devices is at least "good". During this procedure, all
devices must be in their usual positions (e.g., the Sunny Beam with Bluetooth must not be held
directly in front of the Bluetooth Repeater Outdoor):
☑ The connection quality displayed is at least "good" for all devices. Mount the Bluetooth
Repeater Outdoor there at this location.
✖ The connection quality displayed is not at least "good" for all devices?
•Move the Bluetooth Repeater Outdoor to another position and check the connection
signals again.
• If necessary, install additional SMA Bluetooth Repeater Outdoor devices.
Product Good connection quality
Bluetooth Repeater Outdoor One blue and two yellow LEDs are lit
Sunny Boy of the type SB x000TL-2x and
SB xx00HF-30, Sunny Tripower of the type
STP xx000TL-10
At least two rings are shown in the
inverter display
Other types of SMA inverters with
Bluetooth Piggy-Back or
Bluetooth Piggy-Back Plus
Use the communication product to check
whether the connection signal is improved by
using the Bluetooth Repeater Outdoor
(see manual of the communication product)
Communication product See manual of the communication product

5 Assembly SMA Solar Technology AG
18 BTREPOUT-IA-en-11 Installation Manual
5.2 Mounting the Bluetooth Repeater Outdoor on the Wall
Requirement:
☐Bluetooth Repeater Outdoor must be disconnected.
1. Loosen the screws of the enclosure lid and remove the lid.
2. Drill holes through the indentation in the enclosure
edges. Use a drill bit (4 mm) for this purpose.
3. Mark the holes with the help of the pre-drilled holes
in the enclosure on the wall.
4. Drill the holes at the marked positions.
5. Attach the Bluetooth Repeater Outdoor to the wall using wall plugs and screws
6. Remove the seals from the inside of the enclosure lid
and press them onto screws.
7. Reattach the enclosure lid using the enclosure lid screws.

SMA Solar Technology AG 6 Electrical Connection
Installation Manual BTREPOUT-IA-en-11 19
6 Electrical Connection
6.1 Connecting the Bluetooth Repeater Outdoor with Top-Hat Rail
Power Supply Unit to the Voltage Supply
Requirements for the connection cable:
☐ Number of insulated wires: 2
☐ Cable cross-section: 1 mm2 … 2.5 mm2
☐ External diameter: 5 mm … 10 mm
☐ Cable must be suitable for outdoor installations.
☐ Cable must be UV resistant.
☐ If a grid connection plug is used in outdoor installations: Grid connection plug must be suitable
for outdoor installations.
Danger to life due to electric shock in the event of missing separators and missing fuses
on the AC cable
• The AC cable used for the connection must have a separator.
– In the case of an alternating current supply by means of an IT system the separator must
have two poles in accordance with IEC 60364-1.
• The separator must be easily accessible.
• If the separator is a plug-connection, the socket-outlet must be situated in close proximity to the
Bluetooth Repeater Outdoor.
• The AC cable used for the connection must be equipped with a fuse (16 A for Europe and
20 A for the US and Canada).
Danger to life due to electric shock in the event of mixing up the Bluetooth Repeater
Outdoor
Only the Bluetooth Repeater Outdoor of the device type „BTREP-OUT.GR1“ is allowed to be
connected via the top-hat rail power supply unit to the alternating current grid.
•Ensure that the Bluetooth Repeater Outdoor is of device type „BTREP-OUT.GR1“ before
connecting it to the alternating current grid. To do so, check the type label on the
Bluetooth Repeater Outdoor (see Section3.3 "Identifying the SMA Bluetooth Repeater
Outdoor", page10).

6 Electrical Connection SMA Solar Technology AG
20 BTREPOUT-IA-en-11 Installation Manual
1. Loosen the screws of the enclosure lid and remove the lid.
2. Unscrew the nut from the lower left corner of the cable gland and push out the filler-plug.
3. Preparing the cable:
– Remove 40 mm of the cable sheath from the
side of the Bluetooth Repeater Outdoor.
– Shorten unused insulated wires flush with the
cable sheath.
– Strip approx. 10 mm off the wires.
4. Insert the cable into the enclosure through the nut
and the cable gland.
5. Connecting the cable to the feed-through terminal
in the enclosure:
– Push the terminal 1 and terminal 2 of the
feed-through terminal open using a screwdriver
(2.5 mm).
– Connect the conductor to terminal 1 and the
insulator to terminal 2.
6. Separate the AC grid connection point from the alternating current grid using the separator.
Thus you ensure that there is no voltage present at the AC grid connection point.
7. Connect the Bluetooth Repeater Outdoor to the voltage supply.
• Plug the grid connection plug into the socket-outlet, if a grid connection plug is used.
• If no grid connection plug is used, connect the other end of the cable to the voltage supply
as desired, e.g. via a cable junction box.
8. Connect the AC grid connection point to the AC grid using the separator.
☑LED DC OK of the top-hat rail power supply unit and LED RDY of the Bluetooth Repeater
Outdoor are glowing green
✖LED DC LO of the top-hat rail power supply unit or LED RDY are not in operation or are
glowing yellow?
• Rectify the fault (see Section10.1 "Voltage Supply", page27).
