Smad CL-AM80-S17PSF/1201 User manual

WASHING MACHINE
SERVICE MANUAL
CAUTION：
READ THIS SERVICE MANUAL CAREFULLY TO DIAGNOSE
TROUBLES CORRECTLY BEFORE OFFERING SERVICE.
CONTACT WITH YOUR SERVICE CENTER IF HAVE PROBLEM.
MODEL:
CL-AM80-S17PSF/1201

1 USER MANUAL
2 WIRING DIAGRAM / PCB LAYOUT / PROGRAM CHART
3 CAUTIONS FOR SAFETY
4 TEST MODE
5 DIASSEMBLY INSTRUCTION
6 ERORR CODES AND EXPLANATIONS
7 TROUBLE SHOOTING
8 HOW TO CHECK THE ELECTRIC PARTS
9 CHECK POINT AFTER SERVICE
10 EXPLOADED VIEW AND BOM LIST
Contents
2
UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
IMPORTANT SAFETY NOTICE
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury or property damage.
The manufacturer or seller can not be responsible for
the interpretation of this information, nor can it assume
any liability in connection with its use.

3

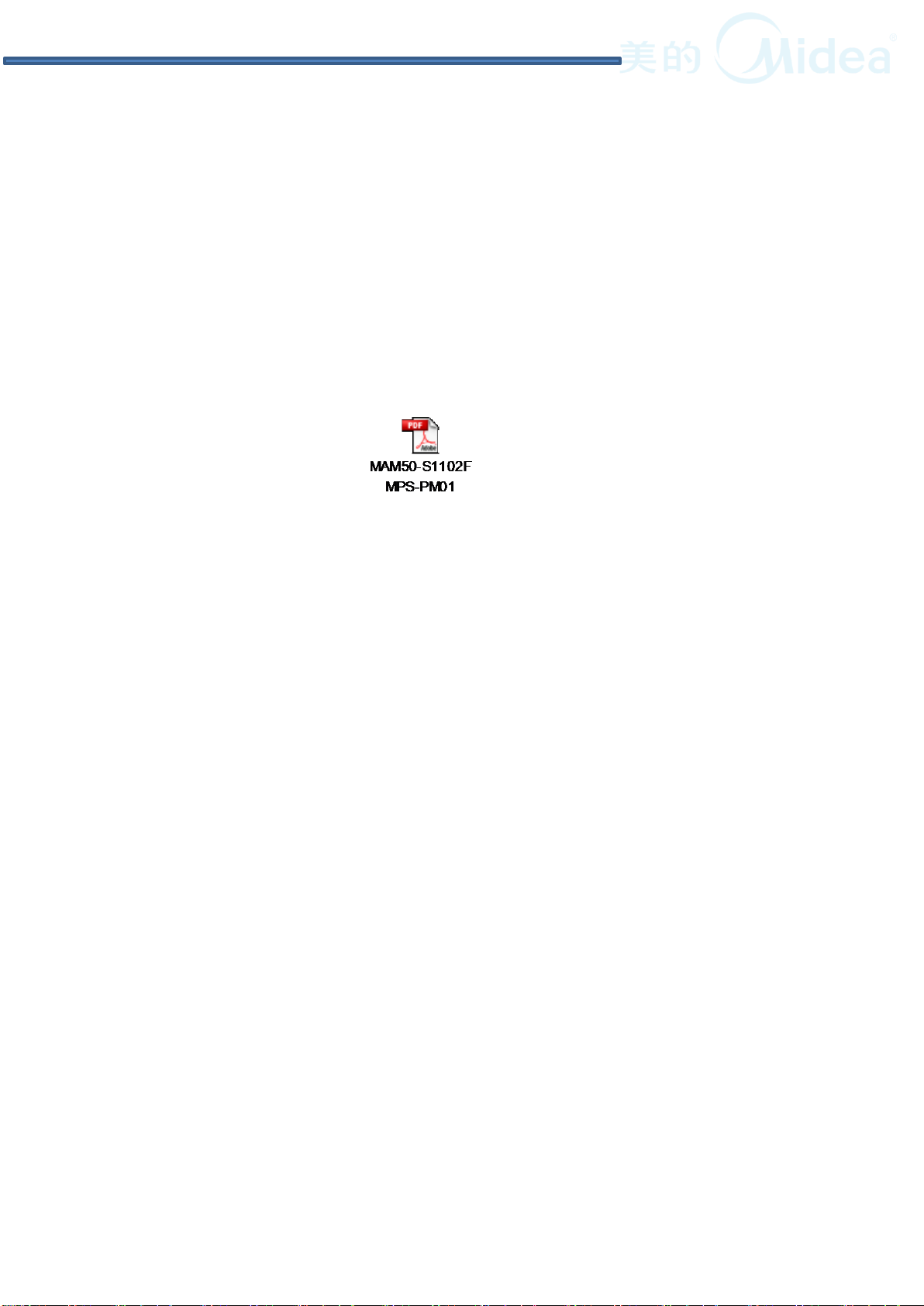

1 USER MANUAL
NOTE：
Please check the user manual about the installation，operation，
and spec etc.

4

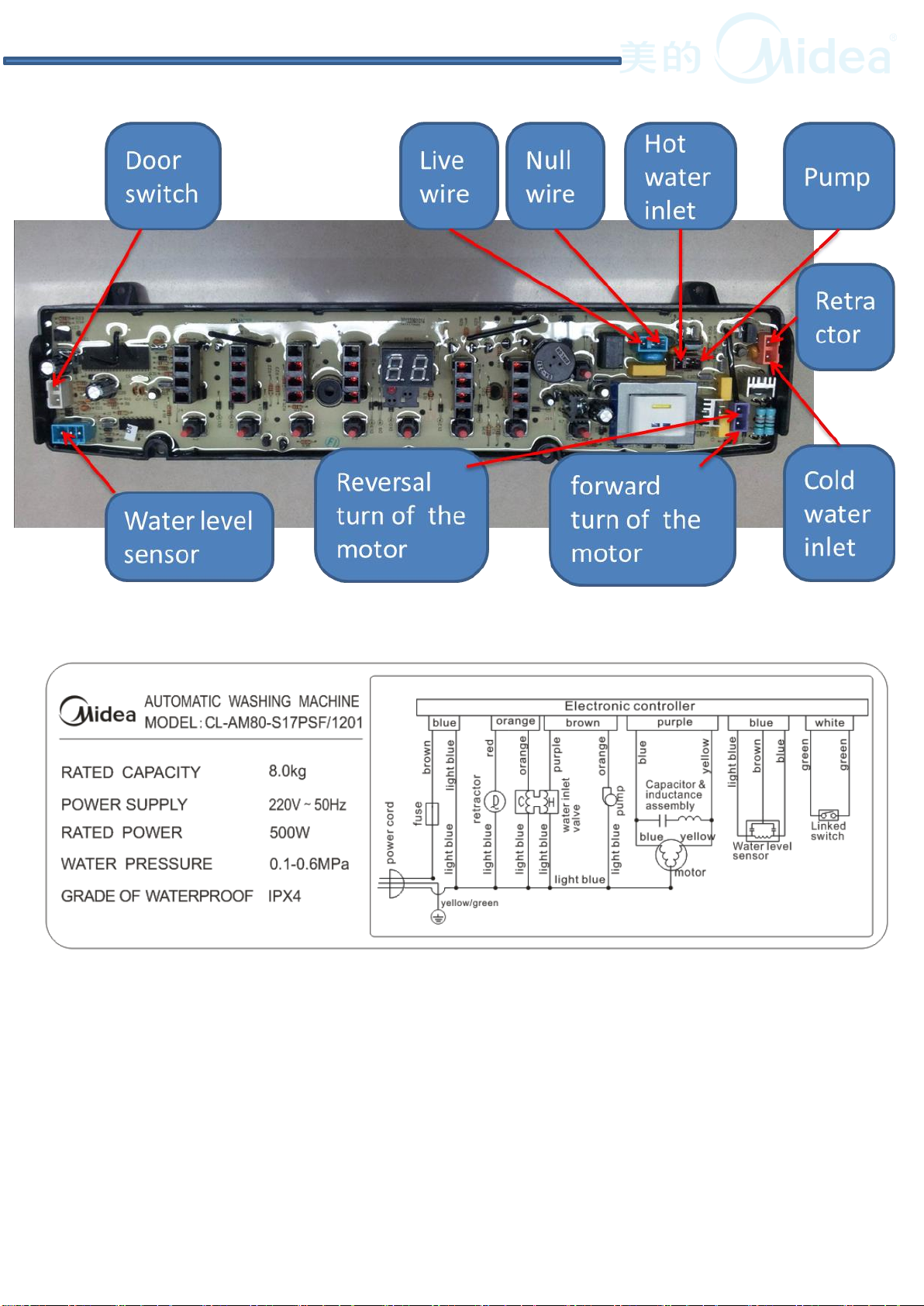

2 WIRING DIAGRAM / PCB LAYOUT / PROGRAM CHART
NOTE
发给客户时候增加客户化铭牌
电压不同，上下排水需区分

•Please observe the following notes for safety.
•The symbols indicate as follows.
WARNING
OUT OF CHILD
• Advise the customer to keep children out of the work place.
Children may be injured with a tool or a disassembled part.
UNPLUG POWER
• Unplug power cord for the work such as disassembling which
is not unnecessary to power on . Do not hold the plug by a wet
hand.
Failing to unplug may cause an electric shock.
USE
REPAIR PARTS
• Use the specified repair parts when repairing the product.
Otherwise, a malfunction or a defect may occur.
Also, a short circuit, ignition or other danger to the customer
may occur.
CHECK
INSULATION
RESISTANCE
• After repair, measure insulation resistance between the
charging part (power cord plug) and the non
-
charging metallic
part (ground) with an insulation resistance meter (500V). The
resistance shall be 10M• or more.
Failing to check the insulation resistance may cause a short
circuit, electric
shock or other diseases to the customer.
DO NOT MODIFY
• Do not modify the product.
An electric shock or ignition may occur.
DO NOT
DISASSEMBLE AND
REPAIR
• Only a repair technician can disassemble and repair.
An electric shock, ignition or malfunction may cause injury.
3 CAUTIONS FOR SAFETY
5

WARNING
USE EXCLUSIVE
SOCKET
• Use an exclusive A socket for the washing machine.
Otherwise, an electric shock or ignition may cause. Sharing the
same socket
with other instrument causes heating of a branch socket and
result in a fire.
CONNECT
GROUNDING WIRE
• Connect the grounding wire.
Failing to do so may cause an electric shock when a short
circuit occurs.
Consult an electric work shop or a sales shop.
DO NOT USE WET
PLACE
• Do not install in a bath room or a place exposed to wind or
rain.
An electric shock or a short circuit may cause a fire.
DO NOT SPLASH
WATER
• Do not pour or immerse electrical parts into water or liquid
solution.
An electric shock or ignition may occur.
REMOVE DUST
• Wipe off dust adhered to the plug of power cord.
Dust may cause a fire.
6
3 CAUTIONS FOR SAFETY

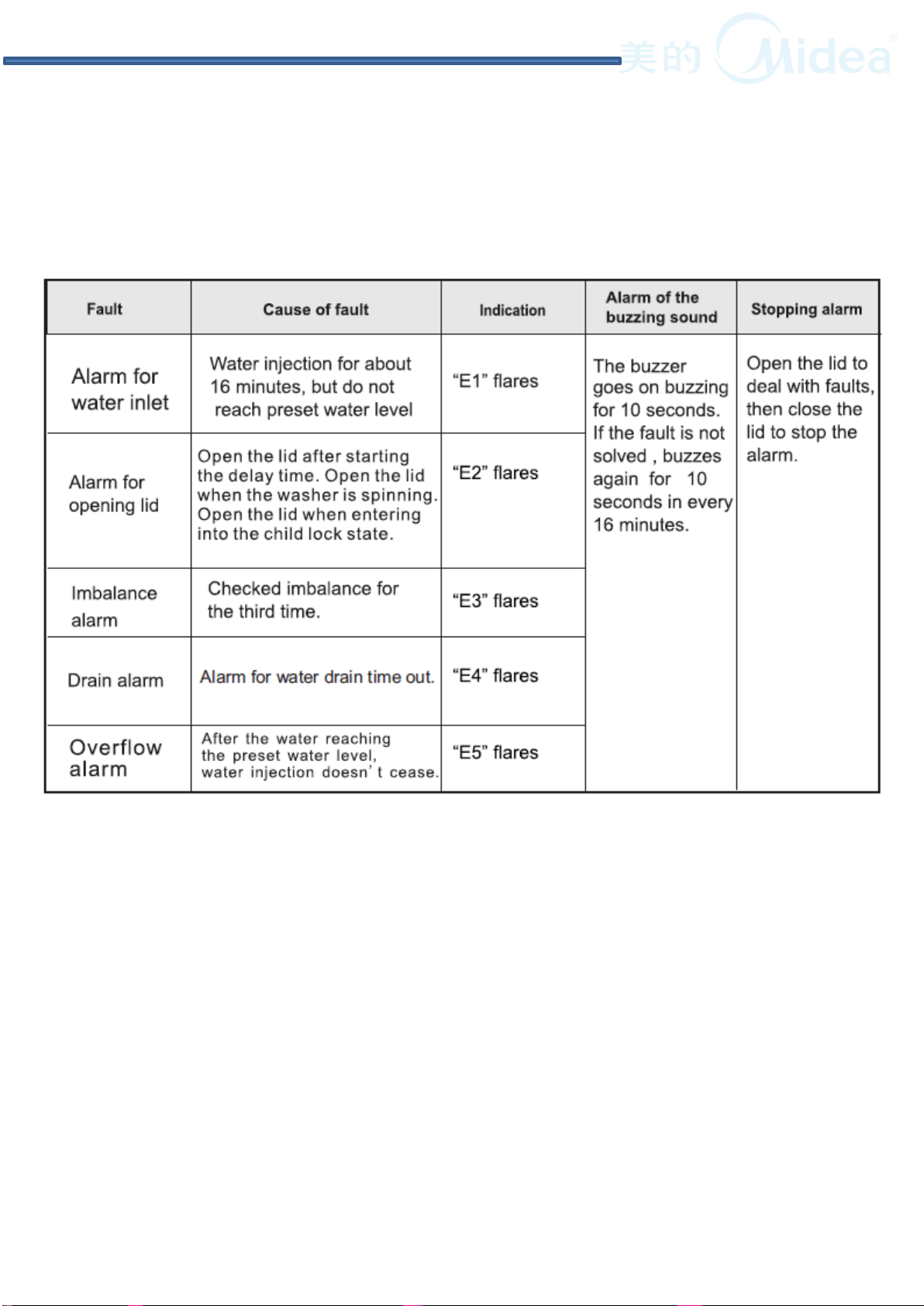

4 TEST MODE

8
1
2
3
4
5
678
Number
Tools
1
13# sleeve spanner
2
8# sleeve
spanner
3
10# sleeve
spanner
4
6# inner six angle wrench
5
Needle
nose pliers
6
pliers
7
cross screwdriver
8
slot type screwdriver
5 DIASSEMBLY INSTRUCTION

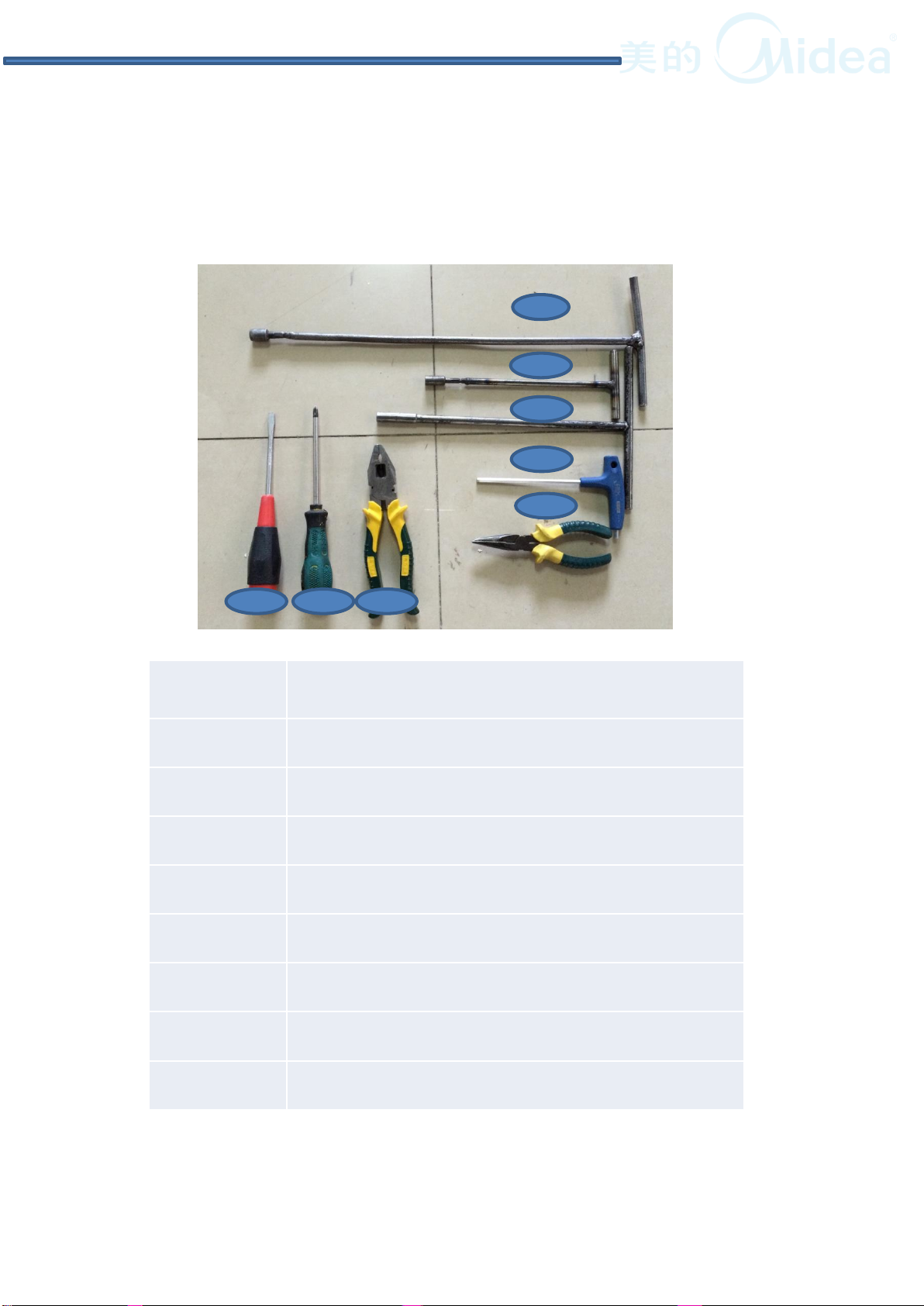

Service tools needed

UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
9

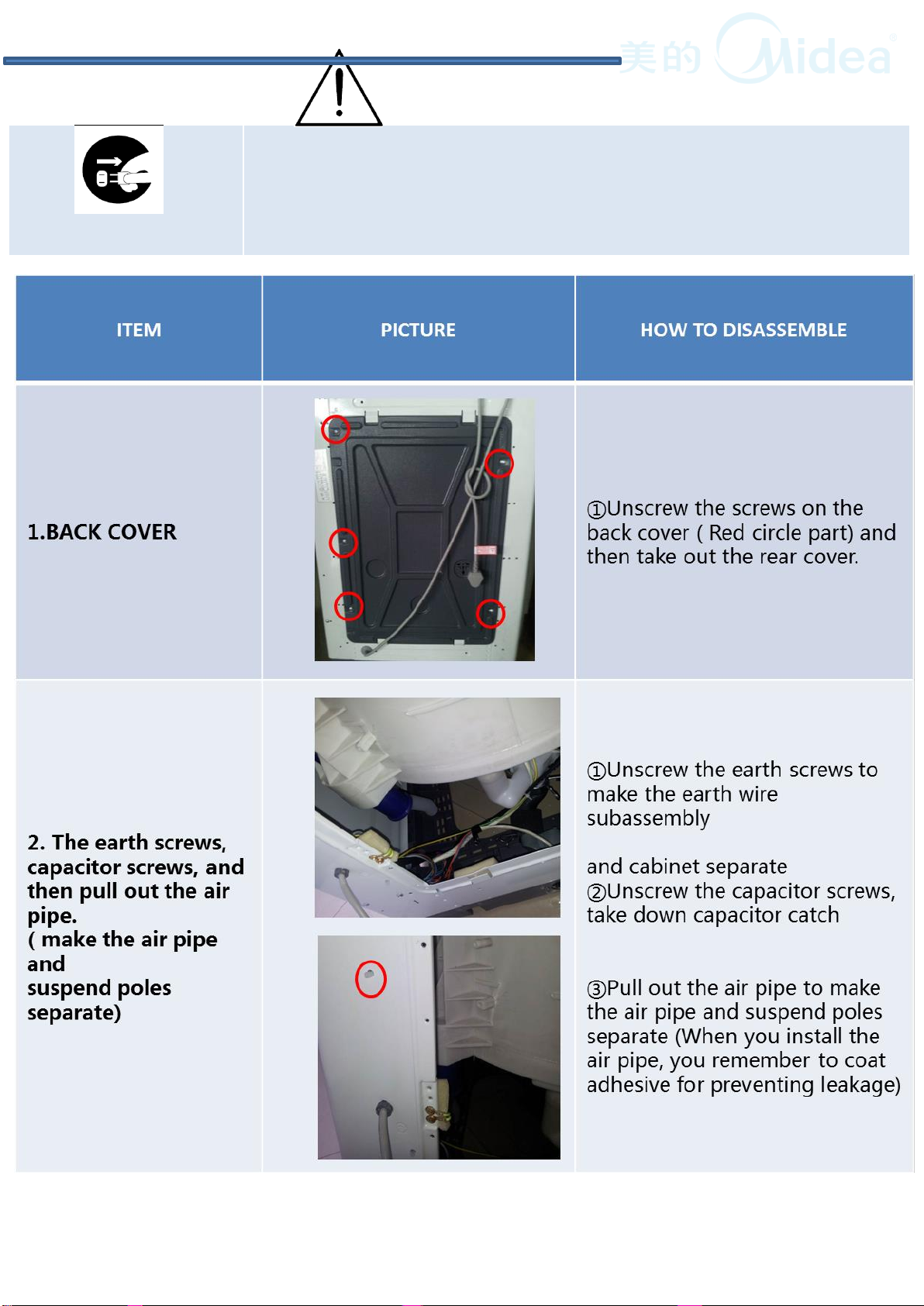

5 DIASSEMBLY INSTRUCTION

ITEM PICTURE HOW TO DISASSEMBLE
3
Pull the insulating
bag and
then remove the
wire
connector.
①
Put the Nylon
cable ties, pull the
insulating bag
②
Remove the
crimp terminal by
pliers .
UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
10

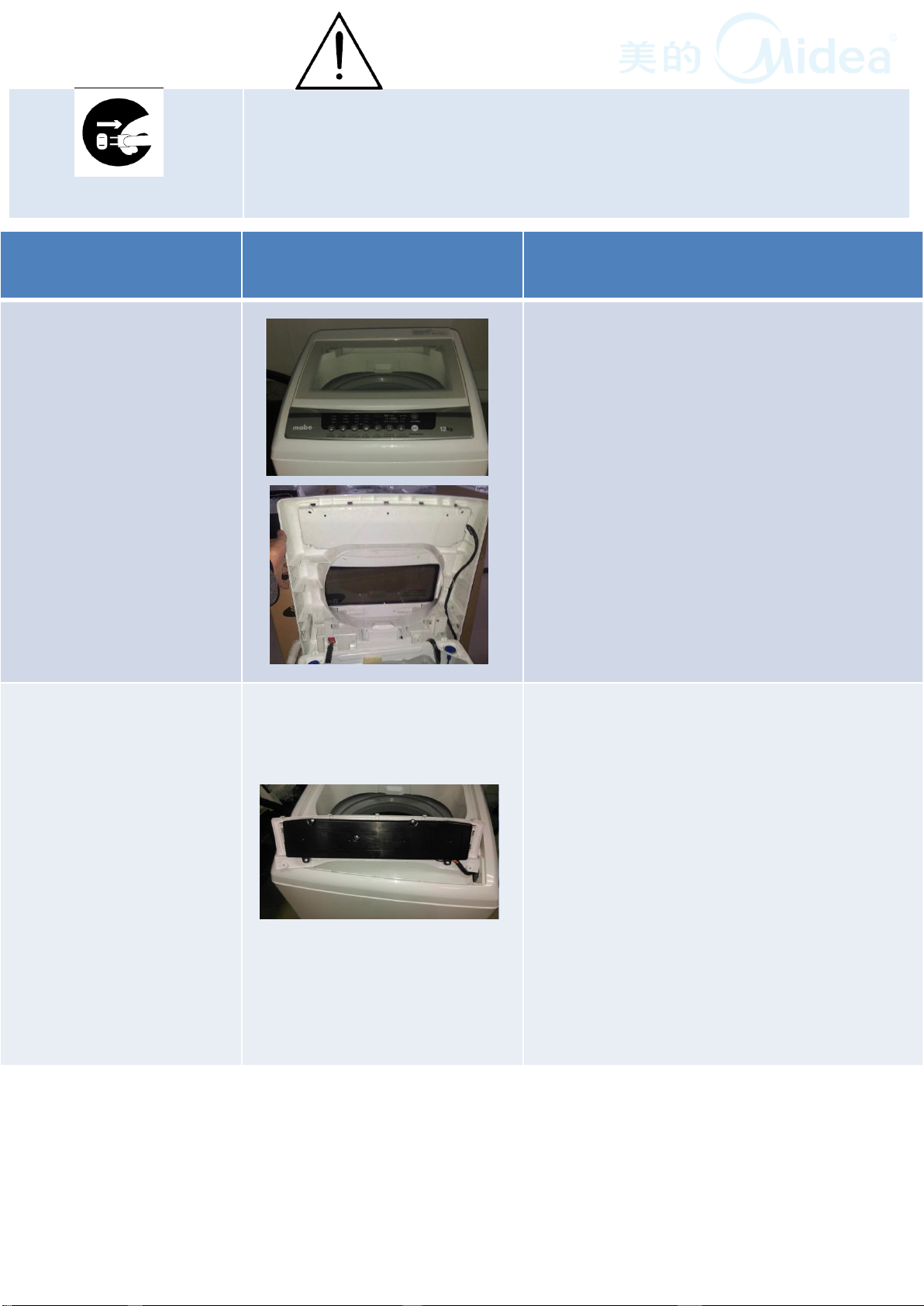

ITEM PICTURE HOW TO DISASSEMBLE
4 Top cover
①Unscrew the screws on the Top cover
（normally 2 sides 2 back. It varies
according to different designs）
②Take down the top cover, and put it
in the right place ( avoid to scratch the
top cover)
5 Remove the PCB
①Unscrew the controller board
screws, pull out the controller
board terminals(When you
plug wire and connect wires,
you must insert terminals to
the roots for not easily pulling.)
②Take down the controller board
and the front control panel
separately
UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
11

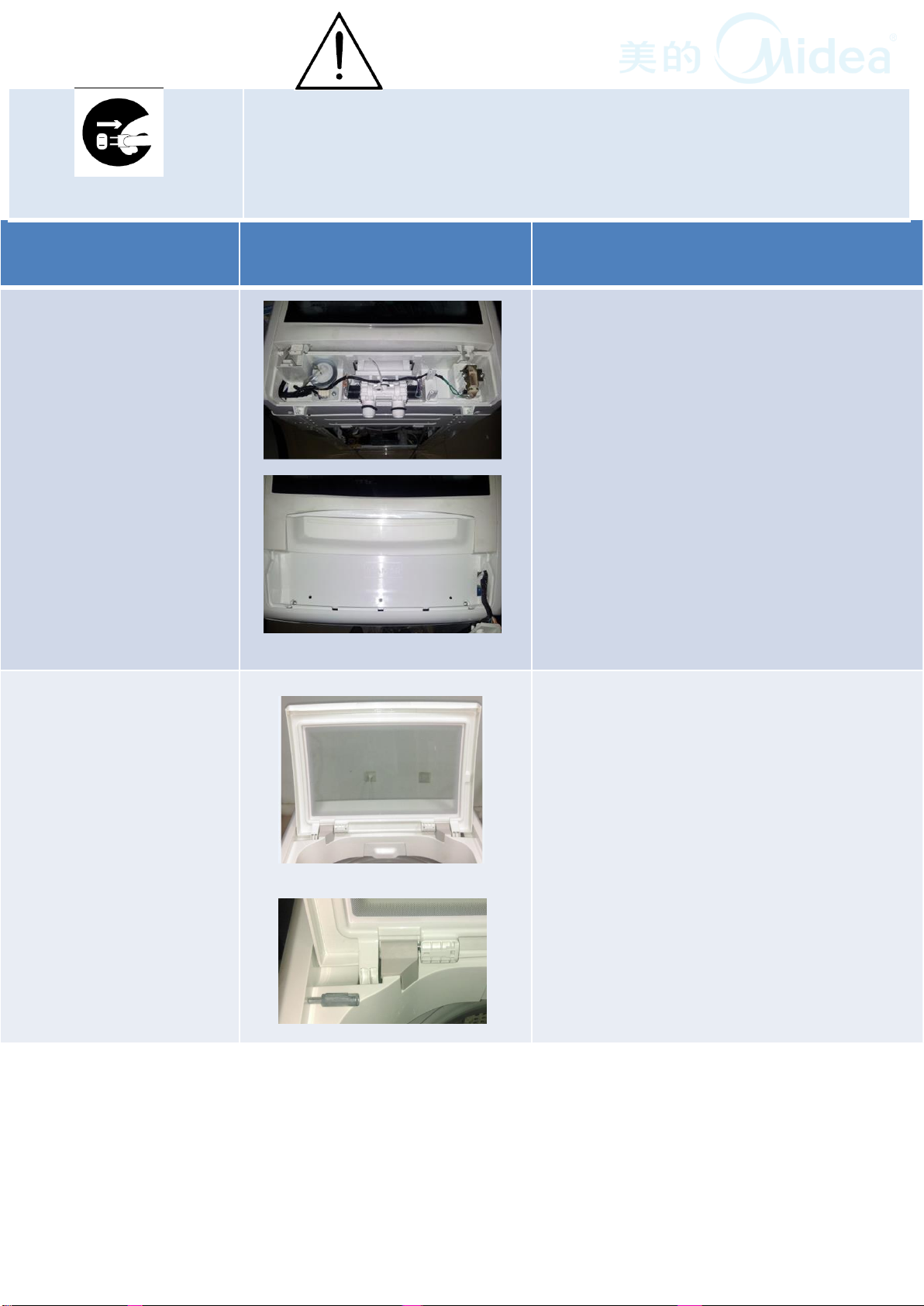

ITEM PICTURE HOW TO DISASSEMBLE
6 Take down the
back control
panel, cover switch,
water inlet valve,
water level sensor,
and internal wire
subassembly
①Remove the back control panel
screws, and take out the back
control panel.
②Remove the cover switch screws.
③Take down the water inlet valve.
④Remove the water level sensor
Screws.
⑤Take out the internal wire
Subassembly.
7 Door Lid
Use cross
screwdriver
①First remove the door bolt.
②Take down the lid
③Take out the spring
UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
12

ITEM PICTURE HOW TO DISASSEMBLE
8 outer tub cover
①Unscrew the outer tub
cover screws, and take
out the outer tub cover
9 Impeller
①Unscrew the impeller
screws, and take out
the impeller
UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
13

ITEM PICTURE HOW TO DISASSEMBLE

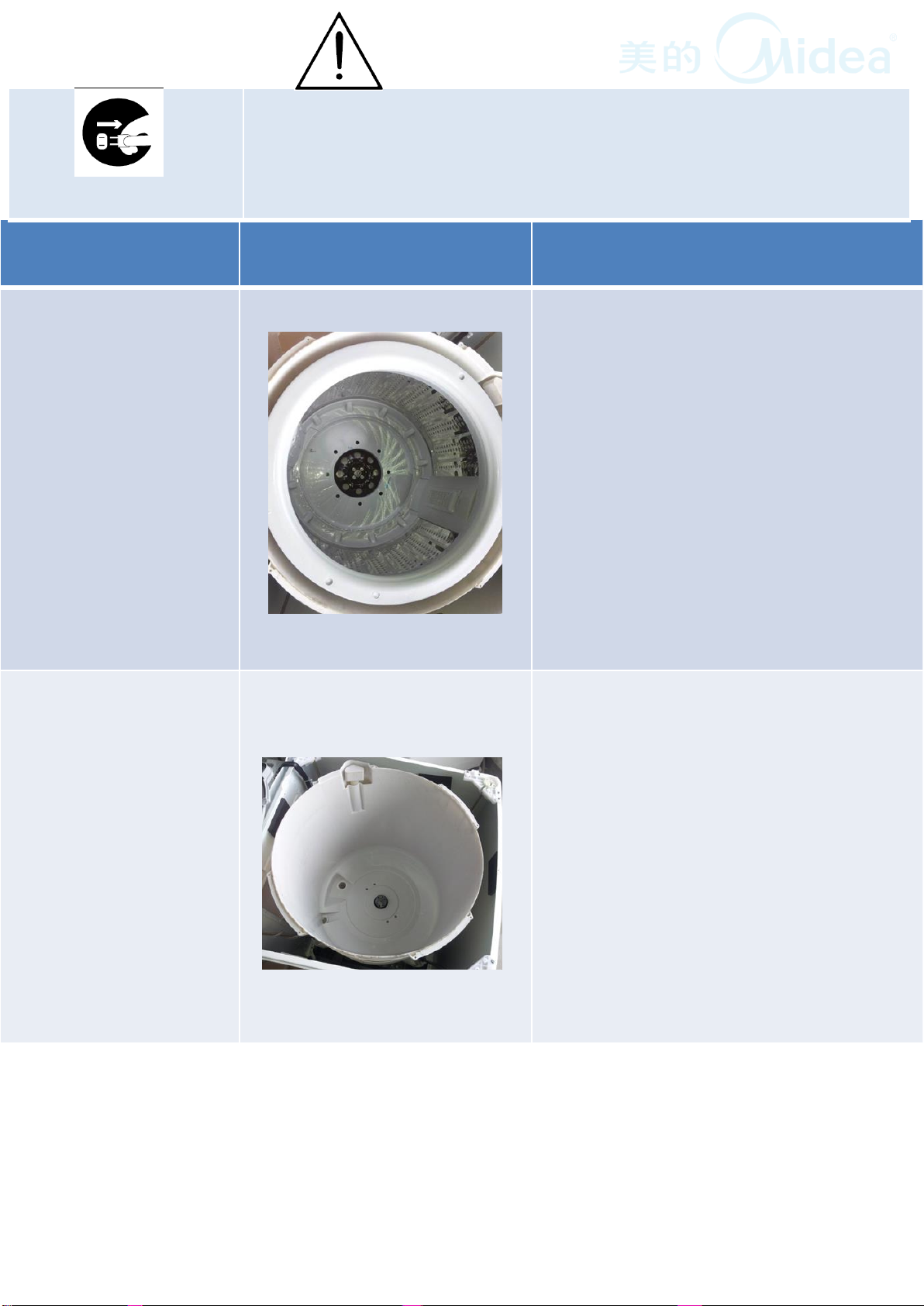

10 Spin tub
①
Unscrew the spin tub bolts and
take
out the spin tub cover
11 Out
tub
①
Firstly make suspension rods
and the outer tub subassembly
separately.
（Remember the rods
installing order.
）
②
Take out the out tub
UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
14

ITEM PICTURE HOW TO DISASSEMBLE
12 Parts
attached
on the out tub
①
Remove the motor screws, and
take out motor.
②
Remove the bracket screws,
and take out bracket.
③
Remove the clutch body
subassembly screws, and take
out clutch body subassembly.
④
Firstly make retractor and the
clutch body subassembly
separately., remove retractor
screws, and take out retractor
13 Base plate
①
Remove the base plate screws,
and take out the base plate.
UNPLUG POWER
• Unplug power cord for the work such as disassembling
which is not unnecessary to power on . Do not hold the plug
by a wet hand.
Failing to unplug may cause an electric shock.
WARNING
15

6 ERORR CODES AND EXPLANATIONS
16
Error Code
Unit Action
Description
PossibleCauses
Explanation
E1
Water is not
supplied
：
When water in the
tub didn`t achieve
the specified level in
30min,PCB will
display
“E1”.Remind the
timeout.
Some machine is
30min or more than
30min
There is no
water or
water is
very small
The water tap did not open
Check the tap have opened or not
Water pressure is small, into the
water is very small
Check the water pressure is smaller
than usual or not
water inlet valve is blocked, water
inflow is very small
When the water pressure normal
，
water inflow is small or not
Loose fill valve connected to the
power cord
Reconnect the power cord to check
whether can return to normal
Loose PCB connected to the
power cord
Reconnect the power cord to check
whether can return to normal
water inlet valve damage does
not work
Replace the inlet valve check
whether the function is OK
PCB failure
Replace the PCB check whether the
function is OK
Can't stop
the water
Water level sensor pressure pipe
is
loose,or water in the pipe
Check the water level sensor
pressure pipe is loose or leak
Water level sensor failure
Replace the Water level sensor
check whether the function is OK
PCB failure
Replace the PCB check whether the
function is OK
E2
Alarm for Lid open：
When the washing
machine in the
"spin" program,
safety switch is not
closed, cause the
machine alarm.
Cover is
opened
Cover is opened
Check that the lid is on or not
Cover is
closed
Safety switch contact undesirable
close the lid
，Check safety switch
contact undesirable or not
Safety switch and power cable
loose
Reconnect the power cord to check
whether can return to normal
PCB failure
Replace the PCB check whether the
function is OK
E3
Alarm for unbalance:
Ouer tub hit the
safety switch or
cabinet seriously,the
machine can`t spin
smoothly.
Machine is
unbalanced
Washing machine leg is
unbalanced
Check whether the machine is
unbalance or rock
clothes is unbalanced
Check whether the clothes is placed
evenly
The suspension failure
machine is
balanced,but it still
shaking seriously
Safety switch beam deformation
Safety switch beam deformation

17
6 ERORR CODES AND EXPLANATIONS
Error Code
Unit Action
Description
PossibleCauses
Explanation
E4
Alarm for not draining：
When water in the tub
didn`t drain out
absolutely in 10min,PCB
will display
“E4”.Remind the
timeout.
Some machine is 15min
or more than 15min
the water in the
tub didn`t drain
out absolutely
drain
-pipe is hung too
high
Drain pipe is not installed
correctly
Drain valve is blocked
Check whether there are
foreign bodies blocked drain in
drain valve
Drain valve is not fully
open
Bad fit with retractor and drain
valve
inner drain
-pipe is
blocked
Check that whether the drain
pipe have obvious bending
drain
-pipe is blocked
Check that whether the inner
drain pipe have obvious
bending
Drain pump filter is
blocked
Remove drainage pump filter
to check if there is any foreign
body blocked drain pump
Retractor is not open
Tractor has sound but can't
open the drain valve
The retractor is not running,
check whether the circuit is
normal
Replace the PCB check whether
the function is OK
Replace the retractor check
whether the function is OK
Drain pump cann`t drain
drain pump has sound but
can't drain normally
The drain pump is not running,
check whether the circuit is
normal
Replace the drain pump check
whether the function is OK
Replace the PCB check whether
the function is OK
PCB failure
Replace the PCB check whether
the function is OK
the water in the
tub is drain out
absolutely
Water level sensor
failure
Replace the water level sensor
check whether the function is
OK
PCB failure
Replace the PCB check whether
the function is OK
E5
Alarm for overflowing
：
When water level more
than the highest water
level,the machine will
alarm "E5",remind
Remind the overflowing
the water in the
tub is full
Inject extra water in the
washing machine
artificially
Inject extra water in the
washing machine artificially
Can't stop the
water
Water water inlet valve
can't turn off
water inlet valve can't stop the
water without power
the water level
is OK
Water level sensor
failure
Replace the water level sensor
check whether the function is
OK
PCB failure
Replace the PCB check whether
the function is OK

18
7 TROUBLESHOOTING
BEFORE SVC CHECKING
Before servicing ask the customer what the trouble is.
Check the work status of the problem.
Check the adjustments. (Power supply, water supply Installation
etc.
Check the troubles referring to the troubleshooting.
Decide service steps referring to disassembly instructions.
Check other related parts when do the service and repair.
After servicing, operate the appliance to see whether it works OK
or NOT.

7.1Washer Won't Start (Press the “POWER ”button, not light)
The most common part(s) or condition(s) which contribute to the
symptom Washer won't start are listed below. Check or test each item.
If you are still unable to solve the problem you may need to do
additional research and troubleshooting.
Causes Explanation
Incoming Power Problem
Check the power at the electrical outlet which the
washer is plugged into. Plug a lamp or radio into the
outlet to check it. If the outlet is dead, check the circuit
breakers or fuses for the home.
Power Cord If power supply is OK, the power cord itself might be
defective. This is rare. You can check the power cord
with an Ohm meter for continuity.
Line Fuse If the washer won't start the line fuse might have blown, or the line fuse holder might be damaged and
need to be replaced.
Main Control Board(PCB) If the washer won't start the main control board might
be defective.
19
7 TROUBLESHOOTING

7.2 Washer Fills slowly or not supply
(If the water supply is not finished in 30mins after the water supply
has started, the buzzer rings and “E1” is displayed on the indicator)
The most common part(s) or condition(s) which contribute to the
symptom Washer fills slowly are listed below. Check or test each item. If
you are still unable to solve the problem you may need to do additional
research and troubleshooting.
Causes Explanation
Low Water Pressure from
House Supply
If the washer fills very slowly, the water pressure from
the house might be too low. If the water inlet valve isn't
leaking and there are no other symptoms this problem
does not need to be corrected.
Water inlet hose Make sure that water faucet is turned on and that the
screens on the hoses are not restricted.
Water inlet valve
(The voltage on the water
inlet valve is normal)
If the water pressure is good, try cleaning the screens
inside the water inlet valve hose connection ports. If
those are clean replace the water inlet valve.
Water level sensor or
control switch
(No voltage on the water
inlet valve)
A water lever control switch controls how much water
enters the washing machine by PCB. If the water level
control switch is defective, or more commonly, if the
small air pipe attached to the air bell restricted, The
switch will not be able to close the electrical contacts
to the washer fill valve.
CHECK THE AIR PIPE
CHECK THE WATER LEVERL SENSOR
CHECK THE PCB and the inner wire between PCB and
the sensor
20
7 TROUBLESHOOTING
