Sony FD Trinitron WEGA KV-XR25M81 User manual

Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
© 2003 Sony Corporation
KV-XR34
KV-XR29
KV-XR25
4-100-941-11 (1)
M81
M80
Trinitron Color TV
Mode d’emploi
• Avant de faire fonctionner cet appareil, lisez attentivement le présent
mode d’ emploi et conservez-le pour toute référence ultérieure.
 
•    ,              
 
•  ,          
GB
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
AR
PR
FR
01AR+s01COV-MIX.p65ME 6/10/2003, 19:131
Black

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-13 (1)
2

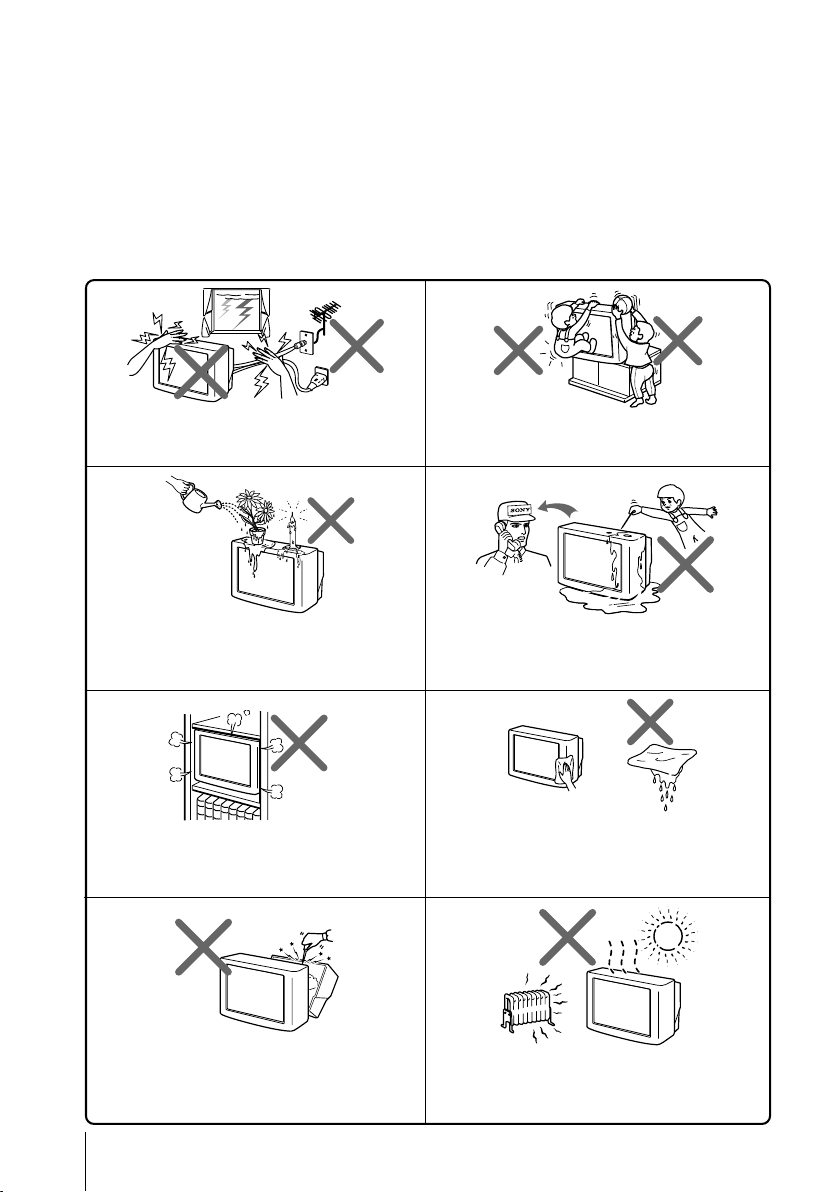

Do not place any objects on the TV. The apparatus
shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 110 – 240 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
• To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are present
inside the TV. Refer servicing and disposal of the
TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may be
subject to excessive dust, heat, moisture or
vibrations.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such as a
bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto it.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals
to clean the TV. Do not attach anything (e.g.,
adhesive tape, cellophane tape, glue) on the painted
cabinet of the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.
01GB02WAR-MIX.p65 6/10/2003, 19:162
Black

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-13 (1)
3
Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
To prevent fire or shock hazard, do not expose the
TV to rain or moisture.
01GB02WAR-MIX.p65 6/10/2003, 19:163
Black

4
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)

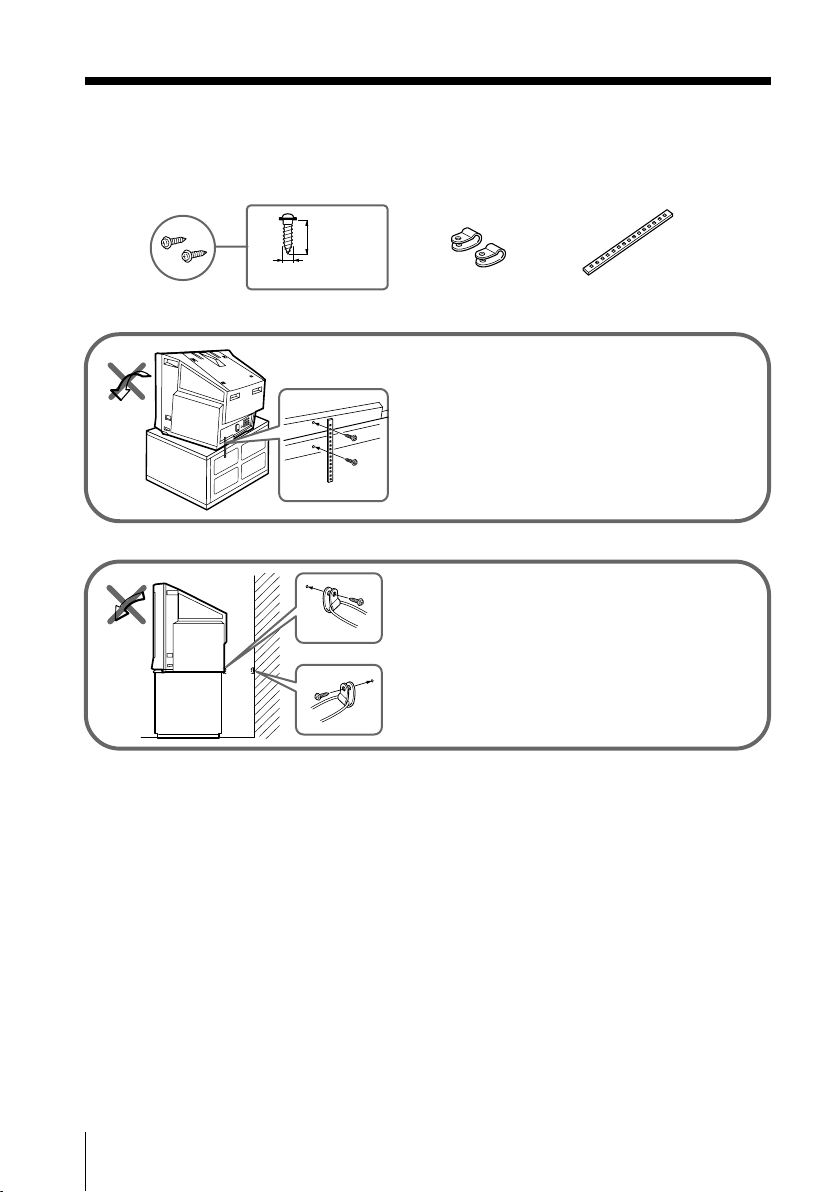

xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
Note
• Use only the supplied screws. Use of other screws may damage the TV.
or
01GB02WAR-MIX.p65 6/10/2003, 19:164
Black

5
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
Table of Contents
Installation
Getting Started ..................................... 6
Setting up your TV
(“Initial Setup”) .................................... 7
Overview of Controls
TV front and rear panels ..................... 8
Using the remote control and
basic functions ...................................... 9
Advanced Operations
Selecting the picture and sound
modes .................................................. 11
Viewing Teletext
(KV-XR34M81/XR29M81/
XR25M81 only) ................................... 12
Menu Adjustment
Introducing the menu system .......... 13
Changing the “Picture” setting ........ 16

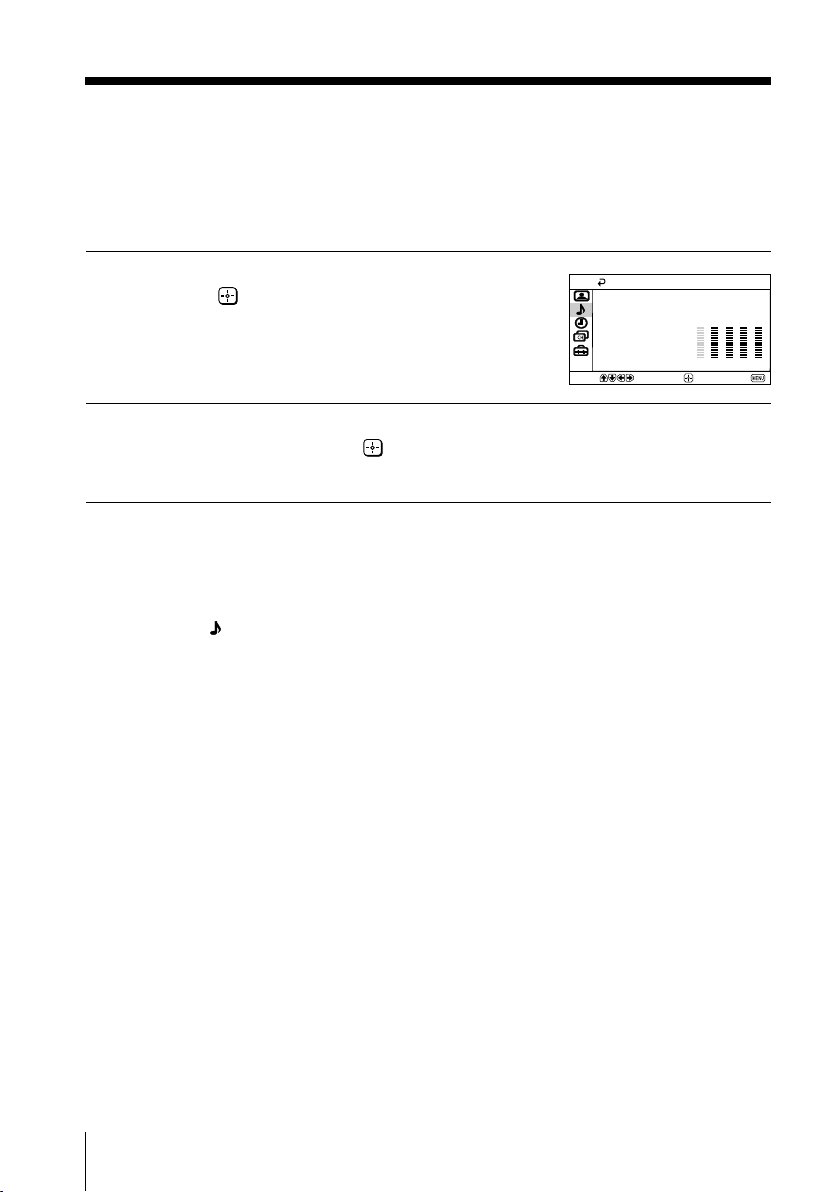

Changing the “Sound” setting ......... 17

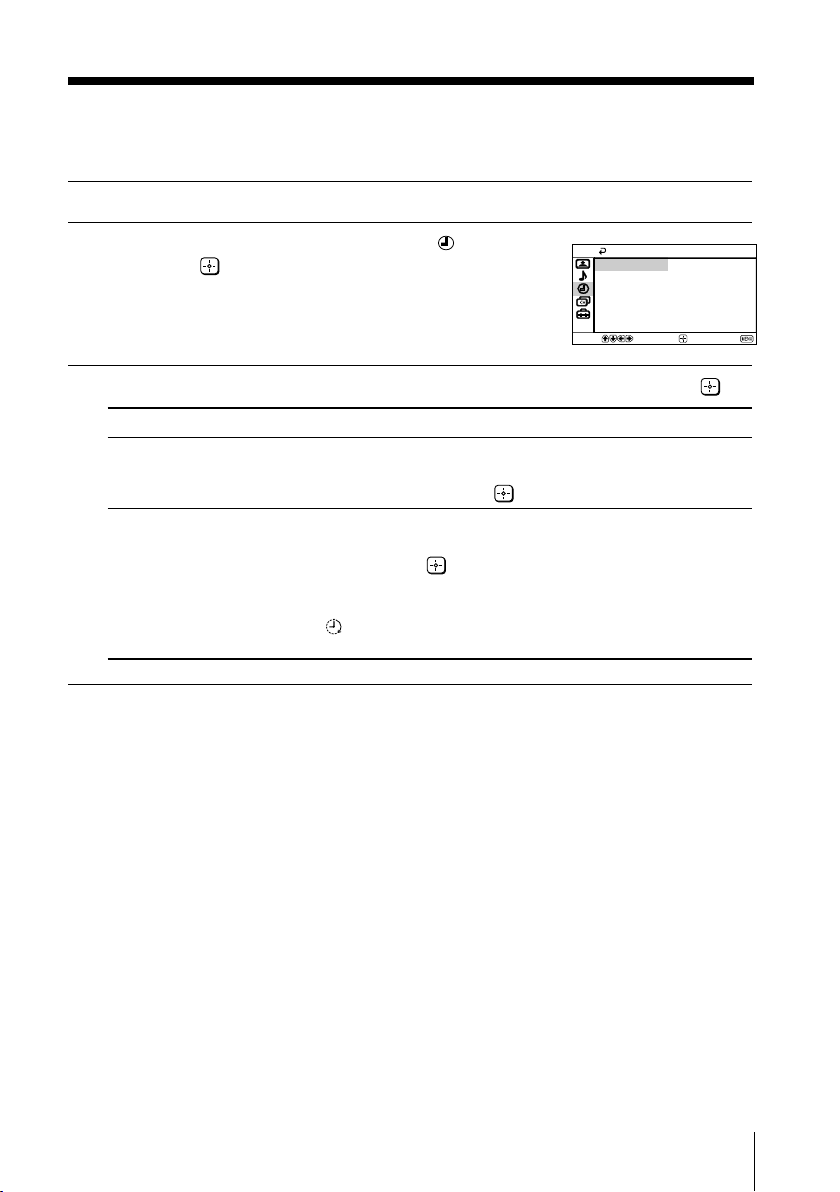

Changing the “Timer” setting .......... 19
Changing the “Channel Setup”
setting .................................................. 20
Changing the “Setup” setting .......... 22
Additional Information
Connecting optional components ... 23
Troubleshooting ................................. 25
Specifications ...................... Back cover
GB
01GB03TOC-MIX.p65 6/10/2003, 19:165
Black

6Installation
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
Installation

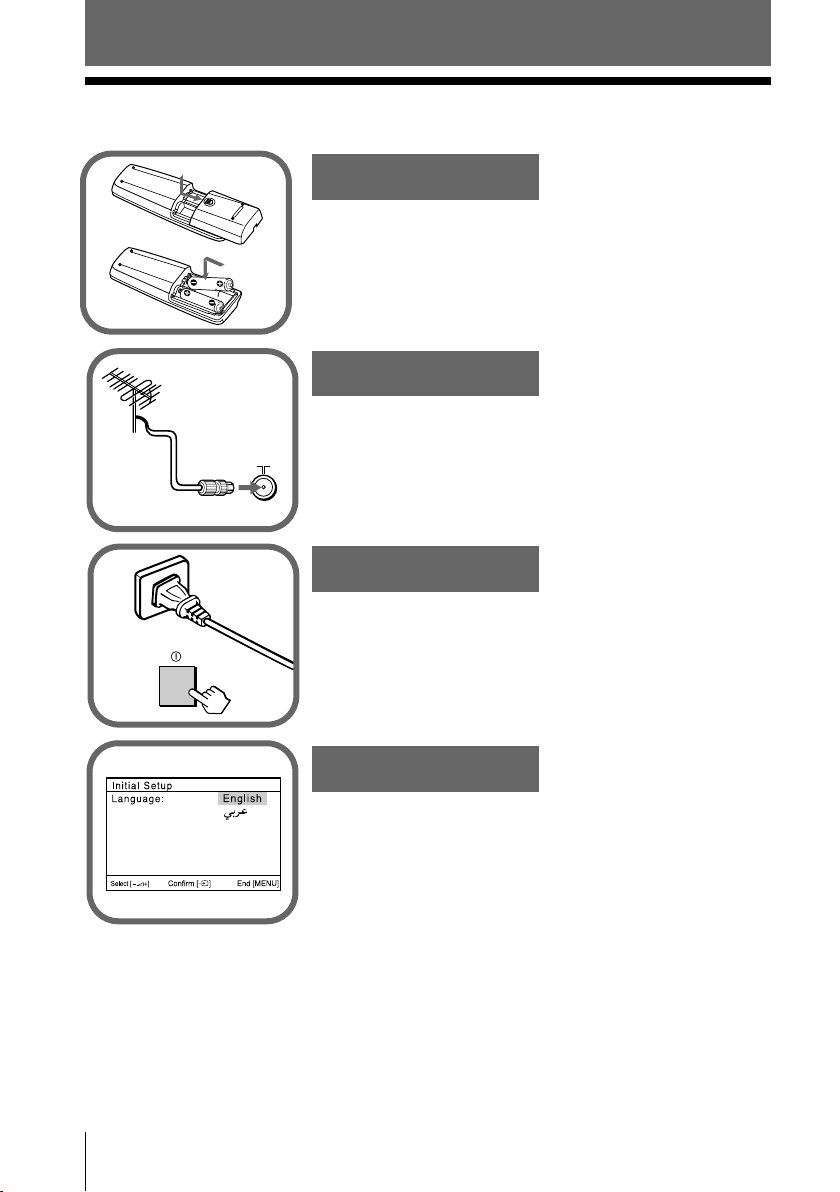

xGetting Started
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
Note
• Do not use old or different types of batteries together.
Step 2
Step 3
Step 4
Set up the TV by following the instructions of the
“Initial Setup” menu (see page 7).
Plug in the power cord, then press !on the TV to
turn it on.
Note
• The 1(standby) indicator flashes green for a few seconds
when turning on the TV. This does not indicate a
malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
• You can also connect your TV to other optional components
(see page 23).
01GB04INS-MIX.p65 7/10/03, 9:51 AM6
Black

7
Installation
Installation
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
x Setting up your TV
(“Initial Setup”)
When you turn on your TV for the first time, the “Initial Setup” menu will appear.
You may change the menu language, preset the TV channels automatically and adjust
the picture position using the buttons on the TV front panel.
Tip
• The MENU, and V/v/B/b buttons on the remote control can also be used for the
operations below.
1Press 2+/– to select the desired menu
language, then press t.
The selected menu language appears.
2Press 2+/– to select “Yes”, then press t
to preset the channels automatically or
select “No” to skip automatic channel
presetting.
Once you select “Yes”, your TV will start
searching for all the available channels.
If the message “No channel found. Please
connect cable/antenna.” appears, check your
TV connections, then press t.
3Press 2+/– to adjust the bars on the top
and bottom of the menu if they are
slanted, then press t.
If no adjustment is necessary, then press
t.
4Press 2+/– to select “No”, then press t.
This menu will not appear again the next
time you turn on the TV by pressing !.
To allow this menu to appear again, select
“Yes”, then press t.
Tips
• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.
• You can also set up your TV using the menu system (see page 13).
• You can also preset the channels automatically by pressing MENU (AUTO PROG) button on
the TV front panel for about five seconds.
Start auto program now?
01GB04INS-MIX.p65 7/10/03, 9:51 AM7
Black

8Overview of Controls
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
Overview of Controls
PROGRMENU AUTO
PROGR
ENTER SELECT
L(MONO)
3
qs
qa
12
RLYCBCR
qf qd
PROG
MENU
SOUND
MODE
3
L(MONO) R
(AUTO PROG)
4
05
9
AUTO PROG:Press [MENU] for 5sec
86
7321
TV front panel
TV rear panel

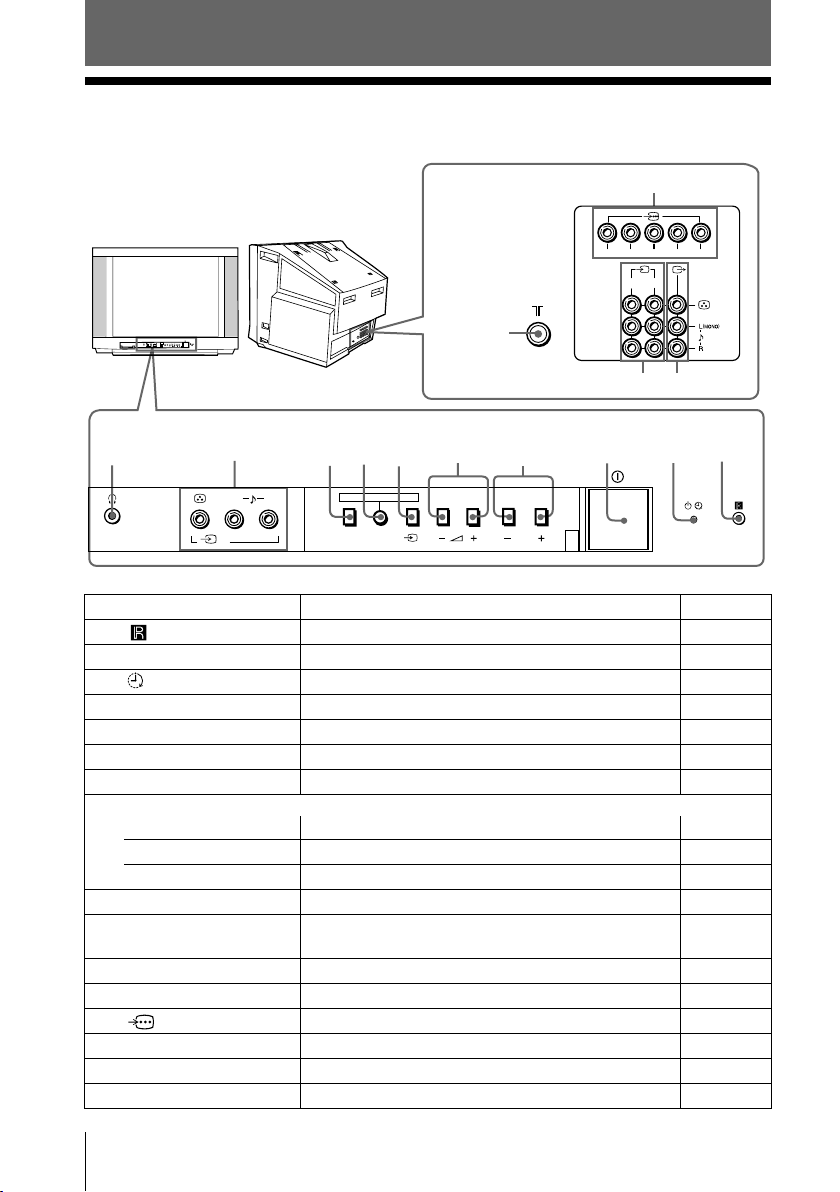

xTV front and rear panels
Button/Terminal Function Page
1Remote control sensor. –
21Standby indicator. 6
2Wake Up indicator. 19
3!Turn off or turn on the TV. 6
4PROG +/– Select program number. –
52+/– Adjust volume. –
6tSelect TV or video input. 23
Menu operations
52+/– Select and adjust items. –
6tConfirm selected items. –
7MENU Display or cancel the menu. –
7(AUTO PROG) Preset channels automatically. 7
8SOUND MODE Select sound mode options. 11
5-Band Graphic Equalizer display will appear.
9t3 Video input terminal 3. 23
0iHeadphone jack. –
qa Component video input terminal. 24
qs 8Antenna input terminal. 23
qd TMonitor output terminal. 23
qf t1, t2 Video input terminal 1, 2. 23
01GB04INS-MIX.p65 7/10/03, 9:51 AM8
Black

9
Overview of Controls
Overview of Controls
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
xUsing the remote control and basic
functions
TV
123
46
789
0
5
MENU
PROG
A/B
1
2
3
6
8
9
7
4
5
qk
qf
0
qg
qh
ql
qj
qs
w;
ws
wa
RESET
qa
qd
continue
Button Description Page
1?/1 Turn off temporarily or turn on the TV. –
2aDisplay the TV program. –
3Jump to previous program number. –
4PROG +/– Select program number. –
52+/– Adjust volume. –
9Change the picture size: –
“On” (16:9 wide-mode), “Off”.
0Mute the sound. –
qa Display on-screen information. –
qd tSelect TV or video input. 23
qf 0 – 9, ÷Input numbers. –
qj Select surround mode options:
“On” (surround), “Simulated” (stereo-like –
monaural sound), “Off”.
ql RESET Set TV to factory setting. 25
01GB04INS-MIX.p65 7/10/03, 9:51 AM9
Black

10 Overview of Controls
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
continued
Button Description Page
w; Select sound mode options. 11
“5-Band Graphic Equalizer” display will appear.
wa Select picture mode options. 11
Menu operations
6MENU Display or cancel the menu. 15
7Confirm selected items. 15
qk V, v, B, b Select and adjust items. 15
Timer operations
qg Set TV to turn on automatically. –
qh Set TV to turn off automatically. –
Teletext operations (green label)
(KV-XR34M81/XR29M81/XR25M81 only)
4, Display the next or previous page. 12
8Display Teletext broadcast. 12
qa Reveal concealed information. 12
qs Enlarge the Teletext display. 12
qd Stop Teletext display from scrolling. 12
qg Display Teletext service contents. 12
qh Show TV screen while waiting for Teletext page. 12
ws x(red, green, Access a FASTEXT menu. 12
yellow, blue)
Stereo/bilingual operations
qs A/B Not function for your TV. –
01GB04INS-MIX.p65 7/10/03, 9:51 AM10
Black

11
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
Advanced Operations
Advanced Operations
Selecting the sound mode
Press (or SOUND MODE on the front panel) to select the desired sound mode.
5-Band Graphic Equalizer display will appear.
Select To listen to
“Dynamic” dynamic and clear sound that emphasizes both the low
and high tones.
“Drama” sound that emphasizes voice and high tones.
“Soft” soft, natural and relaxing sounds.
“Personal” the last adjusted sound setting from the
“Sound Adjustment” option in the menu (see page 18).
xSelecting the picture and sound
modes
You can select picture and sound modes and adjust the setting to your
preference in the “Personal” option.
Selecting the picture mode
Press to select the desired picture mode.
Select To view
“Dynamic” high contrast pictures.
“Standard” normal pictures.
“Soft” mild pictures.
“Personal” the last adjusted picture setting
from the “Picture Adjustment”
option in the menu (see page 16).
TV
123
46
789
0
5
MENU
RESET
PROG
A/B
Dynamic
100 300 1k 3k 8k
100 300 1k 3k 8k
Drama
100 300 1k 3k 8k
Soft
100 300 1k 3k 8k
Personal
01GB05AVD-MIX.p65 7/10/03, 9:52 AM11
Black

12 Menu Adjustment
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
xViewing Teletext
BKV-XR34M81/XR29M81/XR25M81 only
Some TV stations broadcast an information service called Teletext which allows
you to receive various information, such as stock market reports and news.
You can use the buttons on the remote to view Teletext.
To Do this
display a Teletext Press . Each time you press , the
page on the screen changes as follows:
TV picture Teletext tTeletext and TV tTV.
If there is no Teletext broadcast, “100” is
displayed at the top left corner of the
screen.
check the contents Press .
of a Teletext service An overview of the Teletext contents,
including page numbers, appears on the
screen.
select a Teletext page Press the number buttons to enter the
three-digit page number of the desired
Teletext page. If you make a mistake,
reenter the correct page number. To
access the next or previous page, press
or .
hold (pause) a Press to display the symbol “ ” at
Teletext display the top left corner of the screen. To
resume normal Teletext viewing, press
.
reveal concealed Press .
information (e.g., To conceal the information, press the
an answer to a quiz) button again.
enlarge the Teletext Press . Each time you press , the
display Teletext display changes as follows:
Enlarge upper half tEnlarge lower
half tNormal size.
stand by for a Teletext (1) Enter the Teletext page number that
page while watching you want to refer to, then press .
a TV program (2) When the page number is displayed,
press to show the text.
select a FASTEXT Press x(red, green, yellow and blue)
menu or the colored that corresponds to the desired menu or
boxes page number.
turn off Teletext Press a.
Note
• The FASTEXT feature can be used only when the FASTEXT broadcast is available.
x (red,
green,
yellow,
blue)
TV
123
46
789
0
5
MENU
RESET
PROG
A/B
,
Advanced Operations
01GB05AVD-MIX.p65 7/10/03, 9:52 AM12
Black

13
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
Menu Adjustment
Menu Adjustment
xIntroducing the menu system
The MENU button lets you open a menu and change the settings of your TV.
The following is an overview of the menu system.
Return icon
Setup icon
Channel Setup icon
Timer icon
Name of the current
menu
Picture icon
Menu level 3
Menu level 2
User Guidance
Menu level 1
Level 1
“Picture”
“Sound”
Level 2
“Mode”
“Picture Adjustment”
“Color Temperature”
“VM ”
“Intelligent Picture”
“Mode”
“Sound Adjustment”
“Balance”
“Intelligent Volume”
“Surround”
Level 3/Function
Select the picture mode:
“Dynamic” t“Standard” t“Soft” t“Personal”
Adjust the “Personal” option:
“Picture” t“Brightness” t“Color” t
“Hue” t“Sharpness” t “Reset”
Adjust white color tint:
“Cool” t“Neutral” t“Warm”
Sharpen the edges of each object:
“High” t“Low” t“Off”
Optimize picture quality:
“On” t“Off”
Select the sound mode:
“Dynamic” t“Drama” t“Soft” t“Personal”
Adjust sound frequency settings of “Personal”
option:
“Adjust” t“Reset”
Select to emphasize the left and right speakers.
Adjust volume automatically:
“On” t“Off”
Select the surround mode:
“On” t“Simulated” t “Off”
Page
16
17
Confirm End
Setup
Wide Mode:
Video Label
Picture Rotation
Language: English
Color System:
Select
Sound icon
continue
01GB05AVD-MIX.p65 7/10/03, 9:52 AM13
Black

14 Menu Adjustment
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
continued
Level 1
“Timer”
“Channel Setup”
“Setup”
Level 2
“Sleep Timer”
“Wake Up Timer”
“Auto Program”
“Manual Program”
“TV System”
“Program Label”
“Program Block”
“Language”
“Picture Rotation”
“Wide Mode”
“Video Label”
“Color System”
Level 3/Function
Set TV to turn off automatically.
Set TV to turn on automatically.
Preset channels automatically.
Preset channels manually.
Select the TV system:
“B/G” t “ I” t“D/K” t“M”
Label the program number.
Block unwanted programs.
Change the menu language:
“English” t“ ” (Arabic)
Adjust the picture position.
Change the picture size:
“On” (16:9 wide-mode) t “Off”
Label the connected equipment.
Select the color system:
“Auto” t “PAL” t “SECAM” t“NTSC3.58” t
“NTSC4.43”
Page
19
20
22
01GB05AVD-MIX.p65 7/10/03, 9:52 AM14
Black

15
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
Menu Adjustment
How to use the menu
Other menu operations
Tips
• If you want to exit from Menu level 2 to Menu level 1, press Vor vuntil the return icon ( ) is
highlighted, then press .
• The MENU, tand 2 +/– buttons on the TV front panel can also be used for the operations
above (see page 8).
To
Adjust the setting value
Move to the next/previous menu level
Cancel the menu
Press
V, v, B or b.
B or b.
MENU.
Press V or vto select
the desired item.
Press (or b) to
confirm your
selection and
go to the next
level.
Press MENU to
display the menu.
TV
0
MENU
PROG
RESET
Select Confirm End
Color Temperature: Cool
VM: High
Picture Adjustment
Mode: Dynamic
Intelligent Picture: On
Select End
Channel Setup
Program Label
TV System:
Manual Program
Auto Program
Confirm
Program Block
B/G
Select End
Channel Setup
Program Label
Manual Program
B/G
TV System:
Program Block
Confirm
Auto Program
01GB05AVD-MIX.p65 7/10/03, 9:52 AM15
Black

16 Menu Adjustment
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)

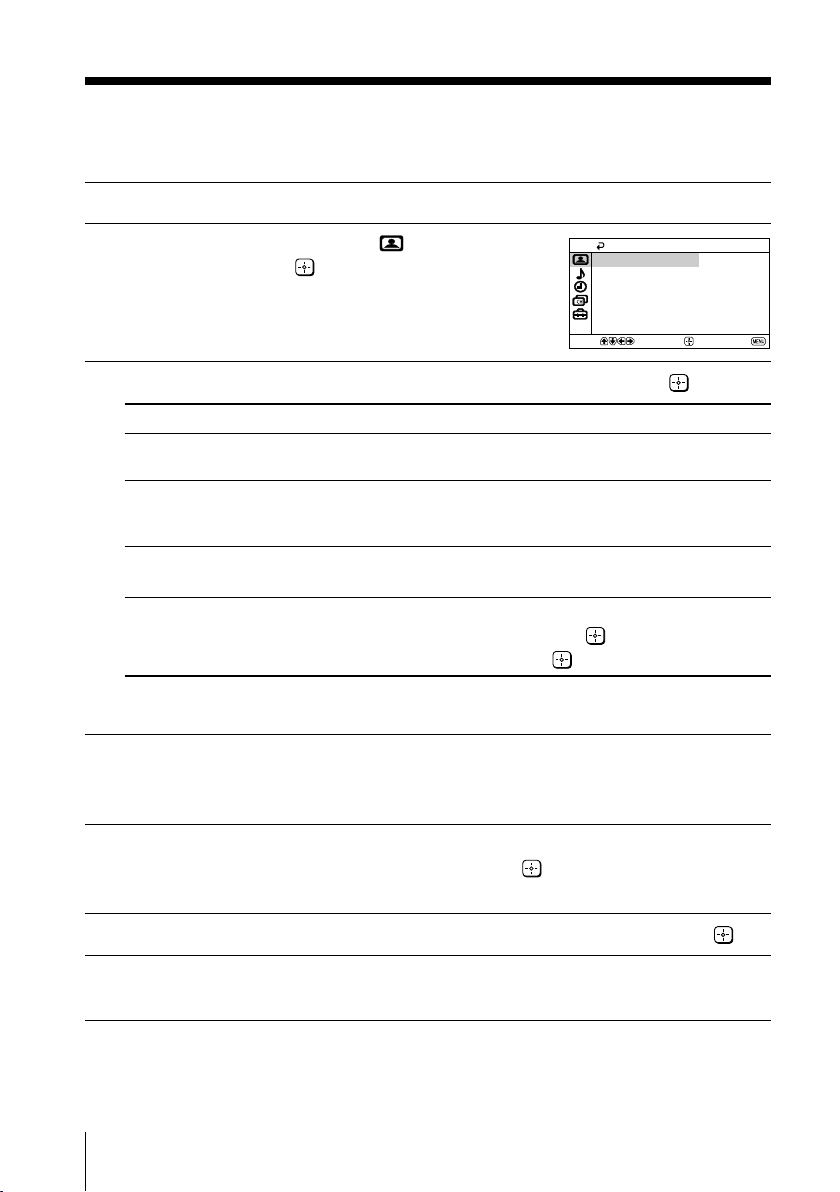

xChanging the “Picture” setting
The “Picture” menu allows you to adjust the picture settings.
1Press MENU.
2Make sure the “Picture” icon ( ) is
selected, then press .
3Press Vor vto select the desired item (e.g., “Mode”), then press .
Select To
“Mode” choose either “Dynamic”, “Standard”, “Soft” or “Personal”*
(see page 11).
“Color Temperature” adjust white color tint.
Choose either “Cool” (blue tint), “Neutral” (neutral tint) or
“Warm” (red tint).
“VM” sharpen the edges of each object.
(Velocity Modulation) Choose either “High”, “Low” or “Off”.
“Intelligent Picture” optimize picture quality.
Press Vor vto select “On”, then press .
To cancel, select “Off”, then press .
* You can adjust the setting to your personal preference in the “Picture Adjustment”,
“Color Temperature” and “VM” options only when the “Personal” mode is selected.
Adjusting the “Picture Adjustment” items under
“Personal” mode
1Press Vor vto select either “Picture” (contrast), “Brightness”, “Color”,
“Hue” (color tones) or “Sharpness”, then press .
Selecting “Reset” will set your TV to the factory setting.
2Press V,v,B or bto adjust the setting of your selected item, then press .
3Repeat the above steps to adjust other items.
The adjusted settings will be received when you select “Personal”.
Notes
• “Hue” can be adjusted for the NTSC color system only.
• Reducing “Sharpness” can also reduce picture noise.
Confirm End
Color Temperature: Cool
VM: High
Picture Adjustment
Mode: Dynamic
Intelligent Picture: On
Select
01GB05AVD-MIX.p65 7/10/03, 9:52 AM16
Black

17
Menu Adjustment
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)

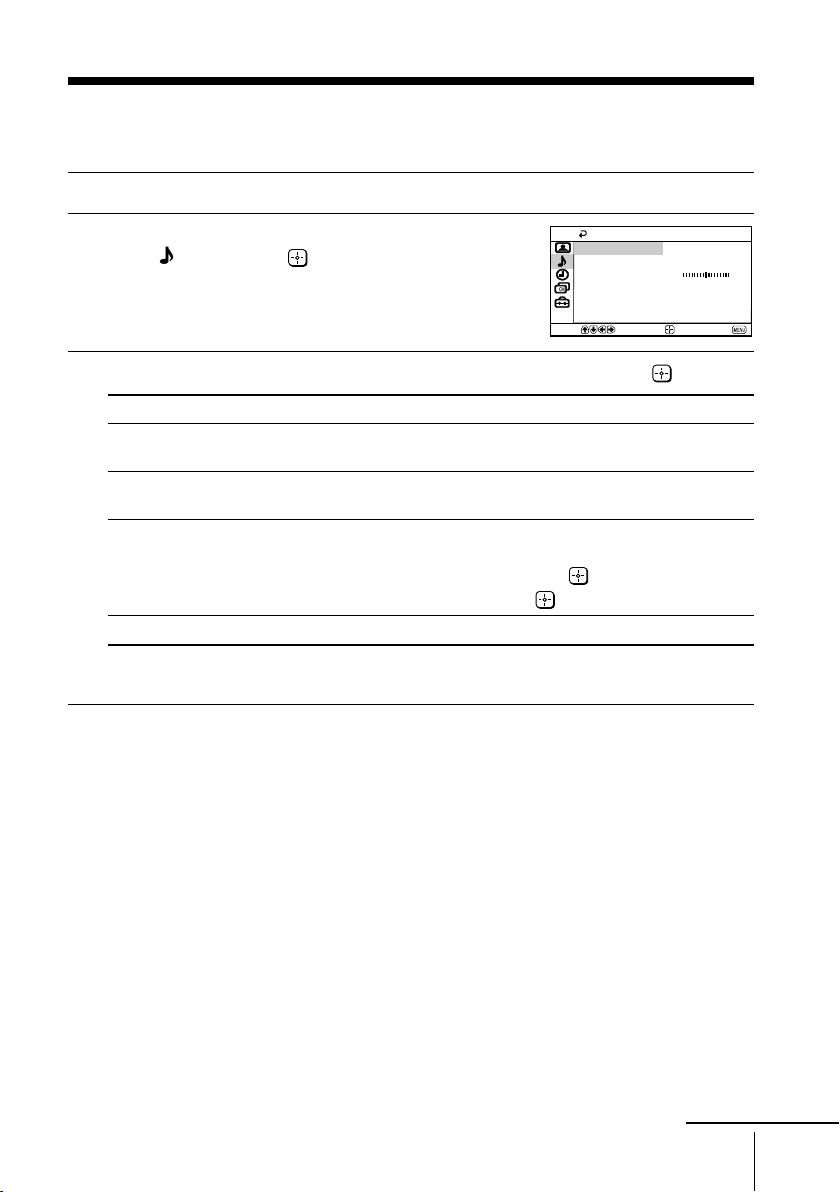

xChanging the “Sound” setting
The “Sound” menu allows you to adjust the sound settings.
1Press MENU.
2Press Vor vto select the “Sound”
icon ( ), then press .
3Press Vor vto select the desired item (e.g., “Mode”), then press .
Select To
“Mode” choose either “Dynamic”, “Drama”, “Soft” or “Personal”*
(see page 11).
“Balance” Press vor Bto emphasize the left speaker.
Press Vor bto emphasize the right speaker.
“Intelligent Volume” adjust the volume of all program numbers and video inputs
automatically.
Press Vor vto select “On”, then press .
To cancel, select “Off”, then press .
“Surround” choose either “On”, “Simulated” or “Off” (see page 9).
* You can adjust the setting to your personal preference in the “Sound Adjustment”
option only when the “Personal” mode is selected (see page 18).
Balance
Intelligent Volume:
Surround:
Sound Adjustment
Dynamic
Mode:
Sound
Confirm End
Select
Off
Off
continue
01GB06ADJ-MIX.p65 7/10/03, 9:53 AM17
Black

18 Menu Adjustment
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
Reset
100 300 1k 3k 8k
Adjust
Adjustment: Personal
Confirm End
Select
Adjusting the “Sound Adjustment” item under
“Personal” mode
The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings
of “Personal” mode in the menu.
1Make sure that “Adjust” is selected,
then press .
Selecting “Reset” will set your TV to
the factory setting.
2Press B or bto select the desired sound frequency, then press V or vto
adjust the setting and press .
The adjusted settings will be received when you select “Personal”.
Notes
• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency
will affect lower pitched sound.
• You may display the settings directly using the SOUND MODE button on the TV front panel
(see page 8) or button on the remote control (see page 10).
continued
01GB06ADJ-MIX.p65 7/10/03, 9:53 AM18
Black

19
Menu Adjustment
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
xChanging the “Timer” setting
The “Timer” menu allows you to set TV to turn off and turn on automatically.
1Press MENU.
2Press Vor vto select the “Timer” icon ( ),
then press .
3Press Vor vto select the desired item (e.g., “Sleep Timer”), then press .
Select To
“Sleep Timer” set TV to turn off automatically.
Press Vor vto select the desired period of time (max. of 1 hour
and 30 minutes), then press .
“Wake Up Timer” set TV to turn on automatically.
Press Vor vto select the desired period of time (max. of 12
hours), then press . After the selected length of time, the TV
switches on automatically and “Wake Up Timer” will appear on
the screen.
The indicator on the TV lights up amber once you set the
“Wake Up Timer”.
Notes
• You can also cancel “Sleep Timer” and “Wake Up Timer” by turning off the TV’s main power.
• If no buttons or controls are pressed for more than one hour after the TV is turned on using
the “Wake Up Timer”, the TV automatically goes into standby mode.
Timer
Wake Up Timer:
Sleep Timer: Off
Off
Confirm End
Select
01GB06ADJ-MIX.p65 7/10/03, 9:53 AM19
Black

20 Menu Adjustment
Sony KV-XR34M81 Group C4 (GB, FR, PR, AR)_4-100-941-11 (1)
xC hanging the “Channel Setup”
setting
The “Channel Setup” menu allows you to preset channels automatically,
manually preset channels, select the TV system, label the program number and
block unwanted programs.
1Press MENU.
2Press Vor vto select the “Channel Setup”
icon ( ), then press .
3Press Vor vto select the desired item (e.g., “Auto Program”), then press .
Select To
“Auto Program” preset channels automatically.
“Manual Program” manually preset desired channels and channels that cannot be
preset automatically (see Presetting channels manually on
page 21).
“TV System” select the TV system.
Press Vor vto select either “B/G”, “I”, “D/K” or “M”, then
press .
“Program Label” label the program number.
(1) Select “Program” and press .
Press Vor vto select the program number, then press .
(2) Select “Label” and press , then press Vor vto select
alphanumeric characters for the label.
“Program Block” block unwanted programs.
(1) Select “Program” and press .
Press Vor vto select the program number, then press .
(2) Select “Block” and press , then press Vor vto choose
either “On” or “Off”.
If you preset a blocked program number, that program number
will be unblocked automatically.
Note
• During automatic channel presetting, your TV screen will indicate “B/G”, “I”, “D/K” or “M”
for the “TV System”.
Channel Setup
Program Block
Manual Program
Auto Program
Program Label
TV System: B/G
Select End
Confirm
01GB06ADJ-MIX.p65 7/10/03, 9:53 AM20
Black
