Deuterium and
Tungsten-Halogen
Hybrid Light Source
- ASBN-DW-F/ASBN-DW-F-BAL -
Manual

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com
Important Safety Notices
1. Never look directly into the light beam, including through the cooling fan while the light
is on, as this can cause eye damage.
2. Do not remove or modify any installed safety devices on this equipment. Doing so will
void your warranty and create an unsafe operating environment.
3. Do not use the unit if it is damaged in any way. Contact your dealer for repair or
replacement information.
Warranty and Liability
This SP’s product is warranted against defects in material and workmanship for one year from
the date of shipment. During the warranty period, Spectral Products will, without charge, repair or
replace, at its discretion, the defective product, or components/parts.
This product must be returned to a service facility designated by Spectral Products (SP) for
warranty service or repair. For products returned under warranty, the Buyer shall prepay shipping
charges (including shipping charges, duties, and taxes for products returned to SP from another
country), and SP will pay for shipping charges to return the product to the Buyer.
This warranty does not apply in the event of misuse or abuse of the product or as a result of
unauthorized alterations, modifications, or repairs if the serial number is altered, defaced, or removed,
the improper or inadequate maintenance by the Buyer, Buyer-supplied software or interfacing, or
improper site preparation or maintenance. No other warranty is expressed or implied. SP shall not be
liable for any consequential damages, including damages resulting from loss of use, as permitted by
law.

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com
Specification
The following tables provide information on our fiber coupling deuterium and tungsten-
halogen hybrid light source.
Overview
Mount
Tapered flange, adjustable, Post mounting for standalone operation
Housing
Air-cooled
w/ two focusable fused silica doublet collection lens sets, 1” size
Dimension: 12.1” X 10.5” X 5.25”
Output type
Fiber coupling (F): SMA905 or FC
Electric
Tungsten-Halogen
Electric
Power
Input
Input Voltage: 85-264 Vac, 47-63Hz
Inrush Current: 30A/100V, 40A/200V
Over-voltage protection: Clamp, 115-135%
Current limit: 105-150% typically, self-reset fold back
Safety: UL/TUV/CE
Operation Temperature: 0 to 50 ºC
Electric
Power
Output
Vdc: 24V from the main power, ~2 +/-0.2V for the tungsten-halogen
Max. Current:0.85A (at 2.6Vdc)
Ripple/Noise:100mV Peak to Peak (typ) for the main power supply
Regulation: +/-0.3% typically
Deuterium
Electric
Power
Input
Input Voltage: 24 Vdc regulated (<45W), 5Vdc (TTL) disable input
Input Current: 2A
Electric
Power
Output
Anode: 60-100Vdc / 30 W max
Trigger pulse: 600±50 Vpk continuous (Anode Vdc included)
Heater Warm-up:~20-30 seconds
Regulation: +/-0.5% typically
Others
Temperature: 0-40 ºC
Humidity: ≤95%
Cooling: 20 CFM of forced air across the component side

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com
Component
Optics
Lens
2 X 1” UV grade fused silica (quartz) plano-convex lens, R=12.9mm,
f=25.0mm (nominal), F# in the housing = ~1.4
Lamp
Tungsten-Halogen
2.5W
Bulb Type: Lens-end
Operating voltage: 2.6Vdc (could be lower for “-BAL” version)
Operating current: 0.85A
Filament size: 0.813mm X 0.432mm
Spot size (right after the lens end): 3.56mm dia.
Color temperature: 2840K at 2.6V/0.85A, (could be lower for “-BAL”
version)
Bulb Lifetime: 4,000 hours (typ) at 2.6V/0.85A, could be extended
up to ~30,000 hours for the “-BAL” version
Bulb Material: fused silica
Deuterium
30W
Window Material: UV glass
Electrical connections: Flex Leads (2 Black for filament, 1 Red for
Anode)
Starting Voltage: 350 Vdc min
Operating Voltage: 65-80 Vdc
Operating Current: 300 mAdc
Filament Current (starting): 0.8-1.0 Amp
Filament Voltage: 9.0-11.0 V (starting), 6.0-7.0 (operating)
Arc diameter: 2.0mm
Lifetime: 1000 hours (to 50% of initial light output at 300 mAdc
Window Transmission at 190nm: 60%
Spectrum
The deuterium (D2) lamp is designed for use in spectroscopic applications where high intensity
and stability in the 190 to 400nm band are needed. Above 400nm, some spiky spectra will be detected
also.
The Tungsten-halogen light source is a well-known near-black body radiation source. Its
spectrum is also very similar to those of black body radiation.

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com
The envelope of tungsten-halogen lamps is made of fused silica. The transmittance of fused
silica, therefore, needs to be considered.

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com
Operation
Front Back
Component
Description
Power terminal
input
Connects power cable to provide voltage to our deuterium and high power tungsten-
halogen hybrid light source. One main power supply provides the input voltages on
both lamps.
Power switch
There are three on/off power switches on the light source. One is the main power
switch that is located on the front side. The other two are for the deuterium and the
tungsten-halogen, which is located on the backside.
Note: It takes ~20-30 seconds to warm up the deuterium power supply so the
deuterium light doesn’t come on immediately when the deuterium power switch turns
on. If the tungsten-halogen is on while turning on the deuterium, the tungsten-halogen
light can blink several times.
Fuse
Contains the fuse to protect the unit against overload.
Fuse type:
For main 24V power supply: 5A/250V
For deuterium relay power supply: 2A/250V
Cooling fan
Cools the interior of the light source housing.
Note: Do not look at the light beam through this fan, especially when the deuterium is
on.
Output
SP can provide SMA905 or FC. SMA is the default connector.
The tungsten-halogen light is much stronger than the deuterium light in general. The
balanced output version, ASBN-DW-F-BAL, will be adjusted the tungsten-halogen
output signal at SP based on SP’s CCD spectrometer for the 200-1100nm range.
Main Power
Switch
Fiber coupling output. SP can provide
SMA905 or FC type connector.
Cooling Fan
Power
terminal
Input & Fuse
D2 & Tungsten
Power Switches

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com
Bulb Replacement

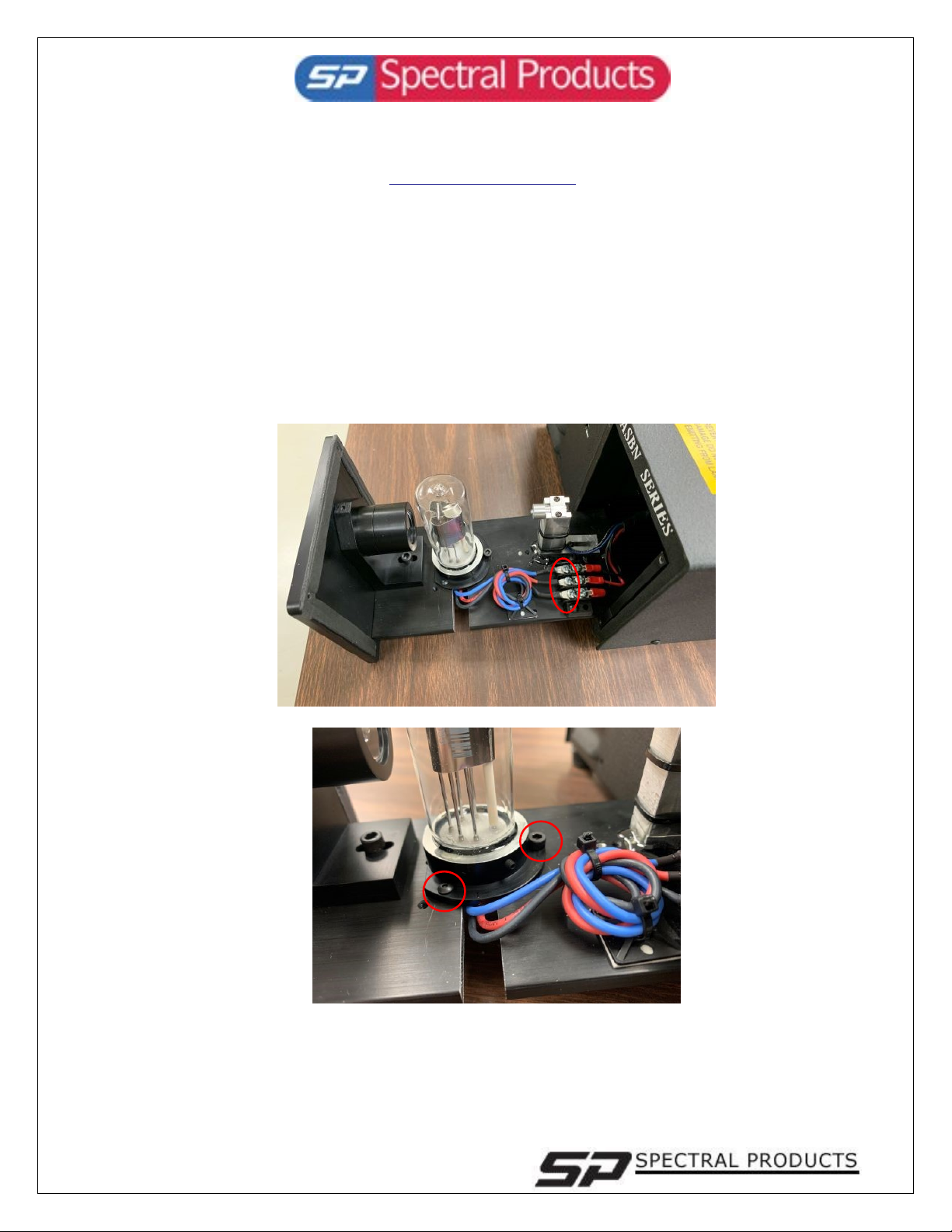

Replacing the Deuterium lamp bulb
1. Turn off all power.
2. Wait until the lamp cools down.
3. Remove housing.
4. Remove heat shield.
5. Take off the three deuterium lamp leads on the bottom.
6. Unscrew the screws for the deuterium bulb.
7. Take out the old bulb and replace the new one.
NOTE: When touching the new deuterium lamp, please be careful not to touch it with a bare
hand.

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com

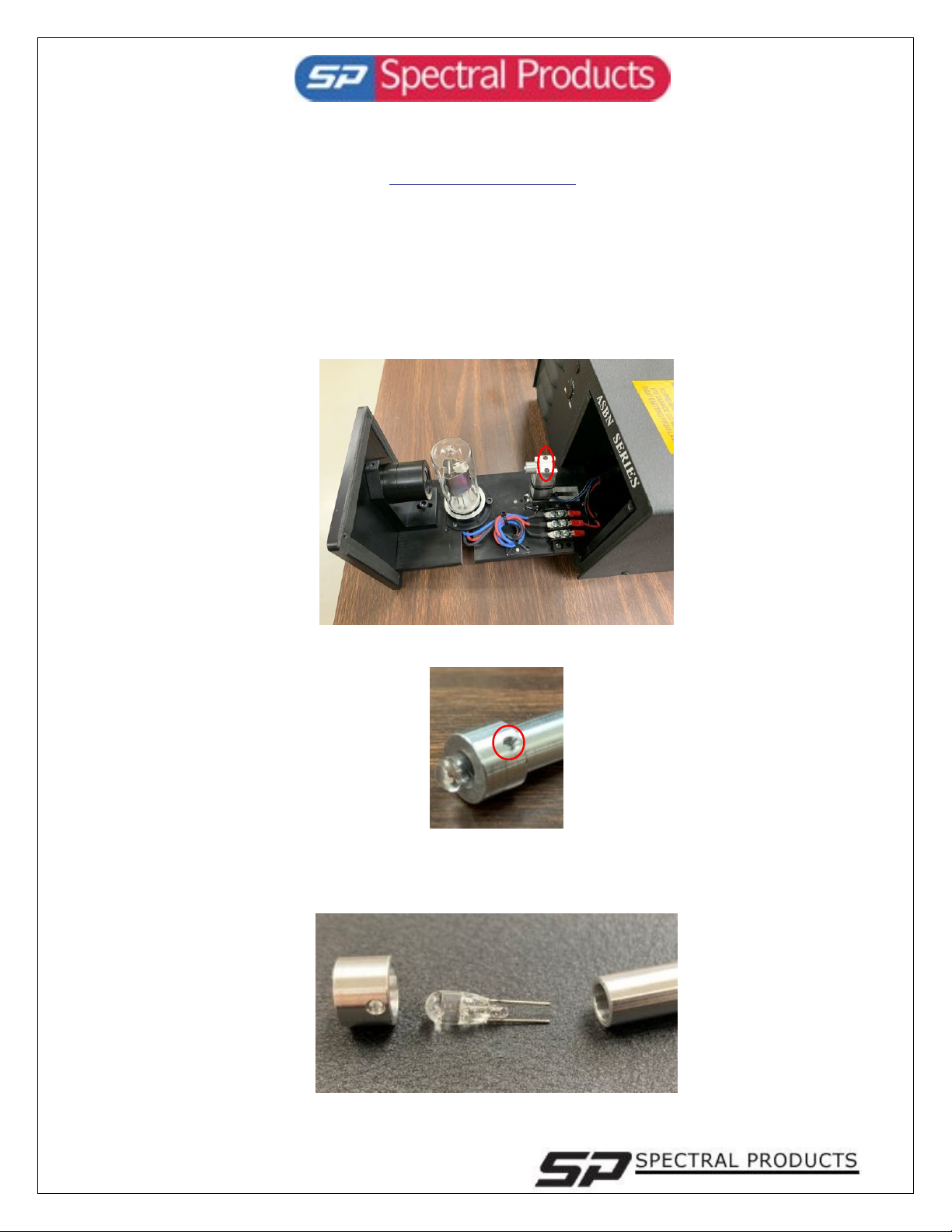

Replacing the Tungsten-Halogen lamp bulb
1. Turn off all power.
2. Wait until the lamp cools down.
3. Remove 4 faceplate screws.
4. Pull out the light source slider.
5. Remove the top 2 set screws from the bulb holder.
6. With finger cots, remove the (0.35-inch) set screw on the bulb holder.
7. Carefully pull apart the holder into its 3 distinct pieces and replace the bulb.
Sometimes, the bulb may pull the plug with it, so please be careful when handling it. If this
occurs, insert the new bulb into the plug and insert both pieces into the holder.
8. Put pieces back together, in the direction of the reference photo.
9. Insert the set screw on the holder. Tighten firmly.

111 Highland Drive –Putnam, CT 06260
Phone [phone] –Fax [phone]
www.spectralproducts.com
10. Place the holder back on the light source mount and tighten the 2 set screws on the
mount.
NOTE: All the optical components were properly aligned by SP. Do not touch any mounting
screws. Adjust the bulb itself when aligning the filament position.
Technical Support
Toll Free: [phone], ext 215
Tel: [phone], ext 215
Fax: [phone]
Website: http://www.spectralproducts.com
Email: [email protected]
