Summit Appliance SLW241W User manual

WASHER
User Manual
Models:
SLW241W
LWM24
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULED AND OPERATING
INSTRUCTIONS
Write Model and Serial Numbers
here:
Model: _____________________
Serial No.: __________________
Summit Appliance
Division of Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com

2
TABLE OF CONTENTS
Safety Precautions 3-4
Technical Specifications 4
Installation and Connection 5-9
Removing the Blocking Rods 5
Adjusting the Washing Machine Feet 5
Installation Clearances 6
Connecting the Water Line 6-7
Connecting the Water Discharge Hose 7-8
Connecting the Power Supply 9
Proper Usage 9-15
Turning on the Washing Machine 9
Loading the Washing Machine 9
Adding Detergent 10
Choosing the Washing Program 10-12
Choosing the Proper Setting 13-14
Additional Settings 14
Starting the Washing Machine 15
Changing the Washing Program and Manual Cancellation 15
Adding/Removing Laundry During the Washing Program 15
Low Standby Mode 15
Maintenance and Cleaning 16-17
Cleaning the Dispenser Tray 16
Cleaning the Water Supply Hose, Detergent Dispenser, and Door Gasket
17
Cleaning the Pump Filter 17
Troubleshooting 18-20
Disposal 21
Program Duration and Rate Table 22
Limited Warranty 24

3
SAFETY PRECAUTIONS
Your safety and the safety of others is very important.
This manual contains imporatant information on the installation, use, and care of your appliance.
Read the instructions for use carefully before using the washing machine to prevent injury and
property damage. Please, do not use the washing machine without reading and understanding
these instructions or use first.
NOTE: These instructions for use are supplied with different types or models of washing
machines. Therefore, they may include descriptions of settings or equipment that are not
available in your washing machine.
Failure to observe the instructions for use or inappropriate use of the washing
machine may result in damage to the laundry or the appliance, or injury to the
user. Keep the instruction manual handy, near the washing machine.
•Your washing machine is intended solely for household use. If the washing machine is used
for professional, for-profit purpose or purpose exceeding normal use in a household, or if the
washing machine is used by a person who is not a consumer, the warranty period shall be
equal to the shortest warranty period required by relevant legislation.
•Connection to water and power supply has to be executed by an adequately trained
technician or expert.
•Any repair and maintenance pertaining to safety or performance should be done by trained
experts.
•To avoid danger, a damaged power cord may only be replaced by the manufacturer, a
service technician, or an authorized person.
•Before connecting the washing machine to the power mains, wait for at least 2 hours until it
reaches room temperature.
•In case of a defect, only use approved spare parts by authorized manufacturers.
•In case of incorrect washing machine connection, incorrect use, or servicing by an
unauthorized person, the user shall bear the cost of any damage as such damage shall not
be covered by warranty.
•The washing machine may not be connected to the power mains using an extension cord.
•Do not connect the washing machine to power mains using an external switching device
such as a program timer, or connect it to power mains that is regularly switched on and off by
the power supply provider.
•Do not connect the washing machine to an electrical outlet intended for an electric shaver or
hair dryer.
•Certain internal parts are intentionally not grounded and may present a risk of electric shock
only during servicing. Service Personnel - Do not contact the following parts while the
appliance is energized: Motor, Pump and Control unit.
•Do not install the washing machine in a room where the temperature can drop to below 41°F
(5°C), as washing machine parts may be damaged in case of water freezing.
•Place the washing machine on a level and stable solid (concrete) base.
•If the washing machine is placed on an elevated stable base, the washing machine has to be
additionally secured against tipping.
•Before the first use of the washing machine, remove the blocking rods, as switching on a
blocked washing machine can result in serious damage. Warranty shall be void in cases of
such damage.
•To connect the washing machine to water supply, make sure to use the supplied water
supply hose and gaskets.
•Water pressure has to be between 0.05 and 0.8 MPa (0.5 –8bar).
•Always use a new water supply hose to connect the washing machine to water supply; do not
reuse an old water supply hose.

4
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous, even if they will “just sit in the garage a few days.”
Before discarding your old refrigerator:
oTake off the doors
oLeave the shelves in place so that children may not easily climb inside
-SAVE THESE INSTRUCTIONS-
TECHNICAL INFORMATION
Power Supply
208-240V, 60Hz
Rated Current
15A
Maximum load
19.8lbs
Spin Speed
1,400 rpm
Water Pressure
0.05-0.8MPa (7.25 -115psi)
Maximum Power
2,300 W
Width
23 ½”
Height
33 ½”
Depth with door closed
25 ½”
Depth with door open
44 ½”

5
INSTALLATION AND CONNECTION
•Remove the exterior and interior packaging before using your appliance.
•Place the washing machine on a clean, dry concrete floor strong enough to support the
machine.
•Let the washing machine stand for at least two hours before first using the appliance.
NOTE: Before using your appliance for the first time, the transport rods must be removed. A
blocked washing machine may be damaged when it is switched on for the first time.
Warranty should be void in cases of such damage.

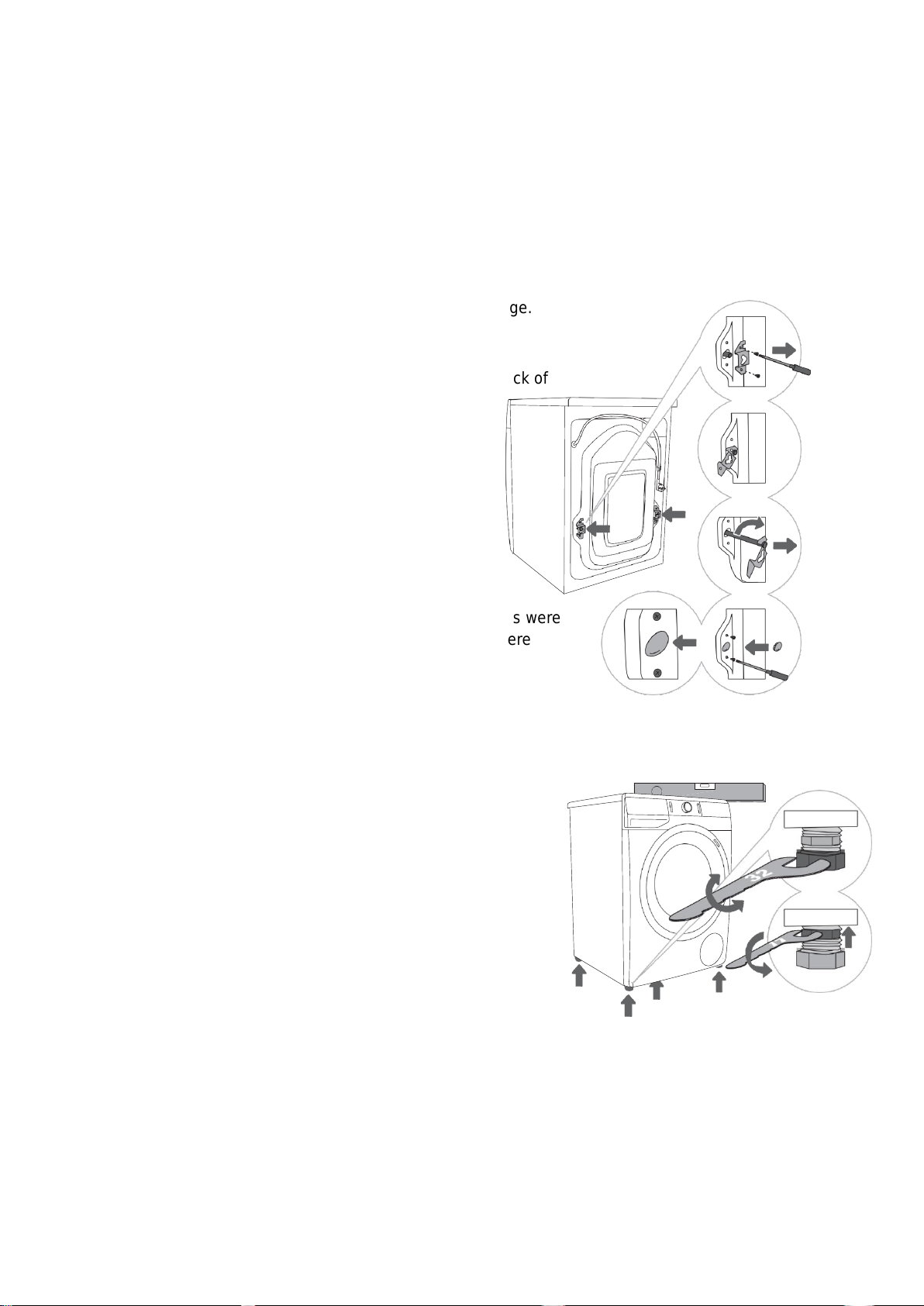

Removing the Blocking Rods
1. Move the housing and remove the screws on the back of
the washing machine. Remove the two angular
pieces.
2. Slide the angular pieces onto the groove in the
blocking rod. Before doing so, rotate the right
angular piece to the opposite side.
3. Use the angular pieces to rotate the blocking
rods by 90°and pull them out.
4. Cover the two holes, through which the blocking rods were
inserted, with plastic plugs. Redo the screws that were
removed in Step 1.
Adjusting the Washing Machine Feet
Use a water scale and a No.32 wrench to adjust the feet and a No. 17 wrench to adjust the nut.
1. Rotate the adjustable feet to change their height and
level the washing machine.
2. Firmly tighten the jam nuts, using a No. 17 wrench, by
turning them up, toward the bottom of the washing
machine.
NOTE: Incorrect leveling of the washing machine may cause
vibrations, the appliance to slide across the room, or
the washing process may be louder than normal.
Incorrect leveling of the machine is not subject to
warranty.

6
Installation Clearances
The washing machine should NOT touch a wall or any adjacent furniture. For optimum operation,
we recommend making sure the clearances from the walls are as indicated in the figures below.
Safe and correct appliance operation cannot be ensured if the minimum required clearances are
not observed.
Connecting the Water Line
Attach one end of the water line hose to the back of the washing machine, and attach the other
end to the water tap. Screw the line all the way onto the thread.
•If your model has connections for both hot and cold water, then connect one hose to the cold
water supply (blue wing nut or blue mark on the hose) and the other one to the hot water
supply (red wing nut or red mark on the hose), as indicated on the back of the washing
machine. Connections are labelled with letters C and H (C = cold, H = hot). HOT water
(mixture of hot and cold water) is only added for programs at WARM or higher.
•If your washing machine features a hot and cold water connection, but only one water
temperature is desired for use, do not install the water hose. Close the hot/cold water
connection on the back of the washing machine with the supplied cap.
2" (50 mm)

7
•For normal washing machine operation, the water main pressure should be between 0.05
and 0.8 MPa (7.25 and 116psi). Minimum dynamic water pressure can be determined by
measuring the water flow. In 15 seconds, 0.8 gal (3 liters) of water should flow from a fully
opened tap.
•Firmly tighten the water supply by hand. Check the seal after connecting the hose to ensure
there are no leaks.
NOTE: DO NOT use pliers or similar tools when connecting the hose, as this could damage the
nut and thread.
Connecting the Water Discharge Hose
The discharge hose must be attached and fixed to the pin on the back of the washing machine,
as shown below:

8
•Feed the water discharge hose into a wash basin or bathtub. The hose can also be directly
connected to a drain with a discharge hose with a minimum diameter or 1 ½” (4cm).
•The vertical distance from the floor to the end of the discharge hose may be no more than
39” (100cm) and no less than 23 ½” (60cm). It can be attached in any of the three ways
shown below:
•(A) The end of the discharge hose may be placed over a wash basin or a bathtub. Use a
string fed through the opening in the elbow support to attach the hose and prevent it from
slipping on the floor.
•(B) The discharge hose may also be attached directly to the wash basin drain.
•(C) The discharge hose can also be attached to a wall drain with a trap. Such a trap should
be properly installed to allow cleaning.

9
Connecting the Power Supply
•Before connecting the washing machine to the power supply, wait for a least two hours until
the appliance reaches room temperature.
•Connect the washing machine to a grounded power outlet, which should be freely accessible
after installation.
•DO NOT connect the washing machine using an extension cord.
•A damaged power cord may only be replaced by an authorized repair person.
NOTE: Use over-voltage protection to protect the appliance in case of a lightning strike.
PROPER USAGE
NOTE: Before using the washing machine for the first time, unplug the machine, clean the
washing drum with a soft cloth and water, or use the Cotton EXTRA HOT washing program while
the washer is empty.
Turning on the Washing Machine
1. Connect the washing machine to both the power supply and the water supply.
2. Connect the drain hose.
3. Press the ON/OFF/RESET butting to switch the machine on.
Loading the Washing Machine
Open the washing machine door by pulling the handle toward you. Insert the laundry into the
drum, and close the washing machine door.

10

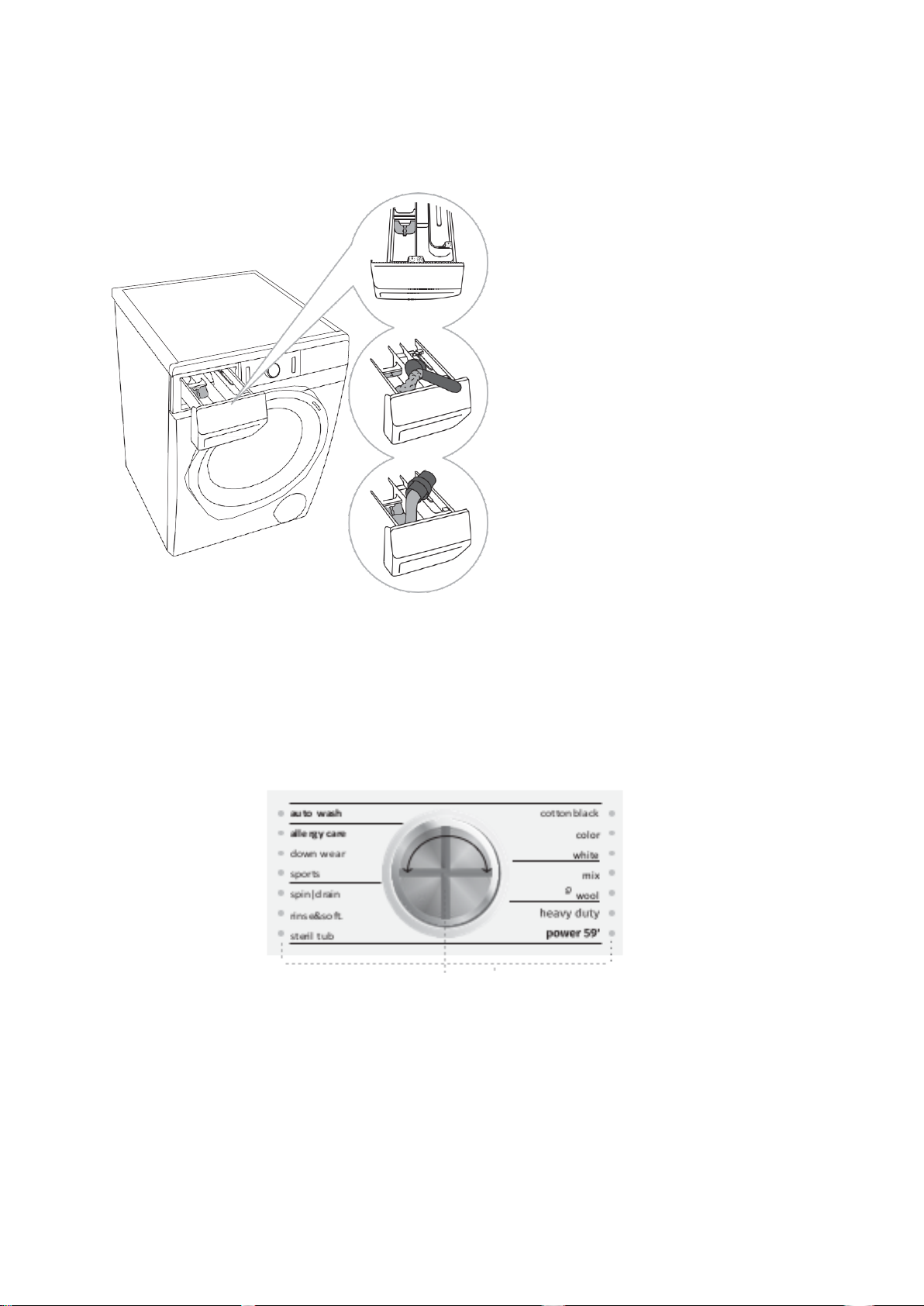

Adding Detergent
Both liquid and powdered detergent can be used in your washing machine.
•A separator/divider tab is
found in the detergent tray.
•Remove the divider tab when
using powdered detergent.
•Leave the divider tab in place
when using liquid detergent.
Choosing the Washing Program

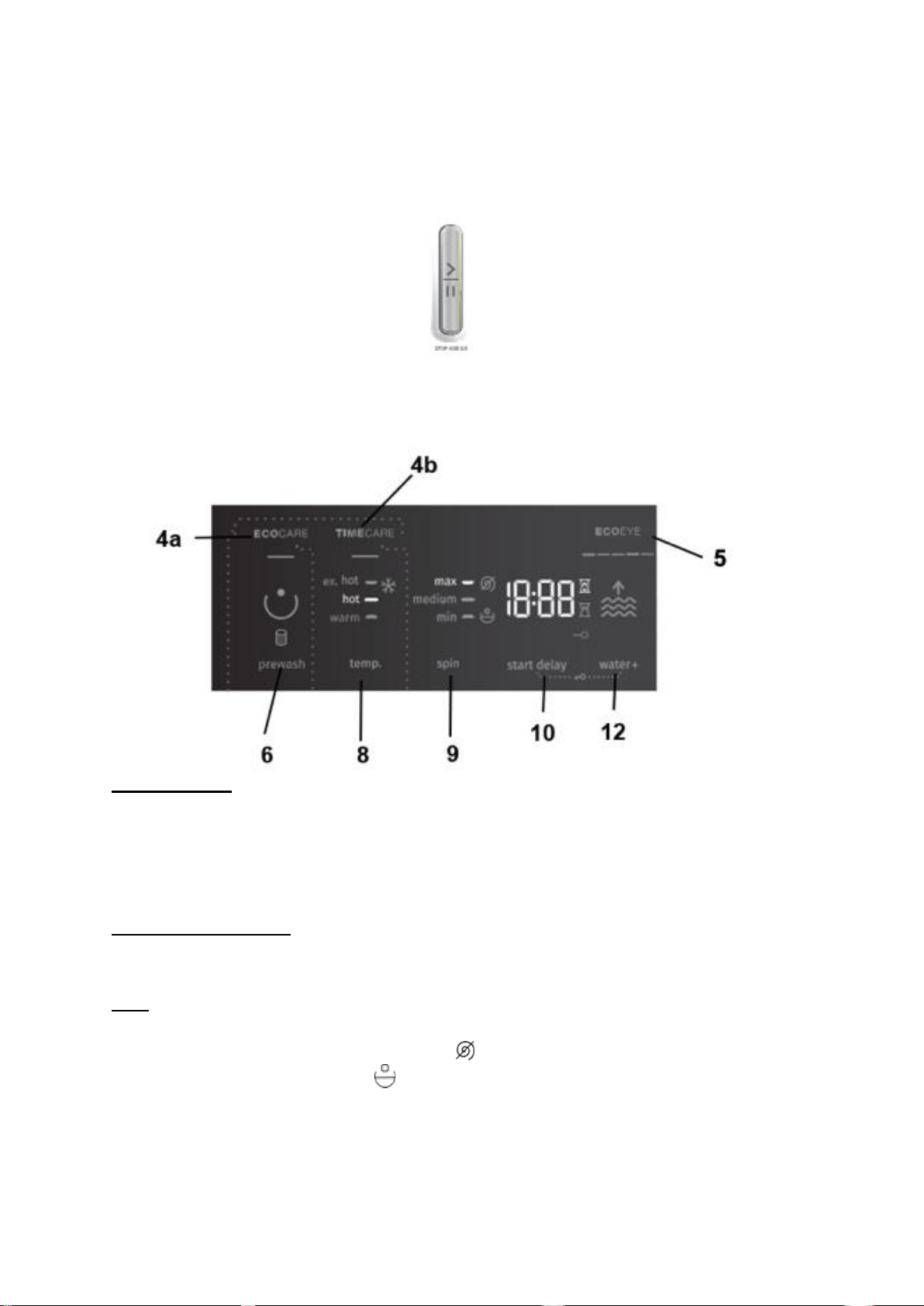

Rotate the program selector knob to the left or the right, depending on the type of clothing you
are washing. The light next to the program will illuminate when that particular washing program is
selected. See the Program Table below if you are unsure which washing program is correct.

11
Program Table
Program
Max. load
Program description
Cotton black
WARM
** (1/2)
This program is used for washing dark laundry, using
special-purpose detergents for black laundry. The
program washes at low temperatures, with gentle
tumbling and a lower spinning rate.
Cotton color
- HOT
* MAX
This program is used for lightly to moderately dirty
laundry. The temperature can be set separately;
therefore, wash according to the instructions indicated on
the clothing. Wash the clothes worn directly on the skin at
HOT. Less heavily soiled laundry should be washed at
WARM. The default spinning rate is set at maximum
speed, but the rate can also be adjusted. The program
duration and amount of water will be adjusted to the
amount of laundry being washed.
Cotton white
WARM - EXTRA HOT
* MAX
This program is used for normally or heavily soiled light
or dark laundry. The temperature can be set separately;
therefore, wash according to the instructions indicated on
the clothing worn directly on the skin. Choose WARM if
the laundry is only lightly dirty. The default spinning rate
is set at maximum speed, but the rate can also be
adjusted. The program duration and amount of water will
be adjusted to the amount of laundry being washed.
Mix
(Mixed laundry/
Synthetics)
- HOT
7.7 lb
(3.5 kg)
This program is used for delicate clothing made of
synthetic and mixed fibers, like rayon, and for washing
cotton. Observe the instructions indicated on the
clothing. Most garments made of synthetic fibers are
washed at WARM.
Wool
- WARM
4.4 lb
(2 kg)
This program is used for washing wool, silk, and
clothes that require manual washing. The maximum
temperature is WARM. This program has a short
spinning cycle with a top spinning rate of MAX available.
Heavy duty
- EXTRA HOT
6.6 lb
(3 kg)
This program is used for normally soiled cotton and/or
linen clothes for daily use up to a full load. You can select
»Cold« (incoming water temperature), WARM, HOT or
EXTRA HOT. The lower the selected temperature, the
shorter the program time. Garments worn next to the skin
should be washed at EXTRA HOT.
Power 59´
WARM
** (1/2)
This program is used for smaller amounts of lightly
soiled laundry. The program washes with gentle
tumbling and a lower spinning rate.
Steril tub (Self-
cleaning program)
0 lb
(0 kg)
This program is used to clean the drum and to remove
detergent residue and bacteria. To select the program,
rotate the program selector knob to the left or to the
right to the Steril tub (Self-cleaning program) position.
Other extra functions cannot be selected.
The drum has to be empty. You can add distilled
(vinegar (approx. ¾ cup) or baking soda (1 tbsp).
We recommend running the program at least once a
month.

12
Rinse/Softening
(Partial program)
/
This progarm is used for softening, starching, or
impregnating the washed laundry. It can also be used
as a rinse program, but without added softener. It is
completed with an additional rinse.
You can also choose WATER+ (HIGH WATER LEVEL)
by selecting the extra function.
Spin/Drain (Spinning
rate/Drain)
(Partial program)
/
Use this program when you only wish to spin the
laundry.
If you only wish to pump out the water from the washing
machine, press the SPIN (9) button to select (drain) .
Sports (Sportswear)
WARM
7.7 lb
(3.5 kg)
This program is for slightly soiled sportswear made of
cotton, microfibers and synthetic fibers. The program
runs at lower spinning rates, followed by a brief final
spinning cycle.
Down wear
- WARM
** (1/2)
This program is suitable for pillows and jackets stuffed
or padded with down. The wash takes place at a low
temperature, with a large amount of water, gentle
tumbling, and a gentle spin cycle.
Allergy care
WARM - EXTRA HOT
* MAX
This program is used to wash normal to heavily soiled
clothes that require special care, such as clothes for
people with highly sensitive skin or skin allergies. We
recommend turning the garments inside out, as this will
also thoroughly wash out any skin and other residues.
You can also select the option to wash at maximum
temperature and at the maximum spinning rate.
Auto wash
WARM
* MAX
This program automatically adjusts the duration of the
main wash and the number of rinses depending on the
amount of laundry in the machine. Use it for lightly
soiled laundry.
No extra program settings can be set when using the
auto wash.
* Maximum load (MAX)
** Half load (1/2)
/ Any load (0 lb (kg) –MAXlb (kg))
Cold wash

13
Choosing the Proper Settings
Most washing programs feature specific settings, which can be adjusted by pressing the relevant
functional buttons before starting the wash cycle. Activate and deactivate any setting by pressing
the desired function before pressing the START/PAUSE button:
•Functions on the machine display, which are fully lit, are the basic or preset settings.
•Dimmed or partially lit functions can be adjusted.
•Unlit functions cannot be changed during that particular washing program.
Washing Mode
•NORMALCARE: The basic/default setting
•ECOCARE (4a): This mode will save energy, and water consumption will be lower than the
default setting. The washing time will be longer.
•TIMECARE (4b): This mode will shorten the washing time, but it will use more water.
Washing Temperature
•Temp. (8): This button selects the water temperature for a particular wash cycle.
Spin
•Spin (9): This button adjusts the rate at which the clothes spin during the wash cycle.
•If you select draining without spinning, the symbol will appear on the control panel.
•If you select PUMP STOP, the symbol will appear. Use this mode to keep the water
from the last rinse cycle in the wash drum to prevent clothes from creasing, or if you are
unable to remove the clothes from the washing machine immediately after the cycle is
complete.
oTo resume the spin cycle, press the START/PAUSE button. The water will drain out, and
the final spin cycle will run.

14
Start Delay
This function prevents the washing cycle from starting until after a set amount of time has
elapsed.
•Press the Start/Delay (10) button, and the symbol will be lit. Adjust the delay time in
30-minute increments, up to six hours, and by 1-hour increments, up to 24 hours. Press the
START/PAUSE button to confirm the delay time.
NOTE: If nothing is pressed after inputting the delay time, the actual washing time will be
displayed.
•To change the Start/Delay function once it’s been set, press and hold the ON/OFF/RESET
button. Then, press the Start/Delay button to select a new delay time, and confirm the new
time by pressing the START/PAUSE button again.
Additional Settings
ECOEYE
This setting (5) displays information about water and power consumption based on which
washing program and any extra settings/function are selected. The more ECOEYE indicator
lights are lit, the lower water and power consumption is being used during that particular wash
cycle. The fewer ECOEYE indicator lights are let, the higher water and power consumption is
being used.
Prewash
Washing heavily soiled clothes, particularly with stubborn or superficial stains, may require a
prewash before the actual washing cycle. Add detergent to the prewash compartment if you are
using this setting.
NOTE: If you have the Start/Delay function activated and you are using liquid detergent, using
the prewash is recommended.
Water Level
This indicates when a higher amount of water is being used, typically during an additional rinse
cycle.
Basic/default setting
Level 1 –higher water level
Level 2 –higher water level with an extra rinse cycle

15
Starting the Washing Machine
•Once the proper wash program and settings have been selected, press the START/PAUSE
button to being the washing cycle. The symbols displayed on the control panel correspond to
the specific settings for the washing cycle.
oAfter the wash cycle begins, only the spin and child lock can be activated/deactivated.
NOTE: If any indicators on the control panel are flashing, the door of the washing machine is
open or not closed properly. Close the washing machine door, and press the
START/PAUSE button again to resume the washing program.
Changing the Washing Program and Manual Cancellation
•Press and hold the ON/OFF/RESET button for three seconds to stop and cancel a washing
cycle.
•The remaining wash time and the symbol will flash when the washing program is
temporarily paused. The washer door will unlock once the water is drained from the washer
cylinder. To resume the washing program, close the washer door and press the
START/PAUSE button again.
Adding/Removing Laundry During the Washing Program
Clothes can be added or removed from the washer cylinder if the water level and temperature
are below a standard threshold.
In order to add or remove laundry from the washing machine during program operation:
1. Press the START/PAUSE button.
2. Open the washing machine door
Low Standby Mode
•If you do not run any program or choose any settings after switching on the washing machine
(ON/ OFF/RESET button (1)), the display unit will be switched off after 5 minutes and
switched to stand-by mode in order to save energy.
•The display unit will be reactivated if you rotate the program selector knob (2) or press the
ON/ OFF/RESET button (1). If you do not do anything for 5 minutes after the end of a
program, the display will be switched off to save power.
P o = weighted power when off [W]
< 0.5
P I = weighted power when in standby [W]
< 0.5
T I = standby time [min]
5

16
MAINTENANCE ANDCLEANING
CAUTION: Unplug the washing machine from the power supply before cleaning.
Clean the exterior of the washing machine with a soft, damp cloth and warm water. DO NOT use
any solvents or cleaners, which could damage the washing machine.
Cleaning the Dispenser Tray
1. Slide the dispenser tray housing,
located on the top left of the front of
the machine, out of the machine.
Press the small tab to remove the
dispenser tray from the housing.
2. Run the dispenser tray under
running water, using a brush to clean
the tray, and then dry it with a soft
cloth. Be careful to remove any
detergent residue from the bottom of
the tray housing.
3. Remove and clean the plug cap by
running it under water.
4. Dry the plug cap with a soft cloth,
and replace the plug cap into the
dispenser tray.

17
Cleaning the Water Supply Hose, Detergent Dispenser, and Door Gasket
1. Unscrew the water intake hose,
and remove the water net filter.
Clean the filter with a toothbrush
under running water.
2. Replace the water net filter into the
water intake hose.
3. Clean the entire washing machine
rinsing section, using a brush,
especially the upper side of the
rinsing chamber.
4. Wipe the rubber door seal after
every wash to extend its usability.
Cleaning the Pump Filter 1. Open the pump filter cap using a
suitable tool, such as a flat head
screwdriver.
2. Remove the water outlet funnel
before cleaning the pump filter.
3. Slowly rotate the pump filter in a
counter-clockwise direction.
Remove the pump filter to allow
any water to slowly drain out of
the machine.
NOTE: It is recommended to place an
absorbent cloth on the floor in front of
the machine.
4. Clean the pump filter under
running water.
5. Replace the pump filter, turning it
clockwise to secure in the
machine. Cleaning the filter
gasket will ensure a good seal.

18
TROUBLESHOOTING
If any irregularities occur during normal operations, E: XX will display on the control panel. This
will be displayed until the machine is switched off. Try the suggestions below to see if you can
solve the problem.
Problem/
Error
Indication on the display unit and
problem description
What to do?
E0
Incorrect settings
Restart the program. If the error occurs
again, call a service technician.
E1
Temperature sensor error
Inlet water too cold. Repeat the
washing program.
If the washing machine reports this
error again, call a service technician.
E2
Door lock error
Make sure the washing machine door is
closed. Unplug the power cord from the
outlet. Plug the power cord back into the
outlet, and turn on the washing machine.
If the error occurs again, call a service
technician.
E3
Water filling error
Check the following:
•Is the water inlet valve open?
•Is the filter on the water supply hose
clean?
•Is the water supply hose deformed
(clipped, clogged etc.)?
•Is the pressure in the water mains
between 0.05 and 0.8 MPa (7.25-
116psi)?
Then, press the (3) START/PAUSE
button to resume the program. If the
error reoccurs, call a service technician.
E6
Water heating error
Restart the program. If the error
reoccurs, call a service technician.
E7
Water draining error
Check the following:
•Is the pump filter clean?
•Is the discharge hose clogged?
•Is the drain clogged?
•Is the discharge hose is placed
between the maximum and the
minimum height (see the
INSTALLATION AND
CONNECTION/ Connecting and
securing the water discharge hose
section).
Then, press the (3) START/PAUSE
button again. If the error reoccurs, call
a service technician.

19
E10
Water level sensor error
Unplug the power cord from the outlet.
Then, plug the power cord back into the
outlet, and turn the washing machine on.
If the error reoccurs, call a service
technician.
E11
Water overflow error
If there is water in the drum that exceeds
a certain level, and an error is reported
on the display unit, the washing program
will be stopped and the water will be
pumped out of the washing machine.
Restart the program.
If the error reoccurs, call a service
technician.
If there is water in the drum that exceeds
a certain level, an error is reported on
the display unit, and the washing
machine continues to add water, close
the water tap and call a service
technician.
E12
Motor control error
Restart the program. If the error
reoccurs, call a service technician.
E22
Error while locking the door
The door is closed, but it cannot be
locked. Turn the washing machine off.
Turn the machine back on and restart
the washing program.
If the error reoccurs, call a service
technician.
E23
Error while unlocking the door
The door is closed, but it cannot be
unlocked. Turn off the washing machine,
then turn it back on. If the error reoccurs,
call a service technician. To open the
door, see the INTERRUPTIONS AND
CHANGING THE PROGRAM section.
E36
Electronics communication failure in
the washing machine
Unplug the power cord from the outlet.
Plug the power cord back into the outlet,
and turn the washing machine on.
If the error reoccurs, call a service
technician.
E37
Electronics communication failure in
the washing machine
Unplug the power cord from the outlet.
Plug the power cord back into the outlet,
and turn the washing machine on.
If the error reoccurs, call a service
technician.
Water drain system alert
Symbol will appear
Alert about reduced water flow in the
pumping stage. Check the following:
•Is the pump filter clean?
•Is the discharge hose clogged?
•Is the drain clogged?
•Is the discharge hose placed
between the maximum and the
minimum height (see chapter
»INSTALLATION AND
CONNECTION/Connecting and

20
securing the water discharge hose«).
Unevenly distributed laundry.
When the washing program is
complete, the symbol will remain lit
on the display unit.
Manually distribute the laundry and run
the spinning program.
See additional description under
TROUBLESHOOTING TABLE.
cln
System warning to run the Steril tub
(Self-cleaning program)
After the washing program is
complete, the signs »cln« and
»End« will alternate on the display
unit.
We recommend running the Steril tub
(Self- cleaning) program.
PF
Power supply failure warning
(»PF«/Power Failure)
The washing process was interrupted,
due to power supply failure.
To restart, press the (3) START/PAUSE
button.
Unresponsive display unit and
buttons
Manually (physically) stop the program
by pressing the button (1)
ON/OFF/RESET and hold it for more
than 3 seconds.
Unplug the power cord from the outlet.
Plug the power cord back into the outlet
and turn washing machine on.
If the error reoccurs, call a service
technician.
Washing machine standing by, ready
to resume the washing program
The time remaining until program
completion is alternately lit and off on
the display unit .
To resume the washing program, press
the button (3) START/PAUSE, or
manually (physically) stop the program
and press the button (1)
ON/OFF/RESET and hold it for more
than 3 seconds.
Preparation for unlocking the door
Signal lights will flash on the display
unit.
Wait until the process is completed. If no
error is indicated, then a new program
can be started.
Water has to be drained. Wait for the
door to unlock.
If your appliance shows other symptoms than those described above, or if you have checked all
items listed as the cause and the problem still exists, then call Summit Appliance Customer
Service at 1-800-932-4267.
NOTE: If contacting a service technician, please provide your washing machine’s model number,
type, and serial number, located on the unit’s rating label.
