Sunbeam SR1709A5L User manual

User’s Manual
1.7 Cu. Ft. Refrigerator
Model: SR1709A5L
PTT041607

2
Table of Contents
NameofParts 3
Cautions 4
Positioning Your Refrigerator 4
Ventilation 4
Power Supply 4
PowerCord 4
MoistureProtection 5
HeatProtection 5
StablePositioning 5
KeepAwayFromDanger 5
MovingtheRefrigerator 5
UsingYourRefrigerator 5
TemperatureControl 5
ReversingtheDoor 6
Maintenance 7
BeforeYouCallforService 7

3

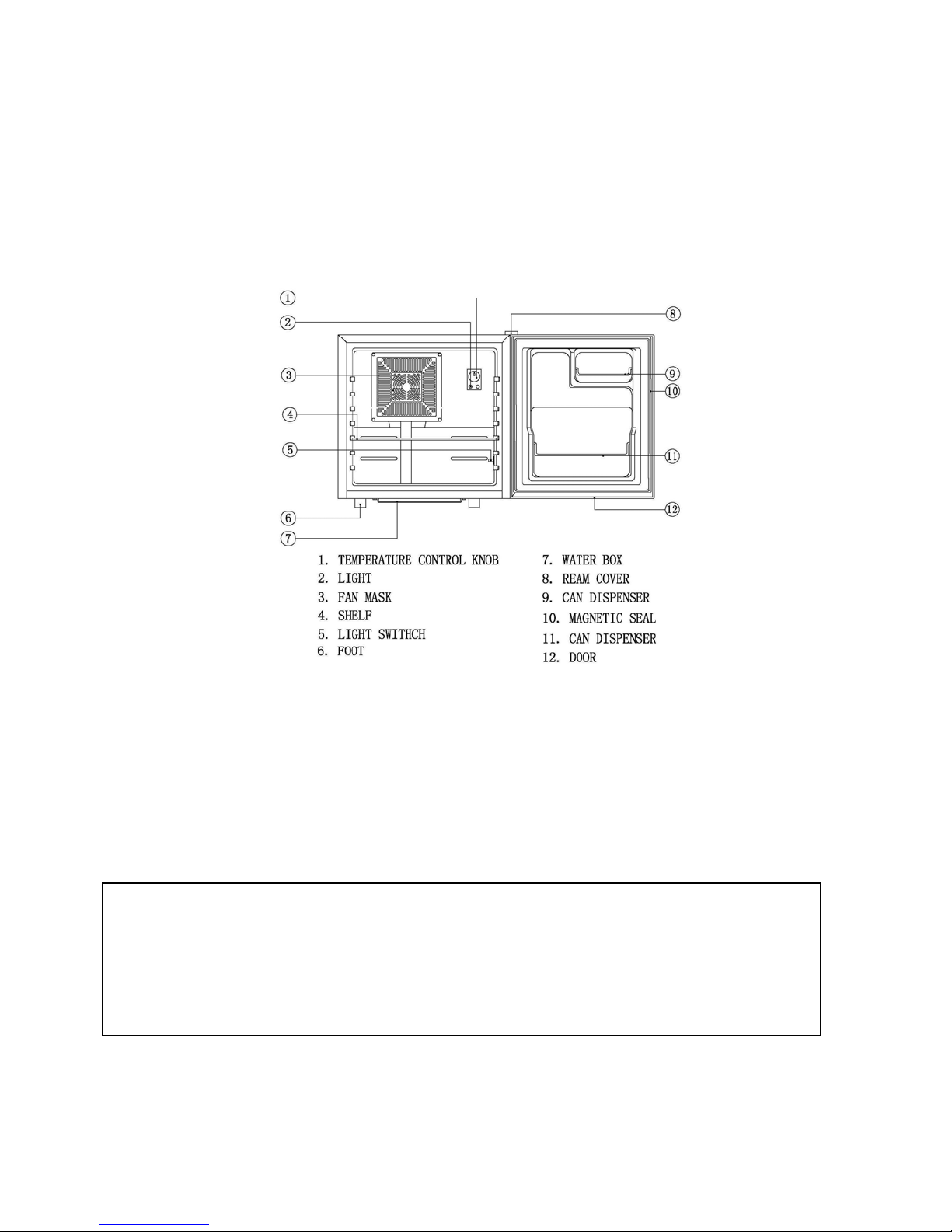

Name of Parts
Note: This figure is only a sketch of the refrigerator; the actual product may differ.
WARNINGS:
•Keep ventilation openings, in the appliance enclosure or built-in structure, clear of
obstruction.
•Do not use mechanical devices or other means to accelerate the defrosting process.
•Do not use electrical appliances inside the food storage compartments of the
appliance.

4
Cautions
•Water getting into air inside the refrigerator by opening doors may form a layer of
frost inside, which may weaken the refrigerator. Defrost your refrigerator when
frost reaches .68 inches (2mm).
•You must manually defrost your refrigerator. Before defrosting, set the
temperature control knob and set it to “0” (where the compressor will stop).
Leave the door open until the ice and frost dissolve. To speed up defrosting, place
a bowl of warm water approx. 120ºF (50ºC) into the evaporator.
•Do not heat the evaporator directly with hot water or a hair dryer while defrosting
to prevent deforming the inner case.
•Do not scrape off ice and frost with sharp tools or wooden bars, as not to damage
the inner casing or the evaporator surface.
•If the power cord is damaged, it must the replaced by the manufacturer, its service
agent, or a similarly qualified person in order to avoid hazard.
•Before you throw away your refrigerator, take off the door but leave the shelves in
place so children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the refrigerator.
Positioning Your Refrigerator
Ventilation
•The refrigerator needs to be well-ventilated to easily dissipate heat and cause high
refrigerator efficiency and low power consumption.
•Sufficient ventilation space requires the back of the refrigerator to be at least 4 inches
away from the wall, each side of the refrigerator to be at least 2 inches (5 centimeters)
away from the wall, and the back should be at least 4 inches (10 centimeters) away. A
clear space should be left 160º for the door to open.
Power Supply
•This refrigerator operates with a single phase alternating current power source.
•If you live in an area where there is a large range of supply voltage (brown outs, etc.), you
may need a voltage regulator.
•The plug must match the socket with a grounded wire.
Power Cord
•Do not lengthen or fold the cord into a coil during operation.
•Due to high temperatures, do not keep the power cord close to the refrigerator
compressor. This could cause deactivation to the insulation or electrical leakage.
•Do not use an extension cord.
•Position the refrigerator so the plug is accessible.
WARNING:
•If the power cord is damaged, it must the replaced by the manufacturer, its service
agent, or a similarly qualified person in order to avoid hazard. For support, visit
www.sunbeammajorappliances.com or in the US call 1-866-866-6283.

5
Moisture Protection
•To minimize the possibility of rust, avoid placing the refrigerator in a place with heavy
moisture.
•Do not directly spray with water; this will cause poor insulation and current leakage may
occur.
Heat Protection
•The refrigerator should be kept out of direct sunshine and away from any heat sources.
Stable Positioning
•Place refrigerator on a flat and solid surface.
•Do not place refrigerator on soft material such as foam, plastic, etc.
•If the refrigerator is not on a flat surface, adjust the screws appropriately.
•The refrigerator should not be placed in an area with an echo.
Keep Away From Danger
•Do not place the refrigerator near any combustibles such as gas, petrol, alcohol, lacquer,
etc.
•Do not store the above mentioned products in the refrigerator.
Moving the Refrigerator
•When fixed or moved, the refrigerator cannot be set horizontally or declined to more than
45º or upside-down.
Using Your Refrigerator
Temperature Control
•The first time you turn on the refrigerator, set the temperature control to “5” or “low”.
•Let the refrigerator run for 1-2 hours to fully cool before storing food inside.
Notes:
•If the unit is unplugged or the power is lost or turned off, you must wait 3 to 5 minutes
before restarting the unit. If you attempt to reset before waiting, the refrigerator will not
start.
•To conserve energy, put your refrigerator in the coolest place in your room. If the
environment temperature is too high, the temperature in the refrigerator may not get the
target temperature.

6
Reversing the Door
This refrigerator has the capability to either open from the right or left side. Should you wish to
reverse the opening direction, follow the directions below:
Note: All removed parts must be saved to reinstall the door.
Before reversing the door:
•Unplug the refrigerator from the power source.
•Empty the refrigerator contents, including shelves.
Tools Required:
•Putty knife
•Cross recess head screwdriver
To Reverse the Door:
1. Remove the upper and lower hinge covers on the right and left side.
2. Using a screwdriver, remove the six bolts at the top and bottom of the cabinet.
3. Remove the upper and lover hinges and remove the door. Set on a padded surface to
prevent scratching.
4. Transfer the hinges and bolts to the opposite side of the refrigerator, ensuring the upper
hinge pin goes into the upper door hole.
5. Tighten the three bolts at the top and three on the bottom.
6. Insert the hinge covers.

7
Maintenance
•The refrigerator should be cleaned and maintained once a month.
•When performing maintenance, make sure the power plug is first disconnected from the
power outlet.
•Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If
the surfaces are too dirty, scrub them with neutral detergents and then clean with water
and dry with a clean cloth. A small amount of window wax is recommended to polish the
refrigerator surface with a soft cotton fabric.
•For cleaning, do not use hot water, petrol, alcohol, kerosene, washing powder, cleanser,
alkaline detergent, acid, chemical cloth, etc., so as not to damage the lacquer coat and
plastic. Do not spray directly with water; this may cause rust or weaken the insulation.
•Be sure to keep the sealing rubber bars of the door clean or they will age and crack.
•Be sure to clean the drain tray frequently to avoid refrigerator odors.
Before You Call for Service
Before you call for service, review this list. It may save you time and expense. The list includes
common occurrences that are not the result of defective workmanship or materials in this
appliance.
1. When the refrigerator does not work:
a. Check if there is power failure.
b. Check if the power cord is plugged into the power outlet.
c. Check that the fuse has not blown.
2. When the refrigerator is cooling excessively:
a. The temperature control dial may be set too high.
b. If you place foods containing high amounts of moisture directly under the air
outlets, they will freeze easily. This does not indicate malfunction.
3. When the refrigerator is not cooling sufficiently:
a. The food may be packed too tightly into together which will block the flow of cool
air.
b. You may have put something hot into the refrigerator.
c. The door may not have been properly closed.
d. The door gaskets may be damaged.
e. The refrigerator may not be ventilated.
f. There may be insufficient clearance between the refrigerator and the surfaces.
g. The temperature control dial may not be properly set.
4. When defrosting water overflows inside the refrigerator and onto the floor:
a. Check that the drain hose is not clogged.
b. Check that the drip tray is housed properly.

8
5. When the refrigerator cabinet heats up:
a. In order to safeguard against condensation, there is a decondensation pipe that
heats up the cabinet front when running. A warm cabinet front does not indicate
malfunction.
6. When condensation forms on the outside of the refrigerator:
a. Condensation may form on the outside when the humidity is high. This is the
same result as the condensation formed when chilled water is poured into a glass.
It does not indicate a malfunction. Wipe dry with a clean cloth.
7. When you hear a sound like flowing water:
a. A sound like flowing water is the refrigerant flowing. This does not indicate a
malfunction.
8. When the side panel of the cabinet heats up:
a. The side panel of the cabinet will heat up when the door is opened and closed
frequently, when starting the unit, and when the unit is operated in high outside
temperatures. In such cases, do not touch the panel. This results from dissipation
of the heat from inside the cabinet. This does not indicate a malfunction.

9
© 2007 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions.
All rights reserved. Sunbeam®is a registered trademark of Sunbeam Products,
Inc. used under license. Distributed by Petters Consumer Brands, LLC. 4400
Baker Road, Minnetonka, MN 55343.
For service, support and warranty information, visit www.sunbeammajorappliances.com or in the US call 1-866-866-6283.
