Superiore R***241 Series User manual

Installation manual
for all 24”, 30”,36” and 48’’ ranges

WARNING:
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage,
personal injury or death.
•Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch;
– Do not use any phone in your building.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
– If you cannot reach your gas supplier, call the re department.
• Installation and service must be performed by a qualied installer, service agency or the gas supplier.

CONTENTS
Warnings & Important Safety Instructions
Dimensions
Specications Technical data
Clearance Dimensions (Proximity to Cabinets)
Electrical & Gas Requirements
Gas Requirements
General Information
Installation/ Door Removal
Leg Installation/Adjustments/Alignments
Anit-tip Device Installation
Connecting Gas & Electrical
Final Preparation
Performance Checklist
Service & Registration
Warranty U.S.A. & CANADA
Electric diagrams
4
6
14
16
18
19
25
26
27
28
29
26
30
31
32
33

4 |
• Before beginning, please read these instructions completely and
carefully.
• DO NOT remove permanently afxed labels, warnings, or
plates from product.This may void the warranty.
• All local and national codes and ordinances must be observed.
Installation must conform with local codes or in the absence of
codes, the National Fuel Gas Code ANSIZ223.1 INFPA54.
• The installer must leave these instructions with the consumer
who should retain for local inspector’s use and for future
reference.
In Canada: Installation must be in accordance with the current
CAN/CGA B149.1 & 2 Gas Installation codes and/or local codes.
Electrical installation must be in accordance with the current
CSA C22.1 Canadian Electrical Codes Part 1 and/or local codes.
In Massachusetts: All gas products must be installed by a
“Massachusetts” licensed plumber or gastter. A “T” type handle
manual valve must be installed in the gas supply line to the
appliance.
An air curtain or other overhead range hood which operates by
blowing a downward airow onto the range, shall not be used
with a gas range.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual
and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt
you and others.
All safety messages will be preceded by the safety alert symbol
and the word“DANGER,” “WARNING” or “CAUTION.”
These words mean:
DANGER
Hazards or unsafe practices which WILL result in severe
personal injury or death.
WARNING
Hazards or unsafe practices which COULD result in
severe personal injury or death.
CAUTION
Hazards or unsafe practices which COULD result in
minor personal injury or property damage.
All safety messages will identify the hazard, tell you how to
reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
A GFI shall be used if required by NFPA-70 (National
Electric Code), federal/state/local laws, or local
ordinances.
• The required use of a GFI is normally related to the location
of a receptacle with respect to any signicant sources of water
or moisture.
• SUPERIORE will NOT warranty any problems resulting from
GFI outlets which are not installed properly or do not meet
the requirements below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or portable type NOT
recommended)
• Used with permanent wiring only (temporary or portable
wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads
in the circuit)
• Connected to a standard breaker of appropriate size (GFI
breaker of the same size NOT recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943
standard
• In good condition and free from any loose-tting gaskets (if
applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much
as reasonably possible.
WARNING
To prevent possible damage to cabinets and cabinet nishes, use
only materials and nishes that will not discolor or delaminate
and will withstand temperatures up to 194°F (90°C). Heat
resistant adhesive must be used if the product is to be installed in
laminated cabinetry. Check with your builder or cabinet supplier
to make sure that the materials meet these requirements.
Warnings & Important Safety Instructions

| 5
Warnings & Important Safety Instructions
DANGER
CHEMICAL HAZARD
To avoid risk of property damage and/or
personal injuryor death; this appliance is not
too be used as a heating source.
• Benzene is a chemical which is part of the gas supply to this
cooking product, which is consumed in the ames during
combustion. Exposure to a small amount of benzene is possible
if a gasleak occurs. Formaldehyde and soot are by products of
incomplete combustion.
DANGER
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock, personal injury or death; verify
your appliance has been properly grounded in accordance with
local codes or in absence of codes, with the National Electrical
Code (NEC). ANSI/NFPA 70-latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe personal injury; this
appliance requires two or more personnel
while handling and moving. Possible use of
appliance moving devices is recommended.
WARNING
TIPPING HAZARD
To reduce the risk of property damage or
personal injury; install anti-tipping device
provided in accordance with the installation
instructions in this document. Device must
be engaged properly to prevent product from
tipping over.
• This range can tip
• Injuries to persons can result
• Install anti-tip device packed with range
• See installation instructions
DANGER
GAS LEAK HAZARD
To avoid risk of personal injury or death; leak
testing of the appliance must be conducted
according to the manufacturer’s instructions.
Before placing appliance in operation, always check for gas leaks
with soapy water solution.
• DO NOT USE AN OPEN FLAME TO CHECK FOR
GAS LEAKS.

6 |
24” SUPERIORE Gas Ranges
Note: Unit shown with island trim.
Note: All gas ranges are equipped with spacer on the back (25/64) to prevent over heating of the wall.
23"
7/8
23"
2"
2"
25"
2"
2"
1" 1/2
5"
Gas
33"
1" 11/32
2" 6/8
1" 3/8
23" 7/8
29"7/8
3/8"
Electricity
2" 1/8
5"
5" 9/16
2"
3/16
35" 7/8 min - 37" 5/16 max
26" 7/8
2" 3/8
3/8"
23"2" 3/16
2" 1/8
1" 11/32
35" 15/32 min - 36" 7/8 max
2" 6/8 min
4" 1/4 max
1" 3/8
2" 27/64
1" 3/8
1" 3/8

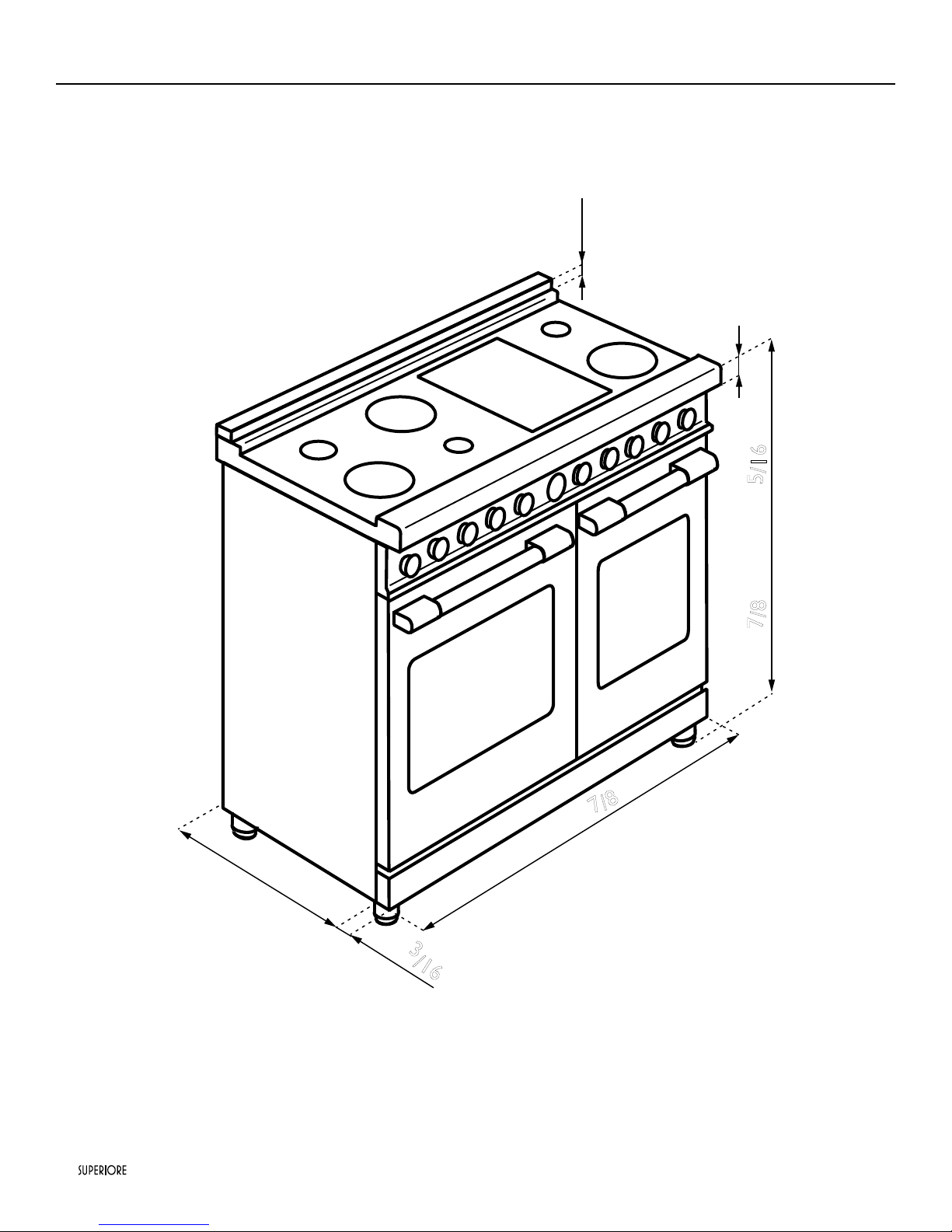

Dimensions

| 7
24” SUPERIORE Gas Ranges
23"
7/8
23"
2"
2"
25"
2"
2"
1" 1/2
5"
Gas
33"
1" 11/32
2" 6/8
1" 3/8
23" 7/8
29"7/8
3/8"
Electricity
2" 1/8
5"
5" 9/16
2"
3/16
35" 7/8 min - 37" 5/16 max
26" 7/8
2" 3/8
3/8"
23"2" 3/16
2" 1/8
1" 11/32
35" 15/32 min - 36" 7/8 max
2" 6/8 min
4" 1/4 max
1" 3/8
2" 27/64
1" 3/8
1" 3/8
Dimensions

8 |
30” SUPERIORE Ranges
Note: Unit shown with island trim.
Note: All gas ranges are equipped with spacer on the back (25/64) to prevent over heating of the wall.
29"
7/8
23"
2"
2"
25"
2"
2"
1" 1/2
5"
Gas
33"
1" 11/32
2" 6/8
1" 3/8
29"7/8 29" 7/8
3/8"
Electricity
2" 1/8
5"
5"9/16
2"
3/16
35" 7/8 min - 37" 5/16 max
26"7/8
2" 3/8
3/8"
23"2" 3/16
2" 1/8
1" 11/32
35" 15/32 min - 36" 7/8 max
2" 6/8 min
4" 1/4 max
1" 3/8
2" 27/64
1" 3/8
1" 3/8
Dimensions

| 9
30” SUPERIORE Ranges
29"
7/8
23"
2"
2"
25"
2"
2"
1" 1/2
5"
Gas
33"
1" 11/32
2" 6/8
1" 3/8
29"7/8 29"7/8
3/8"
Electricity
2" 1/8
5"
5"9/16
2"
3/16
35" 7/8 min - 37" 5/16 max
26"7/8
2" 3/8
3/8"
23"2" 3/16
2" 1/8
1" 11/32
35" 15/32 min - 36" 7/8 max
2" 6/8 min
4" 1/4 max
1" 3/8
2" 27/64
1" 3/8
1" 3/8
Dimensions

10 |
Note: Unit shown with island trim.
Note: All gas ranges are equipped with spacer on the back (25/64) to prevent over heating of the wall.
35" 7/8 min - 37" 5/16 max
35"
7/8
23"
2"
2"
33"
35"7/8
2" 1/8
2"
3/16
25"
2"
2"
Gas
1" 3/8
35"7/8
Electricity
5"
5"9/16
1" 1/2
5"
1" 11/32
2" 6/8
3/8"
26"7/8
2" 3/8
3/8"
23"2" 3/16
2" 1/8
1" 11/32
35" 15/32 min - 36" 7/8 max
2" 6/8 min
4" 1/4 max
1" 3/8
2" 27/64
1" 3/8
1" 3/8
36” SUPERIORE Ranges
Dimensions

| 11
35" 7/8 min - 37" 5/16 max
35"
7/8
23"
2"
2"
33"
35"7/8
2" 1/8
2"
3/16
25"
2"
2"
Gas
1" 3/8
35"7/8
Electricity
5"
5"9/16
1" 1/2
5"
1" 11/32
2" 6/8
3/8"
26"7/8
2" 3/8
3/8"
23"2" 3/16
2" 1/8
1" 11/32
35" 15/32 min - 36" 7/8 max
2" 6/8 min
4" 1/4 max
1" 3/8
2" 27/64
1" 3/8
1" 3/8
36” SUPERIORE Ranges
Dimensions

12 |
48” SUPERIORE Ranges
Note: Unit shown with island trim.
Note: All gas ranges are equipped with spacer on the back (25/64) to prevent over heating of the wall.
Dimensions
Note: Unit shown with island trim.
Note: All gas ranges are equipped with spacer on the back (25/64) to prevent over heating of the wall.
1"
47"7/8
23"
2"
2" 3/16
35" 7/8 min - 37" 5/16 max
3/8

| 13
48” SUPERIORE Ranges
Dimensions
2"
4"33"
47"7/8
2" 1/8
25"
2"
2"
Gas
1" 3/8
47"7/8
Electricity
5"
5"9/16
1" 1/2
5"
1" 11/32
2" 6/8
3/8"
2" 3/8
4"
26"7/8
2" 3/8
3/8"
23"2" 3/16
2" 1/8
1" 11/32
35" 15/32 min - 36" 7/8 max
2"
6/8 min
4"
1/4 max

14 |
Burners - injectors and volume, range 30‘‘ (mod. R...301...)
Natural 4’’ LP/Propane 11’’ By-pass
Inj. WBTU/h Inj. WBTU/h Ø WBTU/h
Medium burners 117 -6500 70 -6500 34 -1300
Large burner 155 -11000 93 -11000 44 -2700
Power burner Ext. ring
Int. ring
137 (2)
80 -18000 82 (2)
50 -18000 65 -4700
Power burner
with simmer Ext. ring Int. ring
137 (2)
80 -18000 82 (2)
50 -18000 60 27 -4700
Total gas power (all gas
ranges) 67500 -
Total gas power (dual fuel
s.c. ranges) 53500 -
Oven-all gas ranges 180 -14000 108 -14000 52 -3000
Oven-dual fuel s.c. ranges - 5550 W | 23 A - - 5550 W | 23 A - - 5550 W | 23 A -
Broil-all gas ranges 135 -8000 82 -8000 - - -
Feeding 120 V 60 Hz 130 W
Feeding-dual fuel s.c. ranges 120 V/240 60 Hz
Interior dimensions 24
13/64
x 19
57/64
x 20
31/64
(*) Only on mod. ...361
(**) 2 burners on mod. ...361... ; 1 burner on mod. ...362...
Specifications Technical data
Burners - injectors and volume, range 24‘‘ (mod. R...241...)
Natural 4’’ LP/Propane 11’’ By-pass
Inj. WBTU/h Inj. WBTU/h Ø WBTU/h
Medium burners 117 - 6500 70 - 6500 34 - 1300
Large burner 155 - 11000 93 - 11000 44 - 2700
Power burner Ext. ring
Int. ring
137 (2)
80 - 18000 82 (2) 50 - 18000 65 - 4700
Power burner
with simmer Ext. ring Int. ring
137 (2)
80 - 18000 82 (2) 50 - 18000 60 27 - 4700
Total gas power 66.500 -
Oven-all gas ranges 180 - 13000 108 - 13000 52 - 3000
Broil-all gas ranges 120 - 6300 73 - 6300 - - -
Feeding 120 V 60 Hz 130 W
Interior dimensions 18
13/16
x 19
57/64
x 20
31/64

| 15
Burners - injectors and volume, ranges 36‘‘(mod.R...361... and R...362...)
Natural 4’’ LP/Propane 11’’ By-pass
Inj. W BTU/h Inj. W BTU/h Ø W BTU/h
Small burner (*) 92 -3600 56 -3600 28 -1100
Medium burner (**) 117 -6500 70 -6500 34 -1300
Large burner 155 -11000 93 -11000 44 -2700
Power burner Ext. ring
Int. ring
137 (2)
80 -18000 82 (2)
50 -18000 65 -4700
Power burner
with simmer Ext. ring Int. ring
137 (2)
80 -18000 82 (2)
50 -18000 60 27 -4700
Total gas power (all gas
ranges) 69500 (mod. ...362) and 79600 (mod. ...361...) -
Total gas power (d.f. s.c.
ranges) 53500(mod. ...362) and 63600 (mod. ...361...) -
Oven-all gas ranges 200 -16000 115 -16000 65 -4400
Oven-dual fuel s.c. ranges - 6150 W | 26 A - - 6150 W | 26 A - - 6150 W | 26 A -
Broil-all gas ranges 155 -11000 92 -11000 - - -
Electric griddle 1150 W 120 V
Feeding-all gas ranges 120 V 60 Hz 170 W (mod...361...) or 1320 W (mod....362...)
Feeding-dual fuel s.c. ranges 120 V/240 60 Hz
Interior dimensions 28
3/4
x 19
57/64
x 20
31/64
Specifications Technical data
Burners - injectors and volume Range Mod. R...482...
Methane 4’’ LPG 10’’ By-pass
Burners
Inj. W BTU/h Inj. W BTU/h Ø W BTU/h
Small burner 92
-
3600 56
-
3600 28
-
1100
Medium burner 117
-
6500 70
-
6500 34
-
1300
Large burner 155
-
11000 93
-
11000 44
-
2700
Power burner Ext. ring
Int. ring 137 (2)
80
-
18000 82 (2)
50
-
18000 65
-
4700
Power burner
with simmer Ext. ring Int. ring 137 (2)
80
-
18000 82 (2)
50
-
18000 60
27
-
4700
Total gas power (all gas
ranges)
86100 -
Total gas power (dual fuel
self_clean ranges)
63600 -
Oven 48” left cavity all gas 180
-
14000 108
-
14000 52
-
3000
Broil 48” left cavity all gas 135 -
8000 82
-
8000 - - -
Oven 48” right cavity all gas 135
-
8500 80
-
8500 52
-
3000
Ovens-dual fuel s.c. ranges - 9060 W|43 A - - 9060 W|43 A - - 9060 W|43 A -
Electric griddle 1150 W
Feeding-all gas ranges
120 V 60 Hz 1350W (12 A) or 9060 W (mod....RN482... RD482...)
Feeding-dual fuel s.c. ranges 120 V/240 60 Hz
Overlay cavity volume 5.7 main 3.0 aux
Interior dimensions m. 2413/64 x 1957/64 x 2031/64 / a. 917/64 x 1935/64 x 2031/64

16 |
Clearance Dimensions 24’’/30’’/36’’/48’’
• This range may be installed directly adjacent to existing 36”
(91.4 cm) high base cabinets.
IMPORTANT: The side trim MUST be 3/8” (0.95 cm)
above the adjacent base cabinet countertop. This can be
accomplished by raising the unit adjusting the legs.
• The range CANNOT be installed directly adjacent to
sidewalls, tall cabinets, tall appliances, or other side
vertical surfaces above 36”(91.4 cm) high. There must be a
minimum of 6” (15.2 cm) side clearance from the range to
such combustible surfaces above the 36” (91.4 cm) counter
height.
• Within the 6” (15.2 cm) side clearance to combustible
vertical surfaces above 36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm) and wall cabinets
within this 6” (15.2 cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high countertop.
• Wall cabinets above the range must be a minimum of 42”
(106.7 cm) above the range cooking surface for the full
width of the range. This minimum height requirement does
not apply if a range hood is installed over the cooking
surface.
CAUTION
Burn hazard
To avoid risk of personal injury; the use of cabinets for storage above the appliance may resultin a potential burn hazard.
Combustible items may ignite, metallic items may become hot and cause burns. If a cabinet storage is to be provided the risk
can be reduced by installing a range hood that projects horizontally a minimum 5” (12.7 cm) beyond the bottom of cabinets.
Note: If a range hood is installed, wall cabinets above the
range have a different minimum clearance height.
36’’ 30’’ 24’’
min 6"
min 6"
36"
13"
min 18"
3/8"
36’’ 30’’ 24’’
min 30"

| 17
Clearance Dimensions
The bottom of a standard hood should be 30” (76.2 cm) min. to 36”
(91.4 cm) max to above the countertop.This would typically result in
the bottom of the hood being 66” (167.6 cm) to 72” (182.9 cm) above
the oor. Refer to the range hood installation instructions for additional
information. These dimensions provide for safe and efcient operation
of the hood.
Important: There must be a minimum of 6” (15.2 cm) clearance from
rear of range to a combustible wall. Clearances from non-combustible
materials are not part of the ANSI Z21. 1 scope and are not certied by
CSA. Clearances to non-combustible materials must be approved by the
authority having jurisdiction.
36’’ 30’’ 24’’
min 6
"
min 6"
36"
13"
min 18"
3/8"
36’’ 30’’ 24’’
min 30"
36’’ 30’’ 24’’
min 6
"
min 6"
36"
13"
min 18"
3/8"
36’’ 30’’ 24’’
min 30"

18 |
Electrical & Gas Requirements
Electrical Requirements
Check your national and local codes regarding this unit.This range requires120VAC/60 Hz; 4 ft. (121.9 cm), 3-wire cord with grounded
3-prong plug attached to unit. See “Electrical Connection” section for grounding instructions. Must be fused seperately from any other
circuit.
WARNING
ELECTRICAL SHOCK HAZARD
To avoid the risk of electrical shock, personal injury or death; verify electrical power is turned off at the breaker box and
gas supply is turned off until the range is installed and ready to operate, installation by an authorized installer only.
Gas Connection
The appliance must be disconnected from the gas supply piping system during any pressure testing of that system.
The gas supply (service) line must be the same size or greater than the inlet line of the appliance.This range uses a 1/2” (1.3 cm) IDNPT
(Sch40) inlet. Sealant on all pipe joints must be resistive to LP gas.
The range is designed specically for natural gas or liquid propane (LP) gas. Before beginning installation verify that the model is
compatible with the intended gas supply.
Manual shut-off valve:
This installer-supplied valve must be installed in the gas service line before the appliance in the gas stream and in a location where it
can be reached quickly in the event of an emergency.Any opeing behind the range shall be sealed.
In Massachusetts:A “T” handle type manual valve must be installed in the gas supply line to the appliance.
IMPORTANT: Any conversion required must be performed by your dealer or a qualied licensed plumber or gas service company.
Please provide the service person with this manual before work begins.
Pressure Regulator
• All ranges have a pressure regulator on the incoming service line for safe and efcient operation, since service pressure may uctuate
with local demand.
External regulators are not required on this range since a regulator is supplied with each unit. Under no condition by-pass this
regulator.
• Manifold pressure should be checked with a manometer, natural gas requires 4.0”W.C.P. and LP gas requires 11.0” W.C.P. Incoming
line pressure upstream from the regulator must be 1” W.C.P. higher than the manifold pressure in order to check the regulator.The
regulator used on this range can withstand a maximum input pressure of 1/2” PSI (14.0” W.C.P.). If the line pressure is in excess of
that amount, a step down regulator will be required.

| 19
TO INSTALL PRESSURE REGULATOR
1 - Remove the 2 covers on the back by unscrewing the 3 screws indicated at pag 15 step 1 an 2.
2 - Take from the top of packaging the parts shown in the picture below to assemble the pressure regulator.
3 - Screw the assembled pressure regulator on the range like shown on picture below. Pay attention to the vertical alignement of the
same pressure regulator.
4 - Screw the assembled pressure regulator on the range like shown in picture below. Pay attention to the vertical alignement of the
of the pressure regulator.
COVERS
SCREWS
Gas Requirements
1 2
34

20 |
REMOVE
Gas Requirements
To perform the following operation is necessary to have eavy
access to the back the range. While performing this plese note
that the range must not be connected to the power and or gas
lines.
1 - Remove the main back cover unscrewing the two screws.
2 - Remove the gas regulator back cover unscrewing the single
screw.
3 - Fit the elbow on the regulator. Put the gasket, in it.
4 - Connect the regulator to the manifold and re-install the main
back cover.
5 - Re-install the gas regulator backcover and x it with two
screws.
