SuperMax SM2462HDK Instructions for use

In case of smoke, strange noise or strange smell
from the unit:
Turn off the power switch immediately;
Disconnect the power plug from the power
outlet;
Contact your dealer or service centre. Never
attempt to make repairs yourself because this
couldbedangerous.
High Voltage
Do not open
Risk of electronic shock, do not open.
Do not attempt to service this product yourself
as opening or removing covers may expose
youtodangerousvoltageorotherhazards.
Refer all servicing to qualified service personnel.
CAUTION
Important Safety Instructions
Important Safety Instructions and Maintenance
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short-circuit parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the set. Use special caution
in households where children are present. The
apparatus is not suitable for children under 3-year
to operate.
Power supply cords should be routed safety to
prevent life and property from dangerous with
damaged cord.
Mains plug is used as the disconnect device. It
shall remain readily operable and should not be
obstructed during intended use. To be completely
disconnected the apparatus from supply mains, the
mains plug of the apparatus shall be disconnected.
To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
The apparatus shall not be exposed to dripping
or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To avoid the fire, no naked flame source,
such as lighted candles, should be
placed on the apparatus.
1

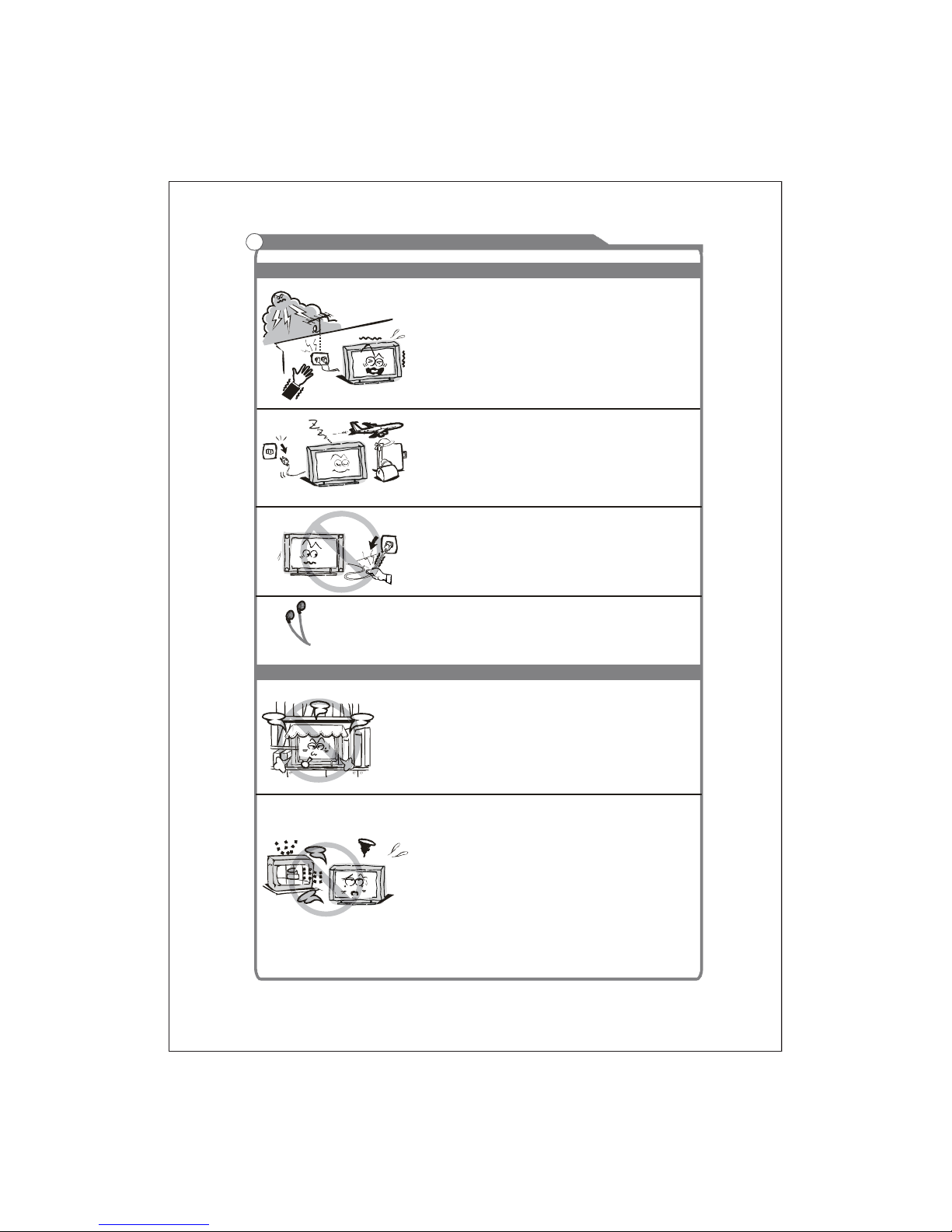

Important Safety Instructions and Maintenance
Important Safety Instructions
Always turn the set off when it is not being used.
Unplug the apparatus from the AC outlet when it will
notbeusedforalongperiodoftime.Andwhenthere
is a lightning, unplug the unit from the AC outlet
immediately. Never touch the antenna wire during
lightning.
An outside antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such
power lines or circuits. When installinganoutside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact
with them might be fatal.
Installation
The ventilation should not be impeded by covering the
ventilation opening with items, such as newspapers,
tablecloths, curtains, etc.
At least 10 cm space should be left around the
apparatus for sufficient ventilation.
The product should be situated away from heat
sourcessuchasradiators,heatregisters,stoves,or
other products (including amplifiers) that produce heat.
Place the apparatus in such a position that the screen
is not exposed to direct sunlight. It is best to have soft
indirect lighting while watching and avoid complete
dark environment and reflection from the screen as
these may cause eye fatigue.
Keep the product away from high magnetic field (i.e.
power-amplified power speaker) to avoid affecting the
tint;
Do not pull the plug out by the wire;
Never touch the plug with wet hands.
Excessivesoundpressurefromearphonesand
headphones can cause hearing loss.
2

3
Important Safety Instructions and Maintenance
Installation
Do not place this apparatus near water, for example,
near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or a swimming pool; and
the like;
Cleaning
WhentheTVbeingmovedinfromcoldplace,itneeds
some right time for dew inside unit evaporating fully
before turn on the unit;
Unplug this apparatus from the AC outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning;
Do not place the set on an unstable cart, stand, table
or shelf. The set may fall, causing serious personal
injury as well as damage to the product. Use only with
the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. An
appliance and cart combination should be moved with
care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
To prevent injury, this apparatus must be securely
attached to the floor/wall in accordance with the
installation instructions.
Move
For your protection, please read this instruction completely, and keep this manual for
future reference.

4
General description 5
Specifications and accessories 6
Overview 7
Basic operation 10
External connection 21
Trouble shooting 23
Picture defects and countermeasures 24
Basic operation
Contents

5
Specification
General description
Feature:
zZero X radiation complies to green environment protection requirement
zAuto tuning and fine tuning
zTwo composite video input socket
zOne S-Video input socket
zOne PC VGA input socket
zOne YPbPr input socket
zOne HDMI input socket (HDMI 1.3)
zHeadphones
zTeletext (Optional)
zNICAM
zMulti-language OSD
zProgrammable TV sleep timer
zNo-signal automatic power off function
z256 total channels to preset
zPC VGA mode: VGA, SVGA, XGA, WXGA
zYPbPr mode:480i, 480P, 576i, 576P, 720P, 1080i, 1080P
zHDMI mode:480P, 576P, 720P, 1080i, 1080P
Note:
1. In case of any design change,a notice will not be released.
2. The composite video output function only support TV and AV input.

6
Specifications:
Accessories:
User’s manual Remote control
Wall-mounted accessories: Two wall-mounted brackets, four fixed screws
and four fixed sleeves.(Optional)
Note:
1.Due to TV may be used with different display screen, weight marked in this
user's manual or in packaging box are subject to change without notice.
2.The illustrations and on-screen displays in this user’s manual are for
explanation purposes and may vary slightly from actual operations.In case of
any design change, a notice will not be released.
Specifications and accessories
1920X1080
4WX2
56W
A
C ~110-240V 50/60Hz
KDH2642MSnoitpircseD
59cm Diagonal (max.)
Dimensions
(LXWXH)
TV with stand
TV without stand
TV with stand
TV without stand 4.6 Kg
5.0 Kg

7

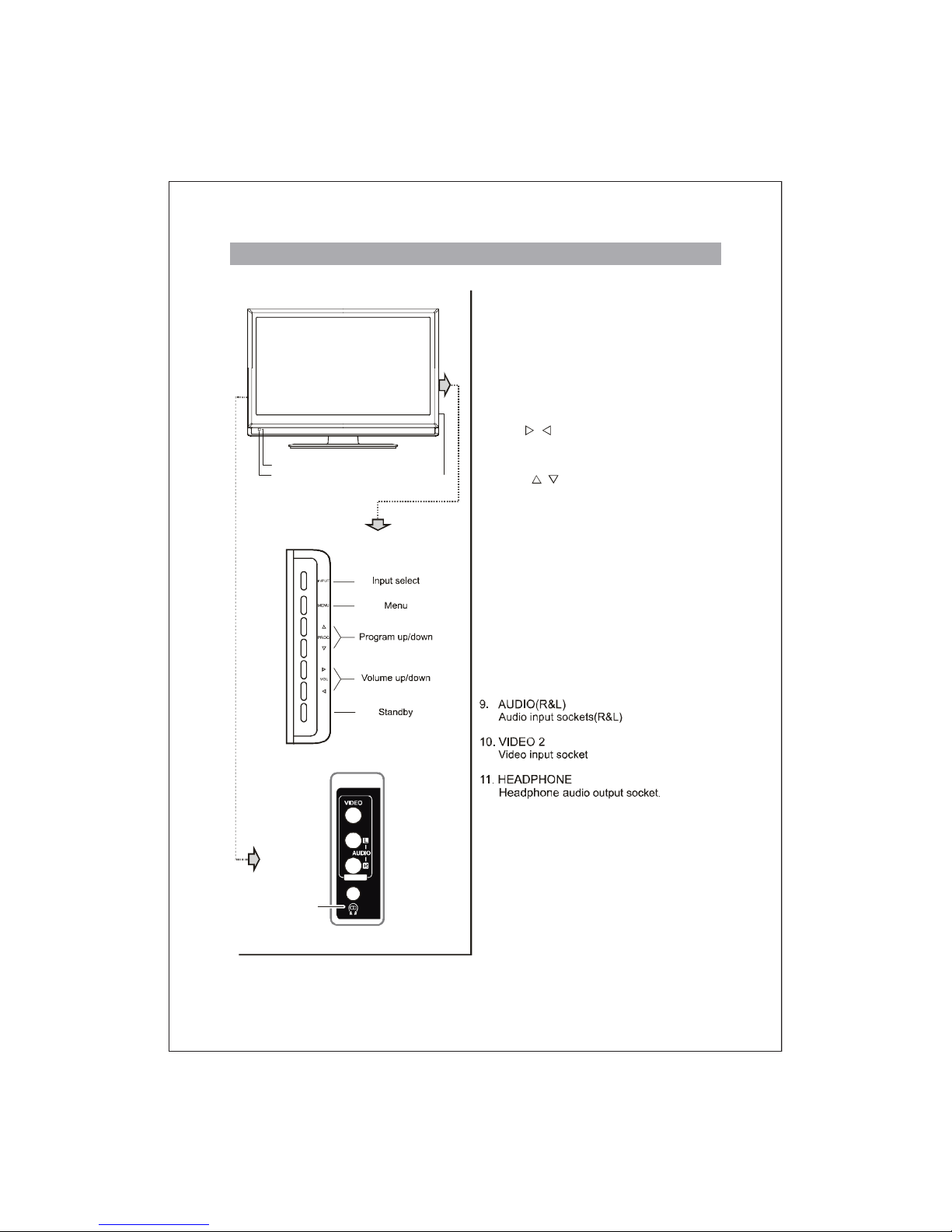

Overview
IR remote sensor
Power indicator
Power switch
1. Power switch
PressthisbuttontoturnTVonoroff.
2. Power indicator
Green: Normal playing status.
Red: Standby status.
3. IR remote sensor
Point remote control at this sensor to
conduct remote control.
4. VOL
/
Press these two buttons to increase or
decrease the volume or operate menu.
5. PROG
/
Press these two buttons to select channel
or operate menu.
6. MENU
PressthisbuttontodisplayOSDmenu.
7.
Press this button to enter standby mode
under normal play, and press this button
to enter normal play mode under standby
mode.
8. INPUT
Press this button to display the selectable
signal source for main source.
AV 2 I N
Headphone
POWER
POWER

8
Overview
AV AUDIO OUT
Audio out for external devices.
AV VIDEO OUT
Video out for external devices.
Y
/Pb/Cb/Pr/Cr
Connect to YPbPr/YCbCr video.

Overview
Remote control
Loading batteries:
1) Remove the lid of the battery compartment.
2) Insert 2 size AAA batteries with polarities as indicated inside the compartment.
3) Replace the lid.
Note:
1) One loading of batteries will last 1 year under normal use.
2) If you don’t intend to use the remote control for a long period of time, remove
them to avoid damage due to leakage.
3) Do not mix old and new batteries, or different types.
4) Don’t throw the batteries into fire or water.
5) The batteries (battery pack or batteries installed) shall not be exposed to exces-
sive heat such as sunshine, fire or the like.
NICAM
POWER
LED
HDMI
RECALL
OK
PC
VOLUME UP
PROGRAM DOWN
SUBCODE
CANCEL
FAST TELETEXT
ZOOM
INPUT
VOLUME DOWN
PROGRAM UP
TV
YPbPr
SOUND
DIGITAL BUTTONS
FREEZE
SLEEP
HOLD
MIX
MUTE
NICAM
SIZE
REVEAL
MENU
TV/TEXT
INDEX
EXIT
ARROW BUTTONS
( )
TV YPbP r PC HDMI
ZOOM
SOUNDINPUT
INFO RECALL
SLEEP
MENU EXI T
INFO
OK

Basic operation
Remote control introduction
1. LED
Press any button, the led will light.
2. POWER
Press this button to switch to standby mode, and press it again to turn TV on.
3. TV
Switch to TV mode directly.
4.YPbPr
Switch to YPbPr mode directly.
5.PC
Switch to PC mode directly.
6. HDMI
Switch to HDMI mode directly.
7. INPUT
Thisbuttonisusedtoswitchamongdifferentsources.
8. SOUND
This button is used to select the sound mode.
9. PICTURE
This button is used to adjust user picture mode, press this button repeatedly and
select one of four settings.
10. ZOOM
Thisbuttonisusedtosetdisplaywindow.
11. Digital buttons(0~9)
To select channel with digital buttons.
12. INFO
The button is used to display current channel information.
13. RECALL
To swap to the previous program you wanted from current program.
14. FREEZE
This function is no available for this model.

Basic operation (to be continued)
15. SLEEP
TV will turn to standby mode automatically at preset sleep time if you have set
sleep timer. Use your remote control to set the sleep timer.
Press SLEEP button on the remote control, then press this button again to set
sleep timer: 15 Min, 30 Min, 45 Min, 60 Min, 90 Min, 120 Min. when you select
“OFF”, the function is closed.Press MENU button to exit when you have set the
sleep timer.
Note: The sleep timer you have set will be cancelled when the TV turns off or if a
power failure occurs.
16. NICAM
ThebuttonisusedtosetNICAMsoundsystem.
17. MUTE
Press this button to shut off the sound , and press it again to restore TV sound.
18. VOL and VOL
Press these buttons to adjust TV volume.
19. PROG and PROG
Press these buttons to change channel upward or downward.
20. Arrow buttons ( )
To move cursor left/right/down/up.
21. OK
Validation key.
22. MENU
Press this button to display main menu or exit the menu.
23.EXIT
To exit current menu.
24. TV/TEXT
Pressthisbuttontoopenorcloseteletext.
UV
UV

Basic operation (to be continued)
25. HOLD
PressHOLDbuttontotoggleHoldfunctiononoroff.WhenHoldisswitchedon,
the page acquisition is stopped. When Hold is switched off, the page acquisition
is started.
26. SIZE
This is a toggle functin among 3 different size:
Normal Size To p-h alf Bottom-half
Normal size: Display full screen in normal size.
Top-half: Display the upper half of the screen in double height.
Bottom-half: Display the lower half of the screen in double height.
27. SUBCODE
Subcode mode gives the possibility to select certain subcode pages of a Teletext
page. Entry of digits within the range 0...9 for current subcode entry. If the digit com-
pletes the entry, a page request is started. Press T/SArrow button to change the
subcode pages.
28.Red/Green/Yellow/Blue/ Command
These four buttons are used to request linked page number with the current page.
29. INDEX
Press INDEX button, then index page displays.
30. MIX
Press MIX button, the teletext page changes transparent, TV content and teletext
page contentwill display at the same time. Press MIX button again to exit mix mode.
31. REVEAL
Some pages contain hidden information. The hidden text is displayed if the
REVEAL button is pressed. The hidden text will be cancelledwhenanotherpage
is requested if a different subpage is broadcasting or if the REVEAL button is pressed.
32. CANCEL
PressCANCELbuttonwillremoveallteletextdisplayfromthescreen.Ifthesystem
was already under cancel mode, press this button again to return to full screen
teletext display.
Note:
Teletext function is optional, 24-32 buttons on the remote control are only available for
teletext function, please check if your product has teletext function.

PICT URE AUDIO CHANNE LFUNCTIONSETTING
ME NU
EXITSELECTADJUST
OFF
ALWAYSDURATION
HALFTONE
OSD POSITION
SCREEN SAVER
LANGUAGE ENG LI SH
OFF
MID
Basic operation (to be continued)
Turning the TV On and Off
1. Press POWER button to turn power on.
2. If TV is in standby mode, please press POWER
button on the remote control to turn it on . The
indicator will switch from red to blue.
3. If you want to stop watching TV or go out for a
while, you can press POWER button on the re-
mote control. If you want to watch TV again, you
can press this button again.
4. Unplug the power cord when the TV will not be
used for a long period time.
Auto power-off
If the TV is under no signal sleep on, it will enter
standby mode automatically . If the TV is non-
signal at VGA mode, it would turn to standby in
15 seconds. If the TV is non-signal at other
sources, it would turn to standby in 5 minutes.
Memorizing the Channels
Your TV can memorize all of the available
channels. After the available channels are
memorized, use PROG / button to browse
channels.
Language select
Before using TV, you can set the language:
1) Press MENU button on the remote control, then
press / Arrow button to select “Setting” menu
as following:
Note:When you use OSD to adjust the TV, you should
notice: The function which displays in gray is
not available in current mode. If you press /
button to select an item, this function will be
skipped automatically.
NICAM
TV YPbPr PC HDMI
ZOOM
SOU NDINPUT
INFO RECALL
SLEEP
MENU EXIT
OK
UV
WX
TS

Basic operation (to be continued)
2) Press S/TArrow button to enter the submenu and press W/XArrow button to
select the language you desire.

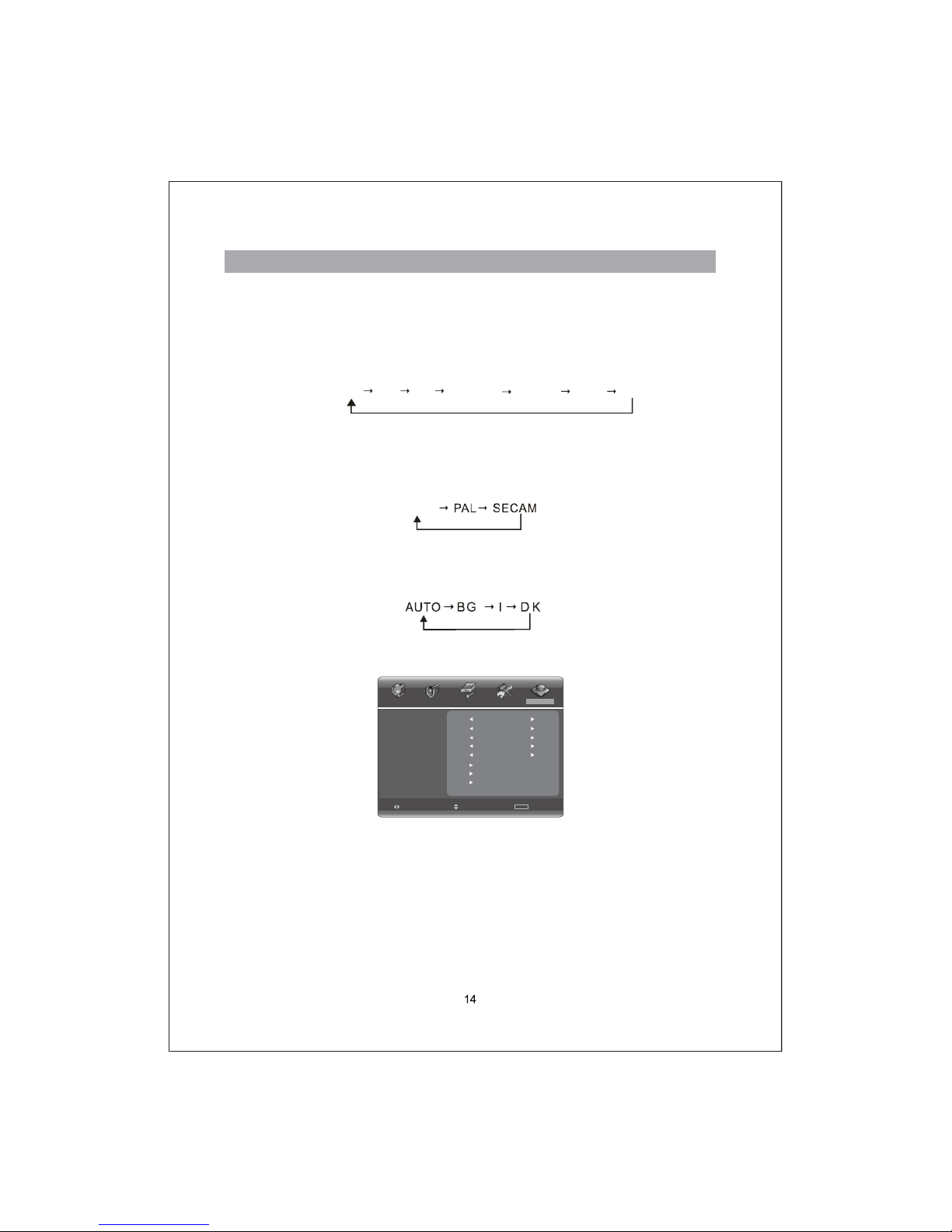

Selecting input source
Press INPUT button on the remote control, then you can select input sources as
follows:
Setting color system
In order to meet the video format in your country, you can set the video format as
follows: Press T/SArrow button to select “Color System” under “Channel” menu,
and then press W/XArrowbuttontochangevideoformatasfollows:
A
UTO
Setting sound system
PressMENUbuttonontheremotecontrol,andthenpressT/SArrow button
to select “Sound System” under the Channel menu, then press W/XArrow button
to select sound system as follows:
Tuner setup
Press MENU button on the remote control, then press W/XArrow button to select
“Channel”:
1) Channel
Press T/SArrowbuttontoselect“Channel”,youcanseethecurrentchannel
number.
2) Color System
Press T/SArrow button to select “ Color System” and press W/XArrow button
to select the right color system.
3) Sound System
Press T/SArrow button to select “ Sound System” and press W/XArrow button
to select the right sound system.
PICTURE AUDIO CHA NN ELFUNCTIONSE TT I NG
MENU EXITSELECTADJUST
63.25MHZ
OFFSKIP
FINE TUNE
SOUND SYSTEM
COLOR SYSTEM
CHANNEL 1
AUTO
AUTO
MANUAL SCAN
SWAP
AUTO SCAN
TV AV1 S-VIDEO YPBPR HDMI VGAAV2

7) Manual Scan
Press Arrow button to select “Manual Scan”, and press Arrow button
to enter manual search menu.
TV will tune from lower frequency to higher frequency when you press Arrow
button,and from higher frequency to lower frequency when you press Arrow.
CH: 1 77.25MHZ
Basic operation (to be continued)
4) SKIP
Press T/SArrow button to select “SKIP”, then press W/XArrow button to select
“On” or “Off”.
5) Fine Tune
In case of bad image or sound of TV program, you can use Fine Tune function
to obtain satisfying image or sound with operating steps as follows:
ii) Press T/SArrow button to select “Fine Tune” and press W/XArrow button to
conduct fine tuning from high frequency to low frequency or from low fre-
quency to high frequency till best picture or sound effect is obtained.
6) Auto Scan
Press T/SArrow button to select “Auto Scan”, then press W/XArrow button to
start auto search:
TV will tune automatically and all programs found will be saved. Please don’t
interrupt it.
Note:
i) IfyouusetheTVforthefirsttime,youmustuse“AutoScan”tosearchand
memorize all channels.
ii) If your TV is not in TV input state, you must switch it to TV state at first.
iii) If you want to stop the process of “Auto Scan”, just press MENU button to exit.
AUTO SCAN CH: 1 77.25MHZ
T/SW/X
X
W
MANUAL SCAN

Basic operation (to be continued)
8) SWAP
CURRENT CHANNEL,TARGET CHANNEL and EXCHANGE are used to swap
two programs' numbers.
a) Current Channel
Press W/XArrow button to adjust current channel number.
b) Target Channel
Press W/XArrow button to adjust target channel number.
c) Exchange
PressW/XArrow button to perform the exchange of channel number.
Adjusting the Picture
Press MENU button on the remote control, then press W/XArrowbuttontoselect
“Picture” menu.
1) Picture Mode
Press T/SArrow button to select “Picture Mode” , and press W/XArrow button
to adjust picture mode to your desire.
Note: “Brightness” , “Contrast” , “Saturation”, adjusting are only available in
user mode.
2) Adjusting the Brightness of picture
Press T/SArrow button to select “Brightness”, and press W/XArrow button to
adjust brightness to your desire.
PICTURE AUDIO CHA NNELFUNCTIONSETTING
MENU
EXITSELECTADJUST
EXCHANGE
TARGET CHANNEL
CURRENT CHANNEL 1
1
PICTURE AUDIO CHANNELFUNCTIONSETTING
MENU EXITSELECTADJUST
PICTURE MODE USER
16:9
STANDARD
BRIGHTNESS
CONTRAST
SATURATION
SHARPNESS
BACKLIGHT
COLOUR TEMP.
SCALE MODE
50
50
50
50
50
TINT
50

PICTURE AUDIO
CHANNEL
FUNCTIONSETTING
MENU EXITSELECTADJUST
SOUND MODE STANDARD
EQUALIZER
MONO
OFF
BALANCE
NICAM
50
AVL
3) Adjusting the Contrast of picture
Press T/SArrow button to select the “Contrast”, then press W/XArrow button to
set contrast to your desire.
4) Adjusting the Saturation of picture
Press T/SArrow button to select the “Saturation”, then press W/XArrow button
to set saturation to your desire.
5) Adjusting the Tint of picture
Press T/SArrow button to select the “Tint”, then press W/XArrow button to set
tint to your desire.
Note: Only available in NTSC.
6) Adjusting the Sharpness of picture
Press T/SArrow button to select the “Sharpness”, then press W/XArrow button
to set sharpness to your desire.
7) Adjusting the Backlight of picture
Press T/SArrow button to select the “Backlight”, then press W/XArrow button
to set backlight to your desire.
Note:Backlight function is only available for models with this function.
8) Adjusting the Color Temp of picture
Press T/SArrow button to select the “Colour Temp”, then press W/XArrow
button to set colour temperature to your desire.
9) Adjusting the Scale Mode of picture
Press T/SArrow button to select the “Scale Mode”, then press W/XArrow
button to set scale mode to your desire.
Note: It is useless under no signal mode.
Adjusting the Sound
Press MENU button on the remote control, then press W/XArrowbuttontoselect
“AUDIO ” menu.
1) Adjusting Sound Mode
Press T/SArrow button to select “Sound Mode”, use W/XArrow button to adjust
sound mode.
2) Adjusting Equalizer
Press T/SArrowbuttontoselect“EQUALIZER”,andpressW/Xbutton to enter
submenu, press T/Sbutton to select a cirtain frenquency, and useW/Xbutton
Basic operation (to be continued)

PI CT U RE AUD IO CH AN NELFUNCTIONSETTING
MENU EXITSELECTADJUST
ALWAYSDUR ATI ON
OSD POSITION
SCR EEN SAVER
LA NG UAG E E N G LI S H
OFF
MID
OFFHALF TONE
AUTOCOLOR SYSTEM
to adjust its value.
3) Adjusting Balance of sound
Press T/SArrowbuttontoselect“Balance”,useW/XArrow button to adjust
sound balance.
4) Adjust AVL mode
Press T/SArrow button to select “AVL”, use W/XArrow button to select “on” or
“off”.
5) Adjust NICAM of sound
Press T/SArrowbuttontoselect“NICAM”,useW/XArrow button to adjust to
your desired.
OSD Setup
Press MENU button on the remote control and press W/XArrow buttonto select
“Setting” menu.
1) OSD Language
Press T/SArrow button to select “LANGUAGE” and press W/XArrow button to
select language you desire.
2) Adjusting screen saver
Press T/SArrow button to select “SCREEN SAVER” ,and press W/XArrow
button to select “OFF” , “BLACK” or “BLUE”.
3) Adjusting OSD Position
Press T/SArrowbuttontoselect“OSDPOSITION”,andpressW/XArrow
button to select “MID” , “LEFT TOP” , “LEFT BOTTOM” , “RIGHT TOP” or “RIGHT
BOTTOM ”.
4) Adjusting Duration
You can select “ALWAYS” , “5s” , “10s” or “15s”.
5) OSD Halftone
Press T/SArrow button to select “HALFTONE”, press W/XArrow button to
select “ON” or “OFF”.
6) Selecting color system
You can select AUTO, PAL, SECAM, NTSC,NTSC443. But it’s only available in AV
and S-VIDEO.
Basic operation (to be continued)

Function setup
Press MENU button on the remote control or TV side panel, press W/XArrow button
to select “Function” menu.
1) DNR
Press W/XArrow button Adjusting DNR option, it can improve the picture
sharpness.
Note:DNR is only available in TV mode.
2) 3D DLC
3D DLC is to automatically detect distribution of inputted visual signal and adjust
to create optimum luminance.
Press W/XArrow button Adjusting 3D DLC option.
3) OPC
Press T/SArrow button to select “OPC”, and press W/XArrowbuttontoselect
“on”, “off” or “Demo”.
Note: OPC is not available for VGA mode.
4) Press T/SArrow button to select “NO SIGNAL SLEEP”, and press W/X button
to select “on” or “off”.
5) You can start a sleep timer by setting “SLEEP TIMER”a preset time: 15MIN, 30
MIN, 45MIN, 60MIN, 90MIN, 120MIN, when the time has passed, the TV will
turn to standby mode automatically. If you select OFF,the timer doesn't work.
6) TXT LANGUAGE
Press T/SArrow button to select “Txt Language” in “Function” menu, press W/X
Arrow button to select the teletext language to your desire.
Basic operation (to be continued)
VGA Adjust
1.Picture
When the TV is in VGA mode, press MENU button andW/XArrow button to select
“Picture” MENU.
PICTURE AUDIO WINDOWFUNCTIONSETTING
MEN U EXITSELECTADJUST
PICT URE MODE US E R
16:9
WARM
BRIGHTNESS
CONTRAST
BACKLIG HT
COLOR TEMP.
SCALE MODE
50
50
50
PI CT URE A UD IO CHA NN ELFUNCTIONSETTING
MENU
EXI T
SELECTADJUST
DNR ON
OFF
OFFNO SIGNAL SLEEP
SLEE P TIMER
OPC ON
3D DLC ON
TXT LANGUAGE EAST
Note: TXT LANGUAGE setting is only available for teletext .Teletext function is optional,
please check if your product supports teletext function.

Basic operation (to be continued)
The way to adjust Brightness, contrast, backlight, color temperature and scale
mode please refer to “Adjusting the Picture” on Page16- 17.
2.Window
This TV supports no higher than 60Hz under VGA mode, so please set the re
fresh rate of PC to 60Hz. If the frequency is higher than 60Hz, the screen may
flicker. When the TV is in VGA mode, press MENU button on the remote control.
Press W/XArrow button to select “Window”.
1) Adjusting picture H-Position
Press T/SArrow button to select “H-Position” and press W/XArrow button to
set horizontal position of picture.
2) Adjusting picture V-Position
Press T/SArrow button to select “V-Position” and press W/XArrow button to set
vertical position of picture.
3) Adjusting Clock
When PC is connected to TV set because of the difference of PC parameter,you
should adjust the “Clock” item in “Window” menu until you get a good picture.
4) Adjusting Phase
When PC is connected to TV set because of the difference of PC parameter,you
should adjust the “phase” item in “Window” menu until you get a good picture.
5) Auto Adjust
If there are unexpected problems happened when you adjust the items, you can
select the “Auto Adjust” and press XArrow button, the TV set will resume the
original settings.
Note: Only “H-Position” and “V-Position” are available for Ypbpr mode.
PI C T URE AU D IO WINDOWFUNCTIONSETTING
MENU EXITSELECTADJUST
PHASE
AUTO ADJUST
CLOCK
V-POSITION
H-POSITION 100
100
100
0
PICTURE AUDIO WINDOWFUNCTIONSETTING
MENU EXITSELECTADJUST
V-POSITION
H-POSITION 100
100
