1 Introduction
This User’s Manual is about the daily use of the SuperSail Performance System. The
system consist of GPS Trackers used for alarm systems and for data collection. Data are
stored on a central hosted server and a mobile application (App) for accessing the trackers.
The SuperSail mobile App is available for iOS (AppStore) and for Android (Google Play).
The trackers are available in 2 hardware configurations:
SuperSail Marine Alarm is developed for fixed mounting in dry environment inside a
larger boat. The Marine Alarm must be connected to external power supply and the
antenne must be placed where the best signal is achieved. Alarm sensors can be
connected wired or wireless. A small internal battery ensures that the alarm
continues operation if external power is interrupted.
SuperSail Regatta Tracker is enclosed in a waterproof cabinet with a large internal
battery and internal antennas. Connection of external sensors are not possible. The
Regatta Tracker is developed for use as a mobile unit which is float if dropped into
the water.
The system is operated via your Smartphone and regatta data can be analyzed and
presented on a PC or tablet.
Regatta data is made available for external standard programs or to special developed
performance programs via standard file formats.
An extra feature is the possibility of sourcing live data to a presentation tool, which can
create a live presentation of a regatta.

User’s Manual
Side 4af 20
2 Login Menu
As a user you are setup with your email address as your user
login and a personal password. Your email and password gives
you access to the relevant features in the mobile app.

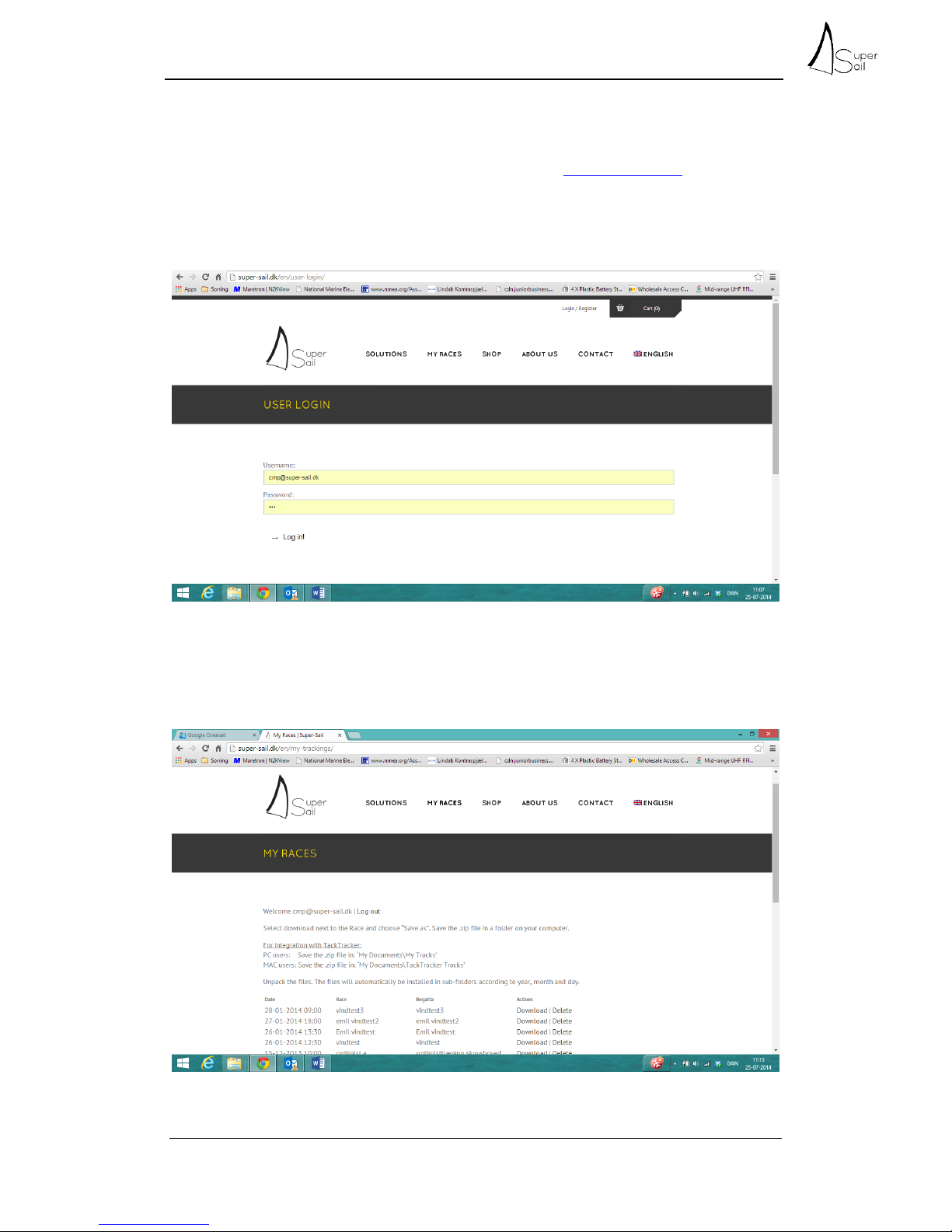

If you have bought subscription for regatta data, your email and
password will furthermore give access to your regatta data via
the SuperSail website: www.super-sail.dk, under the menu “My
Races”.
Key in your email address in the Email field. Touch the field to
have the keyboard displayed.
When the email is typed in, press Ok or Enter on the Keyboard
and the focus is moved to the Password field. Type in your
personal password and press Ok or Enter on the Keyboard,
which then disappears.
If you have typed something wrong, you only touch the field and start over again.
If you are using your own mobile phone or tablet, it is recommended to mark the field
“Remember Me”. Next time the app is started you don’t have to type in the login information.
This feature should only be used on a personal mobile phone or tablet, as it gives direct
access to your system.
After having typed in the correct data, press ”Log in”, and the application will collect your data
and start the application.

User’s Manual
Side 5af 20
3 Main Menu
In the main menu you have access to all relevant functions.
At the top your name and your boats name are displayed. Your
boats name is used in regatta data to identify the boat, and in
alarm SMS’s, where it is included in the text. Next the ID of the
tracker is displayed.
The “Log out” button should only be used if you want to leave
the application and type in your email address and password
again.
The four buttons gives access to the functions in the system.
Your subscriptions defines which functions are available.
If the alarm or surveillance is turned on, this will be indicated by
green text and green icon on the button.

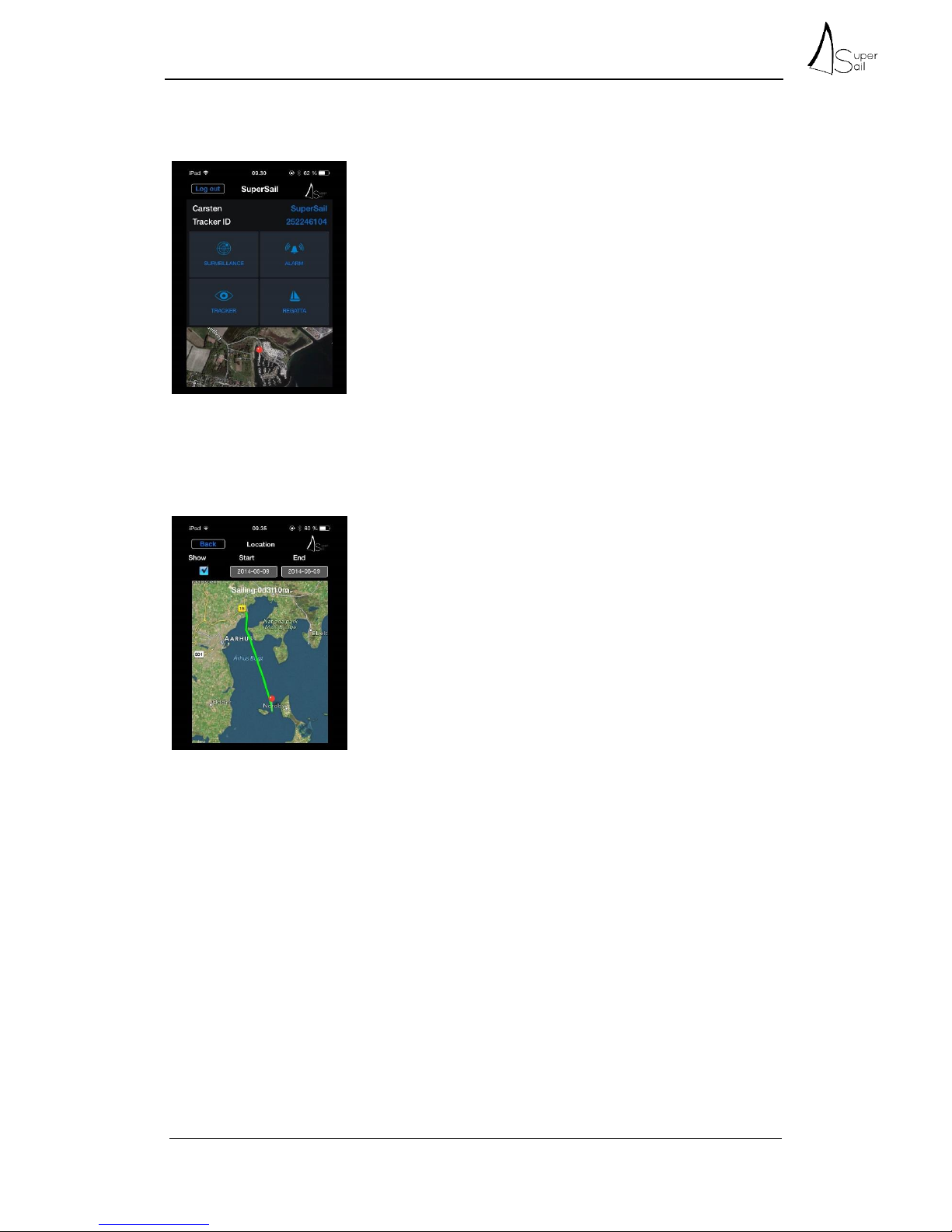

At the bottom a map is shown, showing the latest position of the tracker.
Pushing the map shows the Full Screen Map as shown below.
3.1 Full Screen Map
The latest position of the tracker is shown by at pin in the
location.
If dates are specified and “Show” is marked, the tracking for the
period between the dates are shown.
If a period of several dates are selected, a pin is set in the first
registered position for each day.
The Sail Period is the time from first to last registration within the
selected dates.
If Start and End is set to the same day, the tracking’s for this day
is shown. The Sail Period will show the sailing time including
stops.
The tracker will only register tracks when the boat is actually
moving. If the boat is not moving for a day or more, no tracks will be registered.
It is possible to zoom and rotate the map, using your fingers.

User’s Manual
Side 6af 20
4 Tracker Info Menu
From the main menu it’s possible to edit your tracker settings, by selecting the ”Tracker”
button.
Pushing the “Back” button returns to the main menu without changing tracker settings.
At the top you find the ”Reset Tracker” button, which executes a
reset of the tracker. This is done by sending a SMS to the
tracker forcing it to reset and restart.
The boat name can be changed by selecting the field. When the
field is selected, the keyboard is automatically displayed. The
boat name is used to identify the tracker in SMS’s and regatta
data.
Selecting the Tracker ID field, shows a list of all trackers for
which you are allowed as user. If the tracker you search for is
not found, contact your System Administrator or support@super-
sail.dk, who can help to create you as user for a specific tracker.
The color of the Tracker ID field identifies the status of the tracker:
Grey –inactive
Yellow –Alarm or Surveillance turned on
Green –GPS communication active (e.g. Tracking active Regatta or checking GPS
position)
In the POI ID field you can key in the ID of the ”Points of Interest” (POI) Remote Control,
which you are using. If you are not using a POI just leave the field empty. If the field cannot
be selected, connecting of POI to your tracker is not possible.
The Battery bars shows the level of the internal battery in the tracker and in the POI (if
available). The tracker battery level is divided into steps of 20%, where the level of the
internal battery is considered critical if it drops below 20%. If the POI battery level is not
shown, this indicates that the information is not available or a POI is not connected. The POI
battery level has only 2 steps –Ok/critical.
If any Tracker data has been changed press “SAVE” to save the new data in the database.
When the tracker is active tracking a regatta, it will update its position every 5 seconds or if
the sailing direction is changed by more than 25 degrees. If a Regatta last for longer than 12
hours, the update time is changed to 5 minutes or if the sailing direction is changed by more
than 45 degrees.

User’s Manual
Side 7af 20
5 Surveillance Menu
From the main menu it’s possible to activate surveillance of yourself during your sailing, by
pushing the button “Surveillance”.
This function is primary intended for dinghy sailors with a SuperSail Regatta Tracker, who are
sailing/training alone. Via the button on the Regatta Tracker Surveillance, the tracker can
send an SMS to up to 4 mobile numbers by a single press on the push button. Furthermore
automatically surveillance can be activated as described below.
Pushing the “Back” button returns to the main menu without changing settings.
The surveillance function is turned on/off independent of Regattas, which enables you to use
the function without being registered for a Regatta.
Surveillance is an extra safety for you during your sailing, where you have the possibility to
send messages to up to 4 predefined mobile numbers, or you can leave it to the tracker to
monitor if something unexpected occurs during your sailing and let it automatically send a
message to your predefined mobile numbers.
Surveillance contains the following functions:
- Call Button on the tracker, for manual sending messages to
your predefined mobile numbers. The Call Button is not
available on all tracker types.
- Automatic monitoring if the tracker has not been moving
outside a specified radius for a specified time. If this occurs an
automatic message is sent to your predefined mobile numbers.
- Automatic monitoring if the tracker has moved outside a given
distance from the starting point. If this occurs an automatic
message is sent to your predefined mobile numbers.
The Call Button is always active, if present on the tracker, when
the surveillance function is active, but the automatic monitoring
functions can be activated individually.
Radius/time function is activated by marking the check box.
Max Distance function is activated by marking the check box.
Deactivating the functions are done by removing the mark in the check box.
Up to 4 predefined mobile numbers can be specified, who will receive the same message.
Mobile numbers must always contain the country code (e.g. +45 for Denmark).
Data are automatically saved when keyed in.
The below button indicates status of the Surveillance function. If the button is red with the text
“Off”, surveillance is not active. Pushing the button change the color to green containing the
text “On” –surveillance is activated.
When the Surveillance function is turned on, all predefined mobile numbers will receive an
SMS containing the information that they are now monitoring you. If your tracker contains a
Call Button the light around the button will turn on as long as the Surveillance function is
turned on.
When a message is sent manual or automatic the lamp around the Call Button starts blinking
to indicate that a message is sent to your predefined mobile numbers.
When your message receivers has received the SMS message, they can return an empty
SMS to the sender. When this message is received by the tracker, the lamp around the Call
Button stops blinking, indicating to you that you message has been read by one of the
message receivers.

User’s Manual
Side 8af 20
If a message is sent by a mistake you can hold the Call Button in for at least 5 seconds, and
the tracker will send a message to your predefined mobile numbers that the message is
cancelled. The lamp around the Call Button stops blinking.
Turning the Surveillance function off, initiates a message to your predefined mobile numbers
telling that they are no longer monitoring you.
All messages sent contains a link to Google Maps, with the actual position of the tracker. This
makes it possible for the receivers to locate you. The messages furthermore contains the
Boat Name which identifies you.
You should test the Surveillance function regularly, to be sure that is works if an accident
occurs.
A tracker with faults or with a not full charged battery must never be used at sea.
As long as the Surveillance is turned on, the tracker will update its position every 10 minutes.

User’s Manual
Side 9af 20

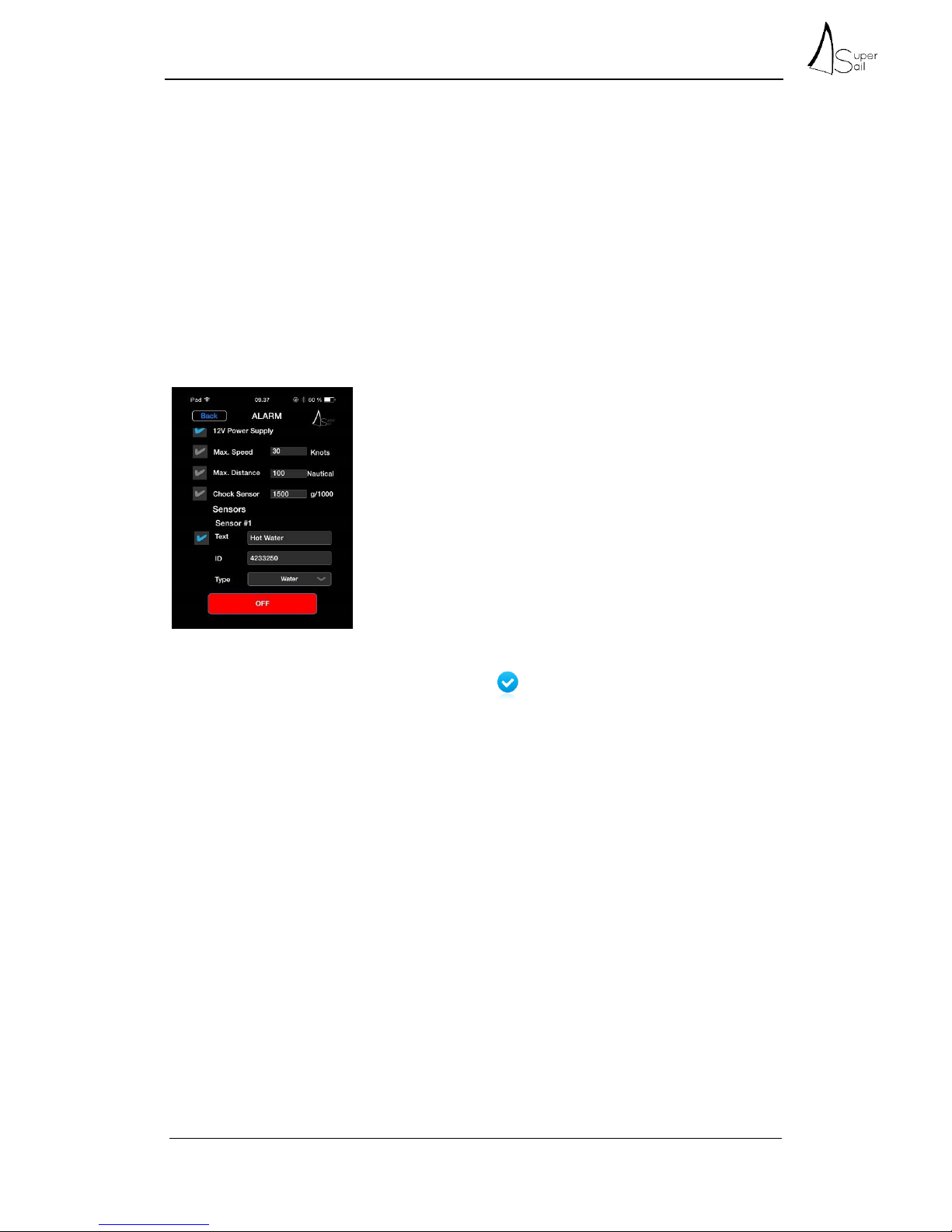

6 Alarm Menu
From the main menu it’s possible to activate alarms that monitor your boat even during your
sailing or when you leave your boat, by pushing the button “Alarm”.
This function is intended for sailors who wants to ensure that their boat is not been robbed or
stolen. Furthermore water intrusion or fire can be monitored by connected sensors. It’s also
possible to turn on/off external units like e.g. the heater.
Pushing the “Back” button returns to the main menu without activating the alarm.
The alarm function is turned on/off independent of other functions, which enables you to use
the alarm even if you are sailing.
The alarm functions are a safety for you and your boat, where up to 4 mobile numbers can
receive messages in case of alarms. The mobile numbers to receive the alarms can be
defined in your subscription data, which can be edited using the SuperSail website.
When your subscription is created a login to your subscription data is created with a personal
password independent of the password used for the mobile app. Editing your subscription
data can be done via the “Login” button on top of the SuperSail website www.super-sail.dk.
6.1 Functions
The Alarm Menu contains the following functions:
Outputs that can be activated independent of the alarm
Inputs that can be activated individually
Monitoring of maximum movement –e.g. theft or anchor
guard
Monitoring of 12V
Monitoring of maximum speed
Monitoring of maximum distance
Chock Sensor which monitor e.g. grounding, hitting the
jetty while moored or collision
Wireless Sensors which can be activated individually
6.2 Outputs
SuperSail Marine Alarm Wireless has 2 configurable outputs, where e.g. switches to activate
external units can be connected. The units can be activated independent and individually. In
the text field you can write a text that identifies the unit connected.
If the “Activate on Alarm” check box is marked for Output #1, this indicates to the alarm
system that e.g. a siren is connected to Output #1. The alarm system will automatically
activate Output #1 if a theft alarm is activated. The Output #1 remains activated as long as a
theft alarm is active and 5 minutes after the last theft alarm is activated.
Turning off the alarm also turns off the Output #1.
Output #1 is activated by the following alarms:
Max. Movement Alarm, which indicates that the boat is being stolen
Movement Sensor which indicates break in to the boat
Door Sensor which indicates break in to the boat
Input #1 activation –Input #1 can e.g. be used to monitor an outboard engine.

User’s Manual
Side 10 af 20
6.3 Inputs
SuperSail Marine Alarm Wireless has 2 configurable inputs, where SuperSail Marine Alarm
has only 1. To the inputs external sensors like e.g. a smoke alarm or float switch can be
connected, or a wire to an outboard engine can be connected for monitoring this. In the text
field you can write a text that identifies the connected units. Same text is included in the SMS
alarm text.
6.4 Maximum Movement
Maximum Movement Alarm with configurable alarm distance. The function can be used as a
theft monitoring or as an anchor guard.
The figure shows the principal in the maximum
movement alarm, where the boat are in the center
of a circle indicating the maximum movement
before the alarm is activated.
A GPS which is steady will register some
movement in all directions, caused by reflected
signals from the satellites. Reflections occur when
the signal from the satellite hits something in the
way to the tracker.
Even that the GPS in the tracker is very precise,
reflected signals will be received from time to time,
which gives the tracker a wrong position for the
boat.
To prevent wrong positions from activating a false
alarm, it is recommended to set the Maximum
Movement distance to minimum 25 meters. Our experience is that this value prevents most
false alarms in most harbors. If the boat is placed near buildings or other constructions
creating reflections, it might be necessary to set a higher value for the Maximum Movement
alarm.
It is recommended to test the value for some days to ensure that no false alarm are sent due
to reflections form the surrounding environment.
6.5 12V
Monitors if external 12V supply is interrupted or drops below 10,5V.
6.6 Maximum Distance
Same function as described for Maximum Movement paragraph 6.4.
Typically used by charter boat companies or if your boat is being used by others than
yourself. You can receive an alarm if the boat comes too far from the starting point.
6.7 Maximum Speed
Maximum speed with a configurable maximum speed in the unit of knots.
Typically used by charter boat companies or if your boat is being used by others than
yourself. If the speed indicates that the boat are transported over land, you will be noticed by
an alarm.
