Svan SVL7148 User manual

1
Washing machine
User manual
Read the instructions for use carefully before proceeding with the installation,
installation and commissioning of the device so as to avoid damage to yourself
and the device.

2

3
Dear Customer,
First of all we would like to thank you for choosing us and purchasing an original
Italian product.
This product has been fully manufactured in ITALY with the best materials, in ac-
cordance to RoHs and Reach regulations with special attention to human health
and environment.
Key issues like quality and safety are supported by strict controls on our prod-
ucts, which have been certifi ed according to inter-national regulations such as
EN 60456:2016, EN 62233:2010, EN 61770:2009, EN ISO3741:2010, EN 60456:2016,
EN 60335:2014, EN 61770:2009, EN ISO 3741:2010, EN 60704:2012, EN 6100:2014,
EN 55019:2015 through certifi cations issued by VDE and IMQ, the latter being
certifying bodies of excellence. This manual contains instructions for the use,
maintenance and warranty.
Before using the machine for the fi rst time, please carefully read this user manual
and the warranty certifi cate placed at the end of this manual. There you can fi nd
important instructions for the safety, use and maintenance of the washing ma-
chine. This is to protect yourself from any possible injury and to avoid damages
to the appliance.
Always keep your purchase receipt with you which will be useful to activate the
warranty. To be valid for warranty, the receipt must show the date of purchase,
type of the appliance and model.

4
DISPOSING OF PACKAGING
The packaging has the purpose of protecting
the good from any possible damage which
could occur during transport operations. All
materials used for the packaging are reusable
and selected according to eco friendly stand-
ards so that they can be easily recycled in
order to be reused into the production process.
On the one hand, this mechanism allows
to reduce waste and on the other, it makes
possible a more rational use of non-renewable
resources.
WASTE ELECTRIC AND ELECTRONIC
EQUIPMENT (RAEE)
In accordance with Directive on waste electric
and electronic equipment, the symbol of the
crossed-out wheeled bin means that the end-
of-life product must be disposed separately
from domestic household waste.
The user should, therefore, take the product to
an appropriate recycling centre for waste elec-
trical and electronic equipment or give it back
to the retailer at the time of purchasing new
similar equipment, on a one for one basis.
The proper separate disposal of the decom-
missioned product and its eco-compatible
recycling, treatment and scrapping contribute
to avoid possible negative effects on the en-
vironment and human health, and encourage
the recycling of the materials comprising the
product.
The manufacturer has always been focused
on developing products and technologies that
make as little impact on the environment as
possible and has been continuously engaged
YOUR CONTRIBUTION TO THE PROTECTION OF THE ENVIRONMENT
in high R&D investments which are required in
the  elds of ecology.
For the waste management and disposal of
the household appliances, the manufacturer
registered with the consortium ERP Italia.
The illegal disposal of the product by the
user leads to the application of administrative
sanctions in accordance with current laws and
regulations.

5
DISPOSING OF PACKAGING
The packaging has the purpose of protecting
the good from any possible damage which
could occur during transport operations. All
materials used for the packaging are reusable
and selected according to eco friendly stand-
ards so that they can be easily recycled in
order to be reused into the production process.
On the one hand, this mechanism allows
to reduce waste and on the other, it makes
possible a more rational use of non-renewable
resources.
WASTE ELECTRIC AND ELECTRONIC
EQUIPMENT (RAEE)
In accordance with Directive on waste electric
and electronic equipment, the symbol of the
crossed-out wheeled bin means that the end-
of-life product must be disposed separately
from domestic household waste.
The user should, therefore, take the product to
an appropriate recycling centre for waste elec-
trical and electronic equipment or give it back
to the retailer at the time of purchasing new
similar equipment, on a one for one basis.
The proper separate disposal of the decom-
missioned product and its eco-compatible
recycling, treatment and scrapping contribute
to avoid possible negative effects on the en-
vironment and human health, and encourage
the recycling of the materials comprising the
product.
The manufacturer has always been focused
on developing products and technologies that
make as little impact on the environment as
possible and has been continuously engaged
YOUR CONTRIBUTION TO THE PROTECTION OF THE ENVIRONMENT
in high R&D investments which are required in
the elds of ecology.
For the waste management and disposal of
the household appliances, the manufacturer
registered with the consortium ERP Italia.
The illegal disposal of the product by the
user leads to the application of administrative
sanctions in accordance with current laws and
regulations.
INDEX
Index..............................................................5
Safety instructions and warnings.................6
Installation....................................................10
Control panel...............................................14
Description of the commands...................15
Washing programs, duration and options...16
Product details.............................................18
After sale service........................................20
Warranty certificate.....................................21
Possible remedies.......................................23

6
This washing machine complies
with current safety norms and
regulations. If improperly used, it
can provoke damage to people
and/or goods around you. Before
using the washing machine for
the fi rst time, please read this
user guide carefully. It contains
important instructions for the
safety, use and maintenance of the
washing machine. This will prevent
any possible danger for yourself
and damage to the appliance.
Please keep the user guide with
you and give it to other users, if
necessary.
INTENDED USE
Please, note that this washing
machine is only for domestic
use and only to wash clothes
which have been indicated by
the manufacturer as suitable for
washing in water on the label. Any
other use can turn dangerous.
The manufacturer cannot be held
liable for damages caused by an
improper and/or incorrect use of
the household appliance.
In other cases, the washing
machine must not exceed one
washing cycle a day. Some
example are:
•staff kitchen areas in shops,
offi ces and other working
environments;
•farm houses;
•by clients in hotels, motels
and other residential type
environments;
•bed and breakfast type
environments;
•areas for communal use
in blocks of fl ats or in
launderettes.
USE BY CHILDREN OR VERY
VULNERABLE PEOPLE
This appliance can be used by
children of at least 8 years and
by people with limited physical,
sensorial or mental ability or with
no required knowledge, as long as
they are kept under surveillance
or they have been instructed
about safety norms to apply for
the use of the appliance and
possible risks. Children shall not
play with the appliance. Cleaning
and maintenance operations must
not be made by children without
supervision.
SAFETY INSTRUCTIONS AND WARNINGS
be sure that the power supply
is in line with the data (power,
frequency) indicated in the
technical data label. If any doubt,
consult a qualified electrician.
The electrical safety of
the appliance can only
be guaranteed when it is
connected to an electrical
system which is compliant
with all legal standards
and equipped with a
separate magneto thermal
differential switch (circuit
breaker) and earthed. Do
not use extension leads or
adapters.
This is a key safety requirement.
Verify this condition and in case
of any doubt, it is advised to call
a qualified electrician who shall
check the electrical system.
N.B. The manufacturer
should not be held liable
for damages resulting
from an electrical system
compliant with all legal
standards.
The appliance can only be repaired
by an Authorized Technician. If it
is not the case, the manufacturer
cannot be held liable for any
Children under the age of 3 must
be supervised while the appliance
is in function.
CAUTION!
When washing at high
temperature, be aware
that the door glass could
become very hot (about
90°C). Prevent children
from touching it.
DEFINITIONS OF CHILDREN
Very young children
Up to 3 years old.
Young children
Between 3 and 8 years old.
Older children
Between 8 and i 14 years old.
Vulnerable people
People with limited physical,
sensorial or mental ability (i.e.
partially disabled, adults with
limited physical and mental ability),
or without the required knowledge
(i.e. older children).
ELECTRICAL SAFETY
Before plugging the washing
machine into the electrical socket,

7
be sure that the power supply
is in line with the data (power,
frequency) indicated in the
technical data label. If any doubt,
consult a qualifi ed electrician.
The electrical safety of
the appliance can only
be guaranteed when it is
connected to an electrical
system which is compliant
with all legal standards
and equipped with a
separate magneto thermal
differential switch (circuit
breaker) and earthed. Do
not use extension leads or
adapters.
This is a key safety requirement.
Verify this condition and in case
of any doubt, it is advised to call
a qualifi ed electrician who shall
check the electrical system.
N.B. The manufacturer
should not be held liable
for damages resulting
from an electrical system
compliant with all legal
standards.
The appliance can only be repaired
by an Authorized Technician. If it
is not the case, the manufacturer
cannot be held liable for any
Children under the age of 3 must
be supervised while the appliance
is in function.
CAUTION!
When washing at high
temperature, be aware
that the door glass could
become very hot (about
90°C). Prevent children
from touching it.
DEFINITIONS OF CHILDREN
Very young children
Up to 3 years old.
Young children
Between 3 and 8 years old.
Older children
Between 8 and i 14 years old.
Vulnerable people
People with limited physical,
sensorial or mental ability (i.e.
partially disabled, adults with
limited physical and mental ability),
or without the required knowledge
(i.e. older children).
ELECTRICAL SAFETY
Before plugging the washing
machine into the electrical socket,

8
possible damage that could arise. If
not properly repaired, the user may
be exposed to serious danger, for
which the manufacturer cannot be
held liable.
If the power supply cable is
damaged, it must be replaced by
an authorized technician in order to
avoid any possible danger.
In the event of faults, prolonged
absences or to clean the appliance,
disconnect it from the electrical
mains.
The appliance is considered to be
disconnected from the mains when:
•The power cable is unplugged
from the socket.
•The central switch has been
turned off.
WATER SAFETY
To connect the appliance to the
water supply, use only new hoses.
Do not use old hoses.
Be sure that during the washing
cycle, the detergent drawer is
always closed and turn off the
water tap at the end of each
washing cycle.
It is not possible to make
modifi cations to the appliance
without a prior authorization by the
manufacturer. Before connecting
the draining hose to the sink,
make sure that the water is easily
drained.
Secure the draining hose so that it
cannot move because the strong
fl ow of water could push it out of
the sink.
POSITIONING
The appliance must not be installed
on roofs, balconies, under canopies
or in places where it may be
exposed to atmospheric agents.
CORRECT USE
Before using the appliance for the
fi rst time, remove the transport
securing screws from the rear (see
installation chapter).
If those screws are not removed,
it will damage the appliance
or adjacent furniture or other
appliances during the spinning.
Make sure garments are not
washed together with foreign
objects (i.e. nails, needles, coins,
paper clips). These foreign objects
may damage the appliance (i.e.
the drum or the tub) and, in turn,
the damaged parts may damage
the garments. Garments that have
been pre-treated with solvents
or products containing solvents,
have to be carefully rinsed with
clean water before washing
in the appliance. Never use
detergents with solvents (i.e. petrol,
trichloroethylene). These products
may damage some components
of the appliance and produce toxic
vapors which could potentially
provoke fires, blasts or damaged
surfaces.
N.B. The manufacturer cannot be held liable for damages
caused as a result of not following the instructions in the
manual.

9
the damaged parts may damage
the garments. Garments that have
been pre-treated with solvents
or products containing solvents,
have to be carefully rinsed with
clean water before washing
in the appliance. Never use
detergents with solvents (i.e. petrol,
trichloroethylene). These products
may damage some components
of the appliance and produce toxic
vapors which could potentially
provoke fi res, blasts or damaged
surfaces.
N.B. The manufacturer cannot be held liable for damages
caused as a result of not following the instructions in the
manual.

10
INSTALLATION
GENERAL INFORMATION
The assembled group of the appliance is
secured by 4  xing screws (which protect it
during handling and transport operations),
 gure 1.
Figure 1

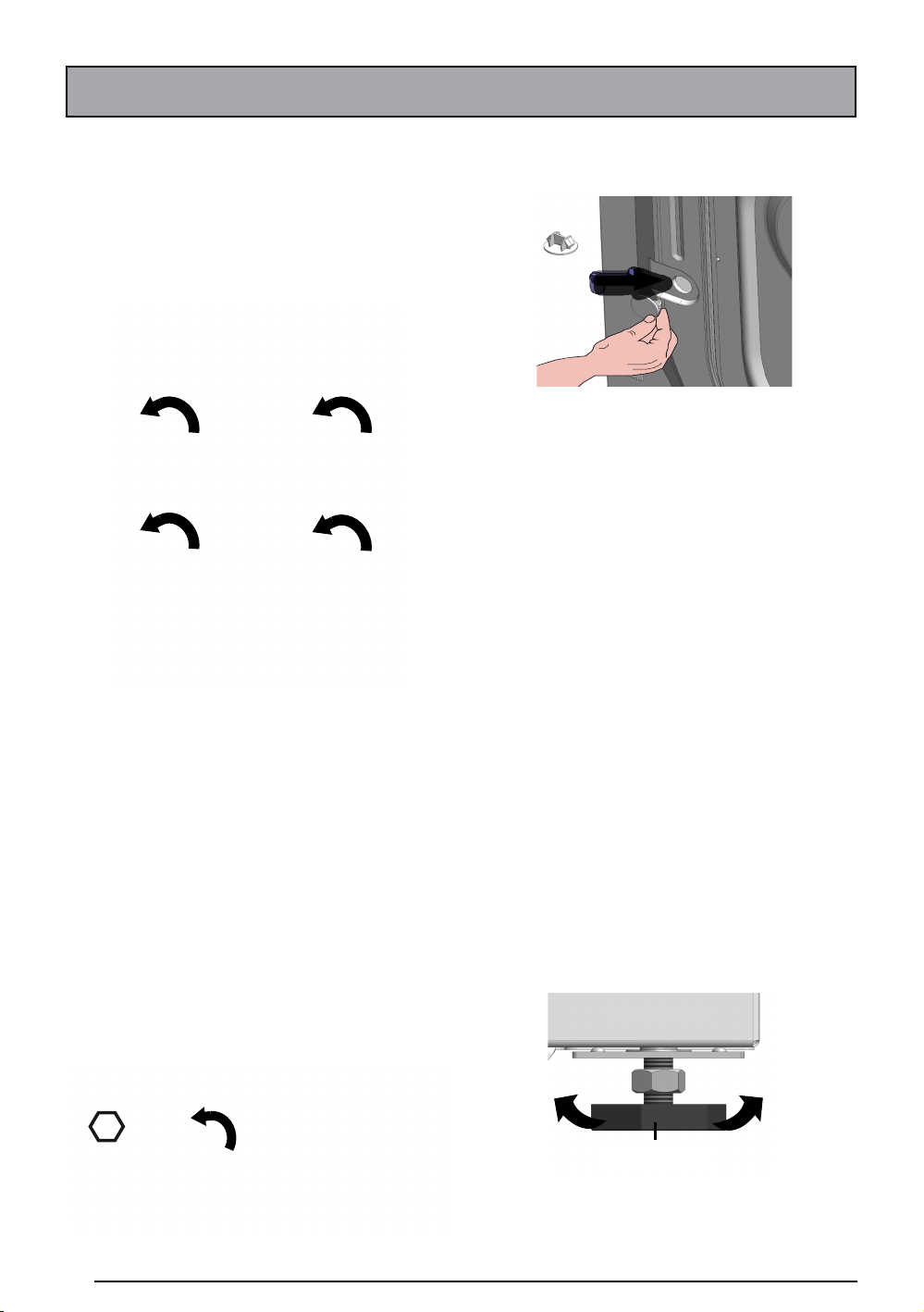

FIXING SCREWS REMOVAL
Before using the appliance, it is necessary
to remove the  xing screws by turning
counter clockwise.
N.B. If the  xing screws are not removed,
this will cause strong vibrations and irregular
movements during the washing cycle with
subsequent damages.
Once unscrewed, pull them out with spacer
bushes as shown in  gure 2.
Figure 2
Seal the holes with the appropriate caps
provided as shown in  gure 3.
Figure 3
x 4
POSITIONING OF APPLIANCE
In order to avoid damages or malfunctions, the
appliance must not be installed on roofs, bal-
conies, under canopies or in places where it
may be exposed to atmospheric agents.
Make sure the electrical cable and hoses (wa-
ter inlet and drain hoses) on the rear of the
appliance are not pressed.
To ensure the stability of the appliance, avoid-
ing strong vibrations during washing and
spinning cycles, it is necessary to put the ap-
pliance on a levelled, smooth, dry, solid sur-
face not raised from the fl oor level. In order
to balance any difference in levels of the  oor,
it is possible to intervene on the feet modify-
ing the height by screwing and unscrewing in
accordance with the necessities as shown in
 gure 4.
Figure 4
MOBILE
PIEDINO
12 mm
1
2
Cabinet
Foot

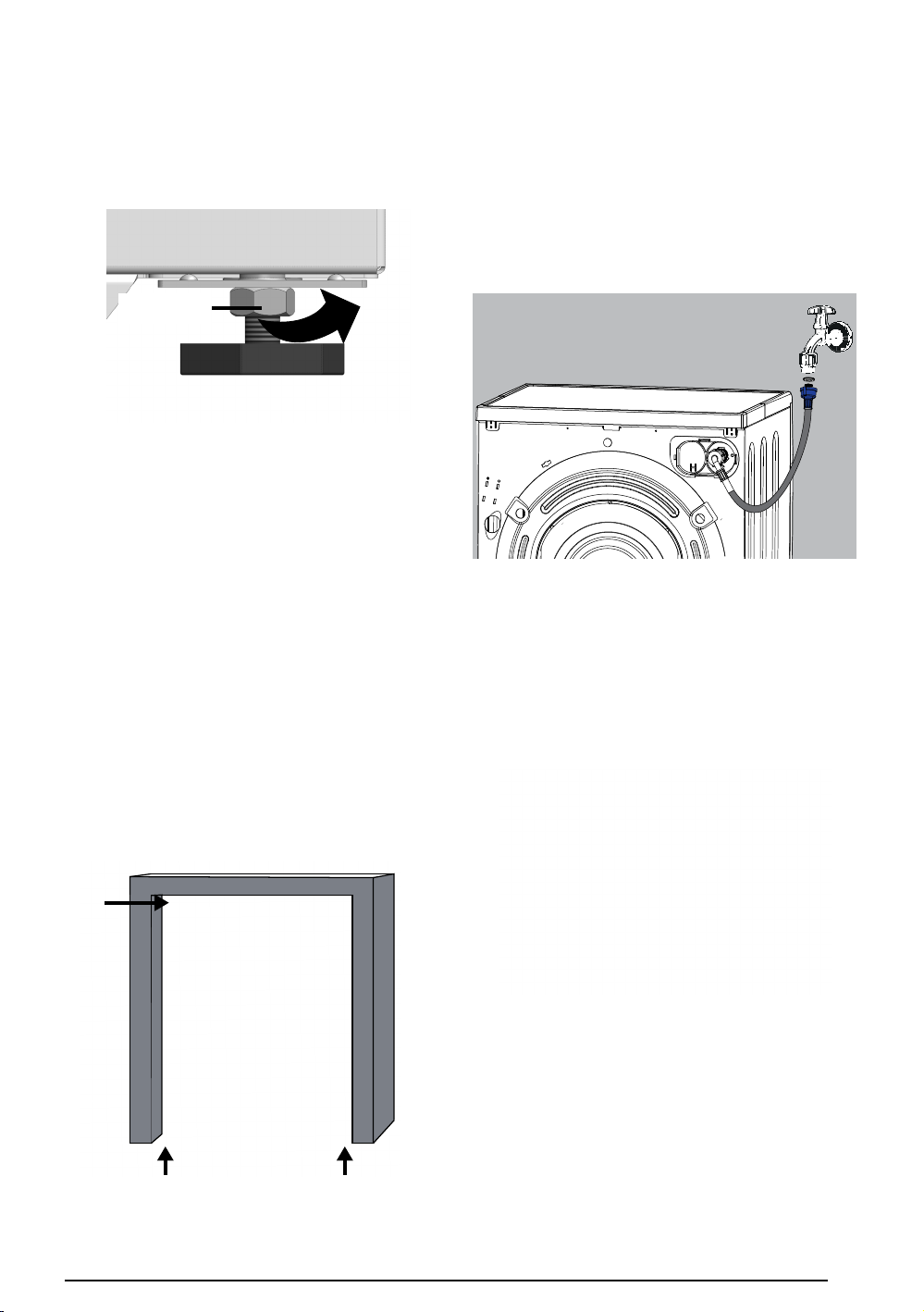

After regulating the feet, since vibration may
modify its level, it is advisable to tighten the
docking nut on the feet until it is blocked as
shown by the gure below.
Figure 5
DADO
It is recommended to avoid putting cardboard,
pieces of wood or similar material upon or
around the appliance since it may obstruct the
air ow.
INSTALLATION UNDER WORKTOP
It is possible to position the appliance under
a worktop only if there is place of minimum
3cm on the upper side, 8cm on the sides and
8cm on the back side. An example of a typical
installation is represented in gure 6. The
top table of the appliance (TOP) cannot be
removed for electric and mechanical safety
reasons.
Figure 6
WATER SUPPLY INLET HOSE
The water supply inlet hose has to be
connected to a cold water tap with threaded
hole of 3/4” and to the appliance. Only use the
hose supplied with the appliance and make
sure that the rubber gaskets are properly
placed on the ends of the hose.
Figure 7
If the water supply system is new or it has not
been used for a long time, before connecting
the hose it is necessary to let the water run
until it is clear. Figure 8 shows the connection
to hot water. This option is available only on
demand.
Figure 8
Be sure the hot water temperature does not
exceed 55°C in order to avoid damages to the
clothing and to the washing machine. Use only
the water supply inlet hose which is supplied
with the appliance.
8 cm 8 cm
3 cm
Nut

11
After regulating the feet, since vibration may
modify its level, it is advisable to tighten the
docking nut on the feet until it is blocked as
shown by the  gure below.
Figure 5
DADO
It is recommended to avoid putting cardboard,
pieces of wood or similar material upon or
around the appliance since it may obstruct the
air  ow.
INSTALLATION UNDER WORKTOP
It is possible to position the appliance under
a worktop only if there is place of minimum
3cm on the upper side, 8cm on the sides and
8cm on the back side. An example of a typical
installation is represented in  gure 6. The
top table of the appliance (TOP) cannot be
removed for electric and mechanical safety
reasons.
Figure 6
WATER SUPPLY INLET HOSE
The water supply inlet hose has to be
connected to a cold water tap with threaded
hole of 3/4” and to the appliance. Only use the
hose supplied with the appliance and make
sure that the rubber gaskets are properly
placed on the ends of the hose.
Figure 7
If the water supply system is new or it has not
been used for a long time, before connecting
the hose it is necessary to let the water run
until it is clear. Figure 8 shows the connection
to hot water. This option is available only on
demand.
Figure 8
Be sure the hot water temperature does not
exceed 55°C in order to avoid damages to the
clothing and to the washing machine. Use only
the water supply inlet hose which is supplied
with the appliance.
8 cm 8 cm
3 cm
Nut

12

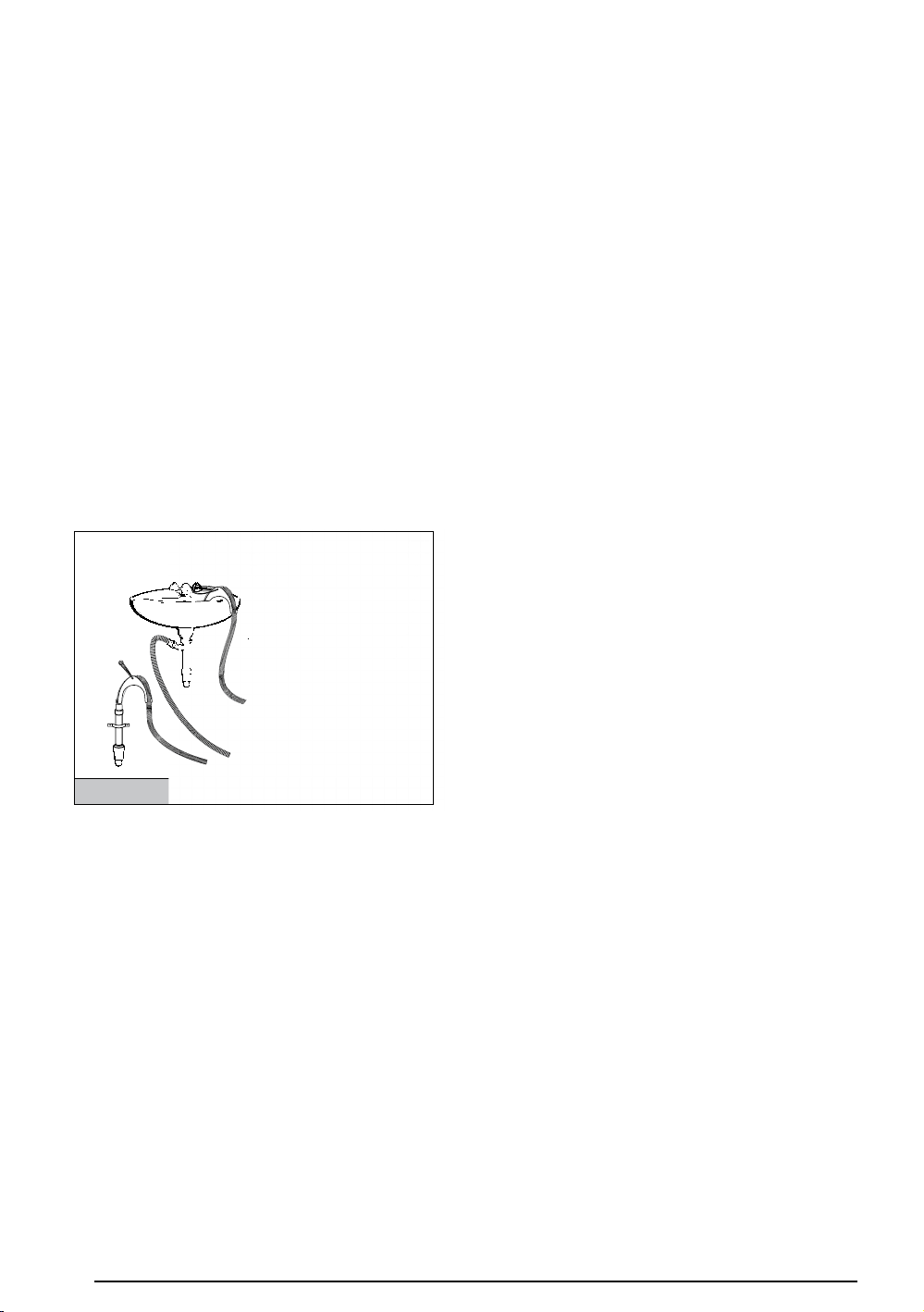

WATER DRAINAGE
The water drain hose can be positioned in
three different ways (Figure 9):
1. On the edge of a sink, using a U-hook
plastic (NOT SUPPLIED)
Make sure the hose is well  xed on the sink.
2. Into a drainage line placed at a minimum
height of 60cm and not exceeding 90cm.
3. Direct drain into the siphon of the sink.
It is advisable to use a hose clamp (NOT
INCLUDED)
Example of installation
Figure 9
1
2
3
N.B. It is not advisable to use hose
extensions for the water drainage hose.
BEFORE USE
BEFORE USING THE
WASHING MACHINE FOR THE
FIRST TIME, IT IS NECESSARY
TO DO A WASHING CYCLE
(PROGRAM COTTON) WITH
DETERGENT AND WITHOUT
LAUNDRY, SETTING THE
TEMPERATURE AT 60 °C.
ELECTRICAL CONNECTION
The appliance is supplied with a
power cable and a schuko plug for
the connection to the ~ 230V 50Hz
AC grid . Make sure the schuko plug
is always accessible so that washing
machine can be disconnected from
the mains if necessary. The electrical
system must meet the provisions VDE
0100. The maximum consumption of
the washing machine is 10 Ampere.
It is strongly recommended never
to connect the appliance using
extension cables, multiple sockets
or similar devices in order to avoid
overheating and a potential fi re
hazard. The manufacturer accepts
no liability for damages resulting from
lack or interruption of the protective
earth conductor. With the purpose
of increasing the safety level, VDE
institute, by Directive DIN VDE 0100
part 739, recommends to equip the
appliance with an automatic differential
switch (circuit breaker) with trip off
current of 30mA (DIN VDE 0664).
If an automatic differential switch is
used, make sure it is of type A, in
accordance with DIN VDE 0664 and
sensitive to pulsating currents.
The identifi cation plate provides
information about the nominal power
consumption and its appropriate
protection. Please compare these data
with the data of the electrical mains.
THIS APPLIANCE REQUIRES AN
EARTH WIRING.
For individual personal safety and of
the environment, this appliance must be
connected to the mains with an earth-
ing which provides a direct path to the
ground, correctly verified and in compli-
ance with current laws and regulations.
It installation must be equipped with a
magneto thermal differential switch (cir-
cuit breaker).
This appliance is supplied with a type
(A) power cord and a type (B) plug.
In order to avoid risks of electrical
shocks/fires, the cable must be connect-
ed to a wall sucket (C) suitable for the
type of plug (B).
Do not modify the connection cable nor
use adaptors or extension leads (D).
If the wall sucket is not available, it is the
customer’s responsibility and obligation
to install it by a qualified electrician.
Do not change/modify the electrical
power cord and do not use adaptors or
extension leads (D)

13
THIS APPLIANCE REQUIRES AN
EARTH WIRING.
For individual personal safety and of
the environment, this appliance must be
connected to the mains with an earth-
ing which provides a direct path to the
ground, correctly verifi ed and in compli-
ance with current laws and regulations.
It installation must be equipped with a
magneto thermal differential switch (cir-
cuit breaker).
This appliance is supplied with a type
(A) power cord and a type (B) plug.
In order to avoid risks of electrical
shocks/fi res, the cable must be connect-
ed to a wall sucket (C) suitable for the
type of plug (B).
Do not modify the connection cable nor
use adaptors or extension leads (D).
If the wall sucket is not available, it is the
customer’s responsibility and obligation
to install it by a qualifi ed electrician.
Do not change/modify the electrical
power cord and do not use adaptors or
extension leads (D)

14

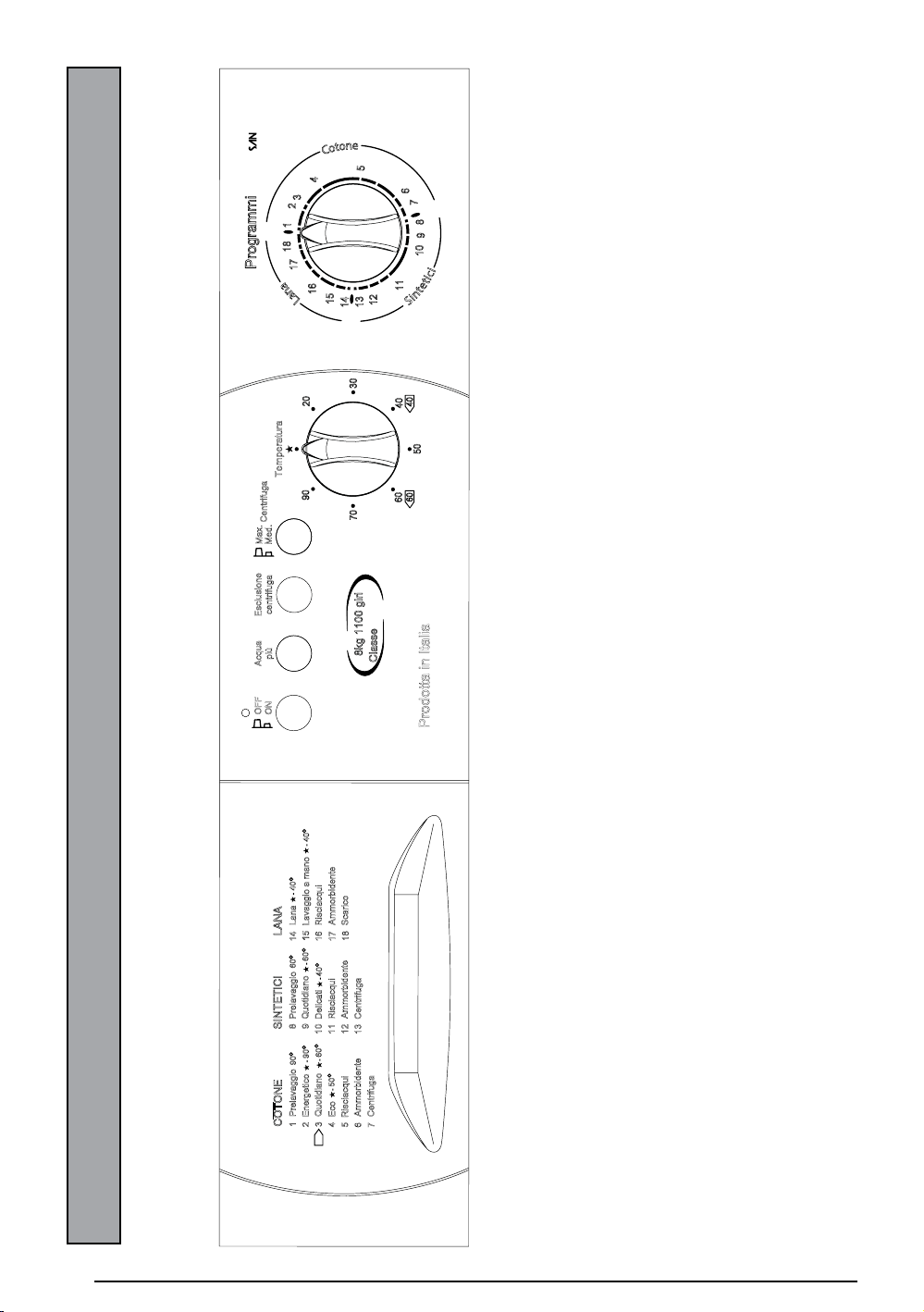

1 - Detergent drawer 2 - Pilot lamp
3 - On/Off 4 - Rinse plus
HYBRID WASHING MACHINE CONTROL PANEL
5 - Spin exclusion 6 - Spin reduction
7 - Temperature selection knob 8 - Programme selection knob
COTONE SINTETICI LANA
Risciacqui
Centrifuga
Ammorbidente
1
2
3
4
5
7
13 Centrifuga
12
Ammorbidente
Risciacqui
9
10
8
Risciacqui
Ammorbidente
Scarico
14
15
16 17
18
Energetico
90
90
Quotidiano
60
50
Prelavaggio
Quotidiano
60
60
Delicati
40
Prelavaggio
Lavaggio a mano
Eco
Lana
40
6
11
OFF
ON
Acqua
più
Esclusione
centrifuga
Max.
Med. Centrifuga
30
Temperatura
90
60
60 40
40
50
20
70
Programmi
-C
1
2
4
6
7
8
9
10
12
11
13
14
15
16
1718
5
C
o
t
o
n
e
L
a
n
a
S
i
n
t
e
t
i
c
i
3
Prodotta in Italia
8kg 1100 giri
Classe
A+++
40
1
3
2
456
78

15
DESCRIPTION OF CONTROLS
1. Detergent drawer
It consists of three compartments. For any type
of program, the detergent must be poured into
the central compartment.
The far left compartment, must be loaded with
detergent if the “prewash” programme is carried
out. In the far right compartment, the softener
should be poured, without spilling over the grid.
2. Pilot lamp
When the light is on, it indicates that the ma-
chine is in operation and that the door is electri-
cally locked.
3. On/Off
The On/Off button must be pressed after se-
lecting the desired programme. If you want to
suspend or change a selected programme, the
button must be set to the “Off” position “Off”.
4. Rinse plus
If the button is pressed, the function is activated
and it adds more water to the rinsing phase.
It is recommended where the is an excessive
use of detergent or for those with problems of
allergic skin.
5. Spin exclusion
It allows for the exclusion the centrifuge from
washing programmes.
6. Spin reduction
It allows for spin speed reduction in washing
programmes.
7. Temperature selection knob
Allows for manual change and selection of
temperature, but only below the maximum fore-
seen in the selected programme. If, for exam-
ple, the “delicate 40 °” programme has been se-
lected, the temperature cannot exceed 40°8..
8. Programme selection knob
Turn the knob clockwise to select the desired
washing programme.
N.B. This selection must be performed with
the machine in its off.

16
WASHING PROGRAMS, DURATION AND OPTIONS
The programmes Intensive 60°C and 40°C are test programmes (cotton standard 60°C) and (cotton standard 40°C) used
to evaluate the efciency of the appliance. These programmes are the most efcient in terms of combined consumption
(energy-water) and are indicated for washing cotton laundry which is normally soiled. The real water temperature may
be slightly different from the one indicated.
(*) The duration of a programme may be different from the time indicated depending on variations of water pressure,
temperature, hardness; type, quantity and way laundry is loaded (knotted laundry increases the step of machine
balancing); stability and quality of power voltage and wash options selected.
Cotton Programme
Programme Type of
laundry Description of cycle
Nominal
capacity
(kg)
Max dry
load
(kg)
*Cycle time
1Prewash 90° White coloured
and very dirty
Prewash at 90°C, main
wash, rinse, intermedi-
ate and nal spin
5 5
3 h 15 min.
6 6
7 7
8 8
2Energetic 90° White coloured
and very dirty
Main wash at 90°C
rinse, intermediate and
nal spin
5 5
2 h 58 min.
6 6
7 7
8 8
3Daily 60°
White coloured
and normal
stained
Main wash at 60°C
rinse, intermediate and
nal spin
5 5
2 h 25 min.
6 6
7 7
8 8
4Eco 20°** White coloured
normal stained
Main wash at 20°C
rinse, intermediate and
nal spin Wash at 60°C
rinse, intermediate and
nal spin
5 5
1 h 46 min.
6 6
7 7
8 8
5Rinse White and col-
oured
Rinse, intermediate and
nal spin - - 36 min.
6Softener White and col-
oured
Rinse with softener,
intermediate and nal
spin
- - 14 min.
7Spin White and col-
oured
Final spin and distribu-
tion - - 8 min.
**For the ECO 20°C washing programme, set the temperature knob to 20°C.

17
Synthetic Programme
Programme Type of
laundry Description of cycle
Nominal
capacity
(kg)
Max dry
load
(kg)
*Cycle time
8Prewash
Mixed and
light stained
synthetics
Prewash at 60°C, main
wash, rinse and nal
spin
5 2,5
1 h 45 min.
6 3
73.5
8 4
9Quotidiano 60°
Sintetici delicati
e sintetici con
colore delicato
Main wash at 60°C,
rinse and nal spin
5 2,5
1 h 30 min.
6 3
73.5
8 4
10 Delicate 40° All synthetics Main wash at 40°C,
rinse and nal spin
5 2,5
1 h 25 min.
6 3
73.5
8 4
11 Rinse All synthetics Rinse and nal spin - - 46 min.
12 Softener All synthetics Rinse with softener and
nal spin - - 19 min.
13 Spin All synthetics Final spin and distribu-
tion - - 9 min
Wool Programme
Programme Type of
laundry
Description of
cycle
Nominal
capacity
(kg)
Max dry
load
(kg)
*Cycle time
14 Wool 40° Wool and silk
Main hand wash at
40°C, rinse and nal
spin
5 1
1 h 10 min.
6 1,5
72
8 2,5
15 Hand wash 40° Wool and silk
Main hand wash at
40°C, rinse and nal
spin
5 1
58 min.
6 1,5
72
8 2,5
16 Rinse Wool and silk Rinse and nal spin - - 30 min.
17 Softener Wool and silk Rinse with softener and
nal spin - - 17 min.
18 Drain Wool and silk Final spin and distribu-
tion - - 3 min.

18
The following data are the same for all washing machines.
Type of washing machine: Stand alone.
Electrical connection: Power 2200 Watt – Voltage 220/230 Volt – Maximum current 10 Ampere.
Inlet water pressure: Min. 0,05 Mpa – Max: 1 Mpa.
1. Energy class A+++ indicates more efciency, while energy class D indicates lower efciency.
2. The annual energy consumption in kWh is based on 220 standard cotton washes cycles at 60°C and
of full and half load. The real consumption depends on how the washing machine is effectively used.
3. The annual water consumption in litre is based on 220 standard cotton washes cycles at 60°C and of
full and half load. The real consumption depends on how the washing machine is effectively used.
4. Spin efciency “A” indicates less quantity of water left on laundry, while spin efciency “D” indicates
more quantity of water on laundry.
5. The programme Intensive 60°C and 40°C is the standard wash programme. This programme is
used to wash cotton garments with a regular stain and it is the more efcient programme in terms of
combined consumption of water and energy.
The distributed product complies with the most recent European regulations and directives:
Low Voltage Directive (LVD) 2014/35/EC
Electro-magnetic Compatibility (EMC) Laws and Directive 2014/30/EU
Eco design requirements for household washing machines Directive 1015/2010/EU
Type Capacity
(kg)
Energy
class
(1)
Consumption data - Standard programme(5)
Spinning
efciency
(4) - D %
Maxi-
mum
spin
(rpm)
Standard programme time (5)
Noise in
washing
phase
dB(A)
Noise in
spinning
phase
dB(A)
Dimension and weight
Annual
energy
consump.
(2) kWh
Cotton
60°
full load
kWh
Cotton
60°
1/2 load
kWh
Cotton
40°
full load
kWh
Stand
by
OFF
W
Stand
by
ON
W
Annual
water
con-
sump.
(3) l
Water
consump.
per cycle
40°C 1/2
load (l)
Water
consump.
per cycle
60°C 1/2
load (l)
Water
consump.
per cycle
60°C full
load (l)
Cotton
60°C
full load
(min.)
Cotton
60°C
1/2 load
(min.)
Cotton
40°C
full
load
(min.)
Height
(cm)
Width
(cm)
Length
(cm)
S4210C 5 A++ 158 0,7 0,68 0,42 0,08 0,09 7040 28 28 36 D - 63 878 140 133 133 59 73 85 59,5 50 61
S5510C 7A+++ 172 0.7 0.75 0.42 0,08 0.09 8800 40 40 48 C - 61 960 147 142 140 59 72 85 59,5 53 63
SDG7C 7 A+++ 172 0.7 0.75 0.42 0.08 0.09 8800 40 40 48 C - 61 960 147 142 140 59 72 85 59,5 53 63
UNIS710C 7 A+++ 172 0.7 0.75 0.42 0.08 0.09 8800 40 40 48 C - 61 960 147 142 140 59 72 85 59,5 53 63
S5611C 8 A+++ 194 0,89 0,6 0,50 0,08 0,09 11440 48 48 48 C - 61 1060 140 137 135 58 76 85 59,5 53 63
PRODUCT DATA SHEET IN ACCORDANCE WITH EU DIRECTIVE 1061/2010

19
Type Capacity
(kg)
Energy
class
(1)
Consumption data - Standard programme(5)
Spinning
efciency
(4) - D %
Maxi-
mum
spin
(rpm)
Standard programme time (5)
Noise in
washing
phase
dB(A)
Noise in
spinning
phase
dB(A)
Dimension and weight
Annual
energy
consump.
(2) kWh
Cotton
60°
full load
kWh
Cotton
60°
1/2 load
kWh
Cotton
40°
full load
kWh
Stand
by
OFF
W
Stand
by
ON
W
Annual
water
con-
sump.
(3) l
Water
consump.
per cycle
40°C 1/2
load (l)
Water
consump.
per cycle
60°C 1/2
load (l)
Water
consump.
per cycle
60°C full
load (l)
Cotton
60°C
full load
(min.)
Cotton
60°C
1/2 load
(min.)
Cotton
40°C
full
load
(min.)
Height
(cm)
Width
(cm)
Length
(cm)
S4210C 5 A++ 158 0,7 0,68 0,42 0,08 0,09 7040 28 28 36 D - 63 878 140 133 133 59 73 85 59,5 50 61
S5510C 7A+++ 172 0.7 0.75 0.42 0,08 0.09 8800 40 40 48 C - 61 960 147 142 140 59 72 85 59,5 53 63
SDG7C 7 A+++ 172 0.7 0.75 0.42 0.08 0.09 8800 40 40 48 C - 61 960 147 142 140 59 72 85 59,5 53 63
UNIS710C 7 A+++ 172 0.7 0.75 0.42 0.08 0.09 8800 40 40 48 C - 61 960 147 142 140 59 72 85 59,5 53 63
S5611C 8 A+++ 194 0,89 0,6 0,50 0,08 0,09 11440 48 48 48 C - 61 1060 140 137 135 58 76 85 59,5 53 63
PRODUCT DATA SHEET IN ACCORDANCE WITH EU DIRECTIVE 1061/2010
SERVICE
Where is the Type?
It is possible to extrapolate the type starting from the rst 8 digits of the serial code and
excluding the nal 0. The serial code is printed on the label visible on the upper side of the door
when it is opened and/or on the backside of the washing machine.
Example of label
II71000000123456789012
II710
TYPE
REFERENCE LAUNDRY LOAD WEIGHT FOR WASHING MACHINE
Terry bathrobe 1200 g
Terry towels 900 g
Bedspreads 700 g
Pyjamas 500 g
Tablecloth 250 g
Pillowcases and Towels 200 g
Place mats and underwear 100 g

20
AFTER SALES SERVICE
REPAIR
If any repairs are required, contact an authorised after sales service calling the number indicated.
Always specify the model of the appliance and its serial number as reported on the rating plate
on the cabinet visible on the upper side of the door when it is opened and/or on the back side of
the washing machine.
SERVICE
XXXXXXXXXXXXXXXXXXXX
(*) The customer service is available from Monday to Friday from 08:30 to 19:00 and on
Saturday from 08:30 to 13:00.
In addition, there is a telephone answering service for calls received outside covering hours.
Our customer service is made of quali ed technicians who follow the products from production.
Their experience allows us to solve 85% of the calls on the phone, thus offering more
satisfaction to the customers and ensuring economical savings. Therefore, we warmly suggest
users to take advantage of this experience and to dedicate some minutes to our technicians to
execute appropriate operational veri cations.
800.126.903
i
199.446.200
Customer service Customer service
Free toll from  xed line Maximum cost of 13cents/min.
from  xed line
