TAMURA NT110 User manual

Instruction Manual(EN)
Second Edition
This Instruction Manual describes important precautions to prevent any accident and procedures to
handle this product.
Read this Instruction Manual carefully to use this product safely.
After reading, keep this in a safe place where users can refer to as needed.
2D-53-0002680A

Safety Precautions
This section describes the "prohibitions" and "precautions" important for you to use NT110 safely.
Before use, be sure to read this manual so that you can use the system correctly.
Warning
This sign gives a message assuming possible human death or severe
injury if the system is mishandled ignoring the message given with this sign.
Caution
This sign gives a message assuming possible human injury or property
damage if the system is mishandled ignoring the message given with this
sign.
The △symbol shows a message (including a warning) that must be paid attention to. The
specific precaution is shown by picture or text near or in the △. The message given in the
left-hand picture calls attention to "electrical shock."
symbol shows a prohibition (prohibited action). The specific precaution is shown by picture
or text near or in the . The message given in the left-hand picture prohibits "disassembly."
● symbol shows a mandatory message (action that must be taken without exception). The
specific precaution is shown by picture or text near or in the ●. The message given in the
left-hand picture instructs the user to "remove the power plug from the receptacle."
Warning
Continuing to use the system with unlikely
abnormalities such as smoke and abnormal smell
and sound may cause fire and electric shock. After
turning off the power of the system's main unit
immediately, be sure to remove the power cable
plug from the receptacle. After confirming that no
more smoke is coming out, contact our sales office
for a repair request. Do not attempt to repair the
system by yourself, as it is dangerous for the user.
Should water or foreign materials enter the
system, after turning off the power of the system's
main unit immediately, remove the power cable
plug from the receptacle, and then contact our
sales office. Continuing to use the system with
foreign materials inside may cause fire or electric
shock.
If cables are damaged such as when the power
cable is broken to disconnection and cores are
exposed, contact our sales office for a repair.
Otherwise, it may cause fire or electric shock.
Do not use the system in a place where liquid may
splash on the system's main unit directly.
Otherwise, it may cause fire or electric shock.
Use the system only within the voltage range
specified in the Instruction Manual. Otherwise, it
may cause fire or electric shock.
Fully insert the power cable plug into the power
receptacle. Otherwise, it may cause fire or electric
shock.
Do not place heavy objects on the power cable.
Also make sure that the power cable is not caught
under the system. Otherwise, the cable may be
damaged and cause fire or electric shock.
Do not place flower vases, cups, containers with
water, or small metal items on the system. If water
spills or enters the inside, fire or electric shock
may be caused
Do not damage, process, bend forcefully, twist,
pull, or heat the power cable, Otherwise, the cable
may be damaged and cause fire or electric shock.
Never disassemble, repair, or modify the main
unit. Also, never remove the cover. Otherwise, it
may cause fire or electric shock.

Disposing of this Equipment
When disposing this equipment, contact an authorized industrial waste disposal operator to
handle the disposal since this equipment needs to be disposed as an industrial waste.
About this Instruction Manual
This instruction manual is intended to be used only for customers who purchased this
product.
No part of this manual may be duplicated or replicated without prior permission from TAMURA.
The information in this instruction manual is subject to change for improvement of the product
without prior notice.
Caution
When disconnecting the power cable, do not pull
the cable. Instead, be sure to hold the power plug
to disconnect it. Otherwise, the cable may be
damaged and fire or electric shock may be
caused.
Before caring for the system, remove the power
plug from the receptacle for the sake of safety.
Otherwise, it may cause electric shock.
Before moving the system, turn off the power
switch, and be sure to remove the power plug
from the receptacle, and then remove the
connection cords of the external devices.
Otherwise, cords may be damaged and fire or
electric shock may be caused.
Do not place the power cable near heat
generating devices. This may melt the covering of
cable and may cause fire or electric shock.
When using the headphones, be careful not to
turn the volume too high. Continuously hearing a
sound so loud as to irritate your ears for a long
time may affect your hearing adversely.
Do not connect/disconnect the power plug with
wet hands. Otherwise, it may cause electric
shock.
Before turning on the power, turn the volume to
minimum. Otherwise, you will hear a loud sound
suddenly, which may cause impairments such as
a hearing loss.
Do not connect/disconnect the power plug with
the power switch on. This may cause system
malfunctions.
Do not connect/disconnect the module unit and
the card unit with the power switch on. This may
cause system malfunctions.
Do not put the module unit and the card unit in
places where it is susceptible to static electricity
(such as on a carpet), This may cause system
malfunctions.
If the panel surface becomes dirty, wipe it off
using a soft cloth immersed in a small amount of
neutral detergent. Never use gasoline, alcohol,
cleanser, or freon.
The module unit and the card unit were adjusted
when installed.
Please know that if changes are made by the
customer after delivery such as replacing parts or
adjusting the internal trimmer, maintaining of the
performance afterward cannot be guaranteed.
Since the consumable parts including faders, fans,
and operating knobs tend to lose their effectiveness
with frequency and time of use, replacement is
needed according to consumption. We recommend
carrying out a periodical maintenance. For repair or
maintenance, consult with our sales representatives
or service department shown on the end of this
manual. TAMURA owes no responsibility or liability for
any failure due to improper use or alteration.
Since any dust, water, or oil inside a fader will cause
noise or level fluctuation, take measures like storing it
in a special case or covering it while not in use.
Install NT880 on a flat surface with good
ventilation. Otherwise, the internal temperature
may rise to cause system malfunctions.
Do not use in places where corrosive gas is
generated. There is a possible cause of the
malfunction or failure.

Precautions on Installation of NT110
Install NT110 with special care to ventilation according to the following precautions:
1) Do not block ventilation holes and fans on the back and bottom.
2) When you embed NT110 in a table or desk, use a structure in consideration of air flow.
3) When you stack NT110 mounted on a rack, prevent thermal influence from equipment installed below it.
Ventilation hole
Fan
Back
Bottom
Ventilation hole

Copyright
Copyright © 2017 TAMURA Corporation. All Rights Reserved. Do not duplicate or replicate without permission.

NT110 Instruction Manual (EN)2D-53-0002680A
Table of Contents
1. Overview...................................................................... 1
2. Features....................................................................... 1
3. External View .............................................................. 2
3-1 Rear Panel...................................................................................... 2
3-2 Front Panel..................................................................................... 3

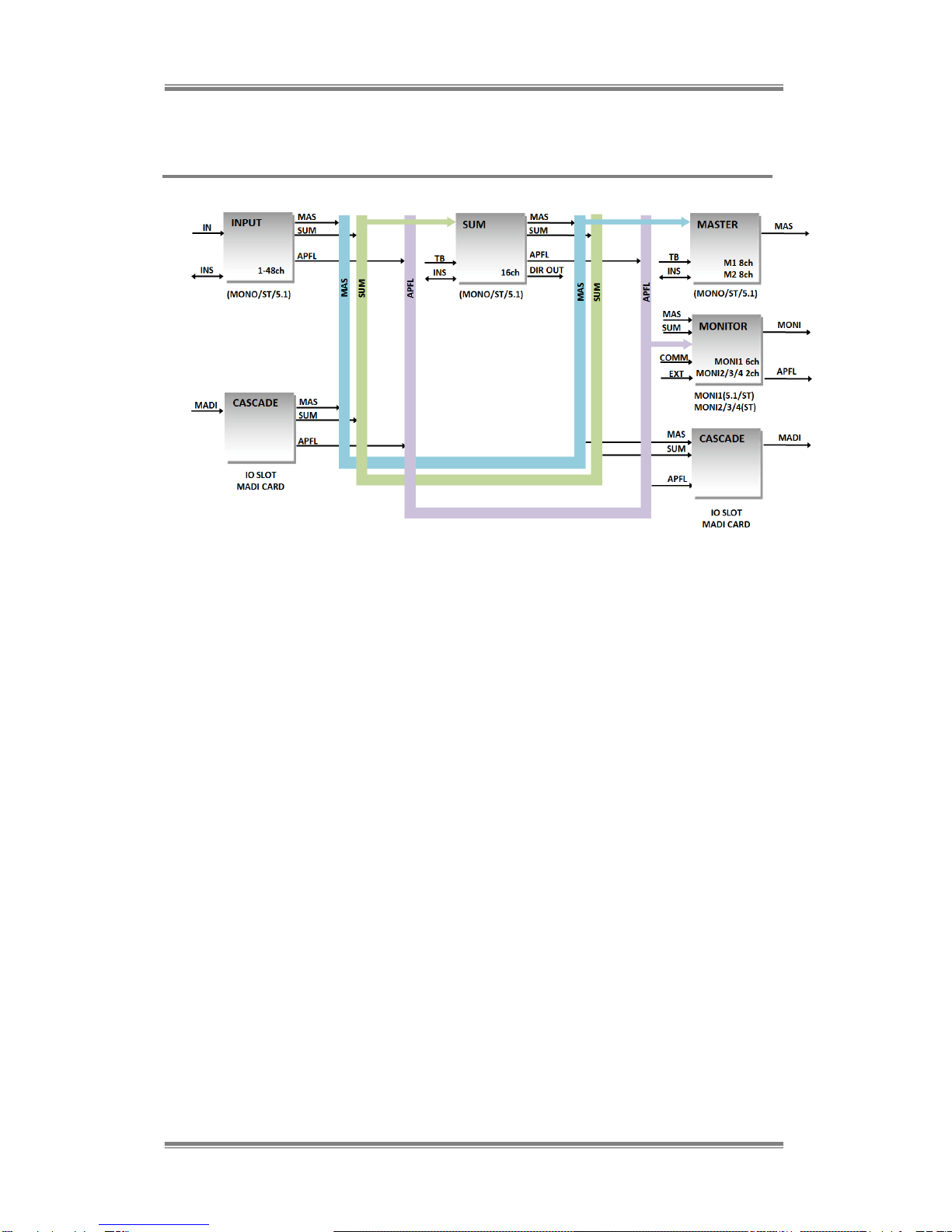

4. Audio Block Diagram ................................................. 4
5. Configuration.............................................................. 5
6. Rating and Performance............................................ 6
6-1 General Rating............................................................................... 6
6-2 Input/Output Rating....................................................................... 6
6-3 Reference Level............................................................................. 7
6-4 Bus and Monitor ............................................................................ 7
6-5 Audio Performance........................................................................ 8
6-6 Audio Control Parameters............................................................ 9
7. Exterior Features...................................................... 10
7-1 Rear Panel.................................................................................... 10
7-1-1 AC INPUT.................................................................................................10
7-1-2 DC INPUT/NFB........................................................................................ 11
7-1-3 POWER SW............................................................................................. 11
7-1-4 MIC/LINE INPUT......................................................................................12
7-1-5 LINE OUT.................................................................................................12
7-1-6 TB/COMM/SUM/AES3.............................................................................13
7-1-7 AES3/METER/SYNC................................................................................13
7-1-8 IO CARD SLOT........................................................................................14
7-1-9 DSP CARD SLOT ....................................................................................14
7-1-10 Connection of DSP CARDs with NT Mix................................................15
7-2 Front Panel................................................................................... 16
7-2-1 Touch Panel..............................................................................................17
7-2-2 Preset Program ........................................................................................17
7-2-3 DSP/On Air...............................................................................................17
7-2-4 Bus Master ...............................................................................................18

NT110 Instruction Manual (EN)2D-53-0002680A
7-2-5 OSC..........................................................................................................18
7-2-6 Monitor......................................................................................................18
7-2-7 Talk Back..................................................................................................20
7-2-8 Mixer Control............................................................................................21
7-2-9 Bank/Layer ...............................................................................................21
7-2-10 Select Encoder.......................................................................................22
7-2-11 Fader ......................................................................................................22
7-3 Headphone Panel ........................................................................ 23
8. Connector Pin List.................................................... 24
9. Outline Drawing........................................................ 26
10. Appendix ................................................................... 27
10-1 Adding DSP CARD ................................................................... 27
10-1-1 Precautions ............................................................................................27
10-1-2 Additional Procedure..............................................................................27
10-1-3 Operation Check after Adding................................................................27
10-2 Replacing DSP CARD............................................................... 28
10-2-1 Precautions ............................................................................................28
10-2-2 One DSP CARD Configuration...............................................................28
10-2-3 Two DSP CARD Configuration (Replacing Primary DSP CARD)..........29
10-2-4 Two DSP CARD Configuration (Replacing Secondary DSP CARD) .....29
10-2-5 Operation Check after Replacement......................................................29
10-3 DSP CARD Installation Method............................................... 30
10-3-1 Remove DSP CARD (FAN CARD).........................................................30
10-3-2 Install DSP CARD ..................................................................................31
10-4 IO CARD Installation Method................................................... 32
10-4-1 Removing Blank Panel...........................................................................32
10-4-2 Install IO CARD......................................................................................32
10-5 Removing Exterior Equipment (Side Panels and Pad).......... 33
10-5-1 Removing Side Panels...........................................................................33
10-5-2 Removing Pad........................................................................................34
10-6 About Fixing Screw Holes ....................................................... 35
10-6-1 Four Fixing Screw Holes at A.................................................................35
10-6-2 Five Fixing Screw Holes at B .................................................................35
10-7 How to Install Accessory Sunshade....................................... 36
10-8 Initializing Internal Data ........................................................... 37
10-9 Backing Up and Uploading NT110 Data.................................. 38
10-9-1 Transferring Backup Data from NT110 to PC File (Backup) ..................38
10-9-2 Transferring Backup Data from PC File to NT110 (Upload)...................39
10-10 Factory Default Password ....................................................... 40

NT110 Instruction Manual (EN)2D-53-0002680A

NT110 Instruction Manual (EN)2D-53-0002680A
1
1. Overview
NT110 is an all-in-one, compact digital mixer of the NT series, which inherits the functions and
reliability of our flagship model NT880.
Despite its compact size, NT110 realizes redundancy (optional) of power input and an audio signal
processing part and is suitable for applications that require high reliability, such as OB vans, live
broadcasting, production, and television and radio studios.
2. Features
Light and Compact Design
(1) This light and compact product can be installed in OB vans, where space is limited, or can be
used for portable applications.
(2) EIAJ 19-inch rack mount size (with exterior removed)
(3) Multi-channel simultaneous operation with physical 16 ch Faders and 2 Layers x 3 Banks
configuration
(4) An all-in-one model with built-in analog and digital input/output
Original Technologies
(1) Built-in audio signal processing with a high dynamic range based on 32-bit floating point
operations. Mixing can be performed without being conscious of the internal level diagram.
(2) Redundant configuration of audio signal processing and controllers are available for the first
time in the compact class.
Operational Safety
(1) Power supply in a redundant configuration, allowing for AC and DC input
(2) Applications that require high reliability are supported with a redundant configuration of audio
signal processing and controller-mounted DSP CARDs (optional).
(3) Microphone input achieves 36 dB of head room. Sudden excessive input can be resisted.
(4) The system uses no advanced OS but is composed based on firmware, realizing high stability
and quick startup.
Usability
(1) Installation of 16 ch physical faders allows for simultaneous multi-channel operation despite its
compact size.
(2) The large touch panel displays many input/output meters for monitoring to allow for viewing of
the entire mixer.
(3) The large touch panel offers intuitive operability.
(4) The inherited operability of the NT series facilitates learning of the mixing operation.
Efficient and Flexible System
(1) Cascade connection (optional) enables addition of input channels that can be simultaneously
used.
(2) Two card slots are provided. According to the system, necessary audio input/output channels or
GPIO control units can be added.

NT110 Instruction Manual (EN)2D-53-0002680A
2
3. External View
3-1 Rear Panel

NT110 Instruction Manual (EN)2D-53-0002680A
3
3-2 Front Panel

NT110 Instruction Manual (EN)2D-53-0002680A
4
4. Audio Block Diagram

NT110 Instruction Manual (EN)2D-53-0002680A
5
5. Configuration
Product code
Model
Name
Quantity
Remarks
M-21200550-00
NT110
DIGITALAUDIO MIXER
1
NT110 main unit
M-21300269-00
TU-6436
DSP CARD
1
One pre-installed on the main
unit
AC CORD 2m (JP)
1
Accessories
Sun-Shade
1
Accessories
Instruction Manual(JP)
1
Accessories
CD-R
1
Accessories
The following data file is stored
・Instruction Manual(JP)
・Opreration Manual(JP)
・Block Diagram
* The table above shows the products that come standard with the main unit and does not include any
options.
* Since the attached AC CORD is exclusively for Japan, it can not be used outside of Japan.
If you plan to use this machine outside of Japan, prepareAC CORD of your country separately.

NT110 Instruction Manual (EN)2D-53-0002680A
6
6. Rating and Performance
6-1 General Rating
Supply voltage (AC).................................................................................. 100 to 240 V 50/60 Hz
Supply voltage (DC)........................................................................................................ 12 /14.8 V
Power Consumption .............................................................................................................125 W
External dimensions (with side panels and pads) excluding
protrusions.......................................................................................490(W)×221.5(H)×606(D) mm
External dimensions (without side panels and pads) excluding
protrusions.......................................................................................430(W)×220.5(H)×550(D) mm
Weight (with side panels and pads, without options)...........................................................16.5 kg
Operating temperature range ................................................................................. -10℃to +40℃
Operating humidity range ............................................................................................ 20% to 80%
Operating condition........................................................................................................Continuous
6-2 Input/Output Rating
Transmission frequency range (Fs=48 kHz).......................................................... 20 to 20,000 Hz
Transmission frequency range (Fs=96 kHz).......................................................... 20 to 40,000 Hz
Sampling frequency........................................................................................................ 48/96 kHz
Number of signals processed (Fs=48/96 kHz)...................................................................80/40 ch
Cascade connection mode (Fs=48/96 kHz）...............................................................160/80 ch
Synchronization signal input
VIDEO INPUT............................................................................................VIDEO (NTSC/PAL)
WORD CLOCK INPUT...............................................................................WORD (TTL/1 Vpp)
AES3id INPUT ...............................................................................................................AES3id
Synchronization signal output
WORD CLOCK OUTPUT......................................................................................WORD (TTL)
Audio input
MIC/LINE INPUT ....................................................................................... Monaural 16 (XLR)
-64 dBu to +10 dBu/4 kΩ or more
SUB INPUT ................................................................................................. Monaural 4 (XLR)
-20 dBu/0 dBu/+4 dBu/10 kΩ or more
AES3id INPUT .................................................................................................Stereo 2 (BNC)
AES-3id (AES/EBU format)/75Ω unbalanced
Sample Rate Converter (SRC) On: 30 to 100 kHz
COMM INPUT ............................................................................................. Monaural 1 (XLR)
-15 dBu/10 kΩ or more
Audio output
LINE OUTPUT ........................................................................................... Monaural 16 (XLR)
+4 dBu/0 dBu / 55 Ω or less
AES3id OUTPUT .............................................................................................Stereo 2 (BNC)
AES-3id (AES/EBU format)/75Ω unbalanced
Output signal level 1Vp-p/Output sampling frequency 48/96 kHz
Number of output bits 24 bits
TB OUTPUT.................................................................................................. Monaural 1 (XLR)
HEADPHONE OUTPUT ..............................................................Stereo 1 (Standard jack x 2)
Meter/AES3 output
AES3 OUTPUT .............................................................................................. Stereo 4 (Dsub)

NT110 Instruction Manual (EN)2D-53-0002680A
7
AES-3 (AES/EBU format)/110 Ω balanced
Output signal level 2 Vp-p at minimum/Output sampling frequency 48/96 kHz
Number of output bits 24 bits
OPTION CARD SLOT .........................................................................................................2SLOT
DSP CARD SLOT (Primary SLOT equipped as standard)................................................... 2SLOT
Control input/output
LAN PORT (DSP CARD) .......................................................................................1 port (LAN)
6-3 Reference Level
Audio reference input level
Analog MIC ........................................................................................................+10 to -64 dBu
Analog LINE...................................................................................................................+4 dBu
Audio reference output level
Analog LINE...................................................................................................................+4 dBu
Audio reference input/output level
Digital......................................................................................................... -18 dBFS/-20 dBFS
HA head room............................................................................................................... 20 to 36 dB
6-4 Bus and Monitor
DSP Channel (total 80ch@FS48kHz)
Input.......................................................................................... 48 ch (Mono/Stereo/5.1 Surround)
M1.............................................. 8 ch (Mono/Stereo/5.1Surround+Stereo/5.1Surround+Downmix)
M2.............................................. 8 ch (Mono/Stereo/5.1Surround+Stereo/5.1Surround+Downmix)
SUM.......................................................................................... 16 ch (Mono/Stereo/5.1 Surround)
Mix Bus
M1............................................................................................... 8 ch (Mono/Stereo/5.1 Surround)
M2............................................................................................... 8 ch (Mono/Stereo/5.1 Surround)
SUM.......................................................................................... 16 ch (Mono/Stereo/5.1 Surround)
APFL..................................................................................................... 6 ch (Stereo/5.1 Surround)
BT.................................................................................................................................1 ch (Mono)
Monitor
MONI1.................................................................................................. 6 ch (Stereo/5.1 Surround)
MONI2........................................................................................................................2 ch (Stereo)
MONI3........................................................................................................................2 ch (Stereo)
MONI4........................................................................................................................2 ch (Stereo)
HEADPHONE.............................................................................................................2 ch (Stereo)
* Anumber of channels is converted to a number of monaural channels.
* For FS 96 kHz, the total number of DSP Channels and Mix Buses is one half of the above
number of channels.

NT110 Instruction Manual (EN)2D-53-0002680A
8
6-5 Audio Performance
* Performance assumes normal service condition unless otherwise specified
<Normal service condition>
The normal service condition means that the specified power supply is used, where each
component is correctly connected as per the system diagram, and then adjusted according to
the specified level diagram. However, filters and equalizers are off.
Amplification allowance
(For the rated value at 1 kHz)
Analog input/output (Microphone-system)................................................... Within ±2.0 dB
Analog input/output (Line-system)............................................................... Within ±1.0 dB
Digital input/output ...................................................................................... Within ±0.3 dB
Amplification frequency characteristic
(Assumes 1 kHz as the reference at Fs=48 kHz and within transmission frequency
range.)
Analog input/output (+4dBu IN)
FS 48 kHz ............................................................................Within ±0.6 dB (20 to 20 kHz)
FS 96 kHz ............................................................................Within ±0.6 dB (20 to 40 kHz)
Digital input/output
FS 48 kHz ............................................................................Within ±0.1 dB (20 to 20 kHz)
FS 96 kHz ............................................................................Within ±0.1 dB (20 to 40 kHz)
THD+N
(using 22 Hz HPF and 22 kHz LPF/Fs = 48 kHz, 40 kHz LPF/Fs = 96 kHz within
transmission frequency range.)
Reference level input
Analog input/output (Microphone-system)........................................................Within 0.2%
Analog input/output (Line-system)..................................................................Within 0.03%
Digital input/output .........................................................................................Within 0.03%
When inputting a level equivalent to reference input level + head room -1 dB
Analog input/output (Microphone-system)........................................................Within 0.4%
Analog input/output (Line-system)....................................................................Within 0.2%
Digital input/output ...........................................................................................Within 0.1%
SN ratio
(Using 22 Hz HPF and 22 kHz LPF)
Analog input/output (Microphone-system, -64 dBu input) ............................57 dB or more
Analog input/output (Line-system, +4 dBu input) .........................................80 dB or more
Digital input - analog output (full scale reference)......................................105 dB or more
* The noise level of the analog input/output is measured using the input at 150 Ω
termination.
Turndown characteristic........................................................................................100 dB or more
(Channel Fader turndown characteristic for the maximum output level at 8 kHz)
LR phase difference (within transmission frequency range) ......................................... Within ±2°
Maximum input level
Analog...................................................................... +23 dBu (Distortion rate within 0.3%)
Digital........................................................................0 dB FS (Distortion rate within 0.1%)

NT110 Instruction Manual (EN)2D-53-0002680A
9
6-6 Audio Control Parameters
INPUT LEVEL
HA GAIN ..................................................................................+10 to -64 dBu (1 dB Step)
TRIM....................................................................................-24 to +24 dB (1/0.2 dB Step)
INPUT DELAY
Maximum ................................................................................................ 5.4 s (1 ms Step)
(Display switched in frame/m/sample unit)
Minimum adjustment range........................................................................1 Audio Sample
Equalizer
EQ1........................................................................................................Peak/Shelv/Notch
EQ2............................................................................................................................ Peak
EQ3............................................................................................................................ Peak
EQ4........................................................................................................Peak/Shelv/Notch
Frequency.................................................................................20 to 22.4 kHz (245 Point)
Gain ..................................................................................................±18 dB (0.2 dB Step)
Q.......................................................................................................0.4 to 6.4 (241 Point)
Filter FIL1..............................................................................................HPF/Notch/LFE(Surr ch)
FIL2....................................................................................................................LPF/Notch
Frequency.............................................................. 12 dB/oct 20 to 22.4 kHz (245 Point)
Frequency (LFE FIL).........................................................................24 dB/oct 80/120 Hz
Q (Notch) .......................................................................................... 0.4 to 6.4 (241 Point)
Dynamics
PEAK/RMS ..........................................................................................0 to 1.0 (101 Point)
COMP
THRESHOLD.......................................................................-50 to 0 dB FS (0.25 dB Step)
ATTACK TIME........................................................................0.1 mS to 70 mS (125 Point)
RELEASE TIME....................................................................... 10 mS to 2.6 S (133 Point)
RATIO ..................................................................................................1.0 to ∞ (253 Point)
KNEE...................................................................................................0 to 1.0 (101 Point)
MAKEUP GAIN........................................................................ 0 to 30 dB (0.125 dB Step)
GATE/EXP
THRESHOLD................................................................... -70 to -10 dB FS (0.25 dB Step)
ATTACK TIME........................................................................0.1 mS to 70 mS (125 Point)
RELEASE TIME....................................................................... 70 mS to 2.6 S (125 Point)
RATIO ....................................................................................................1.1 to ∞ (23 Point)
RANGE ...................................................................................... 5 to 80 dB (1.25 dB Step)
HYSTERESIS ..............................................................................0 to 20 dB (0.5 dB Step)
HOLD TIME.............................................................................. 70 mS to 2.6 S (125 Point)

NT110 Instruction Manual (EN)2D-53-0002680A
10
7. Exterior Features
7-1 Rear Panel
7-1-1 AC INPUT
AC Inlet
Connect this terminal to AC power supply. Connect it to AC power supply with the attached AC
cable.
FG Terminal
Connect this terminal to ground the enclosure. It need not be connected if the enclosure is
grounded via the AC inlet.
DC INPUT / NFB
MIC/LINE INPUT
LINE OUT
AES3/METER/SYNC
TB/COMM/SUB/AES3
AC INPUT
IO CARD SLOT
DSP CARD SLOT
POWER SW

NT110 Instruction Manual (EN)2D-53-0002680A
11
7-1-2 DC INPUT/NFB
DC INPUT
Connect this terminal to DC power supply.
NFB
No-fuse breaker for DC power security. If an excessive current flows, the square part at the center
of the NFB pops up to interrupt the current (tripped). You can restore it by pushing the part. If NFB
is tripped, failure may have occurred in the component. Contact our service department or sales
representatives.
* Recommended battery: DUO-C190 (IDX); Lasts for approx. 120 minutes
* If both AC and DC power supplies are connected, NT110 runs on the power input from AC INPUT.
However, a standby current of approx. 250 mA runs on DC INPUT. Be careful of battery
exhaustion when a battery is connected.
7-1-3 POWER SW
AC POWER
POWER ON/OFF switch of AC power supply
DC POWER
POWER ON/OFF switch of DC power supply
* NT110 stores all the settings in internal nonvolatile memory. When the NT110 power is turned on,
the settings just before the last power-off are restored.
[NFB tripped]
When trip is made, the text
string ”TRIP“ appears.
NFB
