Tar River BDR 210 Product information sheet

1
ORIGINAL USER MANUAL
SPARE PARTS CATALOG

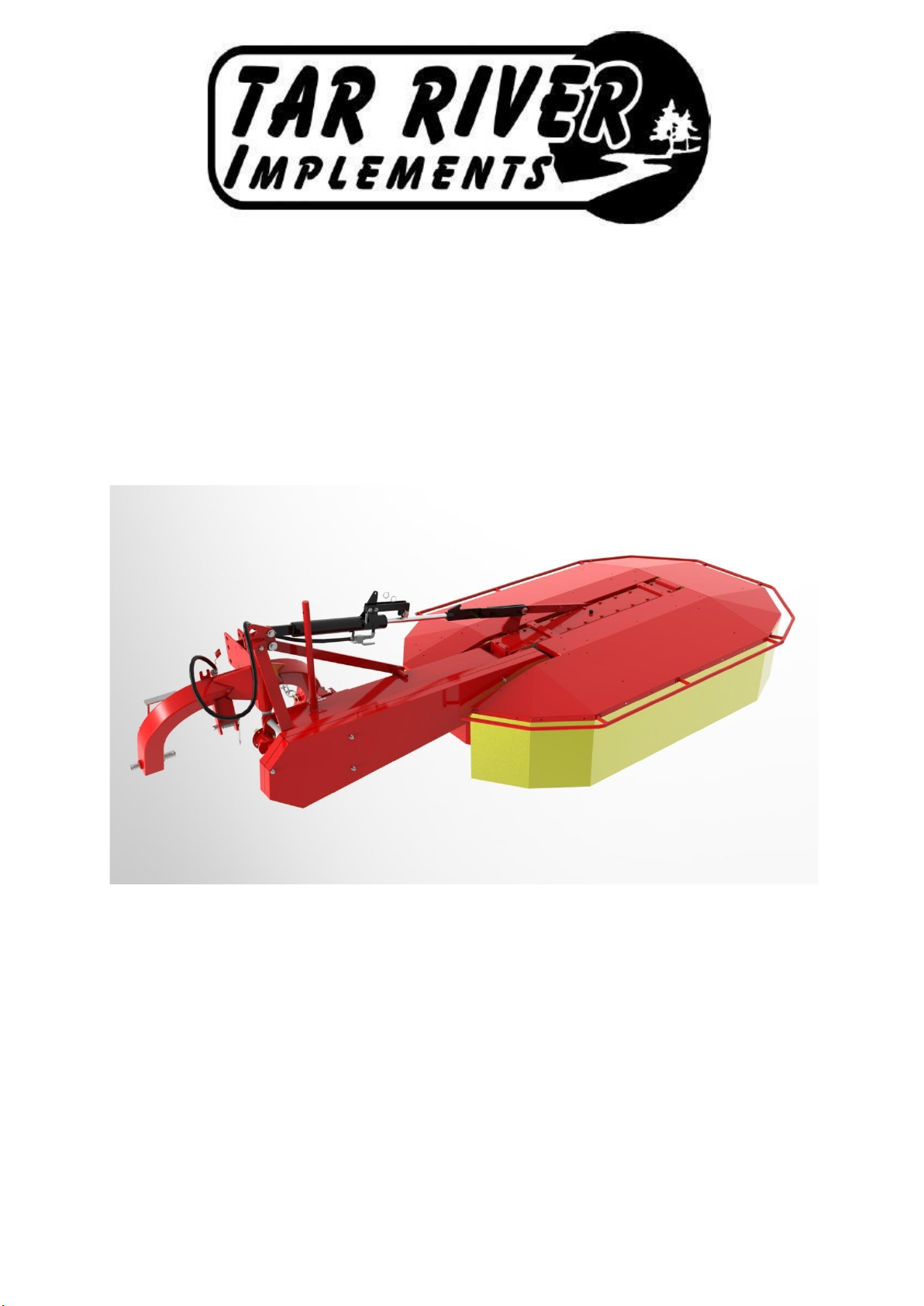

BDR 210 Rotary Mower
Edition 1 Tar River Equipment 2020

2
ATTENTION!
Before using the machine, please thoroughly read this User Manual and observe the safety instructions
contained herein.
The User Manual constitutes an inherent part of the machine!
Keep the User Manual in a safe place, where it should be accessible to the machine operator during an entire
lifespan of the machine.
In the event of its loss or damage, you must acquire a new copy from the machine dealer or distributor.
If you sell or hand over the machine to another user, please attach the User Manual together with the
machine's operating instructions and its Declaration of Conformity.
The distributor reserves the copyrights to this User Manual.
Copying, processing of the User Manual and its parts without the distributors permission is strictly
prohibited.

3
Manufacturer guarantees the efficient operation of the machine, providing it is being used in accordance
with the technical and operating conditions specified in this USER MANUAL.
Any faults revealed during the warranty period will be repaired by the Warranty Service.
Expiration date of the warranty period is specified in the WARRANTY CARD.
Machine parts and components, which are subject to wear in normal operating conditions, are not covered
by the warranty, regardless of the warranty period.
Warranty Service covers only instances such as: mechanical damages not
caused by a fault of the user, production defects, etc.
The group of elements includes, among others, the following parts/components:
•cutting blades,
•protective aprons,
•bearings.
In the event of damages resulting from:
•mechanical destruction caused by a fault of the user or a traffic accident,
•improper use, adjustment and maintenance, use of the machine for a purpose other than intended,
•use of a damaged machine
•repairs conducted by unauthorized persons, improper repairs,
•arbitrary changes and modifications of the machine structure,
the user’s rights to Warranty Service may become invalid.
The user is obliged to immediately report anynoticed
damages of paint coat or spots of corrosion, and order repairs regardless
whether or not the damages are covered by the Warranty. Warranty conditions are specified
in detail in the WARRANTY CARD attached to the purchased machine.
ATTENTION!
You must demand from the dealer to properly fill out the Warranty Card. For example,
if the date of sale or the stamp of a dealer are missing, you risk that your complaints
will not be considered valid
ATTENTION!
After a few hours of the machine operation, check the tension of all V-belts.
If their play is too large, tighten them.

4
Table of Contents
1. Introduction .....................................................................................................................................5
2. Machine identification.....................................................................................................................6
3. Rules of safe operation ....................................................................................................................7
3.1. User safety ...............................................................................................................................7
3.2. Residual risk assessment..........................................................................................................9
3.3. Safety signs on the machine and their meaning....................................................................11
4. Intended use of the machine .........................................................................................................13
5. Equipment and accessories............................................................................................................14
5.1. Basic equipment.....................................................................................................................14
5.2. Technical characteristics........................................................................................................14
6. Machine usage ...............................................................................................................................16
6.1. Mower assembly....................................................................................................................17
6.2. Connecting the mower to a tractor .......................................................................................17
6.3. Transport position..................................................................................................................18
6.4. Working position....................................................................................................................21
6.5. Adjusting the mower..............................................................................................................21
6.6. Operation of the mower ........................................................................................................22
7. Operation and maintenance..........................................................................................................23
7.1. Adjustment of the V-belts tension.........................................................................................24
7.2. Replacing the blades:.............................................................................................................25
7.3. Maintenance after work ........................................................................................................26
7.4. Lubrication .............................................................................................................................27
7.5. End of season servicing..........................................................................................................27
7.6. Possible problems and solutions............................................................................................28
8. Disassembly, utilization and environment protection...................................................................29
9. Spare Parts Catalogue....................................................................................................................30
9.1. How to order spare parts.......................................................................................................30
9.2. General construction –BDR 210 mower................................................................................31
9.2.1. Suspension system..................................................................................................................................32
9.2.1. Middle frame...........................................................................................................................................33
9.2.2. Hydraulic system..................................................................................................................................... 36
9.2.1. Metal cover .............................................................................................................................................38
9.2.2. Main frame.............................................................................................................................................. 39
9.2.1. Cutting unit –working part..................................................................................................................... 41
11. Records of warranty repairs...........................................................................................................55
12. Warranty form ...............................................................................................................................56

5
ATTENTION!
Before first use, read the User Manual
ATTENTION!
This warning symbol alerts about a hazard.
The warning symbol indicates an important hazard information
provided in the User Manual. Please read the information
carefully, follow the instructions and be exceptionally careful.
1. Introduction
Before the first use of the mower, you must thoroughly read and understand this User Manual, and follow
all the instructions contained herein.
This User Manual describes hazards, which may occur when you do not follow the safety precautions when
operating and maintaining the mower. The User Manual lists the safety precautions which must be observed
in order to minimize and to avoid the hazards.
The User Manual also contains the rules for proper use of the mower and explains the required maintenance
procedures.
If you do not understand any information contained herein, please contact directly the distributor.

6
xxxxxx
2. Machine identification
Each mower has its rating plate, containing the most important identification data. The rating plate is located
on the machine in a place, where it is easy to find and read.

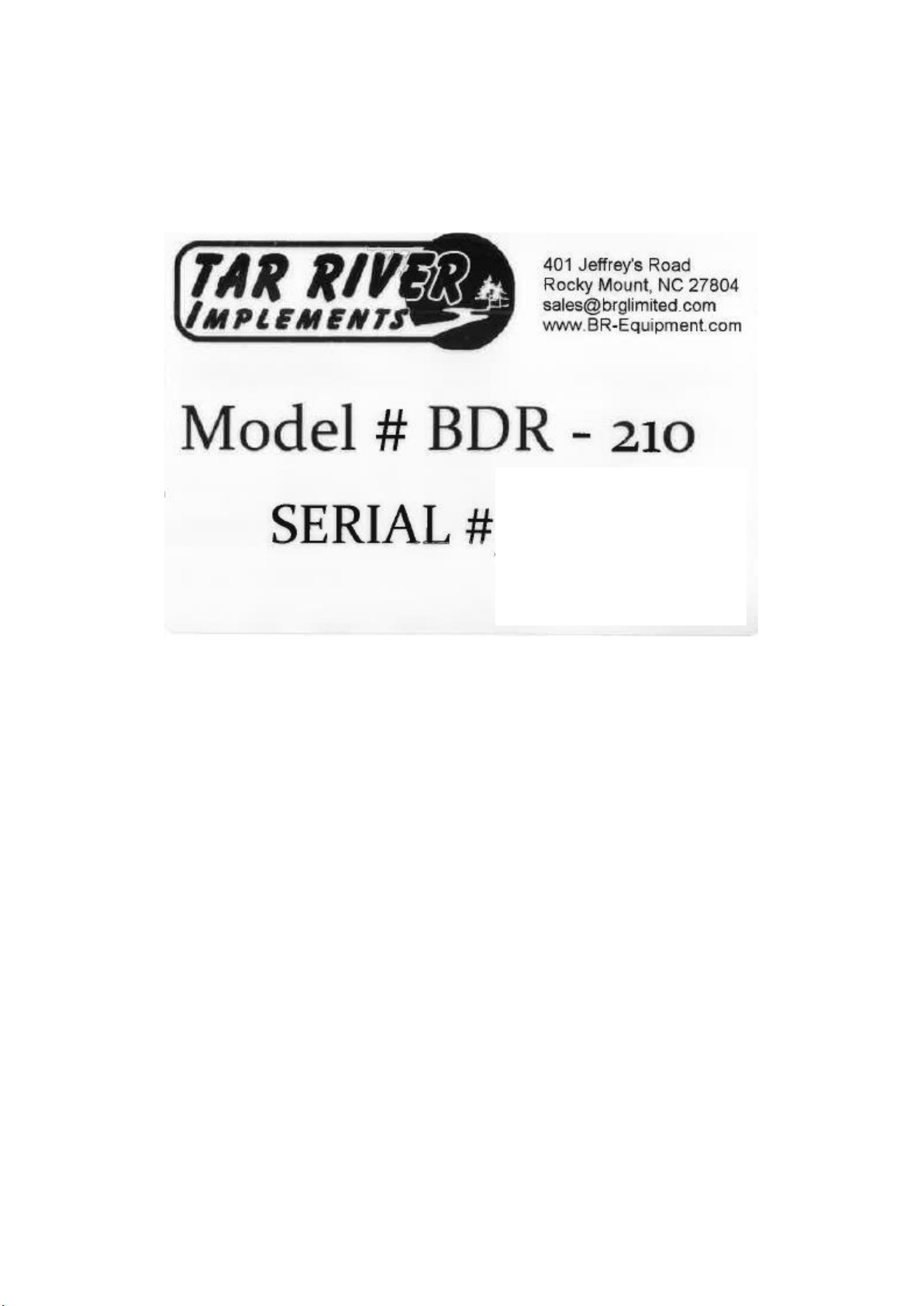

Fig. 1 Rating plate
The rating plate includes:
-full name of distributor
-mower serial number
-mower model

7
3. Rules of safe operation
3.1. User safety
The rotary mower can only be used by adults, who have learned its operation and read this User Manual,
and are properly qualified. Mowers should be handled with all safety precautions, and in particular:
•In addition to the guidelines outlined in this User Manual, observe also the general principles of
occupational health and safety!
•Observe the warning symbols displayed on the machine.
•It is strictly forbidden, that the machine shall be operated by anyone under the influence of alcohol
or other intoxicants.
•Never allow the vehicle servicing the mower to be driven by a person other than the mower operator,
and under no circumstances allow any other persons to be on the vehicle, or on the machine, during
its operation.
•The mower may be operated by a person with the proper authorization to drive the vehicle to which
it is attached, in accordance with the distributors instructions.
•The operating position of the operator, while working with the mower, is the cabin of the vehicle to
which the machine is attached.
•Please note, that there are many elements of the mower that may cause an injury (sharp edges,
protruding parts, etc.). Use extra caution when moving around the critical elements and obligatorily
use the personal protective equipment, such as:
-protective clothing,
-protective gloves,
-protective footwear
•It is forbidden to carry persons or objects on the machine.
•It is forbidden, that the machine should be operated by persons, who are not familiarized with the
User Manual.
•The mower operator should be provided with the first aid kit, containing also instructions for its use.
•When driving a vehicle with the attached, but not working mower, ensure the safe transportation
height of ~ 0,4m.
•Before driving, the mower must be set to the transportation position, and raised with the rear three-
point hitch. When parking, the machine should be lowered.
•Take special care when driving on public roads, and comply with the applicable road traffic
regulations.
•When driving on public roads, it is essential to use the electric outline lighting of the vehicle, check
its efficiency and visibility, and keep it clean. The user is obliged to ensure the visibility of a machine
during its transportation: use the reflective markings and warning signs - may be included as an
option. The transportation speed should be adjusted to the condition of a road surface, it should not,
however, exceed 15 km/h.
•Do not leave the vehicle with the mower on a hillside or on another sloping surface, without securing
the vehicle from rolling down. The mower should be lowered to the ground. Truck wedges should be
placed under the vehicle tires.

8
•The mower must be adjusted to working height, during its attachment to the vehicle. During the
mower operation certain adjustment is possible, it should be done from the inside of vehicle cabin,
and operator should never leave the cabin.
•Any preparations, fitting, dismantling or adjustment can be performed only after the drive has been
switched off, the engine stopped, the vehicle immobilized and when all the moving parts of the
machine have stopped.
•After first hour of operation, check the status of all separable connections, including bolts.
•The mower should be kept on a flat, level, paved surface, out of the reach of strangers and animals.
For stabilizing the mower use the support foot.
•During the fitting and dismantling of mower you should be careful, paying particular attention to the
structural elements used for fixing the mower to a vehicle.
•Before using the mower you must check the condition of mower and of the vehicle it is attached to.
The vehicle and mower unit should be in good mechanical condition. Immediately replace parts
which are worn out or damaged.
•The mower must be equipped with all the safety guards (provided by the manufacturer), preventing
access to any moving parts. The guards must be complete and fully operational.
•Work with the mower without the guards and mudguard is not allowed. Work with the damaged
guards or raised mudguard is forbidden.
•It is also forbidden to lift the mower, while the drives are working and the reels are rotating.
•It is not allowed to control the lever of hydraulic lift from outside of the tractor.
•Before beginning to work with the mower, you should familiarize yourself with the way it operates,
occupational safety rules and recommendations for maintenance and adjustment procedures, by
reading this User Manual.
•Weight of the mower suspended on a vehicle can affect the vehicle’s manoeuvrability. Under these
circumstances you must exercise extreme caution.
•The User Manual should be kept on the machine. When letting the machine to other user, you must
ensure that it is in good mechanical condition, and that the User Manual is also handedover.
•It is prohibited to attach any additional means of transportation to the mower.
•During commissioning, check the machine functions and make the initial adjustments, without a load.
•Assembly protection of the three-point hitch of the mower with pins, should be made only using the
typical secure cotter pins. Using any other break-back devices is prohibited.
•Due to the natural wear, you must control the condition and completeness of the machine cutting
tools, following the instructions laid out in Chapter 7. Operation and maintenance
•On receipt of the mower after its transportation, you must make sure that the machine has not been
damaged and check its mechanical condition.
•It is forbidden to stand under the raised mower, as it may result in being crushed by the machine.
•When adjusting, do not place your fingers and limbs between the structural elements of the machine.
•It is forbidden to leave a tractor’s cabin when the machine is running, and before all the rotating parts
have stopped
•Operator of the vehicle working with a mower, must ensure that no person is approaching the
machine during its operation, and the distance of not less than 50m from the working mower is
always maintained.
•Before switching on a mower’s drive, lower the cutting unit to its working position.

9
•Mowing may be started only after PTO reaches the nominal speed of 540 rpm. It is forbidden to
overload the PTO shaft of the mower, and engage the clutch suddenly.
•When turning, reversing or manoeuvring with the machine, you must ensure that your visibility is
adequate, or get assistance from a properly trained person.
•It is prohibited to perform mowing while reversing the vehicle. When reversing, lift up the machine.
•When connecting the hydraulic lines, make sure that the hydraulic system is not pressurized.
•It is forbidden to stand between the vehicle and the mower, while the vehicle’s engine is running.
•Working on slopes exceeding 10% is not allowed.
•Pay special attention when working on slopes.
•When driving on curves and turning, switch off the PTO drive.
•It is forbidden to operate the machine in close proximity of public squares (parks, schools, etc.) or on
stony grounds, to avoid the danger coming from the thrown out stones and otherobjects.
•Do not allow the PTO working speed to exceed 540 rpm, while driving speed must be adjusted to the
type of work being done.
•Working with damaged or incomplete articulated telescopic shaft is forbidden. And it is strongly
forbidden to work without covers on moving parts.
•The telescopic shaft has marks indicating which end must be connected to the tractor, before work
please make sure that the direction of rotation of the shaft is correct.
•Never leave a vehicle with the engine running. Before leaving the driver's seat (the cabin), lower the
machine to the ground, turn off the engine of the vehicle, remove the ignition key, and apply the
handbrake.
•Make sure that during work, fitting, dismantling or adjustment of the machine, no parts of your work
clothing are unbuttoned or hanging loose. You should keep elements of your clothing away from any
machine parts that are likely to catch them.
•It is advisable to clean and wash the mower in a washing stand equipped with a sewage treatment
feature or a settling tank, to neutralize the waste water.
•The machine should be kept and stored in places protected from unauthorized access of persons and
animals, thus eliminating the risk of accidental injuries, on a flat, hardened surface, under a protective
canopy.
•In the event of failure, immediately switch off the drive transferring power from the vehicle to the
mower.
•When working with the mower, use hearing protection headphones to minimize the exposure to
noise. In addition, it is recommended to close the doors and windows of the vehicle’s cabin.
Failure to observe the above guidelines may present danger for the operator and other persons,
as well as damage the mower.
The user is responsible for any damages caused by the non-compliance to the aboveprinciples.
3.2. Residual risk assessment
Manufacturer has made every effort to ensure that the design of the mower, and its intended use, do not
pose any risk to persons or the environment.
Due to the nature of work being done by the mower and, for example, the inability to completely cover the
machine’s cutting unit, certain risk factors may occur.

10
No.
Hazard
Hazard source (cause)
Hazard protection measures
1
Drive system
overload (physical
weight)
Work in a standing, forced-bent
position, walking, moving items
Reading and understanding the User Manual,
workplace training including lifting standards
for the manual transportation labour, proper
techniques for lifting and carrying weights,
use of another person's assistance, moving
equipment such as jacks, winches
2
Fall on the same
level (tripping,
slipping, etc.)
Uneven terrain, messy
environment - objects lying and
standing around, cables lying
on communication roads,
slippery surfaces
Suitable footwear, level ground, paying
attention, maintaining order, familiarization
with the User Manual
3
Hitting stationary,
protruding parts
of the machine
Machine and its surroundings
Proper positioning of a machine, safe space to
move around, proper organization of work,
paying attention, familiarization with the User
Manual
4
Being hit by
moving objects
Mowed plants, accidentally
removed soil, stones
Paying attention, establishing a danger zone,
prohibiting any traffic near the working
machine, banning persons from standing
within the 50m range from the working
machine, using personal protective
equipment - protective helmet, glasses,
familiarization with the User Manual
5
Sharp, dangerous
edges
Protruding structural elements
of the machine, use of manual
tools
Personal protective measures –protective
gloves, buttoned up work clothes, paying
special attention
6
Belt transmission
systems
Fast moving transmission
pulleys and belts, rotating
articulated telescopic shaft, no
covers on the movable parts
Elimination of moving around, approaching
and regulating the machine, which is running,
paying special attention, familiarization with
the User Manual
7
Weight of the
suspended
standing machine
Improper mounting,
aggregating, wrong setting of
the machine, improper
operation, leaving the
suspended machine on a
tractor
Paying special attention, use of personal
protective equipment - safety footwear,
protective gloves, secure setting of the
machine, help of another person, use of lifting
jacks, davits, familiarization with the User
Manual
8
Microclimate -
changing weather
conditions
Work performed in different
weather conditions
Suitable working clothes, beverages, creams
with sunscreen, proper rest, familiarization
with the User Manual

11
9
Noise
Too high rotational speed of
the machine, damaged, loose,
vibrating parts
Work only with the machine in good
mechanical condition, regular inspections,
proper rotational speed, familiarization with
the User Manual
3.3. Safety signs on the machine and their meaning
1.1 - Switch off the engine and
remove the ignition key before
1.2 - Keep a safe distance from
the machine. Do not allow

12
1.0 - Prior to using the machine,
read the User Manual
beginning any servicing or
maintenance procedures
unauthorized persons within
the range of 50 m from the
machine
1.3 –Do not attempt to perform
any repairs while working
1.4 - Do not ride on platforms and
ladders
1.5 - Do not stand near the
lifting jack connectors, when
controlling the jack
1.6 - Do not open or remove
safety guards, when the engine is
running
1.7 - Keep a safe distance from
power lines
1.8 - Avoid impact of liquids
flowing under pressure. Read the
User Manual and learn about the
operation procedures
1.9 –Caution, loose rotation tools
2.0 - Caution, cutting blades. Do
not approach a working mower
2.1 Caution, V-belts. Keep
away
2.3 - Use protection
suit
2.4 –Use
protective
gloves

13
2.2 –
Warning message about pressure
in the hydraulic system
2.5 –Use hearing
protectors
2.6 –Use
protection
goggles
2.9 Do not exceed the maximum RPM
Table 1 Safety signs on the machine and their meaning
4. Intended use of the machine
The rotary mower is designed for agricultural applications, mowing of the low growing green forage like
grasses, alfalfa, etc., on fields and meadows with flat surfaces.
It can be used in fields and meadows, which contain no stones, are flat or slightly undulating, with the slope
of up to 10 °.
The mower is a machine suspended on the three-point hitch system of the category I and II tractor. The
working elements are two rotating discs, fitted with blades. This unit is driven from power transmission shaft,
through articulated telescopic shaft and belt transmission to bevel gears. The bevel gears are embedded on
the drive shafts, which drive the discs.
Complying with the requirements related to the use of the machine, its operation and repairs, strictly
according to the manufacturer's guidelines, is the precondition of the use of the machine as intended. The
machine should be used, operated and repaired only by persons familiar with its specific characteristics, who
have learnt the rules of conduct prescribed by the occupational health and safety regulations.

14
The distributor offers a wide range of agricultural machinery. It can also provide professional advice in terms
of choosing the right equipment for your needs.
Any doubts concerning the machine’s intended use should be resolved by contacting its
distributor. Selection of the appropriate product and knowing the range of its intended use will
contribute to the occupational safety.
Using the machine for any other purpose shall be considered contrary to the intended use.
5. Equipment and accessories
5.1. Basic equipment
Basic equipment of the mower consists of:
•User Manual together with Spare Parts Catalogue and Warranty Card - 1pc.
•Special spanner - 1pc.
•Set of blades - for number see Table No. 2.
•Set of spare blades
•For Eco CUT 210 –PTO shaft 460Nm L-860 and hydraulic cylinder -1pc.
Basic equipment of the mower does not include warning signs with lights, slow moving vehicle triangle, and
articulated telescopic shaft. The above items can be purchased additionally from the distributor or at the
machines’ point of sale.
5.2. Technical characteristics
The overall construction of the mower is shown in the following figure.

15

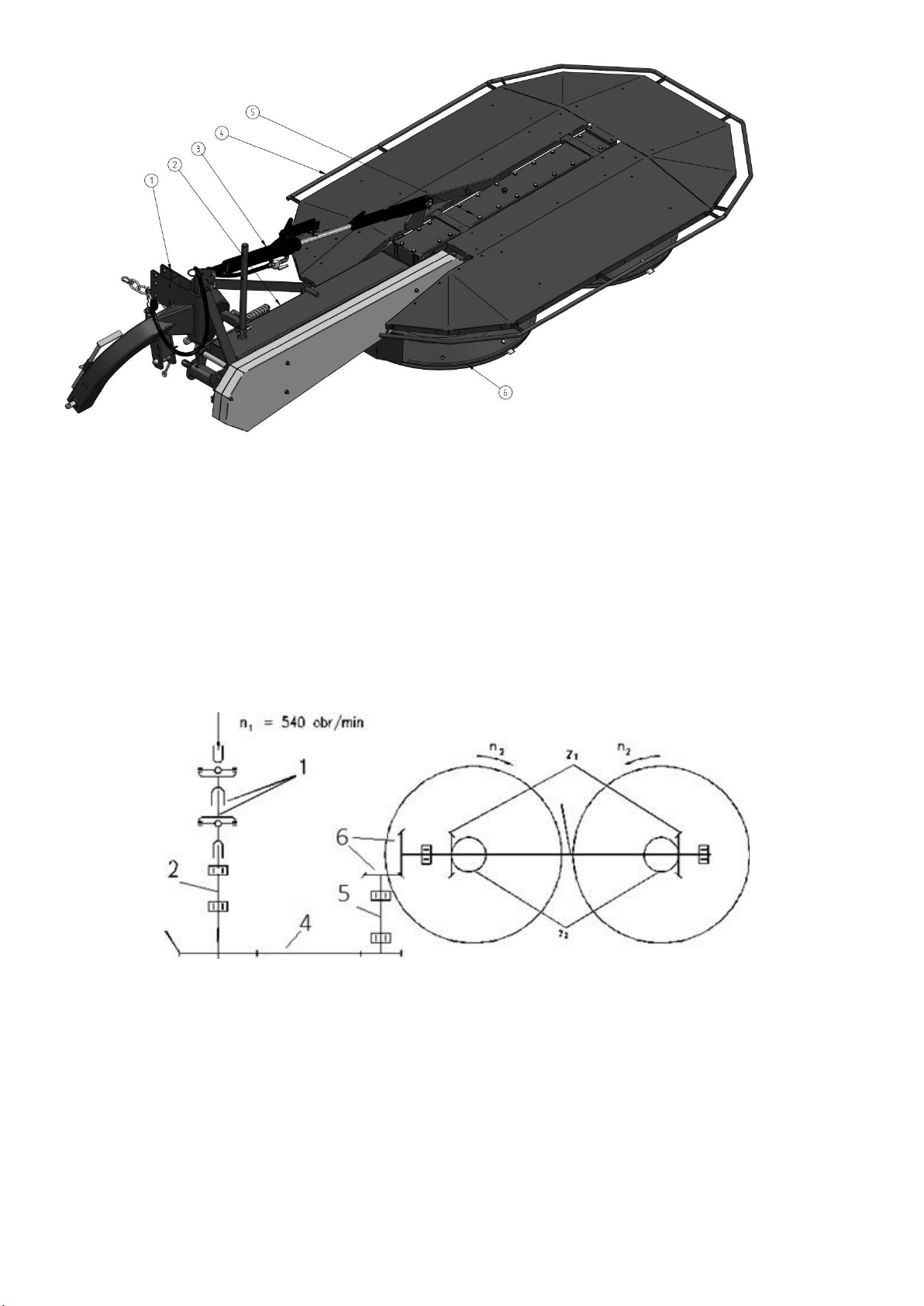

Figure 2 Overall machine construction: 1 - suspension frame; 2 –main chassis; 3 –hydraulic cylinder (depending on the model);
4 –cutting unit; 5 –cover assembly; 6 –working section of cutting unit;
7 –support foot.
Suspension system frame is used to connect the mower to a tractor. Through centre frame, the suspension
system frame is connected to the complete working unit with covers.
The working unit consists of two working drums, with cutting blades rotationally embedded in the lower part
of the drums. Diagram of the drive system is shown in Figure 3.
Figure 3 Eco CUT 210 drive system diagram: 1 –articulated telescopic shaft with one-way clutch; 2 –drive head shaft; 4 –V-belt
transmission; 5 –main frame shaft; 6 –bevel gear; n1 –rotational speed of tractors PTO; n2 –rotational speed of drums (values
given in Table 2); z1 –large bevel gear; z2 –small bevel gear.
The drums are driven by the tractors PTO shaft. Together with the blades, they rotate in opposite directions,
cutting plants and forming green forage in a swath. The one-way clutch allows the drums to rotate freely
after the engine is shut off, and protects the driving elements from damage.
Technical-operational data for mowers are provided in Table 2 (below).

16
UoM
Mower model
Eco CUT
210
No.
Type
2.10m
Symbol
Z-042/3
1
Type of mower
-
Rotary suspended
2
Mowing width
[m]
2.10
3
Power requirement
[kW]
70
4
Number of cutting drums
[pcs.]
2
5
Number of blades
[pcs.]
8
6
Standard cutting height
[mm]
40
7
Low cutting height
[mm]
35
8
Rotational speed of working drums
[rpm]
1545
9
Rotational speed of tractor’s PTO
[rpm]
540
10
Recommended PTO
[cat.]
IV
[Nm]
460**
11
Work efficiency
[ha/h]
Up to 2,5
12
Working speed
(km/h)
8
13
Transportation speed
[km/h]
15
14
Transportation clearance
[m]
0.4
Overall dimensions in transportation position (with covers assembled, vertical position)**
Model
[mm]
210
15
Length
[mm]
2460
16
Width
[mm]
1750
17
Height
[mm]
3060
Overall dimensions in working position (with shield covers assembly)
18
Length
mm
1750
19
Width
mm
4220
20
Height
mm
1090
21
Weight
kg
562
22
Nominal pressure in the hydraulic
system / for models with hydraulic
cylinder
MPa
16
N/A
*with one-way clutch
** The overall dimensions may differ when aggregated with a particular tractor
Table 2 Mowers’ technical-operational data
6. Machine usage
The manufacturer declares that the machine is fully functional. It has been inspected in accordance with the
quality control procedures and approved for use. However, this does not relieve the user from the obligation
to inspect the machine after its delivery.
Before every time the machine is used, its mechanical condition needs to be checked, and
especially the condition of cutting unit, drive transmission system, hydraulic system and guarding
shields.

17
6.1. Mower assembly
The distributor delivers a complete mower with a cover of the cutting unit. Installation of the cutting unit
cover must be done by the user or dealer.
Working without the cutting unit cover, or with the cover damaged or raised, poses a danger
for an operator and for environment –Strictly prohibited.
Instructions for the cover unit installation are provided in the paragraph “13.2.8 Cover unit”.
6.2. Connecting the mower to a tractor
Make sure that the connecting parts of both, the vehicle and the machine, are suitably adjusted
to each other.
In case of any doubt, always ask the vehicle or the machine distributor.
The mower should be connected with the tractor by means of a three-point hitch suspension
system. During connection, the mower should be in transportation position.

18

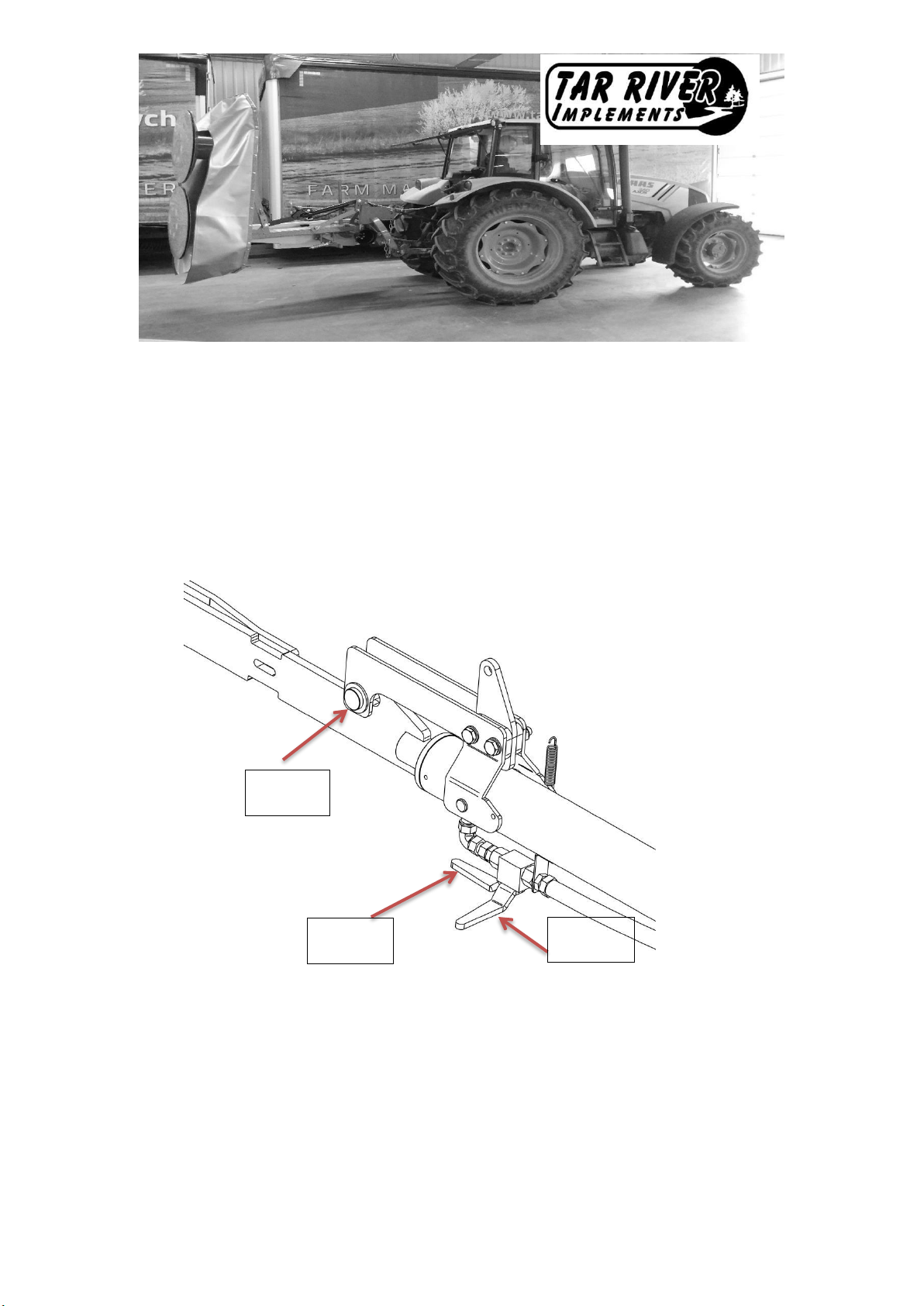

Figure 3 Aggregating –connecting the mower
In order to connect the mower to the tractor:
1. On the pins (Fig. 8, item1) of the suspension frame, fit the tractor’s lower connectors (first left, then
right), and secure them with linchpins.
2. Insert the top connector’s tip between the yoke plates, using the holes (Fig. 8, item 2), thenconnect
with a pin and secure with a linchpin.
3. Raise the mower to take the weight off the support foot.
4. Raise the support foot and secure it with a cotter pin.
5. Connect the chain to the transportation hitch or its bracket.
Adjust length of the articulated telescopic shaft to the tractor, according to the shaft’s instructions.
6.3. Transport position
For the mowers transportation, it should be set in the transportation position.
Articulated telescopic shaft must be detached from both, the tractor and the mower.

19
For mower models with hydraulic cylinder 2.10m:

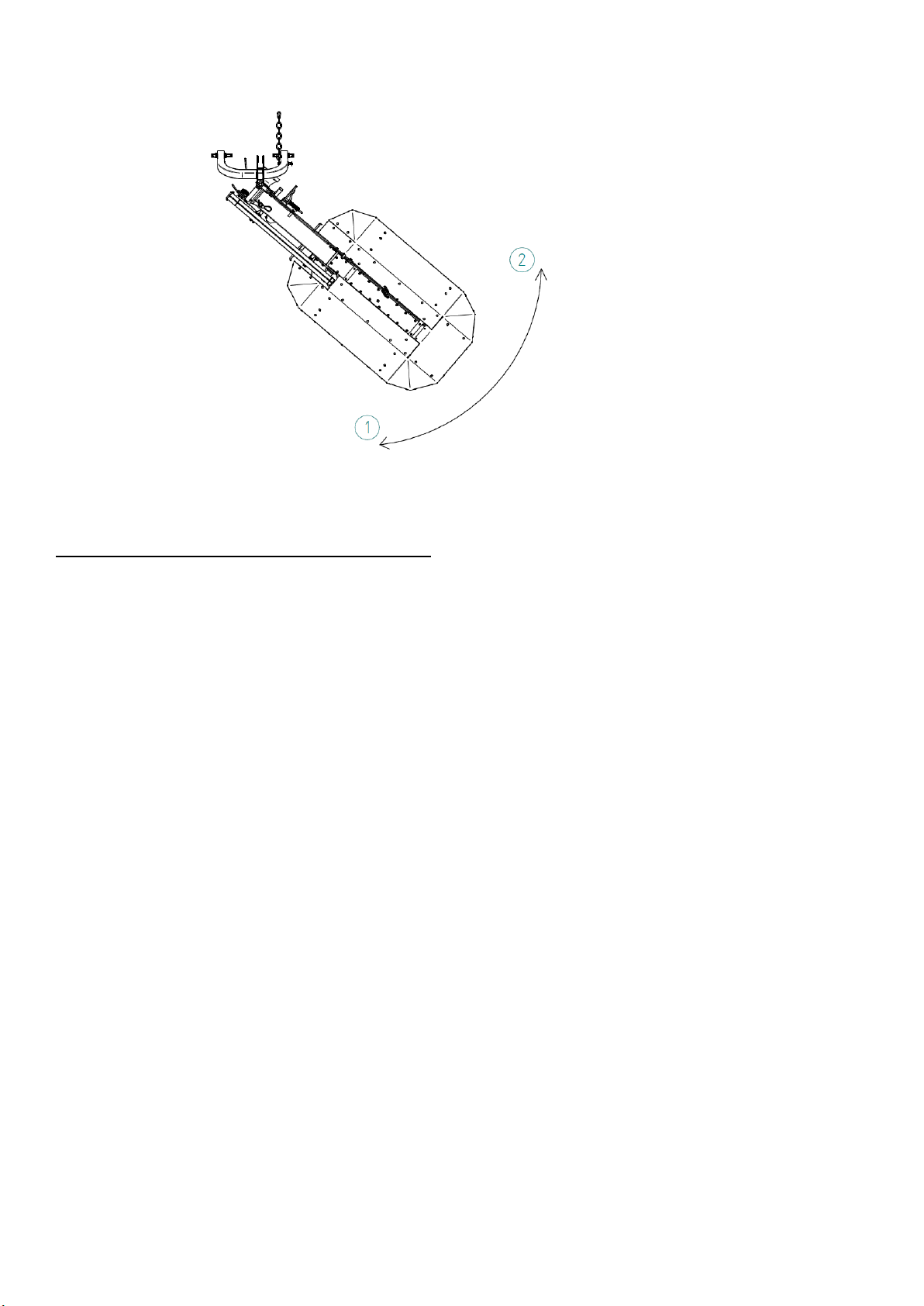

1) transport position 2) working
position
1. Park the tractor and mower on a flat, even surface,
2. Remove the securing element from the upper pivot of the suspension frame,
3. Raise the mower with a hydraulic cylinder of the tractor, so that the sliding discs do not
rest on the ground,
4. Raise the support foot to the upper position, and secure with a cotter pin,
5. Manually place the mower in transportation position, so the interlock pin is inserted into
the hole in clevis (rope must be loose) (Fig. 11A),
6. Bring the cylinder to transportation position, until the cylinder lock gets triggered (Fig.
13A). Transport position is shown in the Figure 13.

20
Pos. 1
Pos. A
Pos. B
Figure 4 Proper transport position for 2.10m mowers
Closing the cylinder for Eco CUT 210 mower for transport is shown in the figure below.
Lock pin - Pos. 1 should lock into the cylinder handle (lower the mower until the pin is completely locked).
The ball valve lever should be moved to the closed position - Pos. A.
However, for operation, the valve lever should be moved to the open position - Pos. B, and open the lock
with the cable until the lock is released.
