Technical pro Lz10k User manual

TECHNICAL PRO INC

LZ10K

PROFESSIONAL POWER AMPLIFIER

WWW.TPRO.COM

Table of Contents

page2

1 Welcome .................................................................................... 3

2 Setup ........................................................................................... 4

2.1 Unpack YourAmplifier .................................................................

3 Operation 9

.....................................................................................

2.2 Install YourAmplifier ................................................................

2.3 Ensure Proper Cooling ...............................................................

2.4 Choose Input Wire andConnectors .....................................

2.5 Choose Output Wire andConnectors ....................................

2.6 Wiring YourSystem ....................................................................

2.6.1 Stereo Mode ....................................................................

2.6.2 How to Parallel theInputs ..........................................

2.6.3 Bridge-Mono Mode ........................................................

4 Warranty 10

....................................................................................

L - SERIES 2U Professional Amplifier

Page3

TechnicalPro’s L- power

equipment

L-

so they can

be used correctly.

Series amplifiers provide

professional audio amplification fora wide range

of application These amplifiers featurefront panel

controls for easysetup and use.

Modern power amplifiersare sophisticated pieces of

capable of producingextremely high power

levels.

In addition, Series amplifiers includea number of

features which requiresome explanation

Please take thetime to studythis manual sothat you

can obtain thebest possible servicefrom your amplifier.

Dimensions

19”w x 3.5”h x 14.5”d

10,000 Watts

Peak Power

ITEM

LZ10K

L - SERIES 2U Professional Amplifier

1 Welcome

Page4

2.1 Unpack Your Amplifier

Please unpack and inspect your amplifier for

any damage that may have occurred during

transit. If damage is found, notify the transpor-

tation company immediately. Only you can ini-

tiate a claim for shipping damage.

We also recommend that you save all packing

materials so you will have them if you ever

need to transport the unit. Never ship the

unit without the factory packing material.

You will need:

*Input wiring cables (not supplied)

*Output wiring cables (not supplied)

Rack and rack-mounting hardware for mounting

amplifier .

WARNING: Before you start to set up

your amplifier, make sure you read and

observe the Important Safety Instructions

found at the beginning of this manual.

2.2 Install Your Amplifier

CAUTION: Before you begin, make sure

your amplifier is disconnected from the

power source, with the power switch in

the off position and all level controls

turned completely down

(counterclockwise).

Use a standard 19-inch (482.6 mm) equipment

rack. See Figure 2.2 for amplifier dimensions.

You may also stack amps without using a

cabinet.

NOTE: When transporting, amplifiers should

be supported at both front and back.

2.3 Ensure Proper Cooling

When using an equipment rack, mount units

directly on top of each other. Close any open

spaces in rack with blank panels. DO NOT

block front or rear air vents. Be sure that cooler

air can flow through the rack either from the

front of back of the rack.

Figure 2.2 L-Series Dimensions

L - SERIES 2U Professional Amplifier

19”

3.5”

2 Setup

Page5

Figure 2.4.1 Balanced Input

Connector wiring

2.4 Choose Input Wire

and Connectors

You have two choices of input connectors:

1/4-inch (6.35-mm) phone, 3-pin XLR.

You can also use either balanced or

unbalanced wiring.

Figure 2.4.1 shows balanced connector pin

assignments for XLR and phone. Figure 2.4.2

shows unbalanced connector pin assignments

for XLR and phone.

Both channels should be wired

using a common center terminal for ground

connection.

NOTE: Custom wiring should only be

performed by qualified personnel.

Figure 2.4.2 Unbalanced Input

Connector wiring

L - SERIES 2U Professional Amplifier

2 Setup

Page6

2.5 Choose OutputWire and Connectors

TechnicalPro recommends usingpre-built or professionallywired, high-quality,two- or four-

conductor, heavygauge speaker wires.Figure 2.5.1 showshow a userwould connect theL-

Series amplifier toa speaker usingthe Speakon™ connector.

Figure 2.5.2 showsanother option usershave when connectingthe L-Series amplifierto a

speaker. Usingbanana plugs, spadeplugs or simplybare wires, auser can connecttwo

speakers to theamplifier.

Using the guidelinesbelow, selectthe appropriate sizeof speaker wiresbased on the

distance from amplifierto speaker.

Distance Wire Size

up to 25ft. 16 gauge

26-40 ft. 14gauge

41-60 ft. 12gauge

61-100 ft. 10gauge

101-150 ft. 8gauge

151-250 ft. 6gauge

CAUTION: Never useunshielded cable foroutput wiring.

Figure 2.5.1 ConnectorSpeakon™

Figure 2.5.2 Banana Plugs

2 Setup

L - SERIES 2U Professional Amplifier

Page7

2.6 Wire Your System

2.6.1 Stereo Mode

Make sure the amplifier is turnedoff and the level controls

are turned down before you wirethe system. Make sure the

stereo/bridge switch is set to stereo.

Typical input and outputwiring is shown in Figure 2.6.1.

INPUTS: Connect the input wiring for eachdesired channel

using either the XLR or 1/4"jacks. Never used both the XLR

and 1/4" jacks simultaneously on asingle channel.

OUTPUTS: Maintain proper polarity (+/-) on outputconnectors.

In Stereo mode the banana plugsshould be connected

vertically in the CH.1 jacks (onewire in the positive and

one in the negative jack). Besure to maintain the positive

/negative polarity when connecting your amplifierto the

speaker. Positive terminal onthe amplifier should be connected

to a positive terminal on thespeaker. The sameshould be done

for the negative terminals.

2.6.2 How to Parallel the Inputs

There are two ways to feedthe same signal to each

amplifier channel:

1. Buy a "Y" cable. Plugthe female end into your signalcable,

and plug the split male endsinto both amplifier inputs.

2. Feed your signal to theChannel-1 input screw terminals.

Using a mic cable or phone-to-phonecable, connect Channel-1

combo jack to Channel-2 combo jack.

See the next page for Bridge-Monowiring.

Figure 2.6 .1 Typical System Wiring, Stereo Mode

STEREOSTEREO

BRIDGEBRIDGE

MONOMONO

L - SERIES 2U Professional Amplifier

2 Setup

CH1 CH2 CH1 CH2

MIXER SPEAKER

MODEL: LZ10K

www.tpro.com

STEREOSTEREO

BRIDGEBRIDGE

MONOMONO

Page8

2.6.3 Bridge-Mono Mode

Make sure the amplifier is turned off and the level

controls are turned down before you wire the system.

Make sure the stereo/bridge switch is set to bridge.

Typical input and output wiring is shown in Figure 2.6.3.

INPUTS: Connect input wiring to CH.1. Never used

both the XLR and 1/4" jacks simultaneously on a

single channel.

OUTPUTS: Connect the speaker across the positive

(+) output terminals when amplifier is being operated

in Bridge-Mono mode. Refer to Section 2.5 for output

connector pin assignments. Make sure the Mode switch

is set to the "Bridge Mono" position when operating

in Bridge-Mono mode.

NOTE: Turn down the Channel 2 level control when

operating the channel pair in Bridge-Mono mode,

as the Channel 1 level control works both channels.

Figure 2.6 .3 Typical System Wiring, Bridge-Mono Mode

2 Setup

L - SERIES 2U Professional Amplifier

CH1

MIXER SPEAKER

MODEL: LZ10K

www.tpro.com

Page9

L - SERIES 2U Professional Amplifier

3 Operation

Power

Indicator

Output Lock

LCD Display Indicating

Level, Clip, Protection

& Temperature of Both Channel

Power Switch

Ch1 Level Control Signal

Indicator Protect

Indicator Clip

Indicator Ch2 Level Control

Cooling Fan XLR Input 1/ 4 ”Input

LimiterStero/Bridge Switch

Lift/Ground

Switch

SPEAKON Output

Banana Post Output AC Power

Power Select

MODEL: LZ10K

www.tpro.com

LIMITED WARRANTY AND SERVICE

Technical Pro warrantees this product to be free from defective materials or factory workmanship and will replace or repair this unit or

any part thereof, except batteries, if if proves to be defective in normal use or service within 90 days from date of original purchase at our

discretion. The limited warranty is conditioned upon proper use of this product by its owner. Items not covered under this limited warranty

include; (a) defects or damage from abuse, accident, misuse, modifications, neglect, tampering, unusual electrical or physical stress, or cosmetic

damage. (b) scuffs or scratches from normal use. (c) units with illegible serial numbers. (d) defects or damage due to improper adjustments,

installations, maintenance service or testing. Technical Pro may repair or replace any defective unit or part at their own discretion. Technical Pro

may use new, repaired, or remanufactured parts to repair any unit. If Technical Pro determines that any items is not covered by this limited

warranty for any reason the purchaser will be responsible for parts, shipping and all labor charges associated with the repair or return of this unit.

To be eligible for service while your unit is under warranty you must return this product to Technical Pro’s Return Department. The unit must be

sent back in its original packaging materials and with an additional layer of packaging to ensure the safety of this unit during transit. Technical

Pro will not accept COD packages and no call tags will be issued for returned merchandise. A sales receipt, invoice or proof of purchase must be

sent with the unit along with the seller’s name and address in order to verify is the unit is still covered under Technical Pro’s limited warranty. A

brief explanation of the unit’s defect must also accompany the unit in addition to the owner’s return shipping address. Be sure to include a check

or money order in the amount of $39.99 to cover the costs handling and return postage of this unit. This warranty gives you specific legal rights,

andyou may also have other rights, whichvaries from state to state. There are no other express warranties other than those stated herein. .

Technical Pro’s liability for any defective product is limited to the repair or replacement of the product at our option. Technical Pro shall

not be liable for: 1. Damage to other property caused by any defects in Technical Pro components. Damages based upon inconvenience,

loss of use of the product, loss of profit, injury or 2. Any other damages, whether incidental, consequential, indirect or otherwise. Some

states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of on incidental or

Send all warranty items to: Technical Pro Return Department, 9 Kilmer Ct. Edison, N.J. 08817

Name:_______________________________ Address:________________________________________

Model:_____________ Serial Number:____________________ Purchase Date:__________________

Explanation of Defect:________________________________________________________________

_______________________________________________________________________________________

Exclusion on Damages:

Table of contents

Popular Power Amplifier manuals by other brands

Hill Audio

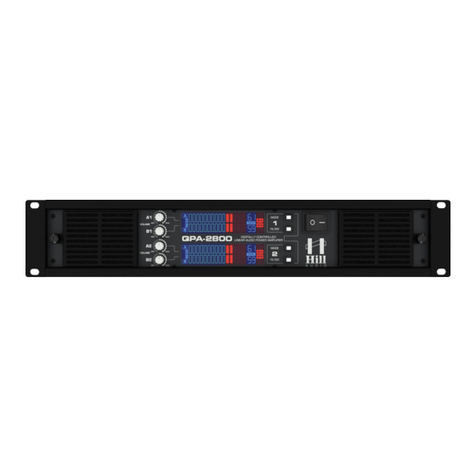

Hill Audio QPA-2800 user manual
