Telstar CTV-2618 User manual

TELSTAR
SERVICE MANUAL
1. Caution……………………………………………………………2
2. Specification………………………………………………………6
3. BOM List…………………………………………………………9
4. Alignment Procedure………………………………………….…36
5. Block Diagram……………………………………………………40
6. Schematic Diagram………………………………………………41
7. PCB Layout………….……………………………………………42
8. Exploded ViewDiagram……………………….............................43
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product.
CTV-2618

WARNING: TOREDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the product s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
RISKRISK OFOF ELECTRIELECTRICC
SHOCKSHOCK DODO NOTNOT OPEN.OPEN.
2
dangerous

3
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance.Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Save these instructions for later use.Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
IMPORTANT SAFETY INSTRUCTIONS

4
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

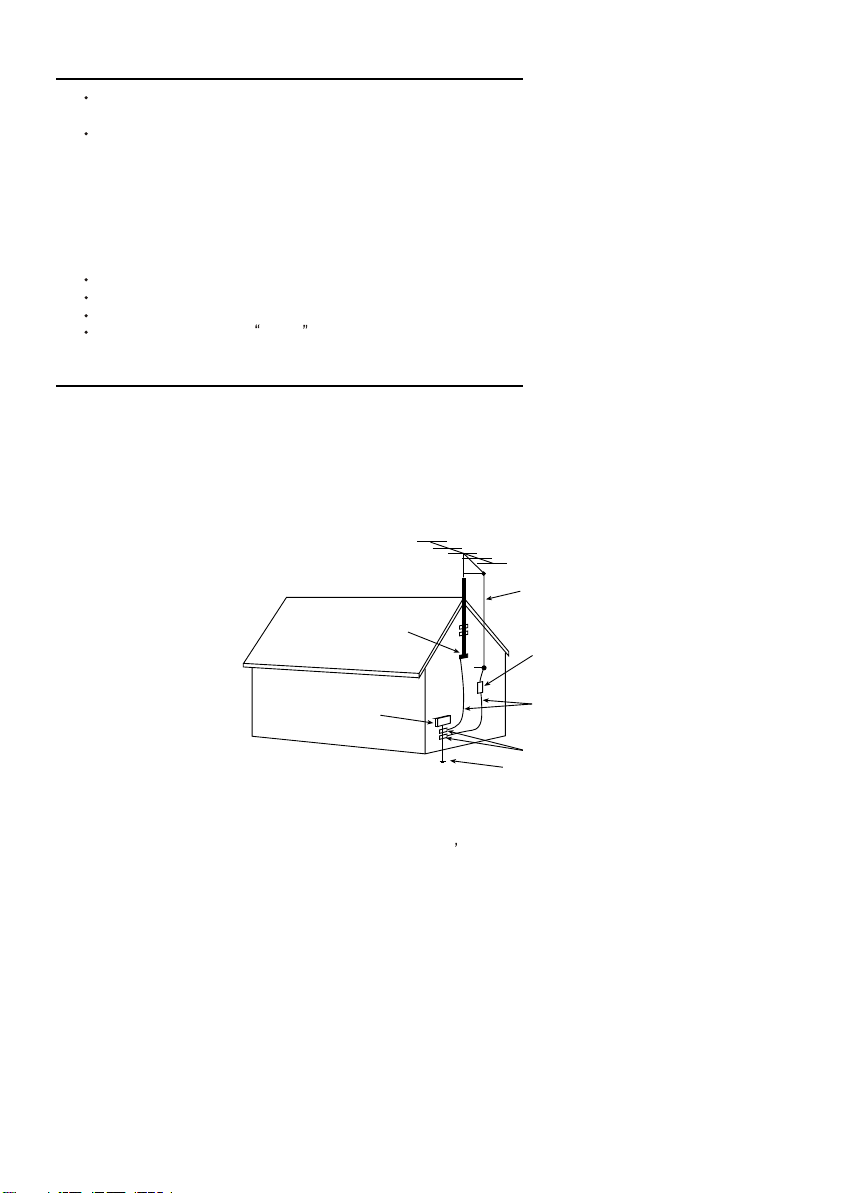

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25.When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
off

PFS2 FORMAT-1 Report
Date:
ProductView......:
Re
p
ort b
y
............:
Specs / Products
SRF NO./ODF NO. 43023803
MasterData
Customer Id MONGE IMPORTDORA,
Version 0.1
Status WG Archived
Brand TELSTAR
EAN
UPC \
Rece
p
tion
+Tunin
g
-
p
resets/channels 181, Full-Cable
+Tunin
g
- technolo
gy
PLL
+Tunin
g
- Indication ---
+Fre
q
Bands Full-Cable
+Channels
+IF Fre
q
+TV Systems Off Air PAL MN NTSC M (3.58 -
4.5)
+Add S
y
stems Ext In ---
+TV S
y
stems Multi PAL NTSC
+Sound S
y
stems MPX
Picture - Processin
g
+Scan Standard
+Scan Modes 4:3
+Wide Screen Switchin
g
+Combfilter X
+Picture Control 4 Picture Modes,
Brightness, Color, Contrast,
Tint, Sharpness Cont Var
+Pict Enhancement Blue Mute
+Pict Noise Reduction ---
Picture - Dis
p
la
y
+Dis
p
la
y
T
ype
DV - CRT - FSQ
+Screen Format 4:3
+Size
(
Visual
)
" - size/vis. cm 25"
+Deflection S
y
stem
(
CRT onl
y)
+Tube Technolo
gy
(
CRT onl
y)
Black Matrix, Iron
+CRT Defl
+CRT Gun Stand Gun
+CRT Ma
g
n field Neutral
+Resolution
+Coatin
g
(
onl
y
for D.V. sets
)
+White Point
Sound
+Leaflet Power
+RMS Power Intern
+RMS Power Extern
+Surround Sound
+Sound Features
+Sound Control
Sound - S
p
eakers
+S
p
eaker confi
g
uration 2
+S
p
eakers used Normal Range
+S
p
eaker Size
User Interface
+Interface Name M34
+Voice Control
+Menu Cursor Control
+Menu Colours
+Menu Lan
g
ua
g
es English, Portuguese, Spain
+S
p
ecial Features
+O
p
erational Features
+PP Features
+Tuning/Install Features Auto Channel Prog,
Channel Edit, Factory
Mode, Language Selection,
Service Mode
+Clock/Timer Functions Alarm Timer, Crystal Clock,
Sleep timer
+Local Controls Front
Product:@
CTV-2618
2003-10-24 14:46 2518PFS 1 of 3

Date:
ProductView......:
Re
p
ort b
y
............:
Specs / Products Product:@
CTV-2618
+Local Controls To
p
+Indicators - screen
+Indicators - front
+Numb of Loc Cont
(
incl Mains
)
7
+Number of Ind.
(
incl Mains
)
+Local Controls (Old) Channel +-, Tact Switch,
Vol +-, TV/AV, MENU
Remote Control
+Remote Control - sco
p
eTV
+Remote Control - t
yp
eStandard
+Remote Control - t
yp
en
r
E
+Remote Control - features
Connectors Rea
r
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS
+Scart CVBS+Y/C
+Com
p
onent In
(
Y/U/V
)
Cinch
+In Y/C+Cinch
(
CVBS+St
)
+In Y/C+Cinch
(
CVBS+Mo
)
+In Y/C+Cinch
(
St
)
+In BNC
(
CVBS
)
+In Cinch
(
CVBS+St
)
+In Cinch
(
CVBS+Mo
)
+Out Cinch
(
CVBS+St
)
X
+Out Cinch
(
CVBS+Mo
)
X
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolb
y
Surround
+Di
g
Audio Out
+Louds
p
eakers
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in 75 Ohms (F type)
Guide + IR Blaster Jack
Connectors Fron
t
+In Cinch
(
CVBS + St
)
+In Cinch
(
CVBS+Mo
)
+Head
p
hone Out
Connectors Side
+In Y/C + Cinch
(
CVBS+St + Mo
)
X
+In Y/C + Cinch Stereo
+In Cinch
(
CVBS + St
)
+IN Cinch
(
CVBS + Mo
)
+Head
p
hone Out
Connectors To
p
Connectors Mechanical
St
y
lin
g
+Cabinet Name 2158
+Confi
g
uration Symm
+Gra
p
hics/Lo
g
o's
+Cabinet Colour and Finish
+Mechanics
+S
p
eaker Visibilit
y
Standard
General
+Se
g
ment Standard 4:3
+Chassis M34
+Software Deliver
y
Mode
+Software Version
+Mains Volta
g
e110-240V
+Mains Fre
q
uenc
y
50/60Hz
+T
yp
e Mains Cord
Power Consum
p
tion
(
P
)
TV in On
Power Consum
p
tion SB in Watts Less than 6W
Power Consum
p
tion Semi SB in W
+Power in "ON" for
+Power in Standb
y
for
+Power in "OFF" for
Wei
g
ht
(
P
)
TV
(
incl. Packa
g
in
g)
Wei
g
ht
(
P
)
TV
(
excl. Packa
g
e
)
2003-10-24 14:46 2518PFS 2 of 3

Date:
ProductView......:
Re
p
ort b
y
............:
Specs / Products Product:@
CTV-2618
Wei
g
ht AVUnit excl Packa
g
in
g
+INDICATION on BACKCOVE
R
+Channel
Final E
q
ui
p
ment
+Packa
g
in
g
- methods
+Documents and manuals
+Lan
g
ua
g
es DFU
+Cables Su
pp
lied
+Antenna Su
pp
lied
+Stand Su
pp
lied
+Aux E
q
ui
p
m Su
pp
lied
Packa
g
in
g
- width cm
Packa
g
in
g
- hei
g
ht cm
Packa
g
in
g
- de
p
th cm
Miscellaneous
+EAN Indication
+A
pp
robation
+Tests
+Local Inte
g
ration
V
arious Perf. Param.
+Service Call-Rate
PIP/POP
+T
ype
No PIP/POP
+Features n/a
Di
g
ital Rece
p
tion
+Transmission
Built-in Data S
y
stem
+Text Standard
+
(
Tele
)
text Features
+Nbr bck
g
rnd
p
a
g
e / Mem Size
+Text Technolo
gy
+Di
g
ital Data handlin
g
+Pro
g
ram Guide
Built-in Clock/Timer
+T
ype
+Features
Built-in Radio
+T
ype
Built-in PC dis
p
la
y
+PC S
y
nch
+PC Control
Built-in DVD drive
+T
yp
e of Medium
+T
yp
e of Dec
k
Phased Out Items
+Tuner/Frontend
+Sensitivit
y
+CRT EHT
+Li
g
htnin
g
Protection
+Accoun
t
+XX
(
Radio Antenna in
)
+Non Volatile Memor
y
+In Y/C + Cinch
(
CVBS+Mo
)
Version of deck
2003-10-24 14:46 2518PFS 3 of 3

Item No. Description Quantity Req. Designator Remarks
08-02518M-AVY ASS'Y - SIDE AV BD 1
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q962
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q963
11-SK2541-0BX FET 2SK2541(N-CHANNEL) 1 Q961
13-000040-66P IC 4066 (ANALOG SW.) 1 IC951
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R952
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R953
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R954
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R955
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R964
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R963
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R965
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R967
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R956
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R957
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R958
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R966
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R959
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R951
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R961
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R962
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C962
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L961
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J953
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J956
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J955
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J954
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J952
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J951
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J957
46-39136H-07X 7P 2468#24/1185#26 550 TJC3-7Y/SCN-7Y 1 P902 FOR M.BD P901
47-RCA041-XX0 JACK RCA 3PH H=8MM YL WH RD/SW 1 P951
47-SVI002-XX0 Y/C SOCKET VERTICAL TYPE 1 P961
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C963
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C951
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C954
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C955
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C961
40-2518SM-SIB P.C.B. SIDE AV BD 1
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C964
08-02518M-FCY ASS'Y - FRONT CABINET 1
9

Item No. Description Quantity Req. Designator Remarks
02-GND025-XX0 ASS"Y - CRT GND WIRE&HOUSE 1
36-DEG250-BX1 DEGAUSSING COIL 2730mm 1
42-81308F-XX0 SPEAKER (76MMX127MM) 8 0HM 8W 1 SP601
42-81308F-XX0 SPEAKER (76MMX127MM) 8 0HM 8W 1 SP602
44-25OFLN-FD1A CRT 64SX502Y22-DC02 (ASCH) 1 CRT01
46-14026H-02X HS 2P 2468#22 570mm S11-2Y/7mm 1 P601H FOR M. BD P601
46-27580H-02X HS 2P22 600/7 TJC3-2Y 1 P602H FOR M. BD P602
46-27688H-04X HS 4P A/B 400/13 RBGW TJC1/4Y 1 P411H FOR D.Y COIL
54-113970-0U0 PVC TUBE #5 L=ROLL 0.32 FOR SPK CONNECTORS
54-114000-00X FELT TAPE (150mmX19mmX0.3mm) 3 FOR FRONT CAB.
54-205140-000 SPACER CRT MOUNTING T=2MM 2 FOR M.BD BKT & REAR CAB.
54-205140-000 SPACER CRT MOUNTING T=2MM 4 MTG CRT TO F.CAB.
54-314740-0X0 CRT FIBRE SHEET (22mmX22mmX0.8mm) 4 FOR CRT
55-2518FC-0CN FRONT CABINET (II) 1
55-2518FP-0HA FRONT PANEL 1
56-2518FB-0HA PUSH BUTTON 1
56-2518LE-0HC LENS 1
56-2518PK-0HA POWER KNOB 1
58-2518SI-3UI INLAY SIDE AV 1
59-130460-00X RUBBER PAD (25mmX7mm) 2 STICK ON F.CAB (FOOTING)
59-312160-000 SPEAKER RUBBER CUSHION 8 MTG SPK
62-216340-0UA HOLDER POWER CORD HIPS-KINGFA 113(VO) 1
62-307210-0HA KNOB ADAPTER 1
63-B30060-BT2 S/T SCREW B 3.0 X 6 BT 2 MTG SIDE AV BD & FRONT CAB.
63-B30100-BT4 S/T SCREW B 3 X 10 BT 3 MTG PUSH BUTTON & FRONT CAB.
63-B30100-BT4 S/T SCREW B 3 X 10 BT 1 MTG LENS & FRONT PANEL
63-W30140-HS4 S/T SCREW W 3 X 14 HS 8 MG SPK & FRONT CAB.
65-A60180-20E EXT. TOOTH WASHTER 6 X 18 X 2 4 MTG CRT
63-H60300-BF4 S/T SCREW H 6 X 30 BF 4 MTG CRT & FRONT CAB.
67-X21679-0E0 SPRING CRT 6mmX50mmX0.6mm 2
67-X24970-0E0 SPRING 1
57-10654X-00F
cable ties(2.5mmX95mm) 12
08-02518M-RCY ASS'Y - REAR CABINET 1
54-114000-00X FELT TAPE (150mmX19mmX0.3mm) 10 STICK ON R.CAB
55-2518RC-0CN REAR CABINET (II) 1
58-2518MP-0UI PLATE MODEL NO. 1
58-2518RI-5UI INLAY REAR AV 1
59-130460-00X RUBBER PAD (25mmX7mm) 2 STICK ON R.CAB(FOOTING)
63-B40200-AB3 S/T SCREW B 4 X 20 AB 10 MTG FRONT & R.CAB
63-F30100-BT3 S/T SCREW F 3 X 10 BT (BLACK) 2 MTG RCA JACK & R.CAB
08-02575M-CRY ASS'Y - CRT BD 1
10

Item No. Description Quantity Req. Designator Remarks
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D501
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D502
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 L501
11-A562TM-0BX TRANSISTOR 2SA562TM-0 1 Q507
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q502
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q504
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q506
11-SC4544-0AX TRANSISTOR 2SC4544 1 Q501
11-SC4544-0AX TRANSISTOR 2SC4544 1 Q503
11-SC4544-0AX TRANSISTOR 2SC4544 1 Q505
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R515
18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R514
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R501
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R505
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R510
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R506
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R509
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R511
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R522
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R502
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R503
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R508
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R513
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R519
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R520
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R521
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R516
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R517
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R518
25-BLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C504
26-AMK102-KRX CAP. CER 1000 pF 2KV +/-10% R 1 C505
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C508
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C509
26-EBP391-JCX CAP. CER. 390PF 50V +/-5% CH 1 C501
26-EBP391-JCX CAP. CER. 390PF 50V +/-5% CH 1 C502
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C503
34-R220K2-1BX COIL CHOKE 22 UH +/-10% 1 L502
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR C508(L505 & L506)
40-2980UA-CRA P.C.B. CRT BD 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L504
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L503
11

Item No. Description Quantity Req. Designator Remarks
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R504
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R507
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R512
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J503
46-10967W-01X PIN BASE *1 TJC1-1A 1 P501 F FOR CRT GROUNDING HOUS.
46-30615H-04X HS 4P24 460 F/W TJC3-4Y/SCN-4 1 P502 F FOR M.BD P421
46-37030H-05X HS 5P 2468#24 450 TJC3-5Y/SCN 1 P503 F FOR M.BD P201
47-265540-0U7 SOCKET CRT GZS10-2-4 (C.B.) 1 S501
25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% 1 C506
08-02575M-PWY ASS'Y - POWER PARTS 1
10-HER108-FBX DIODE HER108 1 D803
10-0EU2YX-FBX DIODE EU2YX (FAST RECOVERY) 1 D834
10-0EU2YX-FBX DIODE EU2YX (FAST RECOVERY) 1 D833
10-0RU3AM-F0X DIODE RU3AM (FAST RECOVERY) 1 D831
10-1N4004-EBX DIODE IN4004 (RECTIFIER) 1 D843
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D842
11-0BF422-0BX TRANSISTOR BF422 (NPN) 1 Q831
11-SC4793-0AX STANSISTOR 2SC4793 1 Q801
13-00SE14-0NS IC SE140N 1 IC831
13-STRF66-56P IC STR-F6656 1 IC801
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R833
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R840
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R841
18-CD0102-JNX RES. C.F. 1k OHM 1/4W +/-5% 1 R805
18-CD0102-JNX RES. C.F. 1k OHM 1/4W +/-5% 1 R808
18-CD0272-JNX RES. C.F. 2.7K OHM 1/4W +/-5% 1 R813
18-CD0470-JNX RES. C.F. 47 OHM 1/4W +/-5% 1 R809
18-CD0479-JNX RES. C.F. 4.7 OHM 1/4W +/-5% 1 R811
18-CD0560-JNX RES. C.F. 56 OHM 1/4W +/-5% 1 R837
18-CD0829-JNX RES. C.F. 8.2 OHM 1/4W +/-5% 1 R842
18-CE0105-JNX RES. C.F. 1M OHM 1/2W +/-5% 1 R806
18-CE0105-JNX RES. C.F. 1M OHM 1/2W +/-5% 1 R806A
18-CE0563-JNX RES. C.F. 56k OHM 1/2W +/-5% 1 R803
18-CE0563-JNX RES. C.F. 56k OHM 1/2W +/-5% 1 R804
18-FG0223-JHX RES. M.O. 22K OHM 2W +/-5% 1 R836
18-FG0333-JHX RES. M.O. 33K OHM 2W +/-5% 1 R810
18-FG0333-JHX RES. M.O. 33K OHM 2W +/-5% 1 R839
22-NTC479-XX0 NTC 4.7 OHM +/-18% NTC4.7D2-14 1 R802
22-PTC140-XX0 POSISTOR 14 OHM 1 RT801
25-BKA100-M1X CAP. ELEC 10 UF 200V +/-20% 1 C808
25-BKA100-M1X CAP. ELEC 10 UF 200V +/-20% 1 C838
12

Item No. Description Quantity Req. Designator Remarks
25-BKJ221-M1X CAP. ELEC 220 UF 200V +/-20% 1 C835
25-BMJ391-M1X CAP. ELEC 390 UF 400V +/-20% 1 C806
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C830
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C833
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C836
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C844
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C841
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C805
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C834
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C837
26-AKK222-KRX CAP. CER 2200 PF 1KV +/-10% R 1 C814
26-AMK221-JZX CAP. CER 220pF 2KV +/-5% SL 1 C807
26-AQK472-ZFX CAP. CER 4700PF 250VAC+80-20%F 1 C803
26-AQK472-ZFX CAP. CER 4700PF 250VAC+80-20%F 1 C804
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C811
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C815
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C810
27-MHM104-K0X CAP. METAL P.E. 0.1UF 400V 10% 1 C802A
34-R220K2-1BX COIL CHOKE 22 UH +/-10% 1 L838
35-139730-00X FERR. BEAD BF60 2 FOR L801
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D804
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D831
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D832
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D833
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D834
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D830
41-AJ0175-BEE WIRE BARE JUMPER 17.5MM 1 L801
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J812
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J801
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J815
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J816
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 D850
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J850
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J851
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J806
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 R831
41-WJ0135-B00 WIRE BARE JUMPER 13.5MM 1 J814
41-WJ0145-B00 WIRE BARE JUMPER 14.5MM 1 J807
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 R812
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J809
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J814A
13

Item No. Description Quantity Req. Designator Remarks
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J804
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J803A
41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J805
46-10962W-02X PIN BASE *2 TJC2-2A 1 P801 F FOR DEGAUSSING COIL
46-35184W-03X PIN BASE *3 TJC1-3A 1 P802 F FOR POWER CORD
50-03150D-1GS1 FUSE 3.15AT 250VAC 5mmX20mm 1 F801
64-B30120-104 M/C SCREW B 3 X 12 1 FOR IC 801
64-P30080-104 M/C SCREW P 3 X 8 1 FOR IC841
64-P30080-104 M/C SCREW P 3 X 8 1 FOR IC851
64-P30080-104 M/C SCREW P 3 X 8 2 FOR IC 801
65-Z30050-23M NUT M 3 1 FOR IC801
66-20516X-0B0 FUSE HOLDER 2 FOR F801
67-109180-4M2 HEAT SINK 1 FOR IC851
67-H27292-3A0 HEAT SINK 1 FOR IC841
67-H29550-8A0 HEAT SINK 1 FOR IC801
67-H34692-0A0 HEAT SINK 1 FOR IC801
90-209770-SR1 SILICONE GREASE G-746 0.0006
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D832
10-HS2V4A-DBX DIODE 500mW 2.4HSA 1 D841
10-HS3V9A-DBX DIODE 500mW 3.9HSA 1 D839
10-HS16VC-DBX DIODE 500mW 16HSC 1 D807
10-HS10VC-DBX DIODE 500mW 10HSC 1 D840
36-LIF022-AX0 LINE FILTER 1 T801
18-KE0105-JN3 RES. H.VOLT. CC 1M OHM 1/2W +/-5% 1 R801
18-KF0825-JH3 RES. H.VOLT.CC 8.2M OHM 1W +/-5% 1 R835
26-APK222-ME4 CAP. CER 2200PF 400VAC+/-20% E 1 C839
27-AQT224-MVH CAP. M.PP 0.22 UF 275VAC 20% 1 C802
27-AQT224-MVH CAP. M.PP 0.22 UF 275VAC 20% 1 C801
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR DB801(+)/(-)
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR C801
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 4 FOR T801
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR C802
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 3 FOR RT801
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 4 FOR T803
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR D830
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR D831
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR L838
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 5 FOR T802(P1,P3,P9,P10,P18)
25-BCA102-M1X CAP. ELEC 1000 UF 16V +/-20% 1 C846
25-BCB331-M1X CAP. ELEC 330 UF 16V +/-20% 1 C843
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C849
14

Item No. Description Quantity Req. Designator Remarks
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C855
25-BDB470-M1X CAP. ELEC 47 UF 25V +/-20% 1 C809
25-BEA102-M1X CAP. ELEC 1000 UF 35V +/-20% 1 C832
36-TRF001-AX2 TRANSFORMER CONV. BCK-4901-77 1 T802
13-UA7805-C0S IC UA7805C 1 IC841
13-L7809C-VAP IC L7809CV 1 IC851
10-00EU1Z-FBX DIODE EU1Z (FAST RECOVERY) 1 D804
10-00EU1Z-FBX DIODE EU1Z (FAST RECOVERY) 1 D805
10-00EU1Z-FBX DIODE EU1Z (FAST RECOVERY) 1 D806
10-0RU4YX-F0X DIODE RU4YX (FAST RECOVERY) 1 D830
10-D3SB60-H7X DIODE D3SB60 (BRIDGE RECT.) 1 DB801
66-382330-0B7 RIVET 2.0X3.7X3.5 2 FOR C806
66-382330-0B7 RIVET 2.0X3.7X3.5 2 FOR C835
66-382330-0B7 RIVET 2.0X3.7X3.5 2 FOR P801
18-RG0138-JHX RES. WIRE ROUND 0.13 OHM 2W +/-5% 1 R807
18-RG0228-JHX RES. WIRE ROUND 0.22 OHM 2W +/-5% 1 R830
36-LIF001-XX0 LINE FILTER LCL1602 1 T803
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C847
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C848
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C854
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C856
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C831
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C845
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C842
11-SB649A-CAX TRANSISTOR HSB649A-C 1 Q830
13-0HPC92-2CP PHOTO COUPLER HPC922-C 1 IC802
18-CD0272-JNX RES. C.F. 2.7K OHM 1/4W +/-5% 1 R838
18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% 1 R832
18-CD0100-JNX RES. C.F. 10 OHM 1/4W +/-5% 1 R815
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R816
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D816
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D815
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q815
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J808
26-APK471-KB4 CAP. CER 470 pF 400VAC +/-10% 1 C812
26-APK471-KB4 CAP. CER 470 pF 400VAC +/-10% 1 C813
08-02988M-MSY ASS'Y - MSP PARTS 1
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q1001
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q1002
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q1003
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q1004
15

Item No. Description Quantity Req. Designator Remarks
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R1001
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R1002
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R1021
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R1004
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R1022
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R1023
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R1024
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R1025
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R1003
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R1007
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R1005
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R1006
26-ABC152-KBX CAP. CER 1500 PF 50V +/-10% B 1 C1012
26-ABC339-CZX CAP. CER 3.3 PF 50V +/-0.25 SL 1 C1001
26-ABC339-CZX CAP. CER 3.3 PF 50V +/-0.25 SL 1 C1002
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C1021
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C1022
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C1023
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C1024
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C1025
26-EBP560-JZX CAP. CER 56PF 50V +/-5% SL TUBE 1 C1003
26-EBP560-JZX CAP. CER 56PF 50V +/-5% SL TUBE 1 C1004
26-EBP560-JZX CAP. CER 56PF 50V +/-5% SL TUBE 1 C1005
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L1001
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J1002
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J1003
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J1005
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J1006
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J1007
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J1009
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J1004
41-WJ0090-B00 WIRE BARE JUMPER 9MM 1 J1001
45-OSC18M-4Y0 CRYSTAL 18.432M 1 X1001
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C1013
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C1014
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C1015
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C1016
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C1008
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C1019
25-BFB339-M1X CAP. ELEC 3.3 UF 50V +/-20% 1 C1010
13-P3440G-B8P IC MSP3440G B8(52-PIN PSDIP) 1 IC1001
16

Item No. Description Quantity Req. Designator Remarks
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J1021
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J1022
26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C1034
26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C1035
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C1006
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C1009
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C1011
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C1018
26-EBP104-ZFX CAP. CER 0.1UF 50V +80%/-20% 1 C1017
26-EBP104-ZFX CAP. CER 0.1UF 50V +80%/-20% 1 C1030
26-EBP104-ZFX CAP. CER 0.1UF 50V +80%/-20% 1 C1031
26-EBP104-ZFX CAP. CER 0.1UF 50V +80%/-20% 1 C1032
26-EBP104-ZFX CAP. CER 0.1UF 50V +80%/-20% 1 C1033
08-2518SM-MAN ASS'Y - MAIN BD 1
07-457FF5-NX1 TUNER UV1336/AGN2(FS181CH 5V) 1 TU101
10-0BY228-F0X DIODE BY228 1 D411
10-1N4001-EBX DIODE 1N4001 (RECTIFIER) 1 D301
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D031
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D203
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D211
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D212
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D213
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D221
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D223
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D601
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D631
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D711
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D721
11-0BC337-0BX TRANSISTOR (NPN) BC337-40 1 Q008
11-DD1556-0AX TRANSISTOR 3DD1556 1 Q412
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q211
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q009
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q203
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q631
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q721
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q911
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q006
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q251
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q252
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q451
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q711
17

Item No. Description Quantity Req. Designator Remarks
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q901
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q902
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q903
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q912
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q931
11-SC3779-DBX TRANSISTOR 2SC3779D (RF AMPL) 1 Q101
11-SK2541-0BX FET 2SK2541(N-CHANNEL) 1 Q007
13-000040-52P IC 4052 1 IC901
13-00M24C-04P IC 4K EEPROM M24C04-BN6 1 IC002
13-0TA842-7KS IC TA8427K 1 IC301
13-0TDA26-16S IC TDA2616 (AUDIO O/P) 1 IC601
13-A12V01-TOP IC TCL-A12V01-TO 1 IC001
13-TB1240-ANP IC TB1240AN 1 IC201
14-LED05R-XX1 LED RED FB205 1 D010
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R012
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R013
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R018
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R022
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R048
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R053
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R056
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R101
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R102
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R233
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R253
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R914
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R024
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R045
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R046
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R050
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R107
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R220
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R234
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R301
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R304
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R451
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R909
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R915
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R946
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R947
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R005
18

Item No. Description Quantity Req. Designator Remarks
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R036A
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R003
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R004
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R017
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R022A
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R037
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R038
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R042
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R047
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R081
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R225
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R632
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R716
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R757
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R237
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R039
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R205
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R206
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R905
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R934
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 J651
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R244
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R919
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R105
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R258
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R916
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R917
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R204
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R213
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R212
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R214
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R087A
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R051
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R245
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R452
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R601
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R602
18-CB0181-JNX RES. C.F. 180 OHM 1/6W +/-5% 1 R108
18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% 1 R715
18-CB0201-JNX RES. C.F. 200 OHM 1/6W +/-5% 1 R259
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R203
19

Item No. Description Quantity Req. Designator Remarks
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R215
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R216
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R255
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R217
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R261
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R401
18-CB0622-JNX RES. C.F. 6.2k OHM 1/6W +/-5% 1 R029
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R033
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R034
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R035
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R036
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R713
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 D215
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R631
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R634
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R722
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R902
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R901
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R906
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R907
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R918
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R932
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R933
18-CB0224-JNX RES. C.F. 220k OHM 1/6W +/-5% 1 R251
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R711
18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R227
18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R082
18-CB0273-JNX RES. C.F. 27k OHM 1/6W +/-5% 1 R084A
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R222
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R223
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R229
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R257
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R021
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R014
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R015
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R054
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R055
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R254
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R302
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R472
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R086A
