DISHWASHER
WD490MW
WD490MX
User Manual
MKBGENG BiH/
CG SRB
RO

DISHWASHER
PART I: GENERIC VERSION
User Manual
Please read this manual carefully before using the dishwasher and
Keep this manual for future reference.

3
ENG
SAFETY INSTRUCTIONS
WARNING!
When using your dishwasher, follow the precautions
listed below:
• Installation and repair can only be carried out by a
qualified technician
• This appliance is intended to be used in household
and similar applications such as:
– staff kitchen areas in shops, offices and other
working environments;
– farm houses;
– by clients in hotels, motels and other residential
type environments;
– bed and breakfast type environments.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children should not play with the appliance.
Cleaning and user maintenance should not be done
by children without supervision. (For EN60335-1)
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
(For IEC60335-1)
• Packaging material could be dangerous for children!
This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do
not immerse the unit, cord or plug in water or
other liquids. Please unplug before cleaning and
performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Grounding Instructions
• This appliance must be grounded. In the event
of a malfunction or breakdown, grounding will
reduce the risk of an electric shock by providing a
path of least resistance for the electric current.This
appliance is equipped with a grounding conductor
plug.
• The plug must be plugged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
• Improper connection of the grounding conductor
can result in the risk of an electric shock.
• Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
• Do not modify the plug provided with the
• appliance; If it does not fit the outlet.
• Have a proper outlet installed by a qualified
electrician.
• Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure
panels are properly in place.
• Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
• Do not place any heavy objects on, or stand on
the door when it is open. The appliance could tip
forward.
• When loading items to be washed:
1. Locate sharp items so that they are not likely to
damage the door seal;
2. Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
• Check that the detergent powder case is empty after
• completion of the wash cycle.
• Do not wash plastic items unless they are marked
“dishwasher safe” or equivalent.
• For plastic items not so marked, check the
manufacturer’s recommendations.
• Use only detergents and rinse agents
recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
• The door should not be left open, since this could
increase the risk of tripping.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• During installation, the power supply must not be
excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not
be reused.
• To save energy, in standby mode, the appliance will
switch off automatically when there is no operation
in 15 minutes.
• The maximum number of place settings to be
washed is 10.
• The maximum permissible inlet water pressure is
1MPa.
• The minimum permissible inlet water pressure is
0.04MPa.

4
ENG

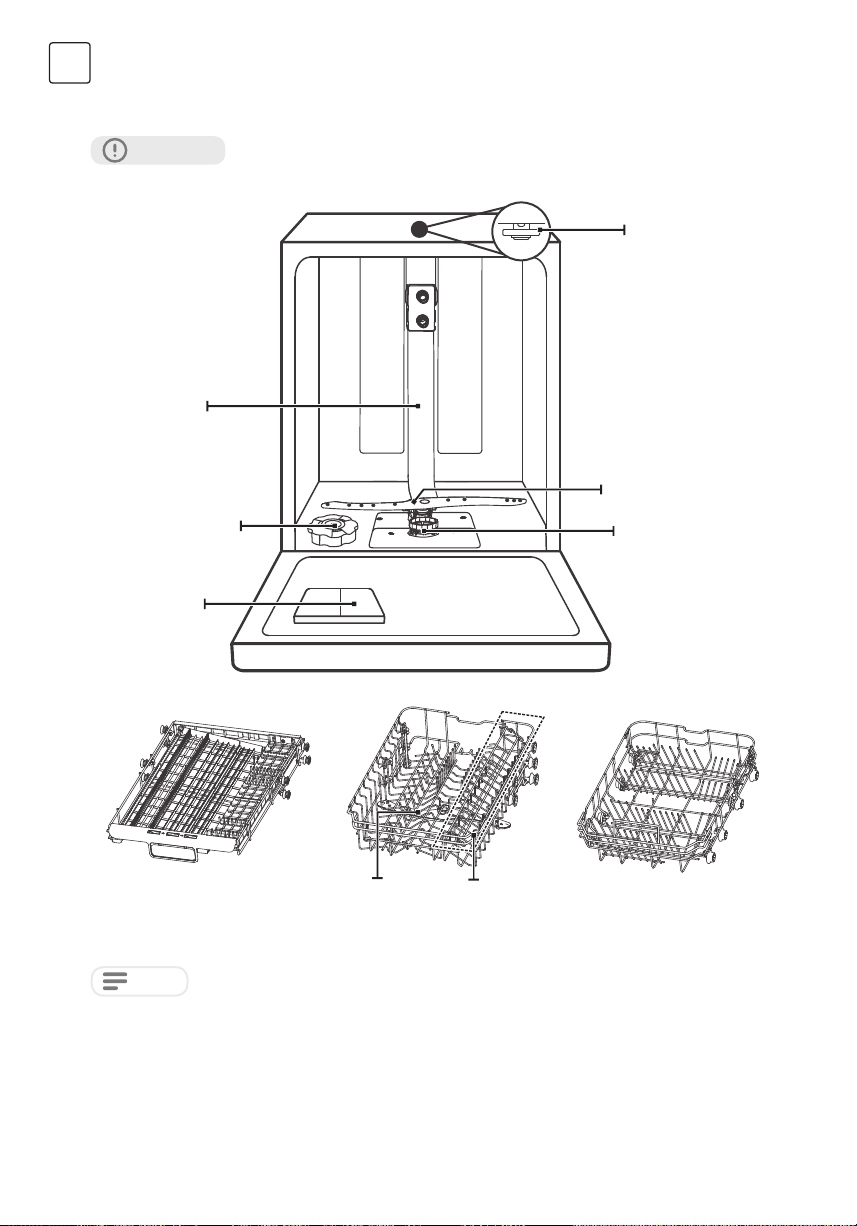

PRODUCT OVERVIEW
IMPORTANT
To get the best performance from your dishwasher, read all operating instructions before using it for the first time.
NOTE
Pictures are only for reference; different models may be different. Please prevail in kind.
Dispenser
Salt container
Inner pipe
Lower spray arm
Top spray arm
Filter assembly
Cutlery rack Upper basket
Cup rackUpper spray arm
Lower basket

5
ENG
USING YOUR DISHWASHER
Before using your dishwasher:
NOTE
Please check the section 1 “Water Softener” of PART II: Special Version, If you need to set the water softener .
NOTE
If your model does not have any water softener compartment, you may skip this section. Always use salt that
is intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as
explained in the following:
WARNING!
• Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water
softener compartment. In case of damages caused by the use of unsuitable salt the manufacturer does not give
any warranty nor is liable for any damages caused.
• Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the
machine for any period of time, which may cause corrosion.

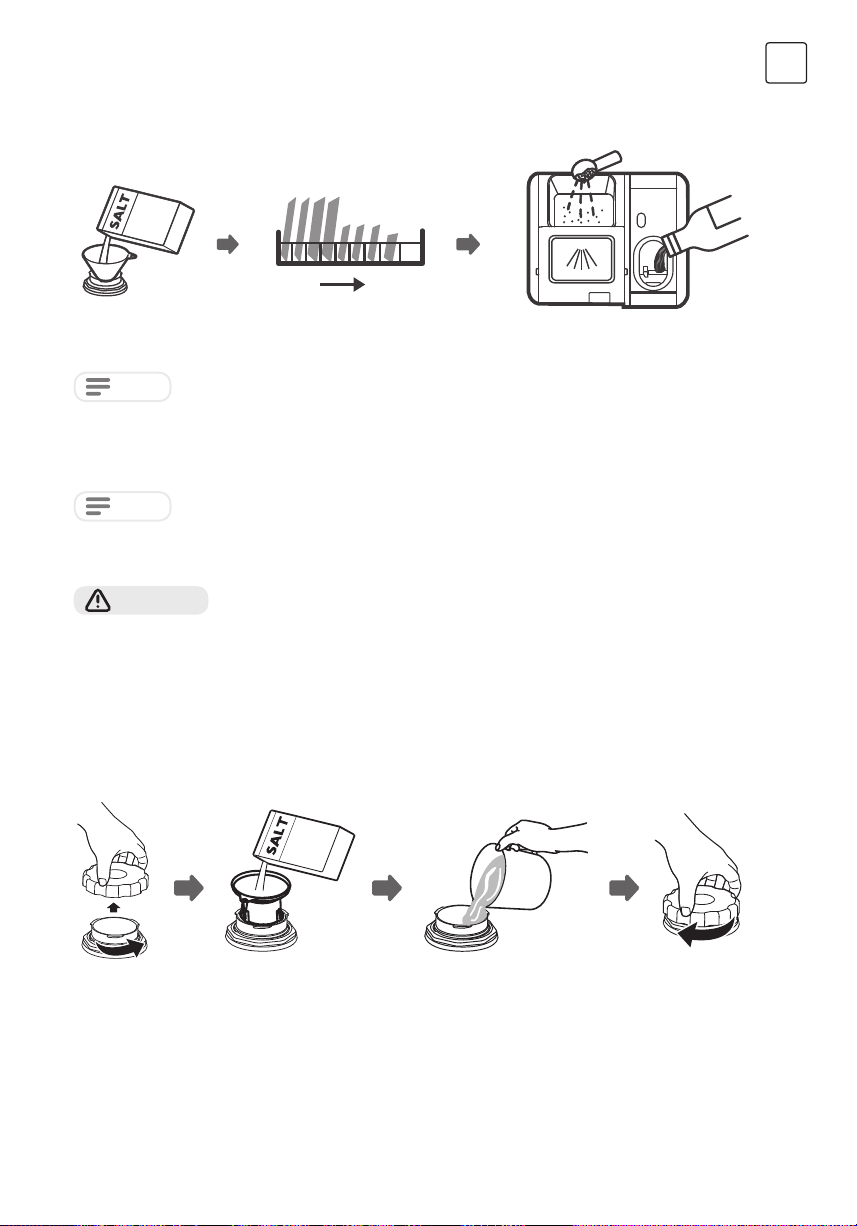

Please follow the steps below for adding dishwasher salt:
1. Remove the lower basket and unscrew the reservoir
cap.
2. Place the end of the funnel (supplied) into the hole
and pour in about 1.5kg of dishwasher salt.
3. Fill the salt container to its maximum limit with water,
it is normal for a small amount of water to come out
of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will stop shining after the salt
container has been filled with salt.
6. Immediately after filling the salt into the salt
container, a washing program should be started
(We suggest using a short program). Otherwise the
filter system, pump or other important parts of the
machine may be damaged by salty water. This is
void of warranty.
1. Set the water softener
2. Loading salt into the softener compartment
3. Loading the basket
4. Filling the detergent dispenser
Loading The Salt Into The Softener
Inside Outside

6
ENG
NOTE
• The salt container must only be refilled when the salt warning light ( ) in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is
filled.
If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into
the softener by the cycles that the dishwasher has run.
• If salt has spilled, run a soak or quick program to remove it.

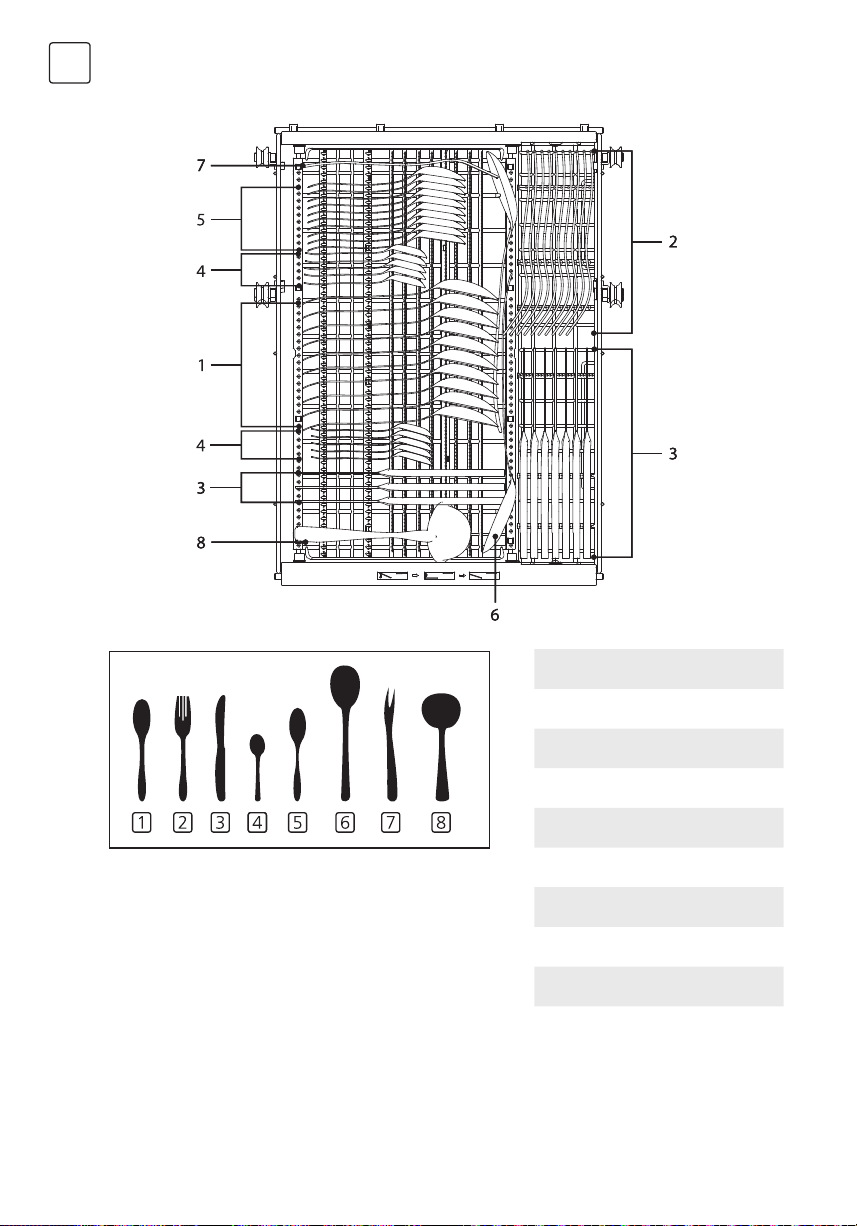

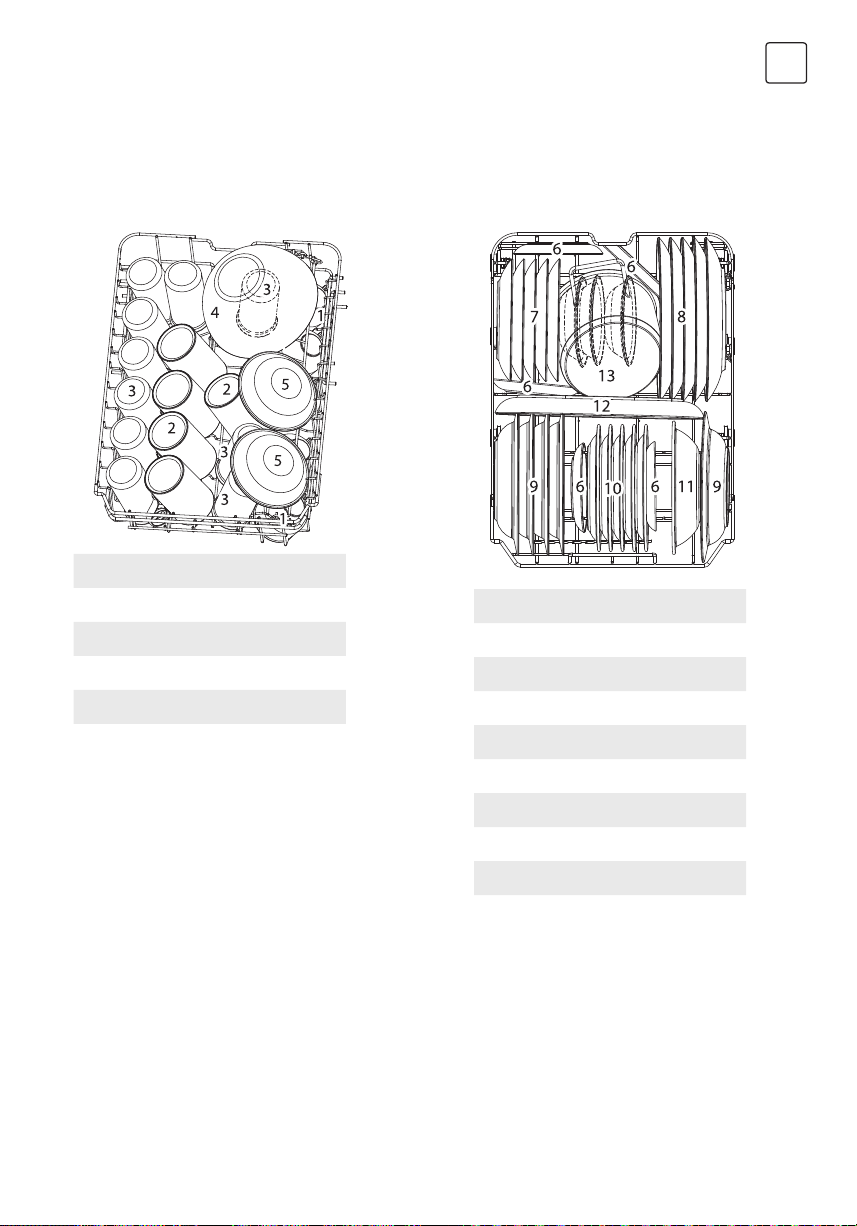

Basket Loading Tip

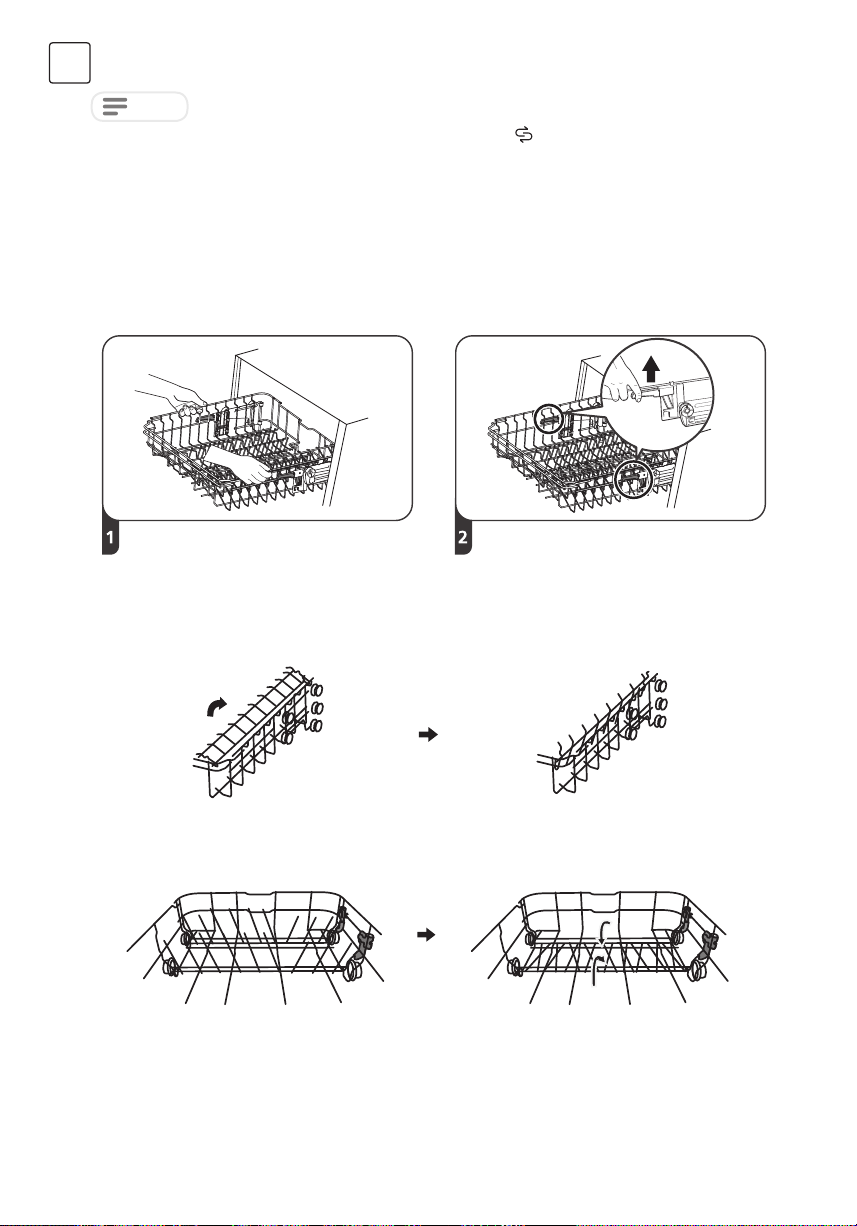

Adjusting the upper basket
To raise the the upper basket, just lift the upper basket
at the center of each side until the basket locks into
place in the upper position. It is not necessary to lift the
adjuster handle.
To lower the upper basket,, lift the adjust handles on
each side to release the basket and lower it to the lower
position.
Folding back the cup shelves
To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can then lean the tall
glasses against it. You can also remove it when it is not required for use.
Folding back the rack shelves
The spikes are used for holding plates and a platter. They can be lowered to make more room for large items.
raise upwards fold backwards

7
ENG
MAINTENANCE AND CLEANING
External Care
The door and door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being
loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the
wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the
door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.
WARNING!
• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any
kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some
paper towels may also scratch or leave marks on the surface.
Internal Care
Filtering system
The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign
objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition
of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary
with water. Follow the steps below to clean the filter.
NOTE
Pictures are only for reference, different models of the filtering system and spray arms may be different. Please
prevail in kind.
Hold the coarse filter and rotate it counterclockwise to
unlock the filter. Lift the filter upwards and out of the
dishwasher.
The fine filter can be pulled off the bottom of the filter
assembly.The coarse filter can be detached from the
main filter by gently squeezing the tabs at the top and
pulling it away.
Coarse filter
Main filter
Fine filter
Open

8
ENG
WARNING!
• Do not over tighten the filters. Put the filters back
in sequence securely, otherwise coarse debris
could get into the system and cause a blockage.
• NEVER use the dishwasher without filters in place.
Improper replacement of the filter may reduce
the performance level of the appliance and
damage dishes and utensils.
Spray arms
It is necessary to clean the spray arms regularly for
hard spray arm jets and bearings.
To clean the spray arms, follow the instructions:
Larger food remnants can be cleaned by rinsing the
filter under running water. For a more thorough clean,
use a soft cleaning brush.
Reassemble the filters in the reverse order of the
disassembly, replace the filter insert, and rotate
clockwise to the close arrow.
To remove the upper spray arm, hold the nut in the
center still and rotate the spray arm counterclockwise
to remove it.
To remove the lower spray arm, pull out the spray arm
upward.
Wash the arms in soapy and warm water and use a
soft brush to clean the jets. Replace them after rinsing
them thoroughly.

9
ENG
Frost precaution
Please take frost protection measures on the dishwasher in winter. After every washing cycles, please operate as
follows:
1. Cut off the electrical power to the dishwasher at the power source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
After every wash
After every wash, turn off the water supply to the appliance and leave the door slightly open for a while so that
moisture and odours are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only
use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a
cleaning product made specifically for dishwashers.
When not in use for a long time
It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to
last longer and prevent odours from forming within the appliance.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned
on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic
cleaning with a damp sponge will prevent this from occurring.
INSTALLATION INSTRUCTION
WARNING!
WARNING!
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
• For personal safety:
• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the grounding connection from the
power cord.
The installation of the pipes and electrical equipments should be done by professionals.
ATTENTION!
About Power Connection
Caring For The Dishwasher

10
ENG
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power
supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide
separate circuit serving only this appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the
plug into an electrical socket which is grounded properly. If the electrical socket to which the appliance must be
connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could
cause overheating and burns.
Ensure that proper grounding exists before use.
How to connect the safety supply hose
1. Pull the safety supply hoses completely out from storage compartment located at the rear of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
Water Supply and Drain
Cold water connection
Connect the cold water supply hose to a threaded
3/4(inch) connector and make sure that it is
fastened tightly in place.
If the water pipes are new or have not been used
for an extended period of time, let the water run to
make sure that the water is clear. This precaution
is needed to avoid the risk of the water inlet to be
blocked and damage the appliance.
About the safety supply hose
The safety supply hose consists of double walls. The hose’s system guarantees its intervention by blocking the flow
of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer
corrugated hose is full of water.
WARNING!
A hose that attaches to a tap can burst if it is installed on the same water line as the dishwasher. If your sink has one,
it is recommended that the hose be disconnected and the hole plugged.
Ordinary supply hose
Safety supply hose

11
ENG
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to
avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must
not be immersed in water to avoid back flow.
Please securely fix the drain hose in either position A or position B
How to drain excess water from hoses
If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose.
It will be necessary to drain excess water from the hose into a bowl or suitable container that is held outside and
lower than the sink.
Water outlet
Connect the water drain hose.The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dishwasher.
Connection of Drain Hoses
40 mm
Back of dishwasher
Drain hose
Drain Pipe
Counter
Power Cable
Drain Pipe
Water Inlet

12
ENG

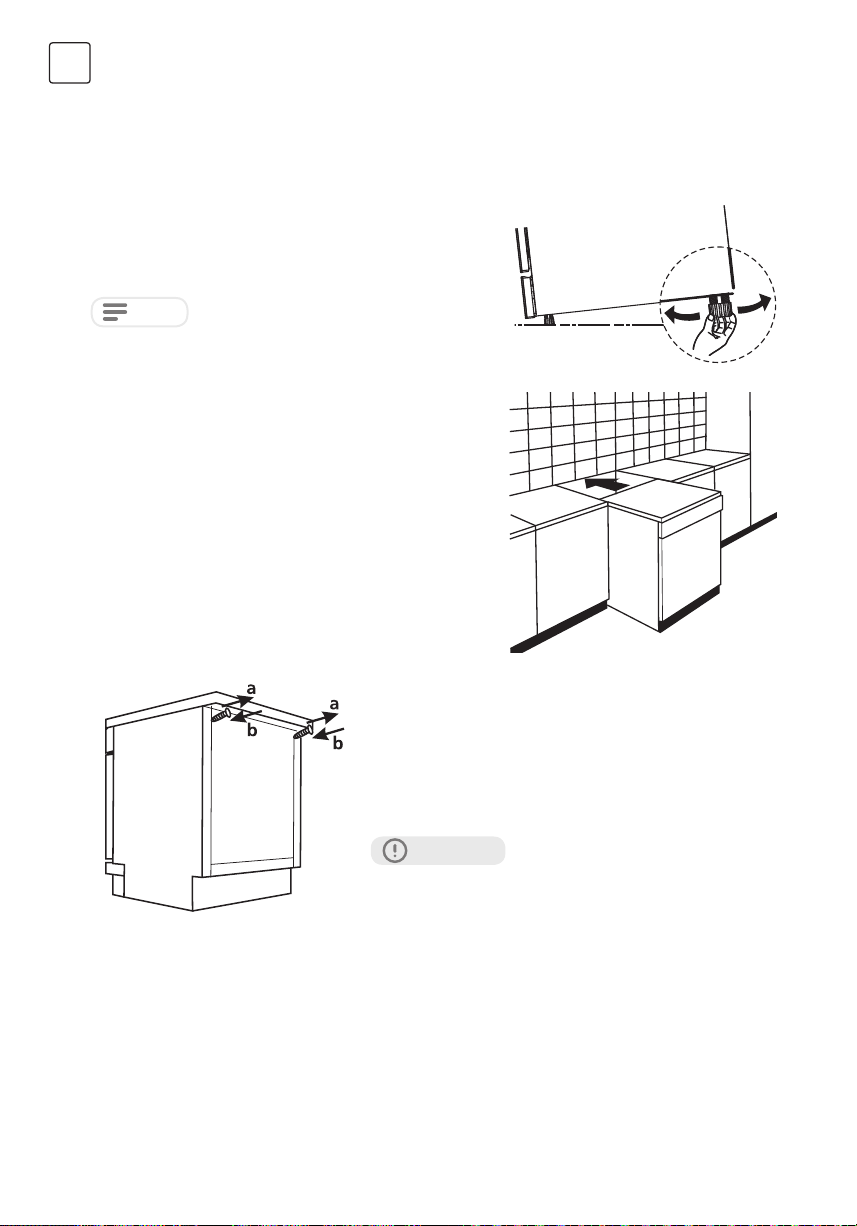

Positioning The Appliance
Free Standing Installation
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and
drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
Fitting between existing cabinets
The height of the dishwasher, 845 mm, has been designed
in order to allow the machine to be fitted between existing
cabinets of the same height in modern fitted kitchens. The
feet can be adjusted so that correct height is reached.
The laminated top of the machine does not require any
particular care since it is heatproof, scratchproof and stain
proof.
Levelling the appliance
Once the appliance is positioned for levelling, the height
of the dishwasher may be altered via adjustment of the
screwing level of the feet. In any case,the appliance should
not be inclined more than 2°.
NOTE
Only apply to the free standing dishwasher.
Underneath existing work top
(when fitting beneath a work top)
In most modern fitted kitchens there is only one single work top
under which cabinets and electrical appliances are fitted. In this case
remove the work top of the dishwasher by unscrewing the screws
under the rear edge of the top (a).
ATTENTION!
After removing the work top, the screws MUST BE screwed in again
under the rear edge of the top (b).

13
ENG
NOTE
Depending on where your electrical outlet is, you may need to cut a
hole in the opposite cabinet side.
If dishwasher is installed at the corner of the cabinet, there should be some space left for when the door is opened.
Dishwasher installation
NOTE
Please refer to the specific installation steps in the installation drawings.
1. Fix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is line with
the edge of the work surface.
2. Connect the inlet hose to the cold water supply.
3. Connect the drain hose.
4. Connect the power cord.
5. Place the dishwasher into the cabinet.
6. Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning the Philips
screw in the middle of the base of dishwasher use a Philips screw driver. To adjust the front feet, use a flat
screw driver and turn the front feet until the dishwasher is level.
Electrical, drain
and water supply
line connection
Space between cabinet
bottom and floor
600 mm (for 60 cm model)
450 mm (for 45 cm model)
Dishwasher
Door of
dishwasher
Minimum space
of 50mm
Cabinet

14
ENG
Check level
front to back
Check level
side to side
Levelling the dishwasher
Dishwasher must be level for proper dish rack operation and wash performance.
1. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2. Level the dishwasher by adjusting the three levelling feet individually.
3. When level the dishwasher, please pay attention not to let the dishwasher tip over.
NOTE
The maximum adjustment height
of the feet is 50 mm.

15
ENG
TROUBLESHOOTING TIPS
Before Calling for Service
Reviewing the charts on the following pages may save you from calling for service.
Problem Possible Causes What to Do
Dishwasher doesn’t
start
Fuse blown, or the circuit break tripped. Replace fuse or reset circuit breaker.
Remove any other appliances sharing the
same circuit with the dishwasher.
Power supply is not turned on. Make sure the dishwasher is turned on and
the door is closed securely. Make sure the
power cord is properly plugged into the
wall socket.
Water pressure is low Check that the water supply is connected
properly and the water is turned on.
Door of dishwasher not properly closed. Make sure to close the door properly and
latch it.
Water not pumped
form dishwasher
Twisted or trapped drain hose. Check the drain hose.
Filter clogged. Check the filter system.
Kitchen sink clogged. Check the kitchen sink to make sure it is
draining well. If the problem is the kitchen
sink that is not draining, you may need
a plumber rather than a serviceman for
dishwashers.
Foam in the tub Wrong detergent. Use only the special dishwasher detergent
to avoid suds. If this occurs, open the
dishwasher and let suds evaporate. Add
4 liters of cold water to the bottom of the
dishwasher.
Close the dishwasher door, then select any
cycle. Initially, the dishwasher will drain out
the water. Open the door after draining
stage is complete and check if the suds
have disappeared. Repeat if necessary.
Spilled rinse aid. Always wipe up rinse aid spills immediately.
Stained tub interior Detergent with colorant may have been
used.
Make sure that the detergent has no
colorant.
White film on inside
surface
Hard water minerals. To clean the interior, use the damp soft
cloth with dishwasher detergent and wear
rubber gloves. Never use any other cleaner
than dishwasher detergent otherwise, it
may cause foaming or suds.
There are rust stains
on cutlery
The affected items are not corrosion
resistant.
Avoid washing items that are not corrosion
resistant in the dishwasher.
A program was not run after dishwasher
salt was added. Traces of salt have gotten
into the wash cycle.
Always run a wash program without any
crockery after adding salt. Do not select the
Turbo function (if present).
The lid of the softer is loose. Check the softener lid is secure.

16
ENG
Problem Possible Causes What to Do
Knocking noise in
the dishwasher
A spray arm is knocking against an item
in a basket
Interrupt the program and rearrange the
items which are obstructing the spray arm.
Rattling noise in the
dishwasher
Items of crockery are loose in the
dishwasher.
Interrupt the program and rearrange the
items of crockery.
Knocking noise in
the water pipes
This may be caused by on-site installation
or the cross-section
of the piping.
This has no influence on the dishwasher
function. If in doubt, contact a qualified
plumber.
The dishes are not
clean
The dishes were not loaded correctly. See notes in “Loading & unloading your
dishwasher”.
The program was not powerful enough. Select a more intensive program.
Not enough detergent was dispensed Use more detergent, or change your
detergent.
Items are blocking the movement of the
spray arms.
Rearrange the items so that the spray can
rotate freely.
The filter combination is not clean or is
not correctly fitted in the base of wash
cabinet.
This may cause the spray arm jets to get
blocked.
Clean and fit the filter correctly. Clean the
spray arm jets.
Cloudiness on
glassware.
Combination of soft water and too much
detergent.
Use less detergent if you have soft water
and select a shorter cycle to wash the
glassware and to get them clean.
White spots appear
on dishes and
glasses.
Hard water area
can cause lime scale deposits.
Check water softener settings or fill
status of salt container.
Black or grey marks
on dishes
Aluminum utensils have rubbed against
dishes
Use a mild abrasive cleaner to eliminate
those marks.
Detergent left in
dispenser
Dishes block detergent dispenser Re-loading the dishes properly.
The dishes are not
drying
Improper loading Use gloves if detergent residue can
be found on dishes to avoid skin
irritations.
Dishes are removed too soon Do not empty your dishwasher
immediately after washing. Open the
door slightly so that the steam can come
out. Take out the dishes until the inside
temperature is safe to touch. Unload the
lower basket first to prevent the dropping
water from the upper basket.
The dishes are not
drying
The wrong program has been selected. With a short program, the washing
temperature is lower, decreasing cleaning
performance. Choose a program with a
long washing time.
Use of cutlery with a low-quality coating. Water drainage is more difficult with these
items. Cutlery or dishes of this type are not
suitable for washing in the dishwasher.
WARNING! Self-repair or non-professional repair may cause serious risks to the safety of the user of
the appliance and impact warranty.

17
ENG
LOADING THE BASKETS ACCORDING TO
EN60436
1. Upper basket: 2. Lower basket:
Number Item
1Cups
2Mugs
3Glasses
4Glass bowl
5Dessert bowls
Number Item
6Saucers
7Dessert plates
8Dinner plates
9Soup plates
10 Melamine dessert plates
11 Melamine bowl
12 Oval platter
13 Small pot
Loading the dishwasher to its full capacity will contribute to energy and water savings.

18
ENG
Number Item
1Soup spoons
2Forks
3Knives
4Tea spoons
5Dessert spoons
6Serving spoons
7Serving forks
8Gravy ladles
Information for comparability
tests in accordance with EN60436
Capacity: 10 place settings
Position of the upper basket: lower
position Program: ECO
Rinse aid setting: MAX
Softener setting: H3
3. Cutlery rack:

DISHWASHER
PART II: SPECIAL VERSION
WD490MW
WD490MX
User Manual
Please read this manual carefully before using the dishwasher and
Keep this manual for future reference.

20
ENG
Inside Outside

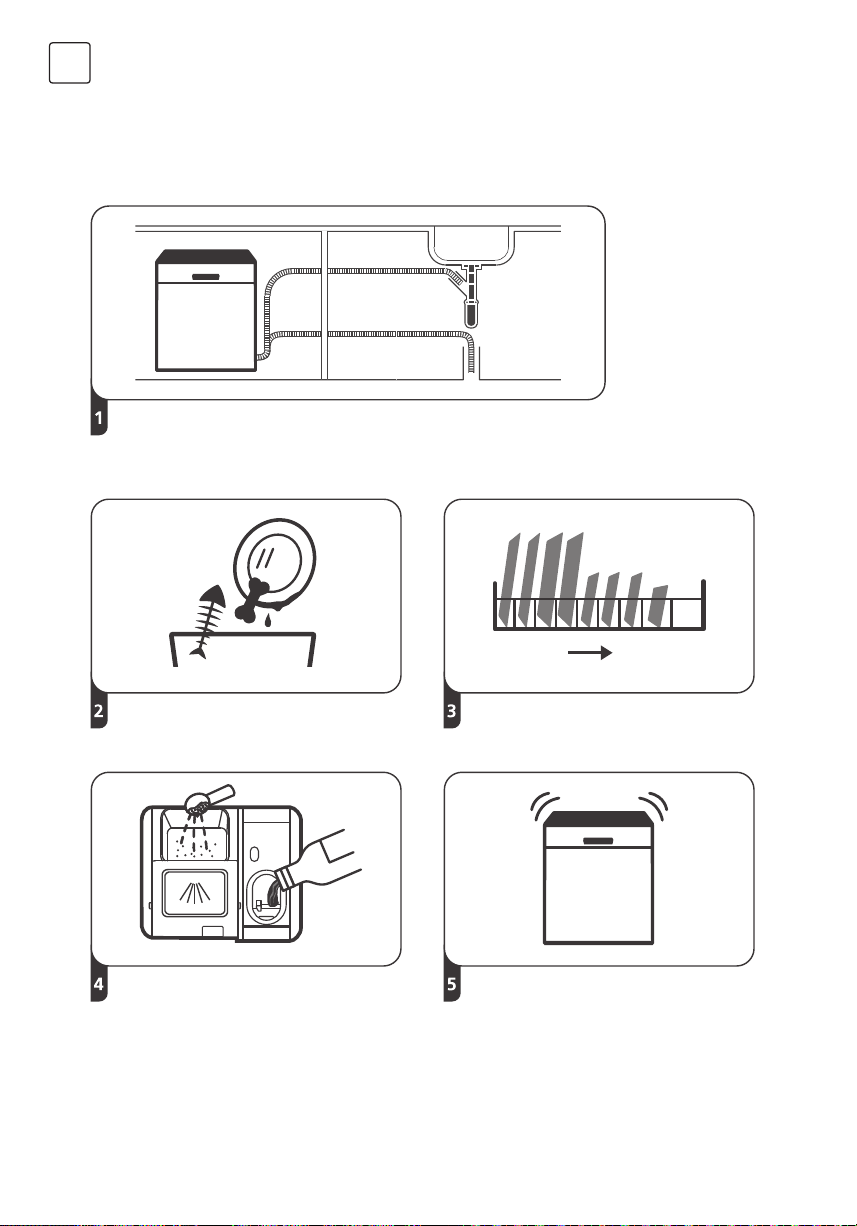

QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed operating method.
Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION” of PART I: Generic Version.)
Removing larger residue on the cutlery
Filling the dispenser
Loading the baskets
Selecting a program and running
the dishwasher
