PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE
(a) Do not attempt to operate this oven with the door open
since this can result in harmful exposure to microwave
energy. It is important not to break or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
SPECIFICATIONS
Rated Voltage 230V~ 50Hz
Rated Input Power(Microwave) 1250 W
Rated Output Power(Microwave) 800 W
Rated Output Power(Grill) 1000 W
Oven Capacity 20L
Turntable Diameter Ø 245 mm
External Dimensions 595x344x388mm
Net Weight Approx. 15kg

4
ENG
IMPORTANT SAFETY
INSTRUCTIONS WARNING
To reduce the risk of fire, electric shock, injury to persons or
exposure to excessive microwave oven energy when using
your appliance, follow basic precautions, including the
following:
1. Read and follow the specific:”PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY”.
2. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised. Children less than 8 years of age shall
be kept away unless continuously supervised.
3. Keep the appliance and its cord out of reach of children
less than 8 years.
4. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
5. Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
6. WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.

5
ENG
7. Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave
ovens.
10. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
12. The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food
deposits removed.
15. Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
16. Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
temperature-sensing probe.)
17. The appliance must not be installed behind a decorative
door in order to avoid overheating. (This is not
applicable for appliances with decorative doors.)
18. This appliance is intended to be used in household and
similar applications such as:
- staff kitchen areas in shops, offices and other working
environments;

6
ENG
- by clients in hotels, motels and other residential type
environments;
- farm houses;
- bed and breakfast type environments.
19. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating
of warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
20. Metallic containers for food and beverages are not
allowed during microwave cooking.
21. The appliance shall not be cleaned with a steam cleaner.
22. Care should be taken not to displace the turntable
when removing containers from the appliance. (For
fixed appliances and built-in appliances being used
equal or higher than 900mm above the floor and having
detachable turntables. But this is not applicable for
appliances with horizontal bottom hinged door.)
23. The microwave oven is intended to be used built-in.
24. Steam cleaner is not to be used.
25. Surface of a storage drawer can get hot.
26. The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall
be kept away unless continuously supervised.
27. During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
28. Accessible parts may become hot during use. Young
children should be kept away.
29. The appliance must not be installed behind a decorative
door in order to avoid overheating. (This is not
applicable for appliances with decorative door.)

7
ENG
30. When the appliance is operated in the combination
mode, children should only use the oven under adult
supervision due to the temperatures generated.
31. Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER!
Electric Shock Hazard Touching some of the internal
components can cause serious personal injury or death. Do
not disassemble this appliance.
WARNING!
Electric Shock Hazard
Improper use of the grounding can result in electric shock.
Do not plug into an outlet until appliance is properly
installed and grounded.
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding
wire with a grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded.

8
ENG
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is properly
grounded.
If it is necessary to use an extension cord, use only a 3-wire
extension cord.
1. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or tripping
over a longer cord.
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire
cord.
3) The long cord should be arranged so that it will not
drape over the counter top or tabletop where it can be
pulled on by children or tripped over unintentionally.
CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they
are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a
bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean
using a soft, dry cloth.

9
ENG
Utensils Remarks
Browning dish
Follow manufacturer’s instructions. The bottom of browning dish must be at least
3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to
break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or
chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not
heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use
cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow
steam to escape.
Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while
cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-
term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled
“Microwave Safe”. Some plastic containers soften, as the food inside gets hot.
“Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as
directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not
allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
UTENSILS
CAUTION! Personal Injury Hazard
It is hazardous for anyone other than a competent person to carry out any service or repair operation that
involves the removal of a cover which gives protection against exposure to microwave energy.
See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.”
There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven

10
ENG
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal
handle May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high
temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.
Materials to be avoided in microwave oven
SETTING UP YOUR OVEN

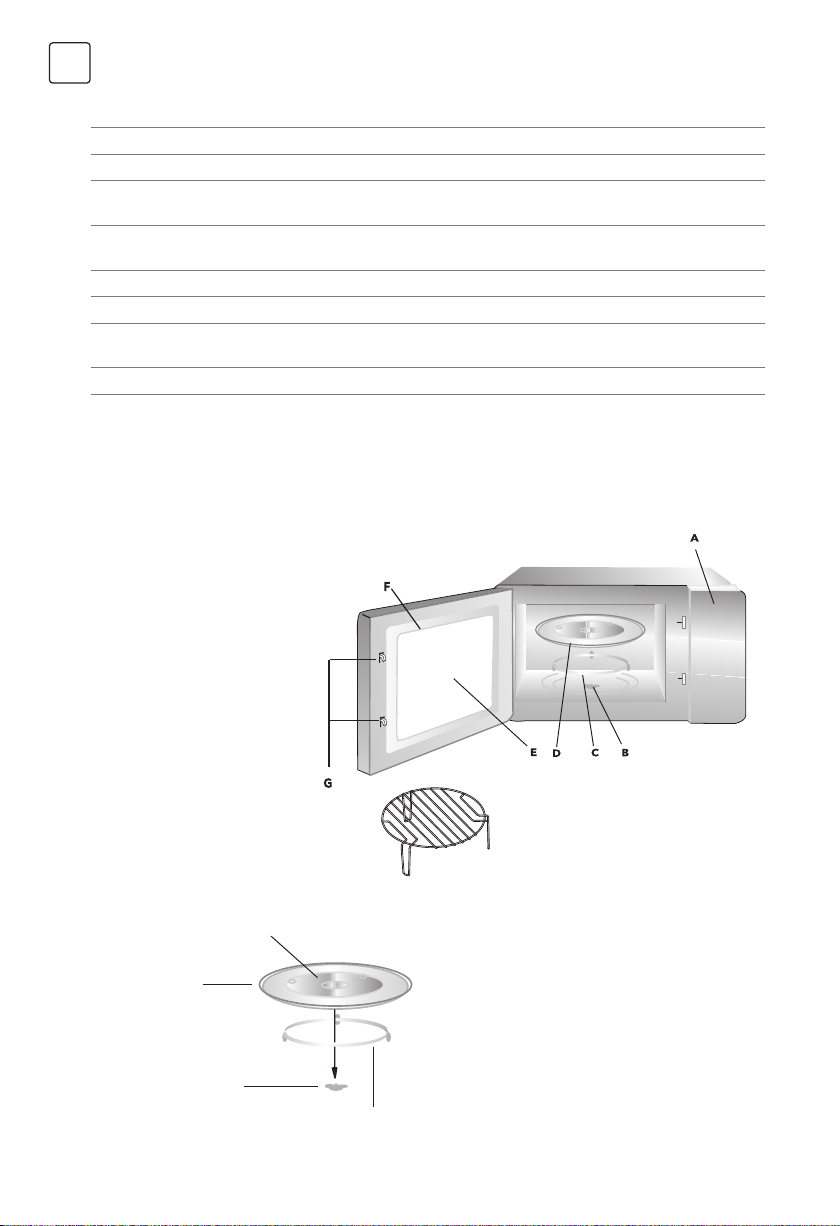

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following
accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Turntable Installation
Turntable ring assembly
Turntable shaft
Glass tray
Hub (underside) a. Never place the glass tray upside down. The
glass tray should never be restricted.
b. Both glass tray and turntable ring assembly
must always be used during cooking.
c. All food and containers of food are always
placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks
or breaks, contact your nearest authorized
service center.
Grill Rack (Cannot be used in
microwave function and must be
placed on the glass tray)

11
ENG
INSTALLATION AND CONNECTION
1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not
intended for counter-top use or for use inside a
cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-
mounted cupboard.
5. The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
6. 6. The mains voltage must correspond to the voltage
specified on the rating plate.
7. The socket must be installed and connecting cable must
only be replaced by a qualified electrician. If the plug is
no longer to accessible following installation, an all-pole
disconnecting device must be present on the installation
side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not
be used. Overloading can result in a risk of fire.
The accessible surface may be hot
during operation.

12
ENG
INSTALLATION INSTRUCTIONS
Please note
Electrical connection
The oven is fitted with a plug and must only be connected
to a properly installed earthed socket. The socket must only
be installed and connecting cable must only be replaced
by a qualified electriciaan, and in accordance with the
appropriate regulations.
If the plug is no longer accessible following installation, an
all-pple isolating switch must be present on the installation
side with a gap of at least 3mm.
The fitted cabinet must not have a back wall behind the
appliance.
A gap must be maintained between the wall and the base
of the unit above. Specific gap size could be referenced by
the diagrams.
Minimum installation height: 85 cm.
Do not cover ventilation slots and suction holes.
Please Read the Manual Carefully Before Installation
NOTE Do not trap or bend the power cable.

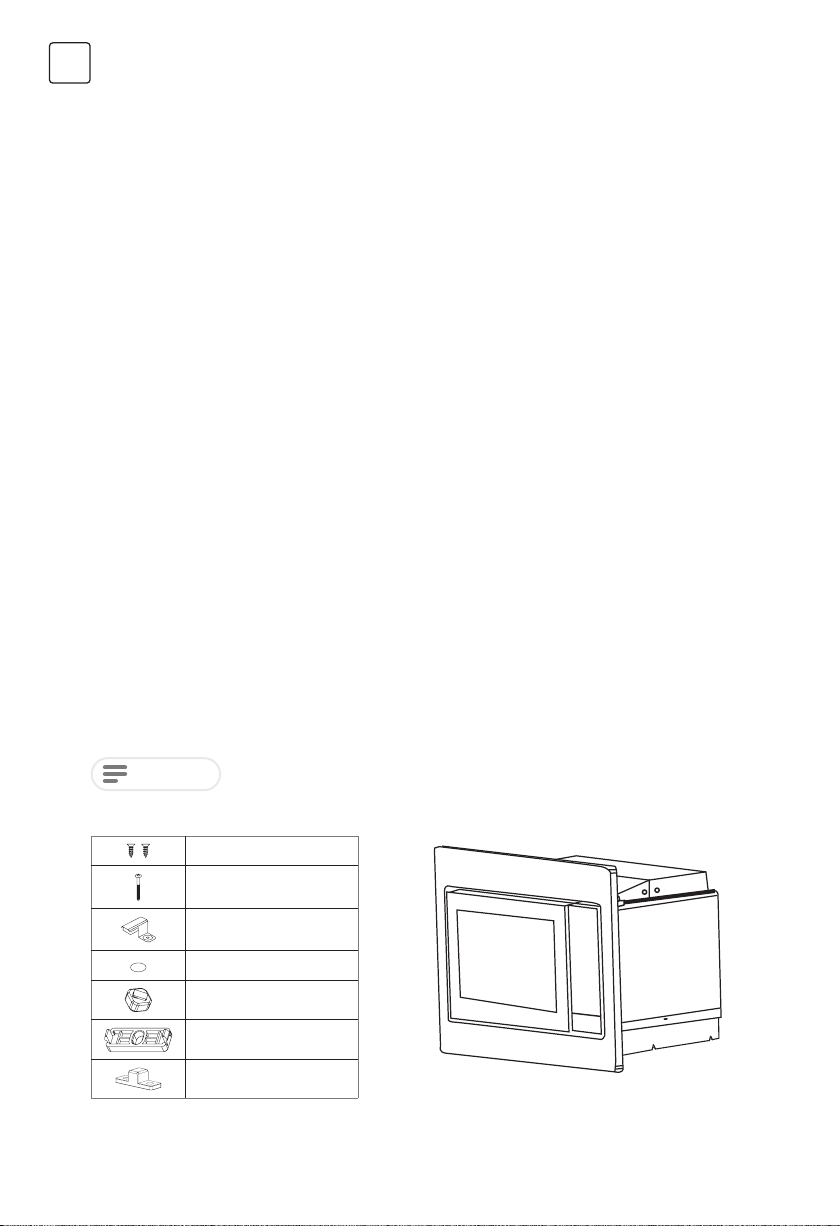

Screw A
Screw B
Mounting Plate
Trim-kit plastic cover
Footpad Block
Bracket
Rubber Pad

13
ENG

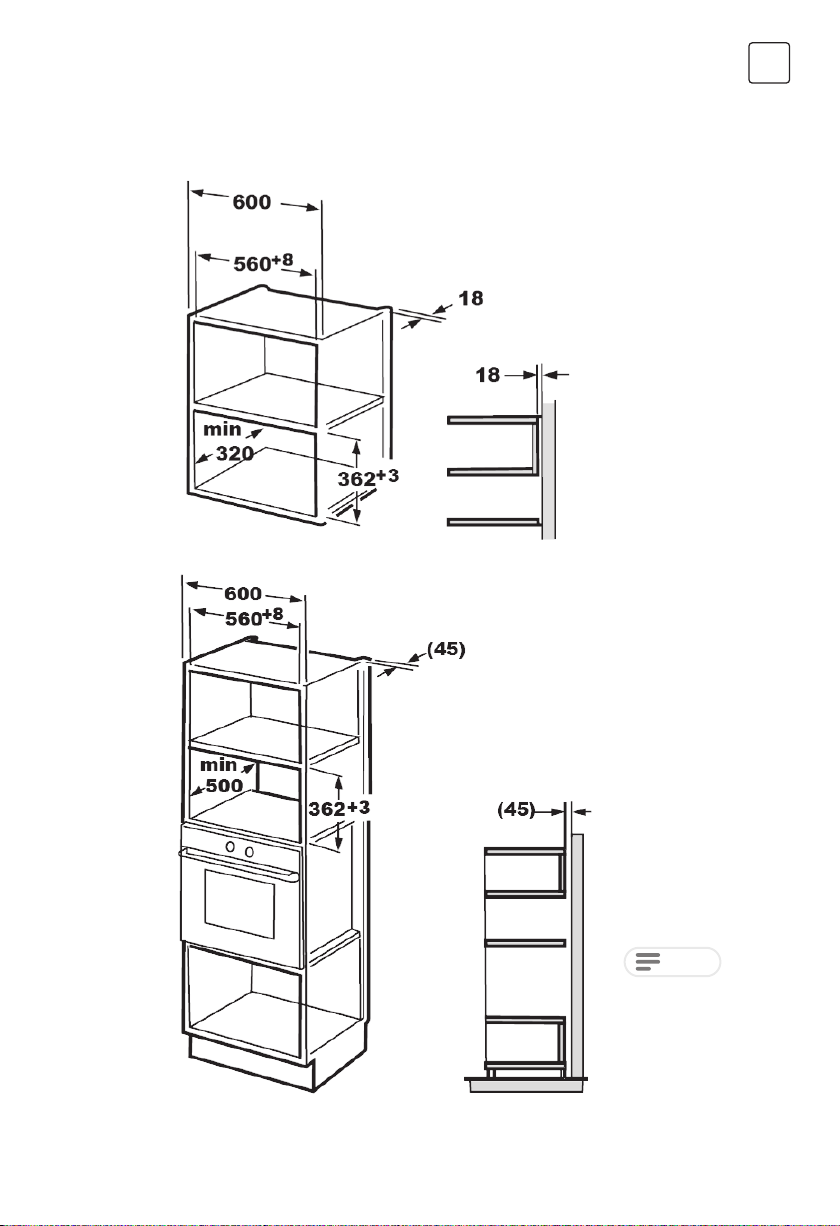

For the cabinet with a height of 370 mm
A. Built-in furniture
1.
2.
NOTE
The mounting
plate and bottom
cabinet template
are needed when
installating
in both installations.

14
ENG

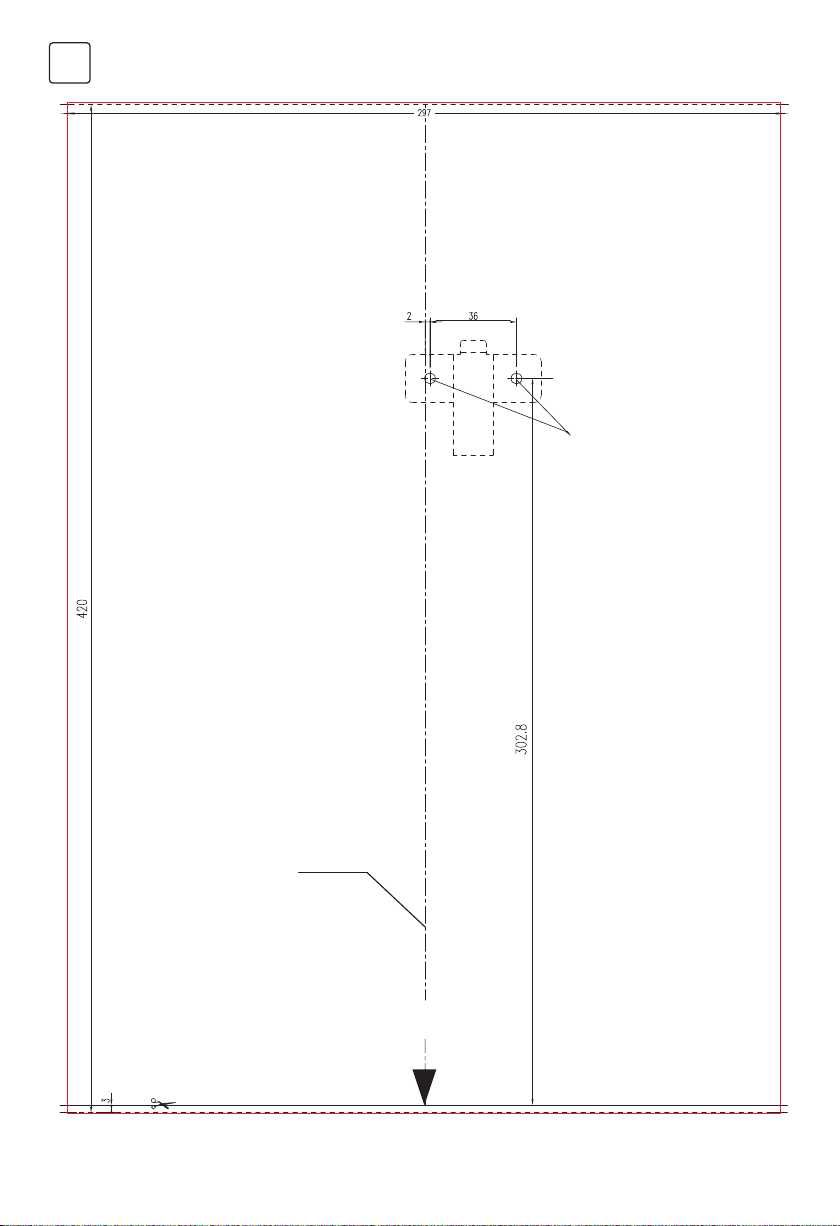

BOTTOM CABINET TEMPLATE
FRONT
NOTE: IT IS VERY IMPORTANT TO READ
AND FOLLOW THE DIRECTIONS IN THE
INSTALLATION INSTRUCTIONS
BEFORE INSTALLATION.
This template is used to locate the cabinet
bottom bracket holes’ “a”.
1. Check if your cabinet has a smooth,
flat bottom and right size, and tape
the template onto the bottom plane of
cabinet.
- Make sure the CENTER LINE of the
template is in the middle of the cabinet
- Make sure the FRONT EDGE OF
template is even with the cabinet front
edge.
2. Make marks on the bottom plane of
cabinet according to the hole “a” of the
template.
- Do not drill holes in the bottom cabinet.
3. After make marks according to the
instruction, remove the bottom cabinet
template.
4. After marking holes ‘a”, continue to install
according to the lnstallation Instructions.
Holes “a”
LEFT EDGE
RIGHT EDGE
FRONT EDGE
CENTER LINE

15
ENG

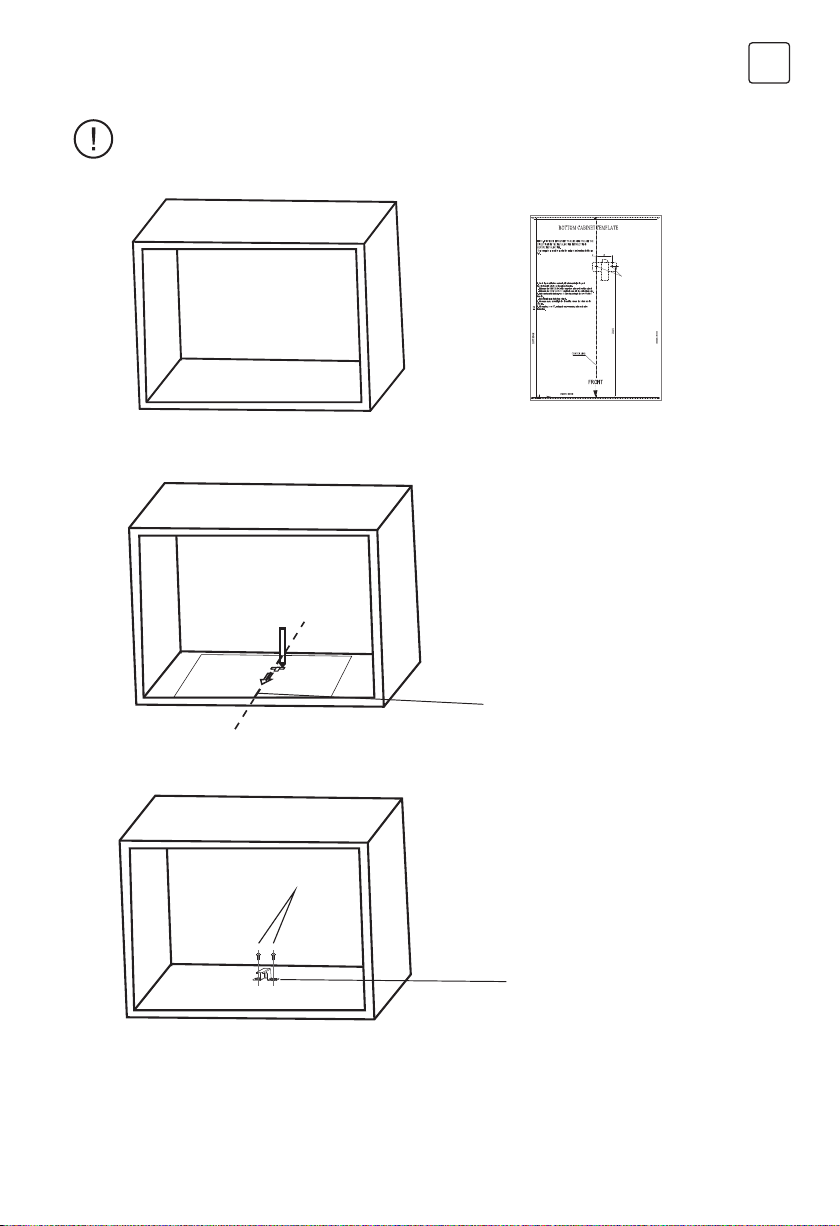

B. Prepare the cabiinet
Skip this step if the cabinet depth is within the range of 300-340mm.
1. Read the instruction on the BOTTOM CABINET TEMPLATE , put the template on the bottom plane of cabinet.
2. Make the marks on the bottom plane of cabinet according to marks ”a” of the template
3. Remove the bottom cabinet template and fix the mounting plate with screw A.
"a""seloH
PN:261800316967
aa
Centre line
Mounting Plate
Screw A

16
ENG
C. Install the oven
4. Install the oven to the cabinet
- Make sure the back of the oven is locked by mounting plate, if any.
- Do not trap or kink the power cord.
5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic
cover to the installation hole.
Mounting
Plate
Screw B
Installation
Hole

17
ENG
For the cabinet with a height of 380mm
A. Built-in furniture
1.
2.
NOTE
The mounting
plate and bottom
cabinet template
are needed when
installating
in both installations.

18
ENG
B. Prepare the cabiinet
Skip this step if the cabinet depth is within the range of 300-340mm.
1. Read the instruction on the BOTTOM CABINET TEMPLATE , put the template on the bottom plane of cabinet.
2. Make the marks on the bottom plane of cabinet according to marks ”a” of the template
3. Remove the bottom cabinet template and fix the mounting plate with screw A.
"a""seloH
PN:261800316967
aa
Centre line
Screw A
Mounting Plate

19
ENG
C. Install the oven
4. Install the oven to the cabinet
- Make sure the back of the oven is locked by mounting plate, if any.
- Do not trap or kink the power cord.
Mounting
Plate

20
ENG
5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic
cover to the installation hole.
Screw B
Installation
Hole
OPERATION
Control Panel and Features Operation Instructions
1. To set cooking power by turning
the power knob to desired level.
2. To set the time of cooking by
turning the timer knob to desired
time per your food cooking guide.
3. The microwave oven will
automatically start cooking after
power level and time are set.
4. After the cooking time is up, the
unit will “Dong” to stop.
5. If the unit is not in use, always set
time to “0”.
Power
Timer
