Thermo Pride OH6FA072DV4 User manual

MO-440
ECN 5587-MA 190812 Made IN USA
ECM OPERATION MANUAL
FOR USE WITH MODEL:
SINGLE STAGE 2-STAGE
OH6FA072DV4 OH6FX072DV4
OH8FA119DV
OD6F/RA072DV OD6F/RX072DV
OL6F/RA072DV OL6F/RX072DV
: IF YOU DO NOT FOLLOW THE SAFETY PRECAUTIONS ELOW AND IN THIS
MANUAL, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMA LE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
INSTALLATION AND SERVICE MUST E PERFORMED Y A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER. (REFERRED TO IN THESE INSTRUCTIONS AS A QUALIFIED
HEATING CONTRACTOR).
PLEASE READ THESE INSTRUCTIONS PRIOR TO INSTALLATION, INITIAL FIRING, AND EFORE
PERFORMING ANY SERVICE OR MAINTENANCE. THESE INSTRUCTIONS MUST E LEFT WITH
THE HOMEOWNER AND SHOULD E RETAINED FOR FUTURE REFERENCE Y QUALIFIED
SERVICE PERSONNEL.
THERMO PRODUCTS, LLC.
OX 237
DENTON, NC 27239
PHONE: [phone]

All installations and services must be performed by qualified service personnel.
INDEX
SECTION BEGINNING PAGE
I. LOWER CONTROLLER INFORMATION 2
A. TERMINAL DEFINITIONS & FIELD WIRING 2
. WIRING & SWITCHES 3
C. INPUTS 6
D. OUTPUTS 6
E. OPERATING MODES 7
F. CFM TA LES 9
II. ECM TROU LESHOOTING 19
A. DIAGNOSTIC FEATURES 19
. GENERAL GUIDELINES TO TROU LESHOOTING GE ECM 20
C. TROU LESHOOTING CHARTS 23

All installations and services must be performed by qualified service personnel.
2
I. BLOWER CONTROLLER INFORMATION
A. TERMINAL DEFINITIONS & FIELD WIRING
urner Harness Connector P2
Pin 1 – Limit switch connection.
Pin 2 – 120 VAC Line connection.
Pin 3 – urner pilot contact.
Pin 4&5 – 120 VAC Neutral connection.
Pin 6 – urner pilot contact.
Pin 7&8 – From oil primary control.
Pin 9 – Limit Switch Input (LSI).
Field Wiring to urner
Pilot (Tstat) Neutral Line
Harness Wires Yellow Wires White Red
eckett Connections T-T terminals White lack
Riello Connections T-T terminals N L
Thermostat/Humidistat connections
"C" Common/ground
"W" Thermostat call for heat
"R" 24 VAC to thermostat
"G" Thermostat call for fan
"Y" Thermostat call for cool
“DEHUM” Humidistat call for dehumidification (TXV systems ONLY)
Thermostat/Humidistat connections for 2-Stage control
"C" Common/ground
"W1" Thermostat call for heat (low fire)
"W2" 24 VAC to thermostat (high fire)
“R” 24 vac to T-Stat
"G" Thermostat call for fan
"Y" Thermostat call for cool
“DEHUM” Humidistat call for dehumidification (TXV systems ONLY)
ECM control outputs
Pin 1 - Speed Common Pin 4 – lower Enable
Pin 2 - Speed Output Pin 5 – COOL Enable
Pin 3 – Motor CFM Pin 6 – “R” Output
Male quick connect terminals
“S1-3” 120 VAC Hot
“N1-7” 120 VAC Neutral
“EAC” Electronic Air Cleaner (120 VAC) connection.
"FAN" Fan On Signal
“X” 24VAC from transformer.
“C” 24VAC common from transformer.
"CC" Compressor Contactor
"CC_COM" Compressor Contactor Common

All installations and services must be performed by qualified service personnel.
3
B. WIRING & SWITCHES
: TURN OFF THE ELECTRICAL POWER to the furnace before attempting to
isconnect blower wiring.
OH6 / OH8 / OD6 /OL6
Single – Stage

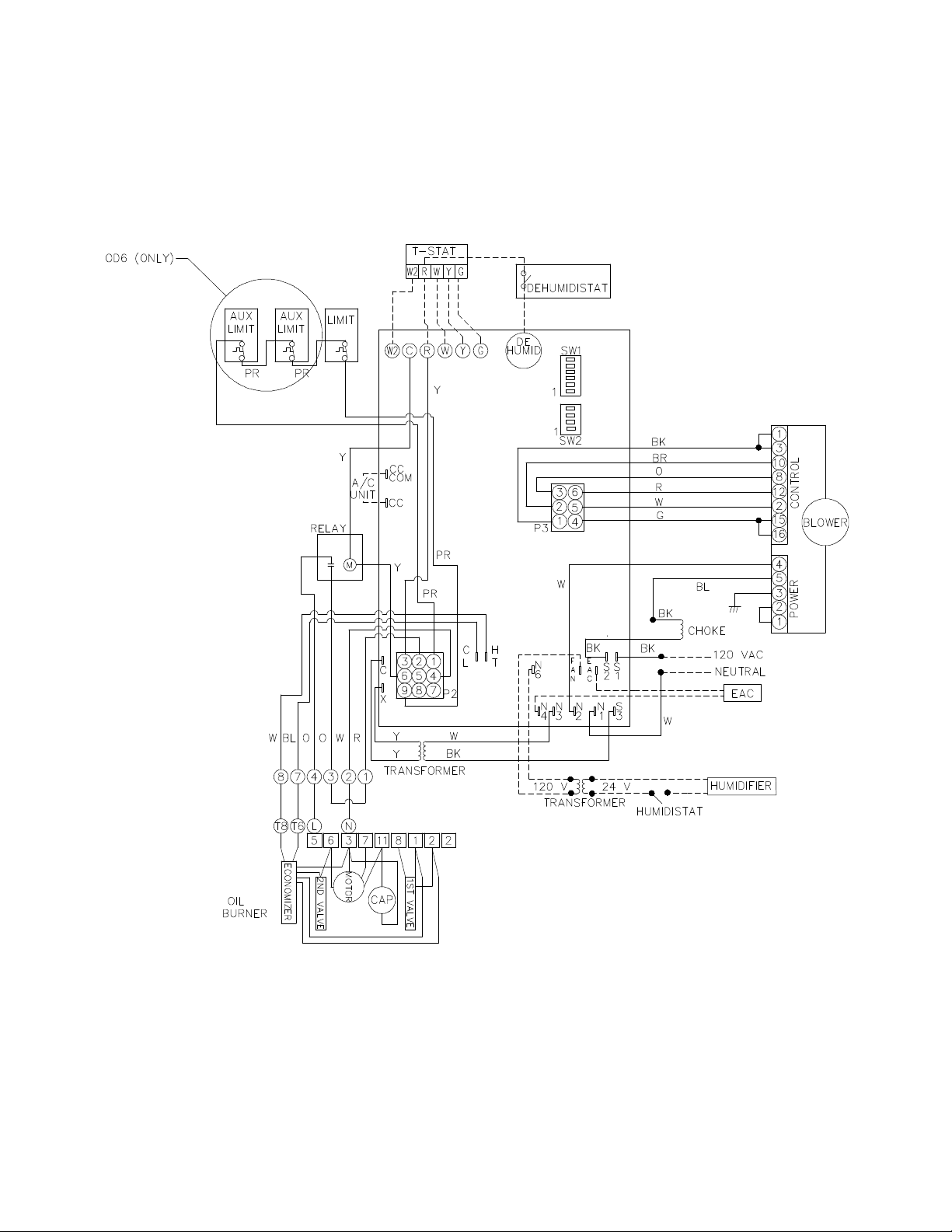

Figure 1: Blower Wiring

All installations and services must be performed by qualified service personnel.
4
OH6 / OD6 / OL6
2 - STAGE
Figure 2: Blower Wiring

All installations and services must be performed by qualified service personnel.
5

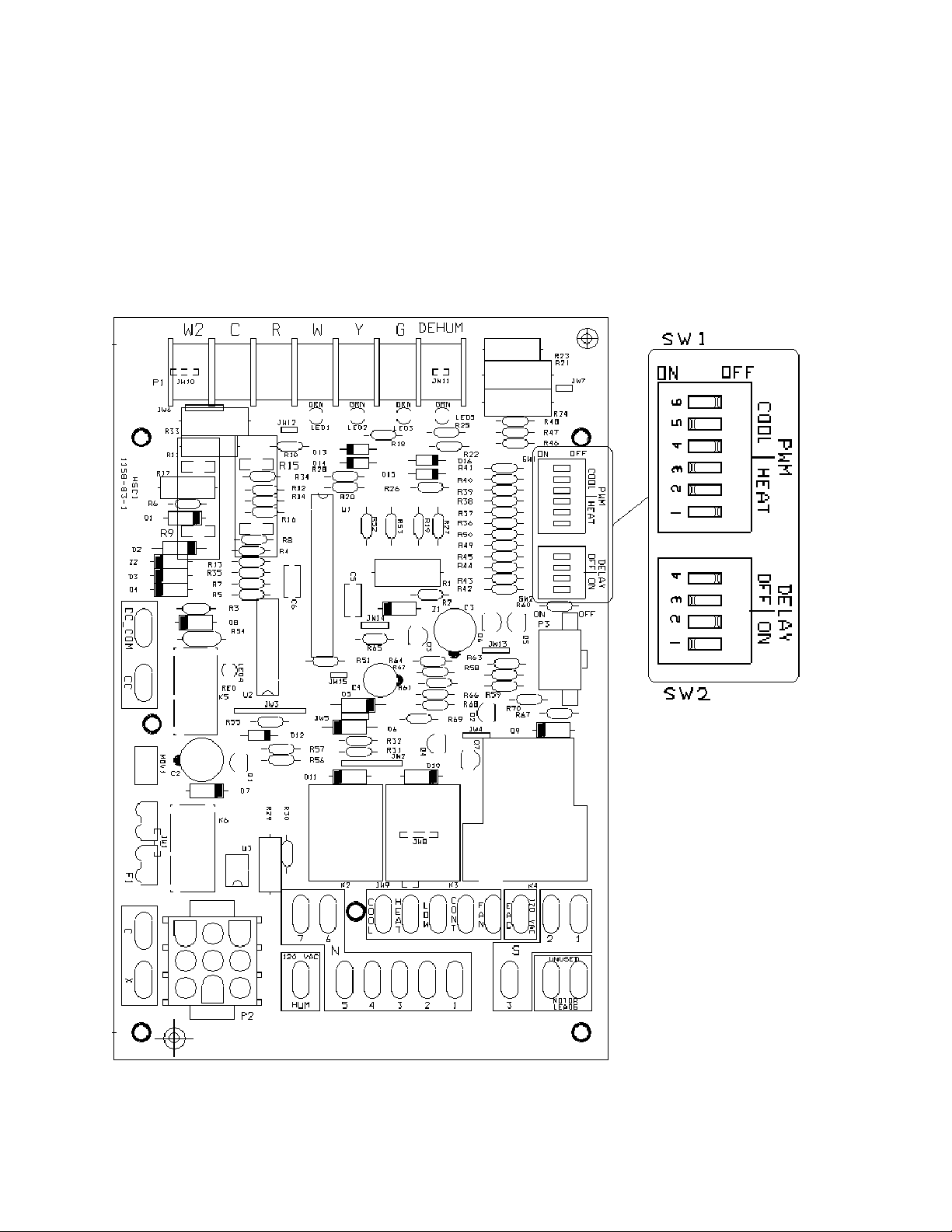

Figure 3: Board Layout with Switches

All installations and services must be performed by qualified service personnel.
6
C. Inputs
Power supplies
Line voltage is applied between the "S1" and "N1" quick connect terminals.
24 VAC Class II Transformer secondary voltage supplied to X and C
Limit Switch
The 120VAC optically isolated limit switch input is connected on pin P2-1 & 9. Refer to the Heat
Mode section for the control operation.
Thermostat call for heat "W"
24 VAC thermostat input. A call for heat is recognized when the thermostat connects "W" to "R".
This input has an indicator LED that will light when the control receives a call for heat. Refer to the
Heat Mode section for the control operation.
Thermostat call for heat “W2”
24 VAC thermostat input. A call for heat is recognized when the thermostat connects "W2" to "R".
This input has an indicator LED that will light when the control receives a call for heat. Refer to the
Heat Mode section for the control operation.
Thermostat call for cool, "Y"
24 VAC thermostat input. A call for cooling is recognized when the thermostat connects "Y" to "R.
This input has an indicator LED that will light when the control receives a call for cooling. . Refer to
the Cool Mode section for the control operation.
Thermostat call for dehumidification "DEHUM”
24 VAC thermostat input. A call for dehumidification is recognized when the humidistat connects
"DEHUM" to "R". This input has an indicator that will light when the control receives a call for
dehumidification. Refer to the Cool Mode section for the control operation.
Thermostat call for fan "G"
24 VAC thermostat input. A call for fan is recognized when the thermostat connects "G" to "R". This
input has an indicator LED in that will light when the control receives a call for fan. Refer to the Fan
Mode section for the control operation.
D. Outputs
ECM Control
The control controls a multiple speed ECM motor through the 6-pin P3 connector. This connector
provides connection for ECM Speed common (Pin 1), Speed output (Pin 2), lower Enable (Pin 4),
Cool Enable (Pin 5) and “R” output (Pin 6).
Oil urner
Control
The control provides dedicated contacts to operate the T-T input of an oil primary control.
Rating shall be class 2 - 24 VAC pilot duty @ 24 VAC (< 200mA).
Power
The switched 120VAC power from the LIMIT switch passes through the board between Pins 1&2
of connector P1.

All installations and services must be performed by qualified service personnel.
7
Compressor contactor
The control provides switched 24VAC to operate a compressor contactor. Rating shall be class
2 - 24 VAC pilot duty @ 24 VAC (< 200mA).
EAC (electronic air cleaner)
The control provides a 120VAC output for an electronic air cleaner. This output is energized
whenever the fan motor is energized (either low, heat or cool speed). Connection is made via male
quick connect terminal labeled "EAC".
Humidifier
The control provides a 120 VAC output for a humidifier. Connections are made to a male quick
connect terminal labeled "FAN".
Status LED
A red LED is provided to indicate any thermostat input has been recognized by the microprocessor
on the control. See Diagnostic Features for a function description of operation.
Thermostat Input LEDs
Four green LEDs are placed beneath their respective thermostat connections (W, Y, G and DEHUM)
and operate whenever a call is present. See Diagnostic Features for a function description of
operation.
Motor CFM LED
This green LED will flash once for every 100CFM the blower is producing.
E. Operating Modes
Standby Mode
All outputs are off and the control is waiting for a thermostat demand. The thermostat inputs, and
limit switch are continuously monitored. The control initiates action when a thermostat call is
received or limit switch opens.
Fan Mode
A call for fan ("G") is received from the thermostat. If no other mode is calling for blower operation,
the control will choose a “Low” speed value from the position of DIP switch SW1 positions 4 through
6, as shown in the CFM Tables and operate the fan at that speed. The fan mode will be operated as
long as the "G" input is calling and neither the Heat mode nor the Cool mode is calling for blower
operation. When the Heat and Cool modes call for blower operation, their respective outputs will take
over after their respective turn-on time delays have expired. The speed Output is present until the
fan call is satisfied.
Cooling Mode
A call for cool ("Y") is received from the thermostat. If the heat mode is not active or the anti-short
cycle delay is not in effect, the control will energize the “CC” terminal. After a 10 second delay
blower ramps up to the “COOL” speed determined by the position of DIP switch SW1 (positions 4
through 6) determine a speed as shown in CFM Tables.
When the call for cool is satisfied, the “CC” terminal is de-energized and the cooling off delay of 45
seconds is started. Forty-five seconds later the blower speed ramps toward zero and the control
reverts to Standby Mode.
Dehumidification Operation
If a call for dehumidification is received while the Cool Mode is active, blower speeds will be
reduced. The speed value will be selected from the DEHUM column of the CFM Tables. This input
may only be used on systems using a thermostatic expansion valve (TXV) on the evaporator.

All installations and services must be performed by qualified service personnel.
8
Anti-Short Cycle Operation
To prevent compressor short cycling, a call for cooling will be ignored for four minutes after the
termination of any cooling call. The anti-short cycle delay is also in effect at power-up.
Heat Mode
When a call for heat ("W") is received from the thermostat, if the “Cool” mode is not already active,
the “T-T” terminal is energized and the blower on delay is started. The on-off pattern of DIP switch
SW2 (positions 1 and 2) select one of four blowers on delay values (see Table 1). When the delay
time has elapsed, a speed value is read from DIP switch SW1 positions 1 through 3 (see the CFM
Tables) and the blower is ramped up to that speed. The 2-Stage control will be operated by t-stat
through W1 and W2. For 2-stage control with a single stage t-stat, call for heat will go through W2.
When W2 is energized, low fire is activated for 15 minutes. If a call for heat still exists, high fire will
be activated and will continue until the demand for heat has been satisfied.
Counterflow units, in addition, will run at a low blower speed shortly after the burner is brought on.
They will continue at that speed until the delay time has elapsed.
The control remains in steady heat mode until the thermostat is satisfied. When the call for heat
signal is removed, the “T-T” terminal is de-energized and the blower off delay is started. The on-off
pattern of DIP switch SW2 (positions 3 and 4) select one of four blower off delay values (see Table
1). When the delay time has elapsed, the blower is ramped toward zero.

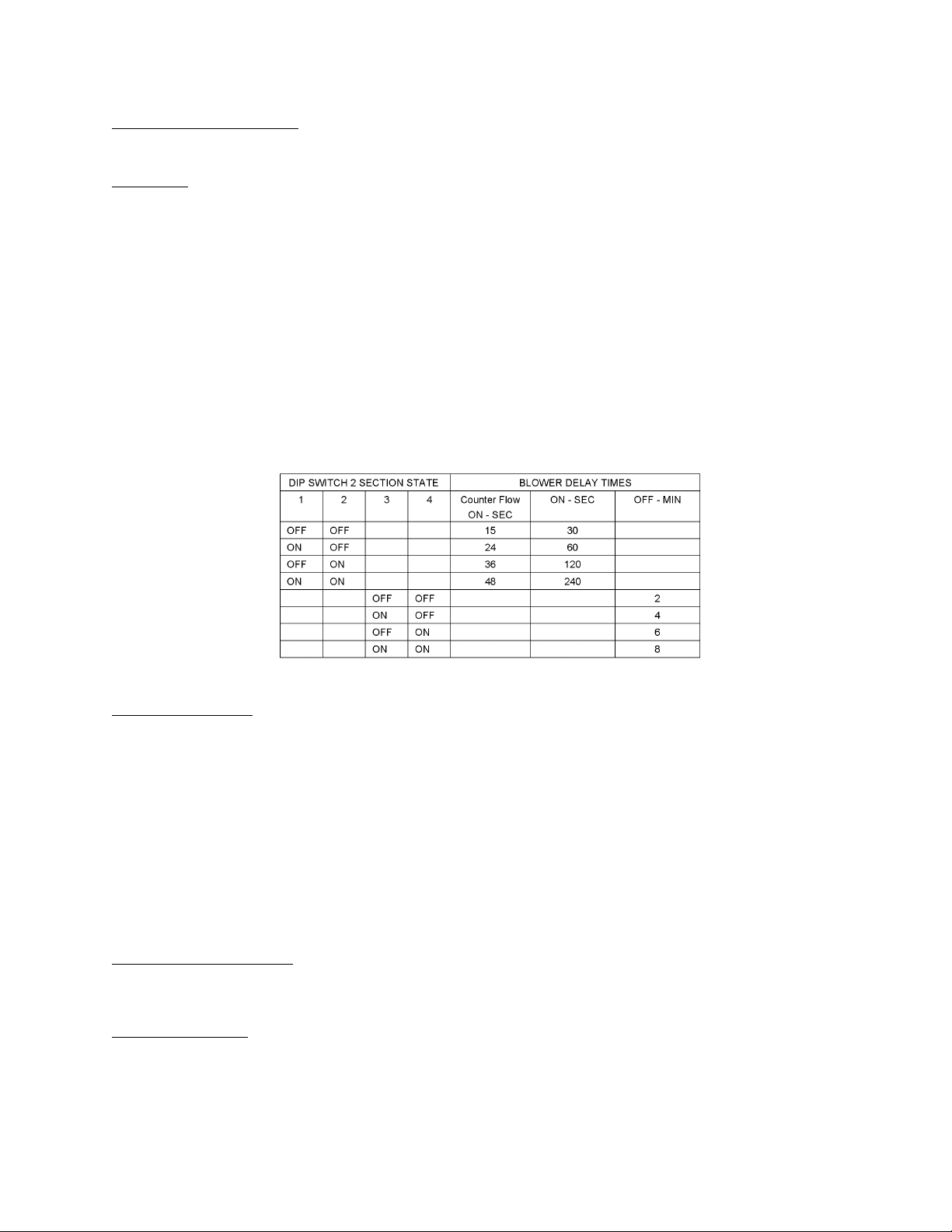

Table 1: ON and OFF Blower Delay Time Switch Settings
Motor lower Speed
Three blower speed outputs are provided. A “G” call for fan will provide the Low speed only. A “W”
heat call will provide the Heat speed only. A “Y” cooling call will provide the Cool speed only.
In the case of thermostat calls for “Y” and “W” together, blower speed selection will be determined by
the input that was first initiated. In the case where the control is in a cooling mode with both “Y” and
“W” inputs energized and then the “Y” input is removed, the cooling blower off time will be executed
prior to the control switching into a heating mode. In the case where the control is in a heating mode
with both “Y” and “W” inputs energized and then the “W” input is removed, the heating blower off
time will be executed prior to the control switching into a cooling mode. In the case where a call for
fan “G” already exists and either a “W” or a “Y” call is initiated, the blower speed will switch to the
respective “W” or a “Y” speed following the blower on delay for that call. Six dip switches select
Speed values for heat, cool, fan and dehumidification blower speeds (see the CFM Tables).
lower On and Off Delays
Four Heat blower on and four blower off delays are selected by two dip switches for each function.
Refer to Table 1 for specific delay values.
Counter Flow Mode
Counter Flow Operation will be allowed if JW10 is cut. If JW10 is not cut, the control will not perform
any of the Counter Flow Operation as described below. Counter Flow Operation is only valid when a
call for Heat is present. Counter Flow Operation will bring the blower on at a defined low speed at a
defined time between the enabling of the burner and the selected turn on time delay. Turn on delay
times for the Counter Flow Operation are defined in Table 1.

All installations and services must be performed by qualified service personnel.
9
Once the selected lower On Delay time has be reached, the blower operation will change to the
operation described in Motor lower Speed.
Speed Selection Values
Three dip switches select 8 cooling speeds. Dependant fan, and dehumidification speeds are
selected by the same switches, their tabular values are enacted when their function is called. Three
additional dip switches select 8 heating speeds which are enacted when heat is called. This allows
independent selection of heating and cooling capacity parameters. See the CFM Tables for speeds.
F. CFM TABLES
The following tables contain blower speed settings and their respective air flow rates for the ECM blower
motor. To change air flow rates from that of the shipped settings, use the respective SW1 dipswitch on
the furnace’s integrated control board (see Figure 3).
OH6FA072DV4
Heating Speed Set-ups
Low Fire Med Fire High Fire
Static Pressure (Amps/Watts)
BTUH 6 , 72, 9 ,
Fan
Control
SW 1
Switch
Settings
Heating
CFM
Aprox. Rise
(F )
Aprox. Rise
(F )
Aprox. Rise
(F ) .2 .5
3-OFF
2-OFF
1-OFF
74 75o 1.1/98 1.8/173
3-OFF
2-OFF
1-ON
812 68o 82o 1.3/114 2.1/193
3-OFF
2-ON
1-OFF
883 63o 76o 1.5/129 2.4/218
Factory SW1
Switch
Settings
3-OFF
2-ON
1-ON
968 57o 69o 86o 1.7/148 2.4/223
3-ON
2-OFF
1-OFF
1 54 63o 79o 1.9/173 2.7/246
3-ON
2-OFF
1-ON
1153 58o 72o 2.3/2 7 3. /283
3-ON
2-ON
1-OFF
1267 66o 2.7/247 3.5/332
3-ON
2-ON
1-ON
1424 58o 3.4/315 4.3/4 9
= Recommended Heating Speed Setting
NOTE: Electrical data provided for Ultratech motor
OH6FA072DV4

All installations and services must be performed by qualified service personnel.
10
Cooling Speed Set-ups
Air Flow Static Pressure (Amps/Watts)
Fan
Control
SW 1
Switch
Settings Clg. Tonage Cool Continuous .2 .5
6-OFF
5-OFF
4-OFF
2 799 5 1.2/1 9 2.1/186
6-OFF
5-OFF
4-ON
2.5 1 17 5 8 1.8/16 2.5/23
6-
OFF
5-ON
4-OFF
3 121 6 5 2.4/22 3.3/3 8
6-
OFF
5-ON
4-ON
3.5 14 4 7 2 3.2/3 5 4.2/4 9
Factory
SW1
Switch
Settings
6-ON
5-OFF
4-OFF
4 1622 799 4.6/443 5.7/56
NOTE: Electrical data provided for Ultratech motor

All installations and services must be performed by qualified service personnel.
11
OH6FX072DV4
Heating Speed Setups
LOW CAPACITY HIGH CAPACITY
FAN
CONTROL
SW 1
SWITCH
SETTINGS
BTUH LOW FIRE
6 ,
HI FIRE
72,
LOW FIRE
72,
HI FIRE
9 ,
HEATING
CFM
APPROX.
CFM/RISE (ºF)
APPROX.
CFM/RISE (ºF)
APPROX.
CFM/RISE (ºF)
APPROX.
CFM/RISE (ºF)
3 – OFF
2 – OFF
1 – OFF
740 592 / 94º 740 / 90º 592 / 113º 740 / 113º
3 – OFF
2 – OFF
1 – ON
812 650 / 85º 812 / 82º 650 / 103º 812 / 103º
3 – OFF
2 – ON
1 – OFF
883 706 / 79º 883 / 75º 706 / 94º 883 / 94º
3 – OFF
2 – ON
1 – ON
968 744 / 72º 968 / 69º 774 / 86º 968 / 86º
3 – ON
2 – OFF
1 – OFF
1054 843 / 66º 1054 / 63º 843 / 79º 1054 / 79º
3 – ON
2 – OFF
1 – ON
1153 922 / 60º 1153 / 58º 922 / 72º 1153 / 72º
FACTORY
SW1 SWITCH
SETTINGS
3 – ON
2 – ON
1 – OFF
1267 1013 / 55º 1267 / 53º 1013 / 66º 1267 / 66º
3 – ON
2 – ON
1 – ON
1424 1139 / 49º 1424 / 47º 1139 / 59º 1424 / 59º
= Rec mmended heating speed setting
Cooling
Speed set-
ups
Air Flow
Fan
Control
SW 1
Switch
Settings Clg. Tonage Cool Continous
6-OFF
5-OFF
4-OFF
2 799 5
6-OFF
5-OFF
4-ON
2.5 1 17 5 8
6-
OFF
5-ON
4-OFF
3 121 6 5
6-
OFF
5-ON
4-ON
3.5 14 4 7 2
FACTORY
SW1 SWITCH
SETTINGS
6-ON
5-OFF
4-OFF
4 1622 799

All installations and services must be performed by qualified service personnel.
12
OH8FA119DV
Heating Speed Set-ups
Low Fire Med Fire High Fire
BTUH 1 1, 119, 132,
Static Pressure
Amps/Watts
Fan
Control
SW 1
Switch
Settings
Heating
CFM
Aprox.
Rise (F )
Aprox.
Rise (F )
Aprox.
Rise (F )
. 2 . 5
3-OFF
2-OFF
1-OFF
12 2 78o
1.6/146 2.5/233
3-OFF
2-OFF
1-ON
1315 71o 84o
1.9/174 2.7/252
3-
OFF
2-ON
1-OFF
1429 65o 77o
2.3/2 6 3.2/294
3-
OFF
2-ON
1-ON
1565 6 o 7 o 78o
2.6/242 3.6/337
Factory SW1
Switch
Settings
3-ON
2-OFF
1-OFF
17 1 55o 65o 72o
3.1/292 4.1/399
3-ON
2-OFF
1-ON
186 59o 66o
3.7/354 4.8/466
3-ON
2-ON
1-OFF
2 41 6 o
4.7/452 5.7/567
3-ON
2-ON
1-ON
2223 55o
5.9/587 7.2/719
= Rec mmended heating speed setting
NOTE: Electrical data provided for Ultratech motor

All installations and services must be performed by qualified service personnel.
13
OH8FA119DV
Cooling Speed Set-ups
Air Flow
Static Pressure
Amps/Watts
Fan
Control
SW 1
Switch
Settings
Clg.
Tonnage Cool Continuous
Dehum
. 2 . 5
6-OFF
5-OFF
4-OFF
2 8 5
557 1. /89 1.8/161
6-OFF
5-OFF
4-ON
2.5 1 18 5 9
7 3 1.4/121 2.1/192
6-OFF
5-ON 4-
OFF
3 1212 6 6
848 1.8/159 2.6/231
6-OFF
5-ON 4-
ON
3.5 14 6 7 3
994 2.3/2 3 3.1/29
Factory
SW1
Switch
Settings
6-ON
5-OFF
4-OFF
4 1624 8
1139 3. /278 4. /378
6-ON
5-OFF
4-ON
4.5 1818 897
1285 3.8/353 5. /475
6-ON
5-ON
4-OFF
5 2 12 994
14 6 4.8/456 6. /582
6-ON
5-ON
4-ON
5.5 223 1115
1551 6.1/593 7.4/729
NOTE: Electrical data provided for Ultratech motor

All installations and services must be performed by qualified service personnel.
14
OD6F/RA072DV
Heating Speed Set-ups
NOTE: Electrical data provided for Ultratech motor
Low Fire Med Fire High Fire
Static Pressure
(Amps/Watts)
BTUH 60,000 72,000 90,000
Fan
Control
SW 1
Switch
Settings
Heating
CFM
Aprox. Rise
(F0 )
Aprox. Rise
(F0 )
Aprox. Rise
(F0 ) 0.2 0.
3-
OFF
2-
OFF
1-OFF
755 73 1.3/114 1.9/173
3-
OFF
2-
OFF
1-ON
826 66 80 1.4/121 2.1/191
3-
OFF
2-ON
1-OFF
898 61 74 1.5/136 2.2/203
3-
OFF
2-ON
1-ON
983 56 67 84 1.7/155 2.4/227
3-
ON
2-
OFF
1-OFF
1068 62 77 1.9/176 2.7/259
3-
ON
2-
OFF
1-ON
1168 57 71 2.2/203 3.0/286
3-
ON
2-ON
1-OFF
1282 64 2.6/245 3.5/333
3-
ON
2-ON
1-ON
1424 58 3.1/299 4.2/400
= Recommended Heating Speed Setting

All installations and services must be performed by qualified service personnel.
15
OD6F/RA072DV
Cooling Speed Set-ups
NOTE: Electrical data provided for Ultratech motor
Air Flow Static Pressure
(Amps/Watts)
Fan Control SW
1 Switch
Settings
Clg.
Tonage Cool Continous 0.2 0.
6-OFF
5-OFF
4-OFF
2 799 500 1.3/115 2.0/185
6-OFF
5-OFF
4-ON
2.5 1017 508 1.8/168 2.5/234
6-OFF
5-ON
4-OFF
3 1210 605 2.4/219 3.2/308
6-OFF
5-ON
4-ON
3.5 1404 702 3.2/301 4.1/395
6-ON
5-OFF
4-OFF
4 1622 799 4.3/412 5.4/532
6-ON
5-ON
4-OFF
5 2010 993 7.2/720 8.6/861

All installations and services must be performed by qualified service personnel.
16
HEATING AIR FLOW / TEMPERATURE RISE
LOW CAPACITY HIGH CAPACITY
BTUH LOW FIRE
60,000
HI FIRE
72,000
LOW FIRE
72,000
HI FIRE
90,000
FAN
CONTROL
SW 1
SWITCH
SETTINGS
HEATING
CFM
APPROX.
CFM/RISE
(ºF)
APPROX.
CFM/RISE
(ºF)
APPROX.
CFM/RISE
(ºF)
APPROX.
CFM/RISE
(ºF)
3 – OFF
2 – OFF
1
–
OFF
755 604 / 91º 755 / 87º 604 / 109º 755 / 109º
3 – OFF
2 – OFF
1
–
ON
826 661 / 83º 826 / 80º 661 / 100º 826 / 100º
3 – OFF
2 – ON
1
–
OFF
898 718 / 70º 898 / 74º 718 / 92º 898 / 92º
3 – OFF
2 – ON
1
–
ON
983 786 / 64º 983 / 67º 786 / 84º 983 / 84º
3 – ON
2 – OFF
1
–
OFF
1068 854 / 59º 1068 / 62º 854 / 77º 1068 / 77º
3 – ON
2 – OFF
1
–
ON
1168 934 / 54º 1168 / 57º 934 / 71º 1168 / 71º
Factory SW1
Switch
Settings
3 – ON
2 – ON
1
–
OFF
1282 1025 / 50º 1282 / 52º 1025 / 64º 1282 / 64º
3 – ON
2 – ON
1
–
ON
1424 1139 / 48º 1424 / 46º 1139 / 58º 1424 / 58º
= Recommended heating speed setting
Cooling Speed set-ups
Air Flow
Fan Control
SW 1 Switch
Settings Clg. Tonage Cool Continous
6-OFF
5-OFF
4
-
OFF
2 799 500
6-OFF
5-OFF
4
-
ON
2.5 1017 508
6-OFF
5-ON
4
-
OFF
3 1210 605
6-OFF
5-ON
4
-
ON
3.5 1404 702
Factory SW1
Switch Settings
6-ON
5-OFF
4
-
OFF
4 1622 799
6-ON
5-ON
4
-
OFF
5 2010 993
OD6F/RX072DV
Heating Speed Set-ups
Cooling Speed Set-ups

All installations and services must be performed by qualified service personnel.
17
OL6F/RA072DV
Heating Speed Set-ups
NOTE: Electrical data provided for Ultratech motor
Furnace M otor Current
Draw (Am ps/ / W atts) vs.
External Static Pressure
(in W .C.)
L ow Fire Med Fire High Fire
BTUH 60,000 72,000 90,000
Fan
Contro l
SW 1
Sw itch
Settings
Heating
CFM
Aprox. Rise
(F0 )
Ap rox. Rise
(F 0 )
Ap rox. Rise
(F 0 ) 0.2 0.
3-OFF
2-
OFF
1-OFF
7 73o 1.1/93 1.7/1 4
3-
OFF
2-
OFF
1-ON
826 66o 80o 1.2/10 1.9/168
3-
OFF
2-ON
1-OFF
898 61o 74o 1.8/1 80 2.3/2 19
Factory
SW 1
Sw itch
Settings
3-OF
F
2-ON
1-ON
983 6o 67o 84 o 2.0/1 99 2.7/2 70
3-ON
2-
OFF
1-OFF
1068 62o 77o 2.2/224 3.0/297
3-ON
2-
OFF
1-ON
1168 7o 71o 2. /2 4 3.4/336
3-ON
2-ON
1-OFF
1282 64 o 3.0/298 3.8/3 80
3-ON
2-ON
1-ON
1397 60 o 3. /338 4.4/420
= Reco mm ended Heating Speed S etting
