Throughclean P6 -17C User manual

INDEX:
1. Spec Sheet
2. Installation & Set-Up
2.1 Initial Set-Up
2.2 Operating Instructions
2.3 Regular Checks
3. Trouble Shooting Guide
4. Maintenance
4.1 Maintenance Schedule
4.2 How to cause expensive damage to your unit
4.3 Remote Area Consumables Kit
5. Safety WARNINGS
5.1 Water Blasters - General
5.2 Warnings Specific for this unit
5.3 For Petrol Units in General

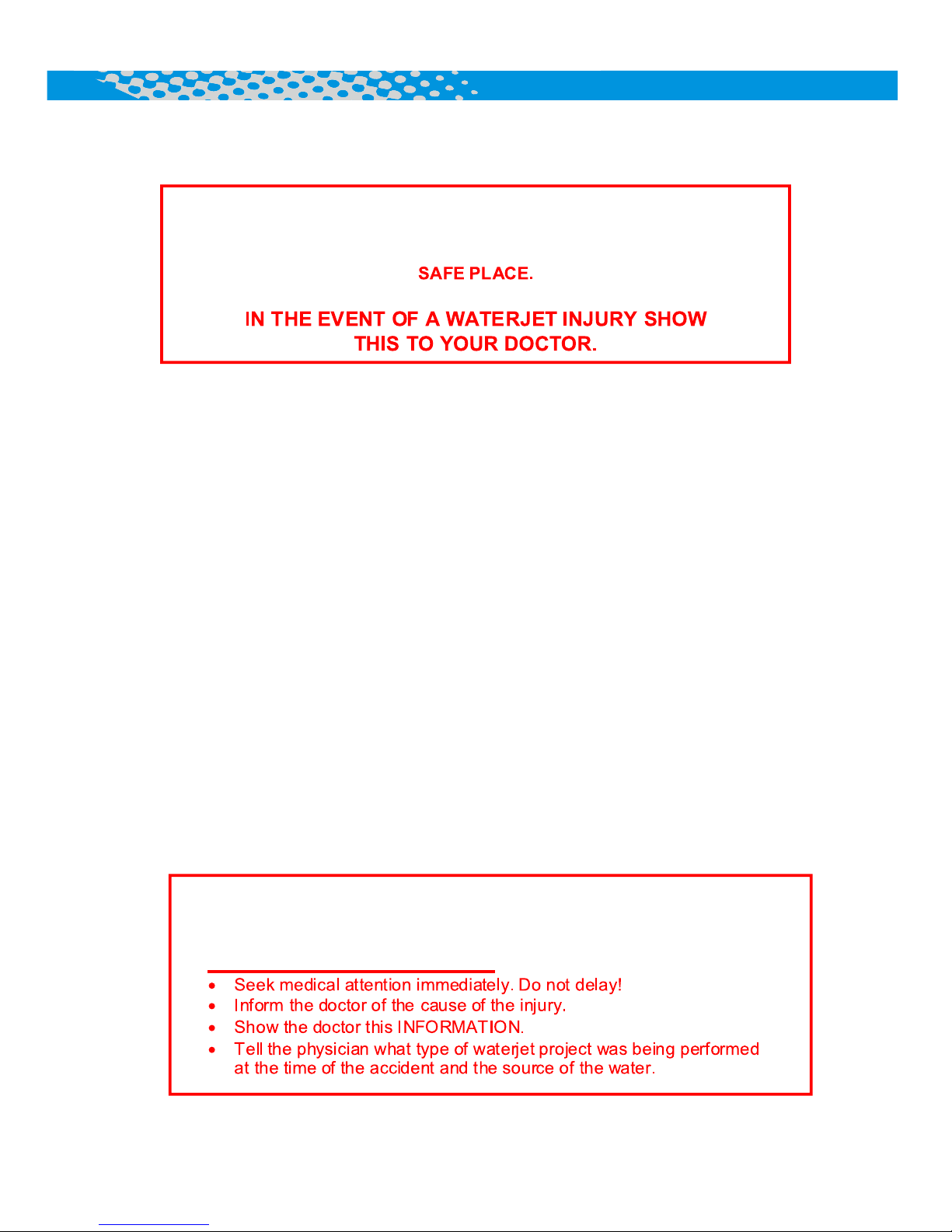

5.4 MEDIC ALERT CARD
6. Warranties
7. Terms & Conditions
Additional Info as manuals/drawings:
· Pump
· By-Pass Valve
THOROUGHCLEAN
WATER BLASTERS
Over engineered On purpose
OPERATORS MANUAL
RENTAL SPECIFICATION BUILT
HONDA PETROL Driven,
Cold Water High Pressure Cleaner
1740 PSI (120 BAR), 14 LPM
(Was B3215)
P6 -17CR
PRESSURE CLEANER

Heavy Duty Portable Cleaner Cold Water 1740 PSI PUMP • • •
G
Engine
YEARYEAR
WARRANTY
YEAR
T
L
T
I
O
U
B
RENTAL SPEC
SINCE 1984
HAWK
I N T E R N A T I O N A L
®
*EWP
2780 PSI
2780 PSI2780 PSI
1740 MPP 1500 DRP
WORLD LEADER IN
INDUSTRIAL, HEAVY-DUTY,
MULTI-PLUNGER PUMPS
TRHC PTY LTD - Heavy Duty Water Blasters - Washmates - Transit Cleaners
12 Ashburn Rd, Bundamba, QLD 4304
Ph: 1300 378 872
Web: www.thoroughclean.com.au
Email: [email protected]
THOROUGHCLEAN
WATER BLASTERS
Over engineered On purpose
(Was B3215)
EWP* (Effective Working Pressure) figures mentioned are theoretical only when machine is used with a turbo nozzle
MMP - Maximum Pump Pressure. DRP - De-Rated Pressure
Petrol Driven - 6.5HP - RENTAL SPECIFICATION - 1740 PSI MPP - Cold Water
P6 -17CR
PRESSURE CLEANER

ANALYSIS - DESIGN - CONSTRUCTION - ACCESSORIES
EWP*: 2780 PSI
Our smallest Petrol Driven High Pressure Cleaner - built to the demands
of the Equipment Hire Industry’s tough Rental Spec in order to withstand
rough handling, abuse and long working hours.
Flow Rate: 14 LPM
Powered By: 6.5 HP Honda Petrol Engine
ENGINE PUMP HP SUPPLY DELIVERY
**Derating (or de-rating or de-tuning) is the operation of a machine at less than its rated maximum power in order to prolong its life,
The term is commonly applied to and and to .electrical electronic devices internal combustion engines
• 6.5 HP Recoil Start
low
revving Petrol Engine
• Comes with HONDA
3-year GX range engine
warranty (refer to Honda
website for details)
• Close-coupled via 2:1
gearbox drive
WHY HONDA?
- Easy Start
- Fuel Efficient, high output
engine
- Quiet operation
- Proven Reliability
- Easy to maintain
- Emissions Compliant
- 3-Year Limited Warranty
HONDA GX200
HAWK pumps are
renowned worldwide for
their quality, efficiency &
reliability
•Hawk HC280A pump -
1740 PSI max 14 LPM
• **de-rated to 1500 PSI as
standard
• Ceramic sleeved 316
s/steel pistons, s/steel
cam and brass head.
Ceramic resist premature
wear and withstands high
internal temperatures and
ensures smooth operation
• Extra strong, Heavy
Duty thick gauge steel
frame - hot dip
galvanized - to protect
engine & pump and last
indefinitely
• Lifting eye for easy
lifting and strapping
down without bending
• 4 x Heavy Duty pneumatic
bump wheels for easy
maneuvering over uneven
surfaces
• Industrial quality over-
sized in-line ¾” water
filter with stainless steel
mesh to protect pump from
waterline debris and
impurities - mounted
OFF-PUMP to lighten
pump and reduce stress
on drive shaft.
• Thermoshield 63°C
dump valve will
automatically dump
water when temperature
rises in system during by-
pass to protect seals
• Hose end sleeved with
canvass for operator
protection
Size: 1200 x 900 x 760 (tbc) Weight: 51 kg
WWW.THOROUGHCLEAN.COM.AU
DISCLAIMER: Although care has been taken to ensure the accuracy, completeness and reliability of the information provided, due to ongoing
product development and improvements, products may vary slightly from this data sheet. The user of the information agrees that the information
is subject to change without notice.
P6R-17C
MAIN CHASSIS
• 20m R2 4500 PSI rated
SWP hose with 4x burst
rating and hose end
sleeved for operator
protection (on hose reel)
• Italian-made quality dry
shut off gun (rated to 300
BAR) with 900 mm
insulated s/steel lance &
s/steel HP jet
• Heavy duty glycerin-filled
high pressure gauge to 4X
SWP
• Designed to run up to
100 meters HP hose
without losing
significant pressure
• #15060 nozzle as
standard
56. HP
PETROL DRIVEN BLASTER
The engine, pump and by-pass valves are all fully
repairable, serviceable with new seals and rebuildable.
All parts kept in stock and there is full back-up by a sales
& service department
By-pass valve and water filter are mounted ‘off-pump’
to lighten pump and weight on engine, increase oil and
water reserve and protect components against vibration.
GENERAL
• Unique K7-1 soft acting
low to high PSI By-Pass
Valve - mounted OFF-
PUMP to lighten pump
drag on engine
• Zero pressure stored in
hose and lance during
by-pass - protecting gun,
seals, hose, fittings
• Fully repairable &
rebuildable
• Safest BPV on the market
BY-PASS VALVE
Max. Pump PSI: 1740 PSI
PETROL DRIVEN BLASTER
PETROL DRIVEN BLASTER
NOTE
UNIQUE
FE TUREA S
n BOLDi
(Was B3215)

WWW.THOROUGHCLEAN.COM.AU
2.1 INITIAL SET-UP
Inspect shipment for damages during transit and unpack. Report any damages to your
transport company by writing details on delivery docket before signing..
Connection supply hose to water supply:
oUse hose with minimum 20 mm inside diameter
O Required minimum, of 10 PSI / 21 LPM (Litres per minute)
Turn on the water supply.
Remove the High Pressure Jet from the lance and run mains pressure through
the unit for 1 minutes be pressing the trigger on the gun/lance assembly to
remove any impurities in the system which may have been dislodged during initial
transport. Ensure the nozzle is unblocked.
oNOW ONLY refit the H.P. Jet
Last Checks:
oCheck oil levels in H.P. Pump & Slave Tank. Fill up with SAE 30 or SAE
15W40 if required.
oCheck fuel level - fill up if required using CLEAN & FRESH PETROL FUEL
oCheck engine air cleaner and water filter is in place, tight and unblocked
oEnsure water supply is open and that there are no obvious water leaks
oVisually check lance & gun assembly
Please read Safety Instructions and special Site Specific Instructions first.
2. INSTALLATION & SET UP
2.2 OPERATOR INSTRUCTIONS - Starting your engine
1.Unroll high pressure hose on reel ensure there are no kinks in it.
2. Starting Procedure:
O Ensure the main ON/OFF switch (photo 2) is OFF
OEnsure the Choke is ON (Move fully to the LEFT - ‘A’ in photo 1.)
OEnsure the Fuel is open (Move ‘B’ fully to the RIGHT - Photo 1.)
Note: There are picture diagrams on the engine showing which way is on and off.
ONow take the recoil cord handle ‘D’ and give it 2 pulls to prime the engine.
ONow switch the main ON/OFF switch (photo 2) to ON and pull the recoil cord
handle in a strong, even, fully extended pull. The engine should fire up.
OAs soon as it is running, turn the Choke OFF by pushing the Choke Lever ‘A’
all the way to the left.
Photo Photo 2.

WWW.THOROUGHCLEAN.COM.AU
Machine is now running, pump is pumping and system is in by-pass (until trigger on gun
activated from closed to open = high psi flow)
Note: ‘C’ is the throttle which controls the REV’s. This has been pre-set and locked. Do
not attempt to change this. It has been set according to pump specs.
Your unit is now ready to perform a trial high pressure blast. Depress the trigger
on the gun pointing the lance in a safe direction. Always test using a new H.P Jet
(#1506)
OPERATING/CLEANING TIPS:
1. Using a Fan Jet, first blast off heavy soil or dirt build-up
2. Apply detergent to partially cleaned surface using low pressure. (Apply
detergent by spraying from bottom up to avoid streaking - using a dual-lance
and detergent assembly or foaming lance or separate pressure sprayer.)
Allow to soak for a few minutes.
3. Blast off dirt using high pressure and a 'bottom - up' approach.
4. Lastly, rinse off thoroughly with 'top down' approach.
NOTE:
During the first 10 to 12 hours of operation, manufacturing debris like SWARF /
LOCTITE may come through the machine and cause blockages of the H.P. Jet.
Remove and clean if this occurs.
TO SHUT DOWN:
1. Flick the main ON/OFF switch back to the OFF position.
2. Turn off fuel supply off by pushing the fuel supply lever all the way to the
LEFT.
3. Turn water supply off and disconnect from water supply.
4. Squeeze the trigger a few times to ensure no pressure is stored in the
system.
5. Roll out the hose and then roll up avoiding any kinks.

WWW.THOROUGHCLEAN.COM.AU
 Water Supply - Low water supply can cause cavitation and/or pump running
dry casing expensive pump failure. Always check to ensure supply is:
Uninterrupted
That the pressure is good (min. 10 PSI / 21 LPM)
There are no kinks in supply hose
Fittings are in good condition and not leaking
Worn Jets System will function okay, but with oversized, warn jets, the
pressure will be much lower and cleaning ability reduced. Always use
to check system
Operating Pressure - Check operating pressure to see if it within 10% of
units de-rated operating pressure of / (or pressure as
specified). If the pressure dropped over time, it may indicate general wear and
tear and a service is recommended.
By-Pass valve function test - Check that there is no water
hammering/surging whilst in by-pass and that the pressure gauge registers
zero pressure when in by-pass. Test several times.
Air Leaks - Especially in suction to pump hoses. Repair immediately if found.
Check for cuts & abrasions
Lance & Gun assemblies - Check for damage and leaks
Water Filters - Check to ensure filters are clean, filter heads/tops are not
cracked, seals are not worn and sealed air tight and mesh tube is unblocked.
Air Filters - Check that air filter is in place, tightly connected, unblocked and
clean.
Engine Speed - Check unit if engine speed is too low.
 - Ensure safety protective gear is used and in good state of repair.
Ensure Safety Card is handy.
Tyre Pressure - Check and inflate if applicable to max 30 PSI. (2 BAR)
Automatic dumping of hot water when water temp rises above 63 deg C.
 Worn By-Pass - By-Pass valves should NOT leave high pressure stored in
hose down-stream between by-pass valve and pistol.
Water Leaks - Excessive hammering can cause damage. Fix leaks when
they occur
Water Condition - Ensure water source is clean (potable water). Not
recycled water or bore hole water which can damage pumps.
Fuel Filter - Ensure fuel filter is replaced according to manufacturer’s
recommendations. Ensure it is in place, not leaking or damaged. If the fuel
filter is clogged - replace and also drain and clean out the fuel tank &
carburetor.
Engine Oil Level - Check Daily!
Pump Oil Level - Check Daily!
For this machine - replace engine and pump oil completely
#1506
105 BAR 1500 PSI
Engine RPM locked
at 2800 RPM.
every 200
hours!
SAFETY
Note:
2.3 REGULAR CHECKS:

WWW.THOROUGHCLEAN.COM.AU
3. TROUBLE SHOOTING GUIDE
PROBLEM POSSIBLE CAUSE REMEDY COMMENT
# MACHINE WILL NOT START 1. Pump Oil Level too low
2. Fuel empty
3. Choke not on
4. Main switch not ON
5. Fuel is OFF
1. Top up with SAE30 /15W40
2. Top up using clean petrol
3. Engage Choke
4. Turn on
5. Fuel Lever to Open
# MACHINE RUNNING OKAY,
BUT NOT REACHING
SPECIFIED PRESSURE
#Sucking air Check Suction for Air Leaks
#Valves Sticking Remove – Clean – Replace Check Water Quality
#Seat in Unloader Valve Worn/
By-Passing Water
Remove – Fit BPV Service Kit Or
Exchange Valve
Probably Indicate
- Pump Seal/Piston Valve
#HP Jet Wrong Size – Worn Out Check – Replace - Service Required?
#Worn Piston H.P. Seals Check – Replace Check Pistons for Cracks
# Insufficient Water Supply Check Available Water Supply &
Filters in Suction Line
# FLUCTUATING PRESSURE #Valves Worn/Sticking Remove – Clean – Replace
#Block ages/Debris in By-Pass
Valve
Remove – Clean – Replace Therefore Check Suction Filters
#Pump Sucking Air Seal Suction
#Worn Piston HP Seals Remove – Clean – Replace Service Required
# PSI LOW AFTER PERIOD OF
USE
#Fair Wear / Tear? Check – Replace HP Jet Check Recent Activity/Usage
#Suction/Delivery HP Outlet
Valves Worn
Check – Replace Therefore Check suction Filters
#Unloader Valve Worn Replace as required
#Piston Seals Worn Replace as required Check Big Ends for Piston Slap
#Piston Cracked Replace as required Check Big Ends for Piston Slap
#”O” Rings Failed/Leaking Replace as required
#”Big End” Worn Replace as required
#Drive Belts Loose Check / T ighten
# PUMP “NOISY” #Air in Suction / Pump Cavitating Identify Air Ingress/Seal
#Broken or Weak Suction Valve
Spring
Check – Replace – As Set
#Valves Clogged/Sticking Check – Replace – As Set
#Worn Main Crankshaft Bearings #Probably Uneconomical to
Repair
#Inlet Water T emp over 75 deg
Celsius
Reduce inlet Water Temp Enclosed By-Pass for excessively
long periods?

WWW.THOROUGHCLEAN.COM.AU
...Continued
PROBLEM POSSIBLE CAUSE REMEDY COMMENT
# OIL IN PUMP EMULSIFIED/
CONTAMINATED BY WATER
#Piston to Crankcase Oil Seals
Worn
Check and Replace Look for Oil under Pump – Low
Pump Oil
#High Ambient Humidity Check – Change Oil T wice as
Often
#Piston Seals Worn/Cracked
Piston
Check – Replace Therefore Check for “Big End”
Wear
#Water Blasted into Pump via
Breather Cap during Cleaning
Exercise Care
PROBLEM POSSIBLE CAUSE REMEDY COMMENT
# WATER DRIPPING FROM
UNDER PUMP
#H.P. Piston Seals Worn or Check and Replace
#“O” Rings in Plunger Retaining
Bolt Worn
Check and Replace
# OIL DRIPPING FROM UNDER
PUMP
#Piston to Crankcase Oil Seals
Worn
Check and Replace Check Pump for Low Oil therefore
“Big End” Damage
# EXCESSIVE VIBRATION/
PULSATIONS IN HP DELIVERY
LINE
#Accumulator Failed Check – Replace
#In/Out Pump Valves Worn Check – Replace
#Pistons Cracked Check – Replace
#Low Water Supply Increase supply
#Gudgeon Pin in Conrod
Stretched
Check – Replace
# WATER FILTER MESH IS
CRUSHED WHEN REPLACED
# Incorrect replacement
procedure
First insert mesh tube tightly into
black head of filter assembly and
then screw on grey cover tightly.

WWW.THOROUGHCLEAN.COM.AU
4.1 MAINTENANCE SCHEDULE
USE THE FOLLOWING GUIDE WHEN CONSIDERING MAINTENANCE:
Always test units using a new H.P. jet correctly sized.
Before you start pulling pumps apart, do obvious checks first:
oWorn Jets
oAir Leaks
oEngine Speed (Not too low)
oPower Supply (Not too low when using long leads on 240 Volt units)
oSuction Filters (Blocked?)
oWater supply volume (Not too low)
As a guide in normal use, consider the following:
- After replacing 10 H.P. Stainless Steel jets, it is time to replace the seals on the
pump using a Seal Kit.
- At the same time, also replace the seals on the By-Pass Valve using a By-Pass kit
- Do a whole pump changeover at 1,000 hours. (Con Rods, Big Ends & Crankshaft)
- Pistols, swivels & H.P Hose damage is usually uneconomical to repair. Replace
when necessary.
- By-Pass Valves will take 3-5 rebuilds before body wear becomes too much and
replacement is needed.
IMPORTANT MAINTENANCE TIPS:
4. MAINTENANCE
#ACTION REQUIRED DAILY 250 HOURS 500 HOURS ANNUAL
1Replace H.P. Jet Nozzle 
2Check Water Filters - Clean or replace    
3Check Air Filter - Replace if required 
4Inspect for damage or leaks - and repair or
replace all HP components like gun, hose,
swivel, nozzle, by-pass valve, etc
   
5Strip & Refurbish Hawk Pump:
- Replace Plunger Rod Oil Seals (3/pump)
- Replace Brass Valves (6/pump)
- Replace various seals (3/pump)
- Replace Ceramic Piston Plungers if
cracked or worn (3/pump)
When Required
6Check Oil Level in Pump/Slave tank    
7Change Pump Oil - SAE 15/40 or SAE 30 
8Check By-Pass valve function test - re-kit or
replace if required

9Replace Fuel Filter 
10 Service Transmission - Use 80/90 Gear Box
Oil

INTERVALS

WWW.THOROUGHCLEAN.COM.AU
4.2 How to cause expensive damage to your Water Blaster!
WHAT WAS DONE WRONG: WHAT WAS THE RESULT OF THIS ACTION:
Cracked and burnt high pressure seals in pump.
No. 1 piston cracked due to thermal shock.
Mechanical damages to EVERYTHING:
- Pistol, HP hose, pump valves, pistons
- Crankshaft bearing failure
- Pressure gauge failure
- By-pass valve excessive wear & tear
- Frequent O-rings blow outs
- Brass heads deformed
Over adjust by-pass valve to try and increase
PSI
Dump pressure was too high. Hydraulic hammer to
system every time trigger is closed. PSI was increased 5-
fold normal working pressure.
Excessive wear & tear on pistons / valves / seals / HP
jets.
Excessive blocking of filters caused by bore or recycled
water with high salt / mineral content. Pump clogged up
with debris.
Remember: Spec requirement says: “Potable water”
Over-revved engine for more PSI Engine & Pump premature wear & tear. (Most increased
PSI pressure is lost through by-pass valve and only
small increase in pressure is achieved doing this!) Lost
of waster horse power!
When orifice is reduced, the PSI will rise and then by-
pass valve will dump (thinking the pistol is shut). Most
extra PSI will be dumped and only a slight increase in
PSI will be achieved.
Engine, By-pass valve & Pump premature wear & tear.
Using Contaminated Fuel (“Had to remove
fuel filter to keep engine running!”)
Excess Fuel-system clean-outs required. If excessive
corrosion in carburetor or injectors is detected after the
2nd or 3rd in-line fuel filter replacement, then this should
ring alarm bells.
Park machine where debris blows all over it.
Reverse bulldozer over it.
Our machines are rugged and strong – but not battle
tanks!
Hire units long-terms and fluid levels are not
checked.
Con-rod through the crank case!
Modify 240 Volt electric unit to override
thermal overload on motor.
Stop-Start capacitors melted.
Used 100m extension lead and a 5 Kva Gen-
Set.
A 10% low current is equivalent to a 50% over-load.
Our 3 hP 240 Volt motors require 8 Kva Gen-Set
minimum!
Run trucks, fork-lifts, tracked excavation
equipment over hoses and lance
assemblies/pressure guns.
Needs replacing of damaged parts
Hire rental machines are pilfered of parts and
returned claiming it didn’t work and demands
credit!
It happened!
Machine was allowed to run dry (without water
supply)
Unit was run on low volume water supply and
allowed to cavitate
In-Line filter was removed because “It kept
blocking up!”
COMMON MISTAKE: Put a smaller HP Jet
onto lance for higher pressure.

WWW.THOROUGHCLEAN.COM.AU
4.3 Remote area consumables kit.
This is a suggested list of parts & consumable items when unit is used where access to
service and parts is limited - in order to limit down time and ensure unit is serviced regu-
larly according to maintenance schedule. Service can be performed by a mechanic.
This is an extensive list which can be cut back on depending on circumstances.
Not supplied with this unit but available on request.

WWW.THOROUGHCLEAN.COM.AU
5. SAFETY PRECAUTIONS & WARNINGS
5.1 SAFETY PRECAUTIONS FOR WATER BLASTERS - GENERAL
1. Always turn off water at source / turn off machine and open lance to release any in-
line / stored pressure - before disconnecting hoses or working on machine.
2. Never aim high pressure water jet at anyone, at animals or at fragile items - injury or
damage could result.
3. Never allow untrained adults or minors use of the equipment.
4. Never use the machine if there are any leaks on the high pressure delivery side of the
pump.
5. Read and observe the manufacturer's instructions if chemicals are being used.
6. The “recoil” on larger machines is positive - lean forwards and brace yourself to take
it up!!!
7. any electrical components, motors / switchgear
or electrical boxes as injury or death may result.
8. Never water blast any fuel caps or oil caps and water can get into breather holes and
contaminate fuel or water. Never blast water directly into seals / bearings on shafts
where water penetration would be detrimental.
9. fragile items / surfaces that may be damaged by high
velocity water. Always carefully test on a small area.
10.
- i.e. Hat / face - eye protection, wet weather gear, boots and gloves
*particularly important if hot water / sandblaster or aggressive chemicals are being used.
11. Check pump / gearbox / engine oil levels before you start - daily !!
12. Keep hands, feet and hair away from all moving parts.
13. Never leave machine running unattended.
14. - never adjust engine speed r.p.m. or safety by-pass valve in
an attempt to increase pressure.
15. Barricade off immediate work area - restrict access - erect hazard warning signs.
16. Never use high pressure water cleaner without protective sheaths on operator end of
h.p. Hose as a high pressure leak can injure operator.
17. In commercial / industrial sites class 'b' units (pressures over 7,000 PSI) should have
additional operators allocated as safety observer / machine minder subject to work
conditions / environment. This is a responsibility of the 'site occupier' to determine.
18. If two / three operators are working they should be physically separated by partitions
/ barriers.
19. Prior to high pressure water blasting, check location’s level of emergency /first aid.
NEVER HIGH PRESSURE BLAST:
NEVER WATER BLAST:
ALWAYS WEAR PROTECTIVE GEAR* (PPE)
EXTREME DANGER
PRESSURE CLEANERS
IN GENERAL

1. Take care around the exhaust when running - surfaces are VERY HOT.
2. Use only Clean / Fresh POTABLE Water NOT Mine recycled water.
3. Always be conscious of High Temp / High Velocity Water from this machine:
4. Never refuel when engine is hot. Allow to cool down first.
5. NEVER attempt to modify levels of performance by :
Adjusting By-Pass Valve to increase P.S.I.
Use Under-sized H.P. Nozzles.
. Use Specified and approved Personal Protection Equipment
(PPE) for High Pressure Cleaners. This is a High Performance High Pressure
Cleaner.
At a Minimum wear:
- Overalls /boots /thick heavy gloves /full face protection.
- Additional equipment as instructed by site personnel or AS
EXTREME DANGER TO OPERATORS AND BYSTANDERS!
6 EXTREME DANGER!
ALWAYS CARRY MEDICAL ALERT / WARNING CARDS PROVIDED.
WWW.THOROUGHCLEAN.COM.AU
5.2 SPECIFIC SAFETY PRECAUTIONS FOR THIS UNIT
SPECIFIC SAFETY
PRECAUTIONS for
THIS PRESSURE
CLEANER

WWW.THOROUGHCLEAN.COM.AU
5.3 SAFETY PRECAUTIONS FOR DIESEL WATER BLASTERS (Using
Diesel for driving the engine or for heating the boiler in hot water units)
1. - never refuel a hot engine. Allow to cool down.
2. Store fuel in approved containers in a well ventilated place away from your work area.
3. Never run or operate in a confined space - exhaust fumes are toxic. Make sure there
is plenty of free air flow around the engine to cool it and void exhaust gases
adequately.
4. Engines (particularly mufflers/exhausts) get hot!! Be careful what you touch!!
CHECK ENGINE / GEARBOX / PUMP OIL LEVELS
DAILY - BEFORE YOU START !!
FUEL IS EXPLOSIVE
PETROL (or DIESEL)
PRESSURE CLEANERS

WWW.THOROUGHCLEAN.COM.AU
5.4 IMPORTANT MEDICAL INFORMATION
- MEDIC ALERT WARNING CARD
IMPORTANT MEDICAL INFORMATIO N
READ THIS INFORMATION AND KEEP IT IN A
This patient may be suffering from a water-jet injury. Evaluation and management
should parallel that of a gunshot injury. The external manifestations of the injury cannot
be used to predict the extent of internal damage. Initial management should include
stabilization and a thorough neurovascular examination. X-rays can be used to assess
subcutaneous air and foreign bodies distant from the site of injury. Injuries to the
extremities can involve extensive nerve, muscle, vessel damage, as well as cause a
distal compartment syndrome. Injuries to the torso can involve internal organ damage.
Surgical consultation should be obtained.
Aggressive irrigation and debridement is recommended. Surgical decompression and
exploration may also be necessary. Angiographic studies are recommended pre-
operatively if arterial injury is suspected. Bandages with a hygroscopic solution
(MgSO4) and hyperbaric oxygen treatment have been used as adjunctive therapy to
decrease pain, edema and subcutaneous emphysema. Unusual infections with
uncommon organisms in immunocompromised patients have been seen; the source of
the water is important in deciding on initial, empiric antibiotic treatment and broad-
spectrum intravenous antibiotics should be administered. Cultures should be obtained.
WARNING!!!
An injury caused by high pressure waterjets can be serious.
In the event of any waterjet injury:

WWW.THOROUGHCLEAN.COM.AU
6. WARRANTIES
THOROUGHCLEAN LIMITED WARRANTY
LIMITED WARRANTY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if goods fail to
be of acceptable quality and the failure does not amount to a major failure.
The benefits to the consumer under this warranty are in addition to other rights and remedies of the
consumer under a law in relation to the goods sold under warranty.
Warranty Period/s:
1 year ThoroughClean Manufacturer's Warranty on Build (Defects in material and workmanship)
5 year ThoroughClean Manufacturer's Warranty on Galvanized Frames (Defects against rust &
welding cracks)
12 months ThoroughClean Warranty on Pressure Pump (Note: Maintenance is not warranty.
Excludes service and consumables required at scheduled maintenance intervals)
2-year Manufacturer's Warranty on Electric Motors
3-year Manufacturer's Warranty on HONDA engines
3-year or 2000 hours Manufacturer's Warranty on KOHLER engines (whichever comes first)
Responsibility of the Consumer under this Limited Warranty:
Only clean, potable water should be used through our pressure cleaners with a flow rate at least
15% more than the pump requirements (e.g. an 18 LPM pump requires at minimum a water
supply of 21 LPM to prevent pump cavitation)
Strict adherence to the maintenance daily checks and schedule with proof of scheduled
maintenance service required by an authorised agent or qualified mechanic and/or electrician.
Maintenance Service is not covered under warranty. (Warranty excludes normal maintenance and
consumables like oil, nozzles, swivels, filter mesh, HP hose, guns, by-pass valves)
It is the consumer's responsibility to deliver the machine in question to our service premises or to
the premises of our appointed agent at the consumer's expense for replacement or repair as
applicable.
Claim Procedure:
Contact ThoroughClean by phone or e-mail informing us of your pressure cleaner's problem or
defect.
Once the extent of the claim has been assessed, we retain the right to compensate the consumer
for such defect, or repair (pars & labour), or replace the machine under warranty.
All warranties will be carried out by ThoroughClean authorised staff or appointed agents at a
premises to be determined by the Manufacturer.
It is the responsibility (and cost) of ThoroughClean or our appointed agent to return the machine
In order to take advantage of the ThoroughClean limited warranty, you must have maintenance performed
according to the schedule (contained in the relevant owners manual supplied with this product), by an
authorised ThoroughClean dealer or ThoroughClean service technician.
You are free to have your ThoroughClean product serviced by any suitably qualified mechanic or electrical
(depending on the requirement mechanical or electrical) and this will not affect your statutory warranties,
however, failure by the owner to have the recommended servicing carried out by an authorised
ThoroughClean dealer means that you cannot take advantage of the ThoroughClean limited warranty.
In order to ensure your safety, we strongly recommend that you only use an authorised ThoroughClean dealer
for servicing. Only authorised ThoroughClean Dealers have access to all of the special tools, technical
information, parts and training required to maintain your ThoroughClean product in peak operating
condition.
ThoroughClean warrants each new ThoroughClean Pressure Cleaner to be free from defects in material and
workmanship under normal domestic and Industrial use and service for the period specified below,
conditional to the limitations and exclusions printed on this page. This warranty applies only to new
ThoroughClean pressure cleaners distributed in Australia by us and authorised ThoroughClean dealers.







WWW.THOROUGHCLEAN.COM.AU
to be repaired or replaced under warranty to the consumer.
Where the specific warranty component (e.g. engine) is a Manufacturer's warranty other than
ThoroughClean (e.g. HONDA), the consumer can either contact ThoroughClean or the applicable
Manufacturer for repairs where such warranty was registered with that Manufacturer at purchase.
Warranty calls will only be carried out during normal working hours and only by our
representatives and not via client's choice of repairer. We will not accept back charges for any
work not carried out by our representatives, or accept any charges due to equipment being un-
operational for any reason even during its warranty period.
THIS WARRANTY WILL NOT APPLY TO:
Any part/component that has been subject to misuse, negligence, accidental damage, improper or
inadequate maintenance or improper storage.
Any part that has been subject to misuse, negligence, accidental damage, improper or inadequate
maintenance, or improper storage.
Repair rendered necessary or arising from the use of parts or components other than approved by
the manufacturer in writing.
Normal maintenance, replacements of service and consumable items including but no limited to
nozzles, seals, oil, guns, swivels, filters, by-pass valves and HP hose.
Deterioration of any item due to normal use, fair wear and exposure unless due to a defect in
material or workmanship.
Any work or adjustment performed by persons other than authorized ThoroughClean service staff
or authorized dealers or damage resulting there from.
Any damage that results from operating methods other than those indicated in the owner's
manual, or use beyond the limitations or specifications as published in the Specification Sheets of
the particular model.
WARRANTY CONTACT INFORMATION:
Tel [phone]
Fax [phone]
12 Ashburn Road, Bundamba, Queensland
4304, Australia
SERVICE & PART ORDERING
For service and ordering parts, please call 1300 378 872 or 07 5467 2025
We have very knowledgeable, experienced staff to assist you with help and advice.
[email protected]
Please check Honda Warranty details on www.hondapowerequipment.com.au

WWW.THOROUGHCLEAN.COM.AU
7. TERMS & CONDITIONS OF SALE 7. TERMS & CONDITIONS OF SALE
1. Work for special build machines will not commence unless a 30% deposit has been made and/or official
purchase order has been received.
2. The final configuration and optional extras are to be agreed to before manufacturing commences. An extra cost
for changing a model will apply after manufacturing has started (if this change leads to extra manufacturing cost
or more expensive/extra components) and be charged as a variation cost.
3. Ownership/title of all equipment remains the property of ThoroughClean until paid for in full. Warranty will only
be available after this time.
4. Warranty is not service. Any calls placed to service equipment will be chargeable to the client. Earlier
replacement of consumable parts than what is required by the maintenance schedule will be at the cost of the
client (excluding of course any repairs/replacement of parts required under warranty).
Please see the LIMITED WARRANTY information elsewhere in this document.
5. All Rental Spec and Mine Spec model frames will have a hot dip galvanized finish unless elsewhere agreed to in a
proposal offered to the client. Industrial Spec frames will have a painted finish.
6. Any additional spares, service kits, nozzle kits, etc are excluded, unless otherwise mentioned in the proposal to
the client.
7. Any extra installation and fitting expenses and all electrical or plumbing work required during installation will be
at the cost of the client. It is the responsibility of the client to provide adequate pressured water supply of
potable quality 15% more than the required flow of the pressure pump specification, and suitable power supply
outlet for electrical units where applicable.
8. No responsibility will be taken for late delivery day due to unforseen circumstances. Please regard building times
for special builds and machines out of stock as estimates only.
9. Sale of this unit/s is on an FOB Bundamba, QLD basis unless otherwise agreed to in writing in this proposal and it
is the responsibility of the client to insure goods in transit.
10. Our price quoted is valid for 30 days only unless stated otherwise elsewhere in the quote.
11. Where deposits have been paid on special builds, such deposits will in part or in full become non-refundable
once building has started. Should a customer decide to cancel an order - all labour and a re-stocking and
administration fee for components will be charged to the customer and the balance (if any) repaid to the
customer. Any special non-restockable components will be invoiced to the customer.
12. All prices quoted are excluding GST unless otherwise stated.
13. All prices quoted does not include installation (where applicable) or training unless otherwise stated.
14. Installation and training service of $90/h available in Brisbane Metro only. Other sites subject to additional
travel cost.
15. IN NO EVENT SHALL THOROUGHCLEAN BE LIABLE FOR ANY INJURY, EXPENSES, PROFITS, LOSS OR DAMAGE,
DIRECT, INCIDENTAL, OR CONSEQUENTIAL, OR ANY OTHER PECUNIARY LOSS ARISING OUT OF THE USE OR
INABILITY TO USE ANY PRODUCT DESCRIBED IN THIS DOCUMENT.
DISCLAIMER: Although care has been taken to ensure the accuracy, completeness and reliability of the information
provided, technical features may vary due to ongoing improvements and development. The user of the
information agrees that the information is subject to change without notice.

SPARE PARTS LIST ST LISTA RICAMBI
Pos.I
tem
Codice
Part
Number
Description
Descrizione
Q.tà/Pompa
Q.ty/Pump
HC200A HC205A
HC215 HC235
HC240A
HC240I
HC280A
10202.02 Crankcase
Carter
1
*2
0001.01
Plunger oil seal
Anello radiale
3
*3
0601.07
"O" Ring Ø1.78x31,47
"O" Ring Ø1.78x31,47
3
1201.03
Pressure ring 18mm
Pressore Ø18
3
1201.04 Pressure ring 20mm Pressore Ø20 3
0002.04 "V" seal, dia.18mm Anello tenuta "V" Ø18 6
0002.05 "V" seal, dia.20mm Anello tenuta "V" Ø20 6
0300.07 Support ring 18mm Diffusore Ø18 6
0300.09 Support ring 20mm Diffusore Ø20 6
0300.06 Intermed. ring 18mm Diffusore Interm. Ø18 3
0300.08 Intermed. ring 20mm Diffusore Interm. Ø20 3
8
1601.17
Brass plug G3/8
Tappo G3/8
3
9
0603.06
Copper washer 3/8
Guarnizione rame G3/8
2
10
1602.07
Manifold housing
Testata
1
*11
0601.06
"O" Ring Ø2.62x18.72
"O" Ring Ø2.62x18.72
6
*12 3604.10 Valve assembly Valvola premontata 6
*13
0601.05
"O" Ring Ø2.62x23.47
"O" Ring Ø2.62x23.47
6
14
1601.07
Valve plug
Tappo valvola
6
15
1400.01
Washer
Rosetta Ø8.5
8
16
1801.04
Manifold stud bolt
Vite M8x65
8
17 1503.00 Valve seat Sede valvola 6
18 1202.00 Valve plate Piattello valvola 6
19 0900.04 Valve spring Molla valvola 6
20 0604.00 Valve cage Gabbia valvola 6
21 1400.02 Washer Rosetta Ø6,5 8(4)
22 1802.07 Hexagonal screw Vite M6x18 8(4)
23 0205.01 Shaft protector Protezione albero 1
24 0500.09 Open flange Flangia cuscinetto 2(1)
25 0601.09 "O" Ring Ø2.62x61.6 "O" Ring Ø2.62x61.6 2(1)
26 0001.06 Shaft oil seal Anello radiale 2(1)
27 0213.00 Ball bearing Cuscinetto a sfere 2
28 1802.13 Hexagonal screw Vite M6x18 4
29 0203.18 Bearing cover Coperchio cuscinetto 1
30 0700.03 Sight glass Spia livello olio 1
31 0601.83 "O" Ring Ø3.53x55.56 "O" Ring Ø3.53x55.56 1
0004.16 Crankshaft (2 PTO) Albero (2 presa forza) 1
0004.17 Crankshaft (2 PTO) Albero (2 presa forza) 1
0004.23 Crankshaft (2 PTO) Albero (2 presa forza) 1
0004.28 Crankshaft (2 PTO) Albero (2 presa forza) 1
0004.20 Crankshaft (Hollow) Albero (cavo) 1
0004.21 Crankshaft (Hollow) Albero (cavo) 1
0004.29 Crankshaft (1 PTO) Albero (1 presa forza) 1
0004.31 Crankshaft (1 PTO) Albero (1 presa forza) 1
0004.33 Crankshaft (1 PTO) Albero (1 presa forza) 1
0004.39 Crankshaft (1 PTO) Albero (1 presa forza) 1
0206.00 Crankshaft key Chiavetta 1
0206.03 Crankshaft key Chiavetta 1
36 1600.03 Oil dip stick Tappo livello olio 1
*37 1800.01 Plunger bolt Vite pistone 3
*38 0601.03 "O" Ring Ø1.78x7.66 "O" Ring Ø1.78x7.66 3
*39 0009.04 Teflon ring Anello antiestrusione 3
*4
*5
*6
*7
33
34
35
32
Leuco Spa Pagina 1 09/10/03
