TiGHT AV DA-H4A-DS User manual

DA-H4A-DS
HDMI 2.0 1x4 Distribution Amplifier with
Audio Breakout and
4K to 1080p Down-scaling
All Rights Reserved
Version: DA-H4A-DS_2020V1.0

HDMI 2.0 1x4 Distribution Amplifier
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated by
December 2019. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDMI 2.0 1x4 Distribution Amplifier
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material
for possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the module
immediately.
Do not twist or pull by force ends of the cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
to the device before cleaning.
Unplug the power cord when left unused for a long period of time
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDMI 2.0 1x4 Distribution Amplifier
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Packing List .......................................................................................................2
1.3 Customer Service ..............................................................................................2
2. Specification ...............................................................................................................3
3. Panel Description........................................................................................................5
3.1 Front Panel........................................................................................................5
3.2 Rear Panel.........................................................................................................5
4. System Connection.....................................................................................................6
5. DIP Switch Operation..................................................................................................7
5.1 EDID Management ............................................................................................7
5.2 HDCP Mode ......................................................................................................8
6. Firmware Upgrade ......................................................................................................8

HDMI 2.0 1x4 Distribution Amplifier
1
1. Product Introduction
Thanks for choosing the one input to four output HDMI2.0 Distribution Amplifier. The
Distribution Amplifier supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D
and multichannel audio formats. Besides passing EDID information from the display,
there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the
front panel. The Distribution Amplifier can de-embed digital stereo audio to one
balanced analog audio output and one optical Toslink audio output to provide audio
sources for existing audio systems.
The Distribution Amplifier supports 4K to1080p down-scaling up to 4 outputs. Moreover,
the Distribution Amplifier provides a Micro-USB port for convenient firmware upgrade.
1.1 Features
Splits a single HDMI input to four HDMI outputs.
Supports HDMI 2.0, 4K@60Hz 4:4:4, Dolby Vision.
18Gbps high bandwidth.
HDMI input supports HDCP 2.2 and the outputs support HDCP Active or HDCP
Passive mode.
Supports video resolution down-scaling, the 4K input can be automatically
degraded to 1080p output for compatibility with 1080p display.
Built-in signal equalizer provides capability to use longer range HDMI cable.
Up to 6 types of built-in EDIDs can be selected by DIP Switch.
Balanced analog and Toslink optical audio outputs for de-embedded audio.
Up to 6 units can be cascaded to distribute video signal to multiple video displays.
CEC pass-through.
Micro-USB port for convenient firmware upgrade.

HDMI 2.0 1x4 Distribution Amplifier
2
1.2 Packing List
1x HDMI 2.0 1x4 Distribution Amplifier
2x Mounting Ears with 4 Screws
4x Plastic Cushions
1x Power Adapter (5V DC 1A)
1x User Manual
1.3 Customer Service
We provide limited warranty for the product within three years counting from date of
purchase (The purchase invoice shall prevail).
Note:Please contact your distributor immediately if any damage or defect in the
components is found.

HDMI 2.0 1x4 Distribution Amplifier
3
2. Specification
Video Input
Input (1) HDMI
Input Connector (1) Female type-A HDMI
HDMI Input Resolution Up to 4K@60Hz 4:4:4
HDMI Standard 2.0
HDCP Version 2.2, 1.4 compliant
Video Output
Output (4) HDMI
Output Connector (4) Female type-A HDMI
HDMI Output Resolution Up to 4K@60Hz 4:4:4
HDMI Standard 2.0
HDCP Version 2.2, 1.4 compliant
Audio
Output (1) AUDIO OUT, (1) SPDIF OUT
Output Connector (1) 5-pin terminal block, (1) Toslink connector
HDMI Audio Format
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital®
Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through
DP Audio Format 8 channels LPCM, up to 24bit 192Khz, AC3, DTS
Analog L/R audio Format PCM
Toslink Audio Format PCM, Dolby Digital, DTS, DTS-HD
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV)
nominal consumer line level signal
THD+N
<0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS
level (or max level)
SNR >80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation <0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation <±0.5dB 20Hz ~ 20KHz
Output Load Capability 1KΩ and higher (supports 10x paralleled 10KΩ loads)

HDMI 2.0 1x4 Distribution Amplifier
4
Stereo Channel Separation >70dB@1KHz
Control
Control Part (1) EDID 4-pin DIP switch, (1) Micro-USB port
General
Bandwidth 18Gbps
Operation Temperature -10 ~ +55℃
Storage Temperature -25 ~ +70℃
Relative Humility 10% - 90%
Power Supply Input:100V~240V AC; Output: 5V DC 1A
Power Consumption 4W(Max)
Dimension (W*H*D) 190mm x 20mm x 100mm
Net Weight 545g
Video Resolution Down-scaling
The product supports video resolution down-scaling, the 4K input can be automatically
degraded to 1080p output for compatibility with 1080p display, shown in the below
chart.
Input
Output
# Resolution Refresh Color
Space
Downscale 1080p Specs
1
3840x2160
60
4:4:4
Support
1080p@60Hz 4:4:4
2
3840x2160
30
4:4:4
Support
1080p@30Hz 4:4:4
3
3840x2160
24
4:4:4
Support
1080p@24Hz 4:4:4
4
3840x2160
60
4:2:0
Support
1080p@60Hz 4:4:4
5
3840x2160
30
4:2:0
Support
1080p@30Hz 4:4:4
6
3840x2160
24
4:2:0
Support
1080p@24Hz 4:4:4
7
3840x2160
60
4:2:2
Not Support
N/A
8
3840x2160
30
4:2:2
Not Support
N/A
9
3840x2160
24
4:2:2
Not Support
N/A

HDMI 2.0 1x4 Distribution Amplifier
5

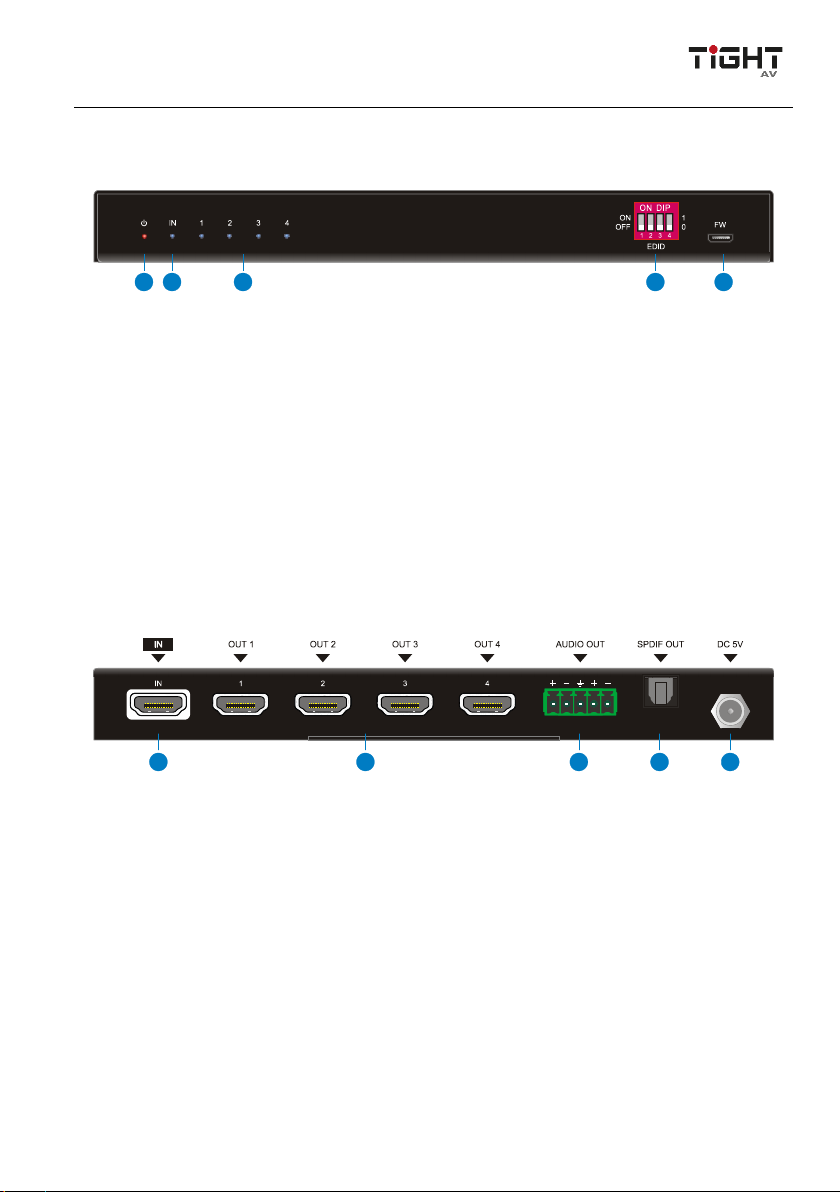

3. Panel Description
3.1 Front Panel
①Power LED: The LED illuminates red when power is applied.
②INPUT LED: The LED illuminates blue when there is an input signal present.
③OUT 1~OUT 4 LED: The LED illuminates blue when there is HDMI output on the
corresponding channel.
④EDID: 4-pin DIP switch for EDID setting.
⑤FW: Micro-USB port for firmware upgrade.
3.2 Rear Panel
①IN:Type-A female HDMI input port to connect HDMI source.
②OUT 1 ~ OUT 4: Four Type-A female HDMI output port to connect HDMI displays.
③AUDIO OUT: 5-pin terminal block for balanced audio output.
④SPDIF OUT: Toslink connector for optical audio output.
⑤DC 5V: DC barrel port to connect a power adapter.
1245
3
L R
12345

HDMI 2.0 1x4 Distribution Amplifier
6
4. System Connection
The following diagram illustrates typical input and output connections that can be
utilized with the Distribution Amplifier:

HDMI 2.0 1x4 Distribution Amplifier
7
5. DIP Switch Operation
5.1 EDID Management
The Extended Display Identification Data (EDID) is used by the source device to match
its video resolution with the connected display. By default, the source device obtains its
EDID from the first connected display. Meanwhile, since the displays with different
capabilities are connected to the Distribution Amplifier, the DIP switch on the front panel
can be used to set the EDID to a fixed value to ensure the compatibility in video
resolution.
The switch represents “0” when in the lower (OFF) position, and it represents “1” while
putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding
setting are shown at the back of the product.
Switch Status Video Resolution Audio Format
000
Obtains EDID from the first detected display starting at HDMI
output 1>2>3>4.
001 Obtains EDID from the first detected display starting at HDMI
output 4>3>2>1.
010
1080p
LPCM
011 1080p DTS/Dolby
1 2 3 4
EDID Setting
1080p DTS/Dolby
4K/30Hz LPCM
4K/60Hz LPCM
4K/60Hz DTS/Dolby
Default
1 2 3 4
ON
OFF
1
0
ON
OFF
ON
OFF
123
Priority OUT 1 > 2 > 3 > 4
ON
OFF
123
Priority OUT 4 > 3 > 2 > 1
ON
OFF
123
ON
OFF
123
1080p LPCM
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
4K/30Hz DTS/Dolby

HDMI 2.0 1x4 Distribution Amplifier
8
100 3840x2160@30Hz LPCM
101 3840x2160@30Hz DTS/Dolby
110
3840x2160@60Hz
LPCM
111 3840x2160@60Hz DTS/Dolby
5.2 HDCP Mode
Put switch 4 on “ON” position to select HDCP Active mode, or to “OFF” for HDCP
Passive mode.
Switch Status Mode HDCP
OFF (0)
Passive
(Default) Automatically follows the display’s HDCP version.
ON (1) Active Automatically removes the HDCP content of HDMI
output for broader video solution.
6. Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port:
1) Connect the Distribution Amplifier to the PC with USB cable.
2) Power on the Distribution Amplifier, and then the PC will automatically detect a U-
disk named of “BOOTDISK”.
3) Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4) Copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk directly.
5) If the filename “READY.TXT” automatically turns to “SUCCESS.TXT”, the firmware
was upgraded successfully. If the firmware upgrade failed, please check the file
(.bin) and then follow the above procedure to operate again.
6) Remove the USB cable after firmware upgrade.
