Tigo TS4-F User manual

Installation Manual
TS4-F,TS4-A-F,TS4-A-2Fand
RSS Transmitter

IMPORTANT SAFETY INSTRUCTIONS
2
• This manual contains important instructions for installation and maintenance of the Tigo
product models TS4-F, TS4-A-F, TS4-A-2F, and the RSS Transmitter.
• Risk of electric shock, do not remove cover, disassemble, or repair, no user serviceable
parts inside. Refer servicing to qualied service personnel.
• Before installing or using the Tigo System, please read all instructions and warning
markings on the Tigo products, appropriate sections of your inverter manual,
photovoltaic (PV) module installation manual, and other available safety guides.
• Failure to adhere to these instructions may result in injury or death, damage to the
system or voiding the factory warranty.
• To reduce risk of re and shock hazard, install this device with strict adherence to
National Electric Code (NEC) ANSI/NFPA 70 and/or local electrical codes. When the
photovoltaic array is exposed to light, it supplies a DC voltage to the Tigo TS4 units. The
TS4 units start in the “ON” state and their output voltage may be as high as the PV
module open circuit voltage (VOC) when connected to the module. The installer
should use the same caution when handling electrical cables from a PV module with or
without the TS4 units attached.
• Installation must be performed by trained professionals only. Tigo does not assume
liability for loss or damage resulting from improper handling, installation, or misuse of
products.
• Remove all metallic jewelry prior to installing the Tigo TS4 units to reduce the risk of
contacting live circuitry. Do not attempt to install in inclement weather.
• Do not operate the Tigo TS4 units if they have been physically damaged. Check existing
cables and connectors, ensuring they are in good condition and appropriate in rating.
Do not operate Tigo TS4 units with damaged or substandard wiring or connectors. Tigo
TS4 units must be mounted on the high end of the PV module backsheet or racking
system, and in any case above ground.
• Do not connect or disconnect under load. Turning off the Inverter and/or the Tigo
products may not reduce this risk. Internal capacitors within the inverter can remain
charged for several minutes after disconnecting all power sources. Verify capacitors
have discharged by measuring voltage across inverter terminals prior to disconnecting
wiring if service is required. Wait 30 seconds after rapid shutdown activation before
disconnecting DC cables or turning off DC disconnect.
• Always assume TS4 units are in “ON” state, or may turn on when restarting.
The transmitter control power supply MUST be on the same AC branch circuit
as the inverter to meet rapid shutdown requirements.
LETHAL VOLTAGE MAY BE PRESENT IN ANY PV INSTALLATION
SAVE THESE INSTRUCTIONS
01/24/2020

TABLE OF CONTENTS
TS4-F Rapid Shutdown System 4
TS4 Fire Safety Products 5
System Overview: TS4-F 6
7
System Overview: TS4-A-F
8System Overview: TS4-A-2F
9Installation Notes
10TS4-F Installation
11
12
TS4-A-F Installation
13
TS4-A-2F Installation
16
17
18
19
20
21
RSS Transmitter Commercial Installation
Technical Specifications –
TS4-F
22
Mechanical Specifications –
TS4-F
Technical Specifications – TS4-A-F
Technical Specifications – TS4-A-2F
Technical Specifications –
RSS Transmitter
Testing Rapid Shutdown
Installation Complete
3

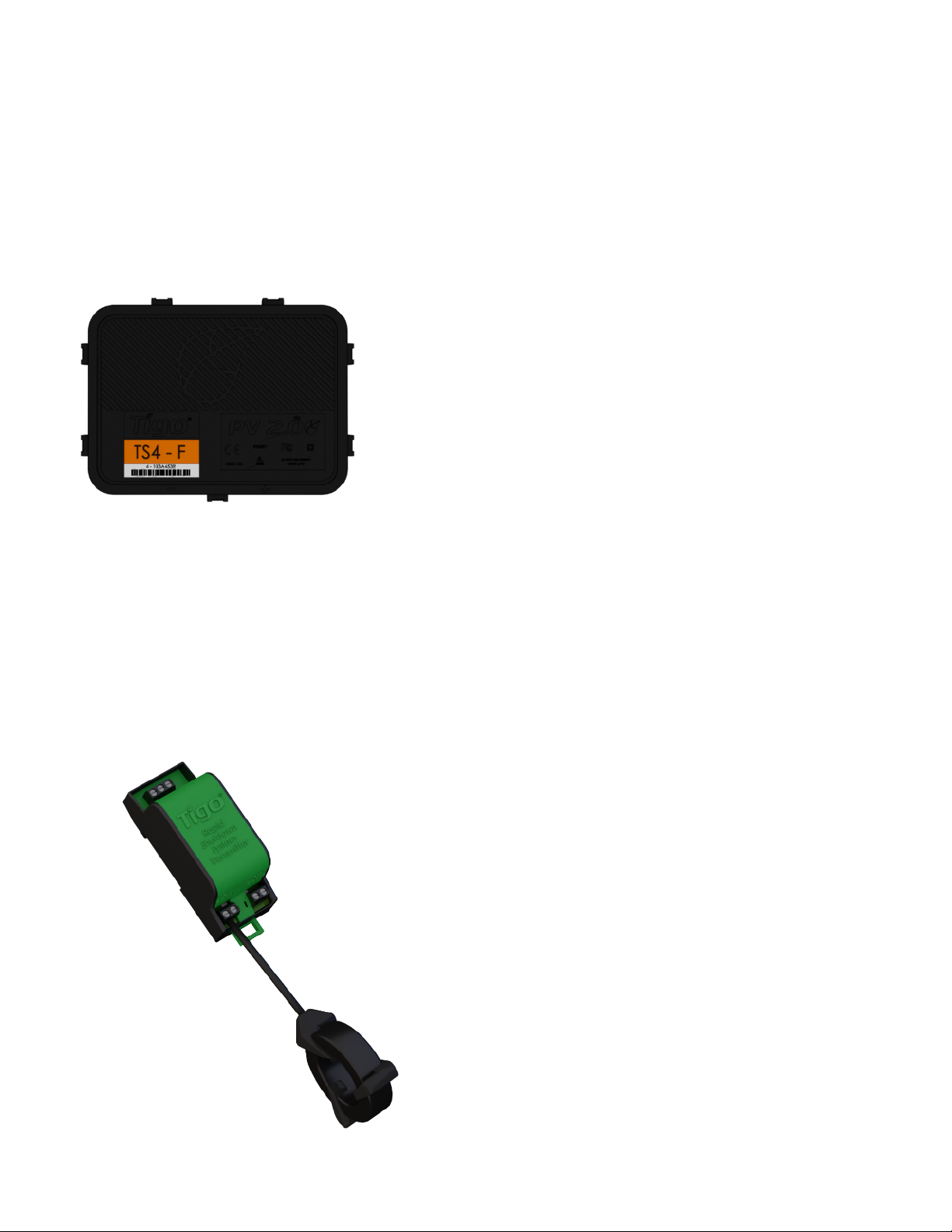

TS4-F RAPID SHUTDOWN SYSTEM
4
• NEC 2017 690.12 Rapid shutdown
compliant
• Module-level deactivation
• PLC communication
• Plug & play, no conguration required
• Rapid Shutdown System Transmitter for
rapid shutdown activation of TS4-F
TS4-F, TS4-A-F
RSS Transmitter
Module-Level Power Electronics:
Transmitter (integrated in CPS 25/50/60kW Tigo RSD wire-boxes):
or TS4-A-F units
• The external device that provides a keep-
alive signal to the TS4-F via Power Line
Communication
•Integrated in CPS 25/50/60kW Inverter
Tigo RSD wire-boxes

TS4 FIRE SAFETY PRODUCTS
5
• Module electronics are contained in the
junction box, installed at the PV module
factory.
• Connected in series like regular modules
• No additional wiring connections to make
• Bracket clips to module frame without tools
•TS4-A-F outputs are connected in
series to form a string
• No additional grounding required
TS4-F
TS4-A-F
Module-Integrated:
Add-on:

SYSTEM OVERVIEW: TS4-F

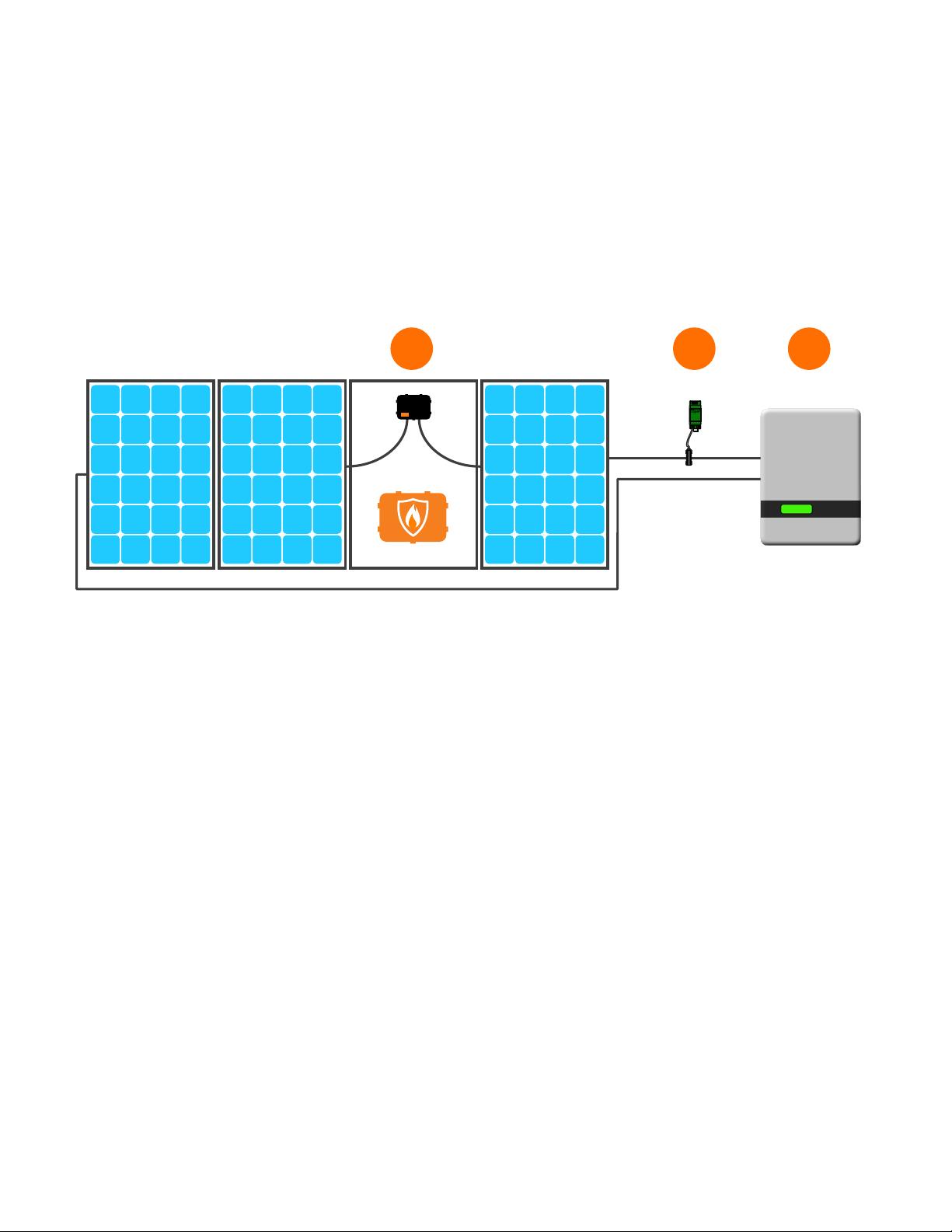

1. Modules with integrated TS4-F
2. RSS Transmitter and RSS Core (integrated in CPS 25/50/60kW inverter
Tigo RSD wire-boxes)
3. Inverter
6
The TS4-F requires a Tigo RSS Transmitter or inverter with built-in transmitter for
operation.
The Tigo RSS Transmitter is installed in line with a solar PV inverter, as shown, and
can be installed inside the inverter or external to it.
Method of Operation
All TS4-F units start in the OFF position and measure 0.6V at the output. When
power is supplied to the RSS Transmitter, the TS4-F units turn ON and allow full
PV module voltage.
The units constantly receive a “keep-alive” signal from the transmitter over
PLC. When power to the transmitter is cut, this keep-alive signal ceases,
sending every TS4-F into shutdown mode with output reduced to 0.6V.
Rapid
Shutdown
System
Transmitter
1 2 3

1. Modules with TS4-A-F add-on
2. RSS Transmitter and RSS Core (integrated in CPS 25/50/60kW inverter
Tigo RSD wire-boxes)
3. Inverter
SYSTEM OVERVIEW: TS4-A-F
7
The TS4-A-F requiresaTigo RSS Transmitter or inverter with built-in transmitter for
operation.
•TS4-A-F mounting is recommended on the upper right as shown, but can be
placed elsewhere on the frame or bolted to the racking if needed.
•TS4-A-F cable glands must not be facing up.
•Allow clearance between PV module and mounting surface for air
circulation around TS4-A-F.
•For installation on frameless modules, remove metal clips and bolt TS4-A to
rail. Do not drill additional mounting holes in the frame or metal bracket.
Note: connect modules to TS4-A inputs before connecting outputs
Rapid
Shutdown
System
Transmitter
TigoRapidShutdown
DONOTDISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule64.218
4-123A
TS4-A-F
1 2 3

1. Modules with TS4-A-2F add-on
2. RSS Transmitter and RSS Core (integrated in CPS 25/50/60kW inverter
Tigo RSD wire-boxes)
3. Inverter
SYSTEM OVERVIEW: TS4-A-2F
8
The TS4-A-2F requiresaTigo RSS Transmitter or inverter with built-in transmitter
for operation.
•TS4-A-F mounting is recommended on the upper right as shown, but can be
placed elsewhere on the frame or bolted to the racking if needed.
•TS4-A-F cable glands must not be facing up.
•Allow clearance between PV module and mounting surface for air
circulation around TS4-A-F.
•For installation on frameless modules, remove metal clips and bolt TS4-A to
rail. Do not drill additional mounting holes in the frame or metal bracket.
Note: connect modules to TS4-A inputs before connecting outputs
Rapid
Shutdown
System
Transmitter
1 2 3
TigoRapidShutdown
DONOTDISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule64.218
4-123A
TS4-A-2F

INSTALLATION NOTES
•TS4-F and TS4-A-F are shipped in the OFF position and will
measure 0.6V at the output when the keep-alive signal is not
present.
• Failing to follow the sequence of installation steps may result in TS4
damage not covered under warranty.
•Connect all TS4-A-F units to their respective modules
before connecting their outputs in series.
•Install all TS4-F or TS4-A-F/TS4-A-2F units before powering
on the RSS Transmitter.
• Never apply an external voltage source to a module or string
equipped with TS4-F or TS4-A-F/TS4-A-2F units.
•If parallel string connections are needed, first connect the TS4-F
or TS4-A-F to the PV modules, then connect all TS4-F or TS4-A-F
outputs in series, and finally pass one side (+ or -) of the homeruns
through the PLC transmitter to turn the system ON.
•If connecting TS4-A-2F to a single PV module:
•Connect PV module to Input 1, connect Input 2 cables together

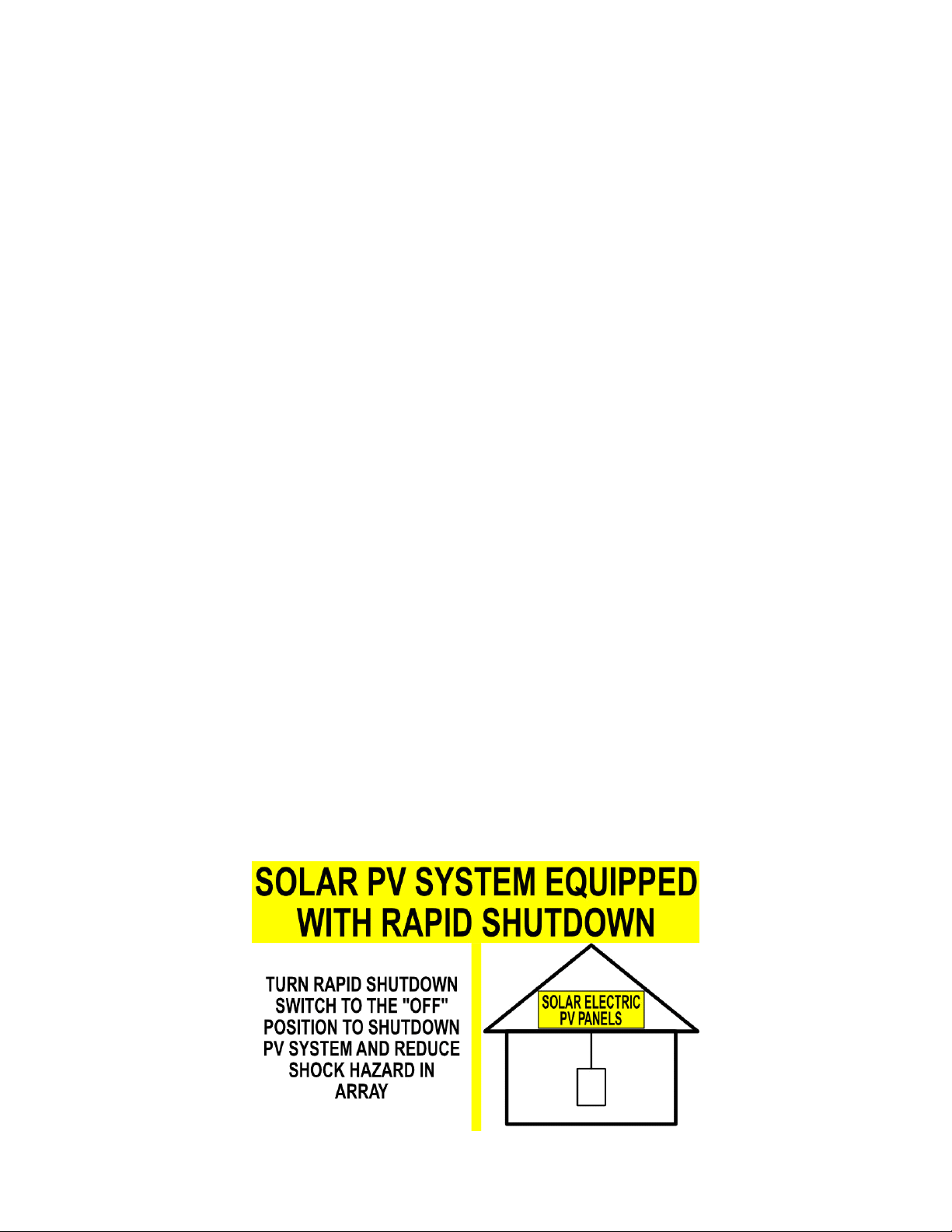

•Place rapid shutdown system label no more than 1m (3ft) from
initiator (AC disconnect) or service panel containing means of
disconnection if not at same location.
9
Place safety labels in proper location

TS4-F INSTALLATION
Smart modules with an integrated TS4 Junction box are installed and
connected in series just like standard PV modules.
Connect modules with TS4-F in series before powering on the
RSS Transmitter.
10
1
2
4 - 123A
4 - 123A
4 - 123A
4 - 123A
TS4-F
TS4-F
TS4-F
TS4-F
RSS Transmitter must be powered OFF during TS4-F installation.

TS4-A-F INSTALLATION
Standard modules can be equipped with TS4-A-F add-on units as
shown below.
Always connect modules to TS4-A inputs before connecting outputs.
Each TS4-A-F must have a PV module connected to its input before
connecting the outputs of TS4-A-F units in series.
To disconnect TS4-A-F from a module, disconnect the TS4-A-F outputs
from the string before disconnecting the TS4-A-F inputs from the
module junction box.
11
Tigo Rapid Shutdown
DO NOT DISCONNECT
UNDER LOAD
NEC690.12-2017and C22.1-2015 Rule64.218
4 - 123A
TS4-A-F
Tigo Rapid Shutdown
DO NOT DISCONNECT
UNDER LOAD
NEC690.12-2017and C22.1-2015 Rule64.218
4 - 123A
TS4-A-F
Tigo Rapid Shutdown
DONOT DISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule 64.218
4 - 123A
TS4-A-F
Tigo Rapid Shutdown
DONOT DISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule 64.218
4 - 123A
TS4-A-F
1
3
2
RSS Transmitter must be powered OFF during TS4-A-F installation.

TS4-A-2F INSTALLATION
Standard modules can be equipped with TS4-A-2F add-on units as
shown below.
Always connect modules to TS4-A inputs before connecting outputs.
Each TS4-A-2F must have a PV module connected to its inputs
before connecting the outputs of TS4-A-2F units in series.
To disconnect TS4-A-2F from a module, disconnect the TS4-A-2F
outputs from the string before disconnecting the TS4-A-2F inputs from
the module junction box.
12

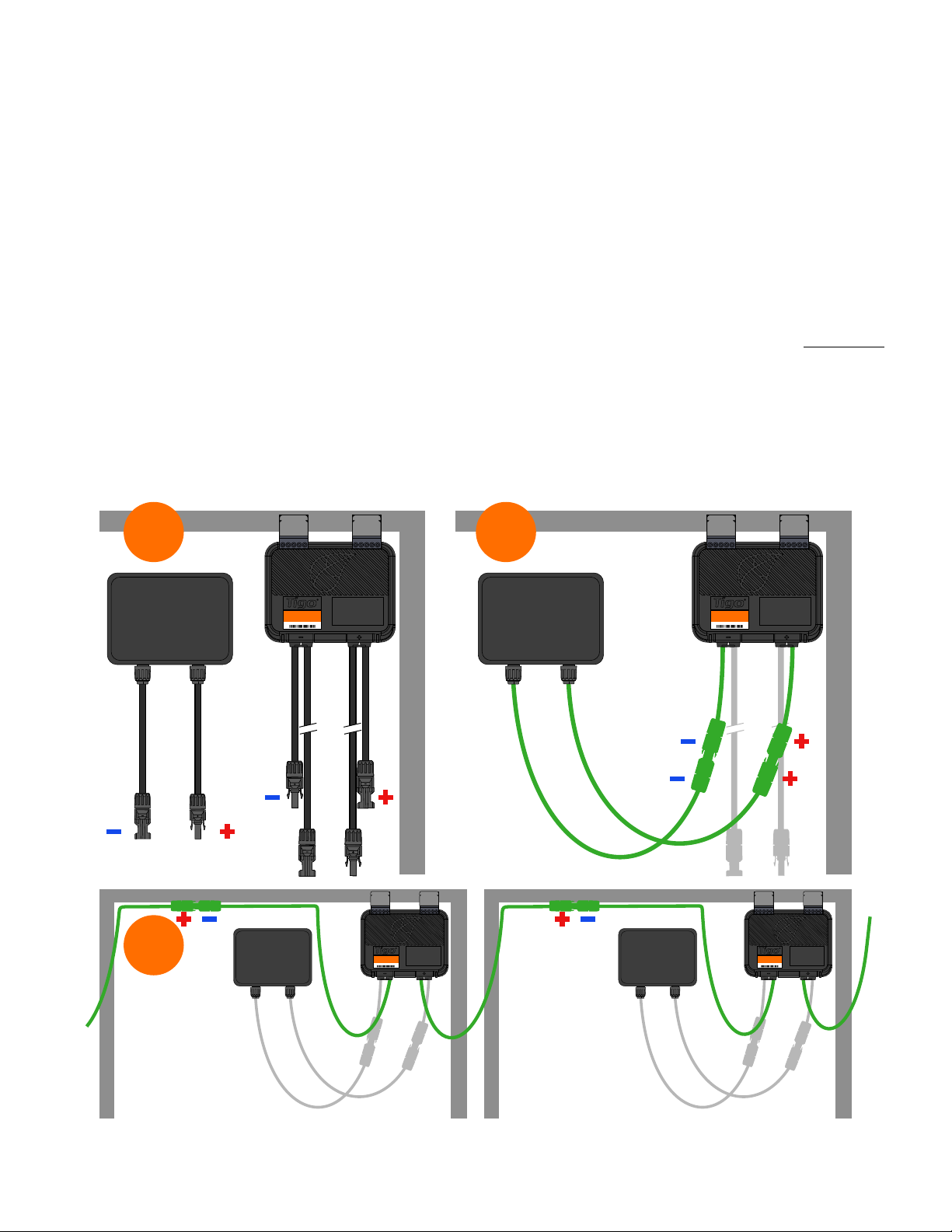

1. Connect PV modules to TS4-A-2F inputs
2. Connect TS4-A-2F outputs in series
+ +
- -
Tigo Rapid Shutdown
DONOT DISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule64.218
4 - 123A
TS4-A-2F
+ +
- -
Tigo Rapid Shutdown
DONOT DISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule64.218
4 - 123A
TS4-A-2F
PV Module 1
PV Module 1
PV Module 2
PV Module 2
1
2
If connecting 2F to a single PV module:
• Connect PV module to Input 1
• Connect Input 2 cables together
RSS Transmitter must be powered OFF during TS4-A-2F installation.

RSS TRANSMITTER (integrated in CPS 25/50/60kW
inverter Tigo RSD wire-boxes)
Note: Install TS4-F before powering on RSS Transmitter
Rapid
Shutdown
System
Transmitter
NN
LL
-
+
1 DIN Rail PSU
200-500VAC Power Supply
2 RSS Transmitter
3 RSS Core (CT)
RSS Core inputs
Line
RSS Core inputs
Ground
LED (Signal)
Neutral
LED (Power)
+12VDC
+VIN
-12VDC
GND
+ V ADJ
+V
G L2 L1
-V
Place rapid shutdown system label no more than 1m (3ft) from RSS Transmitter
or AC disconnect if not at same location.
1 2
3
Transmitter power supply must be on same AC branch circuit as inverter to meet rapid shutdown requirements.

RSS TRANSMITTER (integrated in CPS 25/50/60kW
inverter Tigo RSD wire-boxes)
Rapid
Shutdown
System
Transmitter
NN
LL
-
+
+ V ADJ
+V
G L2 L1
-V
· Turn on AC power to Transmitter power supply to activate
keep-alive signal
Note: Install TS4-F before powering on RSS Transmitter
Max string length: 30 modules
Max current per RSS Core: 150A
Max cable length from inverter (+) to inverter (-): 1000ft (300m)

Appendix
TS4-F,TS4-A-F,RSSTransmitter

TECHNICAL SPECIFICATIONS –
TS4-F (Module-Integrated)
16
Electrical Ratings TS4-F Fire Safety
Input
Rated DC Input Power 475W
Input Voltage 16 - 90V
Max Continuous Input Current (IMAX) 12.5A
Output
Output Power Range 0 - 475W
Output Voltage Range 0 – VOC
Communication Type Power Line Communication (PLC)
Rapid Shutdown UL Listed (NEC 2014 & 2017 690.12) Yes
Impedance Matching Capability No
Output Voltage Limit No
Maximum System Voltage 1500V
Specify system voltage when ordering (1000V / 1500V) for appropriate cables
& connectors.
Rapid shutdown activation requires RSS Transmitter.

MECHANICAL SPECIFICATIONS –
TS4-F
17
Specications TS4-F Fire Safety
Mechanical
Operating Temperature Range: -40°C to +70°C (-40°F to +158°F), RH < 85%
Storage Temperature Range: -40°C to +70°C (-40°F to +158°F), RH < 60%
Cooling Method Natural Convection
Dimensions (with cover) 178.5mm x 134mm x 25.5mm
Weight (base and cover) 670g
Outdoor Rating IP68, NEMA 3R
Cabling
Type H1Z2Z2-K
Output Length 1.2m standard, other lengths available
Cable Options 1000V rated, 1500V rated
Cable Cross-Section 6.3 ± 0.3mm
Connectors MC4, MC4 comparable
UV Resistance 500hr with UV light between 300-400nm @65C
Maximum System Voltage 1500V

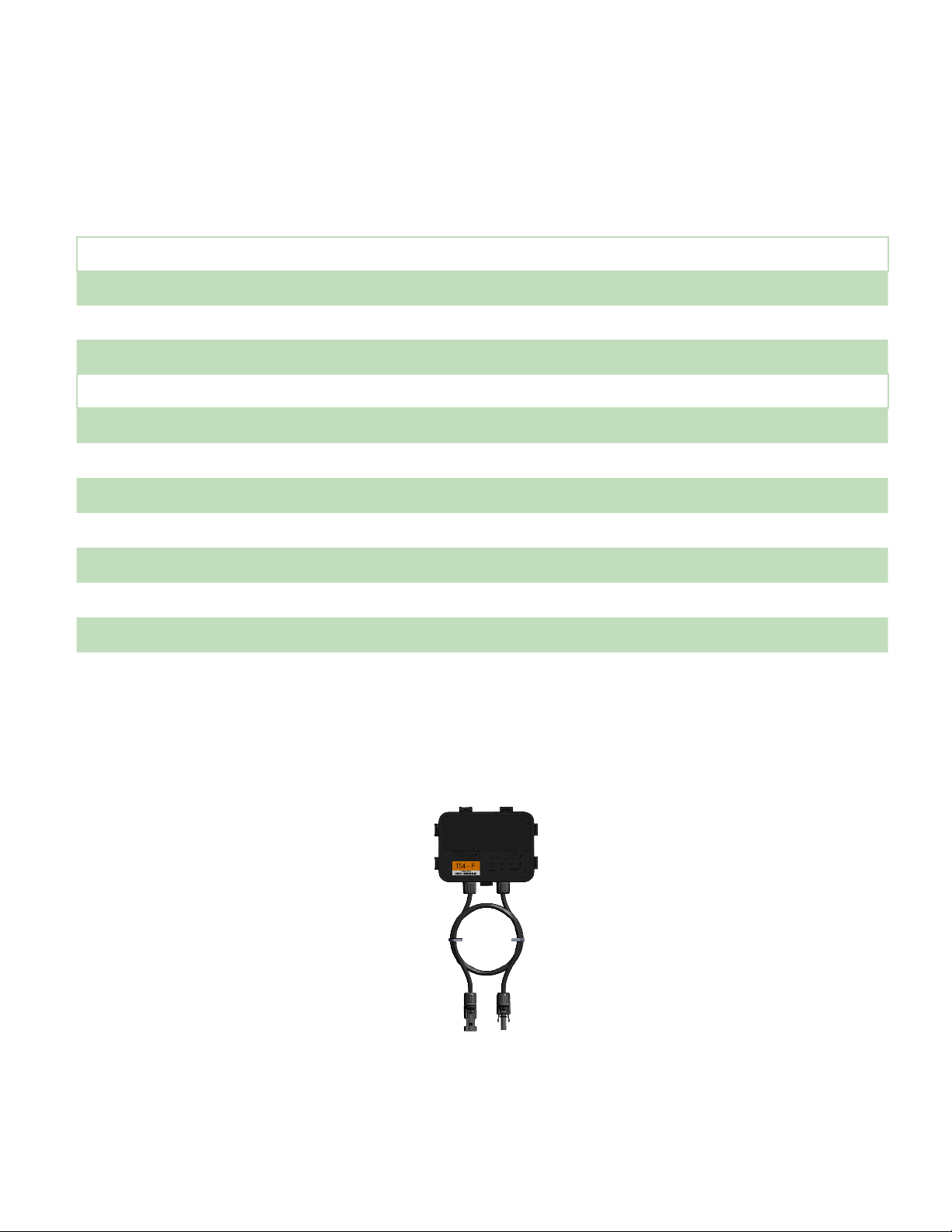

TECHNICAL SPECIFICATIONS – TS4-A-F
18
Specications TS4-A-F Fire Safety
Environmental
Operating Temperature Range -40°C to +85°C (-40°F to +185°F)
Outdoor Rating IP68, NEMA 3R
Mechanical
Dimensions 138.4mm x 139.7mm x 22.9mm
Weight 490g
Electrical
Input Voltage 16 - 90V
Maximum Continuous Input Current (IMAX) 12.5A
Maximum Power 500W
Output Cable Length 1.2m (standard), other lengths available
Connectors MC4 comparable (standard)
Communication Type PLC
Maximum System Voltage 1500V
Rapid Shutdown UL Listed (NEC 2014 & 2017 690.12) Yes
Specify system voltage when ordering (1000V / 1500V) for appropriate cables
& connectors.
Rapid shutdown activation requires RSS Transmitter.
120
±10
1200
±10
138.4
30
139.7
8
22.9

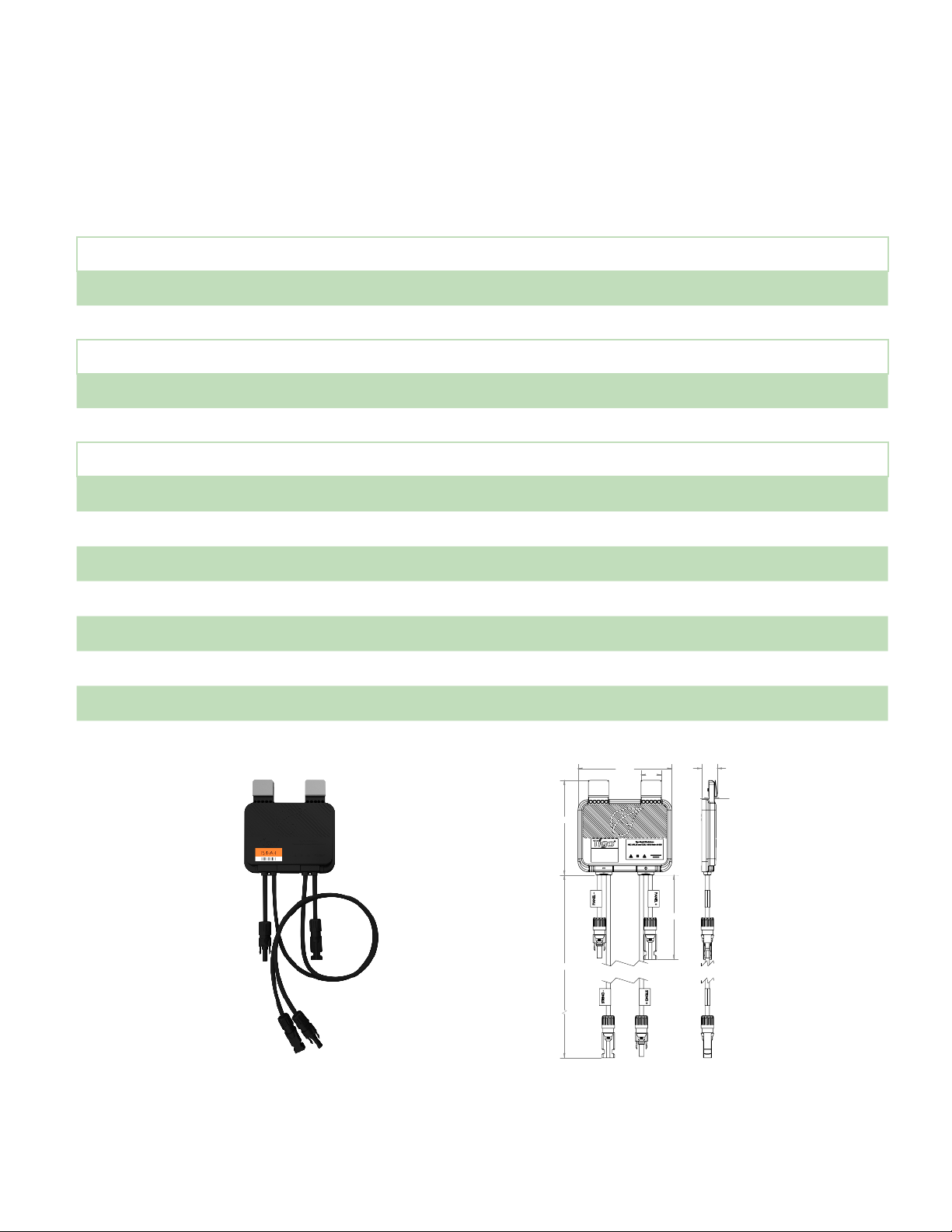

TECHNICAL SPECIFICATIONS – TS4-A-2F
19
Specications TS4-A-2F Fire Safety
Environmental
Operating Temperature Range -40°C to +70°C (-40°F to +158°F)
Outdoor Rating IP68, NEMA 3R
Mechanical
Dimensions 138.4mm x 139.7mm x 22.9mm
Weight 590g
Electrical
Voltage Range (per input)116 - 90V
Maximum Current (per input) 15A
Maximum Power (total) 1000W
Output Cable Length 1.2m (portrait) or 2.2m (landscape)
Connectors MC4 (standard)
Communication Type PLC
Maximum System Voltage 1500V
Rapid Shutdown UL Listed (NEC 2014 & 2017 690.12) Yes
Specify system voltage when ordering (1000V / 1500V) for appropriate cables
& connectors.
Rapid shutdown activation requires RSS Transmitter.
21
120
±10
200
±10
1800
±10
2X
9
MOUNT HOLE
77.8
15.6
138.4
139.7
30

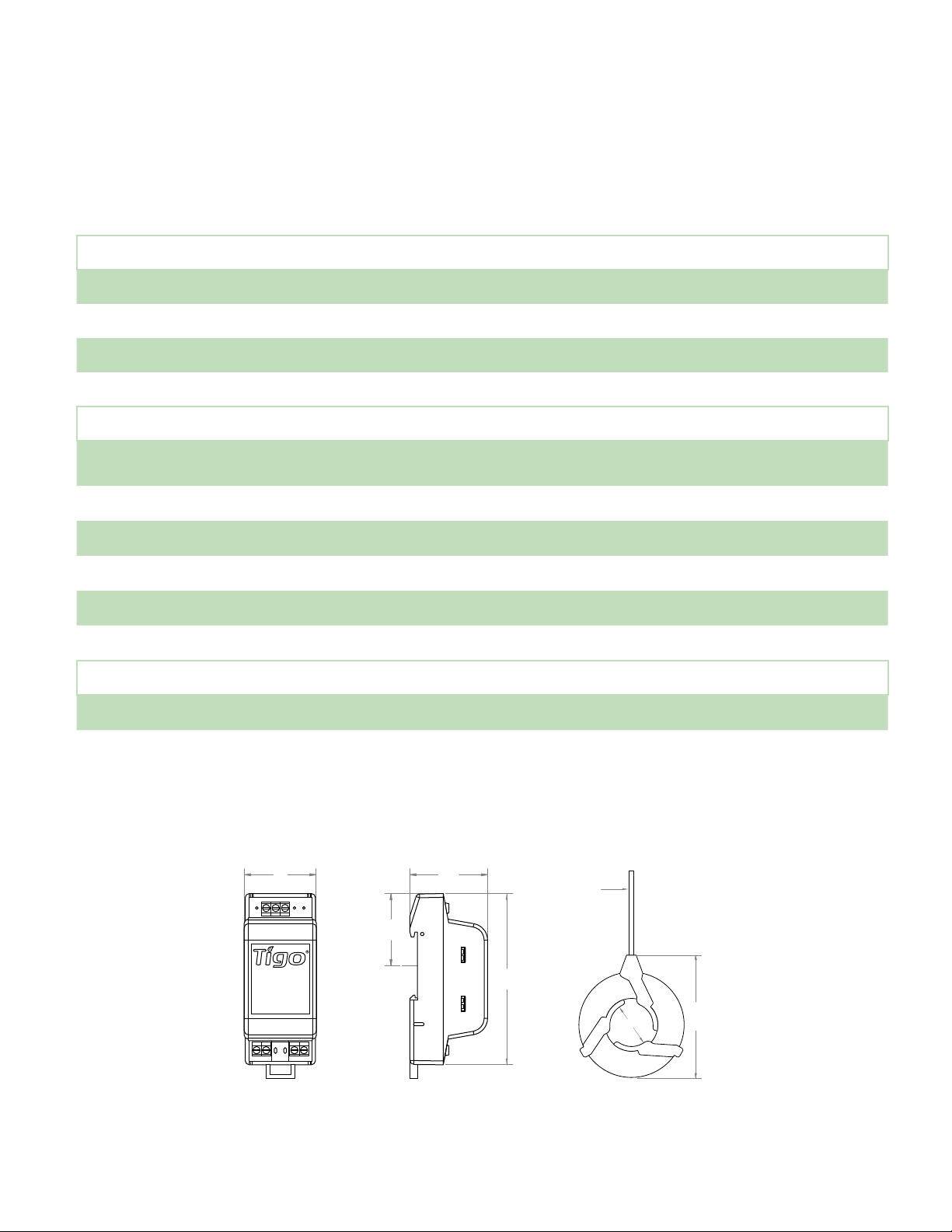

TECHNICAL SPECIFICATIONS –
RSS TRANSMITTER
20
Electrical Ratings RSS Transmitter
Input
Input Voltage 12VDC
Input Current 1A
Average Supply Power 0.85W
Dimensions(Transmitter only) 90.2mm x 36.3mm x 57.7mm
RSS Core
Maximum Current 150A per Core
(Single Core: 150A, Dual Core: 300A)
Maximum MPPT String Voltage 1500VDC
Internal Opening for Wires ~25mm
Outside Dimensions 59mm
Maximum Number of Strings per Core 10
Maximum String Length 30 modules
Environmental
Temperature -40°C to 85°C
Recommended max. torque 0.79 N/m for wiring
All dimensions in mm.
RSS Transmitter - Front View RSS Core - Side ViewRSS Transmitter - Side View
25.0 min
18 AWG
610
73 max
38
90.9
41.3
38.5
Rapid
Shutdown
System
Transmitter
