SA808 INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We’re ready to help!

Scan for easy install video

san.us/447

Will your accessories weigh more than 50 lb (22.7 kg)?

—

Perfect!

Yes

—

This product is NOT compatible. Visit Sanus.com or call 1-800-359-5520 [UK: 0800 056 2853] to ﬁnd a compatible product.

50 lb

(22.7 kg)

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 [UK: 0800 056 2853].

CAUTION: Avoid potential personal injuries and property damage!

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

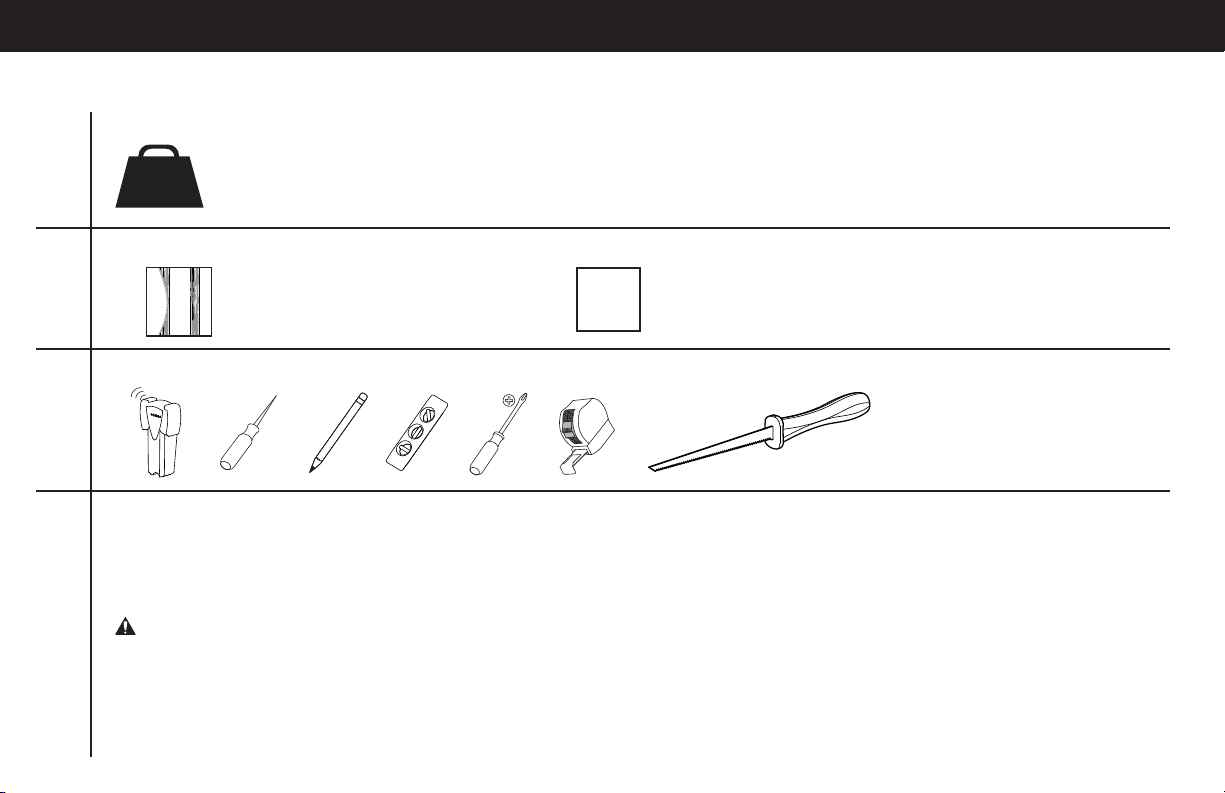

Do you have all of the tools needed?

Before getting started, let’s make sure this product is perfect for you!

What is your wall made of?

Unsure? Call 1-800-359-5520 [UK: 0800 056 2853]

Perfect! ?

Drywall with studs

spaced a minimum of

16 in. (406 mm) apart.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item

to your dealer; contact Customer Service. Never use damaged parts!

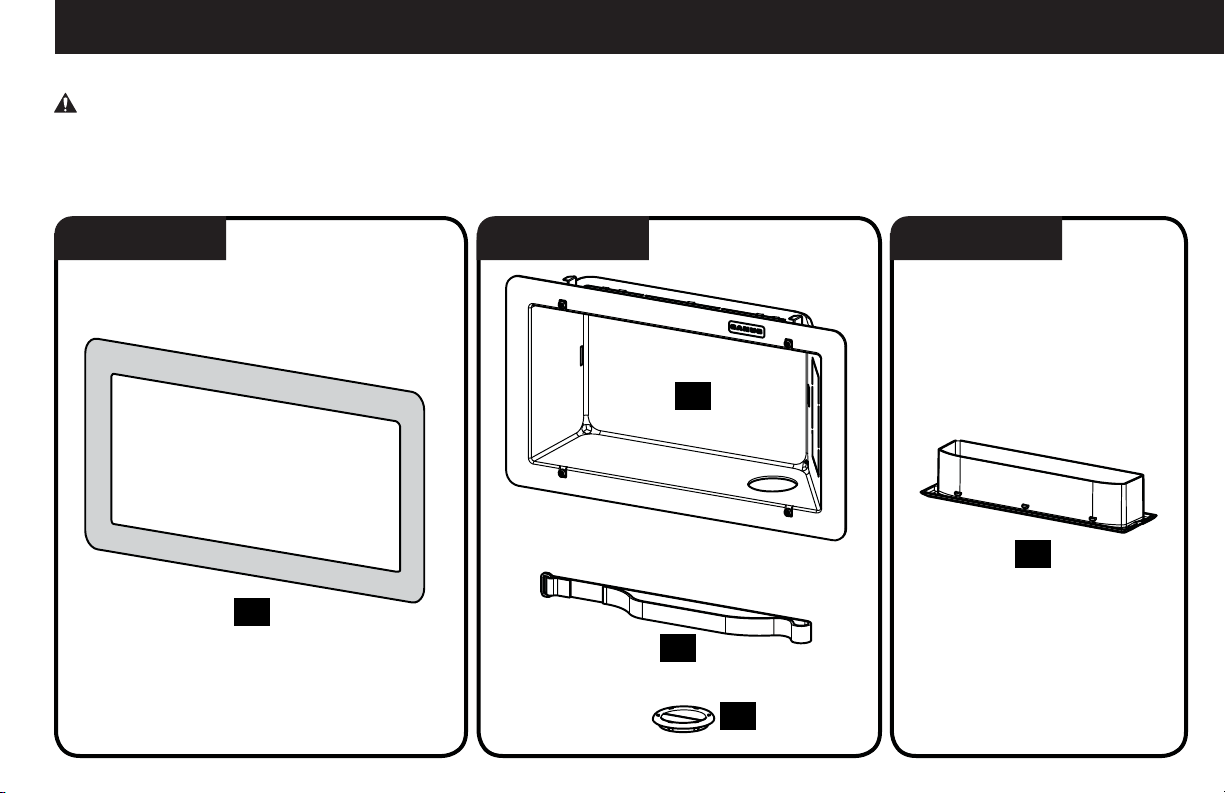

Supplied Parts

Template

Housing

ECO-Mini Bracket

Cable Grommet

Elastic-Velcro Strap

STEP 1 Parts STEP 2 Parts STEP 3 Parts

1 2

≤ 5/8 in.

(16 mm)

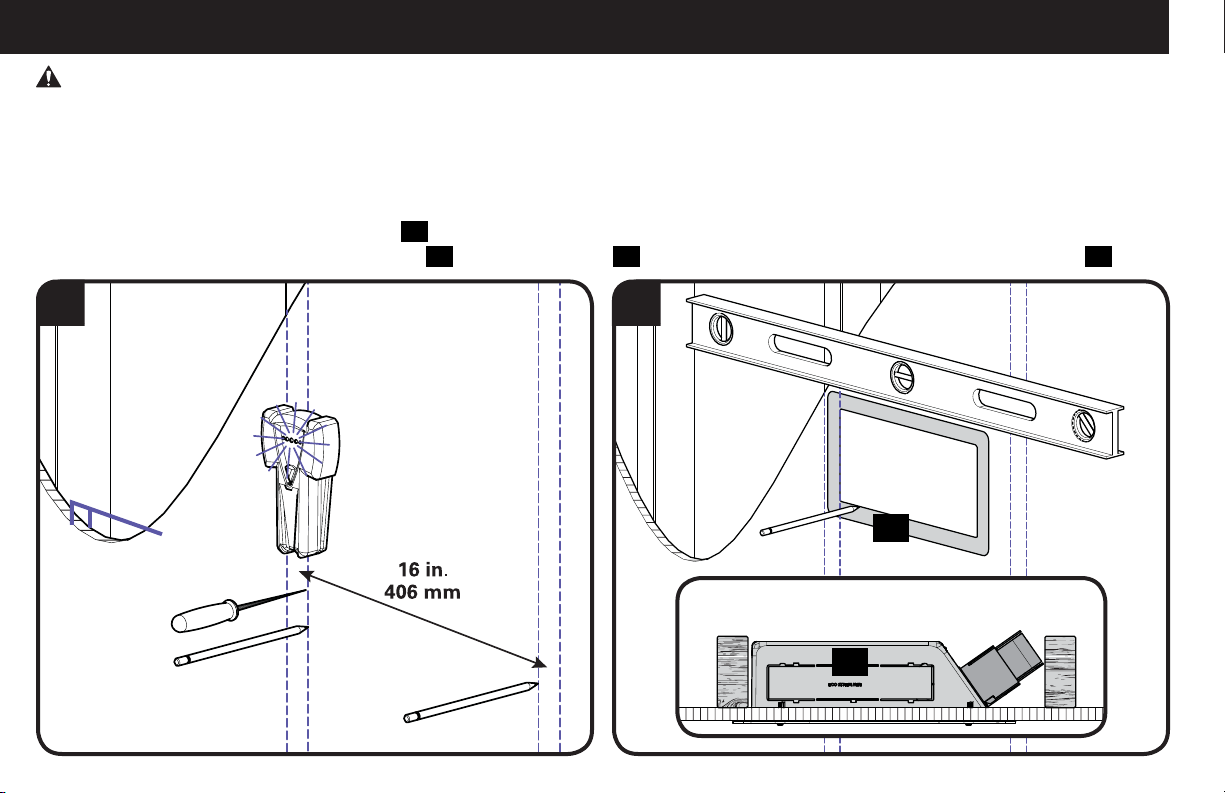

STEP 1 Cut Hole for Housing

CAUTION: Avoid potential personal injuries and property damage!

●Minimum drywall thickness 1/2 in. (13 mm).

●Box must be mounted between studs that are at least 16 in. (406 mm) apart.

1. Locate the studs using an edge-to-edge stud finder. Verify the edges of the studs using an awl or thin nail. Mark the inner edges of the

studs with pencil.

2. The open area on the left of the template 01 should line up the the inner edge of the left stud. This will allow space for the placement of

a power box on the right side of the housing 02 . Level the template 01 and use a pencil to mark the open area of the template 01 .

Inside Wall - Top View

STEP 1 Cut Hole for Housing cont.

3 4

3. Use a drywall saw or similar tool to cut the drywall where marked. Remove cut section of drywall.

WARNING! Electric Shock Hazard! Avoid potential serious injuries or death. Ensure there are no electrical wires behind the wall

before cutting or drilling into the surface.

WARNING! Explosion and Fire Hazard! Avoid potential serious injuries or death. Ensure there are no gas lines behind the wall

before cutting or drilling into the surface.

4. Install wires and cables.

1 2

STEP 2 Install Housing

1. Break out the sections of the housing 02 that are required to install the power and cable outlets that are needed.

2. Thread the elastic-velcro strap into the housing 02 .

3 4

View Behind the Wall

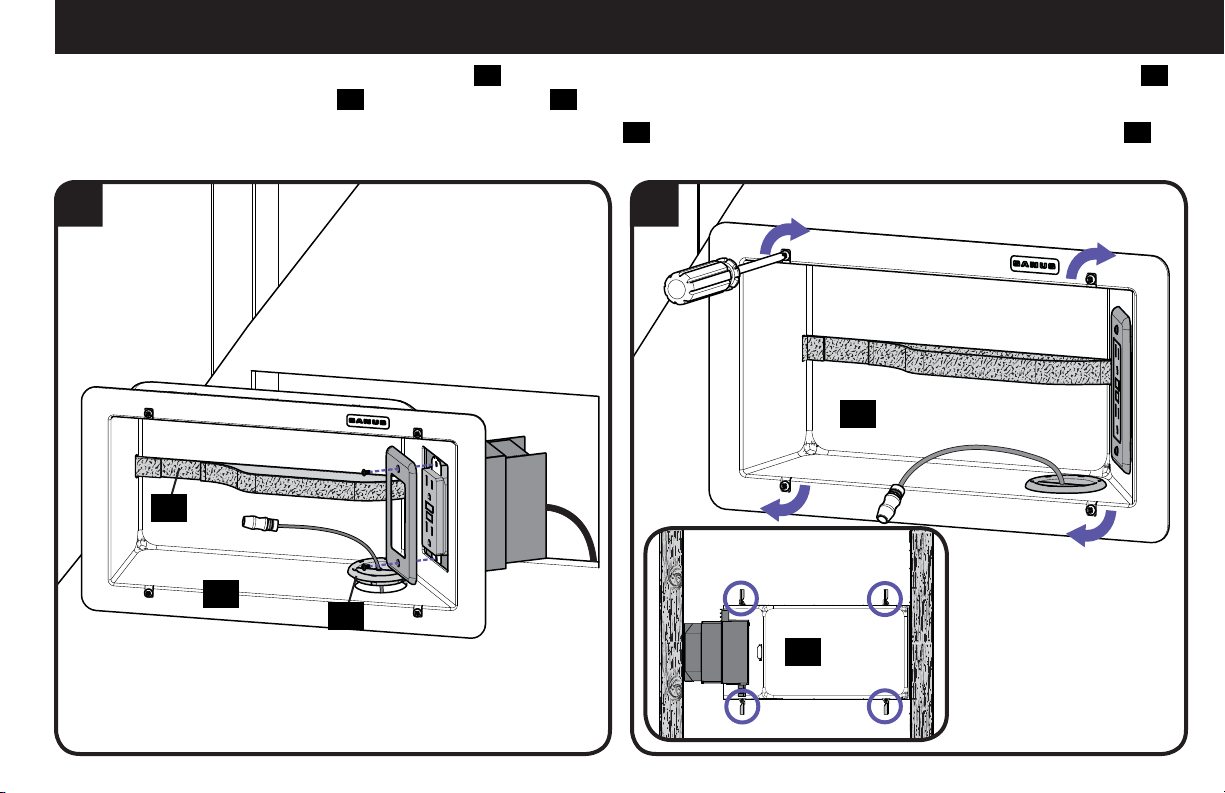

STEP 2 Install Housing cont.

3. Mount a power outlet (if needed) to the housing 02 . Slide cables and additional wires through the hole in the bottom of the housing 02

and the rubber cable grommet 04 . Fit the cable grommet 04 into the hole.

4. Using a screwdriver, turn the screws in the corners of the housing 02 . These will raise the locking tabs in the rear of the housing 02 to

secure it to the wall. Tighten only until secure. Do not over-tighten screws.

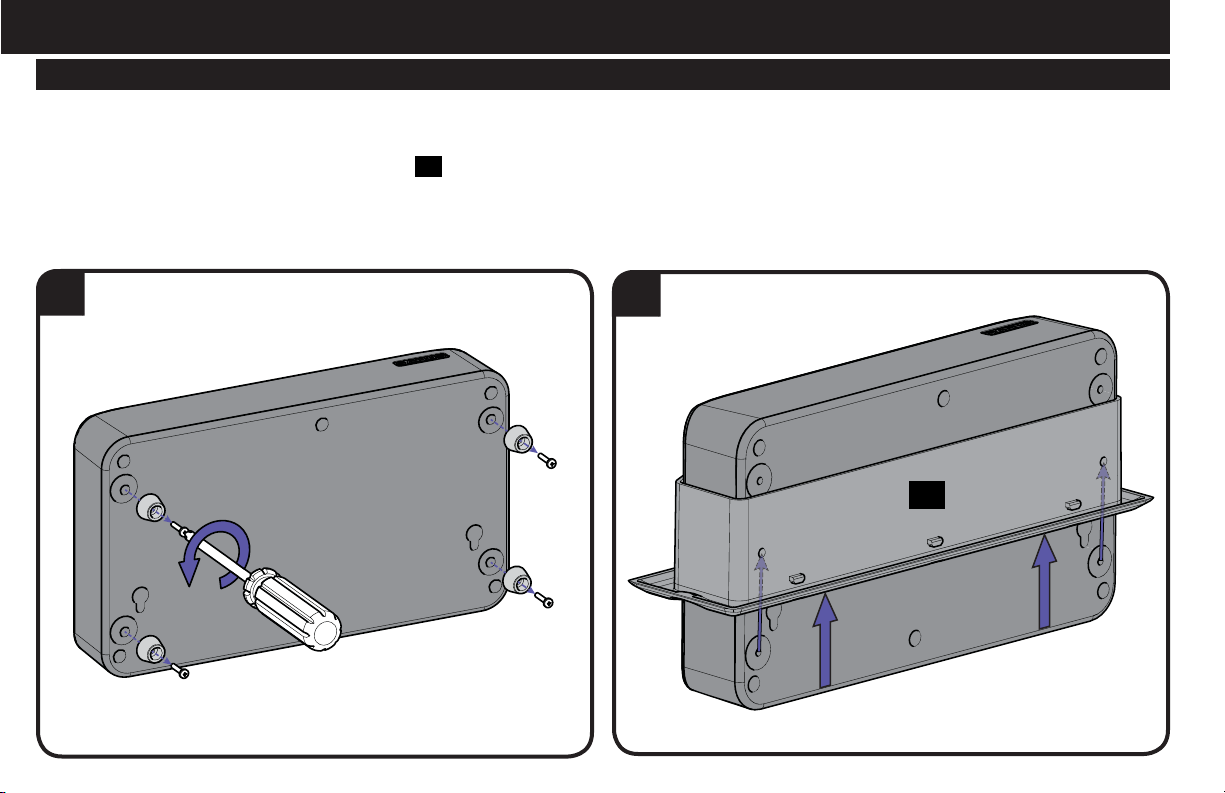

ECO-Mini (purchased separately) with the SA808 - Optional

1. To use the ECO-Mini (purchased separately) in the SA808, first remove feet.

2. Fit the ECO-Mini into the ECO-Mini bracket 05 supplied with the SA808.

STEP 3 Install Components

ECO-Mini (purchased separately) with the SA808 - Optional

STEP 3 Install Components cont.

3. Use two of the screws from the feet to secure the ECO-Mini in the bracket 05 .

4. Slide the ECO-Mini and bracket 05 into the top of the housing 02 . Lock the bracket 05 into the housing 02 by sliding it towards the

corner until you feel it catch.

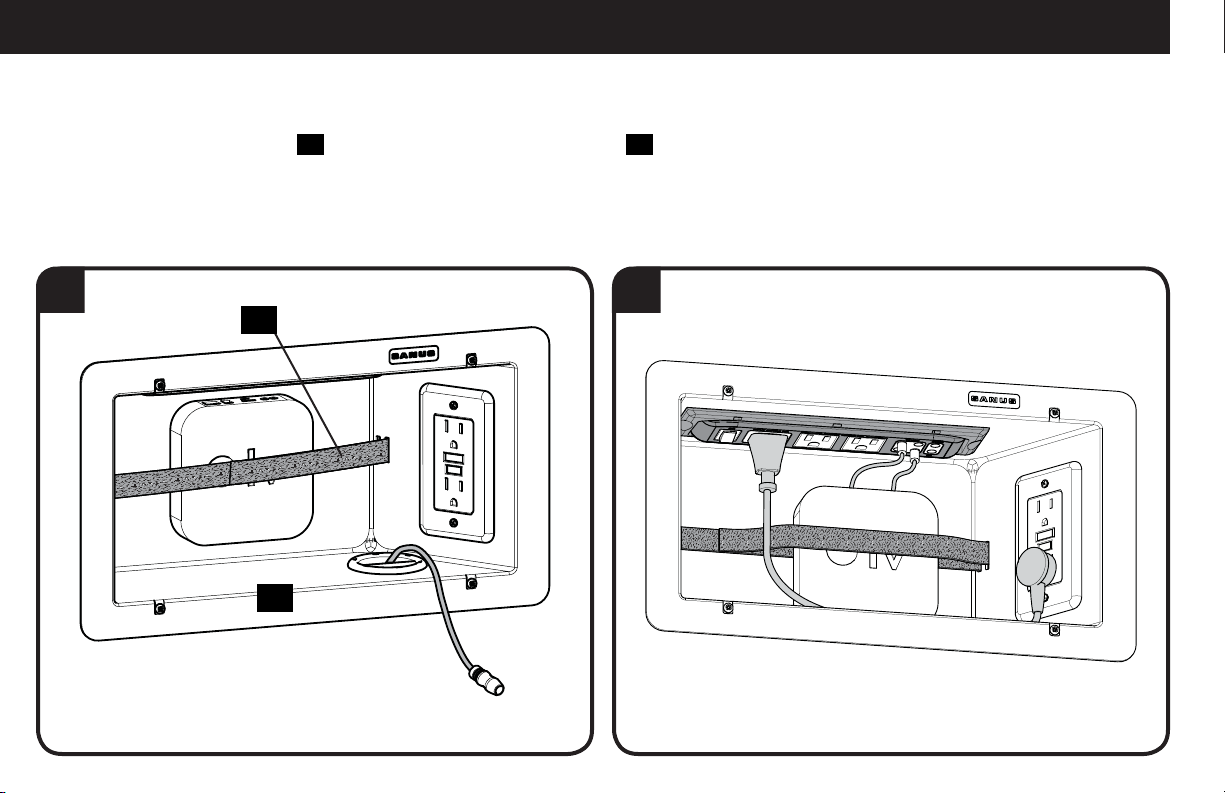

STEP 3 Install Components cont.

5 6

5. Use the elastic-velcro strap 03 to attach components to the housing 02 .

6. Power the ECO-Mini with the power cord supplied with the ECO-Mini.

Positioning

The SA808 can be installed behind most large wall plates of wall mounts or underneath or above most small wall plates. To access the

SA808 after installation, disconnect all cables and wires from the TV, then either slide or remove the arm or TV mount from the wall plate.

IMPORTANT: Check your TV owner’s manual to see if there are any special requirements for mounting or removing your TV.

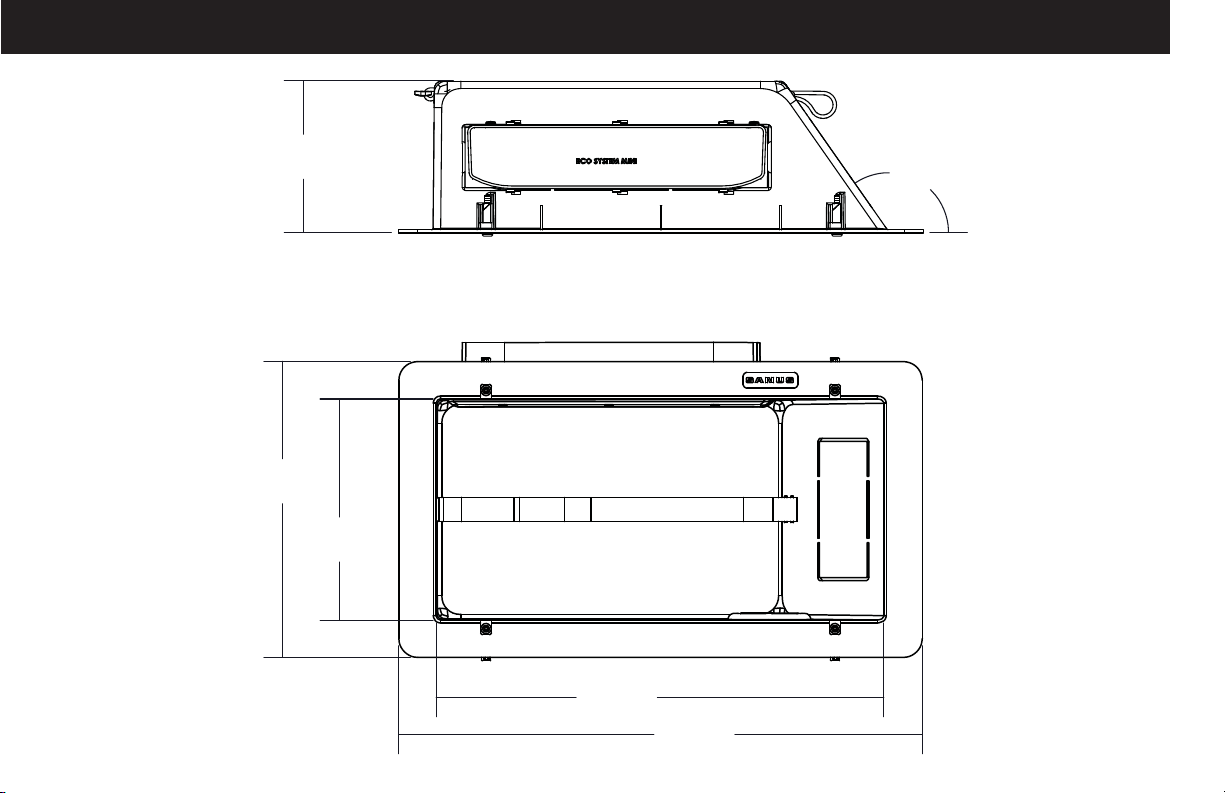

Dimensions

5.83 in.

[148.0 mm]

7.80 in.

[198.1 mm]

13.80 in.

[350.5 mm]

11.80 in.

[299.8 mm]

4.00 in.

[101.6 mm] 125°

ESPAÑOL

INSTRUCCIONES DE SEGURIDAD IMPORTANTES. CONSÉRVELAS. LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO.

Before getting started, let’s make sure this product is perfect for you!- see page 2

1. Will your accessories weigh more than 50 lb (22.7 kg)?

—

Perfect!

Yes

—

This product is NOT compatible. Visit Sanus.com or call 1-800-359-5520 [UK: 0800 056 2853] to ﬁnd a compatible product.

2. What is your wall made of?

3. Do you have all of the tools needed?

4. Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer

Service at 1-800-359-5520 [UK: 0800 056 2853].

CAUTION: Avoid potential personal injuries and property damage!

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Supplied Parts- see page 3

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item

to your dealer; contact Customer Service. Never use damaged parts!

STEP 1 Cut Hole for Housing- see page 4

CAUTION: Avoid potential personal injuries and property damage!

●Minimum drywall thickness 1/2 in. (13 mm).

●Box must be mounted between studs that are at least 16 in. (406 mm) apart.

ESPAÑOL

1. Locate the studs using an edge-to-edge stud finder. Verify the edges of the studs using an awl or thin nail. Mark the inner edges of the

studs with pencil.

2. The open area on the left of the template 01 should line up the the inner edge of the left stud. This will allow space for the placement of

a power box on the right side of the housing 02 . Level the template 01 and use a pencil to mark the open area of the template 01 .

3. Use a drywall saw or similar tool to cut the drywall where marked. Remove cut section of drywall.

WARNING! Electric Shock Hazard! Avoid potential serious injuries or death. Ensure there are no electrical wires behind the wall

before cutting or drilling into the surface.

WARNING! Explosion and Fire Hazard! Avoid potential serious injuries or death. Ensure there are no gas lines behind the wall

before cutting or drilling into the surface.

4. Install wires and cables.

STEP 2 Install Housing- see page 6

1. Break out the sections of the housing 02 that are required to install the power and cable outlets that are needed.

2. Thread the elastic-velcro strap into the housing 02 .

3. Mount a power outlet (if needed) to the housing 02 . Slide cables and additional wires through the hole in the bottom of the housing 02

and the rubber cable grommet 04 . Fit the cable grommet 04 into the hole.

4. Using a screwdriver, turn the screws in the corners of the housing 02 . These will raise the locking tabs in the rear of the housing 02 to

secure it to the wall. Tighten only until secure. Do not over-tighten screws.

STEP 3 Install Components- see page 8

ECO-Mini (purchased separately) with the SA808 - Optional

1. To use the ECO-Mini (purchased separately) in the SA808, first remove feet.

2. Fit the ECO-Mini into the ECO-Mini bracket 05 supplied with the SA808.

ESPAÑOL

3. Use two of the screws from the feet to secure the ECO-Mini in the bracket 05 .

4. Slide the ECO-Mini and bracket 05 into the top of the housing 02 . Lock the bracket 05 into the housing 02 by sliding it towards the

corner until you feel it catch.

5. Use the elastic-velcro strap 03 to attach components to the housing 02 .

6. Power the ECO-Mini with the power cord supplied with the ECO-Mini.

Positioning- see page 11

The SA808 can be installed behind most large wall plates of wall mounts or underneath or above most small wall plates. To access the

SA808 after installation, disconnect all cables and wires from the TV, then either slide or remove the arm or TV mount from the wall plate.

IMPORTANT: Check your TV owner’s manual to see if there are any special requirements for mounting or removing your TV.

Dimensions- see page 12

ESPAÑOL
