INSTRUCTION MANUAL
BUILT-IN BEVERAGE COOLER
MODEL: KMBR150
[email protected]
1(510)228-4672
R

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 3
PRODUCT DIAGRAM 5
INSTALLATION INSTRUCTIONS 6
Before Using Your Beverage cooler 6
To Install Stainless Steel Handle 6
To Install Your Beverage cooler 7
OPERATION INSTRUCTIONS 9
Controls 9
Storage 10
Door Lock 10
Beech Shelves 10
CARE & MAINTENANCE 11
Cleaning Your Beverage cooler 11
Power Failure 11
Vacation Time 11
Moving Your Beverage cooler 12
Energy Saving Tips 12
TROUBLESHOOTING GUIDE 13-14

3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, electric shock, and personal injury.
Plug into its own individual electrical outlet with a voltage rating that matches the rating
label on the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that cannot be
turned off by a switch or pull chain. Be sure that the plug is fully inserted into the
receptacle.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third ground prong from the power cord supplied.
To protect against electric shock, do not immerse the Beverage cooler, plug or cord in
water or other liquids.
Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler,
always grip the plug firmly and pull straight out from the wall outlet.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler with wet hands, while standing on a wet surface or while standing in water.
Unplug the Beverage cooler or disconnect power before cleaning or servicing. Failure to
do so can result in electrical shock or death.
When moving the Beverage cooler, be careful not to roll over or damage the power cord.
Never clean Beverage cooler parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapor and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
An empty Beverage cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment
and suffocation. Never allow children to operate, play with or crawl inside this Beverage
cooler.

4
Do not use this wine cooler for other than its intended purpose. For indoor, household
use only.
Move this wine cooler by 2 people. Failure to do so can result in injury.
Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and
below 32°C (90°F).
To ensure proper ventilation for your wine cooler, the front of the cooler must be
completely unobstructed.
This wine cooler must be installed in an area away from wind, rain, water spray or drips.
The wine cooler should not be located next to ovens, grills or other sources of high heat.
Do not kink or pinch the power supply cord of wine cooler.
It is important for the wine cooler to be leveled in order to work properly. You may need
to make several adjustments to level it.
This wine cooler is designed for storing and cooling wines. Do not store perishable food
or medical products inside the cooler.
When disposing of refrigeration wine coolers, special handling is often required. It is the
consumer’s responsibility to comply with federal and local regulations when disposing of
this product.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.

5

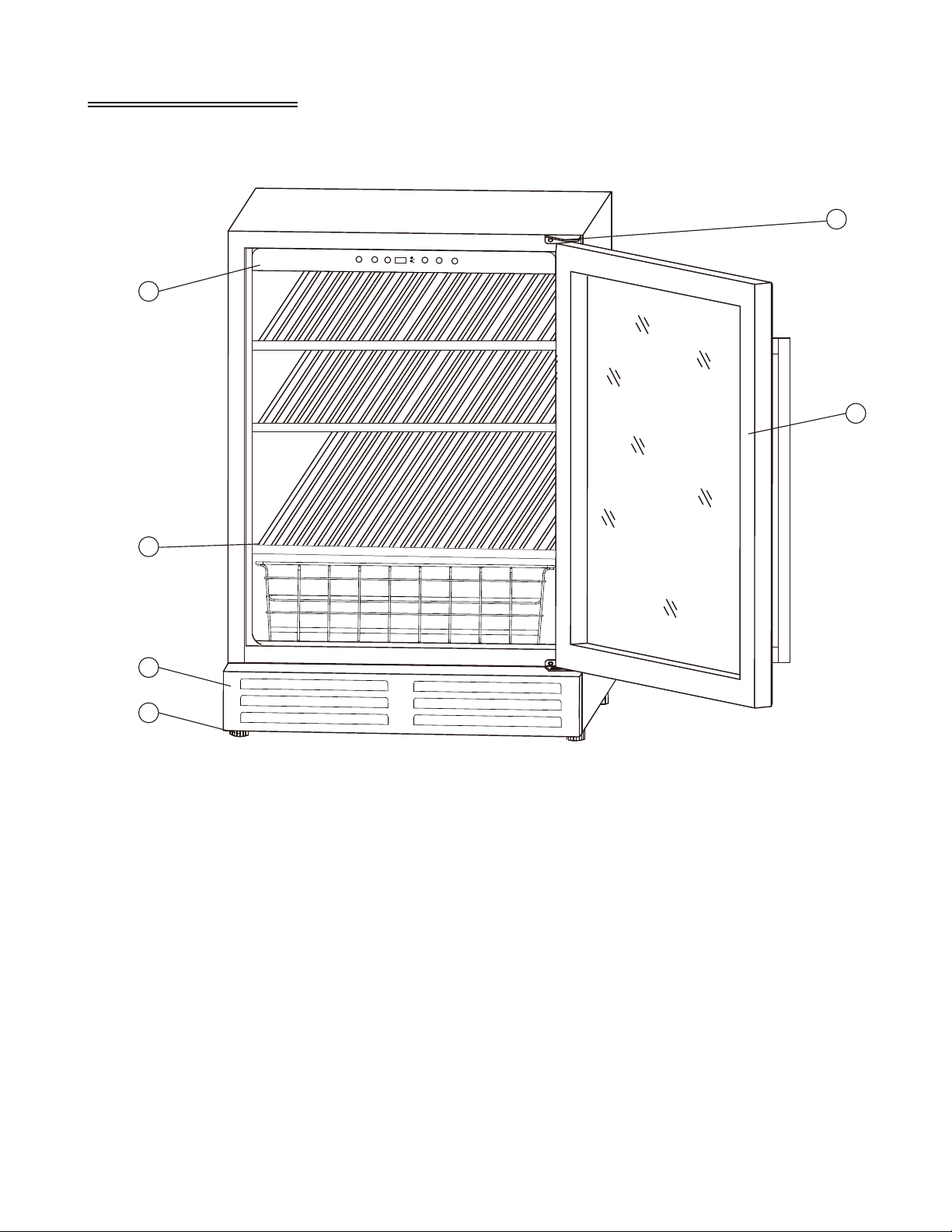

PRODUCT DIAGRAM
1 Control Panel
5 Top Hinge
2 Shelves
6 Glass Door with Handle
3 Exhaust Window
4 Leveling Legs
1
5
6
2
4
3

6
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
Remove the exterior and interior packaging.
Check to be sure you have all of the following parts:
o3 wired Shelves
o2 Keys
oStainless Steel Handle
oInstruction Manual
o2 Extra Screws for Installing Handle
IMPORTANT: Before connecting this Beverage cooler to a power source, let it stand upright
for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
To Install Stainless Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
over tighten as this will cause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This Beverage cooler includes stainless steel handles that are not required to operate this
Beverage cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) into the
two holes separately. Continue on to step 3 to replace the door gasket to its original position.

7

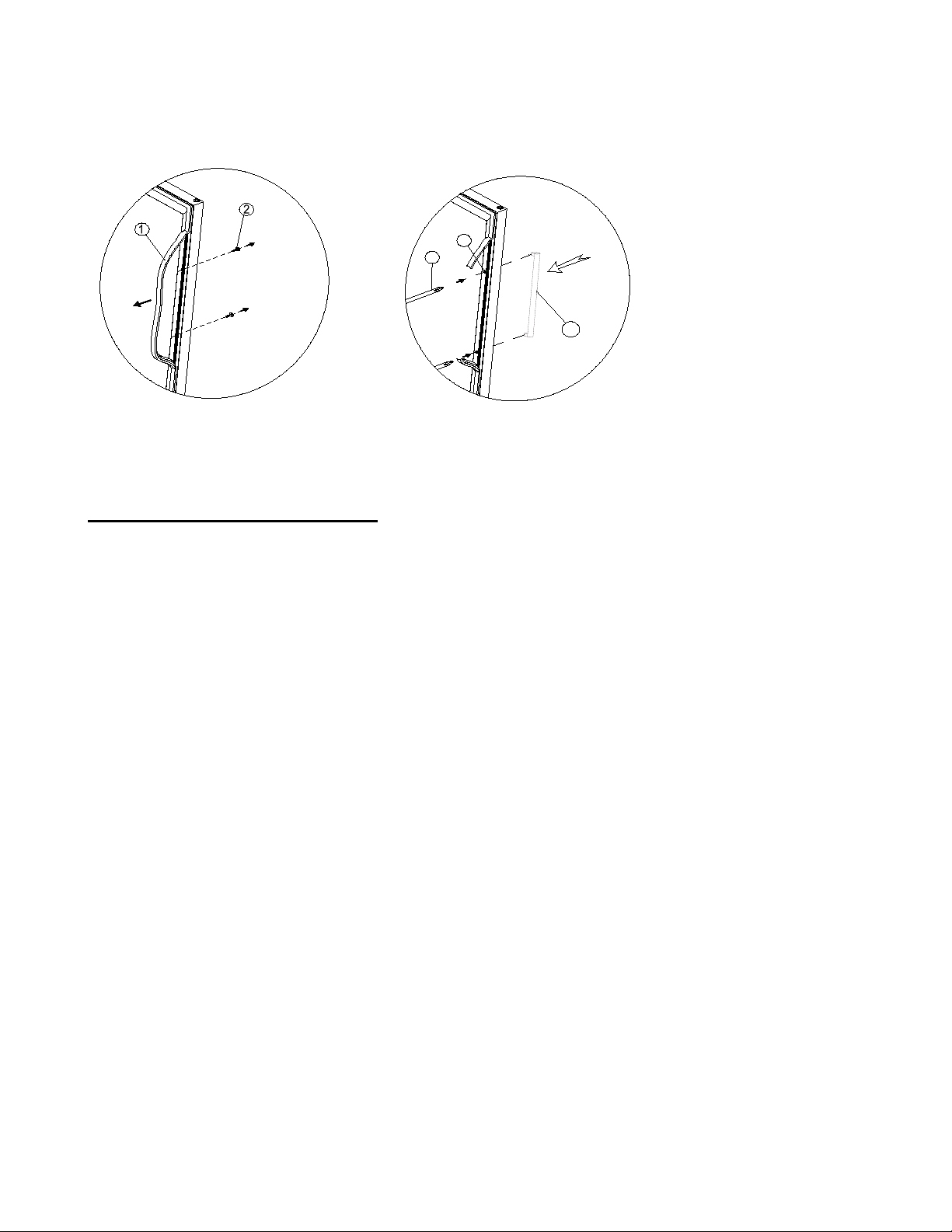

Illustration #1 Illustration #2
To Install Your Beverage cooler
-This Beverage cooler is designed for free standing or built-in (fully recessed) installation.
-Place your Beverage cooler on a solid and level floor that is strong enough to support it when
it is fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling
legs in and out to stabilize the cooler horizontally. If the legs are not properly adjusted, the
cooler may be unstable and result in excess noise or vibration.
-Locate the Beverage cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold ambient temperatures may also cause the cooler not
to perform properly.
-It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
-It is recommended you install the Beverage cooler in a place with temperatures above 60°F
(15°C) and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is
above or below recommended temperatures, the performance of the cooler may be affected.
Placing your cooler in extremely cold or hot conditions may cause interior temperatures to
1 Gasket
2 Screw
3 Screw Driver
4 Handle
3
2
4

8
fluctuate, and the temperature range of 3ºC-18ºC (37ºF-64ºF) may not be reached.
Connect the Beverage cooler to an exclusive, properly grounded, standard electrical supply
(115 V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and
ordinances. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized products service center.
Warning:Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
The Beverage cooler should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the Beverage cooler. This
provides the best performance and also prevents overloading house wiring circuits that
could cause a fire hazard from overheated.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding type Beverage
cooler extension cord having a grounding type plug and outlet and that the electrical
rating of the cord is 10 amperes (minimum) and 120 volts.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to protect the Beverage
cooler it is connected to. Damages due to power surges are not considered a
manufacturer covered defect and will void your product warranty.

9
OPERATION INSTRUCTIONS
Controls

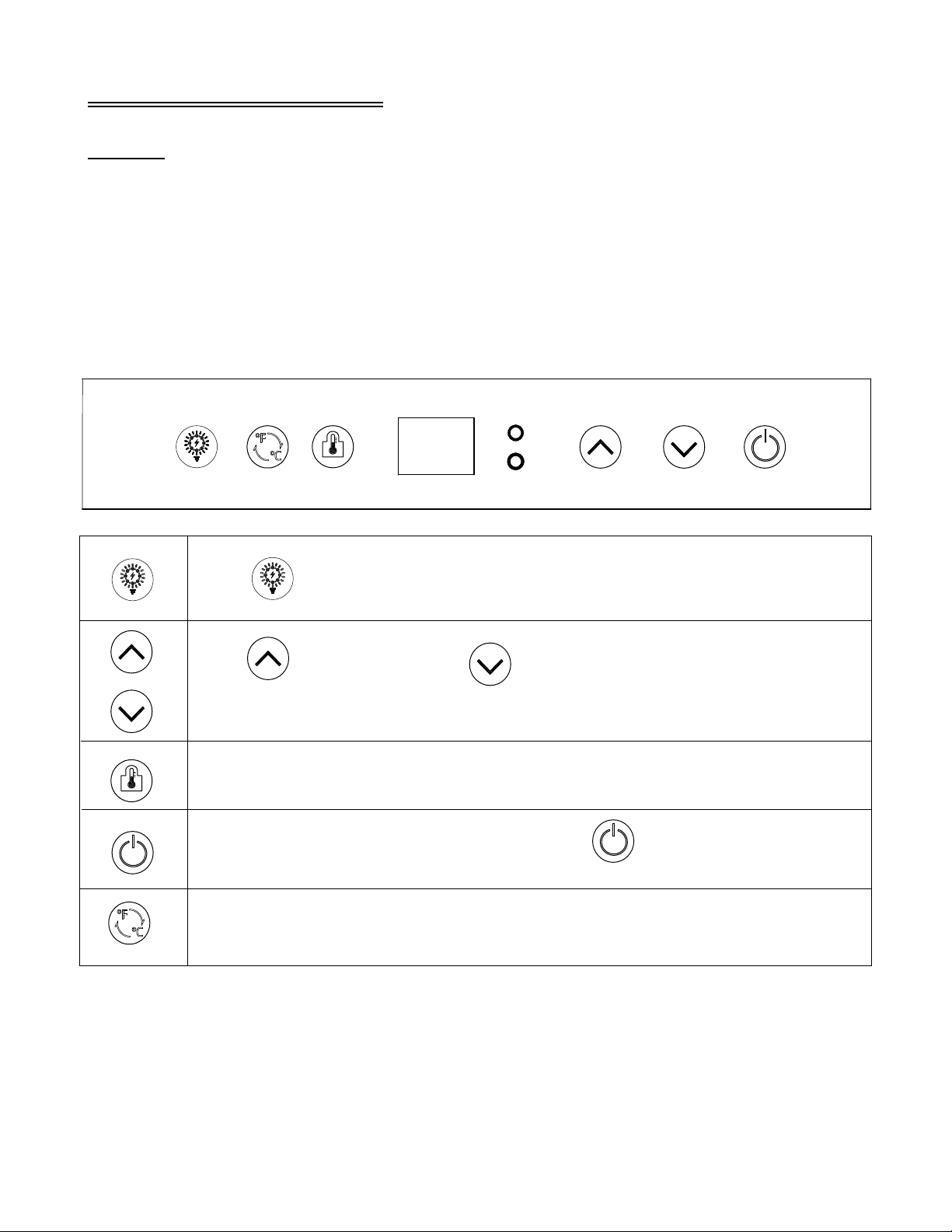

After plugging the Beverage cooler into a wall outlet, the cooler would turn on automatically and
the LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours
before placing wine bottles in the Beverage cooler.
Press once to turn the interior light ON or OFF.
Press to increase or press to decrease the temperature in 1 degree
increments between 3°C and 18°C or between 37°F and 65°F.
Press to begin adjusting the temperature
Press once to turn ON the cooler. Press and hold about 3 seconds to turn
OFF the cooler.
Toggles the temperature display between Celsius and Fahrenheit.
C
F
°
°C
F
°
°

10
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary..
Door Lock
This cooler can be secured with a lock and key. The keys are located inside the plastic bag that
contains the Instruction Manual. Insert the key into the lock and turn it clockwise to lock the
door, making sure the metal pin is engaged completely. To unlock the door, do the reverse.
Remove the key and put it in a secure location.
Shelves
To remove the shelves from the track, pull each shelf out to the shelf post,as shown in
Lift it up again, then slowly pull the shelf out, as shown in figure B.
figure A.
Figure A Figure B

11
CARE & MAINTENANCE
Cleaning Your Beverage cooler
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
Turn off the power, unplug the Beverage cooler, and remove all items including shelves.
Wash the inside surfaces with warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area near the controls,
or any electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless
steel, which will contaminate the stainless steel with steel particles and rusting may
occur.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your Beverage cooler. If the power is off for an extended period of time, proper steps should be
taken to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three weeks. For periods
longer than this, turn the Beverage cooler off and leave the door slightly ajar to prevent odor
from building inside the Beverage cooler.

12
Moving Your Beverage cooler
Remove all items (bottles) from the cooler;
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the Beverage cooler stays securely in the upright position during transportation.
Protect the outside of the Beverage cooler with a blanket or a similar item.
Energy saving tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.

13
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be loose.
Ensure the Beverage cooler has been
plugged in properly.
The Beverage cooler is turned off. Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Beverage
cooler is not
cold enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for the temperature to stabilize.
The Beverage cooler has recently
been disconnected for a period of
time.
It takes 3-4 hours for the Beverage
cooler to cool down completely.
Prolonged or frequent door
openings. Open the door less often.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter than
normal.
It’s normal for the Beverage cooler to
work harder under these conditions.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
Beverage cooler to run more until the
desired temperature is reached.
Prolonged or frequent door
openings. Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.

14
PROBLEM POSSIBLE CAUSE SOLUTION
The light does not
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped
or a blown fuse. Check the breaker and/or fuses.
The light button is “OFF”.Press to turn the light ON.
Vibrations.
The cooler is not leveled. Check to assure that the cooler is level.
The bottles are vibrating. Make sure the bottles don’t touch each
others.
There is an object under the
cooler. Remove the object under the cooler.
The cooler seems to
make too much
noise.
The cooler is not level. Level the cooler.
Normal noise from the flow
of the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly installed. Re-install the door properly.
The gasket is dirty. Clean the door gasket.
The shelves are out of
position. Place the shelves properly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is normal during high
humidity periods. Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or frequent door
openings. Open the door less often.
The door does not seal
completely. Check door gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8 A sensor has failed. Contact the customer service

15
Warranty Terms
Warranty Period
1. Customers are entitled to replacement or free repair service in case of quality defect(s) found
in the product within 15 days upon receipt of the product.
2. Customers are entitled to free repair service from TITTLA for any product proven defective in
material or workmanship that results in product failure during normal consumer usage and
conditions within the valid warranty period, which is 12 months counting from the date of selling.
However, warranty period varies by product component and country of purchase. Please contact
our after-sales service team via [e-mail] for detailed warranty information.
Warranty Exclusions
1. Products subjected to unauthorized repair, misuse, collision, neglect, mishandling, soaking,
accident, and unauthorized alteration.
2. Products subjected to improper use or whose labels or security tags have been torn off or
altered.
3. Products whose warranty has expired.
4. Products damaged due to force majeure, such as fire, flood, lightening, etc.
Warranty Claim Procedure
1. If failure or any problem occurs to your product after purchase, please contact us on 1(510)
228-4672,or you can always contact TITTLA ’s customer service through email at support@
tittla.com or website at www.tittla.com.
2.TITTLA’s customer service will guide you through the whole service procedure regarding any
product issue or problem you have encountered.
TITTLA reserves the right to reexamine damaged or returned products.
Contact Card
Web: www.tittla.com
F-mail: [email protected]
Phone: [phone]
