Cooke & Lewis CLBFZ60 User manual

Built under freezer
CLBFZ60
Barcode: 5052931675692
CLBFZ60-C&L-IM-EN-V01
Warning! Read the instructions before using the appliance.

Scope of delivery
[A] x 1 [B] x 1
[C] x 2 [D] x 2
[E] x 2 [F] x 2
[G] x 7[H] x 2

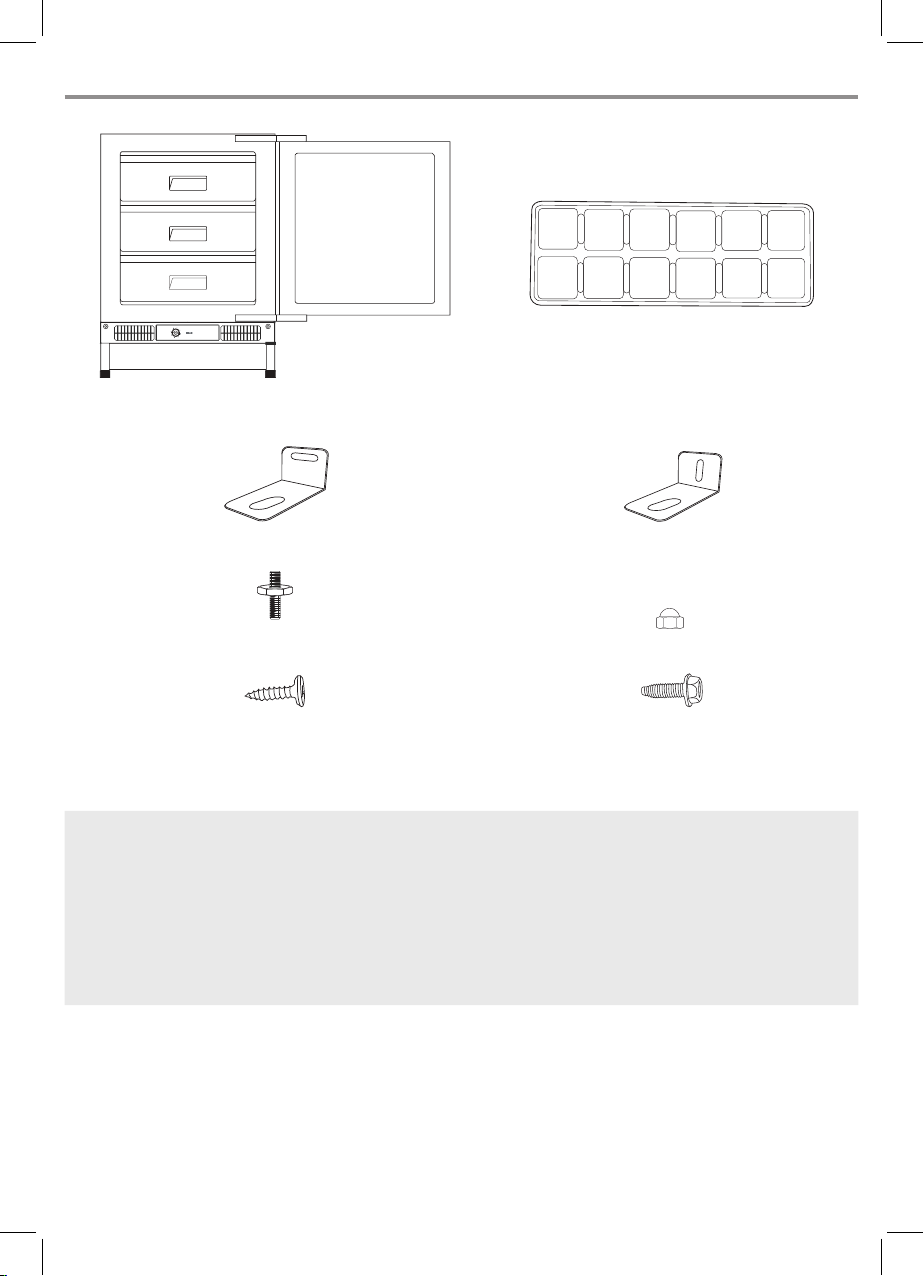

[A] Main unit [E] Flange screws
[B] Ice cube tray [F] Nuts
[C] Mounting bracket [G] Screws
[D] Mounting bracket [H] Screws
Built under freezer CLBFZ60

3
Let's
get started...
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
EN
Getting started… 04
Safety 04
Your product 12
Before you start 13
In more detail… 14
Operation 14
Care and maintenance 19
Troubleshooting 20
Recycling and disposal 22
Technical and legal information 22
Guarantee 23
CE declaration of conformity 25
Installation
26

4
Getting started...
Built under freezer CLBFZ60
EN Safety
These instructions are for your safety. Please
read through them thoroughly prior to installation
and retain them for future reference.
All installation work must be carried
out by a competent person or qualied
electrician.
This appliance must be installed correctly
by a qualied person, strictly following
the manufacturer’s instructions.
Your appliance is only designed to be used indoors.
This appliance is suitable for freezing fresh food,
storing frozen food and making ice cubes. If it
is used for any other purpose or it is not used
correctly, then manufacturer will accept no liability
for any damage that might be caused.
Save these instructions and be sure that they
remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will
be properly informed on its usage and safety
notices. For the safety of life and property, keep
the precautions of these user's instructions as
the manufacturer is not responsible for damages
caused by omission.
Altering the specication of the appliance must
not be attempted for reasons of safety.

5
Getting started...
Built under freezer CLBFZ60 EN
Safety
Check the appliance for any signs of transport
damage. If you notice any damage, do not
connect your appliance to your mains supply and
then contact your supplier.
Your appliance contains R600a refrigerant, which
is a natural gas that does not contain CFCs that
can damage the environment. However it is a
ammable substance, therefore care should be
taken:
• During the transportation and installation of
the appliance, make sure that the refrigeration
pipework does not get damaged.
• If it does become damaged then sources of
ignition and open ames should be avoided.
Also the room that the appliance is situated in
should be thoroughly ventilated.
Do not place any objects on top of the appliance,
as this may damage the table top.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.

6
Getting started...
Built under freezer CLBFZ60
EN
Packaging material should be kept away from
children.
If you are discarding the appliance, pull the
plug out of the socket, cut the connection cable
(as close to the appliance as you can) and
remove the door to prevent children playing
from suffering an electric shock or from closing
themselves inside it.
If this appliance, featureing a magnetic door
seals, is to replace an older appliance having
a spring lock (latch) on the door or lid, be sure
to make the spring lock unusable before you
discard the old appliance. This will prevent it
from becoming a death trap for a child.
WARNING! This appliance is intended to be
used in a domestic household environment only!
Commercial usage is not covered under the
manufacturer's warranty.
WARNING! Do not store explosive substances
such as aerosol cans with a ammable
propellant in this appliance.
Safety

7
Getting started...
Built under freezer CLBFZ60 EN
WARNING! If the supply cord is damaged, it
must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to
avoid a hazard.
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure,
clear or obstruction.
WARNING! Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by the
manufacturer.
WARNING! Do not damage the refrigerant
circuit.
WARNING! Do not use electrical appliances
inside the food storage compartments of
the appliance, unless they are of the type
recommended by the manufacturer.
WARNING! The refrigerant and insulation
blowing gas are ammable. When disposing of
the appliance, do so only at an authorized waste
disposal centre. Do not expose to ame.
WARNING! To avoid a hazard due to instability
of the appliance, it must be xed in accordance
with the instructions.
WARNING! Remove the protective transparent
polythene lm on the side panels and door of the
appliance before installation.

8
Getting started...
Built under freezer CLBFZ60
EN
If the refrigerant circuit should be damaged:
- Avoid opening ames and sources of ignition.
- Thoroughly ventilate the room in which the
appliance is situated. It is dangerous to alter
the specications or modify this product in any
way. Any damage to the cord may cause a
shortcircuit, re, and/or electric shock.
The power cord must not be lengthened.
A separate, special power socket is mandatory
and reliable grounding is required.
Make sure that the power plug is not crushed
or damaged. A crushed or damaged power plug
may overheat and cause a re.
Make sure that you can access the main plug of
the appliance.
If the power plug socket is loose, do not insert
the power plug. There is a risk of electric shock
or re.
You must not operate the appliance without the
interior lighting lamp cover.
The fridge is only applied with power supply of
single phase alternating current of
220 - 240 V/50 Hz. If uctuation of voltage in
the district of user is so large that the voltage
exceeds the above scope, for safety sake,

9
Getting started...
Built under freezer CLBFZ60 EN
be sure to apply A.C. Automatic voltage regulator
of more than 350 W to the fridge. The fridge
must employ a special power socket instead of
common one with other electric appliances. Its
plug must match the socket with ground wire.
Do not store ammable gas or liquids in the
appliance. There is a risk of an explosion.
When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Store pre-packed frozen food in accordance with
the frozen food manufacture's instructions.
The appliances manufactures storage
recommendations should be strictly adhered to.
Refer to relevant instructions for storage.
Do not place arbonated or zzy drinks in the
freeze compartment as it creates pressure on
the container, which may cause it to explode,
resulting in damage to the appliance.
Frozen food can cause frost burns if consumed
straight from the freezer compartment.
Do not place the appliance near hot sources or in
direct sunlight.
Do not expose the refrigerator into a cold or
frozen environment, open air or rain.

10
Getting started...
Built under freezer CLBFZ60
EN
Keep burning candles, lamps and other items
with naked ames away from the appliance so
that do not set the appliance on re.
The appliance is intended for keeping food
stuff and/or beverages in normal household
as explained in this instructions booklet. The
appliance is heavy. Care should be taken when
moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet, as this
could cause skin abrasions or frost/freezer burns.
Never us the base, drawers, doors... to stand on
or as supports.
Frozen food must not be refrozen once it has
been thawed out.
Do not consume ice popsicles or ice cubes
straight form the freezer as this can cause
freezer burn to the mouth and lips.
Never cover or obstruct the ventilation slats on
the appliance.
For electrial connection carefully, follow the
instructions given in this manual.
Unpack the appliance and check if there are
damages on it. Do not connect the appliance if it
is damaged.
Report possible damages immediately to the
place you bought it. In this case retain packing.

11
Getting started...
Built under freezer CLBFZ60 EN
It is advisable to wait at least four hours before
connecting the appliance to allow the oil to ow
back in the compressor.
Adequate air circulation should be around the
appliance, lacking this leads to overheating.
To achieve sufcient ventilation, follow the
instructions relevant to installation.
Wherever possible the back of the product
should not be too close to a wall to avoid
touching or catching warm parts (compressor,
condenser) to prevent the risk of a re, follow the
instructions relevant to installation.
Make sure that the mains plug is accessible after
the installation of the appliance.
Service
Any electrical work required to do the serving of
the appliance should be carried out by qualied
electrician or competent person.
This product must be serviced by an authorized
Service Center, and only genuine spare parts
must be used.
1) If the appliance is Frost Free.
2) If the appliance contains freezer compartment.

12
Getting started...
Built under freezer CLBFZ60
EN
Your product
Note!
It is important that none of the drawers are overloaded. Overloading can
break the drawers and reduce the appliances performance due to poor
air circulation.
4
3
2
1
Your product
1 Frozen food drawers 3 Ventilation grills
2 Thermostat control dial 4 Levelling feet

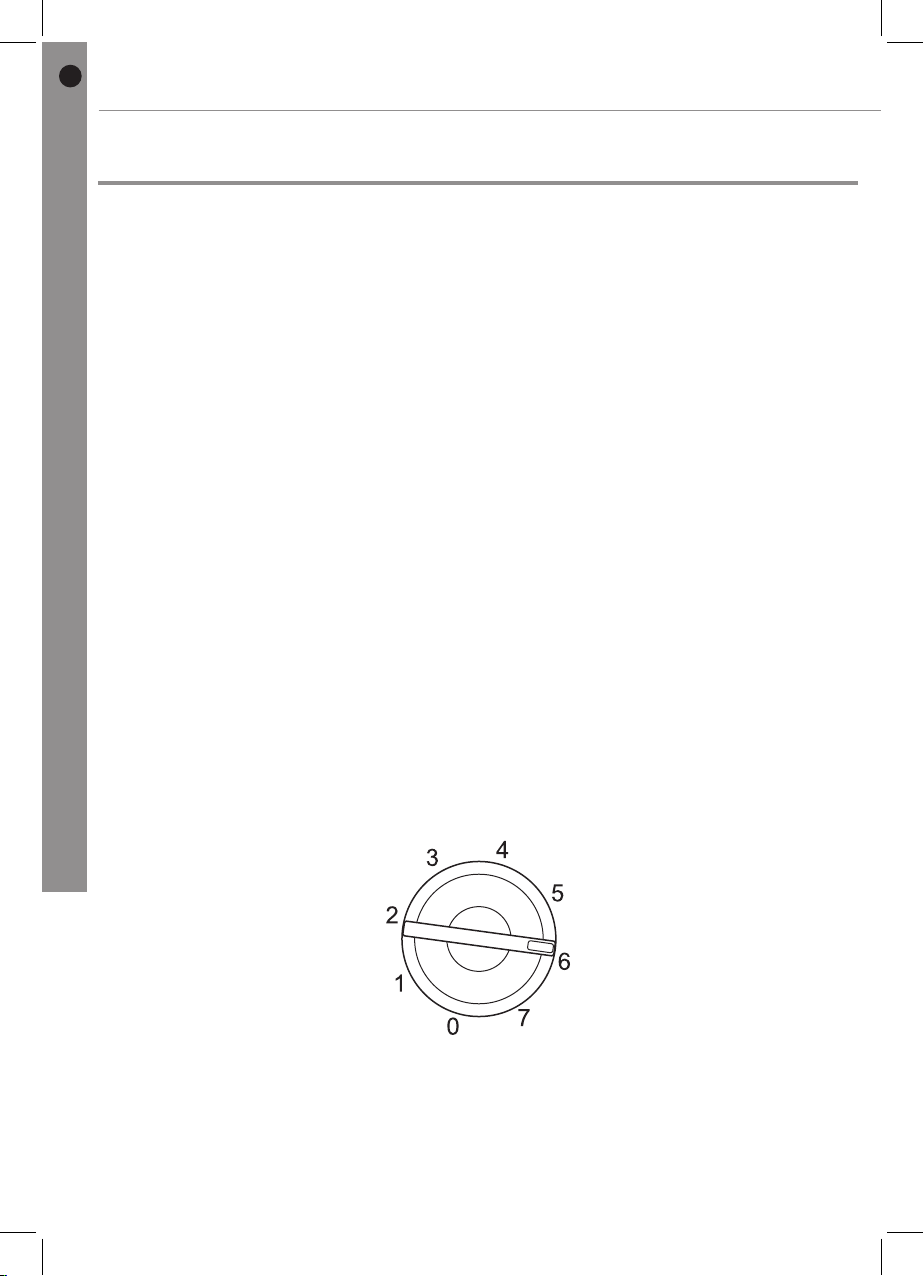

Thermostat control dial
• Allows you to adjust the internal temperature of the appliance.
Frozen food drawers
• Pull out drawers for storage and easy access to frozen food.

13
Getting started...
Built under freezer CLBFZ60 EN
You will need (not supplied)
We advise when installing
this appliance two people
are recommended.
Installation guide
located at the end of
the guidebook
26
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance, it is important that this appliance is installed correctly and that you
read the safety instructions carefully to avoid misuse and hazards. Please
keep this instruction booklet for future reference and pass it on to any future
owners. After unpacking the appliance please check that it is not damaged. If
in doubt, do not use the appliance but contact Customer Services on
0344 800 1128 (UK) and 01 4475261 (Ireland).
Check the package and make sure you have all of the parts listed.
Clean the refrigerator before use (refer to Care and Maintenance section).
Remove all packing material. This includes the foam base and all adhesive
tapes holding the refrigerator accessories inside and outside.
Decide on the appropriate location for your product.
If this product contains glass please take care when tting or handling to
prevent personal injury or damage to the product.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
Before you start

14
In more detail...
EN Built under freezer CLBFZ60
Operation
Product functions
Before switching on
• Make sure that it has been installed by a suitably qualied person, as per the
information contained in installation instructions.
• After delivery, wait for 4 hours before connecting the appliance to the mains
supply. This will allow any refrigerant gases that may have been disturbed
during the transportation process to settle.
• The outside of the appliance and the removable accessories contained within
it, should be cleaned with a solution of liquid detergent and water.
• The interior of the appliance should be cleaned with a solution of sodium
bicarbonate dissolved in lukewarm water. The interior and accessories should
be thoroughly dried, after the cleaning process has been completed.
• There can be an odour when rst switch on the appliance. It will lessen as the
appliance starts to cool.
Before rst use
• Set the thermostat dial to <6> or <7> for 2 hours after switching on the
appliance for the rst time.
• When rst switch on the appliance, the compressor will run continuously until
the freezer reaches a sufciently cool temperature.
• During this period of time, try not to open the door frequently
• Do not place large amounts of food into the appliance either.
• If the unit is switched off or unplugged, allow at least 5 minutes before
restarting the appliance.
Switching on the appliance and setting the thermostat
Switch on your appliance by connecting it to the mains supply and setting the
thermostat. The thermostat control dial is located at the bottom of the appliance.

15
In more detail...
EN
Built under freezer CLBFZ60
Product functions
• The thermostat automatically regulates the temperature inside the freezer,
depending on what number you have turned the thermostat control dial to:
Position <0> means that the appliance is off and all indicator lights are off.
Position <1> provides the highest temperature inside the freezer.
Position <7> provides the lowest temperature inside the freezer.
Ideally, the thermostat should be set to a position between <3> to <4>.
The freezer can cool down to -18 °C and lower.
Note!
The ambient temperature of the room, the temperature of food and the
amount of food that has been placed in the appliance and how often the
door is opened, will all affect the temperature being maintained by the
appliance.
• On the maximum setting (position <7>), the compressor of your freezer will
work continuously to maintain a lower temperature, which will result to more
energy-consuming. Please switch the thermostat dial to between <3> to <4>
during normal use.
Noise during operation
The following noises are characteristics of the appliances:
• Clicks - Whenever the compressor switches on or off, a click can be heard.
• Humming - As soon as the compressor is in operation, you can hear it
humming.
• Bubbling - When refrigerant ows into thin tubes, you can hear bubbling or
splashing noises.
• Splashing - Even after the compressor has been switched off, this noise can
be heard for a short time.
Operation

16
In more detail...
EN Built under freezer CLBFZ60
Operation
The freezer drawer
Note!
The freezer drawers are suitable for freezing fresh food and storing
frozen food and deep-frozen food for a long time.
Freezing fresh food
• Temperature of the freezer drawer must have already reached -18 °C (or lower)
before storing frozen food or freezing fresh food.
• The freezer is only able to freeze a certain quantity of food at one time. The
maximum amount of food that can be frozen in 24 hours is specied on the
rating plate, a label located on the inside of the appliance.
• The freezing process lasts 24 hours. Do not add other food to be frozen during
this period.
• After 24 hours, please check that the fresh food is satisfactorily frozen. If it is
then the thermostat should be turned down to its normal setting (between <3>
and <4>).
• Warm food should be allowed to cool down before freeze. If place warm food in
the freezer, the increased humidity will cause quicker ice formation and increase
the amount of power that the appliance uses.
• Fresh food should be packed into airtight containers or packaging. This will help
to make sure that the food doesn’t dry out or lose its avour. It will also ensure
that avour does not transfer to/from other foods.
• Do not allow fresh food to touch items that are already frozen.
Storing frozen food
• When rst starting-up or after a period out of use, let the appliance run at least 2
hours on the higher settings before putting the product in the compartment.
• The guidance of the food manufacturer should be followed, in regard to the
maximum storage time.
Thawing
• Deep-frozen or frozen food, prior to be used, can be thawed in the freezer
compartment or at room temperature, depending on the time available for this
operation.
• Small pieces may even be cooked still frozen direclty from the freezer. In this
case, cooking will take longer.
• Thawed foods must not be frozen for a second time.

17
In more detail...
EN
Built under freezer CLBFZ60 Operation
The freezer drawer
Warning!
In the event of accidental defrosting, for example, the power has been
off for longer than the value shown in the technical characteristics chart
under "rising time", the defrosted food must be consumed quickly or
cooked immediately and then re-frozen (after cooked.)
Tips on freezing
• Freezer bags, polythene wraps, aluminium foil (extra thick) and special cans for
frozen foods are suitable packaging for storing frozen goods in.
• Tape, rubber bands or plastic clips are suitable for sealing bags and wrappings.
• Before sealing a suitable bag, please compress the air out of it, as this will help
the food to freeze more easily.
• Flat packages freeze more easily.
• Prepare food in small portions to enable it to be rapidly and completely frozen
and to make it possible subsequently to thaw only the quantity required.
• Do not allow fresh, unfrozen food to touch food which is already frozen, avoiding
a rise in temperature of the latter.
• If you are freezing liquid, then do not ll the container to the rim. Liquids will
expand when being frozen.
Note!
Do not place bottles (glass or tin) containing liquids (especially sparkling
liquids) into the freezer as they could cause the bottle to burst during
freezing.
Making ice cubes
• Fill an ice cube tray with water and place it in the freezer compartment.
• After the water is completely frozen and turned to ice, twist the ice cube tray to
dispense the ice:

18
In more detail...
EN Built under freezer CLBFZ60
Operation
Saving energy when using your freezer
Installing
• Install the appliance in a cool position. If it is placed in direct sunlight or next to
an oven or other heat source, the energy consumption can increase substantially.
• Ensure the appliance is installed with the correct ventilation requirements.
Restricting ventilation can increase the energy consumption.
Cleaning and maintenance
• Clean the door gasket with warm water or a neutral detergent that leaves no
residue. A tight-sealing door gasket is critical to the efciency of your appliance.
Usage
• Do not open the door repeatedly or more frequently than you have to.
• Do not set the thermostat too low. A change of just one degree can effect the
energy consumption. Use a thermometer to check the temperature.
• Allow food to sufciently cool before putting it in the appliance.
• In the freezer, food packages should be scattered and never grouped or stacked
together until they are completely frozen.
• If you are going away for a long period of time, turn off the appliance, empty and
clean it and leave the door ajar.
• If you have a second appliance that is not used, make sure that it is stored with
the power off and the door left ajar until it is actually required.
Disposal
• If you're going to throw out your old freezer, see if there's a chlorouorocarbons
(CFCs) recycler in your area. The government department which looks after the
environment in your area may be able to help you.

19
In more detail...
EN
Built under freezer CLBFZ60 Care and maintenance
Care and maintenance
Warning!
Please ensure that your appliance is disconnected from your mains
supply before attempting to clean it.
• Do not clean the appliance by pouring water onto it or spraying water over it.
• The freezer compartment should be cleaned periodically, using a solution of
bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water. Do not clean them in a
dishwasher.
• Do not use abrasive products, detergents or soaps.
• Check the water drain hole on the rear wall of the refrigerator compartment.
• Clean a blocked drain hole with the aid of something like soft green peg, be
careful not to make any damage to the cabinet by sharp objects.
• After washing the appliance, wipe over the area that you have cleaned with a
damp cloth and then dry it thoroughly.
• When cleaning is complete, dry your hands and then reconnect the plug to your
mains supply.
Defrosting
The frost in the freezer compartment should be removed manually.
Note!
The freezer compartment should be defrosted at least once a month.
The number of times that you need to defrost will depend on the setting
of your thermostat, and how much food you freeze and store in the
freezer compartment.
• Before defrosting, take the food out or put them into the fresh food compartment
temporarily.
• Set the thermostat control dial to <0>, then the compressor will stop working.
• Leave the door of the refrigerator open until ice and frost dissolve thoroughly
and accumulate at the bottom of the freezer chamber. You can place a bowl of
warm water (about 50 oC) inside the freezer compartment to speed up the defrost
process.
• Wipe off the water with soft cloth.
• After drying the compartment, with dry hands, reconnect your appliance to your
mains supply and set the thermostat control dial to position <6> or <7> for about
2 – 3 hour, before returning it to the normal setting of between <2> and <4>.

20
In more detail...
EN Built under freezer CLBFZ60
Note!
Do not place food back in the freezer compartment once it has started to
thaw.
Warning!
Do not use mechanical devices (e.g. hair dryer) or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
Do not use sharp metal objects to remove the ice on the freezer, as this
could cause damage to the refrigerant system.
Troubleshooting
Note!
If your freezer appears not to be operating properly, before contacting
the Customer Services, please refer to the checklist below.
My freezer does not appear to be working/there is no power to my appliance
• Check that the plug is fully inserted into the power socket.
• Check that there is power to your mains supply (e.g. there isn't a power cut or
that the fuse hasn’t blown).
• Check that the thermostat inside the appliance has not been turned to the <0>
position.
• Check that your mains supply voltage, corresponds to the voltage stated on the
rating plate of your appliance.
My freezer appears to be performing poorly
• Check that the appliance isn’t overloaded and that food hasn’t been packed too
tightly into it.
• The thermostat setting is too low; turn the thermostat up higher.
• Ensure that the door is closing properly and that the door has not been opened
for a prolonged period in error.
• Ensure that there is adequate ventilation for your appliance.
Troubleshooting
Care and maintenance
