TON172 FILM SCANNER USER’S MANUAL

CONTENTS
Preface..........................................................................................................................1
Safety Precautions ............................................................................................................................1
Checking package contents...............................................................................................................1
Product Structure Diagram...............................................................................................................2
Slide and negative holder loading method ..................................................................................... 3
Operation Guided.............................................................................................................................5
Product Specification......................................................................................................................12
Declaration......................................................................................................................................13

1. Preface
Thank you for purchasing this product ！Please read this user's manual carefully
before using this product.
Please retain this manual for future reference.
Please use this product correctly
2. Safety Precautions
Do not disassemble this unit.
Do not touch inner part of the scanner after dropping or other damage suffering.
Do stop using it if there is any problem with the scanner, such as smoke or smell
while using.
Do not clean the scanner with alcohol, gasoline, diluent and other organic solvent.
Do not use it in many dusts with the damp environment.
Do not overload the USB connections on your computer to avoid poor working of the
scanner for overloading.
Please use films of standard size.
Cleaning：Please make sure the scanner is clean before using so as to produce a clean
image.
To protect the machine and save energy, 30 minutes without continuous operation
will automatically shut down in the state of power-on. Press the power button to
turn again to normal use.
3. Check Package Contents
Please check your scanner package whether it contained as followed objects ,if lack
of any object, please contact with retailers whom you buy the product from.

!Please stretch into clean from product side, when you use cleaning brush to
clean backlight

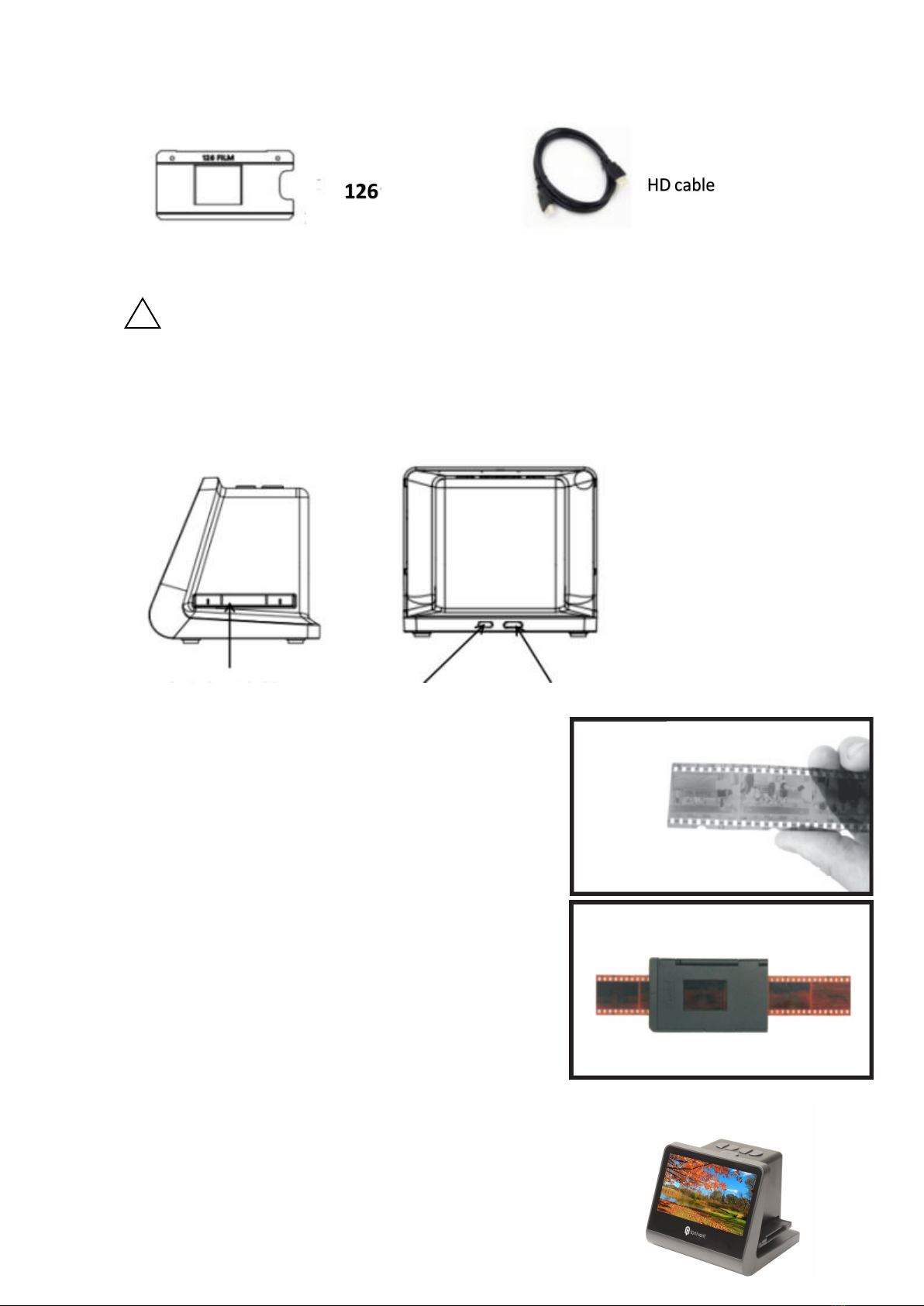

4. Product Structure Diagram
negative slot type-c power HD out
5. Slide and negative holder loading method
Loading Negatives
a.Hold up the negative toward the light. Face the right
side of the negative to yourself.
b.Take out negative holder out. Let the side with “open” logo
face yourself, and let the side with “ < ”logo face down. Open

the negative holder, then place negative into recessed area in the holder.Close the
negative holder and press the edges so that it locks in place.
c. Insert the negative holder into the slot on the right side of the film scanner .
Loading Slides
a. Hold up the slide toward the light. Face
(we don't provide white small holder)
b. Take out slide holder out. Let the side with
“open” logo face yourself, and let the side with
“ < ”logo face down. Open the slide holder, then
place slides into recessed area in the
holder.(films also could be loaded as a strip into
the slide holder, forming drawer type as
below picture) Close the slide holder and press
the edges so that it locks in place.
c.
Insert the slide holder into the slot on the right side
Of the film scanner as shown.

6. Operation Guided
(1) .Introduction of Menu
① Film Type ⑤ Format
② Resolution ⑥ USB MSDC
③ Capture ⑦ Language
④ Playback
(2).Capture Picture
a.Before scanning please make sure the inner backlight panel is clean.
Note: You can use the provided brush to clean the screen.

b.In main Menu mode press “OK/Enter” enter capture mode, you can press left
button to mirror and press right button to flip the current picture. And you can press
OK button to set Exposure. Then press Convert/Mode button again back to main
menu.
Press right key, the image position Press left key，the image position
be altered from up to down. be altered from left to right.
Press ENTER to set exposure compensation
c.In main Menu mode press “OK/Enter” enter capture mode, then press “Mode”
then press “OK/Eneter” the picture would be captured.
(3).Operation Guide
In main menu, press “<” “>” , until , then press “OK/Enter” you can chose

negative(110、135、126KPK)、slide(110、135、126KPK、Super8)、B&W(110、135、
126KPK)

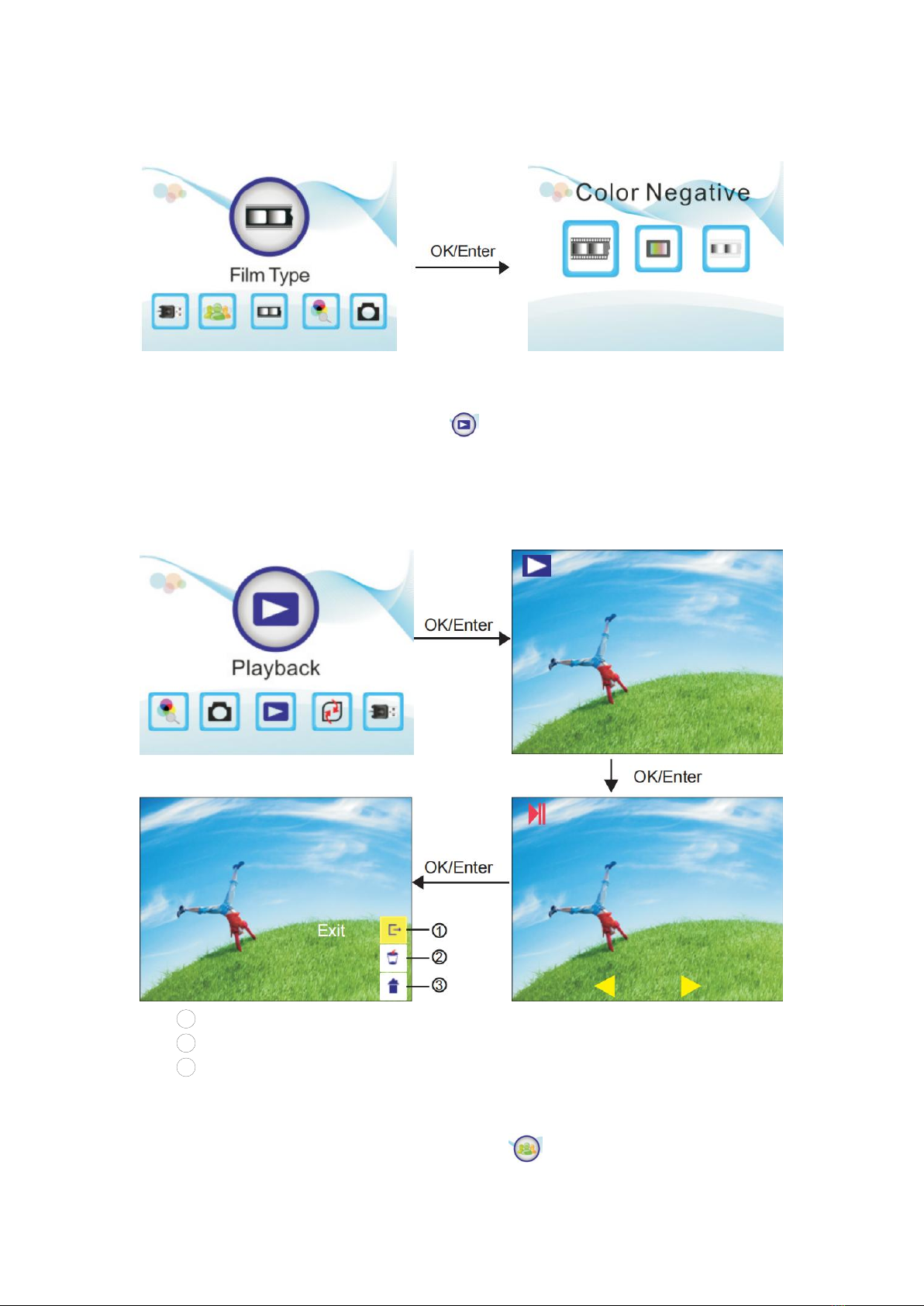

(4).How to playback captured picture
In main menu, press “<” “>” , until , press “OK/Enter” enter the picture
auto-playback mode press again to stop auto playback and you can view captured
pictures manually, you can press “<” “>” to view; press “OK/Enter” again enter
picture editing mode, you can rotate: delete, exit, save, and “home” back to main
menu.
1Exit the submenu edit mode, back
2Deleting the current picture from memory card
3Exit the submenu edit mode, back to scan
(5).Setting Language
Under main menu mode, press “<” “>”, until , press “OK/Enter” to choose

language, then press “<” “>” and “OK/Enter”, one of following 8 language can be set:
English、French、German、Italian、Spanish、T-Chinese、S-Chinese、Japanese.
(6).Resolution Choosing
Under main menu mode , press “<” “>” , until , press “OK/Enter” to enter into
Resolution Choosing Mode，you can choose 24M or 48M(interpolation)
(7) .Formatting
In the main menu, press “</>” to " ", press "OK/Enter" button to enter.

Note: After using this function, all the information in the Micro SD card will be
deleted, please note it !
(8).Connect to computer
Under main menu mode, press “<” “>”, until , press “OK/Enter”. After successful
connecting to computer, you can view and edit capture picture.
7. Product Specification
Function
Film scanner/USB MSDC
Interface
Type-c mini HD
Image Sensor
22.0 Mega pixels （4416*3312）
1/2.33” CMOS sensor
Display
Color 5〞LCD HD
Exposure Control
Automatic / Manual (-2.0 EV~ +2.0EV)
White Balance
Automatic
Resolution
24 Mega pixels/ 48Mega pixels
(interpolation)
Film type
135 Film(36*24mm)、

126KPK Film(27*27mm)、
110 Film(17*13mm)、
Super8 Film(4.01*5.79mm)、
Monochrome、Slide
Picture Effects
B&W,Slides,Negatives
File format
Picture：JPEG
TV-OUT type
NTSC/PAL
Built-in memory
16GB
External memory card
SD card up to 32GB
Power Supply
DC 5V Adapter/ USB Port
Language
S-Chinese / T-Chinese / English /
French /German / Italian / Spanish /
Japanese
Support system
Windows XP/vista/Windows7/8/
Mac10.7.3 and above
(8) .Declaration
Please note products specification is subject to improvement. Any changes of
products will not make additional specify.
