TOOLSTATION HAWKSMOOR XSS46F User manual

WHAT'S IN THE BOX
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: [phone]
Email: [email protected]
SKU: 75784
144cc Hand Push Petrol Lawnmower
Original User’s Instructions
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE

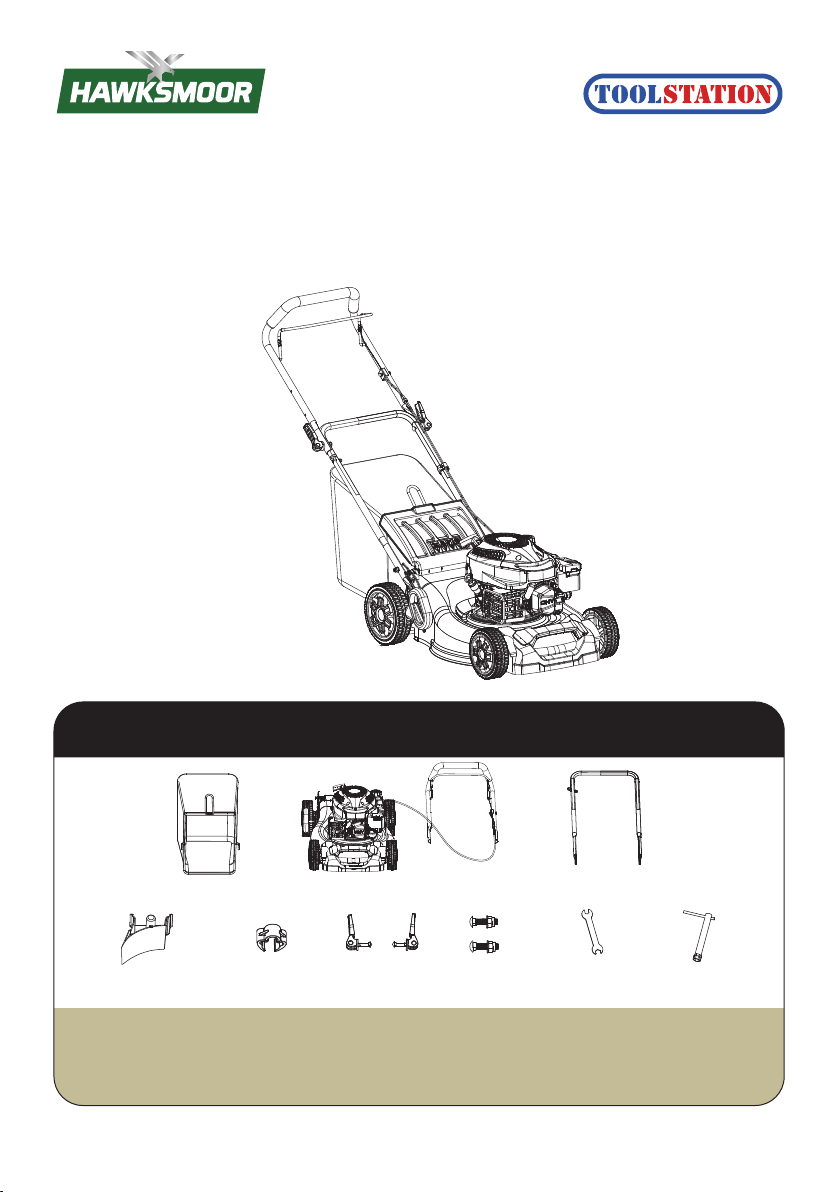

Collection box x 1 Lawn mower x 1
Self-mulching plug
x 1
Cable clip
x 1
Quick clip
assembly x 2
Bolt and nut
assembly x 2
Spanner x 1 Socket
wrench x 1
Lower handle x 1

SPECIFICATION
Technical Data
Property Value
Engine type 4 Stroke. Single cylinder
Engine displacement 144.3cm3
Nominal Power 2.3kW/2900/rpm
Engine speed 2900rpm
Cutting width 46cm
Collection box capacity 55l
Fuel tank 0.8L
Oil tank 0.5L
Sound pressure level 83 dB(A) K=3 dB(A)
Guaranteed sound power level 96 dB(A)
Vibration 6.05m/s2K=1.5m/s2
Spark plug TORCH/F5RTC
Net weight 24.5kg

EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS
Reading and storing the instruction manual
This instruction manual accompanies this lawnmower. It contains important information on start-
up and handling. Before using the lawnmower, read the nstruction manual carefully. This particularly
applies for the safety notes. Failure to heed this instruction manual may result in severe injury or
damage to the lawnmower. The instruction manual is based on the standards and rules in force in the
European Union. Store the instruction manual for future use. If you pass the lawnmower on to third
parties, please ensure to include this instruction manual.
You can request an electronic version of these instructions from our customer service.
Explanation of symbols
The following symbols and signal words are used in this instruction manual, on the lawnmower or on
the packaging.
Read the user manual before using the machine.
You must always wear safety goggles to guard your eyes from flying debris, ear plugs or
similar ear defenders to protect your hearing and a safety helmet to protect against the
risk of falling objects.
Important! Wear gloves to protect your hands.
Wear safety boots to protect your feet.
Warning! Danger!
Sound level data (96 dB) in accordance with Directive 2000/14/EC
Keep bystanders away.

Keep hands and feet away from the blades.
No naked flames.
Hot surfaces will burn fingers or palms.
Warning! The lawnmower exhaust gas contains toxic substances. Do not run the engine
in closed or poorly ventilated areas.
Blade continues to rotate for a period after the machine is switched off. Do not touch the
blade until all the machine components have been stopped completely.
Do not operate the engine indoors.
Risk of fire/flammable mateials.
Stop the engine before refuelling the fuel tank.
Add fuel before operating.
The product complies with the applicable European directives and an evaluation method
of conformity for these directives was done.
A product placed on the United Kingdom market meets the UKCA Marking requirements

HEALTH AND SAFETY
Proper use
The lawnmower is designed exclusively for cutting grass.
The manufacturer cannot be held liable for damage caused by
improper or incorrect usage.
Please note that our equipment has not been designed for use
in commercial, trade or industrial applications. Our warranty
will be voided if the machine is used in commercial, trade or
industrial businesses or for the equivalent purposes.
Safety notes
When using petrol tools, basic safety precautions, including
the following, should always be followed to reduce the risk of
serious personal injury and/or damage to the unit.
Read all these instructions before operating this product and
keep them stored in a safe place for future reference.
-Keep this operating and maintenance manual in a safe
place for reference at a later date.
-Read the instructions carefully. Be familiar with the controls
and the proper use of the equipment.
-Never allow children or people unfamiliar with these
instructions to use the lawnmower. Local regulations can
restrict the age of the operator.
-Never mow while people, especially children or pets
are nearby. Keep in mind that the operator or user is
responsible for accidents or hazards occurring to other
people or their property.
-This appliance is not intended for use by people (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
-Do not touch the rotating blade.
-While mowing, always wear substantial footwear and long
trousers. Do not operate the equipment when barefoot or
wearing open sandals;
-Thoroughly inspect the area where the equipment is to be
used and remove all objects which can be thrown up by
the machine;
-Petrol is highly flammable: store fuel in containers
specifically designed for this purpose;
- Refuel outdoors only and do not smoke while refuelling;
- Add fuel before starting the engine. Never remove the
cap of the fuel tank or add petrol while the engine is
running or when the engine is hot;
- If petrol is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until petrol vapours
have dissipated;
- Replace all fuel tank and container caps securely;
-Replace faulty silencers;
-Prior to use, visually inspect to see that the blade, blade
bolts and cutter assembly are not worn or damaged.
Replace worn or damaged blades and bolts in sets to
preserve balance;
-Keep all nuts, bolts and screws tight to be sure the
equipment is in a safe working condition;
-Never store the equipment with petrol remaining in the tank
inside a building where fumes can reach an open flame or
spark;
-Allow the engine to cool before storing in any enclosure;

-To reduce the risk of a fire hazard, keep the engine,
silencer, and petrol storage area free of grass, leaves, or
excessive grease;
-Check the grass bag frequently for wear or deterioration;
-Replace worn or damaged parts for continued safety;
-If the fuel tank has to be drained, this should be done
outdoors.
-Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect;
-Mow only in daylight or in good artificial light;
-Where possible avoid operating the equipment on wet
grass;− Always be sure of your footing on slopes;
-Walk, never run;
-Mow across the face of slopes, never up and down;
-Exercise extreme caution when changing direction on
slopes;− Do not mow excessively steep slopes;
-Use extreme caution when reversing or pulling the
lawnmower towards you;
-Stop the blade if the lawnmower has to be tilted for
transportation when crossing surfaces other than grass,
and when transporting the lawnmower to and from the
area to be mowed; − Never operate the lawnmower with
defective guards, or without safety devices, for example
deflectors and/or grass catchers, in place;
-Do not change the engine governor settings or over speed
the engine;
-Start the engine carefully according to instructions and with
feet well away from the blade;
-Do not tilt the lawnmower when starting the engine;
-Do not start the engine without the grass collector
located;− Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at all times;

-Never pick up or carry a lawnmower while the engine is
running;
-Never use the lawnmower in hazardous weather conditions
e.g. in lightning or thunderstorms. It will cause serious
damage to machine and user.
-Never use lawnmower when you are tired, ill or under
influence of alcohol or other drugs.
-Stop the engine and disconnect the spark plug cable,
making sure that all moving parts have come to a complete
stop:
-Before clearing blockages or unclogging the chute;
-Before checking, cleaning or working on the lawnmower;
-After striking a foreign object, inspect the lawnmower for
damage and make repairs before restarting and operating
the lawnmower;
-If the lawnmower starts to vibrate abnormally, check
immediately;
-Stop the engine and disconnect the spark plug wire, make
sure that all moving parts have come to a complete stop
before refueling;

COMPONENT LIST
9
10
7
8
2
1
5
6
3
4

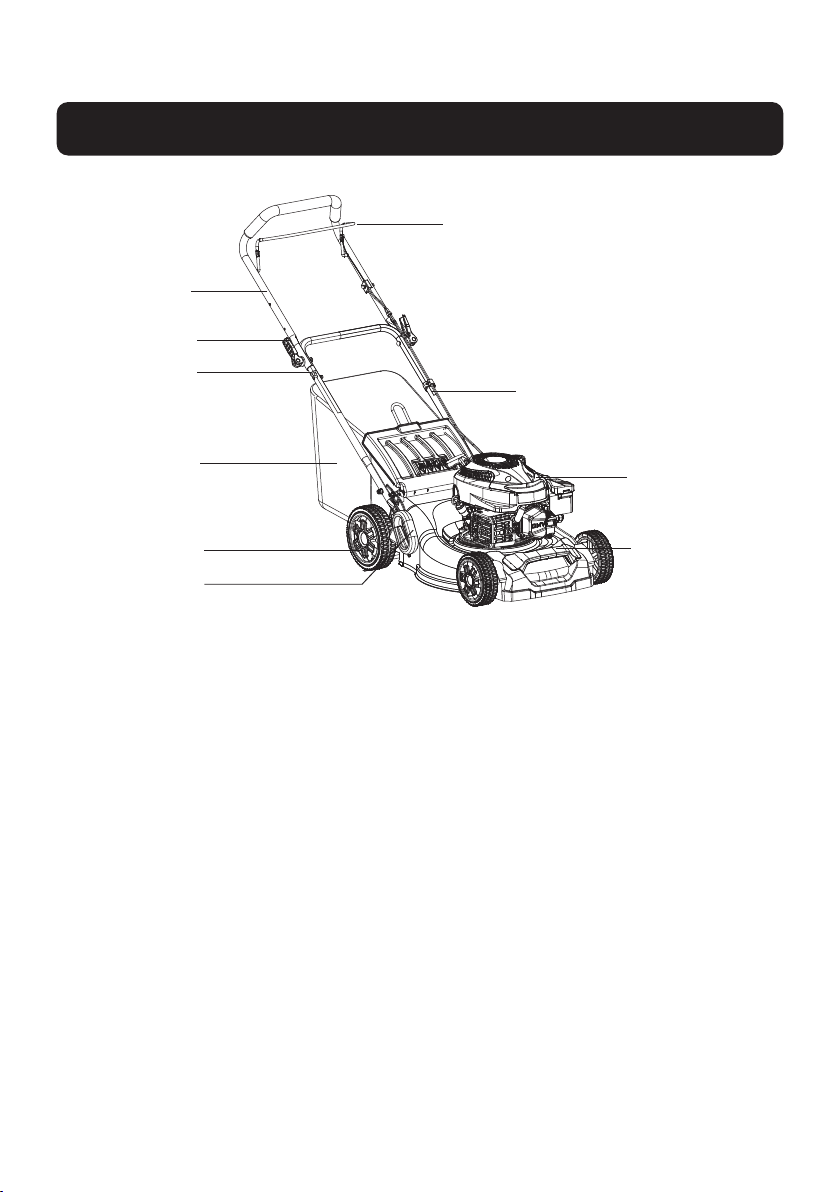

1 Upper handle
2 Quick release
3 Rope guide
4 Collection box
5 Wheel
6 Cut height adjustment
7 Start stop lever
8 Lower handle
9 Engine
10 Front handle
Not all the accessories illustrated or described are included in standard delivery.

ASSEMBLY AND USE
Installation
Always take care when removing the packaging to prevent
damage to you or to the lawnmower.
Before assembling the lawnmower, check all the parts
indicated in the manual are in the box. Inspect all the parts
for signs of damage. Do not assemble the lawnmower if you
observe any damaged components.
1. Remove the packaging
1a. Remove all parts of the lawnmower from the box and
carefully remove all packaging. Take care not to lose any
instructions which may be attached to the parts. These
provide important information which will be required while
assembling the lawnmower.
1b. Keep all packaging until the lawnmower is fully assembled
and has been operated successfully.
Always recycle the packaging in accordance with local
recycling schemes. This item requires a two person lift to
remove from the packaging.
Make sure that you have sufficient space to put the lawn
mower down. Keep your feet apart so that you have a stable
position, bend at the knees and keep your back straight.

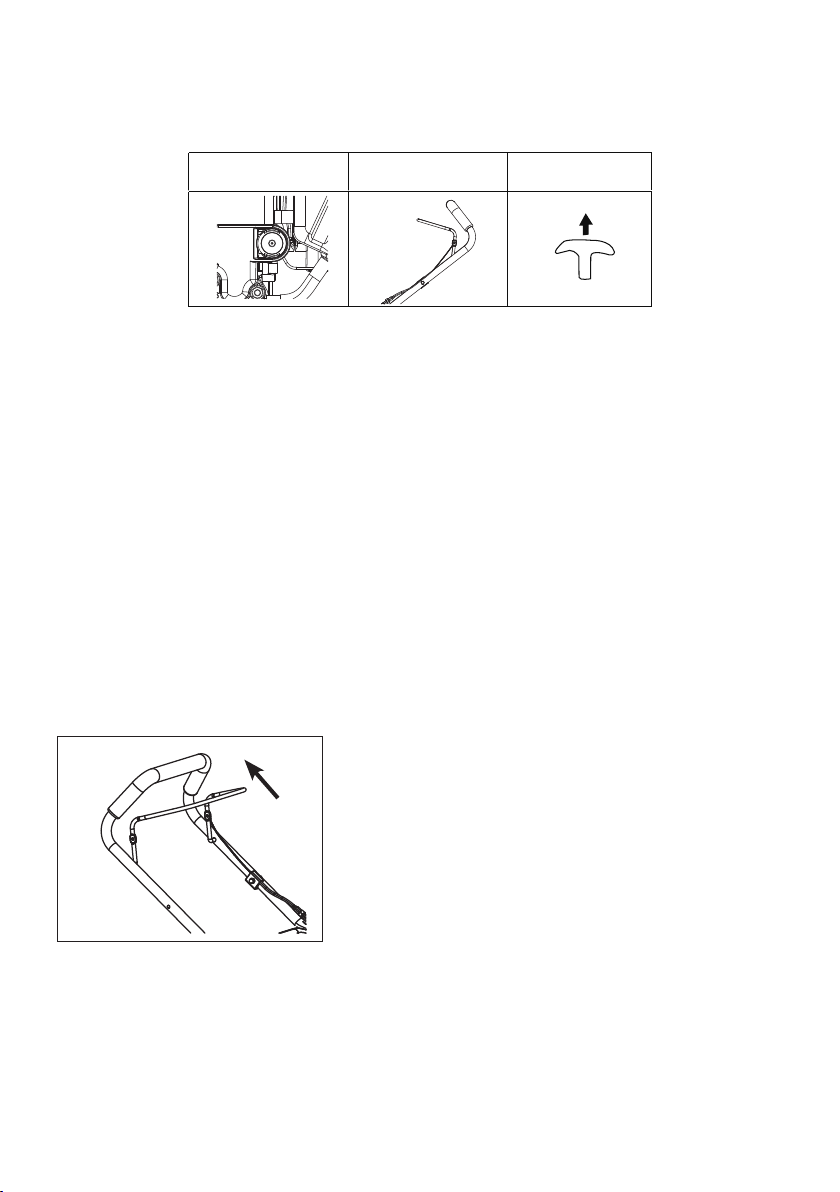

2. Assemble the lower handle
2a Remove the packaging from the handle. Set the height
adjustment to the highest position, and align the lower
handle with the holes in the deck. Make sure the holes in the
lowerhandle are aligned with those in the support.
2a

2b Fix the lower handle onto the deck firmly with fixing knob.
NOTE!
Make sure the rope guide is on the right handle, when you
stand behind the mower.
Lift the upper handle, and lock in place using the quick
release lever and tensioning bolts that are attached to the
handle.
NOTE!
Make sure the lower and upper handles are firmly connected.
And that the cables are not twisted.
Pull on/off lever and gently pull the rope. Hook it around the
guide rope.
3. Assembling the collection box
Raise the safety flap and hook the collection box onto the
mower. Release the safety flap.
NOTE!
Always fit the hybrid collection box before starting the engine.
4. Fix the cable
Ensure that the cables clips supplied are used to fix the cable
to the lower handle.
2b

Getting Started
PREPARING TO OPERATE THE LAWNMOWER STOP !!!
DO NOT START THE ENGINE BEFORE ADDING OIL TO
THE OIL SUMP. WHEN ADDING, DON‘T EXCEED THE
MAXIMUM LINE.
NOTE!
The following procedures and adjustments must be
performed before the engine is started. Do not attempt to
make any of these adjustments while the engine is running.
NOTE!

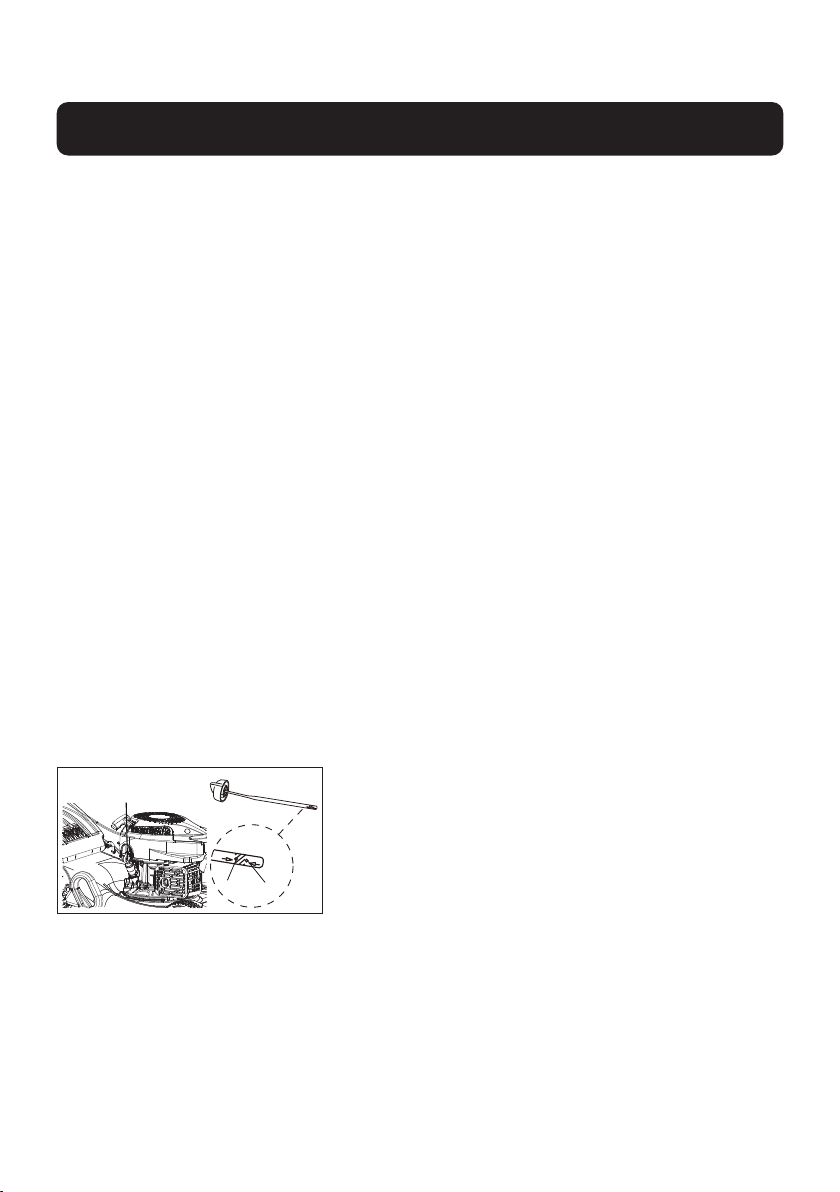

Always use high quality detergent oil classified SAE30 oil (or
equivalent eg 5W 30, often termed as 4 Stroke lawn mower
oil). Never use additives with recommended oil. To prolong
the life of your engine it is important that the oil is changed
after the first 24 hours of use.
NOTE!
To prevent engine damage the engine is shipped without oil
or petrol. The engine must be filled with the correct grade of
oil and petrol before starting the engine.
NOTE!
Running the engine with a low oil level will cause engine
damage. It is recommend that high detergent, premium
quality 4-stroke engine oil used. Using non-detergent oil
can shorten the engine’s service life and using 2-stroke oil
will damage the engine. Check the engine oil level when the
engine is stopped and cool and the mower standing on a
level surface.
Remove the oil filler dipstick and wipe any oil from it with a
clean cloth.
Insert the dipstick into the oil filler neck, but do not tighten
it. Then remove the dipstick and check the oil level. The
oil level must be between the Min and Max marks on the
dipstick. If near the lower level, fill to the upper level with the
recommended oil (SAE30 or equivalent). Do not overfill. Wipe
away any spilt oil.
Fuel and lubrication
NOTE!
Always use clean, fresh unleaded petrol. Purchase fuel in
quantities that can be used within 30 days. Never mix oil with
the petrol.

NOTE!
Do not fill into the base of the tank neck to allow for fuel
expansion. Do not overfill the fuel tank.
NOTE!
Petrol is highly flammable and extreme precaution must be
taken when handling or working with it. Keep out of reach of
children.
NOTE!
To prevent engine damage the engine is shipped without oil
or petrol. The engine must be filled with the correct grade of
oil and petrol before starting the engine.
NOTE!
Refuel in a well-ventilated area with the engine stopped. Do
not smoke or allow flames or sparks in the area where the
engine is refueled or where petrol is stored. Avoid repeated
or prolonged contact with your skin or inhalation of vapour.
Clean the area around the petrol filler cap before removing
the cap. Remove the warning tag, check the fuel level.
Refill the tank if the fuel level is low (fuel tank capacity is 0.8 L).
Refuel carefully to avoid overfilling or spilling fuel. There
should be no fuel in the filler neck.
Clean up any overflow or splashes of petrol before starting
the engine.
Tighten the filler cap after filling, finger tight only.
NOTE!
Do not use wasted or regenerated oil that can cause damage
to the engine.
Operation
1. Setting the Cutting Height
NOTE!
The blade can cause serious injury. Before adjusting the
mower height, stop the engine and wait for the mower blade
to stop completely.

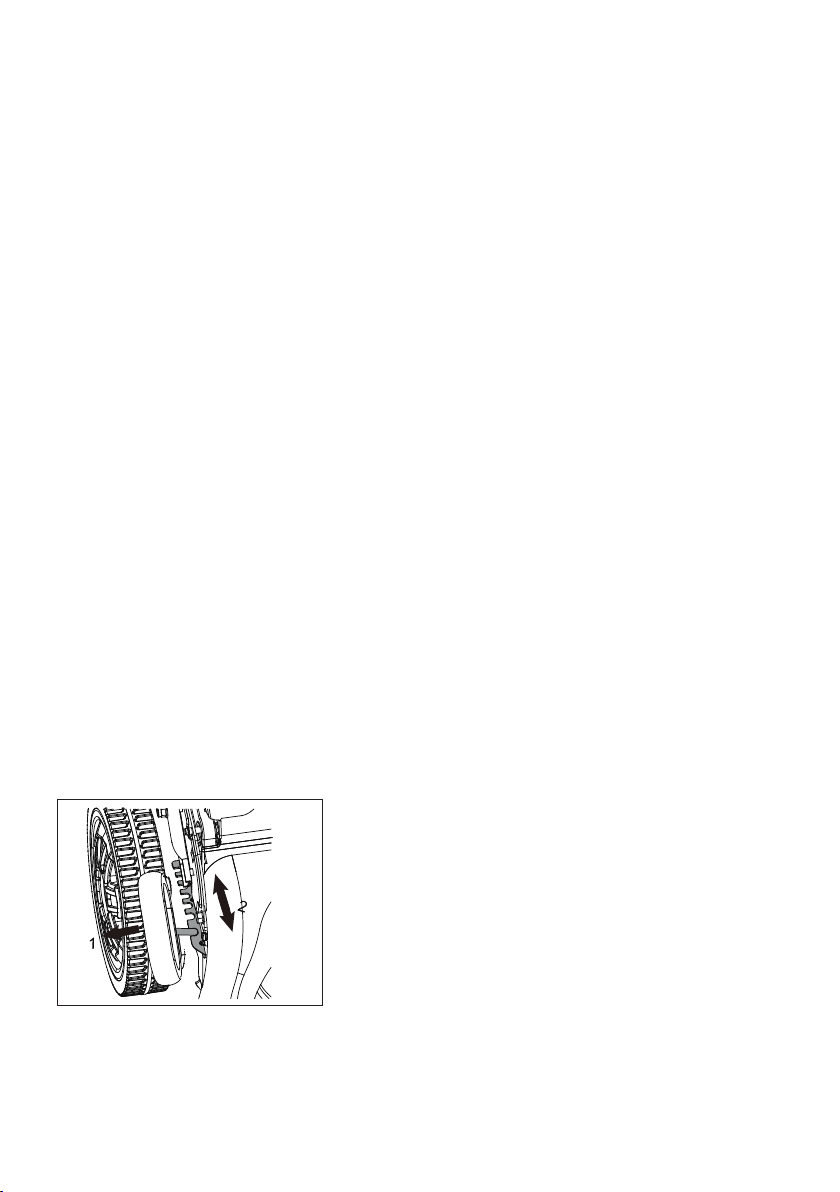

Pull the lever towards the wheel, then move it forwards or
backwards to adjust the cutting height. Move it to any one
of the 7 positions (25~75mm) for the desired cutting height;
Ensure the lever clicks into place.

2. Starting the Engine
Starting procedure quick guide
PRESS DOWN
THE PRIMER
1
STOP/START-LEVER
CLOSED
2
PULL STARTING
-KNOB
3
NOTE!
Do not operate the machine in enclosed or poorly ventilated
areas as the exhaust contains toxic substances. Keep hands,
feet, hair and clothing away from all the moving parts of the
machine. The exhaust and other parts of the machine will
become hot during use. The user shall start the engine behind
the lever.
NOTE!
To start the engine, make sure that the spark plug cap is
located on the plug and the machine is filled with sufficient oil
and petrol.
NOTE!
Press down the primer for 3 times before pulling the engine
cord handle.
Start/Stop Bar Activation
Never start the engine before adding the right amount of oil to
the engine. Failing to do so will result in irreparable damage.
Pull the Start/Stop bar towards you.
11a

Pull cord handle
With right hand, slowly but firmly pull the starter handle and
rope from the pull cord guide until you feel resistance, then
pull briskly. When the engine starts, return the starter rope to
its rest position gently.
Loose the Start/Stop bar forward you.
Clearing a flooded engine:
If the engine won’t start after you have trying to start several
times, the engine may be flooded with excess fuel.
Use the following procedure to clear and start a flooded
engine:
A. Release the stop/start bar.
B. Remove the spark plug, dry it, and then reinstall it.
Install the spark plug carefully by hand, to avoid cross
threading.
After the plug is seated, tighten 1/8 to 1/4 turn with the spark
plug socket spanner to compress the washer.
C. Press down the primer for 3 times.
D. Pull the stop/start bar toward the upper handle.
E. Operate the starter as described above.
3. Mowing
NOTE!
Always observe the strictest safety procedures when using
the lawnmower.
Carefully read the safety instructions of this manual before
using the lawnmower.
Start the engine and allow it to run. See ”Step-2 Starting the
11b
11a

engine”. To stop the engine, release the stop / start bar.
Keep a firm grip on the upper handle with the stop/start
bar and propulsion lever closed and walk along with it hand
push, never run with the mower, be very careful when mowing
uneven or rough ground. Mow across slopes, never up and
down. Be careful when changing the direction of the mower
on a slope. Do not use the mower on a steep slope of more
than 15°.
The best result will be achieved if the grass is dry. Wet grass
will tend to clog the blade and the grass collection system.
Grass grows at different rates at different times of the year.
Never use the lowest cutting height for the first cut of the
season or in drought conditions. Only about one third of the
grass height should be cut.
If the lawnmower will not collect the cuttings efficiently, the
grass discharge chute may be blocked. The hybrid collection
box may be full, or the underside of the mower deck may be
clogged.
Using the mulching function
When mulching, remove the collection grass bag, and put
the plastic mulching plug into the rear discharge chute. Then
release the flap, it will close back to cover the mulching plug.
Emptying the collection bag
NOTE!
Before you remove the hybrid collection box, stop the engine
and wait until the blade stops completely.
NOTE!
Always empty the hybrid collection box when you have
finished the mowing, even if it is not full.
Stored grass residues are a fire hazard.

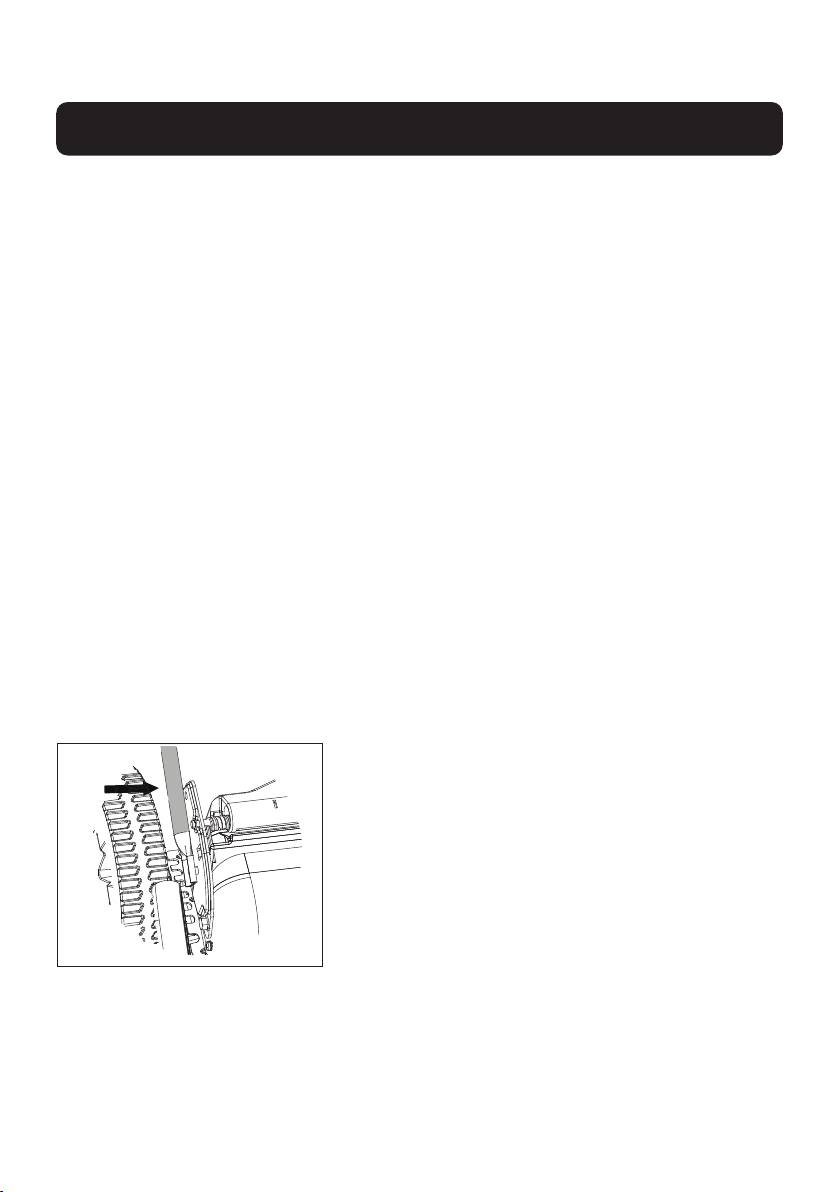

To remove the hybrid collection box, raise the discharge flap
with one hand and remove the hybrid collection box using its
handle with your other hand.

Empty the grass debris from the hybrid collection box, and
refit it.
If any grass residues are caught in the discharge chute, clean
it using a brush.
Do not remove grass debris in the mower casing or on the
blade by hand or with your feet. Instead use suitable tools
such as a brush or broom.
To ensure that the cut grass can be collected into the hybrid
collection box, the discharge opening and inside the mower
casing must be kept clear of any blockage. Cleaning
Before cleaning, inspecting or repairing your unit, make sure
that the engine has stopped and is cool. Disconnect the spark
plug to prevent accidental starting.
NOTE!
To ensure the best performance of your lawnmower, it is
important to keep it clean.
Always clean your lawnmower immediately after use.
NOTE!
Do not allow grass cuttings and other debris to become dry
and hard on any of the mower surfaces. This will directly
affect the cutting and grass collection performance. Make
sure that the underside of the lawnmower deck is clean and
clear
NOTE!
Never turn the mower upside down.
NOTE!
Before you tip the lawn mower onto its side, completely
empty the fuel tank using a petrol suction pump.
NOTE!
Never clean the lawn mower with a water jet or high-pressure
cleaner. The engine must remain dry. Do not use aggressive
cleaning agents such as cold cleaner or petroleum ether.
1. The lawn mower should be thoroughly cleaned after every
use, especially the underneath and the blade mount. Gently
tip the mower back with the front wheels up in the air. Dirt
and grass is easiest to remove immediately after you have
finished mowing the grass.
2. Check that the grass chute is free of any residual grass.
Remove any such residue.

CARE AND CLEANING
Maintenance
Maintenance Schedule
Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free
use.
Please keep this manual safe for future reference.
It is recommended that the following maintenance schedule is adhered to. This will ensure the
lawnmower operates correctly and is safe to use.
Maintenance Operations
Spark Plug
1. Once the engine has cooled, pull off the spark plug boot with a twist. Remove the sparkplug
using the socket spanner supplied.
2. Clean the plug with a wire brush.
3. Using a feeler gauge set the gap to 0.51mm.
4. Install the spark plug carefully by hand, to avoid cross threading.
5. After the spark plug is seated, tighten with the spanner to compress the washer.
Air Filter
NOTE!
Never run the engine without the air filter element installed. The air cleaner system uses a foam filter.
1. Open the cover (B).
2. Remove the filter(C).
3. Wash the foam element in liquid detergent and water. Squeeze dry the foam element in a clean
cloth.
4. Install the filter(C).
5. Close the cover(B).
Oil
Tilt the lawnmower towards the oil filler, have a container
ready to catch the oil and remove the dipstick. Once the oil
has been emptied, wipe clean any spillages.
Refill with 500ml SAE30 oil or equivalent ie SAE10W/30).
When the dipstick is rested on the filler pipe (i.e. not screwed
in place), the oil level must be between the min and max
marks on the dipstick.
See “Filling with Engine Oil’’. Do not overfill.
Start the engine and allow it to run briefly.
Stop the engine, wait one minute and check the oil level. Top
up if necessary.
Max Min
Oil cap

NOTE!
For more information see the Engine Manual.
Blades
For safety reasons you should only ever have your blade
sharpened, balanced and mounted by an authorised service
workshop. For optimum results it is recommended that the
blade should be inspected once a year.
NOTE!
For engine maintenance, see more details in the Engine
Manual.
NOTE!
Before you remove the hybrid collection box, stop the engine
and wait until the blade stops completely.
NOTE!
You will need garden gloves (not provided) and a spanner
wrench to remove the blade.
NOTE!
Always handle the blade with care- sharp edges could cause
injury USE GLOVES.
Renew your metal blade after 50Hrs mowing or 2yrs
whichever is sooner regardless of condition.
NOTE!
If the blade is cracked or damaged replace it with a new one.
NOTE!
Don’t hold the blade by hand directly.
NOTE!
Maintain the sharpness of the blade when cutting grass. If the
blade has worn excessively and become pitted and blunt, it
should be replaced or sharpened. The sharpness of the blade
will affect the performance of the lawnmower.
For safety reasons we recommend that the blade only be
changed by someone qualified and authorised to do so.
1.Tip machine backwards .
2.Hold the blade and unscrew the blade bolt counterclockwise
using a spanner wrench. Remove the washer and the blade.
3.Inspect the blade adaptor on any signs of damage.
4.Fit a new blade, locate the blade on the two studs on the
blade flange and then replace the washer and bolts.
5.Check the washer is still slightly domed to keep the
pressure on the bolt to stop it unwinding, keeping the blade
firmly secure. Then replace the washer (right way around!)
and bolts.

6.Make sure the blade is correctly located, and then firmly
tighten the bolt. Do not over tighten.

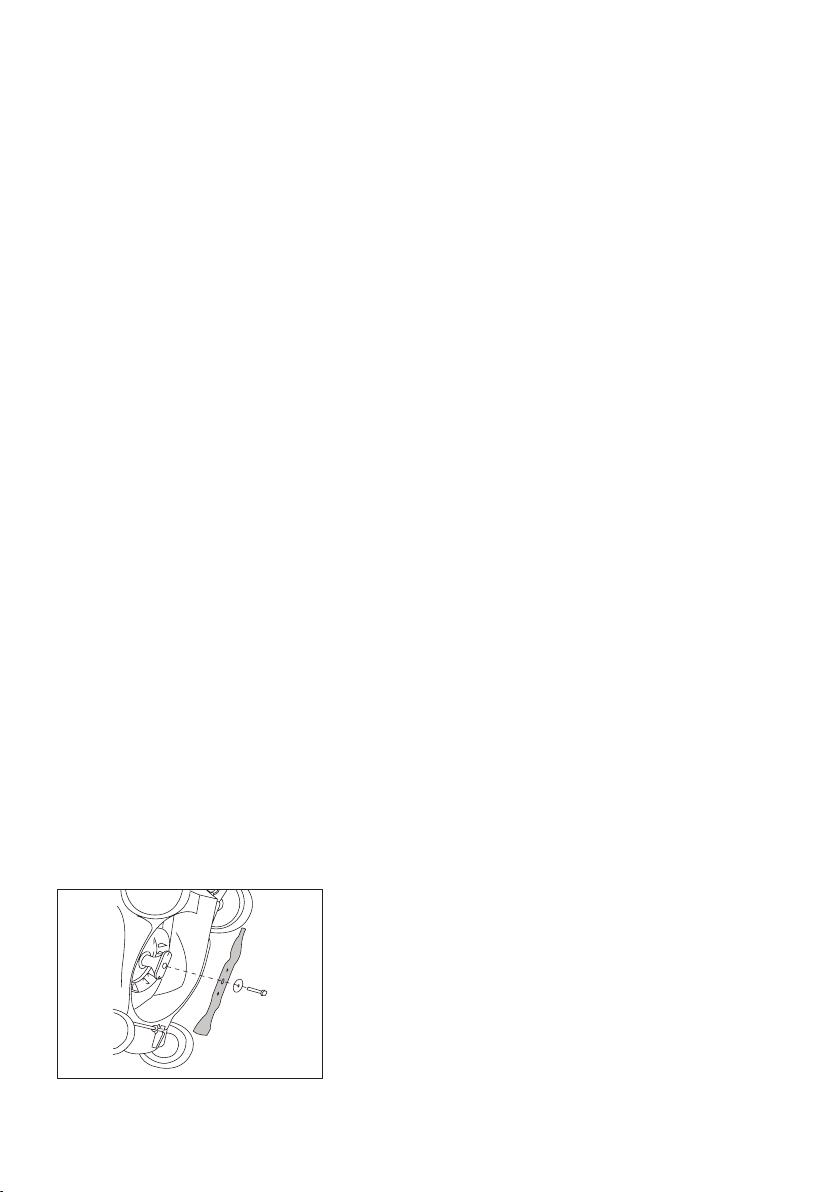

Parts details for the replaceable blade
QC12YC spark plug
1250997000 blade
1250849000 blade nut
STORAGE
Storing the Lawnmower for Short Periods
The lawnmower can be stored for short periods of time (less than 15 days) without performing any
storage maintenance.
Before placing the lawnmower into storage always carry out the following:
• Allow the engine to fully cool.
• Ensure the Collection box is empty.
• Clean all debris from under the mower deck.
• Store the lawnmower on a flat and level surface with all 4 wheels on the ground upright.
• Store in a safe place which is not accessible by children or people who are not familiar with
operation.
Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes can cause
explosions and fire.
Storing the Lawnmower for Extended Periods
If the lawnmower is to be place into storage for longer periods of time, storage maintenance must be
performed on the lawnmower.
If the following steps are not carried out, when you next operate the lawnmower it may not start
correctly and may need to be serviced.
NOTE!
Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes can cause
explosions and fire.
1. Empty the petrol tank with a petrol suction pump if available or run the machine until all the fuel
has been used and automatically stops.
2. Start the engine and let it run until any remaining petrol has been used up.
3. Change the oil at the end of every season. To do so, remove the used engine oil from a warm
engine and refill with fresh oil.
4. Remove the spark plug from the cylinder head. Fill the cylinder with approx. 20 ml of clean
engine oil from an oil can. Slowly pull back the starter handle, which will bathe the cylinder wall
with oil. Screw the spark plug back in.
5. Clean the cooling fins of the cylinder and the housing.
6. Be sure to clean the entire machine to protect the paint.
7. Store the machine in a well-ventilated place.
Waste disposal
The equipment and its accessories are made of various types of material, such as metal and plastic.
Defective components must be disposed of as special waste. Ask your dealer or your local council.
