Toro 2770 User manual

Part No. 111-3987 Rev A
R3240T 4WD WIDE AREA MOWER
Model No: 02770-Serial No. from 310000001
Operator’s Manual
Original Instructions (EN)
Date: 21.09.10

ATTENTION
THIS SYMBOL MEANS
BE ALERT!
YOUR SAFETY IS INVOLVED
READ THIS MANUAL BEFORE USING THE R3240T MOWER.
IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR
OWN SAFETY.
ALL OPERATORS SHOULD SEEK AND OBTAIN PROFESSIONAL AND
PRACTICAL INSTRUCTIONS ON THE SAFE USE OF THE MOWER.
THESE SERVICES ARE AVAILABLE THROUGH TORO APPROVED
COMMERCIAL DEALERS.

1.5 1.5
CONTENTS
CONTENTS Page No.
SAFETY PRECAUTIONS 1.7 - 1.17
Training 1.7
Preparation 1.8
Operation 1.9 - 1.10
Slopes 1.9
Handling and storage of uids 1.11
Maintenance and storage 1.12
Decals 1.13 - 1.18
EC CONFORMITY INFORMATION 1.19 - 1.20
Noise / Vibration levels 1.19
EC Declaration of Conformity 1.20
INTRODUCTION 1.21
SPECIFICATIONS 1.22 - 1.26
Engine 1.22
Transmission system 1.22
Cutterdeck drive system 1.23
Cutterdeck lift system and steering 1.23
Hydraulic system 1.23
Vehicle specications 1.24
Operator controls 1.25
Instrumentation 1.25
Weight and dimensions 1.26
Recommended lubricants and hydraulic uids 1.26
Cutterdeck 1.26
OPERATING THE MOWER 1.27 - 1.43
Safety Notice 1.27
Operator presence controls 1.27
Identication of control panel components 1.28
Braking system 1.29
Throttle control 1.29
Travel 1.29
Work/transport modes 1.30
Transport latches 1.30
Differential lock 1.31
Travel control pedals 1.31
Forward travel speed backstop lever 1.32
Operator platform latching mechanism 1.32
Adjustable steering column 1.33
Folding the R.O.P.S 1.34
Operator seat 1.35
Warning systems 1.36
Audible warning horn 1.36
Ignition key 1.37
Engine pre-heat indicator light 1.37

1.6 1.6
CONTENTS
CONTENTS Page No.
Fuel level gauge 1.37
Hour meter 1.37
Transmission neutral indicator light 1.38
Cutterdeck drive switch indicator light 1.38
Parking brake indicator light 1.38
Hydraulic return lter indicator light 1.38
Hydraulic transmission lter indicator light 1.38
Transmission system ‘Work’ mode indicator light 1.38
Cutterdeck position control 1.39
Cutterdeck drive engagement 1.39
Starting the engine 1.40
Stopping the engine 1.41
General operating hints 1.41
Cutterdeck general information height of cut adjustment - Front cutterdeck 1.42
Cutterdeck general information height of cut adjustment - LH & RH cut-
terdecks 1.43
MAINTENANCE 1.44 - 1.60
Maintenance 1.44 - 1.45
Engine 1.46
Running in period 1.46
Running in period - at rst 50 hours 1.46
Daily and before use 1.47 - 1.50
Every 50 hours 1.51
Every 250 hours 1.52
Every 500 hours 1.53 - 1.54
Cutterdecks 1.55
Cutterblades - Cutterblade Removal 1.56
Cutterblades 1.57
Raising the mower off the ground 1.58
Towing the mower 1.59 - 1.60
GRASS CUTTING FAULTS 1.61
TROUBLE SHOOTING 1.62 - 1.65
ELECTRICAL CIRCUIT DIAGRAM 1.66 - 1.68
TRANSMISSION/BRAKE HYDRAULIC CIRCUIT DIAGRAMS 1.69 - 1.70
HYDRAULIC CIRCUIT DIAGRAMS 1.71 - 1.72
WARRANTY 1.73
NOTES 1.74- 1.77
INTERNATIONAL DISTRIBUTION LIST 1.78
CUSTOMER INFORMATION 1.79 - 1.80

1.7 1.7
Training
Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Learn how
to stop the mower quickly in an emergency.
Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may
restrict the age of the operator.
Never mow while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or
their property.
Do not carry passengers.
All drivers should seek and obtain professional and practical instruction. Such instruction should
emphasise:
The need for care and concentration when working with this machine.
The need to slow down when making tight turning manoeuvres. Failure to take adequate care can affect
stability leading to loss of control of the machine particularly when operating in transport mode.
Control of a ride-on-machine sliding on a slope will not be regained by application of the brake.
The main reasons for loss of control are:
- Insufcient wheel grip.
- Being driven too fast.
- Inadequate braking.
- The type of machine is unsuitable for the task.
- Lack of awareness of the effect of ground conditions, especially slopes.
- Incorrect load distribution.
READ THIS MANUAL BEFORE USING THE R3240T MOWER, IT IS
ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY.
THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT
ACCIDENTS. A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE
SAFEST OPERATOR.
SAFETY PRECAUTIONS
This manual should be regarded as part of the machine, as it gives essential
information regarding machine safety, operation, maintenance and specications.

1.8 1.8
Preparation
Check that the machine complies with all applicable regulations, including those in force when used on the
public highway.
While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when
barefoot or wearing open sandals. Eye protection should be worn.
Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown
by the machine.
Never operate the machine without rst checking that the operator platform latching mechanism is fully
engaged and in good working order, refer to OPERATOR PLATFORM LATCHING MECHANISM.
Ensure that the cutterdecks are fully raised with the latches and safety locks engaged in position before
transporting the mower.
Replace faulty silencers.
Check the condition of the tyres and ensure that they are inated to the correct pressures, refer to
SPECIFICATIONS. This is particularly important if the machine is to be taken on the public highway.
Check that the mower is in good working order, paying particular attention to the brakes and steering. Also
ensure that the forward/reverse speed control pedals move freely to neutral when released.
Before use, always visually inspect to see that the blades, blade bolts and cutterblades are not worn or dam-
aged. Replace worn or damaged components.
Check the mower hydraulic system, particularly the hydraulic hoses, ttings and hose supports. Worn,
crushed or damaged hoses can burst, with risks to health and damage to the machine and surrounding turf
areas.
After refuelling and adding oil to the hydraulic oil tank ensure that the caps are replaced securely.
Check that all linkages, connections and pivot nuts are secure and that wheel nuts are torqued correctly,
refer to SPECIFICATIONS.
Before operating the machine ensure that there are no foreign objects or liquids on the platform or
pedals - ALWAYS KEEP THE OPERATOR PLATFORM CLEAN/CLEAR.
Always make sure that the folding R.O.P.S is secured in its vertical operating position before use.
SAFETY PRECAUTIONS

1.9 1.9
Operation
Do not operate the engine in a conned space where dangerous carbon monoxide fumes can collect.
Mow only in daylight or in good articial light.
Before attempting to start the engine, engage the parking brake, disengage the cutterdeck drive system and
ensure that the forward/reverse speed controls are in the neutral position.
Never operate the machine without rst checking that the operator platform latching mechanism is fully
engaged and in good working order, refer to OPERATOR PLATFORM LATCHING MECHANISM.
Stored energy devices are charged when the outer wing units are in transport position. Always operate the
relevant lift controls to provide hydraulic support for the wing units suspensions before attempting to release
the transport latches.
Slopes
Do not use on a slope of more than 14 degrees. Care should be taken when using the mower on any slope
where ground conditions are such that there may be a risk of the mower rolling over. The requirements of
89/355/EEC, as amended by 95/63/EEC ‘Provision and Use of Work Equipment Directive’ should be
considered.
Stability angles given are maximum gures for a machine equipped with a R.O.P.S and are for guidance only.
Particular conditions such as wet grass or uneven ground may not permit safe operation on the slope limits
stated.
Remember there is no such thing as a ‘safe’ slope. Travel on grass slopes requires particular care. To guard
against overturning or loss of traction when travelling or mowing on a slope:
- Exercise extreme care when changing direction on a slope.
- Do not stop or start suddenly.
- Engage drive slowly.
- Keep machine speed low.
- Avoid tight turns.
- Stay alert for humps, hollows and other hidden hazards.
- Keep away from sharp inclines and steep drops.
- A thorough risk assessment should be carried out by a competent
person before travelling or mowing on a slope.
Never park on a slope.
SAFETY PRECAUTIONS
14 Degree Slope
Ground level
Fig 1

1.10 1.10
Operation continued
Watch out for trafc when crossing or near roadways.
Use extreme caution when reversing.
Disengage the cutterdeck drive system before crossing surfaces other than grass.
When using the machine, never direct discharge of material towards bystanders or allow anyone near the
machine while in operation.
Never operate the mower with defective guards, shields or without safety protective devices in place and in
good working order.
Do not change the engine governor settings or overspeed the engine. Operating an engine at excessive speed
may increase the risk of personal injury.
Before leaving the operator’s position:
- Disengage the drive to the cutterdecks.
- Lift cutterdecks to the transport position and securely lock the safety latches
or alternatively lower cutterdecks to the ground.
- Ensure the transmission is in neutral and engage the parking brake.
- Stop the engine and remove the ignition key.
Engage the parking brake, disengage the drive to the cutterdecks, stop the engine and remove ignition key:
- Before releasing blockages.
- Before checking, cleaning or working on the mower.
- After striking a foreign object. Inspect the mower for damage and make
repairs before restarting and operating the equipment.
- If the machine starts to vibrate abnormally (check immediately).
- Before refuelling.
- Before making cutterdeck adjustments.
Disengage the drive to the cutterdecks when transporting or not in use.
Reduce the throttle setting during engine run-out.
Never work on the mower when the engine is running.
Always keep feet and hands well away from the cutterblades when making adjustments.
Never operate the mower without rst checking that the operator platform is securely latched.
Always wear the seat belt when the folding R.O.P.S is in its vertical operating position.
Never wear the seat belt when the folding R.O.P.S is NOT in its vertical operating position.
Pay particular attention when operating due to the additional weight towards the front of the machine.
SAFETY PRECAUTIONS

1.11 1.11
SAFETY PRECAUTIONS
Handling and Storage of Fluids
Hydraulic Oil
- Avoid contact with eyes and prolonged contact with skin.
- Protective goggles should be worn when pouring.
- Use of gloves or barrier cream is recommended.
- Wash hands thoroughly after contact.
- Store under cover, away from heat and sources of ignition.
Diesel Oil
- Avoid skin and eye contact.
- Wear impervious gloves when regular contact is likely and goggles when there is risk of splashing.
- Wash hands thoroughly after contact.
- Store in a cool dry well ventilated place away from heat and sources of ignition, in vessels specically
designed for storing fuel oils.
Lubricating Oil
- Avoid skin and eye contact.
- Wear impervious gloves when regular contact is likely and goggles when there is risk of splashing.
- Wash hands thoroughly after contact.
- Store in a cool dry well ventilated place away from heat and sources of ignition.
Anti- Freeze
- Keep away from heat, sparks, and ames.
- Avoid skin and eye contact and breathing vapors.
- Store in a closed container in a cool dry well ventilated area.

1.12 1.12
SAFETY PRECAUTIONS
Maintenance and Storage
Take care when rotating a cutterblade as this can cause other cutterblades to rotate.
When the machine is to be parked, stored or left unattended, lift the cutterdecks to the transport position and
engage the safety locks or lower the cutterdecks to the ground.
Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
Allow the engine to cool before storing in any enclosure.
To reduce the risk of re, keep the engine, silencer, fuel tank and battery compartment free of grass, leaves or
excessive grease.
Frequently check fuel lines and ttings for cracks or leaks and replace if necessary.
Replace worn or damaged parts for safety.
Ensure that all safety decals are properly secured and in good condition.
If the fuel tank has to be drained, this should be done outdoors.
Be careful during adjustment of the machine to prevent entrapment of the ngers between moving blades and
xed parts of the machine.
Never attempt to disconnect any part of the hydraulic system before depressurisation. This may be achieved
by lowering all cutterdecks to the ground, stopping the engine and removing the ignition key.
Avoid skin or eye contact with hydraulic or diesel uids. Wear protective clothing.
Leaking uids under pressure can penetrate the skin or eyes, causing serious injury.
Always use a piece of cardboard or paper when searching for leaks.
The R3240T Mower has been designed and constructed so that, in so far as is reasonably practical,
they meet the safety requirements of the Machinery Directive 2006/42/EC, they will not endanger the
safety and health of those working with them. This is, however, subject to the machine being properly
used and maintained according to the conditions stated in this manual and elsewhere, which have been
found necessary as a result of the research and testing.

1.13 1.13
SAFETY PRECAUTIONS
Decals
Decal - Control Panel
Part No: 994910 (A)
Location: Control Panel
A) Ignition Switch F) Horn
B) Engine Speed - Slow G) Cutters - Lift
C) Engine Speed - Fast H) Cutters - Hold
D) Parking Brake - Engage I) Cutters - Drop/Float
E) Parking Brake - Disengage J) Hour Meter
P
P
I
II
III
O
A B C D E
JIHGF

1.14 1.14
SAFETY PRECAUTIONS
Decals continued
Decal - Inclines Part No: 111-0955 (A)
Location: Centre Platform
A) Warning - Travel slowly when turning and on
slopes
B) Warning - Maximum Slope
C) Warning - Seat belt must be worn only with a
R.O.P.S in the vertical position.
D) Caution
E) Read Operators Manual
F) Stop engine/Remove ignition key before servicing
or maintenance
G) Beware of ying objects
H) Keep bystanders clear
Decal - Danger Latch Part No: 70-13-077 (0)
Location: LH / RH / Centre Arms
A) Caution
B) Stop engine/Remove ignition key before releasing
or operating safety latches.
Decal - Transmission Oil
Part No: 111-3901 (A)
Location: Oil ller bracket mounted behind fuel tank.
A) Transmission Oil
B) Read and understand the Operators Manual.
Important: Fill the machine with the recom-
mended oil to the correct level. Failure to do so
will cause serious damage and invalidate the
warranty.
Decal - Jacking/Support Point
Part No: 70-13-072 (0)
Location: Front Axle - 2 points
Rear Towing eye
A) Jacking and Support Point
Decal - Diesel
Part No: 70-13-078 (0)
Location: Fuel Tank
Diesel fuel only
A B
A
AB
14
111-0955 (A)
AB C
D E F G H

1.15 1.15
SAFETY PRECAUTIONS
Decals continued
Decal - Engine Fan/Radiator
Part No: 111-3902 (A)
Location: Engine Fan Cowl
A) Danger of severing ngers
B) Caution
C) Warning - Hot Surfaces
D) Read and understand the Operators Manual
Important: Only remove radiator cap when the engine
is cool.
Decal - Tyre Pressure
Part No: 950832 (2)
Location: LH/RH Chassis - 4 places
A) Mowing
B) Road Travel
Decal - Diff Lock / Control Pedal
Part No: 953876 (0)
Location: Centre Platform
A) Differential lock
B) Depress to engage diff-lock
C) Release to dis-engage diff-lock
D) Reverse speed - directional control
E) Forward speed - directional control
Decal - Noise
Part No: 922854
Location: Base of seat on GRP
RF
{}{}
0.7 BAR
10 PSI
1.4 BAR
20 PSI
A
B
A B C D
A
B
E
DC

1.16 1.16
SAFETY PRECAUTIONS
Decals continued
Decal - Warning Crush Hazard
Part No: 111-0773 (A)
Location: Side of the ROPS frame
A) Safety Alert - Be aware to the possibility of injury
B) Crushing ngers. Force applied from side
Decal - Warning Hot Surface
Part No: 950889 (1)
Location: Right hand side of the machine
a) Safety Alert - Be aware to the possibility of injury
b) Warning - Hot surface
Decal - Serial Number
Location: Rear Bulkhead
Decal - Prevent Platform Damage
Part No: 111-3909 (A)
Location: Platform, Seat well
a) Engage parking brake
b) Lower cutterdecks
c) Caution
d) Raise/lower platform
e) Read and understand the Operators Manual
Decal - Warning Platform Latch
Part No: 924868
Location: Next to Platform Latch
WARNING - PREVENT ACCIDENTS: Ensure
platform is correctly seated and the latch is fully
locked before operating the machine.
AB
AB
105dB
Code Serial No:
R3240T - 4WD
WIDE AREA MOWER
kg:1800 RPM:2650 kW:44
2010
02770 3100000001
A
B
C
D
E

1.17 1.17
SAFETY PRECAUTIONS
Decals continued
Decal - Maintenance R3240T
Part No: 994911 (2)
Location: Underside of engine cover next to latch.
Decal - Height of Cut
Part No: 994906 (0)
Part No: 994907 (0)
Location: On decks
Decal - Pedal Backstop
Part No: 953877 (1)
Location: Platform RH Side
A) Forward travel
B) Slow
C) Fast
A
B
1
2
3
4
5
1
3
5
7
9
2
4
6
8
1
3
5
7
9
2
4
6
8
1
2
3
4
5
6
7
8
9
1 A
2 A
3 A
4 A
5 A
2 B
3 B
4 B
5 B
25mm 1"
38mm 1.5"
51mm 2"
64mm 2.5"
76mm 3"
89mm 3.5"
102mm 4"
114mm 4.5"
127mm 5"
-
-
-
-
-
-
-
-
-
AB C
994907 (rev. 0.)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
1
1
2
2
3
3
4
4
5
1
2
3
4
5
6
7
8
9
T
B
T
B
T
B
T
B
T
25mm 1"
38mm 1.5"
51mm 2"
64mm 2.5"
76mm 3"
89mm 3.5"
102mm 4"
11 4mm 4.5"
127mm 5"
-
-
-
-
-
-
-
-
-

1.18 1.18
SAFETY PRECAUTIONS
Decals continued
Decal - Warning Hands, Feet
Part No: 40-13-010 (1)
Location: On decks
Decal - Blade
Part No: 994913-1 (0)
Location: On decks
Decal - Spring Hazard
Part No: 994913_2 (0)
Location: Side of machine
A) Take care when latching and unlatching the
cutterdecks.
Decal - Crushing Hand
Part No: 994913_3 (0)
Location: Side of machine
A) Warning of crushing hazard when the wing decks
are bring raised.
B) Keep hands clear
Decal - Crushing Hazard
Part No: 994913_4 (0)
Location: Side of machine
A) Warning of crushing hazard when cutterdecks are
being raised or lowered
B) Keep clear of the shaded area when the cutterdecks
are being raised or lowered
Decal - Height of Cut
Part No: 320006 (1)
Location: On decks
B = 994806
994806 X2
A = 994805
994805 X2
A
LH RH
A
B
A
A B
A
B

1.19 1.19

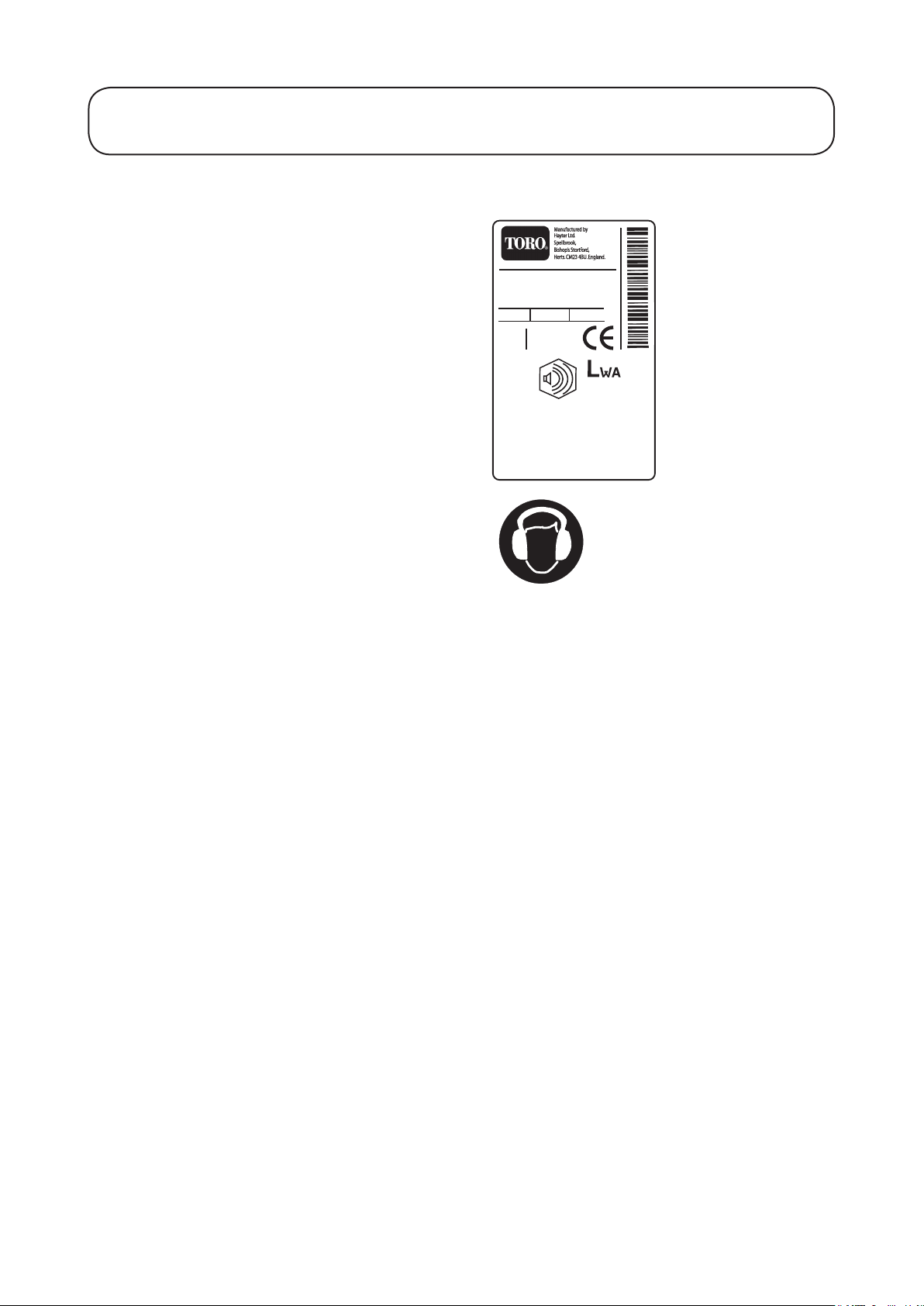

EC CONFORMITY INFORMATION
Noise Levels
Operator Daily Personal Noise Exposure:
TORO have no control over site conditions, duration of
use, state of maintenance or adjustment of the mower.
All of these factors will affect the operator’s daily
personal noise exposure level - LEP,d
Under typical working conditions operators could be
exposed to a daily personal noise exposure level in
excess of 85 dB (A) LEP,d
Sound pressure level:
The sound pressure level at the operator’s position is 85
dB (A) measured in accordance with European Standard
EN836.
Sound power level:
The guaranteed sound power level is 105 dB (A)
measured in accordance with EC Directive 2000/14/EC.
If hearing protection is required, ear protectors with good
attenuation in the 63 - 8000 Hz frequency range should
be used.
Employers of personnel using this machine should refer
to the 2003/10/EC Directive for minimum health and
safety requirements regarding exposure and risks to
physical agents (noise).
Vibration Levels
Operator Daily Personal Vibration Exposure:
TORO have no control over site conditions, duration of
use, state of maintenance or adjustment of the mower.
All of these factors will affect the operator’s daily
personal vibration exposure level.
Under certain working conditions the operator may be
exposed to vibration levels above those stated.
Wear Hearing
Protection
105dB
Code Serial No:
R3240T - 4WD
WIDE AREA MOWER
kg:1800 RPM:2650 kW:44
2010
02770 3100000001

1.20 1.20
EC CONFORMITY INFORMATION
Manufactured for: Toro Company
EC DECLARATION OF CONFORMITY
By: Hayter Limted
declare that thelawnmower
Model name:
Type:
Model No:
Cutting width:
Speed of rotation of the
cutting device:
Engine manufacturer:
Speed of rotation of engine:
Complies with the provisions of Directive: 2006/42/EC Essential Health & Safety Requirements relating to the Design &
Construction of Machinery and Safety Components and the regulations transposed into national law.
Also Directive 2004/108/EEC Electromagnetic Compatibility and the regulations transposed into national law.
Also Directive 79/622/EEC Roll-over protection structures of wheeled agricultural or forestry tractors (static testing), as
amended and the regulations transposed into national law.
Also Directive 2000/14/EC Noise emission in the environment by equipment for use outdoors, as amended and the regulations
transposed into national law.
Procedure applied for the conformity assessment: ANNEX VI, procedure 1.
Notified Body: Sound Research Laboratories Ltd. Holbrook House, Little Waldingfield, Sudbury, Suffolk. CO10 0TH.
ENGLAND
Notified body identification No: 1088
Measured sound power level:
Guaranteed sound power level:
Authorised Signatory:
S.A Maryniak
(Technical Director)
Declaration done and technical documentation kept at:
HAYTER LIMITED
Spellbrook, Bishop s Stortford,
Herts. CM23 4BU ENGLAND
Date: 12.04.2010
VIBRATION INFORMATION
Address: Spellbrook, Bishop s Stortford, Herts. CM23 4BU. ENGLAND
Hand / Arm Vibration Level at the Operator Position measured in accordance with European Standard EN 836:
Measured Vibration Level ahv =
Uncertainty of measurement K =
Whole Body Vibration Level at the Operator Seat measured in accordance with European Standard EN 836:
Measured Vibration Level aw =
Uncertainty of measurement K =
SOUND PRESSURE INFORMATION
Sound Pressure Level at the Operator Position measured in accordance with European Standard EN 836:
Measured Sound Pressure Level LPA =
Uncertainty of measurement K =
ms-2
dB(A)
ms-2
ms-2
ms-2
dB(A)
Serial No.
R3240T
Ride-on Rotary
02770
350 cm
2350 rpm
Kubota
2650 rpm
0.5
1.0
1.0
0.5
02770
105 dB(A)
105 dB(A)
87
2
02770
02770
