Toyota SP10 Seies User manual

SP10 Series
•Read this manual carefully before use and always follow the
instructions.
•Keep the manual in a convenient place for easy reference.
•If you give the sewing machine to someone else, also give
them this instruction manual.
HOME-USE SEWING MACHINE
INSTRUCTION
MANUAL

Contents
Before use
• Important safety instructions............................................. 4
• How to change the power plug ......................................... 6
• Part names ....................................................................... 8
• How to use handwheel ................................................... 10
• How to use presser foot lever ......................................... 10
• How to use reverse sewing lever .................................... 10
• How to remove extension table....................................... 10
• How to use quick adviser................................................ 11
Sewing preparations
• Connecting the power..................................................... 12
• Installation of battery for winding the lower thread .......... 13
• Winding the lower thread ................................................ 14
• Threading the lower thread............................................. 16
• Threading the upper thread ............................................ 17
• Pulling up the lower thread ............................................. 19
• Application of each stitch pattern.................................... 20
• Changing the presser foot............................................... 21
• Changing the needle....................................................... 23
• Relationship between the needle, thread and
fabric, and adjusting the thread tension.......................... 24
Sewing
• Straight stitching and reverse sewing ............................. 25
• Zigzag sewing................................................................. 28
• Adjusting thread tension ................................................. 30
• Buttonhole sewing .......................................................... 31
• Overcasting..................................................................... 34
• Zipper insertion............................................................... 35
• Blind hem stitching.......................................................... 37
Maintenance
• Feed dog and hook maintenance ................................... 39
• Changing light bulb ......................................................... 41
• Troubleshooting............................................................... 42
• Servicing double-insulated products (230V-240V).......... 44
Others
• Safety precaution about the battery................................ 44
• Recycling
....................................................................... 45
• Specifications.................................................................. 46
Before use
Sewing
preparations
Sewing
Maintenance
Others

4
Do not operate where aerosol ( spray ) products are being
used or where oxygen is being administered.
Doing so could cause a fire.
Use an AC 220 to 240 V power source.
Not doing so could cause an electric shock or a fire.

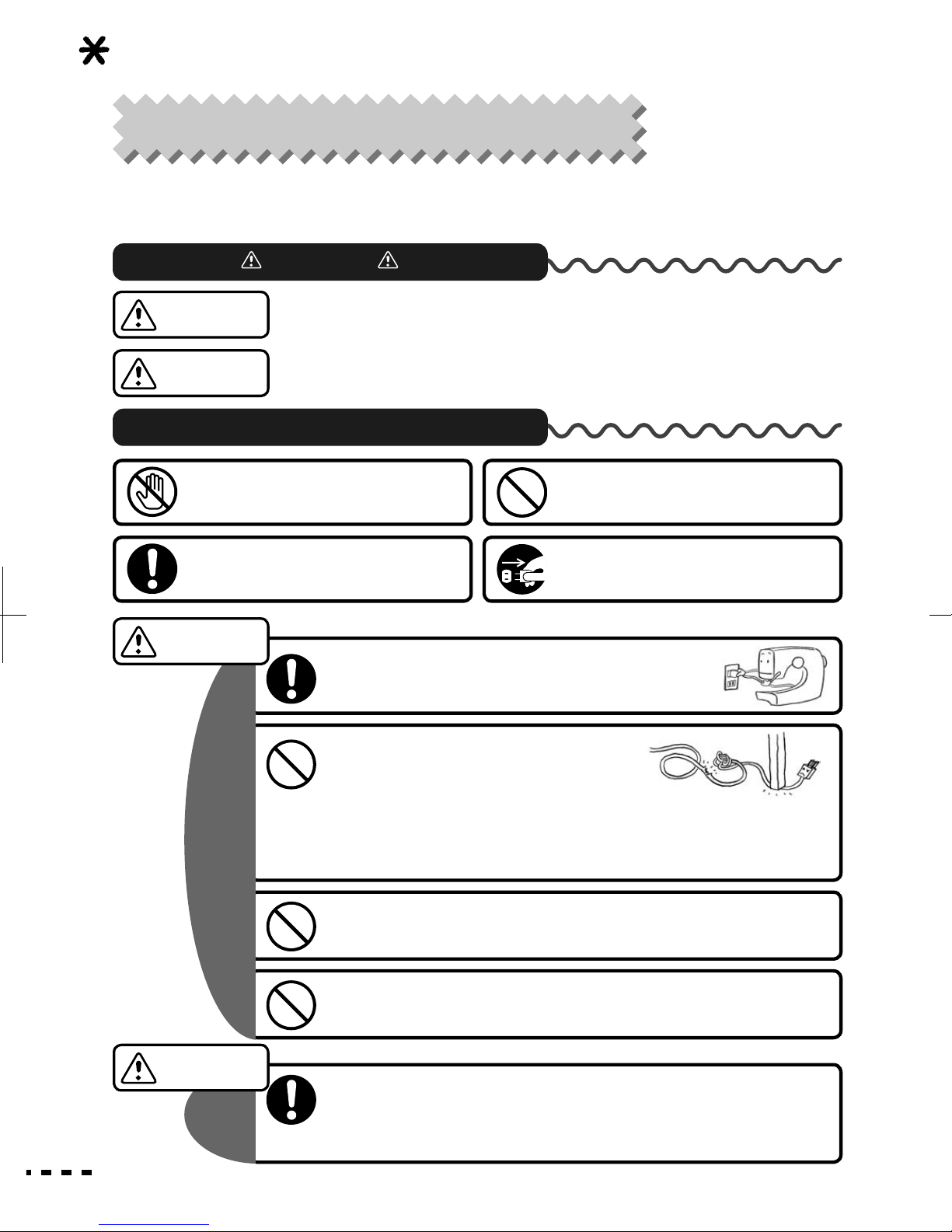

•Important safety instructions
Be sure to read this section before use
These safety instructions are designed to prevent danger or damage arising from the
incorrect operation of the machine. Read carefully and always follow the instructions.
Explanation of “ Warning” and “ Caution”
Symbol explanation
An incorrect operation could result in an injury or damage to the
machine.
An incorrect operation could result in death or serious injury.
Do not touch. Prohibited actions
Required actions Remove the power plug
from the outlet.
Before use
Do not damage the power cord,
modify it, bend it excessively,
jerk it or twist it.
Doing so could cause an electric shock or a fire.
If the power cord is damaged, it must be replaced by a
special cord or assembly available from the manufacturer
or its service agent.
Do not use outdoors.
Doing so could cause an electric shock or a fire.
Warning
Warning
Caution
When the machine is not in use it should be stored safely,
not on the floor as protruding parts could cause injury if a
person fell on the machine.
Not doing so could cause an injury.
Caution

5

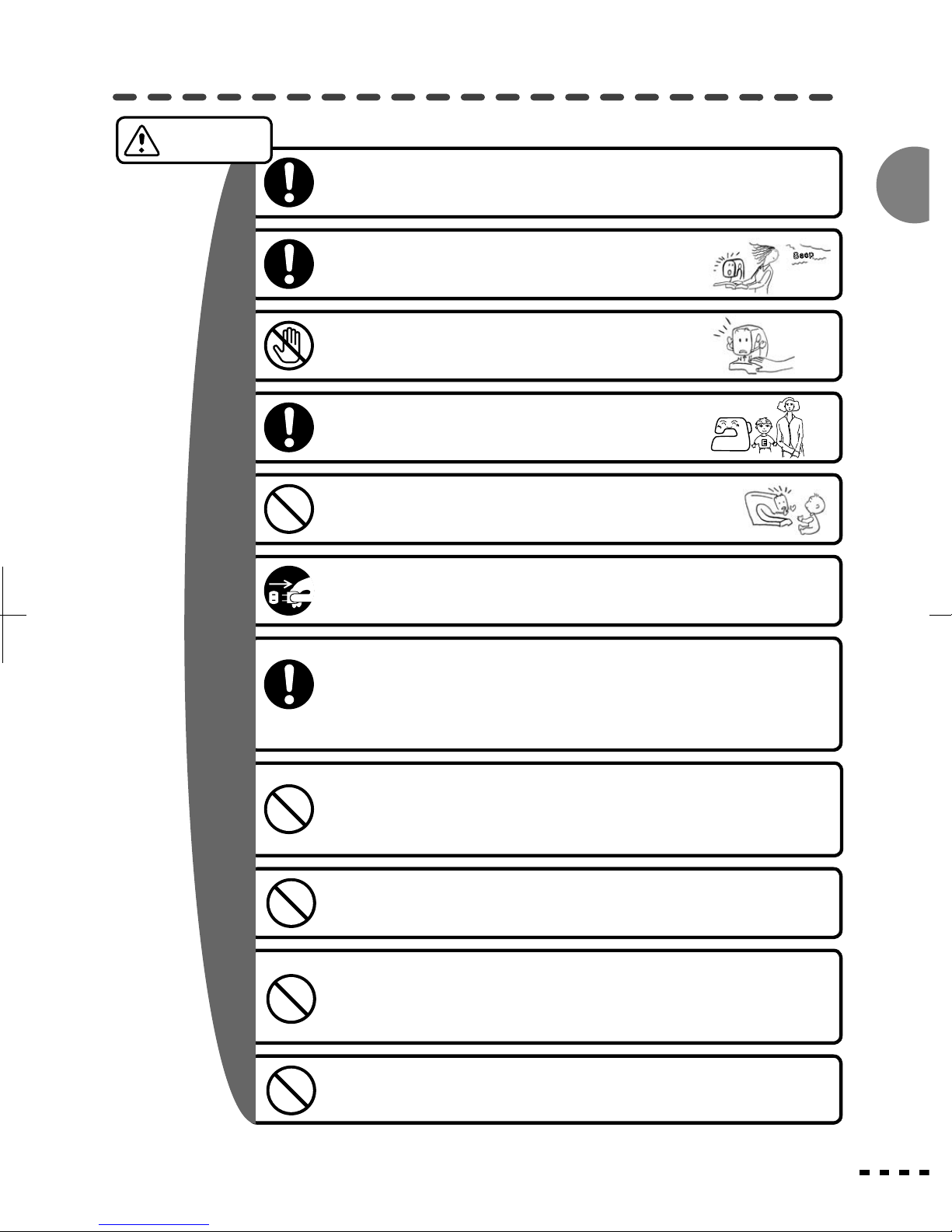

Do not repair, disassemble or modify except what is
mentioned in the instruction manual.
Doing so could cause an electric shock, a fire or an injury.
Do not drop or insert any foreign objects into any
openings such as opening space when you remove the
face cover and / or the outer casing space of bobbin case.
Doing so could cause an injury or damages to the machine.
Do not operate on an unstable surface such as a sofa or a bed.
If the sewing machine falls down, it could cause an injury or
damages to the machine.
Children should only use the machine under
the supervision of a parent or guardian.
Otherwise they could injure themselves.
Remove the power plug from the outlet when replacing the
needle, presser foot, setting the upper or lower thread.
Not doing so could cause an injury.
Do not look away from the needle while
operating the sewing machine.
If the needle breaks it could cause an injury.
Do not touch moving parts such as the
needle, take-up lever or handwheel.
Doing so could cause an injury.
Do not use when young children are near the machine.
They could touch the needle and be injured.
When leaving the sewing machine after use, remove the
power plug from the outlet.
Not doing so could cause an injury.
Before using the sewing machine make sure that the
presser foot holder clamp screw, needle clamp screw
and needle plate screw are firmly tightened, and that the
presser foot is properly set in the presser foot holder.
Not doing so could cause an injury.
•Sewing without lowering the presser foot.
•Sewing while the needle is incorrectly installed.
•Using a bent needle.
•Sewing while jerking the fabric.
•Moving the pattern selection dial while sewing.
Do not perform the
following actions.
Doing so could cause
an injury.
Caution

6
•How to change the power plug
When you change the power plug or cord, do not repair,
disassemble or modify except at the authorised dealer or
service centre.
Doing so could cause an electric shock or a fire
If for any reason the power plug for this product is removed
it should be immediately disposed of safety and not stored
anywhere where it could be inadvertently used again.
Doing so could cause an electric shock or a fire
Warning
The wires in this mains lead are coloured in accordance with the following code:
BLUE-NEUTRAL BROWN-LIVE ( OR ACTIVE )
As the colours of the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug - PROCEED AS FOLLOWS:
The earth plug pin is unnecessary. As the machine is designed under double insulation
structure, the earth wire is removed from the machine. The wire coloured BROWN must
be connected to the terminal marked L or A or coloured RED. The wire coloured BLUE
must be connected to the terminal marked N or coloured BLACK. Neither core is to be
connected to the earth terminal of a three-pin plug.
UK ONLY IMPORTANT PLEASE READ CAREFULLY
Before use

7
•Memo

8

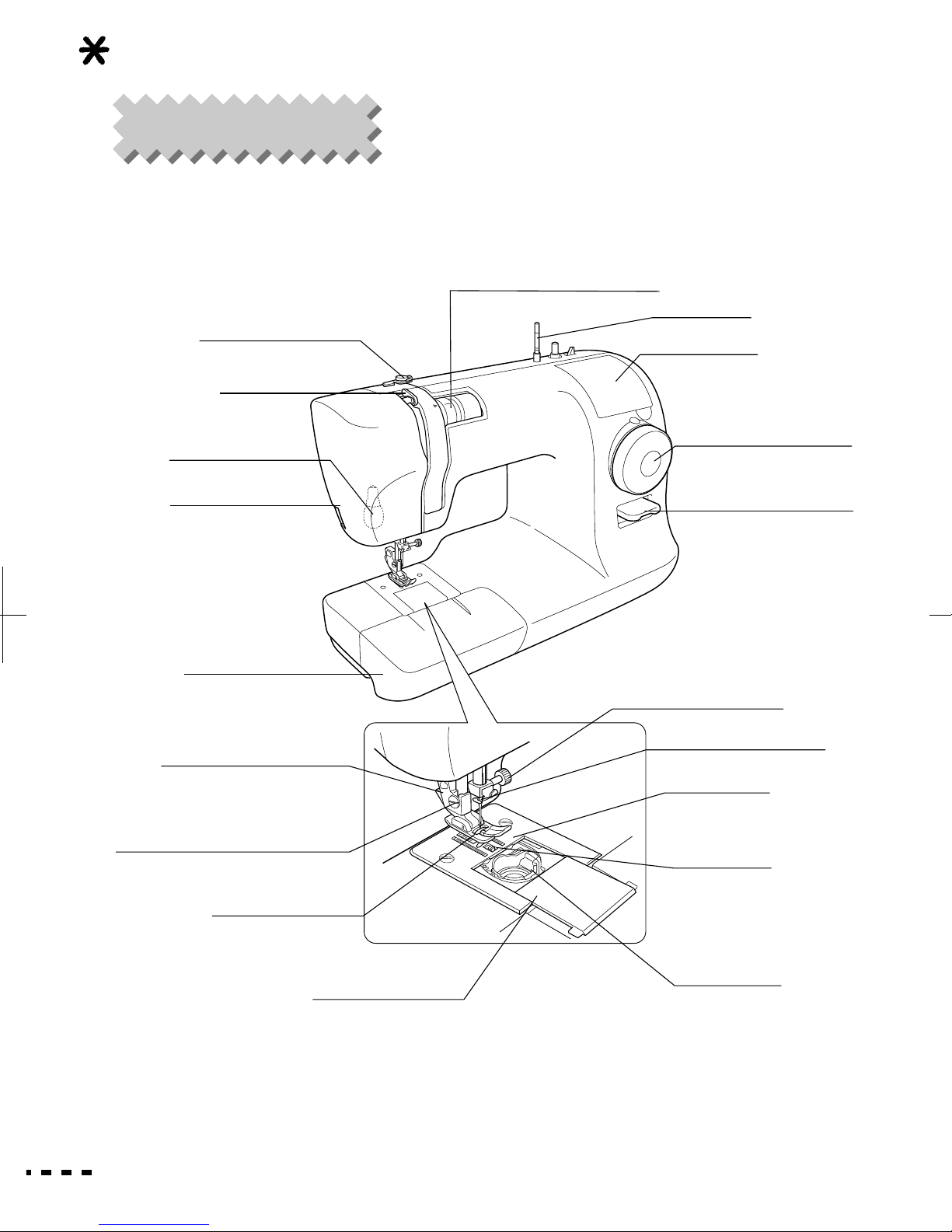

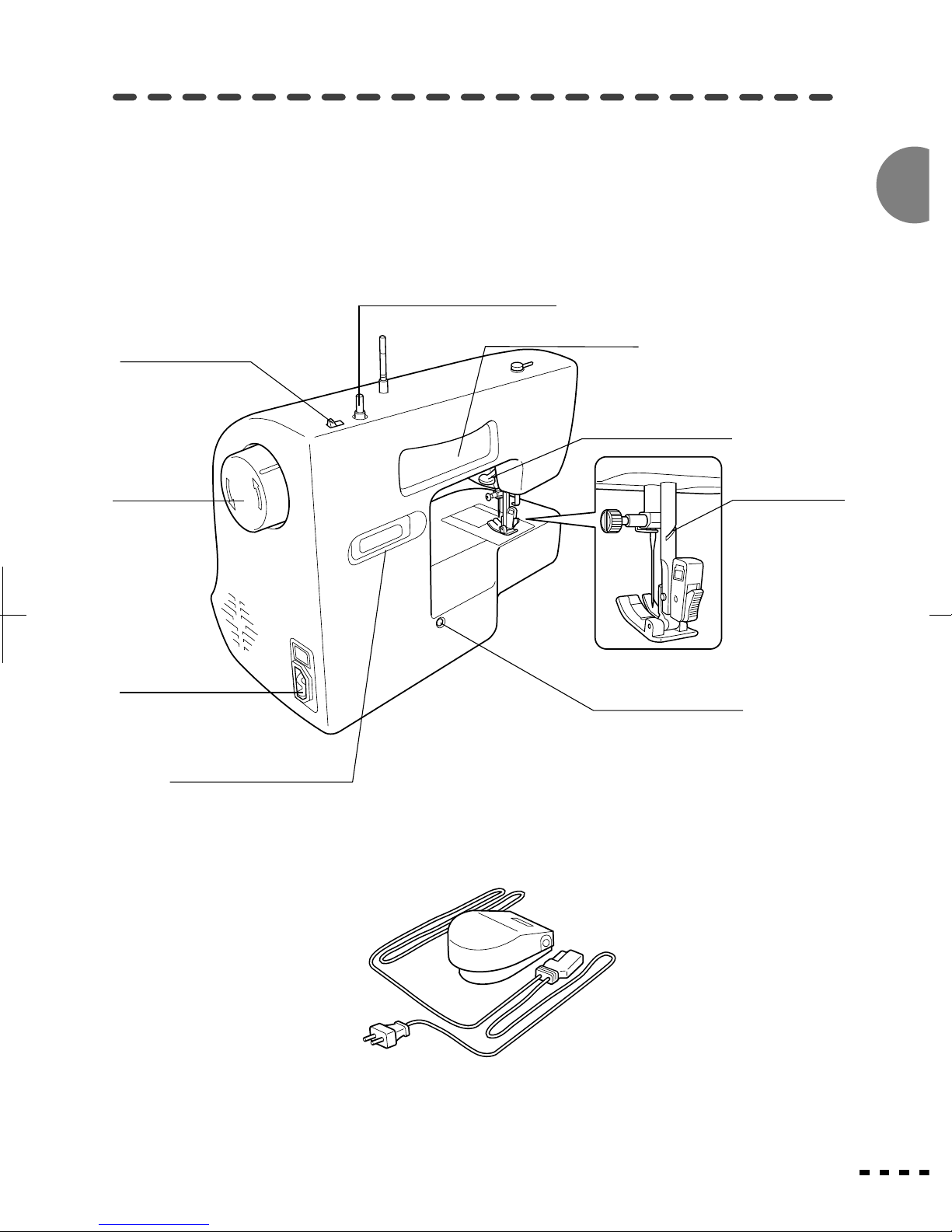

•Part names
• External appearance may differ from model to model.
Thread guide
Face cover
Extension table
(Accessory Box)
Upper thread tension dial
Spool pin
Pattern selection dial
Reverse sewing lever
Presser foot holder
Presser foot
Bobbin case cover
Needle clamp screw
Feed dog
Quick adviser
Take-up lever
Light bulb
Presser foot holder
clamp screw
Needle thread guide
Needle plate
Bobbin case
Before use

9
Handwheel
Thread winding
switch
Terminal box
Thread winding spindle
Buttonhole
adjustment screw
Presser foot lever
Foot controller
Hollow for carrying
Battery holder
(
Insert your hand to the hollow
when carrying sewing machine
)
Thread cutter

10

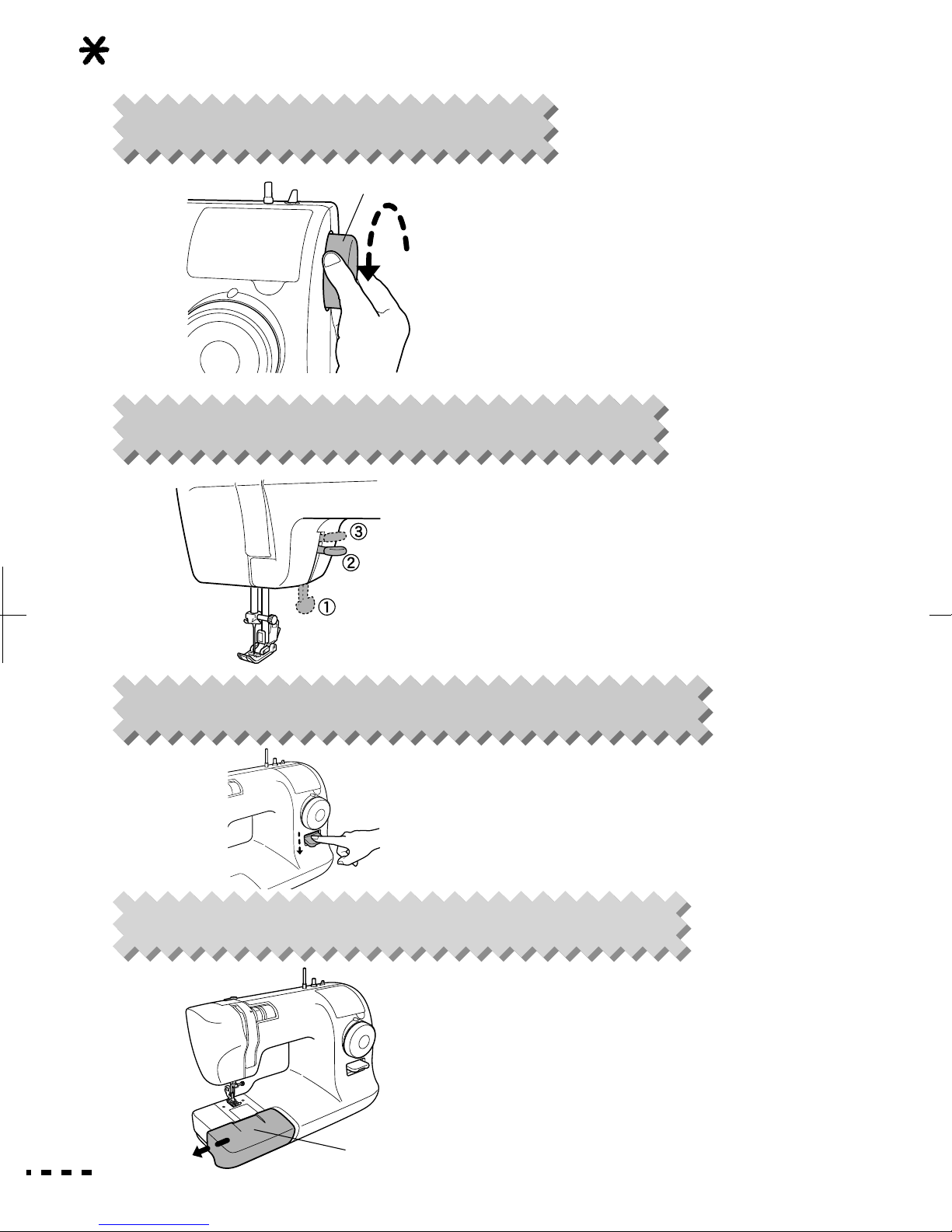

• How to use handwheel
Always turn the handwheel towards yourself.
(in the direction of the arrow, forwards)
Note: If you turn it in the reverse
direction it could tangle the thread.
Handwheel
• How to use presser foot lever
When sewing, lower the presser foot lever to
lower the presser foot. (Position 1)
When inserting fabric, lift up the presser foot
lever to raise the presser foot. (Position 2)
When inserting very thick fabric under the
presser foot, the lift height can be increased
by holding the presser foot lever at this
position. (Position 3)
• How to use reverse sewing lever
• While lowering the reverse sewing lever,
reverse sewing is performed.
• Remove your finger from the reverse
sewing lever to return to forward direction
sewing.
• How to remove extension table
Pull out the extension table (accessory box)
in the direction of the arrow.
Extension table
Before use
•
•
•

11

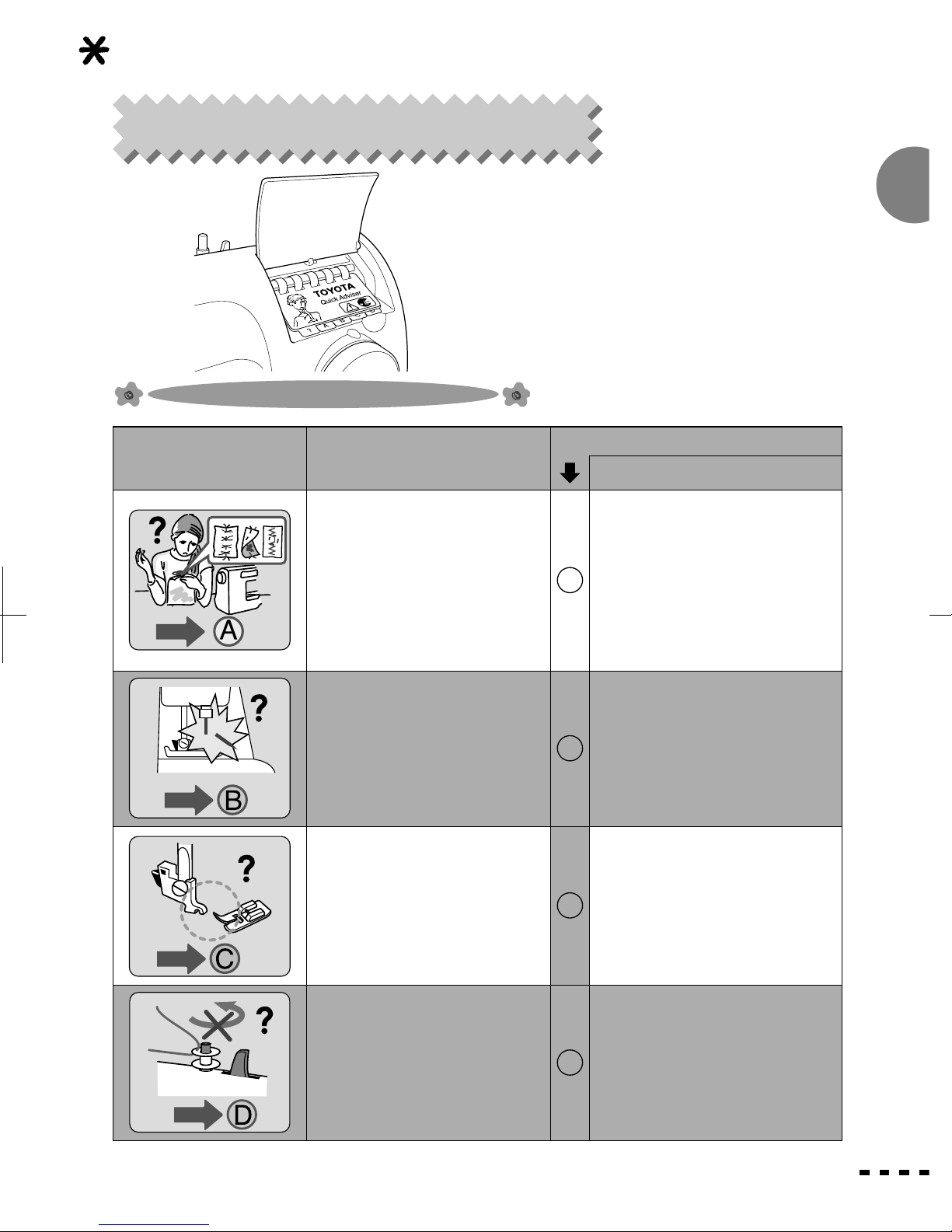

• How to use quick adviser
This quick adviser describes basic
countermeasures about the main troubles.
Meaning of the illustrations
Illustrations of the
troubles Meaning of the illustrations
Section of countermeasures
Meaning of the illustrations
• Jammed stitches
• Unbalanced stitches
• The fabric wrinkles/puckers
• Missed stitches
Above troubles happen,
refer to illustration Afor
countermeasures.
A
Describes below 3 operations.
1Adjusting thread tension.
2Threading the lower thread
correctly.
3Threading the upper thread
correctly.
When needle is broken,
refer to illustration Bfor
countermeasures.
B
Describes how to change
needle correctly.
1Raise the needle.
2Remove the needle.
3Attach the new needle.
When you want to know
how to attach presser foot,
refer to illustration Cfor
countermeasures. C
Describes how to attach
presser foot.
1Raise the presser foot lever.
2Set the presser foot under
the presser foot holder
correctly.
3Lower the presser foot lever.
When you want to know
how to wind lower thread,
refer to illustration Dfor
countermeasures. D
Describes how to install battery
for winding lower thread.
1Install the battery into
battery holder on the back of
sewing machine.
2Push the switch to the left.
Before use

12

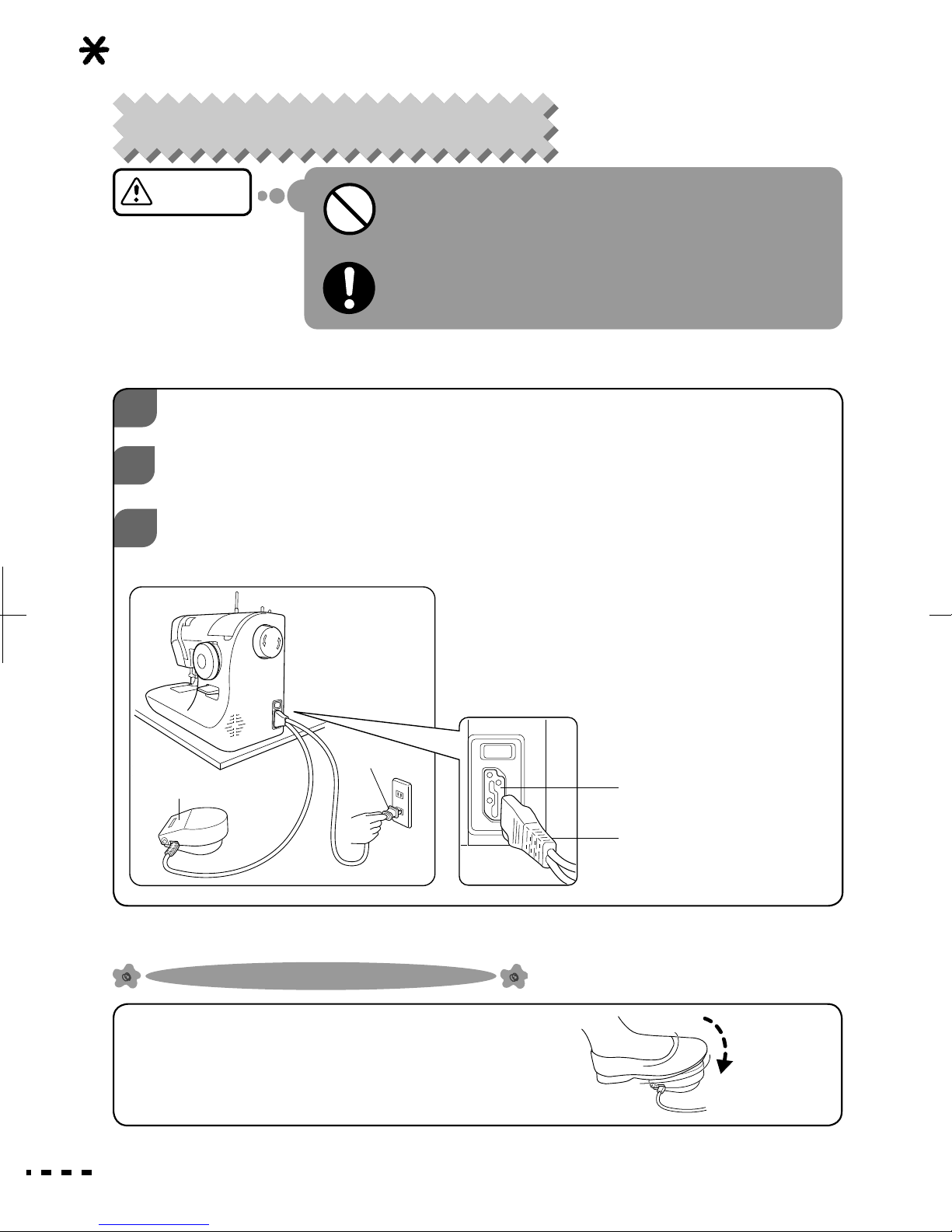

Prepare the foot controller.
Insert the power cord connector into
the terminal box.
Insert the power plug into the outlet.
The power is turned on.
1
2
3
• Connecting the power
Do not touch the power plug with wet hands.
Doing so could cause an electric shock.
Pull the part of plug when removing the power plug.
Not doing so could damage the cord and cause an
electric shock, fire or injury.
Power plug
Terminal box
Connector
Foot controller
How to operate foot controller
Sewing preparations
Warning
Step on the foot controller to operate the sewing machine.
The more you press the foot controller, the faster the
machine runs.
Release the foot controller to stop the machine.
Foot controller

13

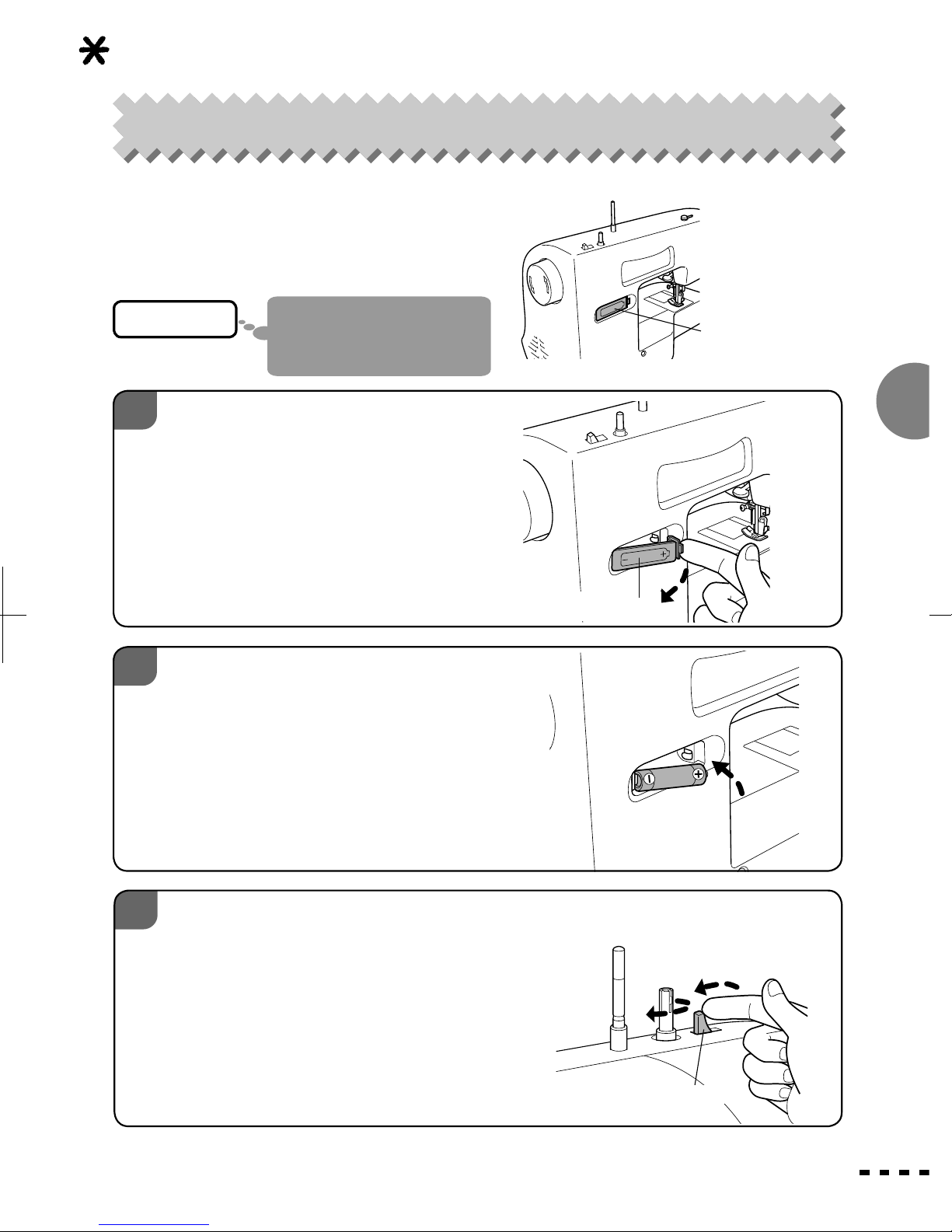

• Installation of battery for winding the lower thread
3
1Pull the battery holder cover out as the
arrow.
2Install the battery while confirming polarity
of it.
Attach battery holder cover.
Note: Refer to page 42, 43 when
purchasing or changing batteries.
Make sure that the thread winding spindle
rotates by turning the thread winding switch
on by pushing in the direction of arrow.
Note: Thread winding spindle rotates
while pushing the switch to the
left.
Battery holder
A battery is supplied as one of the
accessories.
Before winding the lower thread, install it in
the battery holder on back of sewing machine.
Sewing preparations
Battery holder cover
Thread winding switch
When the machine is
not used for a extended
period remove the battery.
Attention

14

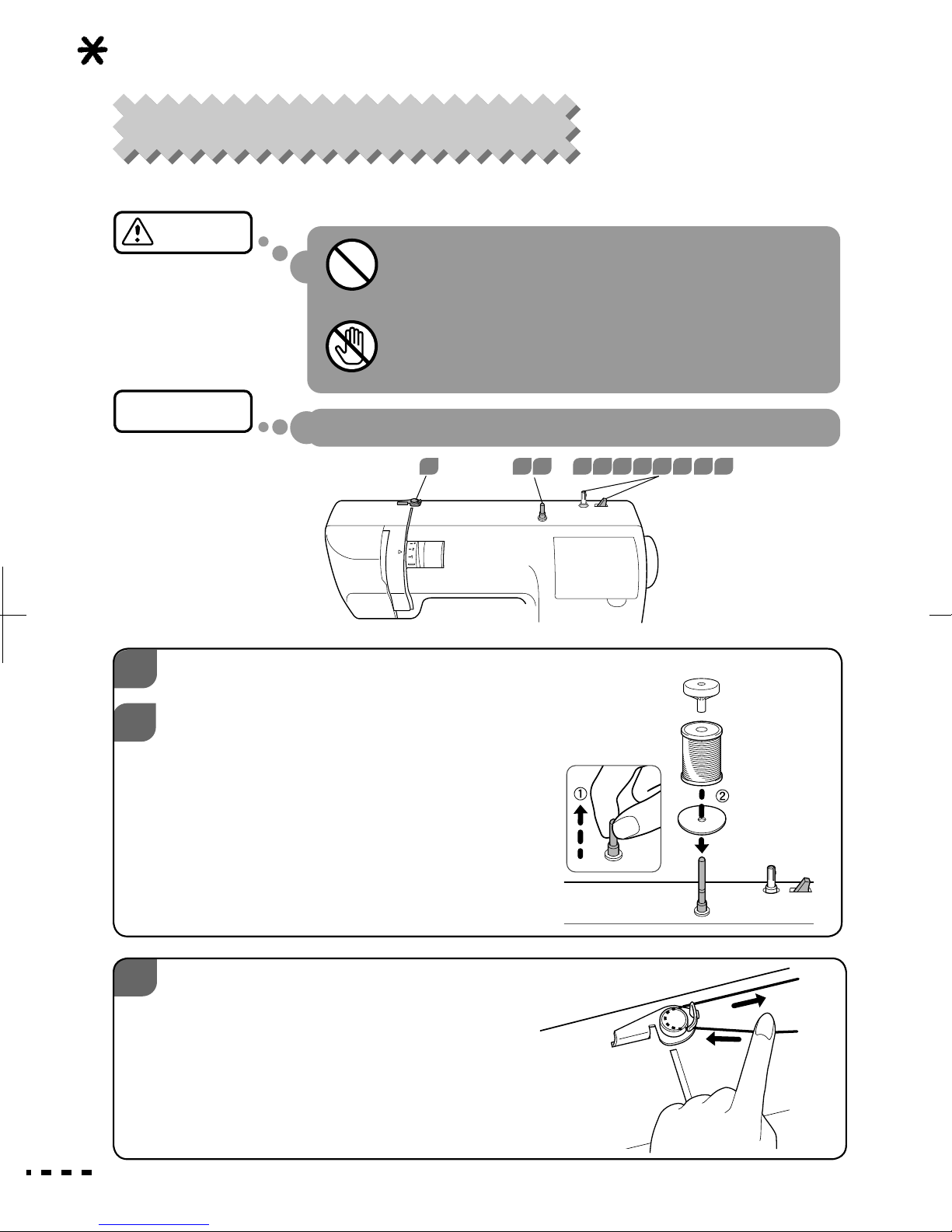

• Winding the lower thread
Use a TOYOTA-exclusive bobbin.
The exclusive motor driven by a battery winds the lower thread.
1
3Pull the thread from the thread spool.
Support the thread on the sewing
machine with one hand, using the other
hand pass the thread around the thread
guide as shown in the diagram.
3 1 2 4 5 6 7 8 9 10 11
Caution Be careful not press foot controller when winding
the lower thread.
Doing so could cause an injury.
Do not touch the lower thread winding spindle
when winding the lower thread.
Doing so could cause an injury.
Attention
2
Sewing preparations
Pull up the spool pin.
Position the felt, the thread spool and
the spool cap on to the spool pin.
Note: A felt was originally put on
to the spool pin. Felt
Spool cap

15
6
7

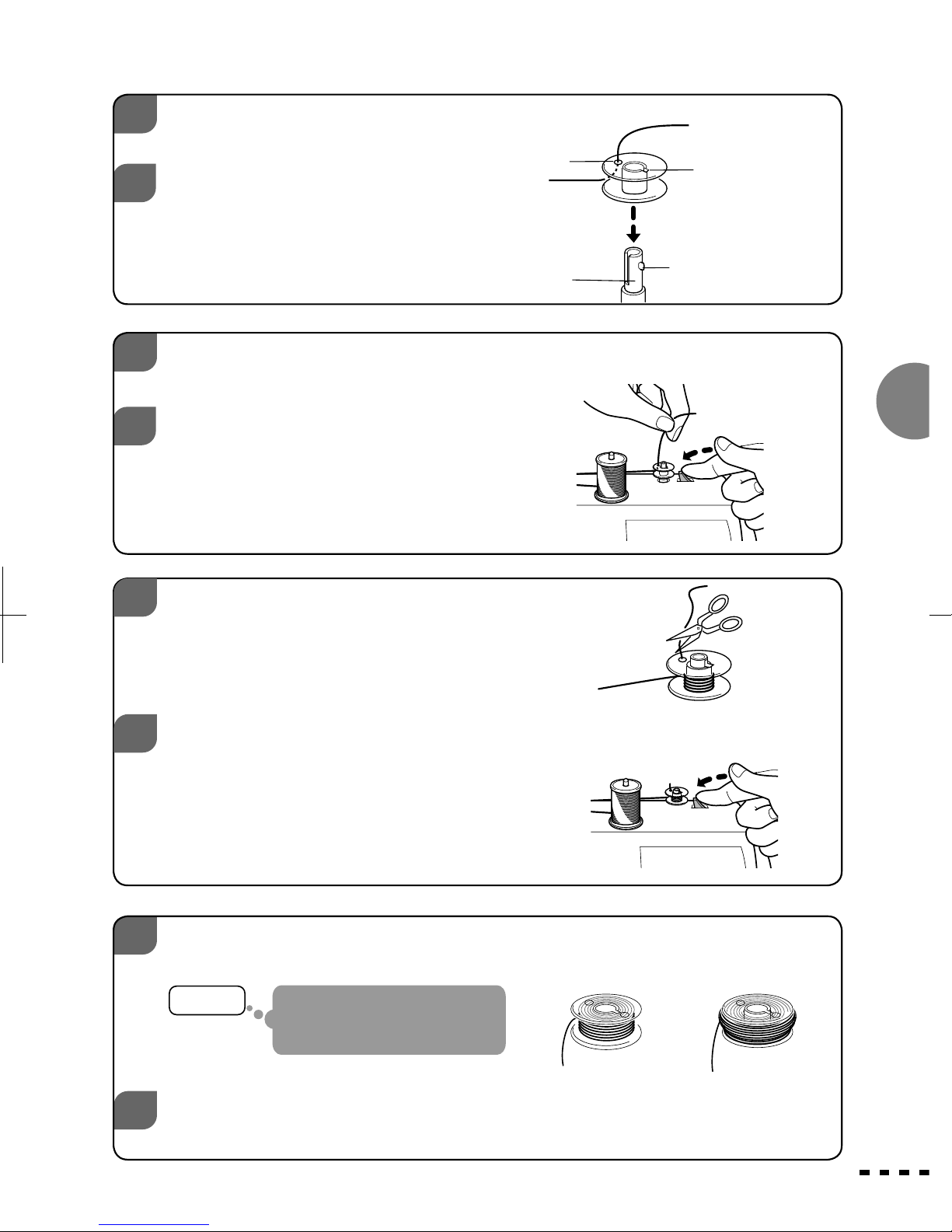

4Pass the thread end through the
hole of the bobbin as shown.
Place the bobbin on to the
thread winding spindle so the
groove will meet the shaft
projection.
Hold the thread end and push the thread
winding switch to the left and start winding.
After winding a little, release the thread
winding switch to the right and stop winding.
Note: While pushing the winding switch
to the left, thread winding spindle
rotates.
5
Thread
Shaft projection
Thread winding
spindle
Groove
right wrong
To stop winding, release the thread
winding switch to the right.
Attention
Do not wind excessively,
it causes sewing
malfunction.
Remove the bobbin from the spindle. Cut the thread.
Hole
8Cut extra thread above the bobbin hole.
Push the thread winding switch to the
left again.
Wind the thread in the amount you need.
9
10
11

16
4

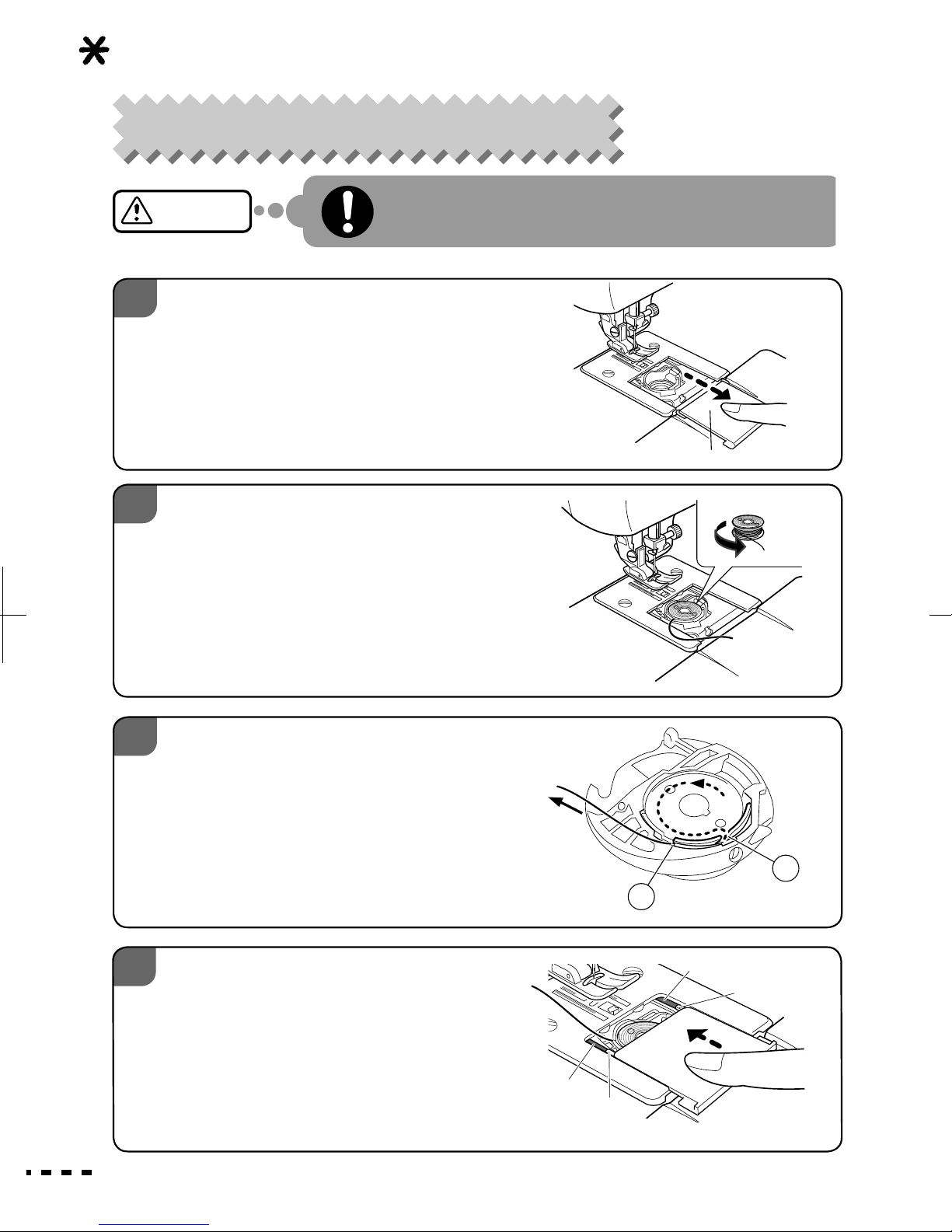

• Threading the lower thread
Caution
Remove the power plug from the outlet when
setting the bobbin.
Not doing so could cause an injury.
1Take off the bobbin case cover by sliding
it towards yourself.
Pull bobbin case cover forward and lift to
remove.
2
3
Insert the bobbin into the bobbin case,
so it rotates counterclockwise.
Note: Inserting the bobbin in the
wrong direction causes
irregular thread tension.
Pull back end of thread about 15cm.
Put bobbin case cover projections into
the race retainer grooves and push
closed.
Pull the end of thread through
the cut-out guide ato guide b
of the bobbin case and pull out in
direction of arrow.
Bobbin case cover
Sewing preparations
a
b
Bobbin case
Groove
Projection
Groove
Projection

17

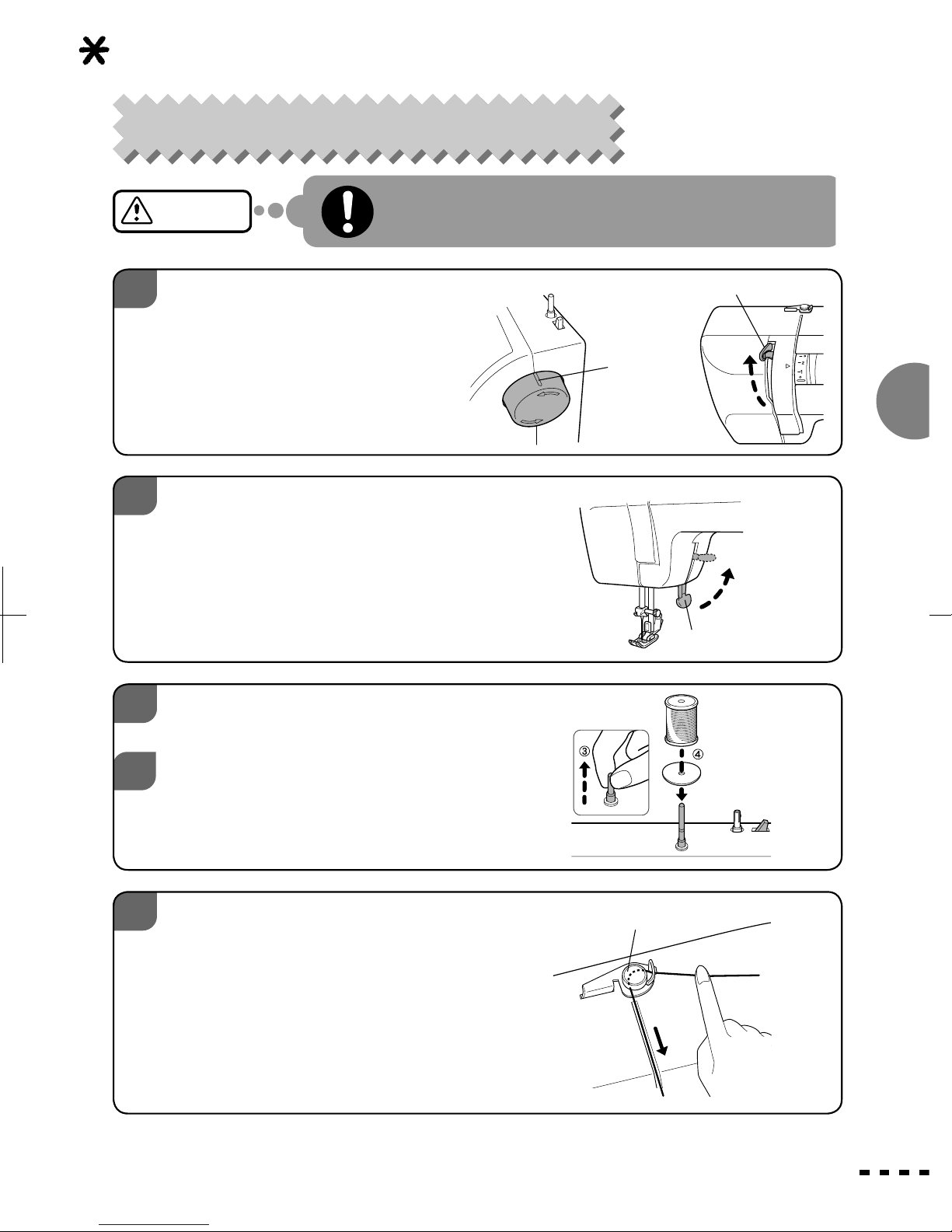

• Threading the upper thread
Caution Remove the power plug from the outlet when
threading the upper thread.
Not doing so could cause an injury.
1Turn handwheel towards
yourself to raise take-up
lever.
Line on handwheel should
be up position.(12 o’clock)
2
3
5
Raise presser foot lever.
Note: If the presser foot lever is not
raised, the thread can not be
threaded correctly.
Pull the thread from thread spool.
Support the thread on the sewing
machine with one hand, using the other
hand pass the thread around the thread
guide as shown in the diagram.
Pull up the spool pin.
Position the felt and the thread spool.
Note: A felt was originally put on to
the spool pin.
Felt
Thread guide
Take-up lever
4
Presser foot lever
Sewing preparations
Line

18

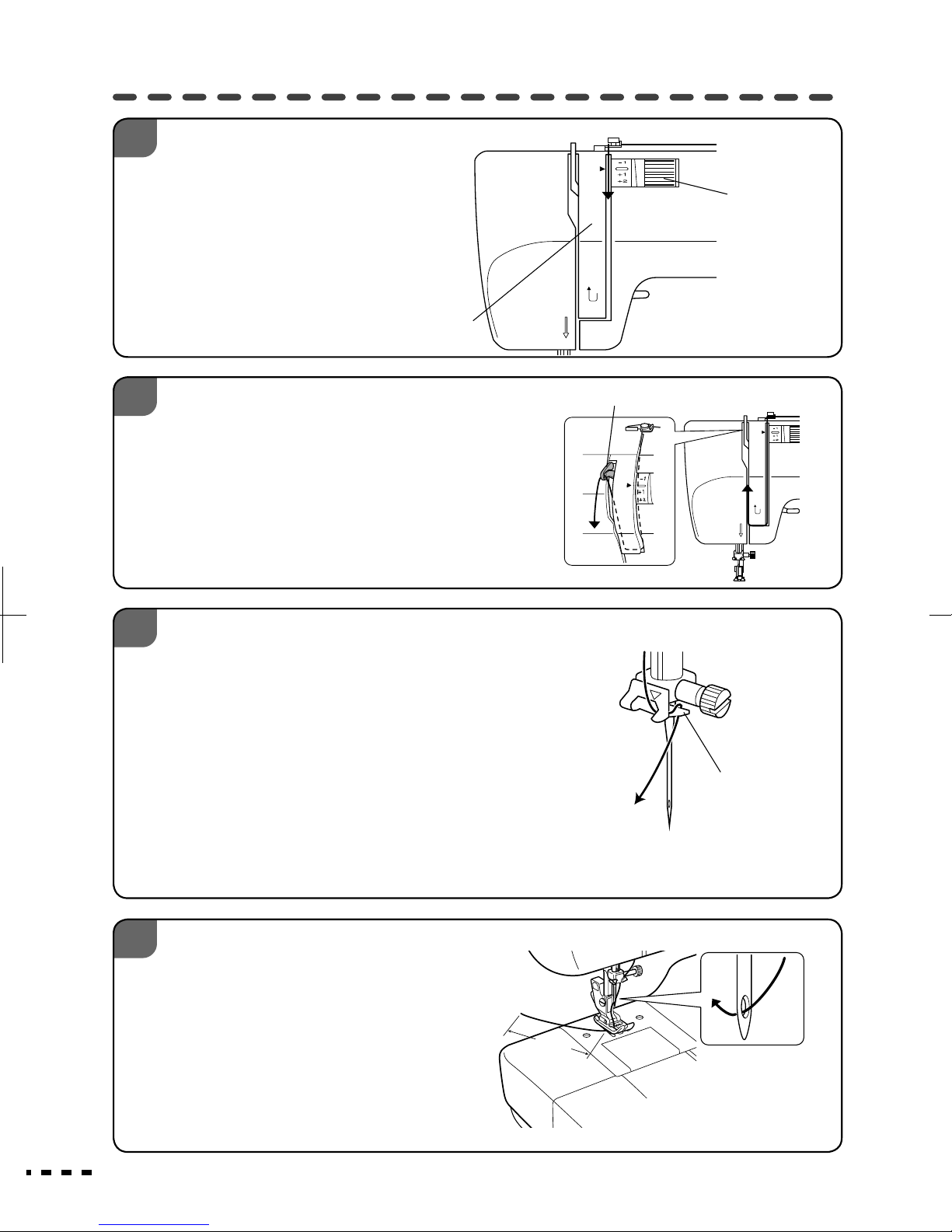

6Pass the thread between the
thread guide plate and the
upper thread tension dial.
7Pass the thread along the groove of
the thread guide plate, as the arrow
in the diagram.
Pass the thread through the take-up
lever.
8Pass the thread through the right side
needle guide.
Check that the thread is threaded
correctly.
Raise the presser foot and pull the upper
thread towards yourself. The thread
should pull out smoothly.
Lower the presser foot and pull the
upper thread towards yourself.
It should be resistant and difficult to pull.
9Pass the thread through the needle eye
from the front.
Pull back about 15 cm.
Thread guide plate
Take-up-lever
Needle guide
Front
Upper thread
tension dial
15cm

19

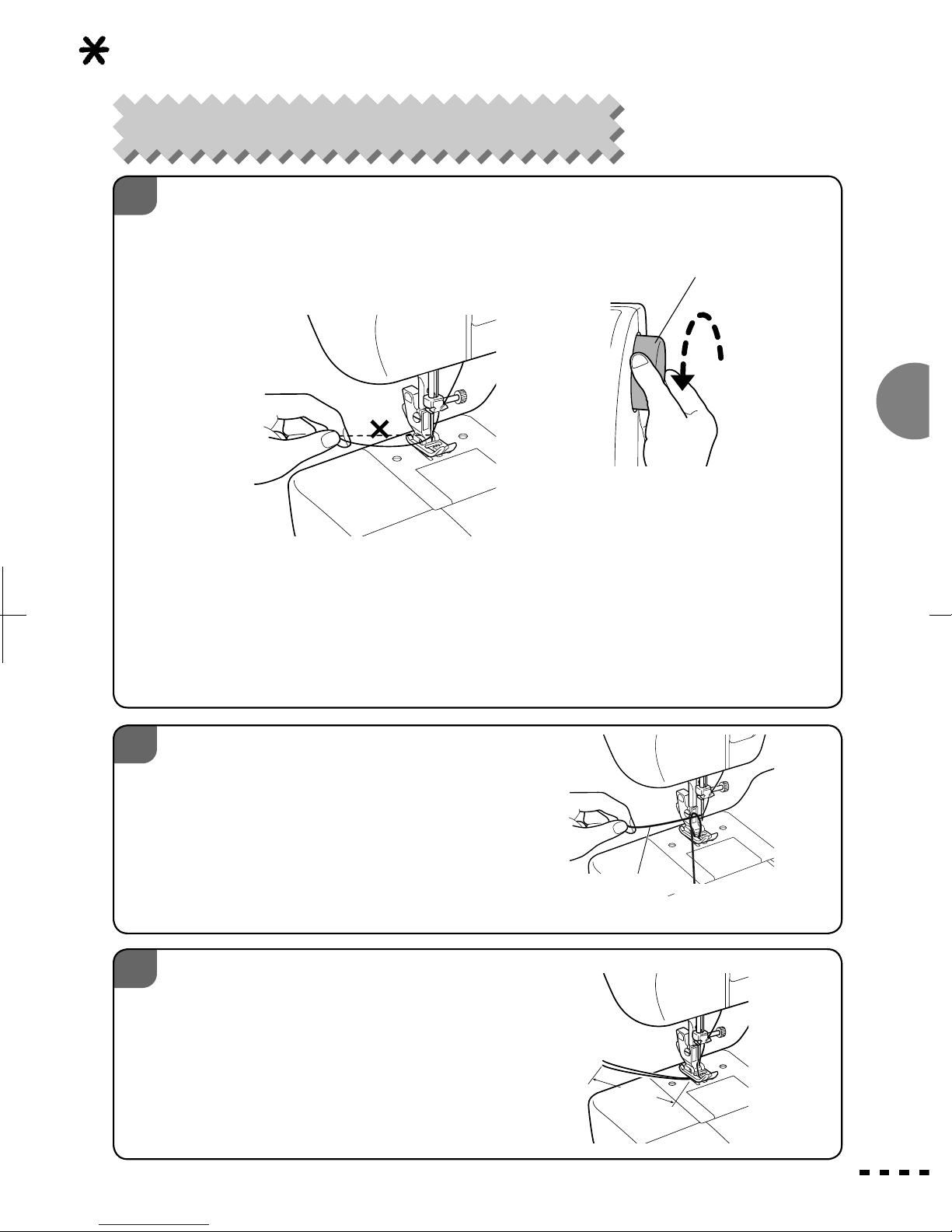

• Pulling up the lower thread
1
2Pull up the upper thread and the loop of
the lower thread will come out.
Pull out this lower thread.
3Align the upper thread and lower thread,
and thread through the groove of the
presser foot.
Pull back about 15 cm.
Hold the end of the thread, turn the
handwheel towards yourself for one
full turn, and stop when the needle is
at its highest position.
Note: Always turn the handwheel towards yourself (in the direction of
the arrow). If you turn it in the wrong direction it could tangle the
thread.
Note: If the thread is tight the lower thread will not come out, so hold the
thread loosely.
Upper thread Lower thread
15cm
Sewing preparations
Handwheel

20
• Application of each stitch pattern
Buttonhole
Straight stitch
Sewing-seams
Zipper insertion
Zigzag
Applique
Overcasting
Mending stitch
Thin fabric overcasting
Scallop stitch
Castle stitch
Thin fabric straight stitch
Blind hem stitch
Decorative stitch
Fagotting
Decorative stitch
Serpentine
Caution
Turn the handwheel towards yourself to raise the
needle in the highest position.
Turn the pattern selection dial to choose the pattern.
Don’t turn the pattern selection dial
while operating the sewing machine.
Doing so could cause an injury.
Sewing preparations
Pattern selection dial
