Trane TUD2B060AFV32A User manual

Upflow/Horizontal 80%
2-Stage, Variable Speed
Gas-Fired Furnace with
Whole House Air Cleaner
PUB. NO. 22-1802-03
XV80i
TUD2B060AFV32A, TUD2B080AFV32A,
TUD2C080AFV42A, TUD2B100AFV32A,
TUD2D120AFV52A
© 2009 Trane All Rights Reserved

2
PUB. NO. 22-1802-03
WHOLE HOUSE AIR CLEANER
The Whole House Air Cleaner uses
advanced technology to remove up to
99.98% of allergens from the filtered
air and removes particles down to .3
microns in size. Cleaning intervals of
1-3 months are typical, depending on
the home environment.
NATURAL GAS MODELS
Central Heating furnace designs are
certified by the American Gas
Association for both natural and L.P.
gas. Limit setting and rating data
were established and approved under
standard rating conditions using
American National Standards
Institute standards.
SAFE OPERATION
The Integrated System Control has
solid state devices, which continuously
monitor for presence of flame, when
the system is in the heating mode of
operation. Dual solenoid combination
gas valve and regulator provide extra
safety.
QUICK HEATING
Durable, cycle tested, heavy gauge
aluminized steel heat exchanger
quickly transfers heat to provide warm
conditioned air to the structure. Low
energy power vent blower, to increase
efficiency and provide a positive
discharge of gas fumes to the outside.
BURNERS
Multiport In-shot burners will give
years of quiet and efficient service. All
models can be converted to L.P. gas.
INTEGRATED SYSTEM CONTROL
Exclusively designed operational
program provides total control of
furnace limit sensors, blowers, gas
valve, flame control and includes self
diagnostics for ease of service. Also
contains connection points for
humidifier.
AIR DELIVERY
The variable speed, direct drive
blower motor, has sufficient airflow
for most heating and cooling
requirements, will switch from
heating to cooling speeds on demand
from room thermostat. The blower
door safety switch will prevent or
terminate furnace operation when the
blower door is removed.
STYLING
Heavy gauge steel and “wrap-around”
cabinet construction is used in the
cabinet with baked-on enamel finish
for strength and beauty. The heat
exchanger section of the cabinet is
completely lined with foil faced
fiberglass insulation. This results in
quiet and efficient operation due to
the excellent acoustical and
insulating qualities of fiberglass.
Built-in bottom pan and bottom
return air connection.
FEATURES AND GENERAL
OPERATION
The XV80i High Efficiency Gas
Furnaces employ a Hot Surface
Ignition system, which eliminates the
waste of a constant burning pilot.
The integrated system control lights
the main burners upon a demand for
heat from the room thermostat.
Complete front service access.
a. Low energy power venter
b. Vent proving pressure switch.
Features Summary

3
PUB. NO. 22-1802-03
Feature Summary
Features and Benefits
Standard Equipment
Optional Equipment
General Data
TUD2B060AFV32A
TUD2B080AFV32A
TUD2C080AFV42A
TUD2B100AFV42A
TUD2D120AFV52A
Performance Data
Electric Data

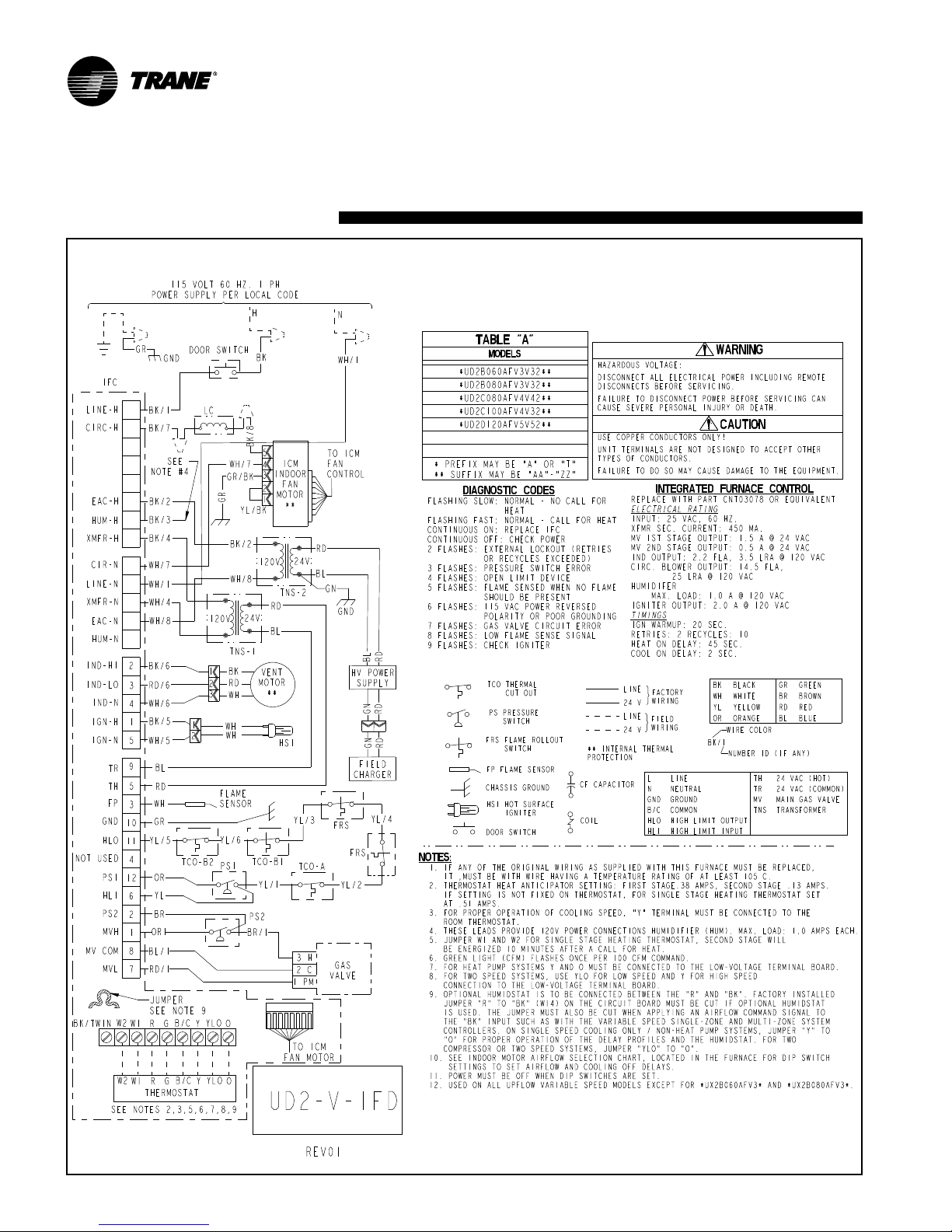

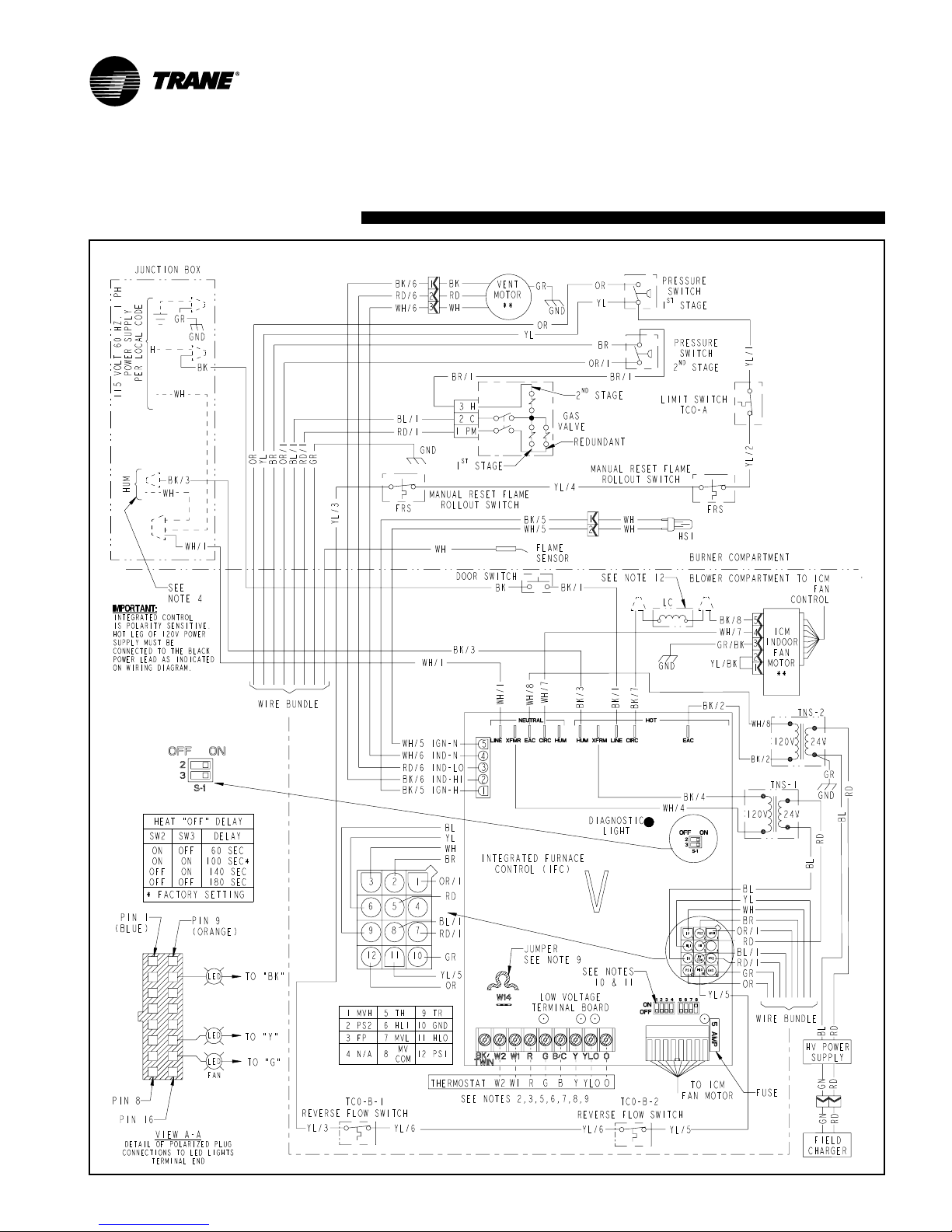

Field Wiring Diagrams
Dimensions
Contents
22
22
2
44
44
4
66
66
6
88
88
8
1313
1313
13
1515
1515
15
2020
2020
20

4
PUB. NO. 22-1802-03
Features
and Benefits
XV80i STANDARD EQUIPMENT
•Whole House Air Cleaner
•Upflow/Horizontal
•Power supply 115/1/60
•2-stage gas valve
•2-speed venter
•Variable speed ECM blower motor
•Silicon Nitride hot surface igniter with
adaptive heat up
•Integrated solid state control
•Attractive color accents
•Heavy gauge aluminized steel heat
exchanger
•Multi-port In-shot burners
•Complete front service access
•Alternate bottom/left/right return air
•Slide out blower assembly
•Hinged blower door
•Perfect fit door catches
•Insulated bower door
•Gasketed blower door
•Two tone color
•Integrated solid state control with
self-diagnostics
•Common vent capability
•Optional L.P. conversion kit
•Left/right gas connection
•Accessory hook-up capability
•Selectable cooling fan off delay elimi-
nates need for BAY24X045time delay
kit
•Enhanced cooling control

5PUB. NO. 22-1802-03
Features
and Benefits
Thermostat, Mechanical 2-Stage Heating/ 1-Stage Cooling ............................................................................... TAYSTAT241 [ ]
Thermostat, Mechanical Heating Only With Fan Switch .................................................................................. BAYSTAT303 [ ]
Thermostat, Mechanical Heating Only ............................................................................................................... BAYSTAT388 [ ]
Thermostat, Heating/Cooling Single Stage (Mounts Horizontally) ........................................................................ AY28X092 [ ]
Thermostat, Electronic Non-programmable 1-Stage Heating/1-Stage Cooling .......................................... BAYSTAT370 [ ]
Thermostat, Electronic Programmable (5-2) 1-Stage Heating/1-Stage Cooling ............................................... BAYSTAT340 [ ]
Thermostat, Heating/Cooling Single Stage (Mounts Vertically) ........................................................................ BAYSTAT305 [ ]
Thermostat, Electronic Programmable 2-Stage Heating/2-Stage Cooling ..................................................... TAYSTAT302C [ ]
Thermostat, Electronic Programmable 1-Stage Heating/1-Stage Cooling ..................................................... TAYSTAT300C [ ]
Propane Conversion Kit .................................................................................................................................... BAYLPKT210A [ ]
Coil Enclosure (17-1/2” Wide Cabinets) ............................................................................................................. BAYCLE1700 [ ]
Coil Enclosure (21” Wide Cabinets) ................................................................................................................... BAYCLE2100 [ ]
Coil Enclosure (24-1/2” Wide Cabinets) ............................................................................................................. BAYCLE2400 [ ]
High Altitude Switch ........................................................................................................................................... BAYHALT249 [ ]
Masonry Chimney Vent Kit .............................................................................................................................. BAYVENT800B [ ]
XV80i OPTIONAL EQUIPMENT

6
PUB. NO. 22-1802-03
General
Data
Product Specifications 1
MODEL
TYPE
RATINGS 2
1st Stage Input BTUH
1st Stage Capacity BTUH (ICS) 3
2nd Stage Input BTUH
2nd Stage Capacity BTUH (ICS)
3
Temp. rise (Min.-Max.) °F.
BLOWER DRIVE
Diameter - Width (In.)
No. Used
Speeds (No.)
CFM vs. in. w.g.
Motor HP
R.P.M.
Volts / Ph / Hz
COMBUSTION FAN — Type
Drive - No. Speeds
Motor HP - RPM
Volts / Ph / Hz
FLA
FILTER — Furnished?
Type
Max. Indoor Relative Humidity 5
VENT — Size (In.)
HEAT EXCHANGER
Type -Fired
-Unfired
Gauge (Fired)
ORIFICES — Main
Nat. Gas. Qty. — Drill Size
L.P. Gas Qty. — Drill Size
GAS VALVE
PILOT SAFETY DEVICE
Type
BURNERS — Type
Number
POWER CONN. — V / Ph / Hz 4
Ampacity (In Amps)
Max. Overcurrent Protection (Amps)
PIPE CONN. SIZE (In.)
DIMENSIONS
Crated (In.)
Uncrated (In.)
WEIGHT
Shipping (Lbs.) / Net (Lbs.)
*UD2B060AFV32A
Upflow / Horizontal
39,000
31,200
60,000
48,000
30 - 60
Direct
10 x 7
1
Variable
See Airflow Table
1/2
Variable
115/1/60
Centrifugal
Direct - 2
1/100 - 2543/1727
115/1/60
0.70/0.40
Yes
Whole House Air Cleaner
65%
4 Round
Alum. Steel - Type 1
20
3 — 45
3 — 56
Redundant - Two Stage
Hot Surface Ignition
Multi-port In-shot
3
115/1/60
10.5
15
1/2
H x W x D
41-3/4 x 19-1/2 x 30-1/2
40 x 17-1/2 x 28-1/2
136 / 126
*UD2B080AFV32A
Upflow / Horizontal
52,000
41,600
80,000
64,000
30 - 60
Direct
10 x 7
1
Variable
See Airflow Table
1/2
Variable
115/1/60
Centrifugal
Direct - 2
1/100 - 2543/1727
115/1/60
0.70/0.40
Yes
Whole House Air Cleaner
65%
4 Round
Alum. Steel - Type 1
20
4 — 45
4 — 56
Redundant - Two Stage
Hot Surface Ignition
Multi-port In-shot
4
115/1/60
10.5
15
1/2
H x W x D
41-3/4 x 19-1/2 x 30-1/2
40 x 17-1/2 x 28-1/2
142 / 132
*UD2C080AFV42A
Upflow / Horizontal
52,000
41,600
80,000
64,000
30 - 60
Direct
10 x 10
1
Variable
See Airflow Table
3/4
Variable
115/1/60
Centrifugal
Direct - 2
1/100 - 2543/1727
115/1/60
0.70/0.40
Yes
Whole House Air Cleaner
65%
4 Round
Alum. Steel - Type 1
20
4 — 45
4 — 56
Redundant - Two Stage
Hot Surface Ignition
Multi-port In-shot
4
115/1/60
12.9
20
1/2
H x W x D
41-3/4 x 23 x 30-1/2
40 x 21 x 28-1/2
166 / 155
1Central Furnace heating designs are certified by AGA and CSA.
2For U.S. applications, above input ratings (BTUH) are up to 2,000 feet, derate 4% per 1,000 feet for elevations above 2,000 feet above sea level. For Canadian applications, above input
ratings (BTUH) are up to 4,500 feet, derate 4% per 1,000 feet for elevations above 4,500 feet above sea level.
3Based on U.S. government standard tests.
4The above wiring specifications are in accordance with National Electrical Code; however, installations must comply with local codes.
5The FIELD CHARGER may require more frequent cleaning in homes with high indoor relative humidity (greater than 65% RH). Consult your service professional about cleaning
intervals.

7PUB. NO. 22-1802-03
General
Data
Product Specifications 1
MODEL
TYPE
RATINGS 2
1st Stage Input BTUH
1st Stage Capacity BTUH (ICS) 3
2nd Stage Input BTUH
2nd Stage Capacity BTUH (ICS) 3
Temp. rise (Min.-Max.) °F.
BLOWER DRIVE
Diameter - Width (In.)
No. Used
Speeds (No.)
CFM vs. in. w.g.
Motor HP
R.P.M.
Volts / Ph / Hz
COMBUSTION FAN — Type
Drive - No. Speeds
Motor HP - RPM
Volts / Ph / Hz
FLA
FILTER — Furnished?
Type
Max. Indoor Relative Humidity 5
VENT — Size (In.)
HEAT EXCHANGER
Type -Fired
-Unfired
Gauge (Fired)
ORIFICES — Main
Nat. Gas. Qty. — Drill Size
L.P. Gas Qty. — Drill Size
GAS VALVE
PILOT SAFETY DEVICE
Type
BURNERS — Type
Number
POWER CONN. — V / Ph / Hz 4
Ampacity (In Amps)
Max. Overcurrent Protection (Amps)
PIPE CONN. SIZE (In.)
DIMENSIONS
Crated (In.)
Uncrated (In.)
WEIGHT
Shipping (Lbs.) / Net (Lbs.)
*UD2D120AFV52A
Upflow / Horizontal
78,000
62,400
120,000
97,000
35 - 65
Direct
10 x 10
1
Variable
See Airflow Table
1
Variable
115/1/60
Centrifugal
Direct - 2
1/60 - 3090/2225
115/1/60
1.14/0.51
Yes
Whole House Air Cleaner
65%
4 Round
Alum. Steel - Type 1
20
6 — 45
6 — 56
Redundant - Two Stage
Hot Surface Ignition
Multi-port In-shot
6
115/1/60
15.3
20
1/2
H x W x D
41-3/4 x 26-1/2 x 30-1/2
40 x 24-1/2 x 28-1/2
193 / 181
*UD2B100AFV32A
Upflow / Horizontal
65,000
52,000
100,000
80,000
40 - 70
Direct
10 x 7
1
Variable
See Airflow Table
1/2
Variable
115/1/60
Centrifugal
Direct - 2
1/75 - 2708/1868
115/1/60
0.87/0.49
Yes
Whole House Air Cleaner
65%
4 Round
Alum. Steel - Type 1
20
5 — 45
5 — 56
Redundant - Two Stage
Hot Surface Ignition
Multi-port In-shot
5
115/1/60
10.8
15
1/2
H x W x D
41-3/4 x 19-1/2 x 30-1/2
40 x 17-1/2 x 28-1/2
142 / 132
1Central Furnace heating designs are certified by AGA and CSA.
2For U.S. applications, above input ratings (BTUH) are up to 2,000 feet, derate 4% per 1,000 feet for elevations above 2,000 feet above sea level. For Canadian applications, above input
ratings (BTUH) are up to 4,500 feet, derate 4% per 1,000 feet for elevations above 4,500 feet above sea level.
3Based on U.S. government standard tests.
4The above wiring specifications are in accordance with National Electrical Code; however, installations must comply with local codes.
5The FIELD CHARGER may require more frequent cleaning in homes with high indoor relative humidity (greater than 65% RH). Consult your service professional about cleaning
intervals.

8
PUB. NO. 22-1802-03
Performance
Data
SW7 SW8 0.1 0.3 0.5 0.7 0.9
CFM 583 590 625 622 620
Temp. Rise 50 49 46 46 47
Watts 60 87 126 157 192
CFM 635 687 701 695 694
Temp. Rise 45 42 41 42 42
Watts 69 110 148 183 221
CFM 746 778 803 819 823
Temp. Rise 39 37 36 35 35
Watts 97 140 185 230 272
CFM 779 816 848 866 874
Temp. Rise 57 54 52 51 51
Watts 104 152 201 255 302
CFM 872 939 964 976 985
Temp. Rise 51 47 46 46 45
Watts 136 203 264 312 365
CFM 1069 1102 1102 1110 1078
Temp. Rise 42 40 40 40 41
Watts 227 293 345 403 429
High
Heating
Heating
1st Stage
Heating
2nd
Stage
ON
ON
*UD2B060AFV32A Furnace Heating Airflow (CFM) and Power (watts) vs. External Static Pressure With Filter
Airflow
Setting
Dip Switch Setting External Static Pressure
ON
OFF
OFF
OFF
Low
Medium**
Low
Medium**
High
ON
ON
ON
OFF
OFF
OFF
SW1 SW2 SW3 SW4 0.1 0.3 0.5 0.7 0.9
CFM 517 535 538 546 542
Watts 49 76 105 141 171
CFM 587 594 629 622 618
Watts 61 89 129 159 196
CFM 642 677 705 701 696
Watts 73 109 151 185 222
CFM 676 705 729 736 738
Watts 79 118 159 198 240
CFM 776 814 833 863 867
Watts 103 150 200 251 298
CFM 870 928 961 974 975
Watts 137 198 259 316 361
CFM 831 883 915 935 941
Watts 122 182 238 292 345
CFM 1023 1052 1055 1061 1048
Watts 203 266 316 370 413
CFM 1156 1174 1188 1196 1085
Watts 280 351 415 482 442
CFM 1063 1094 1090 1100 1070
Watts 226 290 344 397 430
CFM 1214 1241 1263 1234 1123
Watts 320 395 476 514 469
CFM 1399 1409 1377 1278 1164
Watts 486 575 604 559 507
Notes:
1. * First letter may be "A" or "T".
2. ** Factory setting.
3. Continuous Fan Setting: Heating or cooling airflow is approximately 50% of selected cooling value.
4. For variable speed low speed airflows are approximately 30% of listed values.
5. LOW 350 cfm/ton is recommended for variable speed application for COMFORT & HUMID CLIMATE setting; NORMAL is 400 cfm/ton;
HIGH 450 cfm/ton is for DRY CLIMATE setting.
OFF
Low (350
CFM/Ton) ON
OFF
High (450
CFM/ton)
Cooling
*UD2B060AFV32A Furnace Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure With Filter
Unit
Outdoor
Airflow
Setting
Dip Switch Setting External Static Pressure
1.5
OFF ON
Normal (400
CFM/ton)
ON
ON
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
ON
ON ON
ON
ONOFFON
ON
OFF
OFF ON
OFF
OFFONON
ON OFF
OFF
OFF
OFF
ON
OFFOFF
OFF
OFF
OFFONOFF
3** OFF OFF
High (450
CFM/ton)
ONOFFOFF
2
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
2.5
Low (350
CFM/Ton)
Normal**
(400

9PUB. NO. 22-1802-03
Performance
Data
SW7 SW8 0.1 0.3 0.5 0.7 0.9
CFM 846 852 836 811 810
Temp. Rise 46 45 46 48 48
Watts 127 167 200 229 270
CFM 969 956 936 915 897
Temp. Rise 40 40 41 42 43
Watts 182 218 251 283 317
CFM 1126 1116 1108 1095 1074
Temp. Rise 34 35 35 35 36
Watts 270 316 361 404 441
CFM 1216 1205 1189 1169 1111
Temp. Rise 49 49 50 51 53
Watts 333 383 429 468 473
CFM 1362 1347 1324 1254 1145
Temp. Rise 44 44 45 47 52
Watts 468 518 559 550 500
CFM 1474 1419 1370 1258 1148
Temp. Rise 40 42 43 47 52
Watts 590 601 609 558 506
Heating
Heating
1st Stage
Heating
2nd
Stage
ON
OFF
OFF
OFF
Medium** ON
High OFF
*UD2B080AFV32A Furnace Heating Airflow (CFM) and Power (watts) vs. External Static Pressure With Filter
Airflow
Setting
Dip Switch Setting External Static Pressure
Low
Medium**
Low
ON
ON
ON
OFFHigh
ON
OFF
SW1 SW2 SW3 SW4 0.1 0.3 0.5 0.7 0.9
CFM 934 926 913 889 863
Watts 162 201 236 267 296
CFM 1063 1051 1042 1029 1008
Watts 228 272 315 356 394
CFM 1220 1212 1199 1179 1119
Watts 334 386 433 471 475
CFM 1131 1122 1111 1101 1083
Watts 269 317 361 405 442
CFM 1310 1295 1273 1246 1136
Watts 405 457 498 535 490
CFM 1458 1420 1369 1266 1154
Watts 569 599 606 561 506
CFM 1329 1310 1287 1253 1142
Watts 424 472 516 542 493
CFM 1475 1422 1369 1272 1158
Watts 585 596 605 563 510
CFM 1473 1421 1367 1269 1152
Watts 585 595 605 558 505
Notes: rpm 1192 1239 1285 1303 1315
1. * First letter may be "A" or "T".
2. ** Factory setting.
3. Continuous Fan Setting: Heating or cooling airflow is approximately 50% of selected cooling value.
4. For variable speed low speed airflows are approximately 30% of listed values.
5. LOW 350 cfm/ton is recommended for variable speed application for COMFORT & HUMID CLIMATE setting; NORMAL is 400 cfm/ton;
HIGH 450 cfm/ton is for DRY CLIMATE setting.
ON OFF
OFF ON
Normal (400
CFM/ton)
OFF ON OFF OFF
Cooling
*UD2B080AFV32A Furnace Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure With Filter
Unit
Outdoor
Airflow
Setting
Dip Switch Setting External Static Pressure
2.5
High (450
CFM/ton)
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
Low (350
CFM/Ton)
Normal (400
CFM/ton)
OFF
3.5**
3
ON
OFFOFFOFF
OFF OFF
OFF
ONOFFOFF
OFF ON
OFF
OFFONOFF
ON
OFF
OFF ON
High (450
CFM/ton)
Low (350
CFM/Ton)
OFF
OFF
ON
ON
ON
OFF
OFF

10
PUB. NO. 22-1802-03
Performance
Data
SW7 SW8 0.1 0.3 0.5 0.7 0.9
CFM 745 758 758 761 735
Temp. Rise 52 51 51 51 52
Watts 68 111 153 197 231
CFM 839 864 851 851 822
Temp. Rise 46 45 45 45 47
Watts 87 134 181 224 263
CFM 934 961 943 941 933
Temp. Rise 41 40 41 41 41
Watts 110 164 211 263 310
CFM 1064 1077 1085 1086 1077
Temp. Rise 56 55 55 55 55
Watts 152 205 262 325 379
CFM 1197 1226 1241 1230 1229
Temp. Rise 50 48 48 48 48
Watts 201 271 338 395 462
CFM 1345 1375 1376 1371 1320
Temp. Rise 44 43 43 43 45
Watts 272 348 418 480 517
High OFF
Medium** ON
ON
*UD2C080AFV42A Furnace Heating Airflow (CFM) and Power (watts) vs. External Static Pressure With Filter
Airflow
Setting
Dip Switch Setting External Static Pressure
Low
High
Low
Medium**
ON
ON
Heating
Heating
1st Stage
Heating
2nd
Stage
OFF
OFF
ON ON
OFF
OFF
OFF
SW1 SW2 SW3 SW4 0.1 0.3 0.5 0.7 0.9
CFM 840 862 850 846 824
Watts 87 135 182 223 264
CFM 962 977 974 973 965
Watts 118 167 221 276 320
CFM 1076 1095 1104 1102 1096
Watts 153 212 271 331 390
CFM 1004 1018 1016 1019 1007
Watts 130 183 236 297 343
CFM 1143 1176 1187 1184 1180
Watts 180 267 311 368 436
CFM 1303 1334 1337 1334 1296
Watts 252 326 394 456 502
CFM 1167 1193 1208 1196 1193
Watts 190 255 321 378 443
CFM 1356 1378 1383 1358 1321
Watts 279 355 424 473 518
CFM 1521 1528 1537 1537 1344
Watts 379 545 534 606 556
CFM 1351 1376 1377 1364 1312
Watts 275 357 422 467 515
CFM 1537 1548 1561 1534 1347
Watts 392 468 552 606 538
CFM 1738 1755 1735 1568 1382
Watts 543 652 708 635 563
Notes:
1. * First letter may be "A" or "T".
2. ** Factory setting.
3. Continuous Fan Setting: Heating or cooling airflow is approximately 50% of selected cooling value.
4. For variable speed low speed airflows are approximately 30% of listed values.
5. LOW 350 cfm/ton is recommended for variable speed application for COMFORT & HUMID CLIMATE setting; NORMAL is 400 cfm/ton;
HIGH 450 cfm/ton is for DRY CLIMATE setting.
OFF
OFF
ON
OFF
ON
ON
ON
ON
ON
*UD2C080AFV42A Furnace Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure With Filter
Dip Switch Setting External Static Pressure
OFF
ONOFFON
ON ON
OFF
OFFONON
ON
OFFOFFON
ON OFF
OFF
ONOFFOFF
OFF
OFFONOFF
ON
OFFOFF
OFF OFF ON
OFFOFF4**
3.5
3
2.5
OFF OFF OFF
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
OFF OFF
ON OFF
Airflow
Setting
Normal (400
CFM/ton)
High (450
CFM/ton)
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
Cooling
Unit
Outdoor
Low (350
CFM/Ton)
Normal**
(400
High (450
CFM/ton)
Low (350
CFM/Ton)

11 PUB. NO. 22-1802-03
Performance
Data
SW7 SW8 0.1 0.3 0.5 0.7 0.9
CFM 764 795 832 852 848
Temp. Rise 63 61 58 56 57
Watts 103 147 195 242 280
CFM 875 938 963 974 959
Temp. Rise 55 60 58 57 58
Watts 139 200 259 305 344
CFM 984 1029 1040 1039 980
Temp. Rise 49 47 46 46 49
Watts 185 253 304 347 357
CFM 1118 1138 1157 1125 1018
Temp. Rise 66 65 64 66 73
Watts 262 326 390 417 383
CFM 1310 1335 1277 1192 1097
Temp. Rise 57 55 58 62 68
Watts 411 498 498 472 441
CFM 1413 1399 1322 1233 1148
Temp. Rise 52 53 56 60 65
Watts 512 566 541 514 484
OFF
OFF
OFF
OFF
Heating
Heating
1st Stage
Heating
2nd
Stage
OFF
OFF
ON ON
ONLow
High
Low
Medium**
ON
ON
High
Medium** ON
*UD2B100AFV32A Furnace Heating Airflow (CFM) and Power (watts) vs. External Static Pressure With Filter
Airflow
Setting
Dip Switch Setting External Static Pressure
SW1 SW2 SW3 SW4 0.1 0.3 0.5 0.7 0.9
CFM 538 556 574 579 570
Watts 54 80 113 145 176
CFM 598 626 654 647 647
Watts 64 94 131 162 200
CFM 657 706 713 724 730
Watts 75 116 151 187 227
CFM 688 729 745 753 763
Watts 81 124 161 199 238
CFM 785 831 859 872 881
Watts 109 157 207 253 294
CFM 887 939 964 977 954
Watts 146 206 260 309 343
CFM 848 907 934 946 946
Watts 133 188 245 289 334
CFM 1018 1044 1055 1065 983
Watts 206 262 319 370 357
CFM 1139 1160 1184 1122 1020
Watts 274 344 411 417 386
CFM 1071 1089 1105 1108 1003
Watts 231 290 346 399 368
CFM 1208 1246 1249 1153 1060
Watts 323 411 469 441 410
CFM 1387 1383 1295 1221 1124
Watts 482 546 517 499 467
Notes:
1. * First letter may be "A" or "T".
2. ** Factory setting.
3. Continuous Fan Setting: Heating or cooling airflow is approximately 50% of selected cooling value.
4. For variable speed low speed airflows are approximately 30% of listed values.
5. LOW 350 cfm/ton is recommended for variable speed application for COMFORT & HUMID CLIMATE setting; NORMAL is 400 cfm/ton;
HIGH 450 cfm/ton is for DRY CLIMATE setting.
Cooling
Unit
Outdoor
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
Low (350
CFM/Ton)
Airflow
Setting
Normal (400
CFM/ton)
High (450
CFM/ton)
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
OFF OFF OFF
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
OFF OFF
ON OFF
3.0**
2.5
2
1.5
OFF
OFF OFF ON
OFFOFF
OFF
ONOFFOFF
OFF
OFFONOFF
ON
OFF
ON
OFFOFFON
ON OFF
OFF
ONOFFON
ON ON
OFF
OFFONON
*UD2B100AFV32A Furnace Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure With Filter
Dip Switch Setting External Static Pressure
ON
ON
ON
OFF
OFF
ON
OFF
ON
ON

12
PUB. NO. 22-1802-03
Performance
Data
SW7 SW8 0.1 0.3 0.5 0.7 0.9
CFM 1003 1039 1062 1033 1034
Temp. Rise 58 56 54 56 56
Watts 125 182 246 309 356
CFM 1137 1193 1185 1197 1185
Temp. Rise 51 48 49 48 49
Watts 170 239 293 370 446
CFM 1262 1290 1327 1344 1331
Temp. Rise 46 45 44 43 43
Watts 218 286 366 440 534
CFM 1415 1454 1476 1500 1421
Temp. Rise 63 61 60 59 63
Watts 297 378 453 534 561
CFM 1645 1672 1701 1659 1456
Temp. Rise 54 53 52 54 61
Watts 435 539 632 671 580
CFM 1834 1857 1837 1686 1506
Temp. Rise 48 48 48 53 59
Watts 608 705 778 699 630
OFF
Medium** ON
Airflow
Setting
Dip Switch Setting External Static Pressure
Low
High
Low
Medium**
ON
ON
ON
High
Heating
Heating
1st Stage
Heating
2nd
Stage
OFF
OFF
ON ON
OFF
*UD2D120AFV52A Furnace Heating Airflow (CFM) and Power (watts) vs. External Static Pressure With Filter
OFF
OFF
SW1 SW2 SW3 SW4 0.1 0.3 0.5 0.7 0.9
CFM 1141 1197 1205 1196 1188
Watts 170 246 299 369 443
CFM 1325 1374 1403 1434 1412
Watts 252 332 408 496 567
CFM 1536 1575 1615 1619 1474
Watts 370 464 563 640 605
CFM 1334 1376 1424 1411 1417
Watts 251 330 415 469 562
CFM 1582 1628 1659 1663 1465
Watts 387 491 595 672 595
CFM 1813 1836 1838 1707 1504
Watts 577 684 771 710 620
CFM 1704 1731 1733 1735 1552
Watts 489 589 666 750 663
CFM 1960 1971 1937 1799 1602
Watts 739 841 891 813 700
CFM 2208 2107 1970 1849 1683
Watts 1080 1025 942 863 776
Notes:
1. * First letter may be "A" or "T".
2. ** Factory setting.
3. Continuous Fan Setting: Heating or cooling airflow is approximately 50% of selected cooling value.
4. For variable speed low speed airflows are approximately 30% of listed values.
5. LOW 350 cfm/ton is recommended for variable speed application for COMFORT & HUMID CLIMATE setting; NORMAL is 400 cfm/ton;
HIGH 450 cfm/ton is for DRY CLIMATE setting.
Cooling
ON
ON
OFF
ON
OFF
OFF
OFF
*UD2D120AFV52A Furnace Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure With Filter
External Static Pressure
OFF
ONOFFON
OFF ON
OFF
OFF
OFF
ONON
ON
OFFOFFOFF
OFF OFF
OFFONOFF
5**
OFF OFF
High (450
CFM/ton)
ONOFFOFF
4
3.5
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
ON OFF
Airflow
Setting
Normal (400
CFM/ton)
Low (350
CFM/Ton)
Normal (400
CFM/ton)
High (450
CFM/ton)
Dip Switch Setting
OFF
OFF
Unit
Outdoor
Low (350
CFM/Ton)

13 PUB. NO. 22-1802-03
WIRING DIAGWIRING DIAG
WIRING DIAGWIRING DIAG
WIRING DIAGRAMS FOR GAS FURNACESRAMS FOR GAS FURNACES
RAMS FOR GAS FURNACESRAMS FOR GAS FURNACES
RAMS FOR GAS FURNACES
Electrical
Data

14
PUB. NO. 22-1802-03
SCHEMASCHEMA
SCHEMASCHEMA
SCHEMA
TIC DIAGRAMS FOR GAS FURNACESTIC DIAGRAMS FOR GAS FURNACES
TIC DIAGRAMS FOR GAS FURNACESTIC DIAGRAMS FOR GAS FURNACES
TIC DIAGRAMS FOR GAS FURNACES
Electrical
Data

15 PUB. NO. 22-1802-03
Field
Wiring
1. Be sure power agrees with equipment nameplates.
2. Low voltage (24 volt wiring) to be No. 18 A.W.G. min.
3. Grounding of equipment must comply with local codes.
4. Set thermostat heat anticipator per unit wiring diagram.
5. These leads provide 115V. power for connection of humidifier
MAX. load 1.0 amp.
6. When a single stage heating thermostat without fan switch
is used, no wiring on "G" terminal is used.
7. W1 and W2 must be jumpered together for proper operation.
Second stage heat will begin 10 minutes after first stage.
8. Set dip switches with power off per installation instructions
to set airflow and indoor fan off delays.
9. Continuous fan airflow can be increased by adding this jumper.
10. This wire is only for thermostats requiring connection to
transformer common terminal.
11. Optional humidistat is to be connected between R and BK. Factory installed jumper R
to BK on the circuit board must be cut if optional humidistat is used. The jumper must
also be cut when applying an airflow command signal to the BK input such as with the
variable speed single-zone and multi-zone system controllers. On single speed cooling
only/non-heat pump systems, jumper Y to O for proper operation of the delay profiles
and the humidistat. For two compressor or two speed systems, jumper YLo to O.
W14
SEE
NOTE 10
SEE
NOTE 9
Y1/Ylo
W14 JUMPER
SEE NOTE 11
FIELD ADDED JUMPER
W1 TO W2.
2ND STAGE WILL FIRE
10 MINUTES AFTER 1ST.
From Dwg. B342027 Rev. 0
SEE
NOTE 6
B/C B/C
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5
FIELD WIRING DIAGRAM FOR VARIABLE SPEED 2 STAGE FURNACE
1 STAGE HEATING
USING A 1 STAGE HEATING THERMOSTAT
NO COOLING

16
PUB. NO. 22-1802-03
Field
Wiring
1. Be sure power agrees with equipment nameplates.
2. Low voltage (24 volt wiring) to be No. 18 A.W.G. min.
3. Grounding of equipment must comply with local codes.
4. Set thermostat heat anticipator per unit wiring diagram.
5. These leads provide 115V. power for connection of humidifier
MAX. load 1.0 amp.
6. This wire is only for thermostats requiring connection to
transformer common terminal.
7. Continuous fan airflow can be increased by adding this jumper.
8. Set dip switches with power off per installation instructions
to set airflow and indoor fan off delays.
9. Optional humidistat is to be connected between R and BK. Factory
installed jumper R to BK on the circuit board must be cut if optional
humidistat is used. The jumper must also be cut when applying an airflow
command signal to the BK input such as with the variable speed single-zone
and multi-zone system controllers. On single speed cooling only/non-heat pump
systems, jumper Y to O for proper operation of the delay profiles and the humidistat.
For two compressor or two speed systems, jumper YLo to O.
W14
SEE
NOTE 6
From Dwg. B342025 Rev. 0
Y1/Ylo
W14 JUMPER
SEE NOTE 9
SEE
NOTE 7
B/C B/C
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5
FIELD WIRING DIAGRAM FOR VARIABLE SPEED 2 STAGE FURNACE
2 STAGE HEATING
USING A 2 STAGE HEATING THERMOSTAT
NO COOLING

17 PUB. NO. 22-1802-03
Field
Wiring
W14
OUTDOOR UNIT
(NO TRANSFORMER)
SEE
NOTE 6
SEE
NOTE 7
From drawing B342022 Rv 0
Y1/Ylo
W14 JUMPER
SEE NOTE 9
FIELD ADDED JUMPER
W1 TO W2.
2ND STAGE WILL FIRE
10 MINUTES AFTER 1ST.
B/C
B/C
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5
FIELD WIRING DIAGRAM FOR VARIABLE SPEED 2 STAGE FURNACE
1 STAGE HEATING, 1 STAGE COOLING
USING A 1 STAGE HEATING, 1 STAGE COOLING THERMOSTAT
(OUTDOOR SECTION WITHOUT TRANSFORMER)

18
PUB. NO. 22-1802-03
Field
Wiring
W14
OUTDOOR UNIT
(NO TRANSFORMER)
SEE
NOTE 6
SEE
NOTE 7
Y1/Ylo
SEE
NOTE 9
W14 JUMPER
SEE NOTE 9
From Dwg. B342020 Rev. 0
B/C
B/C
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5
FIELD WIRING DIAGRAM FOR VARIABLE SPEED 2 STAGE FURNACE
2 STAGE HEATING, 1 STAGE COOLING
USING A 2 STAGE HEATING, 1 STAGE COOLING THERMOSTAT
(OUTDOOR SECTION WITHOUT TRANSFORMER)

19 PUB. NO. 22-1802-03
W14
OUTDOOR UNIT NO. 2
(NO TRANSFORMER)
OUTDOOR UNIT NO. 1
(NO TRANSFORMER)
SEE NOTE 3
SEE
NOTE 6
SEE
NOTE 7
From Dwg. B342018 Rev. 0
B/C
B/C
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5
FIELD WIRING DIAGRAM FOR VARIABLE SPEED 2 STAGE FURNACE
2 STAGE HEATING, 2 STAGE COOLING
(OUTDOOR SECTION WITHOUT TRANSFORMER)
Field
Wiring

Dimensions
*UD2 OUTLINE DRAWING
(ALL DIMENSIONS ARE IN INCHES)
MODEL DIM "A" DIM "B" DIM "C" DIM "D" DIM "E"
*UD2B060AFV32A *UD2B080AFV32A *UD2B100AFV32A
17-1/2" 9-5/8" 16-1/4" 16" 16"
*UD2C080AFV42A 21" 13-1/16" 19-3/4" 19-1/2" 19-1/2" *UD2D120AFV52A 24-1/2" 15-5/16" 23-1/4" 23" 23" * PREFIX LETTER MAY BE "A" OR "T"
Bottom Return ONLY
