OWNER’S MANUAL

2
CONTENTS
Page
1. Foreword 1
2. Warning 2
3. Safety Notes 3
4. Specifications 4
5. Periodical Check and Services 5
6. Check Period to Operate 6
7. Operation 10
8. Correct Way of Driving 17
9. Abnormalities and Trouble Shooting 19
10. VIN number and service record 20
11. Assembly Instruction 23
12. Pre-Delivery Inspection 25

3
FOREWORD
May we, the manufacturer, take this opportunity to thank you for choosing our ATV
to serve you.
This Owner’s Manual is prepared for you the details as to operate and maintenance
necessarily to perform in safety. Therefore, we would like you to read the manual before
operate the vehicle.
It is our sincere wish that you enjoy operating the ATV and getting fun from it. should
you have any problems, please feel free to contact our local dealer in your area.

4
WARNING
˙OPERATOR ONLY
This vehicle load limit and seating configuration is designed for operator only.
It is not safe for carrying a passenger.
˙ADULT SUPERVISION AND INSTRUCTION ARE REQUIRED
˙FOR OFF-ROAD USE ONLY
This vehicle is designed and manufactured for off-road use only.
Operation on public streets, roads or highways is illegal.
˙ALWAYS WEAR A HELMET
˙READ THIS OWNER’S MANUAL CAREFULLY
˙DO NOT OPERATE THIS VEHICLE IN THE NIGHT.
IT’S DANGEROUS TO DRIVE ON AN UNCLEAR ROAD CONDITION.
SAFETY NOTES
★Don’t allow your child to ride without your supervision.

5
★This vehicle is for OPERATOR-ONLY, NO PASSENGERS.
★Keep a safety distance between your vehicle and other vehicles.
★This vehicle is designed to be operated only on level, off road surfaces, free of obstacles.
★Both the parent and their children must fully understand everything in this manual before
riding.
★It is illegal to ride this vehicle on public roads or highways. If it is necessary to cross a public
road, please to get off this vehicle and push it across.
★Do not operate this vehicle while under the influence of alcohol or drugs. This can impair
judgement and result in serious injury or even death.

6
SPECIFICATIONS
ENGINE CAPACITY
50 ㏄
90 ㏄
100 ㏄
TYPE
AIR-COOLED，2 STROKE
STARTING
KICK ＆ELECTRIC
LUBRICATION
OIL PUMP SEPARATE SUPPLY
TRANSMISSION
AUTOMATIC (C.V.T.，V-Belt)
SPARK PLUG
NGK BP7HS
BATTERY
12V-4AH
OIL CAPACITY
1 Liter
FUEL TANK
5 Liter
OVERALL LENGTH
1465mm
1525mm
OVERALL WIDTH
875mm
890mm
OVERALL HEIGHT
890mm
930mm
SEAT HEIGHT
700mm
740mm
WHEEL BASE
955 mm
CLAIMED DRY WEIGHT
100 kg
105 kg
BRAKE
FRONT: DOUBLE DRUM; REAR DRUM
SUSPENSION
Oil damped , Front—A-Arm , Rear—Single shock
FRONT TIRE
16×8-7
20×7-8
REAR TIRE
16×8-7
18×9.5-8

7
PERIODICAL CHECK & SERVICES
Maintenance Schedule
The maintenance intervals in the following table are based upon average riding conditions.
Riding in unusually dusty areas, require more frequent servicing.
Time of service
Items
Initial Service
(first week)
Monthly
Quarterly
Yearly
Air cleaner
C
C,I
Petrol filter/Fuel Tube
I
I
Tire pressure/Wear
I
I
Battery
I
Brake tolerance & Steering handle
I
A
Shock absorber
I
Tightness of screws
I
I
Spark plug
C
Replace gearbox oil
I
Lubricating of chassis
C,G
I
Carburetor
I
A
C
Drive chain
I
I,G
C: Clean; A: Adjust; G: Grease; I: Inspection, check, replace if necessary

8
CHECK PRIOR TO OPERATE
Inspect your vehicle every day before you run it. It only takes a few minutes to check and may
save your life.
★Check the tires condition and pressure.
★Check the nuts, bolts and other fasteners.
★Check the drive chain condition and slack.
★Check the engine stop switch for good function.
★Check the throttle for smooth opening and closing.
★Check the fuel level in fuel tank and oil level in oil tank.
★Check the brake operation to see is there any tie-up by brake cables.
★Check the easiness for turning to the left and right of steering handle.
★Check brake lever for effective braking. The free play should be between 1-2 cm
(about 1/2 inch). Try braking soon as you are driving off.

9
CHECK PRIOR TO OPERATE
(1) Check and / or Refill Oil
CAUTIONS ：
(2) Check and refill fuel
CAUTIONS ：
＊Be sure to have sufficient oil, and the cap is installed correctly.
＊Total oil tank capacity：1.0 Liter
＊Prescribed oil: 2-cycle engine oil only, synthetic type is recommended.
＊Use grade SAE 90 for transmission gear oil.
＊Long distance driving would damage or burn out the engine parts if oil is insufficient.
＊
＊
＊Stop the engine for refilling.
＊Use unleaded gasoline with octane level 92 or higher.
＊Turn the gasoline cap clockwise to tight up. Counter clockwise to loose it.
＊Do not over fill the gasoline, it could cause fire when the engine is hot.

10
CHECK PRIOR TO OPERATE
(1) Check tires pressure
＊Check tire pressure if they are normal.
＊Check if there is any gravel in the tread grooves or any nail puncture. If so clean it.
＊Check for any crack or heavy worn-out, then replace it with new ones, if worn-out exceeds the
limit.
＊Detailed tire specification please check the marking on tires.
Tire size: 16x8-7 (50cc), 20x7-8, 18x9.5-8
Recommended tire pressure: 8 psi (0.56 kgf/cm2)
Max. pressure : 10 psi (0.7 kgf/cm2)
Min. pressure : 6 psi (0.42 kgf/cm2)
Tire size: 19x7-8
Recommended tire pressure: 2.2 psi (0.15 kgf/cm2)
Max. pressure : 2.6 psi (0.18kgf/cm2)
Min. pressure : 1.8 psi (0.13kgf/cm2)

11
CHECK PRIOR TO OPERATE

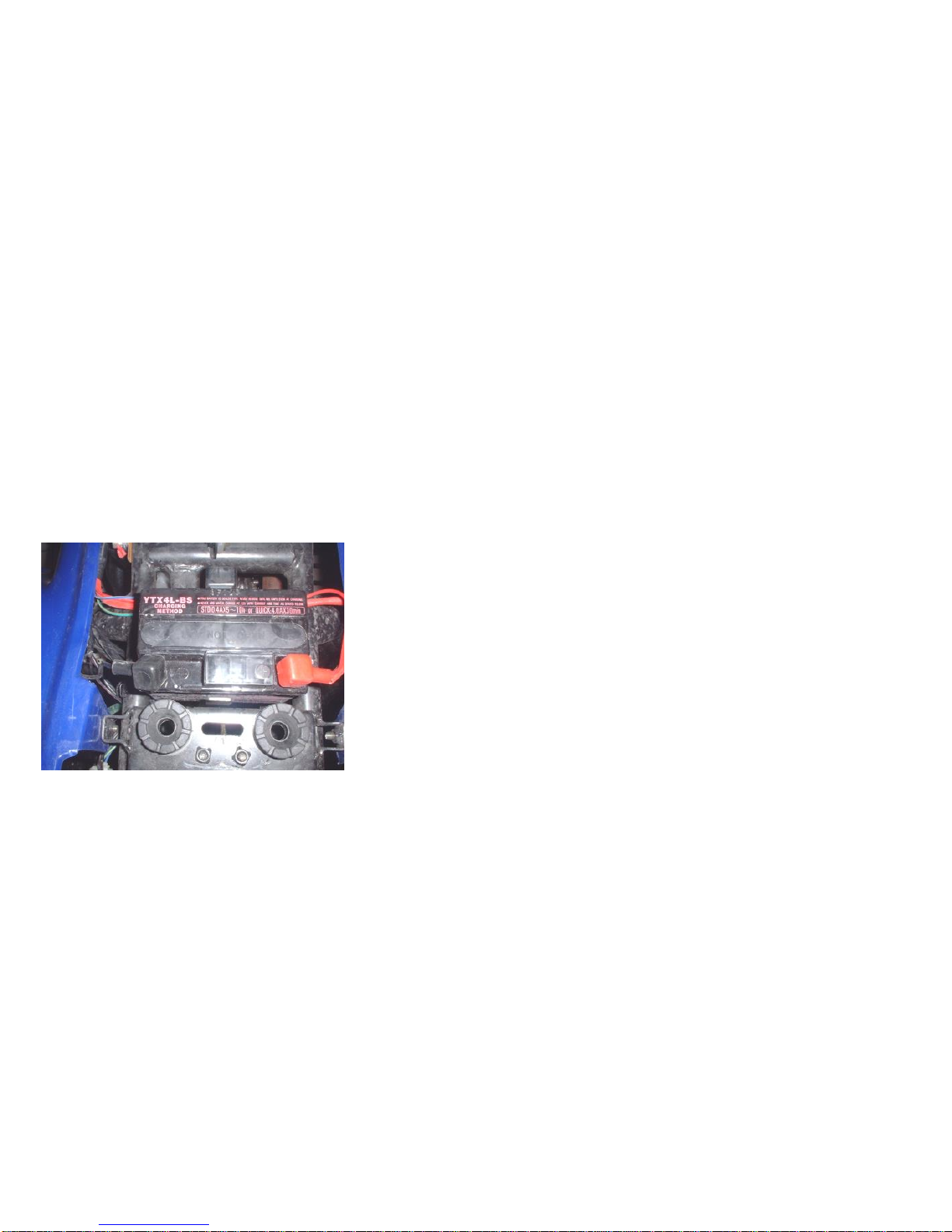

(2) Check battery
＊Open the seat.
＊Remove positive and negative terminals
(negative first).
＊Remove battery and check voltage.
＊Normal voltage：12V and above
＊Keep terminals clean constantly.
＊Charge the battery base on the instruction.
(3) Check front and rear shock absorbers.
＊Apply pressure on both front steering handle and seat to
check the function of front and rear
absorbers.
(4) Check if exhaust is normal.

12
OPERATION

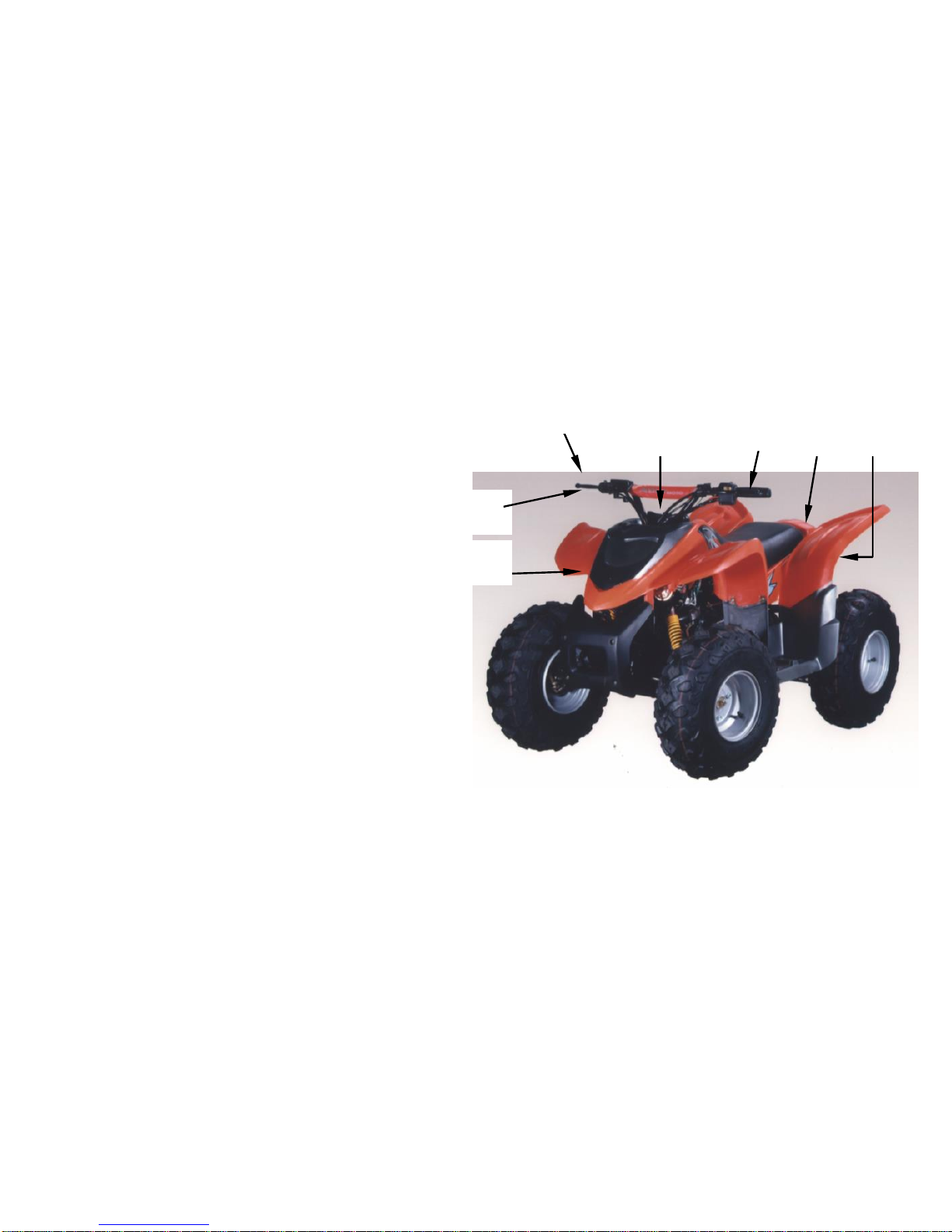

PARTS LOCATIONS
(1) Fuel tank
(2) Throttle lever
(3) Front brake / parking brake lever
(4) Fuel valve
(5) Rear brake / parking brake lever
(6) Safety switch（50cc）
(7) Seat lock
(2)
(3)
(5)
(7)
(6)
(1)
(4)

13
OPERATION
MAIN SWITCH
OFF
＊To turn off the engine.
＊The key can be extracted.
ON
＊To start the engine.
＊The key can not be taken out.
＊To operate the head light.
＊The key can not be taken out.

14
OPERATION
ELECTRIC STARTER

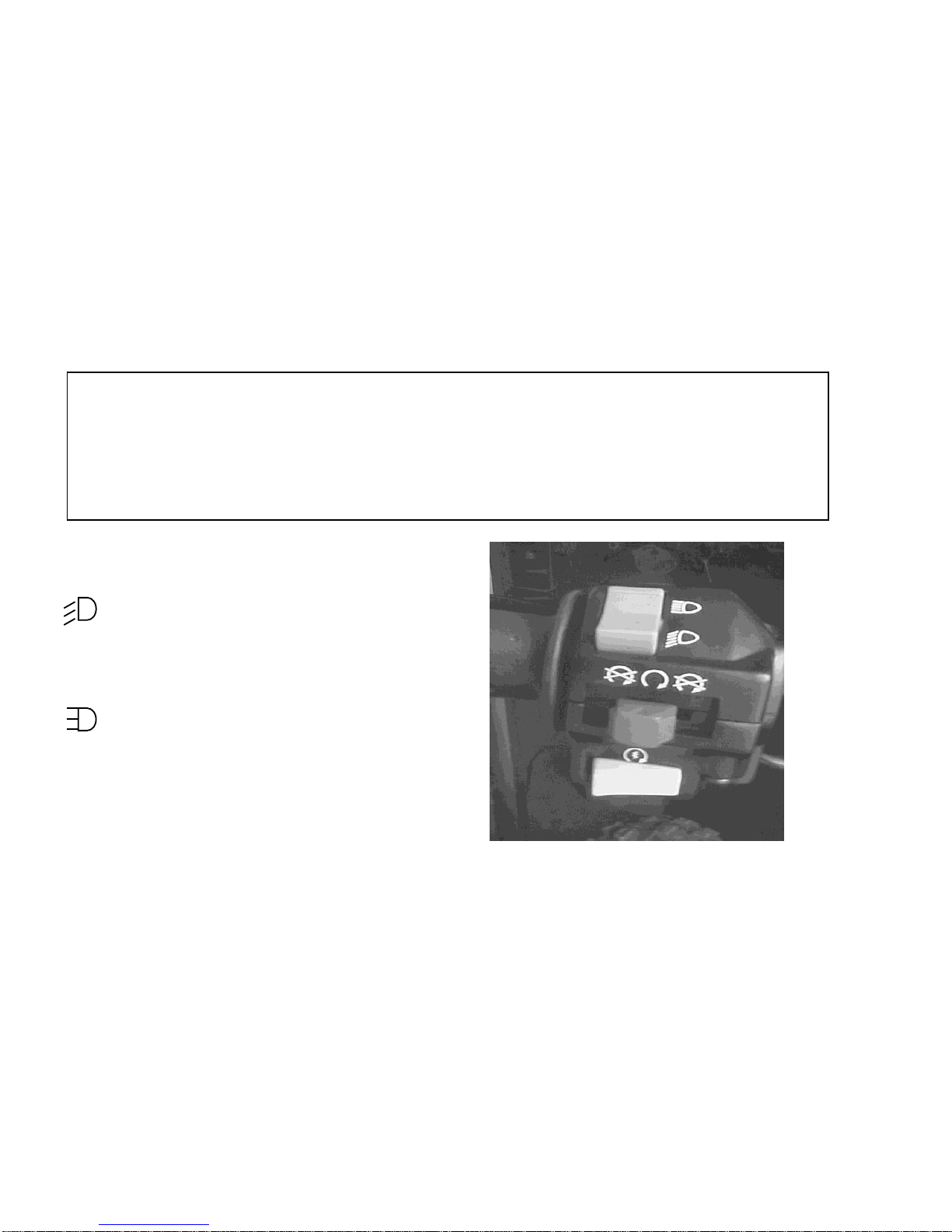

HEADLIGHT BEAM SWITCH
Low beam
＊For normal condition.
High beam
＊For farther lighting.
＊Cranks the engine.
CAUTIONS ：
※Don’t push down again the starter button as the engine is running.
※Don’t press the starter button more than 10 seconds when start up.

15
OPERATION
ENGINE STOPSWITCH
This switch is located on the left handle and
can be used for emergency or safety switch.
RUN
＊Engine can start-up and operate.
STOP
＊The engine will not operate.
SAFETY SWITCH (50CC ONLY)
This switch is located on rear left side of the
chassis. This switch is equipped with a cap
and rope. The cap must attached with this
vehicle and the rope is to tie-up on the
rider’s belt or wrist. This is to protect the
rider’s safety.
Safety witch

16
OPERATION
FRONT/REAR BRAKE AND PARKING BRAKE
1. Pull the front/rear brake lever firmly.
2. Press the lever downward to the fixed brake position.
3. As brake position is fixed, the wheels will stop.
CAUTIONS ：
Brake Release
＊Pull the brake lever tightly, the fixed lever
will bound off.
＊There will be no brake function after brake
lever is released
※Should the rear brake be not properly adjusted, brake may not be functioned;
even though the brake lever is set at its fixed position.

17
OPERATION
ENGINE START-UP& CAUTIONS
＊Check oil and fuel prior to start-up.
1. Turn “Main Switch” on.
2. Start engine
Use of electric starter, throttle lever should be at the “close” state and pull the left brake lever.
Then push the starter button to left or right.
CAUTIONS ：
＊In case the engine will not start after the starter running 3 ~ 4 seconds, push the throttle
lever slightly, then engine should start.
＊Release the starter button immediately after engine start-up.
＊Do not press the button again as engine is running, or parts may be damaged.
＊Start-up the engine at an open area since the exhaust gases from the engine is
poisonous carbon monoxide.

18
OPERATION
＊Try more and more times the kick-starter pedal / lever or push the electric starter. It may be
difficult to start the engine because of the vehicle has not been run for quite a time or fuel is
refilled only at the time of running. As you do as recommended, it would be easy to start the
engine, but throttle lever should stay in the “ CLOSE ” position.
3. Warm-up for several minutes is necessary after a cool engine start-up.

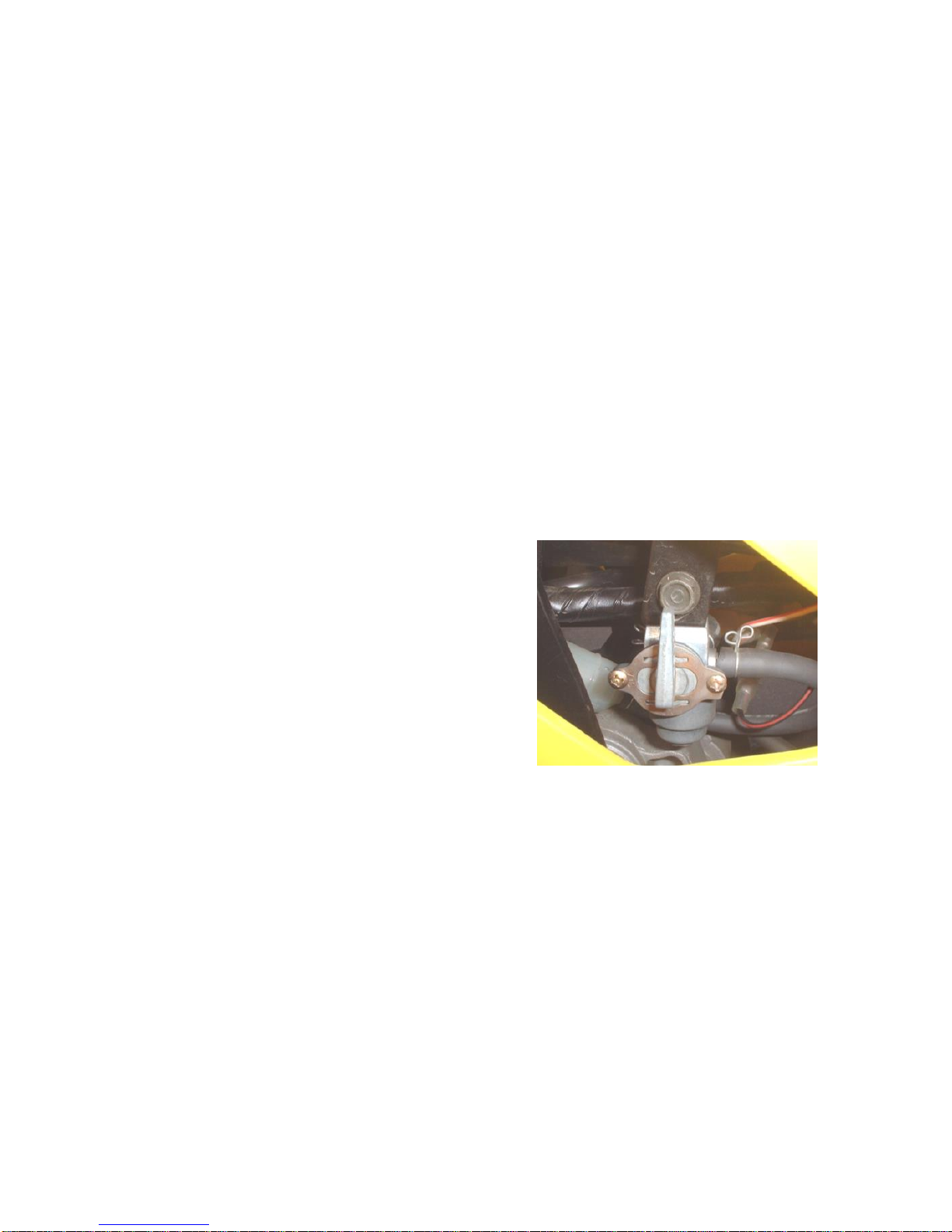

FUELVALVE
＊The fuel valve is located on the right side of
the vehicle.
＊When the arrow mark on the lever pointed at
“ON” position, the fuel is supply under
normal condition.
＊When the arrow is pointed at “OFF”, the
fuel can not supply.
＊When arrow mark pointed at “RES”, please
refill the gasoline as soon as possible.

19
CORRECT WAY OF DRIVING
START OF DRIVING
Press the throttle lever slowly to control your
speed.
＊Acceleration is to increase the speed.
Slowly press the throttle lever while
driving on a slope. It will activate the
engine power.
＊Deceleration is to decrease the speed. Turn
off the accelerator backward will do.
＊Because the rear wheel does not provide
differing rate of wheel rotation. The rider
must learn to move his weight and control
the throttle not to thumb over.
Throttle lever

20
CORRECT WAY OF DRIVING
STOPOFTHE VEHICLE
Approaching to the parking point.
＊Release the accelerator and apply both front and rear wheel brakes while the vehicle is stopped.
Complete stop
＊Engine will stop as the main switch turns to “ OFF ” .
＊Don’t park on uneven ground to avoid tipping over.
CAUTIONS ：
BRAKE-IN PROCESS
During the first couple weeks of riding, do not run the vehicle very fast and do not approach
maximum RPM of the engine. The brake-in process will greatly increase the lifetime and long term
power of the engine.
＊Don’t turn the main switch or engine stop switch to “OFF” during operation.
