Universal Tool UT8897RS Manual
FLORIDA-PNEUMATIC.COM
Please contact 1-800-356-3392 for further assistance.
Universal Tool
™
UT8897RS
Rivet Shaver
RIVET SHAVER
General Safety Information & Replacement Parts
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.
TABLE OF CONTENTS
General Safety Information ...........................2
Air Compressor and Air Tool Safety...................2-3
Tool Specifications ..................................3
Installation ........................................4
Maintenance / Lubrication ............................4
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting ....................................6
Warranty ..........................................6

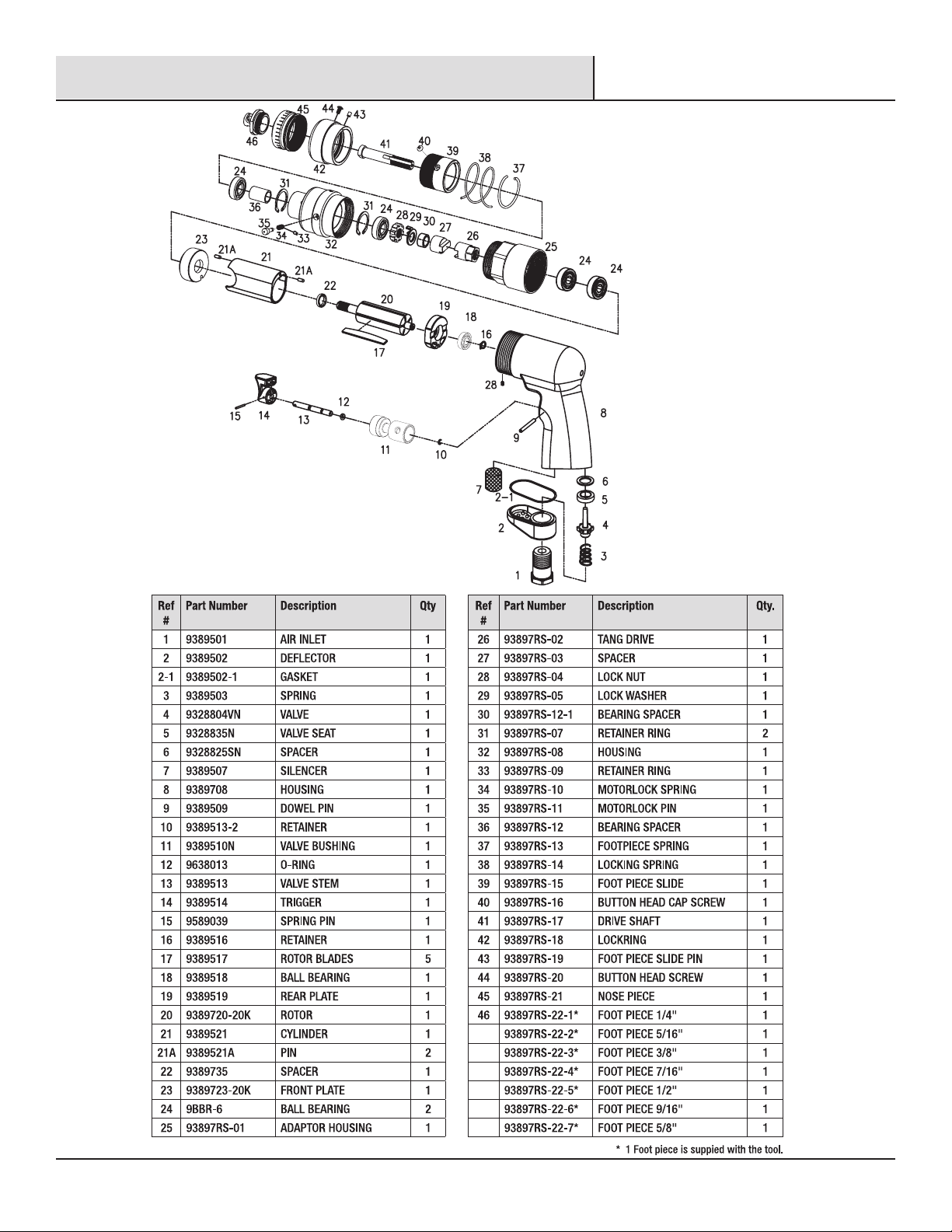

Service Parts.......................................7
WARNING:This product contains chemicals known to
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
WARNING:This product contains lead, a chemical known to
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
Universal Tool a Division of Florida Pneumatic Manufacturing Corporation
851 Jupiter Park Lane, Jupiter FL 33458
7.2.2.3 GENERAL SAFETY RULES
• Multiplehazards.Readandunderstandthesafetyinstructionsbefore
installing,operating,repairing,maintaining,changingaccessorieson,
orworkingnearthepowertool.Failuretodosocanresultinserious
bodilyinjury.
• Onlyqualiedandtrainedoperatorsshouldinstall,adjustorusethe
powertool.
• Donotmodifythispowertool.Modicationsmayreducetheeffec-
tivenessofsafetymeasuresandincreasetheriskstotheoperator.
• Donotdiscardthesafetyinstructions–givethemtotheoperator.
• Donotuseatoolifthetoolhasbeendamaged.
• Warningsshallbegivenagainsttheriskofexplosionorreduetothe
materialbeingprocessed;
• Warningsshallbegivenagainsttheriskofcutting.
7.2.2.4 PROJECTILE HAZARDS
• Failureoftheworkpiece,ofaccessories,orevenofthetoolitselfmay
generatehighvelocityprojectiles.
• Alwayswearimpact-resistanteyeprotectionduringoperationofthe
tool.Thegradeofprotectionrequiredshouldbeassessedforeach
use.
7.2.2.5 ENTANGLEMENT HAZARDS
• Entanglementhazard-choking,scalpingand/orlacerationscanoccur
ifneckware,hairorglovesarenotkeptawayfromtoolandacces-
sories.
7.2.2.6 OPERATING HAZARDS
• Useofthetoolmayexposetheoperator’shandstohazardsincluding
crushing,impacts,cutsandabrasionsandheat.Wearsuitablegloves
toprotecthands.
• Operatorsandmaintenancepersonnelmustbephysicallyableto
handlethebulk,weightandpowerofthetool.
• Holdthetoolcorrectly:bereadytocounteractnormalorsudden
movements–havebothhandsavailable.
• Maintainabalancedbodypositionandsecurefooting.
• Keephandsawayfromrotatingorreciprocationaccessories,spindles
orothermovingparts.
• Releasethestartandstopdeviceinthecaseofaninterruptionofthe
energysupply
• Useonlylubricantsrecommendedbythemanufacturer.
7.2.2.7 REPETITIVE MOTIONS HAZARDS
• Whenusingapowertool,youmayexperiencediscomfortinyour
hands,arms,shoulders,neck,orotherpartsofyourbody.
• Whileusingapowertool,positionyourbodyinacomfortable
posture.Maintainsecurefootingandavoidawkwardoroff-balanced
postures.Changingyourpostureduringextendedtasksmayhelp
avoiddiscomfortandfatigue.
• Ifyouexperiencesymptomssuchaspersistentorrecurringdiscom-
fort,pain,throbbing,aching,tingling,numbness,burningsensation,
orstiffness,donotignorethesewarningsigns.Promptlytellyour
employerandconsultaqualiedhealthprofessional.
7.2.2.8 ACCESSORY HAZARDS
• Onlyusesizesandtypesofaccessoriesandconsumablesthatare
recommendedbythepowertoolmanufacturer.
7.2.2.9 WORKPLACE HAZARDS
• Slips,tripsandfallsaremajorcausesofworkplaceinjury.Beaware
ofslipperysurfacescausedbyuseofthetoolandalsooftriphazards
causedbytheairlineorhydraulichose.
• Proceedwithcareinunfamiliarsurroundings.Hiddenhazardsmay
exist,suchaselectricityorotherutilitylines.
• Thispowertoolisnotintendedforuseinpotentiallyexplosiveatmo-
spheresandisnotinsulatedfromcomingintocontactwithelectric
power.
• Makesuretherearenoelectricalcables,gaspipesetc.thatcould
causeahazardifdamagedbyuseofthetool.
7.2.2.10 DUST AND FUME HAZARDS
• Dustfromsomeworkprocessescancausecancer,birthdefectsor
otherrespiratorydiseases.Riskassessmentofthesehazardsand
implementationofappropriatecontrolsisessential.
• Ifthepneumatictoolisusedinadustlledenvironmentexhaust
aircancauseadusthazard
• Dustsandfumesgeneratedwhenusingpowertoolscancause
illhealth(forexample:cancer,birthdefects,asthmaand/order-
matitis);riskassessmentofthesehazardsandimplementationof
appropriatecontrolsofisessential.
• Riskassessmentshouldincludedustcreatedbytheuseofthetool
andthepotentialfordisturbingexistingdust.
• Operateandmaintainthepowertoolasrecommendedinthese
instructions,tominimizedustorfumeemissions
• Directtheexhaustsoastominimizeddisturbanceofdustinadust
lledenvironment
• Wheredustsorfumesarecreated,thepriorityshallbetocontrol
thematthepointofemission.
• Allintegralfeaturesoraccessoriesforthecollection,extractionor
suppressionofairbornedustorfumesshouldbecorrectlyused
andmaintainedinaccordancewiththemanufacturer’sinstructions.
• Select,maintainandreplacetheconsumable/insertedtoolas
recommendedintheseinstructions,topreventanunnecessary
increaseindustorfumes
• Userespiratoryprotectionasinstructedbyyouremployeroras
requiredbyoccupationalhealthandsafetyregulations;
7.2.2.11 NOISE HAZARDS
• Unprotectedexposuretohighnoiselevelscancausepermanent,
disabling,hearinglossandotherproblemssuchastinnitus(ring-
ing,buzzing,whistlingorhummingintheears);
• Riskassessmentofthesehazardsandimplementationofappropri-
atecontrolsofisessential.
• Appropriatecontrolstoreducetheriskmayincludeactionssuchas
dampingmaterialstopreventworkpiecesfrom‘ringing’
• Usehearingprotectionasinstructedbyyouremployeroras
requiredbyoccupationalhealthandsafetyregulations;
• Operateandmaintainthepowertoolasrecommendedinthese
instructions,topreventanunnecessaryincreaseinnoiselevels;
• Select,maintainandreplacetheconsumable/insertedtoolas
recommendedintheseinstructions,topreventanunnecessary
increaseinnoise.
7.2.2.12 VIBRATION HAZARDS
• Exposuretovibrationcancausedisablingdamagetothenerves
andbloodsupplyofthehandsandarms;
• Wearwarmclothingwhenworkingincoldconditionsandkeep
yourhandswarmanddry;
• Ifyouexperiencenumbness,tingling,painorwhiteningoftheskin
inyourngersorhands,stopusingthepowertool,andtellyour
employer.Youshouldalsoseekmedicaladvicefromaqualied
occupationalhealthprofessional.
• Operateandmaintainthepowertoolasrecommendedinthese
instructions,topreventanunnecessaryincreaseinvibration;
• Select,maintainandreplacetheconsumable/insertedtoolas
recommendedintheseinstructions,topreventanunnecessary
increaseinvibrationlevels;
• Supporttheweightofthetoolinastand,tensionerorbalancer,
becausetheoperatorcanthenusealightergriptosupportthetool.
• Holdthetoolwithalightbutsafegriptakingaccountofthe
requiredhandreactionforces,becausetheriskfromvibrationis
generallygreaterwhenthegripforceishigher.
7.2.3ADDITIONAL SAFETY INSTRUCTIONS FOR PNEUMATIC
POWER TOOLS - AIR SUPPLY & CONNECTION HAZARDS
• Airunderpressurecancausesevereinjury.
• Alwaysshutoffairsupply,drainhoseofairpressureanddiscon-
necttoolfromairsupplywhennotinuse,beforechangingacces-
soriesorwhenmakingrepairs.
• Neverdirectairatyourselforanyoneelse.
• Whippinghosescancausesevereinjury.Alwayscheckfordam-
agedorloosehosesandttings.
• Wheneveruniversaltwistcouplings(clawcouplings)areused,lock
pinsmustbeinstalled.
• Donotexceedthemaximumairpressurestatedonthetool.
• Usewhipchecksafetycablestosafeguardagainstpossiblehoseto
toolandhosetohoseconnectionfailure.
• Nevercarryanairtoolbythehose.
Safety Information
FLORIDA-PNEUMATIC.COM
Please contact 1-800-356-3392 for further assistance.
Safety Information (continued)
AIR COMPRESSOR AND AIR TOOL SAFETY
1. Risk of Bursting. Do not adjust the regulator to result in output
pressure greater than the marked maximum pressure of this air
tool.
2. Ensure the hose is free of obstructions or snags. Entangled or
snarled hoses can cause loss of balance or footing and may
become damaged.
3. Never leave a tool unattended with the air hose attached.
4. Do not operate this tool if it does not contain a legible warning
label.
5. Do not continue to use a tool or hose that leaks air or does not
function properly.
6. Never direct a jet of compressed air toward people or animals.
7. Protect your lungs. Wear a face or dust mask if the operation is
dusty.
WARNING: Some dust created by power sanding, sawing,
grinding, drilling and other construction activities contains
chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
Lead from lead based paint, crystalline silica from bricks
and cement and other masonry products, arsenic and
chromium from chemically-treated lumber.
Your risk from those exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well-ventilated area, and work
with approved safety equipment, such as dust masks that
are specically designed to lter out microscopic particles.
Important Warnings - Rivet Shaver
1. Make sure rivet shaver cutter is fully tightened before operating.
2. Foot piece must be fully tightened before operating rivet shaver.
3. Keep hands away from rotating rivet shaver cutter.
Specications Vibration Level (m/sec2): 2.39 Noise Level (dBA): 88.38
Universal Tool a Division of Florida Pneumatic Manufacturing Corporation
851 Jupiter Park Lane, Jupiter FL 33458
Installation
1 Cleaning the air hose
□A 3/8" air hose is required, with a maximum length of 25 ft.
□Clean the air hose of accumulated dust and moisture
before connecting it to the air supply.
NOTE: If a longer air hose is required, connect a 1/2" air
hose to the 3/8" air hose to ensure the rivet shaver has the
necessary air supply.

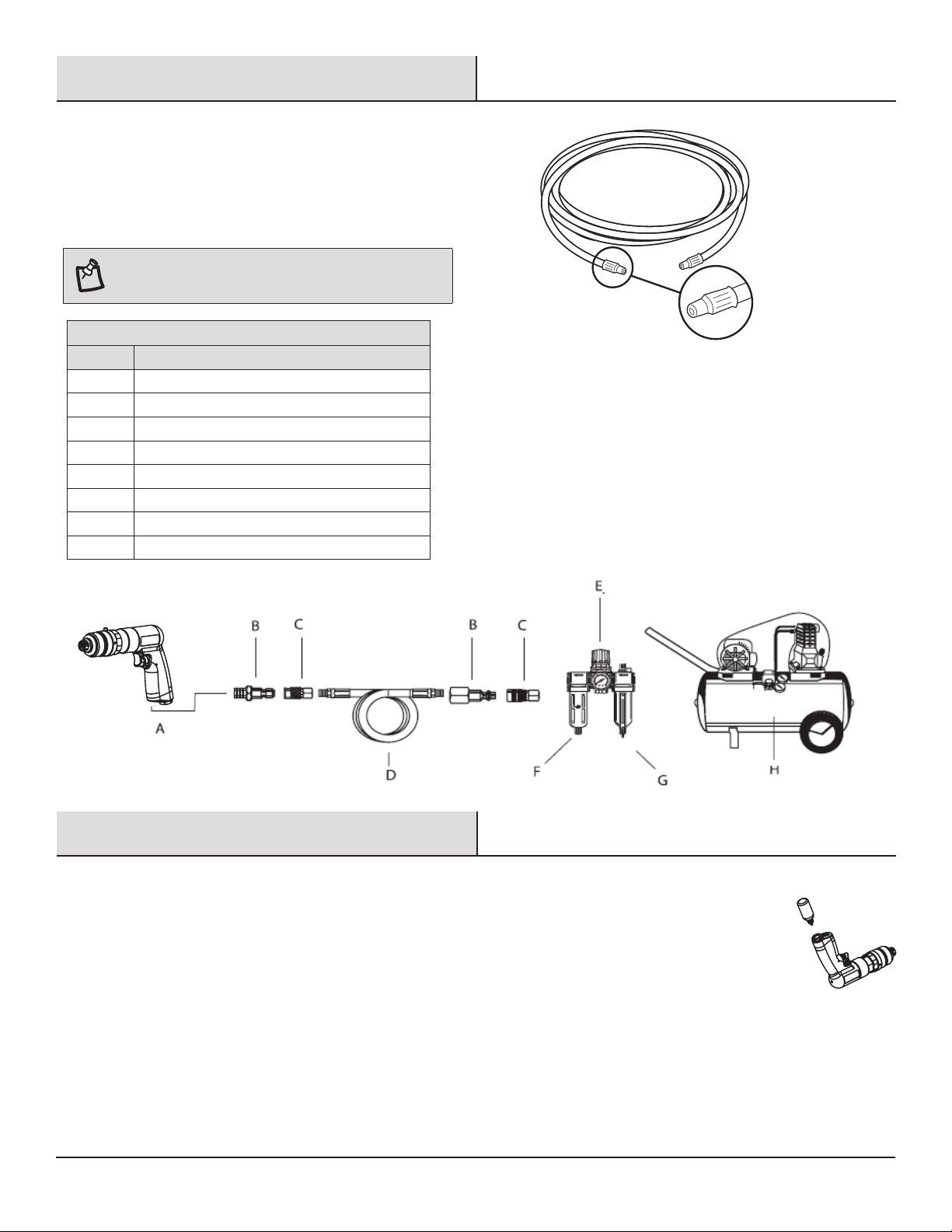

Recommended Air Line Set-Up
Part Description
AAir Tool
B Quick Plug
C Quick Coupler
D Air Hose
E In-line Regulator
F In-line Lubricator
G In-line Filter
H Air Compressor
Ensure the air line is shut-off and drained of air before removing this tool for service or changing sockets. This will prevent the tool from
operating if the throttle is accidentally engaged.
LUBRICATION
□An in-line lter-regulator-lubricator is recommended as it increases tool life and keeps the tool in sustained operation.
□Regularly check and ll the in-line lubricator with air tool oil. Avoid using excessive amounts of oil.
□Adjust the in-line lubricator by placing a sheet of paper next to the tool’s exhaust ports and holding the throttle open approximately 30
seconds. The lubricator is properly set when a light stain of oil collects on the paper.
□If it is necessary to store the tool for an extended period of time (overnight, weekend, etc.), generously lubricate the tool through the air
inlet. Run the tool for approximately 30 seconds to ensure the oil is evenly distributed throughout the tool. Store the tool in a clean and
dry environment.
□Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting
agents, and an EP (extreme pressure) additive.
Maintenance
FLORIDA-PNEUMATIC.COM
Please contact 1-800-356-3392 for further assistance.
Operation
1 Operating the rivet shaver
□This Rivet Shaver is designed to operate on 90 PSIG.
Lower pressure (below 90 PSIG) will reduce performance
of the tool. Higher air pressure (over 90 PSIG) raises the
performance of the tool beyond its rated capacity and
could cause serious damage to tool and user.
2 Inserting foot piece
□Use the spanner wrench to loosen or tighten the foot piece.
3 Installing cutter
WARNING: Disconnect tool from air supply before servicing
or changing accessories.
□Press the lock button to tighten the rivet shaver cutter onto
the drive shaft. Use the spanner wrench to fasten the nose
piece.
4 Adjusting depth of cutter
□Use 2mm hex key to loosen the screw and pull back lock
ring assembly.
□Rotate the nose piece to adjust the depth of cutter.
Universal Tool a Division of Florida Pneumatic Manufacturing Corporation
851 Jupiter Park Lane, Jupiter FL 33458
Troubleshooting
Problem Possible Cause Solution
The tool runs slowly or will not
operate.
There is grit or gum in the tool. Flush the tool with air tool oil or gum solvent.
The tool is out of oil. Lubricate the tool according to the lubrication
instructions in this manual.
The air pressure is low. □Adjust the regulator on the tool to the
maximum setting.
□Adjust the compressor regulator to the tool’s
maximum setting of 90 psi.
The air hose leaks. Tighten and seal the hose ttings with pipe thread
tape if leaks are found.
The air pressure drops. □Ensure the hose is the proper size. Long
hoses or tools using large volumes of air may
require a hose with an I.D. of ½" or larger
depending on the total length of the hose.
□Do not use a multiple number of hoses
connected together with a quick connect
tting. This causes additional pressure drops
and reduces the tool power. Directly connect
the hoses together.
There is a worn rotor blade in the motor. Replace the rotor blade.
There is a worn ball bearing in the motor. Remove and inspect the bearing for rust, dirt, and
grit. Replace or clean and grease the bearing with
bearing grease.
There is moisture blowing out
of the tool’s exhaust.
There is water in the tank. Drain the tank. (See the air compressor manual
for instructions.) Lubricate the tool and run it until
water is not evident. Lubricate the tool again and
run for 1-2 seconds.
Warranty
Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of
purchase. This warranty does not apply to tools which have been abused, misused, modied or repaired by someone other than Universal
Tool or its authorized service centers. If a UT tool proves defective in material or workmanship within one year after purchase, return
it to any authorized service center or Universal Tool freight prepaid. Please enclose your name, address and adequate proof of date of
purchase and a short description of the defect. Universal Tool will,at its option, repair or replace defective tools free of charge. Repairs or
replacements are warranted as described above for the remainder of the original warranty period. Universal Tool's sole liability and your
exclusive remedy under this warranty is limited to repair or replacement of the defective tool.
There are no other warranties expressed or implied and Universal Tool shall not be liable for incidental, consequential or special damages,
or any other damages,costs or expenses excepting only the cost or expense of repair or replacement as described above.
FLORIDA-PNEUMATIC.COM
Please contact 1-800-356-3392 for further assistance.
Service Parts / Exploded View Drawing
Universal Tool a Division of Florida Pneumatic Manufacturing Corporation
851 Jupiter Park Lane, Jupiter FL 33458
Universal Tool
™
Questions, problems, missing parts?
Call Customer Service
8 a.m.-5 p.m., EST, Monday-Friday
1-800-356-3392
FLORIDA-PNEUMATIC.COM
Retain this manual for future use.
Table of contents
