VERDER CARBOLITE GERO CWF 12 Manual

Installation, Operation and Maintenance Instructions
1200°C Chamber Furnace - CWF Model: 36 Litres
No Controller
CWF 12/36 + No Controller
MEN-CWF1236-005_NOCTRL (01-08-2019)
All manuals and user guides at all-guides.com

Contents
This manual is for guidance on the use of the Carbolite Gero product specified on the
front cover. This manual should be read thoroughly before unpacking and using the
furnace or oven. The model details and serial number are shown on the back of this
manual. Use the product for the purpose for which it is intended.
1.0 Symbols and Warnings 4
1.1 Switches and Lights 4
1.2 General Warnings 4
2.0 Installation 5
2.1 Unpacking & Handling 5
2.2 Siting and Setting Up 5
2.3 Hearth 6
2.4 Chimney 6
2.5 Electrical Connections 7
2.6 Voltage and Power Limit 8
3.0 Temperature Controller 9
4.0 2132 Over-Temperature Controller Description (if fitted) 10
4.1 Description 10
4.2 Operation 10
4.2.1 Controls 10
4.2.2 Operation 11
4.2.3 Over-Temperature Operation 11
4.2.4 Over-Temperature Alarm 11
4.2.5 Resetting the Over-Temperature Alarm 11
4.2.6 Sensor Break 11
4.3 Audible Alarm 12
4.4 Navigation Diagram 12
5.0 Operation 13
5.1 Operating Cycle 13
5.2 General Operating Notes 13
5.3 Use of Probes 14
5.4 Atmospheres 14
5.5 Operator Safety 14
5.6 Power Adjustment 15
6.0 Maintenance 16
6.1 General Maintenance 16
6.2 Maintenance Schedule 16
2
All manuals and user guides at all-guides.com

6.2.1 Cleaning 18
6.2.2 Safety Switch 18
6.3 Calibration 18
6.4 After-Sales Service 19
6.5 Recommended Spare Parts and Spare Parts Kit 19
7.0 Repairs and Replacements 20
7.1 Safety Warning - Disconnection from Power Supply 20
7.2 Safety Warning - Refractory Fibre Insulation 20
7.3 Temperature Controller Replacement 20
7.4 Solid-State Relay Replacement 21
7.5 Thermocouple Replacement 21
7.6 Element Replacement (Laboratory Models) 22
7.7 Fuse Replacement 22
7.8 Door Plug Replacement 23
8.0 Fault Analysis 24
A. Furnace Does Not Heat Up 24
B. Product Overheats 25
9.0 Wiring Diagrams 26
9.1 WA-U3-30 27
9.2 WA-U3-31 29
10.0 Fuses and Power Settings 31
10.1 Fuses 31
10.2 Power Settings 31
11.0 Specifications 32
11.1 Environment 32
3
All manuals and user guides at all-guides.com

1.0 Symbols and Warnings
1.0 Symbols and Warnings
1.1 Switches and Lights
Instrument switch: when the instrument switch is operated the
temperature control circuit is energised.
Heat light: the adjacent light glows or flashes to indicate that power
is being supplied to the elements.
1.2 General Warnings
DANGER – Electric shock. Read any warning printed next to this
symbol.
WARNING: Risk of fatal injury.
DANGER – Hot surface. Read any warning printed next to this
symbol.
WARNING: All surfaces of a product may be hot.
DANGER – Read any warning printed next to this symbol.
Caution – Double Pole/Neutral Fusing
4
All manuals and user guides at all-guides.com

2.0 Installation

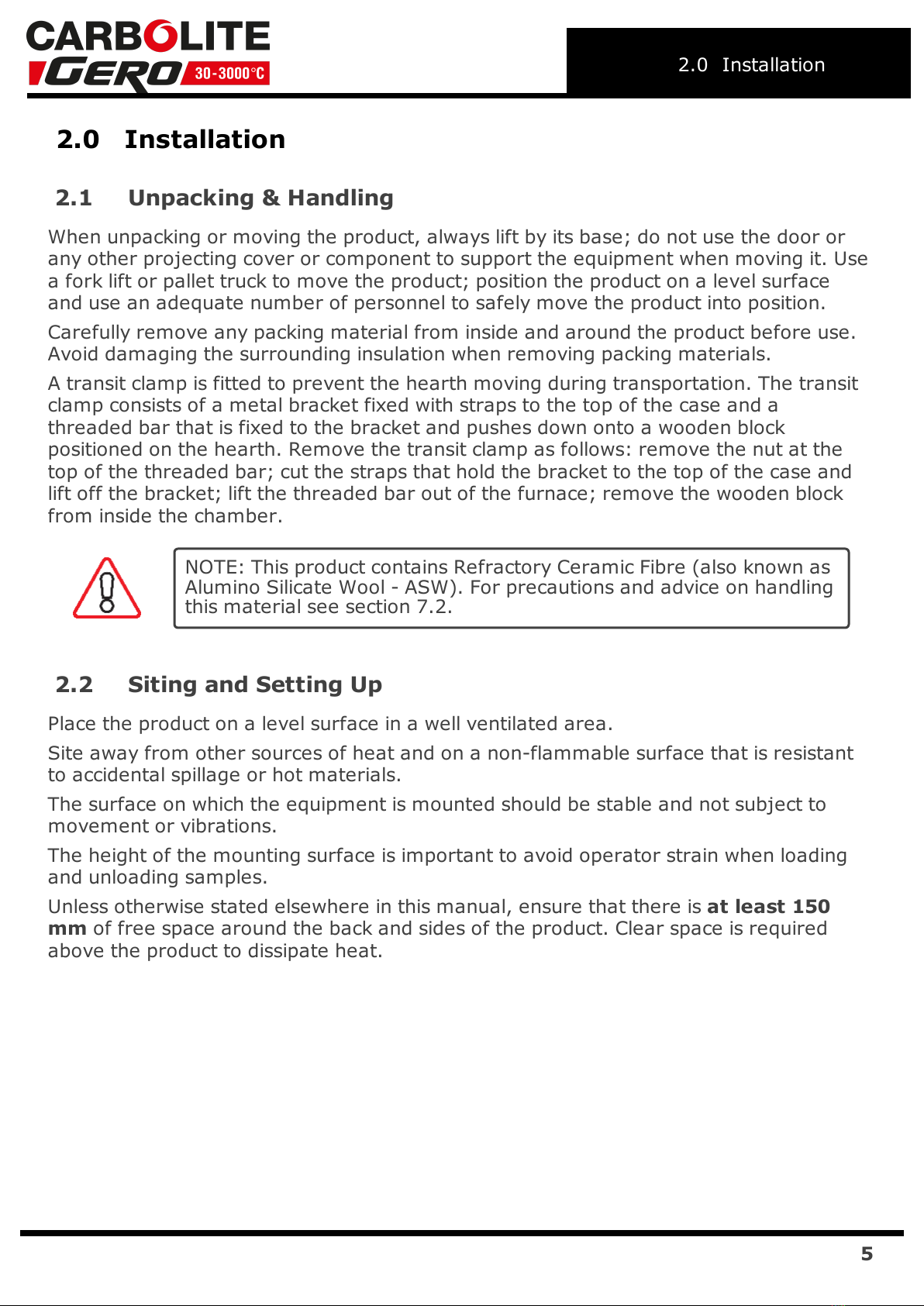

2.1 Unpacking & Handling
When unpacking or moving the product, always lift by its base; do not use the door or
any other projecting cover or component to support the equipment when moving it. Use
a fork lift or pallet truck to move the product; position the product on a level surface
and use an adequate number of personnel to safely move the product into position.
Carefully remove any packing material from inside and around the product before use.
Avoid damaging the surrounding insulation when removing packing materials.
A transit clamp is fitted to prevent the hearth moving during transportation. The transit
clamp consists of a metal bracket fixed with straps to the top of the case and a
threaded bar that is fixed to the bracket and pushes down onto a wooden block
positioned on the hearth. Remove the transit clamp as follows: remove the nut at the
top of the threaded bar; cut the straps that hold the bracket to the top of the case and
lift off the bracket; lift the threaded bar out of the furnace; remove the wooden block
from inside the chamber.
NOTE: This product contains Refractory Ceramic Fibre (also known as
Alumino Silicate Wool - ASW). For precautions and advice on handling
this material see section 7.2.
2.2 Siting and Setting Up
Place the product on a level surface in a well ventilated area.
Site away from other sources of heat and on a non-flammable surface that is resistant
to accidental spillage or hot materials.
The surface on which the equipment is mounted should be stable and not subject to
movement or vibrations.
The height of the mounting surface is important to avoid operator strain when loading
and unloading samples.
Unless otherwise stated elsewhere in this manual, ensure that there is at least 150
mm of free space around the back and sides of the product. Clear space is required
above the product to dissipate heat.
5
2.0 Installation
All manuals and user guides at all-guides.com

2.0 Installation
Depending on the application of the product, it may be appropriate to position it under
an extraction hood. Ensure the extraction hood is switched on during use.
Ensure that the product is placed in such a way that it can be quickly switched off or
disconnected from the electrical supply.
Under no circumstances should any objects be placed on top of the product.
Always ensure that any vents on the top of the product are clear of any
obstruction. Always ensure all cooling vents and cooling fans (if fitted) are
clear of any obstruction.
2.3 Hearth
The product is supplied with the hearth tiles supported in place by a timber batten or
steel plate held by a jacking bolt fixed through the roof chimney hole.
Remove the bands holding the frame to the top of the product case. Withdraw the
bracket with the jacking rod assembly. Remove the steel plate from the hearth tile.
Fit the supplied product chimney through the roof hole.
2.4 Chimney
The chimney is a length of tubing. If it is supplied unfitted, then fit it through the hole in
the top of the case.
6
All manuals and user guides at all-guides.com

If the product is to be used to heat substances that emit fumes, a fume extraction duct
of approximately 75 mm - 150 mm inlet diameter may be placed directly above the
chimney outlet.
Do not make a sealed connection to the product chimney as this causes excessive
airflow through the chamber and results in poor temperature uniformity.
Key
A Duct (75mm-150mm diameter)
B Ambient air is drawn into duct
C Chimney
D 25mm vertical gap between chimney and duct
2.5 Electrical Connections
Connection by a qualified electrician is recommended.
The model covered in this manual has three internal circuits and is normally supplied for
connection to a three phase power supply. This may be either star or delta, but a
product must only be connected to the type and voltage of supply for which it was
made. If the product is ordered for a single phase supply, this may be Live to Neutral
reversible or non-reversible, or Live to Live.
Check the product rating label before connection. The supply voltage should agree with
the voltage on the label and the supply capacity should be sufficient for the current on
the label.
The supply should be fused at the next size equal to, or higher than the current on the
label. A table of the most common fuse ratings is also given towards the back of this
manual. When the mains cable is factory fitted, internal fuses are also fitted. It is
essential that the operator ensures that the product is correctly fused.
Products with a factory fitted supply cable are designed to be wired directly to an
isolator or fitted with a line plug.
7
2.0 Installation
All manuals and user guides at all-guides.com

2.0 Installation
Products without a factory fitted supply cable require a permanent connection to a fused
and isolated supply. The product's electrical access panel should be temporarily
removed, and connections made to the internal terminals.
If the product is to be connected by line plug. The plug should be within reach of the
operator and should be easy to remove.
When connecting the product to an isolating switch ensure that both conductors (single
phase) or on all live conductors (three phase), and should be within reach of the
operator.
The supply MUST incorporate an earth (ground).
Supply Terminal Label Cable Colour
Supply Types
Live - Neutral Reversible or Live-
Live
1-phase L Brown to live
to either power
conductor
(For USA 200-240V,
connect L1)
N Blue to neutral
to the other power
conductor
(For USA 200-240V,
connect L2)
PE Green/ Yellow to earth
(ground) to earth (ground)
Electrical Connection Details:
2- or
3-phase L1 Black to phase 1
L2 Black to phase 2
L3 Black to phase 3 (except 2-phase)
N Light Blue to neutral (except delta)
PE Green/ Yellow to earth (ground)
2.6 Voltage and Power Limit
When first starting up the product, check the setting of the OP.Hi
parameter (see the controller instructions) and compare it with the data
in section 10.0 towards the back of this manual.
If the power limit setting is incorrect for the voltage of the electrical supply, change it.
This must be done immediately if the setting of OP.Hi is higher than it should be.
8
All manuals and user guides at all-guides.com

3.0 Temperature Controller
If this product is fitted with a temperature controller, instructions are provided
separately.
9
3.0 Temperature Controller
All manuals and user guides at all-guides.com

4.0 2132 Over-Temperature
4.0 2132 Over-Temperature Controller Description (if
fitted)
4.1 Description

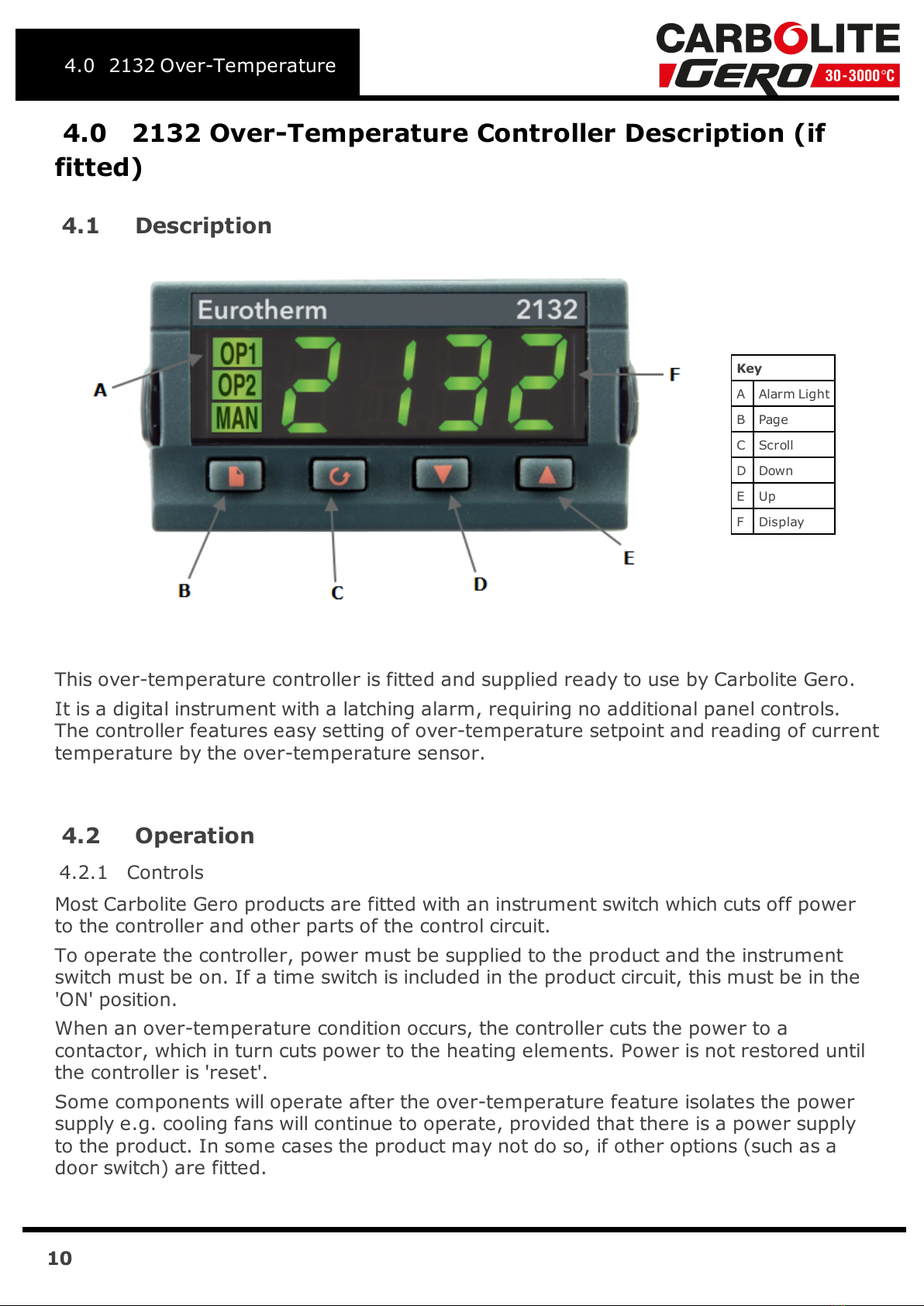

Key
A Alarm Light
B Page
C Scroll
D Down
E Up
F Display
This over-temperature controller is fitted and supplied ready to use by Carbolite Gero.
It is a digital instrument with a latching alarm, requiring no additional panel controls.
The controller features easy setting of over-temperature setpoint and reading of current
temperature by the over-temperature sensor.
4.2 Operation
4.2.1 Controls
Most Carbolite Gero products are fitted with an instrument switch which cuts off power
to the controller and other parts of the control circuit.
To operate the controller, power must be supplied to the product and the instrument
switch must be on. If a time switch is included in the product circuit, this must be in the
'ON' position.
When an over-temperature condition occurs, the controller cuts the power to a
contactor, which in turn cuts power to the heating elements. Power is not restored until
the controller is 'reset'.
Some components will operate after the over-temperature feature isolates the power
supply e.g. cooling fans will continue to operate, provided that there is a power supply
to the product. In some cases the product may not do so, if other options (such as a
door switch) are fitted.
10
All manuals and user guides at all-guides.com

4.2.2 Operation
When switched on, the controller lights up, goes through a short test routine and then
displays the measured temperature or the over-temperature setpoint.
The page key allows access to parameter lists within the controller.
A single press of the page key displays the temperature units, normally set to °C;
further presses reveal the lists indicated in the navigation diagram.
The scroll key allows access to the parameters within a list. Some parameters are
display-only; others may be altered by the operator.
A single press of the scroll key in the 'Home' list displays the temperature units;
further presses reveal the parameters in the current list indicated in the navigation
diagram.
To return to the 'Home' list at any time, press page and scroll together, or wait
for 45 seconds.
The down and up keys are used to alter the setpoint or other parameter values.
4.2.3 Over-Temperature Operation
Use down and up to alter the over-temperature setpoint. This should normally be
set a little above the working temperature (for example 15 °C above). The product is
supplied with the over-temperature set at 15 °C above the furnace or oven maximum
working temperature.
Press scroll twice view the present temperature as measured by the over-
temperature controller. Press it twice, the first press shows the temperature units (°C).
4.2.4 Over-Temperature Alarm
If an over-temperature condition occurs, the OP2 indicator flashes and an alarm
message 2FSH also flashes, alternating with the setpoint. Power to the heating
elements is disconnected.
4.2.5 Resetting the Over-Temperature Alarm
To acknowledge the alarm press scroll and page together.
If the alarm is acknowledged while there is still an over-temperature condition, the OP2
indicator stops flashing but continues to glow. The 2FSH alarm continues to flash until
the over-temperature condition is cleared (by the temperature falling), when normal
operation resumes.
If the alarm is acknowledged when the temperature has dropped (or after the over-
temperature setpoint has been raised) so that the over-temperature condition no
longer exists, then the furnace or oven immediately resumes normal operation.
4.2.6 Sensor Break
The over-temperature cut-out system also operates if the over-temperature control
thermocouple breaks or becomes disconnected. The message S.br flashes where the
measured temperature is normally displayed.
11
4.0 2132 Over-Temperature
All manuals and user guides at all-guides.com

4.0 2132 Over-Temperature
4.3 Audible Alarm
If an audible alarm is supplied for use with the over-temperature controller, it is
normally configured to sound on over-temperature condition and to stop sounding when
the alarm is acknowledged as given in section 4.2.
Note: the alarm may sound during controller start-up.
4.4 Navigation Diagram
HL Home List Page Key Black = Progress
OTSP Over-Temperature
Setpoint Scroll Key
Dashed = Through to
other options
AL Access List For factory access to list and parameters not
available to the operator.
12
All manuals and user guides at all-guides.com

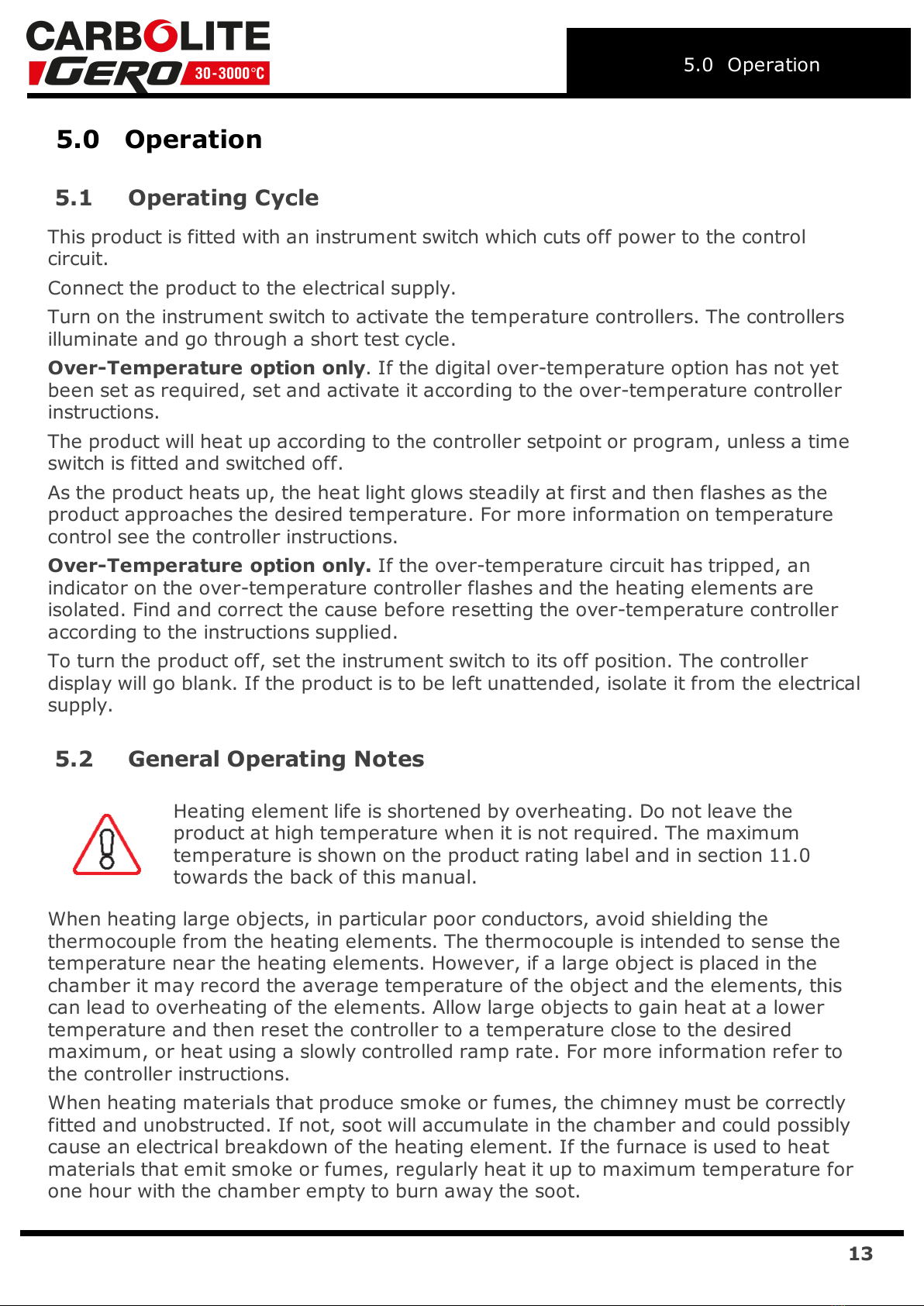

5.0 Operation
5.1 Operating Cycle
This product is fitted with an instrument switch which cuts off power to the control
circuit.
Connect the product to the electrical supply.
Turn on the instrument switch to activate the temperature controllers. The controllers
illuminate and go through a short test cycle.
Over-Temperature option only. If the digital over-temperature option has not yet
been set as required, set and activate it according to the over-temperature controller
instructions.
The product will heat up according to the controller setpoint or program, unless a time
switch is fitted and switched off.
As the product heats up, the heat light glows steadily at first and then flashes as the
product approaches the desired temperature. For more information on temperature
control see the controller instructions.
Over-Temperature option only. If the over-temperature circuit has tripped, an
indicator on the over-temperature controller flashes and the heating elements are
isolated. Find and correct the cause before resetting the over-temperature controller
according to the instructions supplied.
To turn the product off, set the instrument switch to its off position. The controller
display will go blank. If the product is to be left unattended, isolate it from the electrical
supply.
5.2 General Operating Notes
Heating element life is shortened by overheating. Do not leave the
product at high temperature when it is not required. The maximum
temperature is shown on the product rating label and in section 11.0
towards the back of this manual.
When heating large objects, in particular poor conductors, avoid shielding the
thermocouple from the heating elements. The thermocouple is intended to sense the
temperature near the heating elements. However, if a large object is placed in the
chamber it may record the average temperature of the object and the elements, this
can lead to overheating of the elements. Allow large objects to gain heat at a lower
temperature and then reset the controller to a temperature close to the desired
maximum, or heat using a slowly controlled ramp rate. For more information refer to
the controller instructions.
When heating materials that produce smoke or fumes, the chimney must be correctly
fitted and unobstructed. If not, soot will accumulate in the chamber and could possibly
cause an electrical breakdown of the heating element. If the furnace is used to heat
materials that emit smoke or fumes, regularly heat it up to maximum temperature for
one hour with the chamber empty to burn away the soot.
13
5.0 Operation
All manuals and user guides at all-guides.com

5.0 Operation

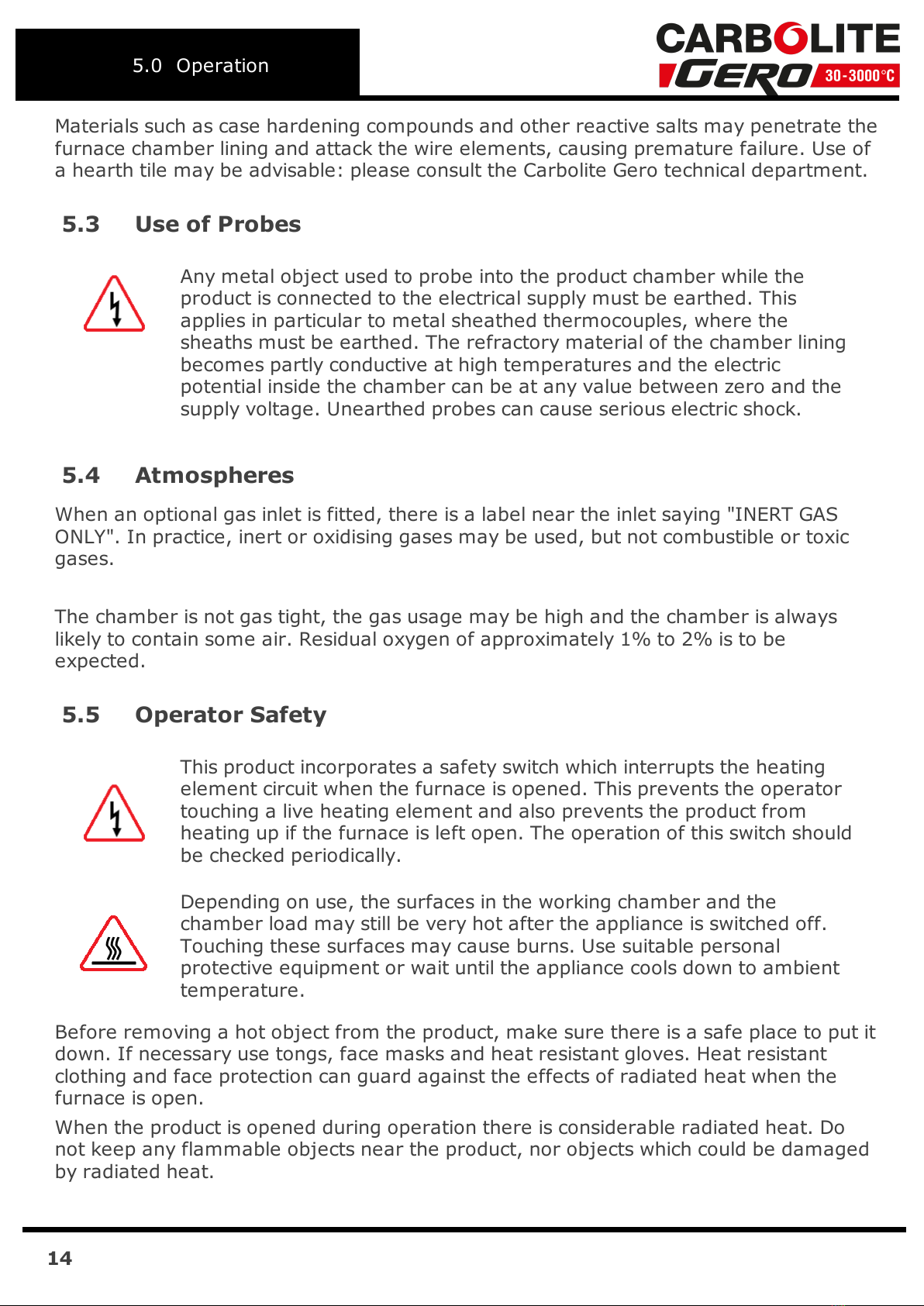

Materials such as case hardening compounds and other reactive salts may penetrate the
furnace chamber lining and attack the wire elements, causing premature failure. Use of
a hearth tile may be advisable: please consult the Carbolite Gero technical department.
5.3 Use of Probes
Any metal object used to probe into the product chamber while the
product is connected to the electrical supply must be earthed. This
applies in particular to metal sheathed thermocouples, where the
sheaths must be earthed. The refractory material of the chamber lining
becomes partly conductive at high temperatures and the electric
potential inside the chamber can be at any value between zero and the
supply voltage. Unearthed probes can cause serious electric shock.
5.4 Atmospheres
When an optional gas inlet is fitted, there is a label near the inlet saying "INERT GAS
ONLY". In practice, inert or oxidising gases may be used, but not combustible or toxic
gases.
The chamber is not gas tight, the gas usage may be high and the chamber is always
likely to contain some air. Residual oxygen of approximately 1% to 2% is to be
expected.
5.5 Operator Safety
This product incorporates a safety switch which interrupts the heating
element circuit when the furnace is opened. This prevents the operator
touching a live heating element and also prevents the product from
heating up if the furnace is left open. The operation of this switch should
be checked periodically.
Depending on use, the surfaces in the working chamber and the
chamber load may still be very hot after the appliance is switched off.
Touching these surfaces may cause burns. Use suitable personal
protective equipment or wait until the appliance cools down to ambient
temperature.
Before removing a hot object from the product, make sure there is a safe place to put it
down. If necessary use tongs, face masks and heat resistant gloves. Heat resistant
clothing and face protection can guard against the effects of radiated heat when the
furnace is open.
When the product is opened during operation there is considerable radiated heat. Do
not keep any flammable objects near the product, nor objects which could be damaged
by radiated heat.
14
All manuals and user guides at all-guides.com

5.6 Power Adjustment
The product control system incorporates electronic power limiting. Depending on the
model and the destination country the power limit maybe set to 100% or a lower figure.
Where appropriate the power limit parameter OP.Hi is accessible to the operator, but it
should not generally be altered.
See section 10.0 for details of the power limit settings. DO NOT adjust the power to a
level higher than the design level states; this may cause a fuse to blow and could
damage the heating elements.
The power limit may be set to a lower limit if the product is to be used at a low
temperature only: this may give better control stability. It may be set to zero to permit
demonstration of the controls without the heating elements taking power; to resume
heating reset it to its standard value.
15
5.0 Operation
All manuals and user guides at all-guides.com

6.0 Maintenance
6.0 Maintenance
6.1 General Maintenance
Preventive rather than reactive maintenance is recommended. The type and frequency
depends on the product use; the following are recommended.
6.2 Maintenance Schedule
CUSTOMER
QUALIFIED PERSONNEL
DANGER! ELECTRIC SHOCK. Risk of fatal injury. Only electrically
qualified personnel should attempt these maintenance procedures.
Maintenance
Procedure Method
Frequency
Daily Weekly Monthly Bi-
Annually Annually
Safety
Safety Switch Function
Set a safe temperature above ambient, and
open the door to see if the heater light goes
out
Safety Switch Function Electrical measurement
Over-Temperature Safety
Circuit
(if fitted)
Set an over-temperature setpoint lower than
the displayed temperature and check for an
over-temperature alarm as detailed in this
manual
Over-Temperature Safety
Circuit
(if fitted) Electrical measurement
Door Plug Visual inspection, checking the seal and
whether it is free of damage
Door Plug Replacement where necessary
Chimney / Extraction Check and clean if necessary
Electrical Safety
(external) Visual check of external cables and plugs
Electrical Safety
(internal)
Physically check all connections and cleaning
of the power plate area
Function
Temperature Calibration Tested using certified equipment, frequency
dependent on the standard required
16
All manuals and user guides at all-guides.com

Operational Check Check that all functions are working normally
Operational Check Thorough inspection and report incor-
porating a test of all functions
Performance
Element Circuit Electrical measurement
Power Consumption Measure the current drawn on each phase /
circuit
Hearth Visual check for fit and damage
Cooling Fans (if fitted) Check whether the cooling fans are working
17
6.0 Maintenance
All manuals and user guides at all-guides.com

6.0 Maintenance
6.2.1 Cleaning
Soot deposits may form inside the furnace, depending on the process. At appropriate
intervals remove these by heating as indicated in the General Operation Notes.
The product's outer surface may be cleaned with a damp cloth. Do not
allow water to enter the interior of the case or chamber. Do not clean
with organic solvents.
6.2.2 Safety Switch
When correctly functioning, the safety switch will isolate all live conductors (live and
neutral connections) within the heating element circuit(s) when the product door is
opened. The safety switch should be checked regularly to ensure that this occurs.
The safety switch should not fail under normal working conditions, however rough
handling, exposure to corrosive materials/ environments, or exceptionally frequent use,
could compromise the safety system.
Weekly check:
The following check can be carried out by a general operator:
lOn the temperature controller, set a safe temperature above ambient. The heater
lights should illuminate.
lOpen the door and check the heater lights. They should no longer be illuminated.
If the heater lights remain illuminated when the door is open, discontinue use and
contact Carbolite Gero Service.
Annual check:
The following checks should be carried out by a qualified electrician, as specified in the
"Maintenance Schedule" section of this manual:
lRemove the element access panel and take a voltage measurement from the heat-
ing element terminals. Do not attempt to take a reading from the heating element
itself as surface oxidation will give an unreliable contact.
lEnsure that power to the heating elements is switched off when the door is opened.
Contact Carbolite Gero Service and discontinue use of the product if it is found that the
heating elements are not fully isolated during these checks.
6.3 Calibration
After prolonged use, the controller and/or thermocouple may require recalibration. This
is important for processes that require accurate temperature readings or for those that
use the product close to its maximum temperature. A quick check using an independent
18
All manuals and user guides at all-guides.com

thermocouple and temperature indicator should be made from time to time to
determine whether full calibration is required. Carbolite Gero can supply these items.
Depending on the controller fitted, the controller instructions may contain calibration
instructions.
6.4 After-Sales Service
Carbolite Gero Service has a team of Service Engineers who can offer repair, calibration
and preventive maintenance of furnace and oven products both at the Carbolite Gero
factory and at customers’ premises throughout the world. A telephone call or email
often enables a fault to be diagnosed and the necessary parts to be despatched.
In all correspondence please quote the serial number and model type given on the
rating label of the product. The serial number and model type are also given on the
back of this manual when supplied with the product.
Carbolite Gero Service and Carbolite Gero contact information can be found on the back
page of this manual.
6.5 Recommended Spare Parts and Spare Parts Kit
Carbolite Gero can supply individual spare parts or a kit of the items most likely to be
required. Ordering a kit in advance can save time in the event of a breakdown.
Each kit consists of one thermocouple, one sheath, one solid state relay, one door
insulation piece and a set of elements.
When ordering spare parts please quote the model details and serial number as
requested above.
19
6.0 Maintenance
All manuals and user guides at all-guides.com

7.0 Repairs and Replacements
7.0 Repairs and Replacements
7.1 Safety Warning - Disconnection from Power Supply
Immediately switch the product off in the event of unforeseen
circumstances (e.g. large amount of smoke). Allow the product to return
to room temperature before inspection.
Always ensure that the product is disconnected from the electrical supply
before repair work is carried out.
Caution: Double pole/neutral fusing may be used in this product.
7.2 Safety Warning - Refractory Fibre Insulation
Insulation made from High Temperature Insulation Wool
Refractory Ceramic Fibre, better known as (Alumina silicate
wool - ASW).
This product contains alumino silicate wool products in its thermal insulation. These
materials may be in the form of blanket or felt, formed board or shapes, slab or loose
fill wool.
Typical use does not result in any significant level of airborne dust from these materials,
but much higher levels may be encountered during maintenance or repair.
Whilst there is no evidence of any long term health hazards, it is strongly recommended
that safety precautions are taken whenever the materials are handled.
Exposure to fibre dust may cause respiratory disease.
When handling the material, always use approved respiratory protection
equipment (RPE-eg. FFP3), eye protection, gloves and long sleeved clothing.
Avoid breaking up waste material. Dispose of waste in sealed containers.
After handling, rinse exposed skin with water before washing gently with soap
(not detergent). Wash work clothing separately.
Before commencing any major repairs it is recommended to make reference to the
European Association representing the High Temperature Insulation Wool industry
(www.ecfia.eu).
Further information can be provided on request. Alternatively, Carbolite Gero Service
can quote for any repairs to be carried out either on site or at the Carbolite Gero
factory.
7.3 Temperature Controller Replacement
Refer to the controller instructions for more information on how to replace the
temperature controller.
20
All manuals and user guides at all-guides.com
