Vestfrost VWMTD 201475 User manual

Washer Dryer / User ManualEN
VWMTD 201475

Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly

CONTENTS
1. SAFETY INSTRUCTIONS ................................................................................ ................1
1.1. General Safety Warnings ..............................................................................................2
1.2. During Use ....................................................................................................................7
1.3. Packaging and Environment..........................................................................................8
1.4. Savings Information .......................................................................................................9
2. TECHNICAL SPECIFICATIONS ..................................................................... ................10
3. OVERVIEW OF YOUR MACHINE ...................................................................................11
3.1. General Appearance .................................................................................. ................11
4. SETTING UP YOUR MACHINE .......................................................................................11
4.1. Remove the Transit Screws......................................................................... ................11

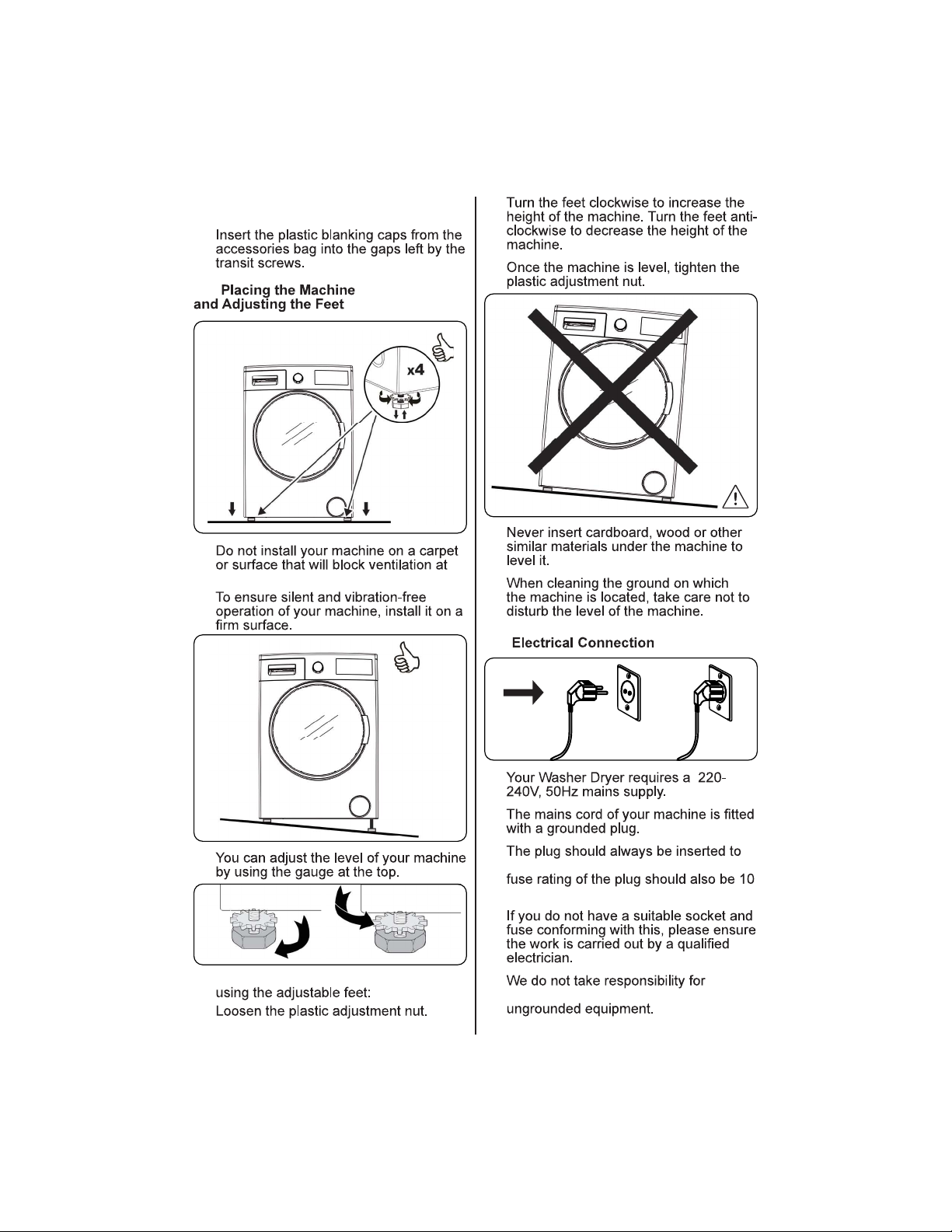

4.2. Placing the Machine and Adjusting the Feet ...............................................................12
4.3. Electrical Connection ...................................................................................................12
4.4. Water Inlet Connection ................................................................................................13
4.5. Water Draining Connection .........................................................................................13
5. CONTROL PANEL OVERVIEW ...................................................................... ................14

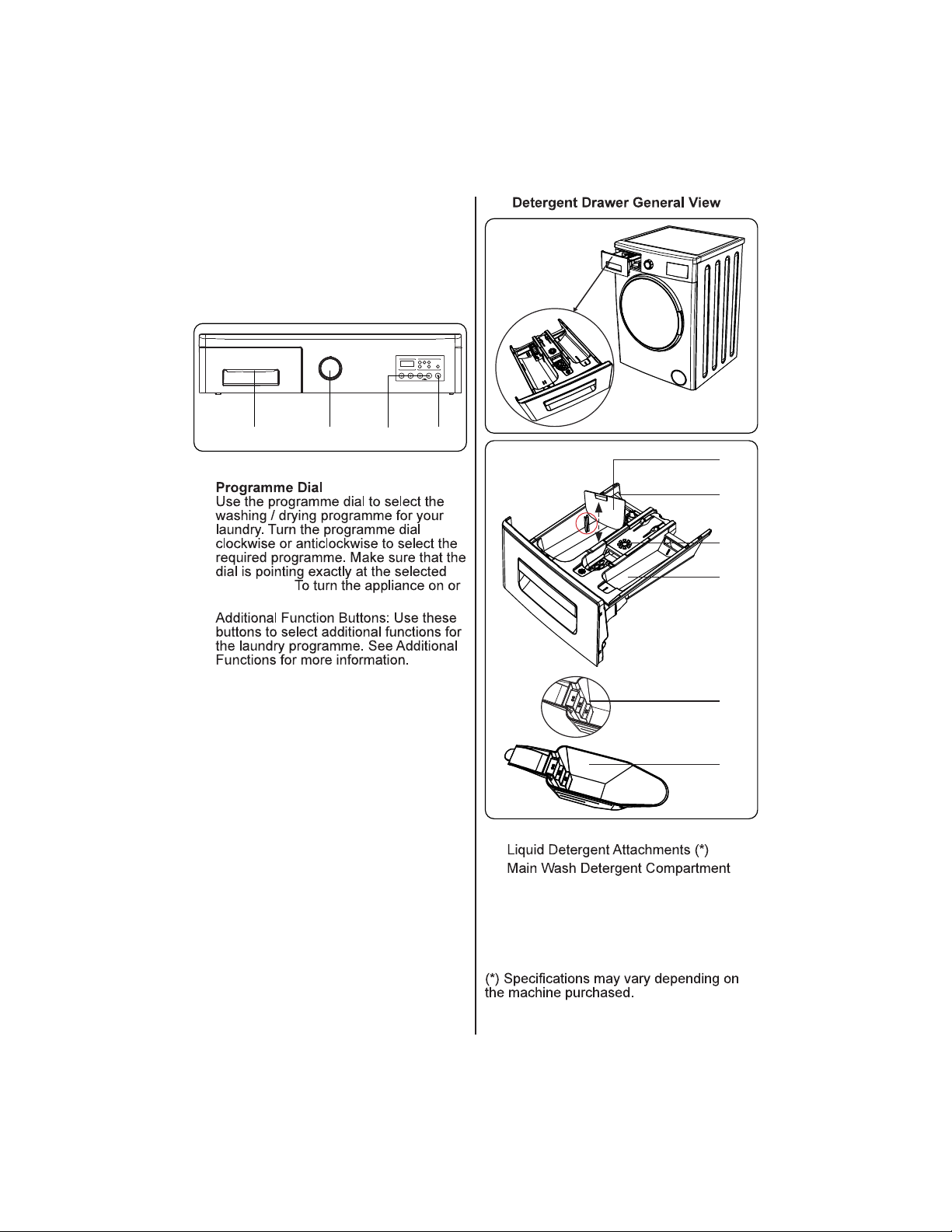

5.1. Detergent Drawer General View .................................................................................14
5.2. Sections ....... ............................................................................................................15
5.3. Programme Dial...........................................................................................................15
6. WASHING OPERATION ................................................................................. ................15
6.1. Sorting Laundry ...........................................................................................................15

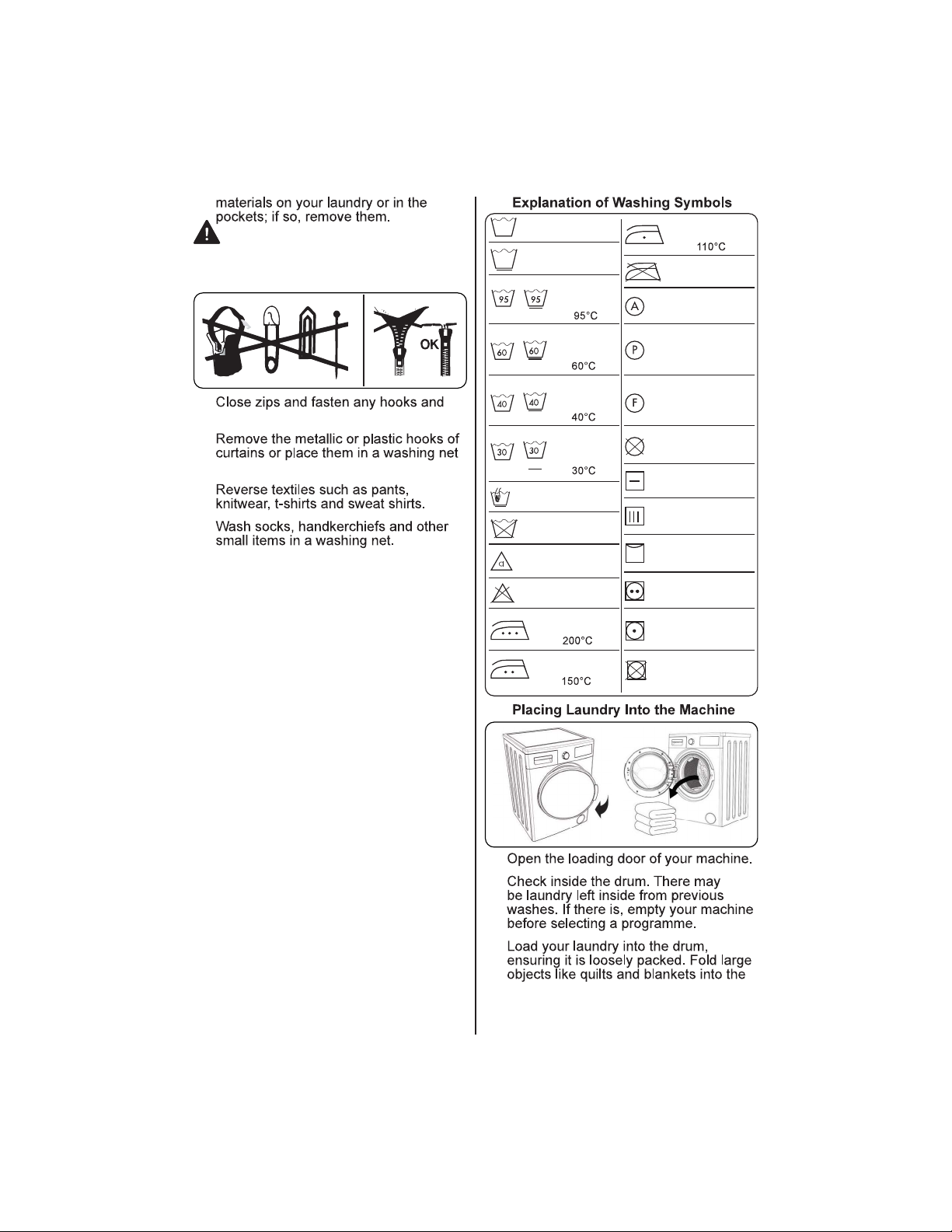

6.2. Explanation of Washing Symbols ................................................................................16
6.3. Placing Laundry Into the Machine ...............................................................................16
6.4. Choice of Detergent and Placing Into the Machine .....................................................17

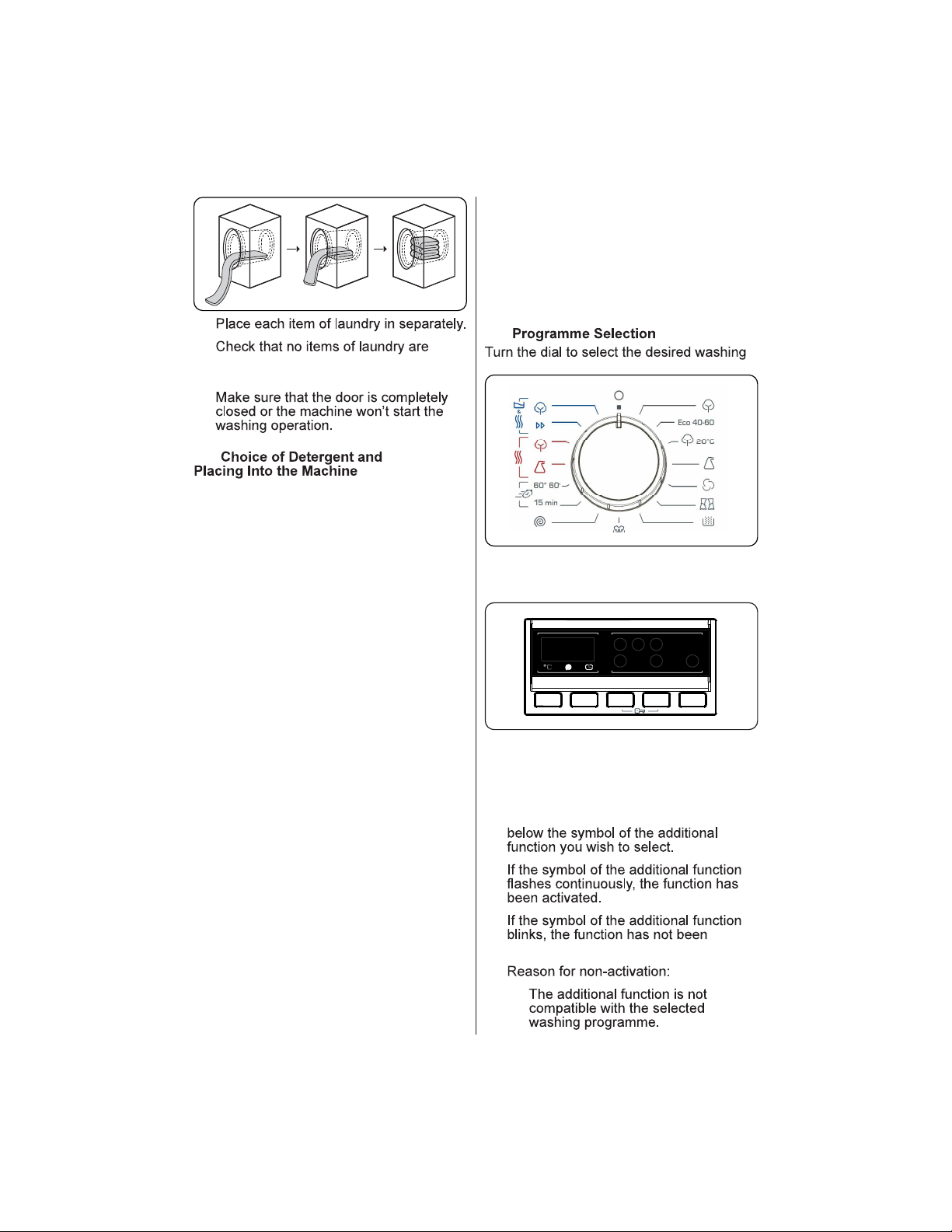

6.5. Programme Selection ..................................................................................................17
7. Additional Functions ..................................................................................... ................17
7.1. Half-Load Detection System .......................................................................................18
7.2. Cancelling Programme ................................................................................................21
7.3. Finishing Programme ..................................................................................................22
8. PROGRAMME TABLE .................................................................................... ................23
8.1. Important Informations.................................................................................................25
9. MAINTENANCE AND CLEANING OF YOUR MACHINE ............................. ................26
9.1. Warning ...... .............................................................................................................26
9.2. Water Inlet Filters ........................................................................................................26
9.3. Detergent Drawer ........................................................................................................26
9.4. Pump Filter ..................................................................................................................27
10. FLUSH STOPPER / BODY / DRUM ............................................................. ................28
11. TROUBLESHOOTING .................................................................................. ................29
12. AUTOMATIC FAULT WARNINGS AND WHAT NEEDS TO BE DONE ...... ................30

EN - 1
1. SAFETY INSTRUCTIONS
Operating voltage / frequency (V/Hz) (220-240)
V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa /
Minimum 0.1Mpa
Total power (W) 2200
Maximum washing capacity
(dry laundry) (kg) 7.0
Maximum drying capacity (kg) 5.0
• Do not install your machine on a carpet or such
grounds that would prevent the ventilation of its
base.
• The appliance is not intended for use by people
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Call the nearest authorized service centre for a
replacement if the power cord malfunctions.
• Use only the new water inlet hose coming with your
machine when making water inlet connections to
your machine.Never use old, used or damaged
water inlet hoses.
• Children should not play with the appliance.
Cleaning and user maintenance should not be made
by children without supervision.

EN - 2

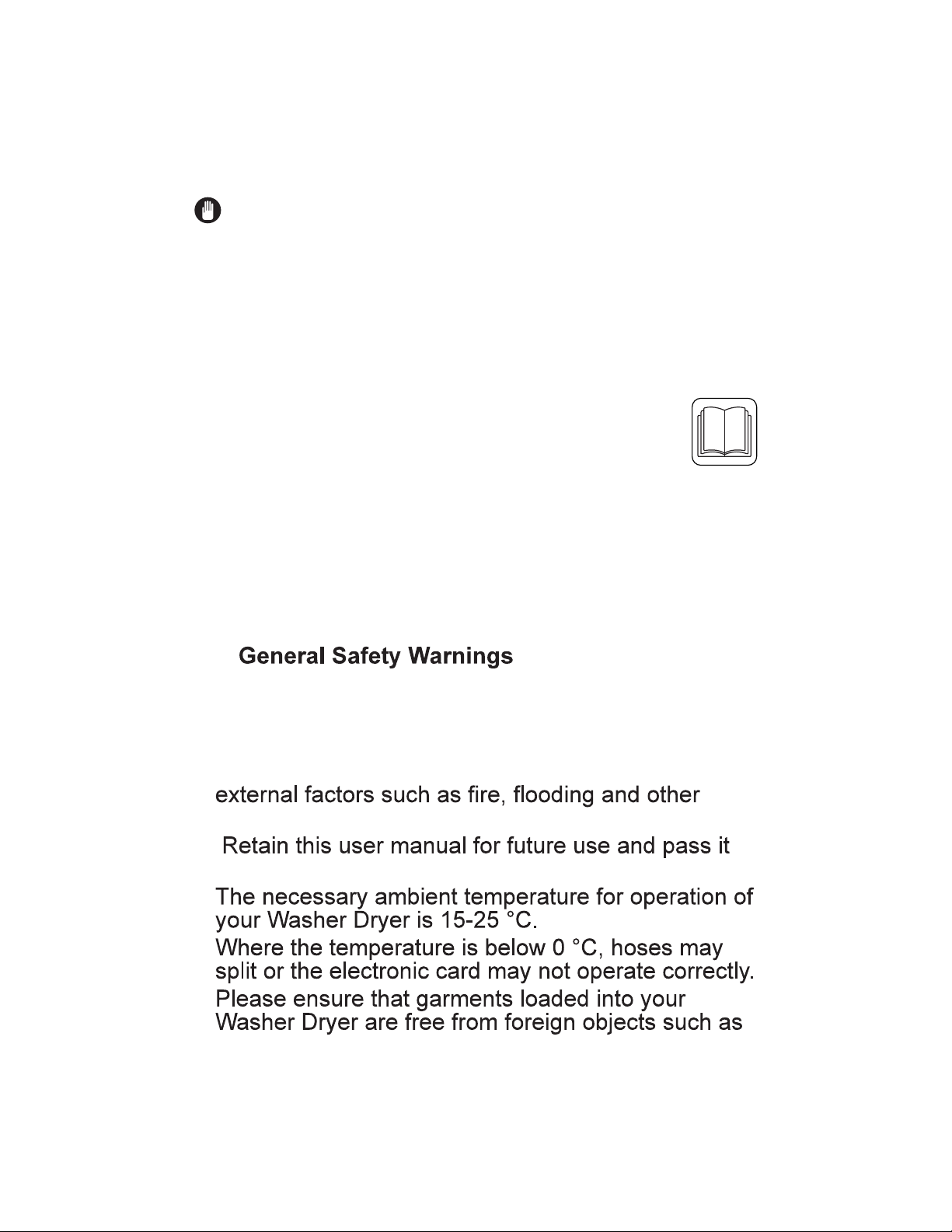

NOTE: For a softcopy of this user manual, please
contact the following address: “washingmachine@
standardtest.info”. In your e-mail, please provide the
model name and serial number (20 digits) which you
can find on the appliance door.
To ensure your safety and the safety of others,
please read the following safety precautions
before using or installing your Washer Dryer.
Your machine is for domestic use only.
Using it for commercial purposes will void
your warranty.
This manual has been prepared for more than
one model therefore your appliance may not have
some of the features described within. For this
reason, it is important to pay particular attention to
any figures whilst reading the operating manual.
1.1.
Before setting up your Washer Dryer, remove the
four transit bolts and the rubber washers from the
rear of the machine.
• Your warranty does not cover damage caused by
sources of damage.
•
on to the next user.
•
•
•

EN - 3
•
the washer dryer.
•
of each wash.
•
Washer Dryer.
•
•
•
•
laundry.
•
• In the event of a fault, unplug your Washer Dryer
•
• Never force the door open when your Washer Dryer

EN - 4

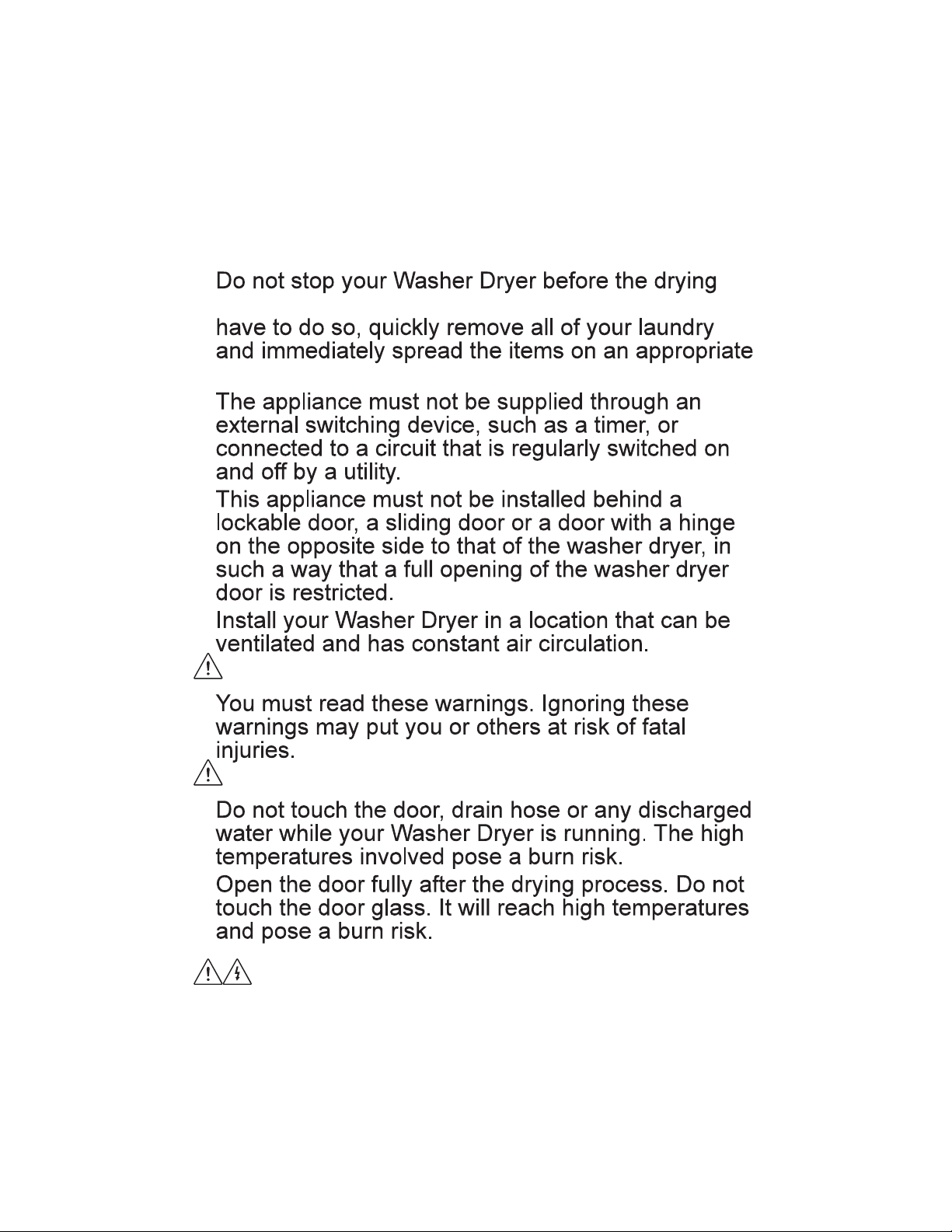

• Please follow the manufacturers’ instructions on the
use of fabric conditioner or any similar products that
you intend to use in your Washer Dryer.
•
phase of a programme has been completed. If you
surface to allow them to cool.
•
•
•
SAFETY WARNINGS
•
RISK OF BURNS
•
•
ELECTROCUTION RISK
Do not connect your Washer Dryer to the mains

EN - 5

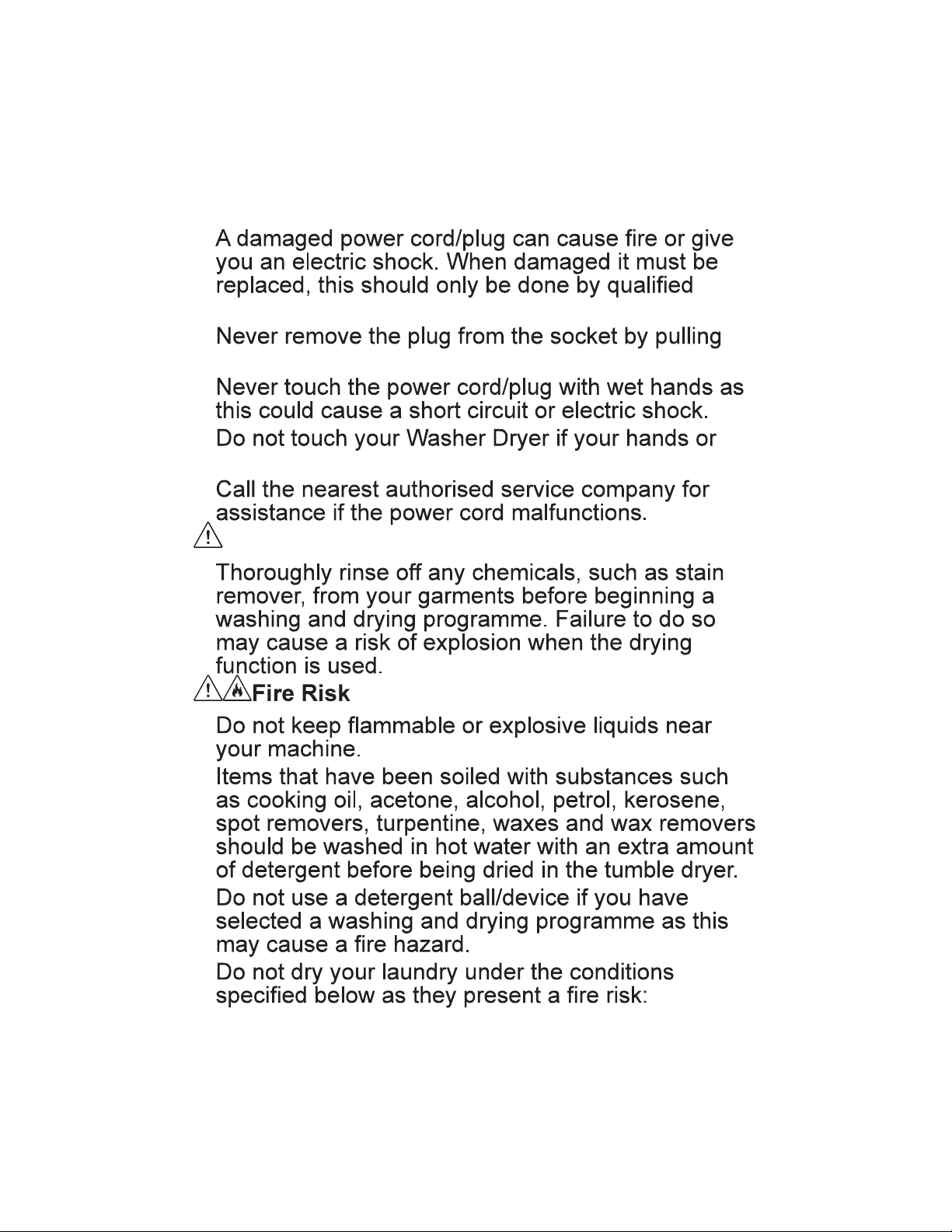

electricity supply using an extension lead.
•
personnel.
•
the cord. Always hold the plug.
•
•
feet are wet.
•
Explosion Risk
•
•
•
•
•
• If the laundry is not washed.

EN - 6
• If oil based stains are not pre-treated before
beginning a washing or drying programme.
• Laundry which has been cleaned with industrial
chemicals.
• Laundry that has a high amount of sponge, foam,
rubber or rubber-like parts and accessories.
• Items such as foam rubber (latex foam), shower
caps, waterproof textiles, rubber backed articles
and clothes or pillows fitted with foam rubber pads
should not be dried in the drying process of the
appliance.
• Stuffed or damaged items (such as pillows or
jackets). The rubber sponge presents a fire risk
during the drying process.
•
•
•
•
hazard.
•
•
detergent drawer.
move your Washer Dryer.
•

EN - 7
•
•
•
•

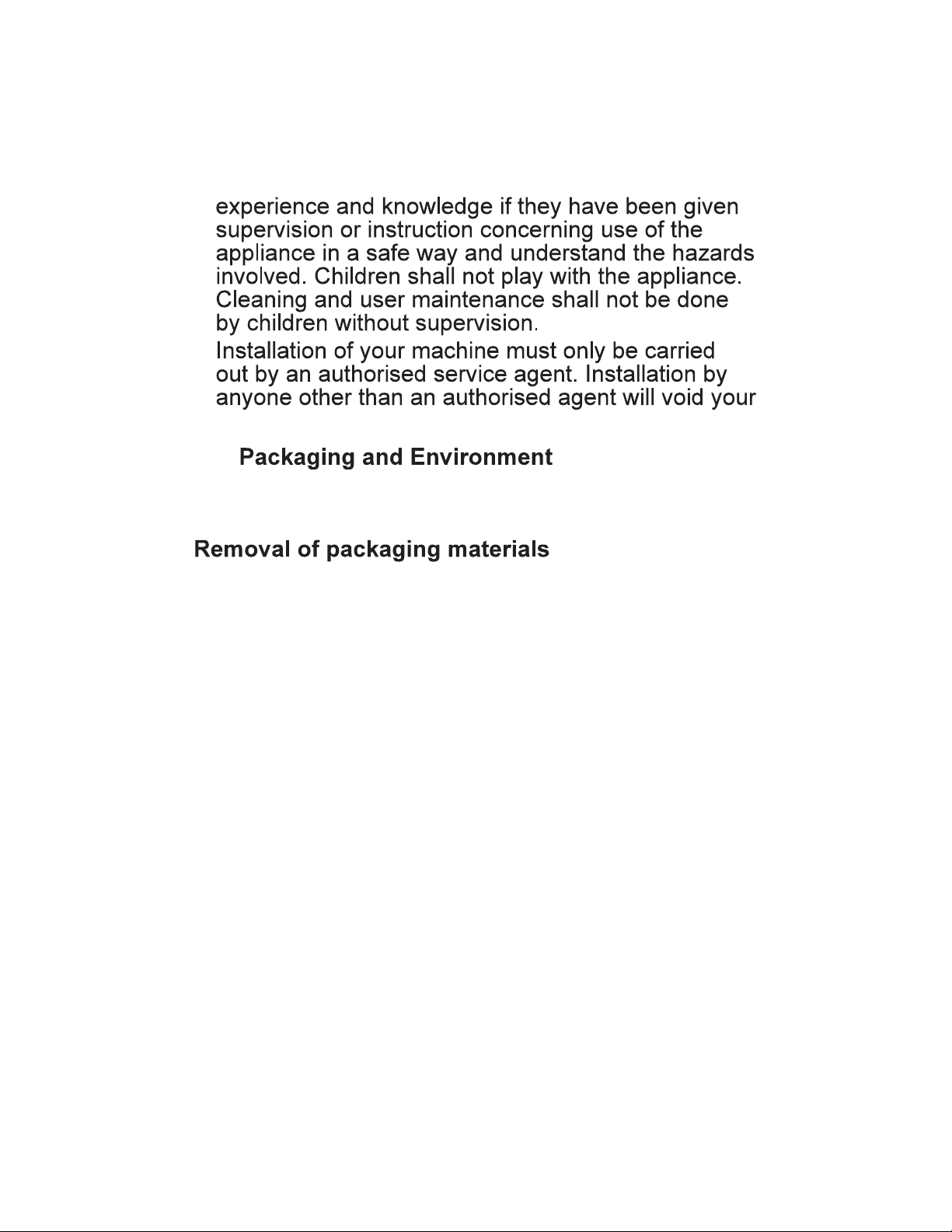

1.2.
•
• Please ensure that you have removed all of the
•
composed of hand washable wool or wool blend
washable garments. Do not use your Washer Dryer
•

EN - 8
•
warranty.
1.3.
DISPOSE OF PACKAGING AND YOUR OLD
MACHINE RESPONSIBLY
Packaging materials protect your machine from any
damage that may occur during transportation. Please
recycle the packaging materials.
Recycled material reduces raw material consumption
and lowers waste production.

EN - 9
1.4.
Some important information to get the most efficient
use out of your machine:
• The amount of laundry you put in your Washer Dryer
should not exceed the maximum amount indicated.
Avoid overloading to allow your machine to run
more efficiently.
• Not using the pre-wash feature for normal and
lightly soiled laundry will save electricity and water
consumption.
where you purchased the product.

EN - 10
2. TECHNICAL SPECIFICATIONS
Maximum washing capacity (dry laundry) (kg) 7.0
* Maximum drying capacity (kg) 5.0
Spin speed (rpm) 1400
Number of programmes 15
Operation voltage / Frequency (v/hz) 220-240 / 50
Water pressure (mpa) Maximum: 1
Minimum: 0.1
Dimensions (HxWxD) (mm) 845x597x582

EN - 11
3. OVERVIEW OF
YOUR MACHINE

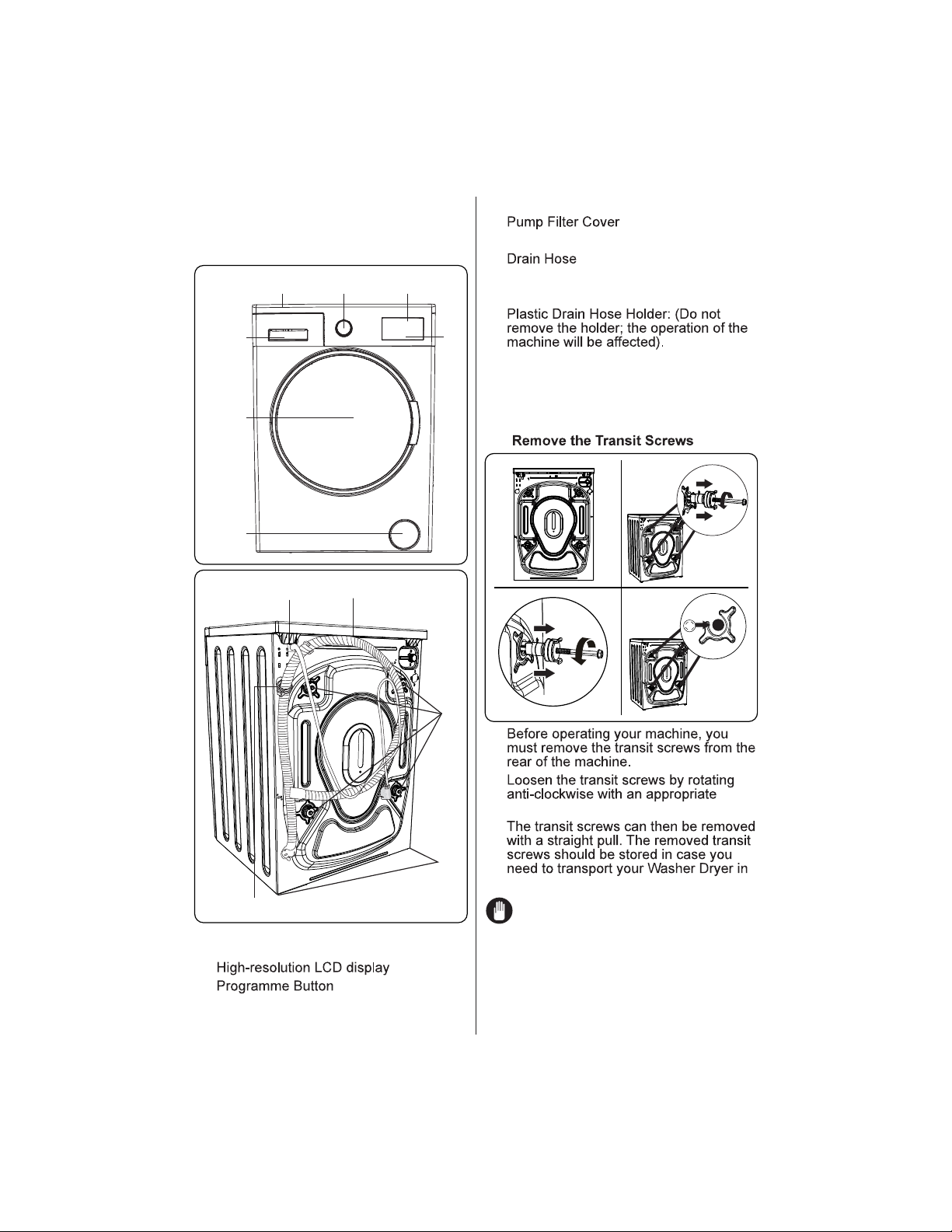

3.1. General Appearance
234
5 1
6
7
8 9
10
11
12
1. Touch buttons
2.
3.
4. Top plate
5. Detergent Drawer
6. Door
7.
8. Power Cord
9.
10. Transport Screws
11. Adjustable Feet
12.
4. SETTING UP YOUR MACHINE
Your machine must only be installed by
an authorised service company.
4.1.
3 4
X4
21
X4
1.
2.
spanner.
3.
the future.
NOTE: You must remove the
transit screws from your machine before
first use. Faults occurring in machines
operated with transit screws still fitted
are outside the scope of the warranty.
Fit the plastic blanking caps supplied in
the accessories bag into the gaps left by
the removal of the transport screws. The

EN - 12
transport screws should be stored for future
use.
4.
4.2.
1
1.
the base.
2.
2
3.
3
4. You can level your Washer Dryer by
•
•
•
•
•
4.3.
•
•
•
a grounded socket of 10 amperes. The
amperes.
•
•
damage that occurs due to the use of

EN - 13
NOTE: Operating your machine
with low voltage will cause the life cycle
of your machine to be reduced and its
performance to be restricted.

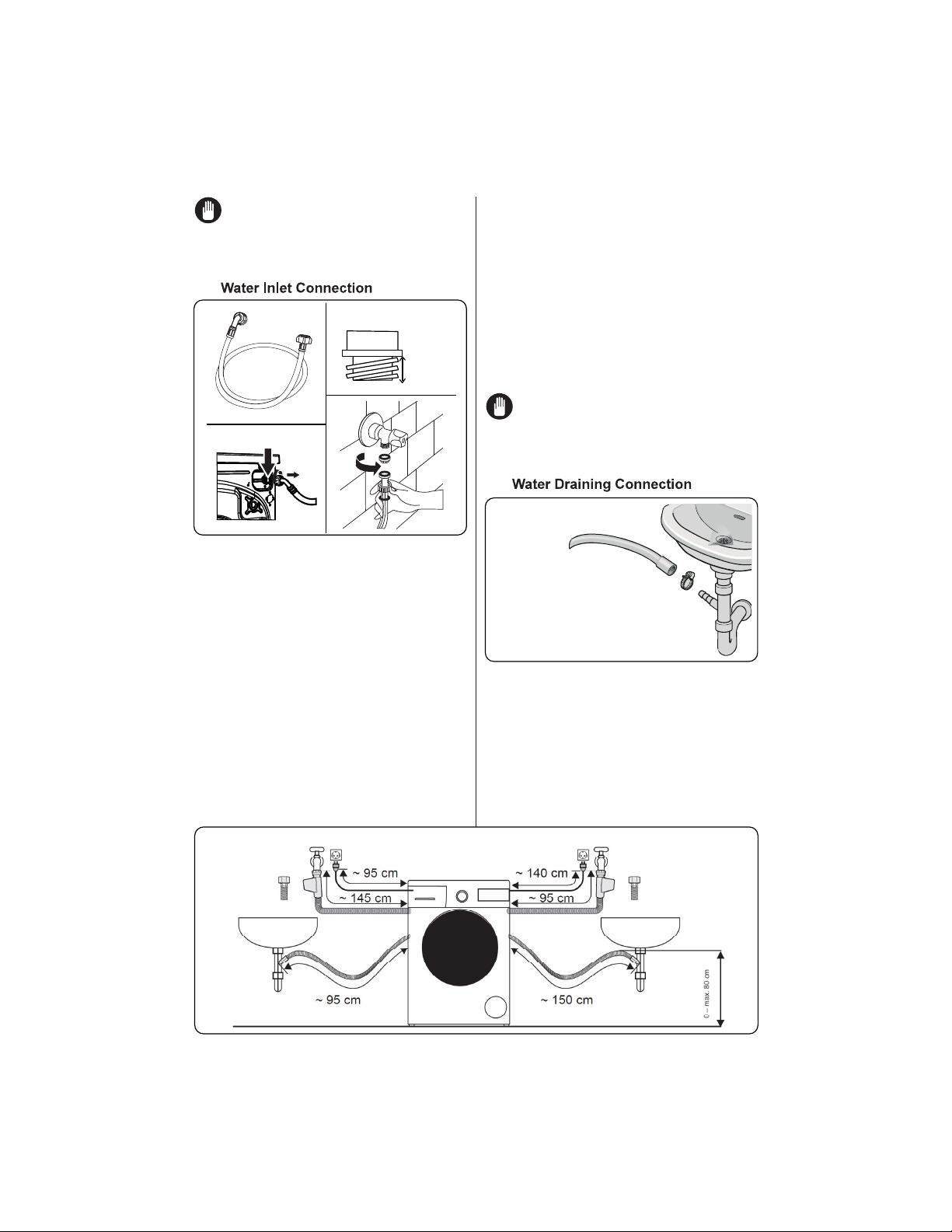

4.4.
3/4”
10 mm
1
3
2
4
• Connect your Washer Dryer to your cold
water supply only.
• Only use the water inlet hose supplied
with your machine or one purchased
through an authorised dealer.
• A gasket is included in the hose
packaging to prevent water leaks from
connections. Fit this gasket to the
end of the water inlet hose that will be
connected to the tap.
• Connect the angled end of the water
inlet hose to the cold water inlet on the
rear of the machine and hand-tighten.
• Screw the other end of the water inlet
hose onto a 3/4” water tap and hand-
tighten.
• If in any doubt, consult a qualified
plumber.
• Turn the cold water supply on and check
for any leaks.
• Water flow with pressure of 0.1-1 Mpa
will allow your machine to operate at
optimum efficiency (pressure of 0.1
Mpa means that more than 8 litres of
water per minute will flow through a fully
opened tap).
• Ensure that the the hose is not trapped,
kinked, twisted, folded or crushed.
NOTE: Only use the water inlet
hose supplied with your machine when
making connections. Never use old, used or
damaged water inlet hoses.
4.5.
• Connect the water drain hose to a
standpipe or to the outlet elbow of
a household sink, using additional
equipment. The hose must be placed
between 0 cm and 80 cm from the
ground.
• Never attempt to extend the water drain
hose.
• Do not put the water drain hose from

EN - 14
your machine into a container, bucket or
bathtub.
• Make sure that the water drain hose
is not bent, buckled, crushed or
extended.
5. CONTROL PANEL OVERVIEW
1 2 3 4
1. Detergent drawer
2. / On-Off button:
programme.
off, press the on / off button.
3.
4. Start/Pause button: Start or pause the
selected programme.
5.1.
1
2
3
4
5
6
1.
2.
3. Softener Compartment
4. Pre-Wash Detergent Compartment
5. Powder Detergent Levels

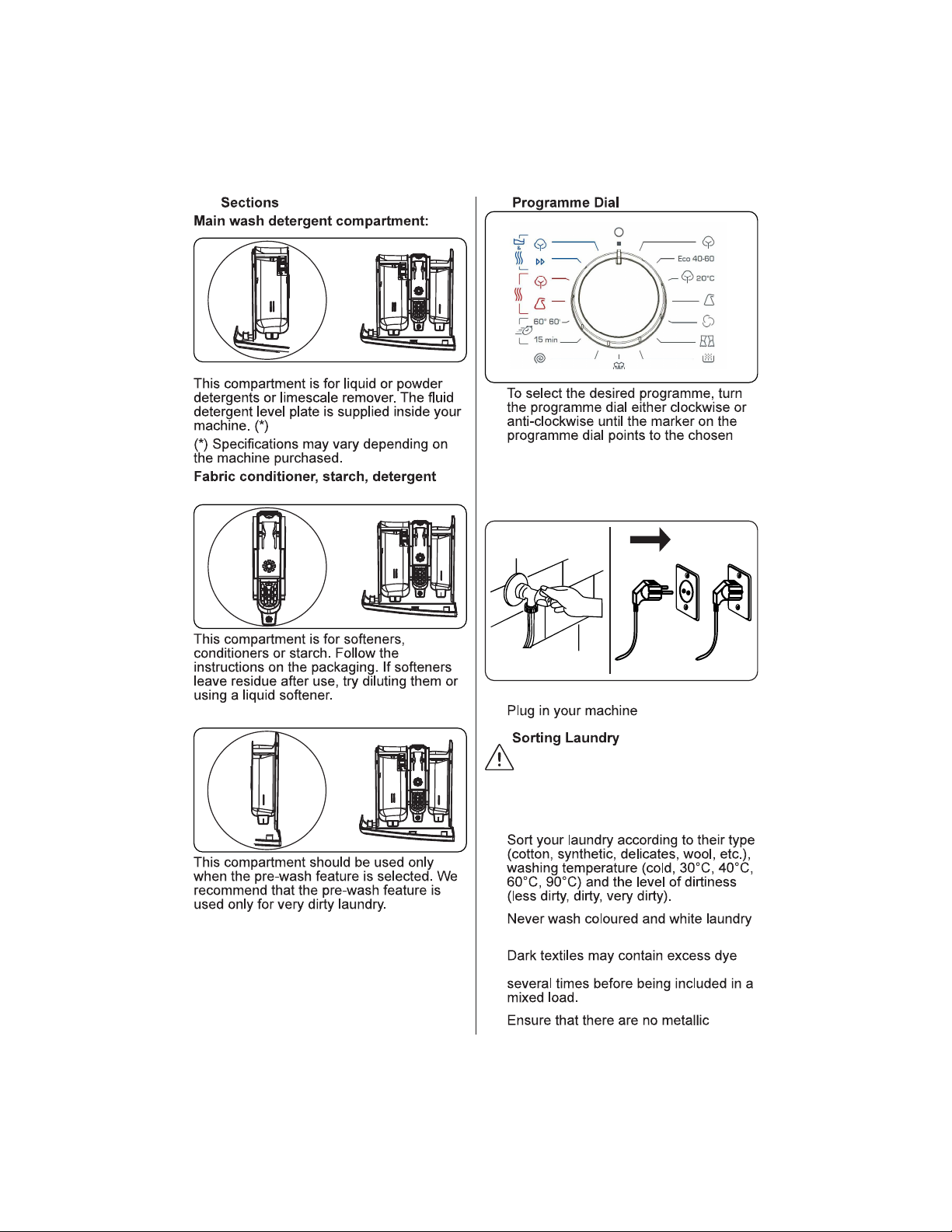

6. Powder Detergent Scoop (*)

EN - 15
5.2.
compartment:
Pre-wash detergent compartment:
5.3.
•
programme.
•
6. WASHING OPERATION
1 2
1. Turn on the water supply.
2.
6.1.
Your laundry contains product labels
which specify the appropriate washing
instructions. Wash or dry your laundry
according to the instructions on the product
labels.
•
•
together.
•
and should be washed separately
•

EN - 16
WARNING: Any malfunction
occurring due to foreign materials damaging
your machine are not covered by the
warranty.
•
eyes.
•
or bag.
•
•
6.2.
Machine wash
Machine wash,
permanent press
Maximum
washing
temperature
Maximum
washing water
temperature
Maximum
washing water
temperature
Maximum
washing water
temperature
Hand wash
Do not wash
Can be bleached in
cold water
Do not use bleach.
Maximum ironing
temperature
Maximum ironing
temperature
Can be dry cleaned
with any solvents
Can only be cleaned
with perchloride,
lighter gas, alcohol or
R113.
Can only be cleaned
with perchloride,
lighter gas, alcohol or
R113.
Do not dry cleaning
Dry flat
Drip dry
Line dry
Tumble dry
Tumble dry high
Do not tumble dry
Maximum ironing
temperature
Do not iron
6.3.
•
•
•
drum as shown below.

EN - 17
•
•
trapped between the rubber seal and
the door.
•
6.4.
The amount of detergent to use will depend
on the dirtiness of your clothes and the
hardness of your water supply; guidelines
will be on the packaging of your detergent.
• If your clothes are only slightly soiled,
do not do a pre-wash. Put a small
amount of detergent (as specified by the
manufacturer) into compartment II of the
detergent drawer.
• If your clothes are excessively soiled,
select a programme with pre-wash and
put ¼ of the detergent to be used into
compartment I of the detergent drawer
and the rest in compartment II.
• Use detergents produced for automatic
washing machines in your machine.
Follow the instructions on the detergent
packaging when determining the
amount of detergent to use for your
laundry.
• The higher the degree of hardness of
the water, the more detergent you will
need.
• The amount of the detergent you will
use will increase as the amount of your
laundry increases.
• Put the softener in the softener
compartment in the detergent drawer.
Do not exceed the MAX level, otherwise
the softener may flow into the washing
water.
• Softeners with high density must be
thinned before being put in the drawer.
High-density softener will clog the flush
and block the flow of the softener.
• You can use liquid detergent in all
programmes without pre-washing.
Insert the liquid detergent apparatus in
compartment II of the detergent drawer
and adjust the liquid detergent amount
(follow the instructions on the liquid
detergent packaging). Do not exceed
the MAX level..
6.5.
programme.
7. Additional Functions
To allow you to get the best washing results
possible, your machine offers the following
additional functions to complement the
selected programme. To select an additional
function before starting a programme:
• Press the button on the Control Panel
•
•
selected.
•
•
