Victor V86P User manual

V86P
USERS GUIDE

COPYRIGHT
©1989 by VICTOR
This manual
contains proprietary information which is protected by
copright. No part of this publication may be reproduced,
transcribed, stored in aretrieval system, translated into any
language or computer language, or transmitted in any form
whatsoever without the prior written consent of the publisher.
For information contact your local dealer or Victor.
TRADEMARKS
VICTOR is aregistered trademark of Victor Technologies, Inc
IBM is aregistered trademark of International Business
Machines Corporation.
MS-DOS is aregistered trademarks of Microsoft Corporation.
Microsoft is aregistered trademark of Microsoft Corporation.
NOTICE
VICTOR makes no representations or warranties of any kind
whatsoever with respect to the contents hereof and specifically
disclaims any implied warrenties of merchantability or fitness
for any particular purpose.
VICTOR shall not be liable for errors contained herein or for
incidental or conseguential damages in connection with the
furnishing, performance, or use of this material.
Victor reserves the right to revise this publication from time
to time and make changes in the content hereof without
obligation to notify any person of such revision or changes.

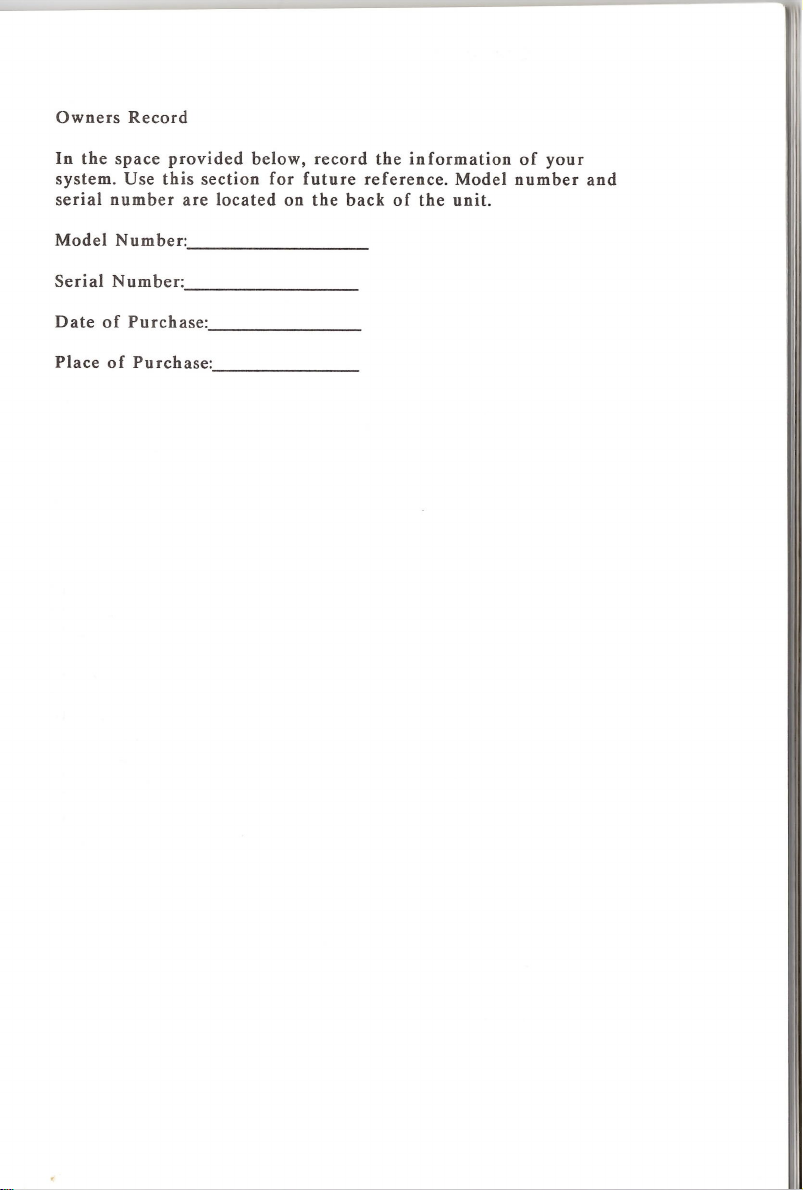

Owners Record
In the space provided below, record the information of your
system. Use this section for future reference. Model number and
serial number are located on the back of the unit.
Model Number:
Serial Number:
Date of Purchase:
Place of Purchase:

Contents Page
Chapter 1—-- Getting Started .................................................. 4
1.1 Before You Start 4
1.2 Unpacking the Computer ............................................... 4
1.3 Optional Accessories 6
1.4 Power Sources 6
1.4.1 The AC Adapter .......................................................... 6
1.4.2 Rechargeable NiCd Battery Pack ........................ 6
1.5 Setting Up 6
1.6 Opening the Computer ...................................................... 7
1.7 AClose Inspection of the Computer ........................ 8
1.8 About Keyboard 9
1.9 Booting the Computer ...................................................... 9
1.9.1 Insert the MS-DOS System Diskette ................... 9
1.9.2 Before You Power On ............................................... 10
1.9.3 Power On 10
1.10 Power On Self-Test 10
1.11 Configuration Setup ........................................................... 12
1.12 Reset 12
1.13 Power Off 12
1.14 Transporting the Computer ............................................ 13
Chapter 2--- Using Your Computer .................................... 14
2.1 Keyboard 14
2.1.1 Keyboard Arrangement ............................................. 14
2.1.2 Keyboard Indicator LEDs ........................................ 14
2.1.3 Alphanumeric Keys ..................................................... 14
2.1.4 Control and Function Keys ........... ....15
2.1.5 Cursor Control and Editing Keys. ..17
2.1.6 Numeric Keypad ................................ ....18
2.1.7 Key Combinations... .......................... 18
2.1.8 Special Purpose Keys ..................... ............................. 18
2.2 Disk Drives 18
2.2.1 Floppy Disk Drive ....................................................... 18
2.2.2 Hard Disk Drive 19
2.3 Indicators and Controls ..................................................... 20
2.3.1 Power Indicator 20
2.3.2 Battery Low Indicator ............................................... 20
2.3.3 Disk Indicator 21
2.3.4 Keyboard Indicator ..................................................... 21
2.3.5 LCD Contrast Control ............................................... 21
2.4 Warning System 21
2.4.1 Battery Low Warning ................................................. 21
2.4.2 Power Off Warning ..................................................... 22
2.5 Power Save System 22

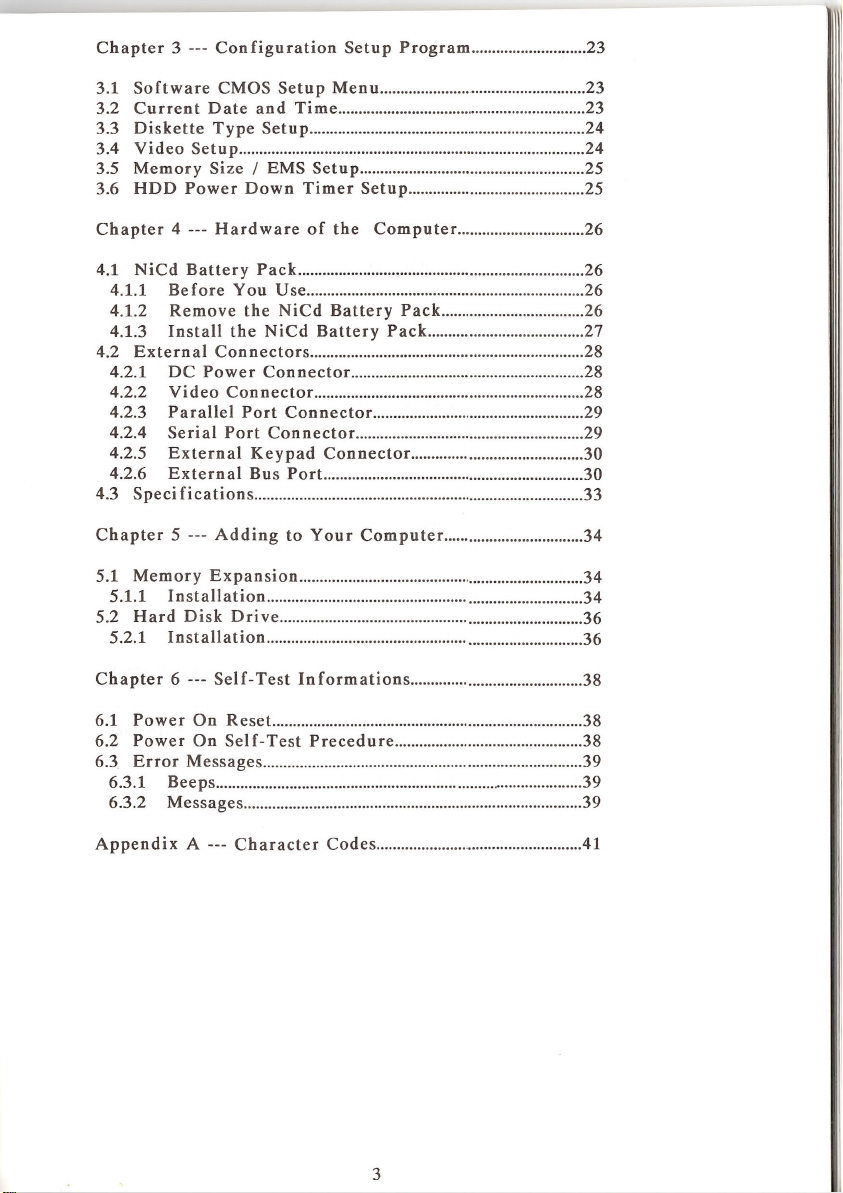

Chapter 3-—- Configuration Setup Program ............................
3.1 Software CMOS Setup Menu ..................................................
3.2 Current Date and Time
3.3 Diskette Type Setup
3.4 Video Setup
3.5 Memory Size /EMS Setup .......................................................
3.6 HDD Power Down Timer Setup ...........................................
Chapter 4--- Hardware of the Computer ...............................
4.1 NiCd Battery Pack
4.1.1 Before You Use
23
23
23
24
74
25
25
26
26
26
26
27
28
28
78
4.1.2 Remove the NiCd Battery Pack ...................................
4.1.3 Install the NiCd Battery Pack ......................................
4.2 External Connectors
4.2.1 DC Power Connector
4.2.2 Video Connector
4.2.3 Parallel Port Connector ....................................................
4.2.4 Serial Port Connector ........................................................
4.2.5 External Keypad Connector ..........................................
4.2.6 External Bus Port
4.3 Specification:
Chapter 5--- Adding to Your Computer ..................................
5.1 Memory Expansion
5.1.1 Installation
29
29
30
30
33
34
14
24
5.2 Hard Disk Drive 36
5.2.1 Installation .............................................................................
Chapter 6--- Self-Test Informations ..........................................
6.1 Power On Reset
6.2 Power On Self-Test Precedure ..............................................
6.3 Error Messages
6.3.1 Beeps
6.3.2 Messages
Appendix A--- Character Codes ...................................................
36
38
38
38
39
39
39
41

Chapter 1
Getting Started
Your computer is one of the most powerful portable computer in
the world today. It is designed for years of trouble-free
operation. If you need help with the installation or use of your
computer:
A. Double check this manual. The answers you need are usaully
right here.
B. Contact your dealer. He is your best source of information.
1.1 Before You Start
Here are some things you should know before you unpack, set up
and use your computer:
A. Follow directions to unpack, set up and operate the
computer.
B. Operate your computer away from heat source.
C. Choose locations to avoid the reflections of the lights on
the Liquid Crystal Display (LCD).
1.2 Unpacking the Computer
Carefully unpack your computer and save the original cartons in
case you need to ship or transport it.
Please check to be sure the following items are packed with your
computer.

Your Computer
The AC Power Adapter and Power Cord
5”” .

()pl ional accessories:
.l28 KB /512 KB Expansion Memory
.l0 Keys Numeric Keypad
.Additional NiCd Battery Pack
.Carrying Case
.Expansion Chassis for IBM PC/XT compatible card
L4 Power Sources
In addition to AC power operation, this powerful computer also
supports battery operation.
1.4.1 The AC Adapter
Use only the 9.0V DC output adapter to connect the computer to a
wall outlet.
1.4.2 Rechargeable NiCd battery Pack
The factory-installed NiCd Battery Pack is located under the
battery cover of the computer. This Battery Pack should allways
be inside the computer to supply the necessary power for the
Floppy disk drive. In addition, it also provides all the power of
your computer if the AC Power Adapter is removed. Please refer to
Section 4.1 for removal or change.
Note -When the AC Adapter is connected, the computer will
operate from AC Power Adapter and recharge the NiCd Battery Pack.
1.5 Setting Up
A. Before you connect the AC Adapter, make sure that the Power
Switch of the computer is OFF.
B. First, plug the AC Adapter into an outlet.
C. Second, connect the jack of the Adapter into computer.
Figure 1-1, Connect the AC Adapter
D. If you want to install any peripherals to your computer,
please refer to Chapter 3for details and install them now.

1.6 Opening the Computer
Slide the latches on both sides of the computer towards the A.
front.
Figure 1-2, Slide the LCD Latch
B. Lift the LCD cover up from the front to open it.
C. Move the LCD to the most comfortable viewing angle.
Figure 1-3, Adjust the LCD Cover

1.7 AClose Inspection of the computer
The figures below show the indicators and connectors of the
computer. Detailed descriptions of how they are used follow in
later sections of this manual.
Figure 1-5, Rear View

1.8 About Keyboard
The keyboard of the computer contains 83 keys, please refer to
Chapter 2for details.
Figure 1-6, Keyboard
1.9 Booting the Computer
1.9.1 Insert the MS-DOS System Diskette
Insert the MS-DOS system diskette in drive A; as shown in the
following figure. Please hold the label side of the diskette up.
Be sure it is oriented properly, then gently push it into the
floppy disk drive until it locks in place and the ejection button
pops up. The diskette is now properly inserted.
Figure 1-7, Inserting aDiskette

1.9.2 Before You Power On
A. Make sure that the AC Adapter is properly connected.
B. The contrast control of the LCD is set to the middle of its
range.
(3. The power of any peripheral devices is OFF.
1.9.3 Power On
Turn on the POWER switch which is located on the right side of
the computer. The LED labeled ’POWER’ ligths. The computer will
perform aseries of internal self-tests to check the major
circuits and display reports on the LCD. Please refer to Chapter
6for details about self-tests.
After afew seconds, the computer enter the ’bootstrap’ procedure
and load the Operation System from the floppy disk drive A:.
After MS-DOS is loaded, you will see amessage as following:
Current Date is XXX XX-XX-19XX
Enter new data (mm—dd-yy):
Reply to the questions until the DOS prompt A> appears. You have
now loaded the MS-DOS successfully. Please refer to MS-DOS user’s
manual for detailed operations.
Now, adjust the brightness and contrast controls of the LCD so
that you can comfortably read the screen.
If you have installed any peripheral devices, turn them on now.
1.10 Power On Self-Test
When you turn the power on or reset the computer, the BIOS of the
computer performs aseries of internal self-tests to make sure
that the internal cirquits and devices are working properly.
10

During Power On Self-Test, you will see or hear that:
9:“PP!‘
S"
Power LED lights.
Screen is cleared.
The keyboard LEDs light and become off.
Ashort beep and display the messages of testing.
RIGHT DRIVE lights during computer test; RIGHT DRIVE
controller.
LEFT DRIVE lights during computer test; LEFT DRIVE
controller.
Error message is displayed if the computer fails in any of
the self-tests. Refer to chapter 6to identify and correct
it.
Bootup the DOS if it successfully completed the self-tests.
11

[.11 Configuaration Setup
Configuration Setup Program is used to tell the computer what
hardwares are installed, such as the memory size. It’s also used
to set the current date and time into the CMOS RAM of the
computer.
You have to check the setup configuration or to perform the setup
procedure in one of the following conditions:
1. If the computer shows hardware error during power on
self-test.
Change the current date or time.
Install asecond floppy disk drive.
Install ahard disk drive.
Change the hard disk power down timer.
Change the display mode.
Expand or define the expansion RAM size.
Remove the NiCd Battery Pack more than one hour during the
AC Adapter is disconnected.
@8999?!"
1.12 Reset
There are two ways to reset the Computer:
A. Turn the power OFF, wait at least three seconds, and then
turn it ON again.
B. Press following keys at the same time:
Ctrl -Alt -Del
1.13 Power Off
Before you turn off the computer, make sure the drive indicators
are off to prevent destruction of information on your diskette or
hard disk. Exit all programs and wait for the drive indicators to
become dark before you turn the power switch off.
12

1.14 Transporting the Computer
A. Before transporting the computer:
1. Remove any diskette from the drive.
2. Turn the power of computer OFF.
3. Disconnect the AC Adapter.
4. Close the LCD cover and make sure that it’s latched.
B. Pull the handle out as shown below:
Figure 1-8, Built-in Handle
13

Chapter 2
Using Your Computer
2.1 Keyboard
The keyboard of the is avery powerful keyboard. It contains 83
keys and can emulate both 83 keys and 101/102 keys keyboard of a
standard IBM PC compatible computer. More informations will be
given in the following sections and tell you how to operate it.
2.1.1 Keyboard Arrangement
The arrangement of the 83-key keyboard is shown in the following
figure:
Figure 2-1, Keyboard Layout
2.1.2 Keyboard Indicators.
The keyboard indicators are located at the lower right side of
the LCD panel. These LEDs light when the CAPS LOCK, NUM LOCK or
SCROLL LOCK keys are active.
Figure 2—2, Keyboard Indicators
2.1.3 Alphanumeric Keys
Most of the alphanumeric keys perform much like those of a
standard typewriter. Araised dot on the shrface for the Fand J
keys is designed to help you to keep your fingers on the proper
keys. When aletter, number or symbol key is pressed, the
corresponding character appears on the screen. Some keys such as
SPACE BAR, SHIFT, TAB and BACKSPACE can be programmed by
software, to perform special functions that are different from
normal typewriters.
14

Figure 2—3, Alphanumeric Keys
TAB --- The TAB key moves the cursor to the next tab setting
which is programmable by software.
CAPS LOCK -—- Press CAPS LOCK once. The LED on the indicator
panel lights, and allows you to type capital letters. Press CAPS
LOCK again to release. This key only affects the alphabet keys.
SHIFT --- There are two SHIFT keys on the keyboard, one is
located on the right side of the keyboard and the other on the
left. Pressing either of these keys generates the capital
letters, symbols and alternate punctuation marks. Pressing SHIFT
key changes the letter keys to lowercase letters if CAPS LOCK is
engaged.
CTRL (Control) —-— This key is used with other keys to perform a
certain function.
ALT (Alternate) --- This key is used with other keys to perform a
certain function which is programmed by software.
SPACE BAR ——- Usually, when you press the space bar, it generates
ablank character on the screen. This key is also programmable by
software for special functions.
ENTER --- This key is used to enter instructions, data or
commands.
BACKSPACE --- The BACKSPACE key moves the cursor one position to
the left and usually erased any characters in the cursor’s path.
This key is also programmable by software.
2.1.4 Control and Function Keys
Most of these keys can be programmed by software to provide a
special function.
15

Figure 2—4, Control and Function Keys
ESC (Escape) --- In most programs, the ESC key is used to exit an
function or cancel the current operation.
F1-F10 (Function Keys) --- These keys are assigned for special
functions, depending on the software you are using.
NUM LOCK --— Press NUM LOCK once. The NUM LOCK LED on the
indicator panel lights. Numeric keys are active, press NUM LOCK
again to release.
PRT SC/SYSRQ (Print Screen/System Request) --- When the PRT SC is
pressed, the screen image will be copied to the printer.
To generate asystem request, first press and hold ALT key and
then press SYSRQ key. The function of the system request is
programmed by software.
SCROLL LOCK --- The function of this key is programmed by the
software package. Pressing it once lights the LED on the
indicator panel. Press it again to release.
PAUSE/BREAK --— Pressing the PAUSE key will stop the display
temporarily. Press any key to continue.
Press and hold the CTRL key and then press the BREAK key to
generate abreak, which is used to halt commands or programs as
they are running. The function of this key depends also on the
software.
16
