E C O L O G I C A L C O O L E R S
HOLIDAY II
User’s Manual
www.viesa.ca / 1-888 438-8444

IMPORTANT
Installation requires an experienced mechanic with specific knowledge in the installation of
the VIESA Ecological Cooler. Installation, disassembly, repairs and maintenance
must be performed by an Authorized Installer. Authorized Installer must use proper
protective equipment when installing the system.
Improper installation or use of unauthorized parts can cause malfunctions, loss of battery life
or other consequences which may result in serious injury.
Manufacturer or Distributor will not be responsible for injuries or damages resulting from
misuse of equipment, use contrary to operating instructions or installation by any person
other than an Authorized Installer.
Information contained in this manual is subject to change. Manufacturer reserves the right,
without notice, to make changes in equipment design or components as progress in
engineering, manufacturing or technology may warrant.
World-wide Patents
VIGIA is a trademark of Col-Ven S.A.

To lower the inside temperature of the caravan’s cabin using evaporative cooling.
Operation
The unit is equipped with an electrovalve that is activated by two sensors located
at the front and back of the unit. The electrovalve allows passage of water from
pressurized pipes to the unit where a tank tray stores it. A centrifugal pump
carries the water from the tank tray to a distributor coil that constantly and
homogeneously moistens the evaporator contained in the unit. A biturbo blower
pushes the exterior air to the interior of the caravan forcing the air through the
evaporator and therefore cooling the warm air.
Function

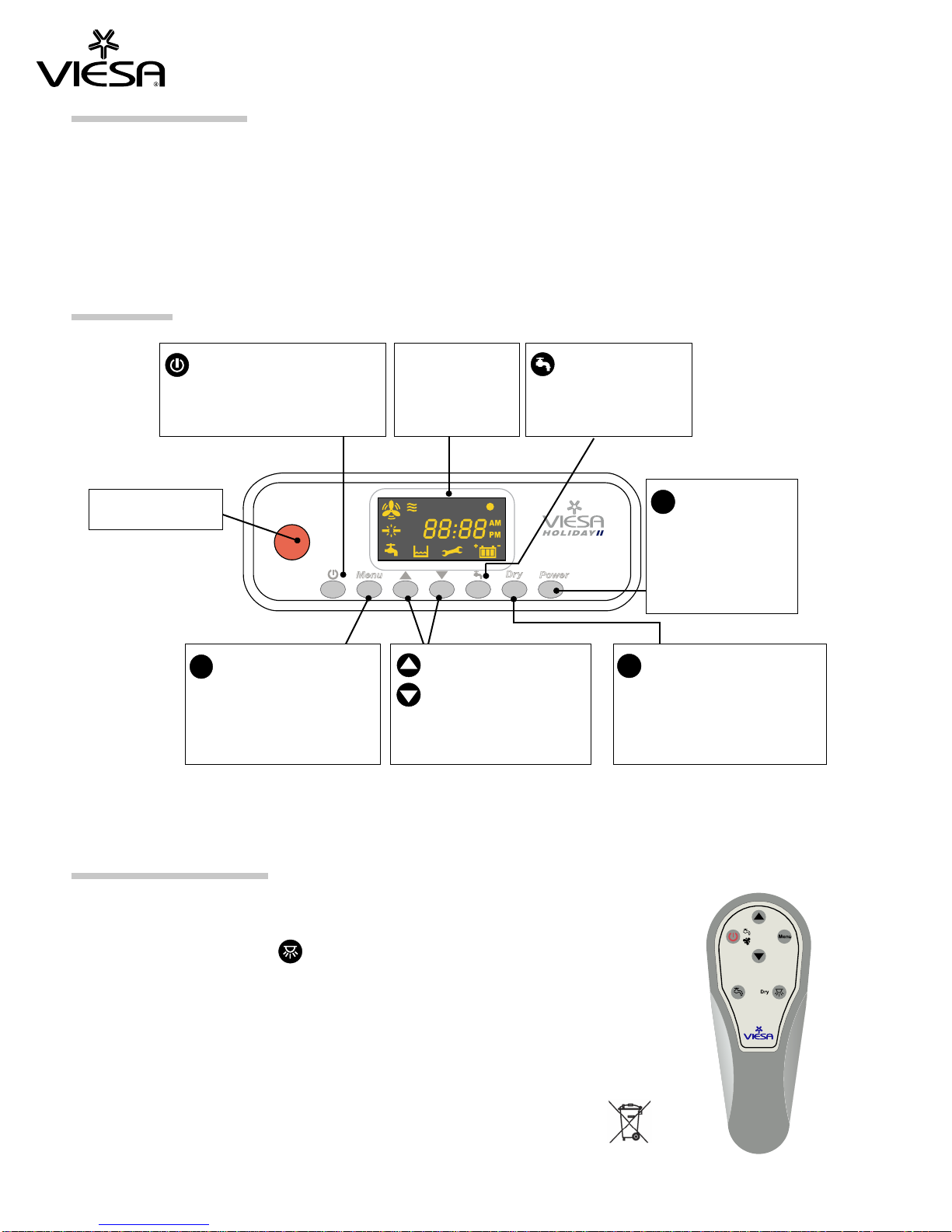

BOARD INDICATIONS
Important: before switching on the equipment:
With parked vehicle: Open 2 to 3 cms.one of the windows
With the vehicle in motion: Open 2 to 3 cms andone of the windows
close all other air entrances to the cabin so that hot air does not
enter from the exterior.
BOARD
TO TURN ON
OR OFF THE
OPERATION OF THE
WATER CYCLE
AUTO
Power
Menu Dry
DISPLAYS
FUNCTIONS AND
PARAMETERS OF
THE EQUIPMENT
REMOTE CONTROL
RECEIVER
TO ACTIVATE
THE AUTOMATIC DRYING
SYSTEM: TURBO BLOWER
TO TOP SPEED UNTIL THE
EVAPORATOR FILTER GETS
DRY
Dry
TO POWER ON
AND OFF THE EQUIPMENT
(TURBO BLOWER AND CON-
TROL OF THE WATER PUMP)
TO INCREASE
AND/OR LOWER THE
SPEEDS OF THE TURBO
BLOWER AND SET
CLOCK,
SELF POWER ON AND
SELF POWER OFF
TO SEE AND
ENTER FUNCTIONS:
TIME SETTING
SELF POWER ON
SELF POWER OFF
WORKING HOURS
Menu
KEEP IT PRESSED
FOR 2 SECONDS:
IT SHUTS DOWN
THE EQUIPMENT
COMPLETELY
(DISPLAY OFF)
AND IT RESTARTS
IT
Power
Note: time is expressed in 24H mode.
REMOTE CONTROL
Performs all the functions explained before, except when the
equipment is off.
Instruction for the Dry key: It activates the drying system;
turbo blower to top speed UNTIL the evaporator filter gets totally dry.
- Keep the batteries of the remote control away from children. Wrong use may
cause fire or burns. Do not recharge or heat batteries.
Dispose dead batteries according to local laws. Replace batteries with the
same type (AAA).
- Batteries may explode if not correctly inserted. Immediately dispose of dead
batteries. Do not throw them into fire.

DISPLAY INDICATIONS
AUTO
SHORT-CIRCUIT IN THE WATER
PUMP OR IN THE TURBO BLOWER
OR ELECTROVALVE/ CHANGE THE
EVAPORATOR WARNING
TIME/ TURBO
BLOWER SPEED
LEVELS
DRYING SYSTEM
ACTIVATED
WATER CYCLE
ACTIVATED
TURBO BLOWER ON
TURBO BLOWER
DISCONNECTION
SELF POWER ON OR
SELF POWER OFF
BATTERY LEVEL
NOT ENOUGH
WATER IN THE
TANK
PERMANENT INFORMATION
- Clock.
- Battery level: If the voltage decreases to the set level (10,5 V. factory
default), a blinking display will appear and the equipment will start slowing down
automatically, decreasing the turbo blower speed .progressively
Thecommandandcontrolmodule accumulatestheworkinghours,andafterworkingfor
1000 hours, turns on permanently indicting that the evaporator needs to be replaced.
Note: working hours are either when
the turbo blower or the water pump is on.
- Every time the evaporator is replaced the timer must be set to
(zero).
TURBO BLOWER
Bypressing theturboblower andthepumpcontrolsystem willbeactivated.
By pressing again the turbo blower and the pump control system will be
disconnected.

The equipment has 25 speed levels, which can be changed by pressing or .
In case the turbo blower is disconnected, will turn on and the system will make
a sound. The symbol will turn off after the problem is solved and the equipment is
restarted by pressing
Power
.
Note: the water pump will not work if the turbo blower is disconnected.
In case the turbo blower consumes more than the normal voltage, and
will turn on and the system will make a sound.
The symbols will turn off after the problem is solved and the equipment is restarted
by pressing
Power
.
Note: turbo blower consumption of more than 11 A
is consider excessive consumption.
When pressing the water pump will turn off.
When pressing again the water pump will turn on.
Note: The key will turn on or off the pump
only if the equipment is previously turned on with
.
In case the water pump or electrovalve consumes more than normal, and will
be displayed and the system will make a sound:
- If the problem is in the water pump and
- If the problem is in the electrovalve ,and
The symbols will turn off after the problem is solved and the equipment is restarted
by pressing
Power
.
Note: water pump consumption of more than 4A and
3A for the electrovalve is consider excessive.
2.4.7- WATER SYSTEM
When there is no water in the tank, or there is a problem with the electrovalve
does not open) or in the level sensor ( always indicates high level)
will turn onand the system will make a sound.
The symbols will turn off after the problem is solved and the equipment is restarted
by pressing
Power
.
will turn on.
will turn on.
WATER PUMP

FUNCTIONS
With the key
Menu
the user has access to different functions:
Time setting
Self power on
Self power off
Working hours
Note: The functions are in 24H format.
Set Time
To set the equipment clock.
Press
Menu
until is displayed and then press .
The hour blinks, press or to set the hour.
Pressing to select minutes.
Use or to set the minutes.
Note: To confirm the hour, wait 10 seconds or press .

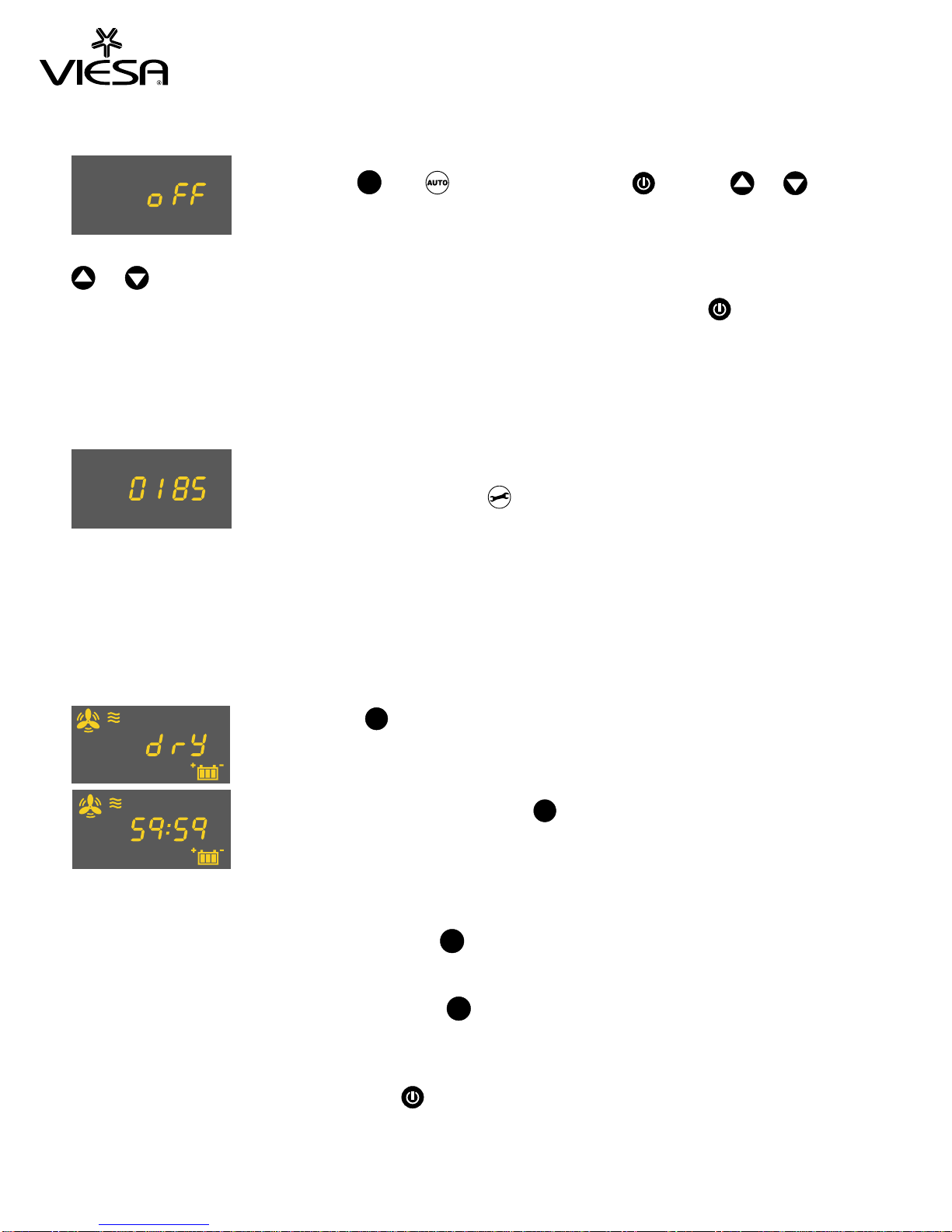

Self Power On
It allows to power on the equipment automatically at an established
time.
Select with
Menu
until , and oFF appear, press and then or to
program the time (it changes from 30 to 30 minutes).
AUTO
Todeactivatethisfunctionfollowtheinstructions aboveandpress
or until oFF appears.
Note: To confirm self power on, wait 10 seconds or press
.

Self Power Off
It allows to power off the equipment automatically at an established time.
Select with
Menu
until and oFF appear, press and then or to program
the time (it changes from 30 to 30 minutes).
AUTO
Todeactivatethisfunctionfollowtheinstructions aboveandpress
or until oFF appears.
Note: To confirm self power off, wait 10 seconds or press .
Power off system can be set even when
the equipment is off.
Working Hours (read only)
It indicates the accumulated equipment use since replacement of the evaporator filter.
will turn on.
Drying System
It dries automatically the evaporator.
Important: If the equipment will remain off for more than 48 hs., activate the drying system
to avoid bad smells when restarting it.
When pressing
Dry
the equipment will dry the evaporator tray and the evaporator.
For this, the turbo will remain on at high speed to dry the evaporator tray. Once
the contained water in the tray evaporates, a 60 minutes countdown startsto dry
the evaporator and then the biturbo turns off automatically.
To deactivate the drying system press
Dry
.
System Off
When pressing for 2 seconds the power button
Power
the equipment will completely turn-off (including
the display). Note: The set hour will be lost.
To restart press
Power
.
When it gets to 1000 hours
Maximum Time in Service
Everytimetheequipmentisturnedonwith itwillworkforamaximumperiodof timepreviouslyestablished
and then it will turned off automatically. By default, such period lasts 24 hours.. This setting can be changed during
initial configuration at installation.

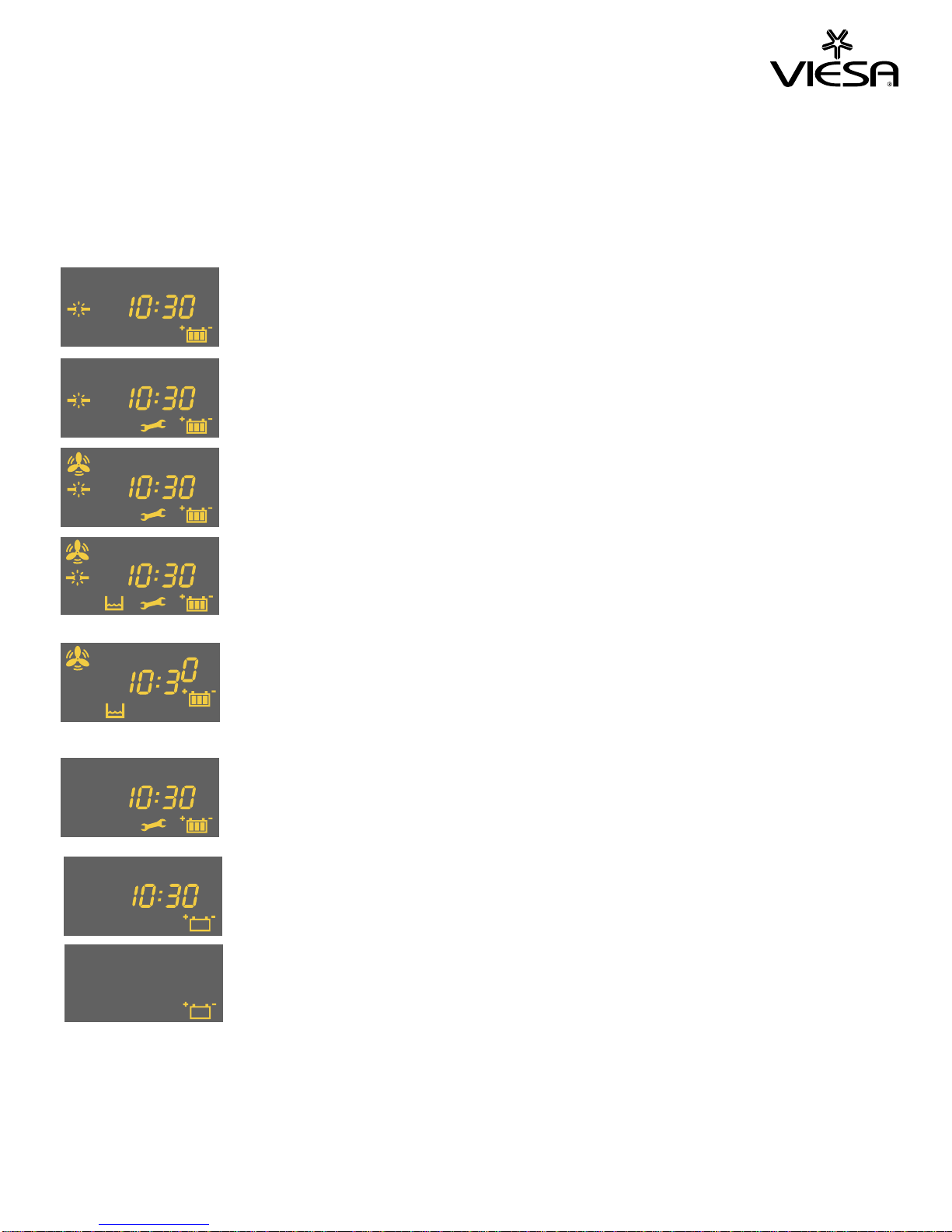

FAILURE INFORMATION
When there is a failure, it will be displayed on the screen and an alarm will sound.
Turbo blower disconnected
Turboblowerwithexcessiveconsumption
Pump in short-circuit or with excessive consumption
Electrovalve in short-circuit or with excessive
consumption
Low level of water in the tank of the caravan or
shut-off valve closed. Pump of the caravan shut or
electrovalve disconnected
Electrovalve or level sensor malfunction
End of the working life of the evaporator filter
Low battery level
Low battery level

Use only clean water.
Use the drying mode to avoid bad smells when restarting the
equipment.
Attheendof theseason,close theoriginalVIESA shut-off valveandactivate
the filter drying cycle.
GENERAL RECOMMENDATIONS
When is displayed, the evaporator filter must be replaced
The equipment will delay in cooling until the evaporator is totally
wet.
Do not use fuses higher than10 Amp.
The equipment will disconnect automatically due to low tension so
as to prevent damages to the battery.
Foresee water replenishment taking into account that the unit
consumes between 2 and 5 liters per hour depending on
ambient temperature.
When performing equipment maintenance or, by any
reason, when the upper cover or the upholstery cover are removed,
the equipment MUST NOT BE SWITCHED ON until both
covers are reinstalled.
Every 6 months:
- Replace the granulated Calfa Bas .package
- Clean the water filter using pressurized water or
compressed air opposite to the arrow’s direction.
Do not use chemical products to clean the control panel.
During short stops leave the equipment on so as to keep the cabin
fresh. WATER AND/
OR AIR

LIMITED WARRANTY
ThislimitedwarrantyisprovidedtotheoriginalbuyeronlyandcoverstheVIESAECOLOGICALCABCOOLER(the
"Product") manufactured by Col-Ven S.A. (the "Manufacturer") and distributed by RCR Systems Limited (the
"Distributor").
The warranty period is two years from date of original purchase by the buyer. During this period, if the product is
found to be defective in mechanical or electrical materials or workmanship during normal use, it will be repaired or
replacedat nochargeto thebuyer. Thebuyerwill berequiredto showdateand proofofpurchaseand toreturnthe
Productpre-paidtoanAuthorizedDealer.
THIS LIMITED WARRANTY DOES NOT COVER, AND MANUFACTURER OR DISTRIBUTOR WILL NOT BE
RESPONSIBLEFOR,THEFOLLOWING:
-Normalwearofparts;
-Failuresordefectsduetonegligent use, misuse, neglect, abuse, use on improper voltage or current, use contrary
to operating instructions, accidents, alterations, disassembly, installation, repair or alteration by any person other
thananAuthorizedDealer,fire,floodsoractsofGod.
-ProductsoraccessoryequipmentnotmanufacturedbytheManufacturer.
-Performance of Product when used in combination with other products or equipment not manufactured by the
Manufacturer.
-Paymentsforlabourorservicetounauthorizedrepresentativesorserviceagents.
ManufacturerorDistributor will not be responsible for loss oftime,inconvenience, loss of use of the Product, injury
tobuyeror other persons or damage tovehicle or property caused by the Productorby its failure to work orforany
otherincidental,punitiveorconsequentialdamages.
TheManufacturerreservestherighttomakethefinaldecisiononanywarrantyclaimthatmaybequestionable.
Thiswarrantyisnottransferable.
EXCEPTASPROVIDEDHEREIN,THISWARRANTYEXPRESSLYEXCLUDES:
(i) all warranties and conditions, whether express, implied or statutory, including but not limited to warranties and
conditionsofmerchantabilityforaparticularpurpose;and
(ii) any agreements, representations, affirmations, warranties or conditions, whether oral or written, made by any
agent,employeeorrepresentativeofseller.
This warranty sets forth the entire responsibility of Manufacturer and Distributor with respect to the Product. The
buyer'sexclusiveremedy is repair or replacement as stated herein. Innoeventshall Manufacturer or Distributor's
liability exceed the cost of correcting defects as provided herein and any such liabilities will terminate upon
expirationofthetwoyearwarrantyperiod.

USER’S MANUAL VIESA HOLIDAY II
REVISION 003
1-2012
www.viesa.ca / 1-888 438-8444
P.O.Box 1352 – 1500 Avenue Road
Toronto, Ontario M5M 0A1
CANADA
Ruta 11 Km.814 - Guadalupe Norte
Prov. de Santa Fe (S3574XAB)
ARGENTINA
ORDER ON-LINE
