Viking Range VGCC530 User manual

Use & Care
Professional Freestanding Sealed Burner Gas Ranges
VGCC530 / VGCC536 / VGCC548 / VGCC560
CVGCC530 / CVGCC536 / CVGCC546 / CVGCC560

Cleaning and Maintenance ______________________________________________________________________________25
Replacing Oven Lights __________________________________________________________________________________26
Door Removal __________________________________________________________________________________________27
Door Replacement and Adjustment ______________________________________________________________________27
Troubleshooting ________________________________________________________________________________________28
Service Information ____________________________________________________________________________________29
Warranty ______________________________________________________________________________________________30
Congratulations
Congratulations and welcome to an elite world of ownership. We hope you will enjoy and appreciate the care and
attention we have put into every detail of your new, state-of-the-art range.
Your range is designed to offer years of reliable service. This Use and Care Manual will provide you with the information
you need to become familiar with your range’scare and operation.
Your complete satisfaction is our ultimate goal. If you have any questions or comments about this product, please
contact the dealer from whom you purchased it, or contact our Consumer Support Center at 1-888-845-4641.
We appreciate your choice of our product and hope that you will again select our products for your other major
appliance needs.
For more information about the complete and growing selection of products, contact your dealer or visit us online at
vikingrange.com in the US or brigade.ca in Canada
Table of Contents
Getting Started
Warnings ______________________________________________________________________________________________3
Before Using Range ______________________________________________________________________________________7
Product Controls
Range Features ________________________________________________________________________________________8
Oven Functions and Settings ______________________________________________________________________________9
Operation
Surface Operation ______________________________________________________________________________________10
Lighting Burners ______________________________________________________________________________________10
Surface Burners-Automatic Reignition __________________________________________________________________10
Vari-Simmer™ ________________________________________________________________________________________10
TruPower Plus™ Burner (where applicable) ______________________________________________________________10
Surface Cooking Tips__________________________________________________________________________________11
Griddle/Simmer Plate Operation________________________________________________________________________12
Griddle/Simmer Plate Clean Up & Care__________________________________________________________________12
Grill Operation ______________________________________________________________________________________14
Grill Clean Up & Care ________________________________________________________________________________14
Oven Features__________________________________________________________________________________________17
Rack Positions ________________________________________________________________________________________17
Using the Oven ________________________________________________________________________________________17
Conventional and Convection Cooking __________________________________________________________________17
Baking ________________________________________________________________________________________________18
BAKE (Natural Airflow Bake)____________________________________________________________________________18
CONVECTION BAKE__________________________________________________________________________________18
Broiling ________________________________________________________________________________________________22
BROIL (Infrared Broil) __________________________________________________________________________________22
CONVECTION BROIL (Infrared Convection Broil) ________________________________________________________22
Convection Dehydrate __________________________________________________________________________________24
Convection Defrost ____________________________________________________________________________________24
Product Care
2

3
Warnings
Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and
situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating
the appliance.
ALWAYS contact the manufacturer about problems or conditions you do not understand.
Recognize Safety Symbols, Words, Labels
Read and follow all instructions before using this appliance to prevent the potential risk of fire, electric shock, personal injury or
damage to the appliance as a result of improper usage of the appliance. Use appliance only for its intended purpose as described
in this manual.
To ensure proper and safe operation: Appliance must be properly installed and grounded by a qualified technician. DO NOT
attempt to adjust, repair, service, or replace any part of your appliance unless it is specifically recommended in this manual. All
other servicing should be referred to a qualified servicer. Have the installer show you the location of the gas shutoff valve and how
to shut it off in an emergency. A certified technician is required for any adjustments or conversions to Natural or LP gas.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Hazards or unsafe practices which WILL result in
severe personal injury or death
Hazards or unsafe practices which COULD result in
death or severe personal injury
DANGER
Hazards or unsafe practices which COULD result in
minor personal injury.
All safety messages will identify the hazard, tell you how
to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
WARNING
CAUTION
WARNING
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING
TIPPING HAZARD
To reduce the risk of the appliance tipping,
it must
be secured by a properly installed anti-tip
bracket(s). To make sure the bracket has been installed
properly, look behind the range with a flashlight to verify
proper installation engaged in the rear top left corner of the
range.
• THIS RANGE CAN TIP
• INJURIES TO PERSONS CAN RESULT
• INSTALL ANTI-TIP DEVICE PACKED WITH RANGE
• SEE INSTALLATION INSTRUCTIONS

4
WARNING
To avoid risk of property damage, personal injury or death;
follow information in this manual exactly to prevent a fire or
explosion. DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any appliance.
Warnings
To Prevent Fire or Smoke Damage
• Be sure all packing materials are removed from the appliance before operating it.
• Keep area around appliance clear and free from combustible materials, gasoline, and other flammable vapors and materials.
• If appliance is installed near a window, proper precautions should be taken to prevent curtains from blowing over burners.
•
NEVER leave any items on the rangetop. The hot air from the vent may ignite flammable items and may increase pressure in closed
containers which may cause them to burst.
• Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly flammable. Avoid their use or storage near an
appliance.
• Many plastics are vulnerable to heat. Keep plastics away from parts of the appliance that may become warm or hot. DO NOT leave
plastic items on the rangetop as they may melt or soften if left too close to the vent or a lighted surface burner.
• Combustible items (paper, plastic, etc.) may ignite and metallic items may become hot and cause burns. DO NOT pour spirits
over hot foods.
DO NOT leave oven unsupervised when drying herbs, breads, mushrooms, etc; fire hazard.
In Case of Fire
Turn off appliance and ventilating hood to avoid spreading the flame. Extinguish flame then turn on hood to remove smoke and odor.
•Cooktop: Smother fire or flame in a pan with a lid or cookie sheet.
• NEVER pick up or move a flaming pan.
• Oven: Smother fire or flame by closing the oven door. DO NOT use water on grease fires. Use baking soda, a dry chemical or foam-
type extinguisher to smother fire or flame.
• GREASE–Grease is flammable and should be handled carefully. DO NOT use water on grease fires. Flaming grease can be
extinguished with baking soda or, if available, a multipurpose dry chemical or foam type extinguisher. Let fat cool before
attempting to handle it.
DO NOT allow grease to collect around the oven or in vents. Wipe up spillovers immediately.
Child Safety
• NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot.
• NEVER allow children to sit or stand on any part of the appliance as they could be injured or burned.
•DO NOT store items of interest to children over the unit. Children climbing to reach items could be seriously injured.
• Children must be taught that the appliance and utensils in it can be hot. Let hot utensils cool in a safe place, out of reach of small
children. Children should be taught that an appliance is not a toy. Children should not be allowed to play with controls or other parts of
the appliance.
Cooking Safety
• To eliminate the hazard of reaching over hot surface burners, cabinet storage should not be provided directly above a unit. If storage is
provided, it should be limited to items which are used infrequently and which are safely stored in an area subjected to heat from an
appliance. Temperatures may be unsafe for some items, such as volatile liquids, cleaners or aerosol sprays.
•
ALWAYS place a pan on a surface burner before turning it on. Be sure you know which knob controls which surface burner. Make sure
the correct burner is turned on and that the burner has ignited. When cooking is completed, turn burner off before removing pan to
prevent exposure to burner flame.
•
ALWAYS adjust surface burner flame so that it does not extend beyond the bottom edge of the pan. An excessive flame is hazardous,
wastes energy and may damage the appliance, pan or cabinets above the appliance. This is based on safety considerations.
• NEVER leave a surface cooking operation unattended especially when using a high heat setting or when deep fat frying. Boilovers
cause smoking and greasy spillovers may ignite. Clean up greasy spills as soon as possible. DO NOT use high heat for extended
cooking operations.
• DO NOT heat unopened food containers, build up of pressure may cause the container to explode and result in injury.
• Use dry, sturdy pot-holders. Damp pot-holders may cause burns from steam. Dishtowels or other substitutes should NEVER be used as
potholders because they can trail across hot surface burners and ignite or get caught on appliance parts.
•
ALWAYS let quantities of hot fat used for deep fat frying cool before attempting to move or handle.
•DO NOT let cooking grease or other flammable materials accumulate in or near the appliance, hood or vent fan. Clean hood frequently
to prevent grease from accumulating on hood or filter. When flaming foods under the hood, turn the fan off.
•NEVER wear garments made of flammable material or loose fitting or long-sleeved apparel while cooking. Clothing may ignite or catch
utensil handles. DO NOT
drape towels or materials on oven door handles. These items could ignite and cause burns.

5
Warnings
Cooking Safety (cont.)
• ALWAYS place oven racks in the desired positions while oven is cool. Slide oven rack out to add or remove food, using dry, sturdy pot-
holders.
ALWAYS avoid reaching into the oven to add or remove food. If a rack must be moved while hot, use a dry pot-holder.
•ALWAYS turn the oven off at the end of cooking.
• Use care when opening the oven door. Let hot air or steam escape before moving or replacing food.
•NEVER use aluminum foil to cover oven racks or oven bottom. This could result in risk of electric shock, fire, or damage to the
appliance. Use foil only as directed in this guide.
•PREPARED FOOD WARNING:
Follow food manufacturer's instructions. If a plastic frozen food container and/or its cover distorts, warps,
or is otherwise damaged during cooking, immediately discard the food and its container. The food could be contaminated
.
• If you are “flaming” liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft could cause the flames to spread
out of control.
• Once the unit has been installed as outlined in the Installation Instructions, it is important that the fresh air supply is not
obstructed. The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed.
Ensure that the kitchen is well-ventilated. Keep natural venting holes open or install a mechanical ventilation device. Prolonged or
intensive use of the appliance may call for additional (such as opening a window) or more effective ventilation (such as increasing
the level of a mechanical ventilation if present).
Utensil Safety
• Use pans with flat bottoms and handles that are easily grasped and stay cool. Avoid using unstable, warped, easily tipped or loose-
handled pans. Also avoid using pans, especially small pans, with heavy handles as they could be unstable and easily tip. Pans that are
heavy to move when filled with food may also be hazardous.
• Be sure utensil is large enough to properly contain food and avoid boilovers. Pan size is particularly important in deep fat frying. Be sure
pan will accommodate the volume of food that is to be added as well as the bubble action of fat.
• To minimize burns, ignition of flammable materials and spillage due to unintentional contact with the utensil, DO NOT extend handles
over adjacent surface burners. ALWAYS turn pan handles toward the side or back of the appliance, not out into the room where they
are easily hit or reached by small children.
•NEVER let a pan boil dry as this could damage the utensil and the appliance.
• Follow the manufacturer's directions when using oven cooking bags.
• Only certain types of glass, glass/ceramic, ceramic or glazed utensils are suitable for rangetop surface or oven usage without breaking
due to the sudden change in temperature. Follow manufacturer's instructions when using glass.
• This appliance has been tested for safe performance using conventional cookware. DO NOT use any devices or accessories that are not
specifically recommended in this guide. DO NOT use eyelid covers for the surface units, stovetop grills, or add-on oven convection
systems. The use of devices or accessories that are not expressly recommended in this manual can create serious safety hazards, result
in performance problems, and reduce the life of the components of the appliance.
• The flame of the burner should be adjusted to just cover the bottom of the pan or pot. Excessive burner setting may cause
scorching of adjacent counter-top surfaces, as well as the outside of the utensil. This is based on safety considerations.
Heating Elements
• NEVER touch oven bake and broil burner areas or interior surfaces of oven.
• Bake and broil burners may be hot even though they are dark in color. Areas near burners and interior surfaces of an oven may become
hot enough to cause burns.
•
During and after use, DO NOT touch or let clothing or other flammable materials contact heating elements, areas near elements, or
interior surfaces of oven until they have had sufficient time to cool.
Other surfaces of the oven may become hot enough to cause
burns, such as the oven vent opening, the surface near the vent opening, and the oven door window.
Cleaning Safety
• Turn off all controls and wait for appliance parts to cool before touching or cleaning them. DO NOT touch the burner grates or
surrounding areas until they have had sufficient time to cool.
• Clean appliance with caution. Use care to avoid steam burns if a wet sponge or cloth is used to wipe spills on a hot surface. Some
cleaners can produce noxious fumes if applied to a hot surface.
• DO NOT clean door gasket. It is essential for a good tight seal. Care should be taken not to rub, damage, or move the gasket.
• No commercial oven cleaner or oven liner protective coating such as aluminum foil should be used in or around any part of the
oven. Improper oven liners may result in a risk of electric shock or fire. Keep oven free from grease buildup.

Warnings
6
Important Safety Notice and Warning (State of California Proposition 65)
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive
harm.
Important notice regarding pet birds:
NEVER keep pet birds in the kitchen or in rooms where the fumes from the kitchen could reach. Birds have a very sensitive respiratory
system. Fumes released during an oven self-cleaning cycle may be harmful or fatal to birds. Fumes released due to overheated cooking
oil, fat, margarine and overheated non-stick cookware may be equally harmful.
About Your Appliance
• For proper oven performance and operation, DO NOT block or obstruct the oven vent duct located on the right side of the air grille.
• Avoid touching oven vent area while oven is on and for several minutes after oven is turned off. When the oven is in use, the vent and
surrounding area become hot enough to cause burns. After oven is turned off, DO NOT touch the oven vent or surrounding areas until
they have had sufficient time to cool.
• Other potentially hot surfaces include rangetop, areas facing the rangetop, oven vent, surfaces near the vent opening, oven door, areas
around the oven door and oven window.
• The misuse of oven doors (e.g. stepping, sitting, or leaning on them) can result in potential hazards and/or injuries.
Power Failure
If power failure occurs, the electric igniters will not work. No attempt should be made to operate the appliance during a power failure.
Make sure the oven control is in the “OFF” position.
Momentary power failure can occur unnoticed. The range is affected only when the power is interrupted. When it comes back on, the
range will function properly without any adjustments. A “brown-out” may or may not affect range operation, depending on how severe the
power loss is.
WARNING
POWER FAILURE WARNING
Due to safety considerations and the possibility of personal
injury in attempting to light and extinguish the burner, the grill
should, not under any circumstances, be used during a power
failure. The grill burner control should always remain in the “OFF”
position during a power failure.
WARNING
NEVER use appliance as a space heater to heat or warm a room to
prevent potential hazard to the user and damage to the appliance.
Also, DO NOT use the rangetop or oven as a storage area for food
or cooking utensils.
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT touch a hot oven light bulb with a damp
cloth as the bulb could break. Should the bulb break,
disconnect power to the appliance before removing bulb to
avoid electrical shock.
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect the electric power at the main fuse or
circuit breaker before replacing bulb.
WARNING
NEVER cover any slots, holes or passages in the oven bottom
or cover an entire rack with materials such as aluminum foil.
Doing so blocks air flow through the oven and may cause
carbon monoxide poisoning. Aluminum foil linings may also trap
heat, causing a fire hazard.
NOTICE
DO NOT turn the Temperature Control on during defrosting.
Turning the convection fan on will accelerate the natural
defrosting of the food without the heat.
CAUTION
BURN HAZARD
The oven door, especially the glass, can get hot.
Danger of burning: DO NOT touch the glass!

7
Warnings
WARNING
CAUTION
To avoid sickness and food waste, DO NOT allow defrosted
food to remain in the oven for more than two hours.
BURN OR ELECTRICAL SHOCK HAZARD
Make sure all controls are OFF and oven is COOL
before cleaning. Failure to do so can result in burns
or electrical shock.
CAUTION
DO NOT store items of interest to children over the unit.
Children climbing to reach items could be seriously injured.
CAUTION
You must carefully check the food during the dehydration
process to ensure that it does not catch fire.
Before Using Range
All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have
remained from the manufacturing process. Before starting to cook, clean the range thoroughly with hot, soapy water. There
may be some burn off and odors on first use of the appliance—this is normal.
Oven
Important! Before first use, wipe interior with soapy water and dry thoroughly. Then set the oven selector to bake,
the thermostat to 450°F, and operate for an hour.
All models include:
• Five performance modes—including convection baking and convection broiling—providing air circulation for shorter
cooking times with even results.
• Exclusive VSH™ Pro Sealed Burner System (Vari-Simmer™ to High)—combination of patented burner and top design
provide cleanability plus superior performance at simmer and high.
• Exclusive one-piece tooled and porcelainized cooking surface contains spills for easy cleaning.
• Convection baking with a hidden 30,000 BTU burner provides a fast, even baking for all your casserole dishes as well as
easy cleanup.
• The 1500°F closed door, infrared broiler allows intense heat to sear delicate cuts of meat providing that restaurant taste.
• Two lights illuminate the oven cavity with less glare.
• Six rack positions and three racks provide ample space for your baking needs.
• This appliance is certified by Star-K to meet strict regulations in conjunction with specific instructions found on www.star-
k.org

8
Automatic
Re-Ignition
Thermal-Convection
OVEN
Interior Oven
Light Switch
Left Rear Burner
Control Knob
(15,000 BTU)
Left Front Burner
Control Knob
(15,000 BTU)
Left Oven
Temperature
Indicator Light
Left Oven
Temperature
Control Knob

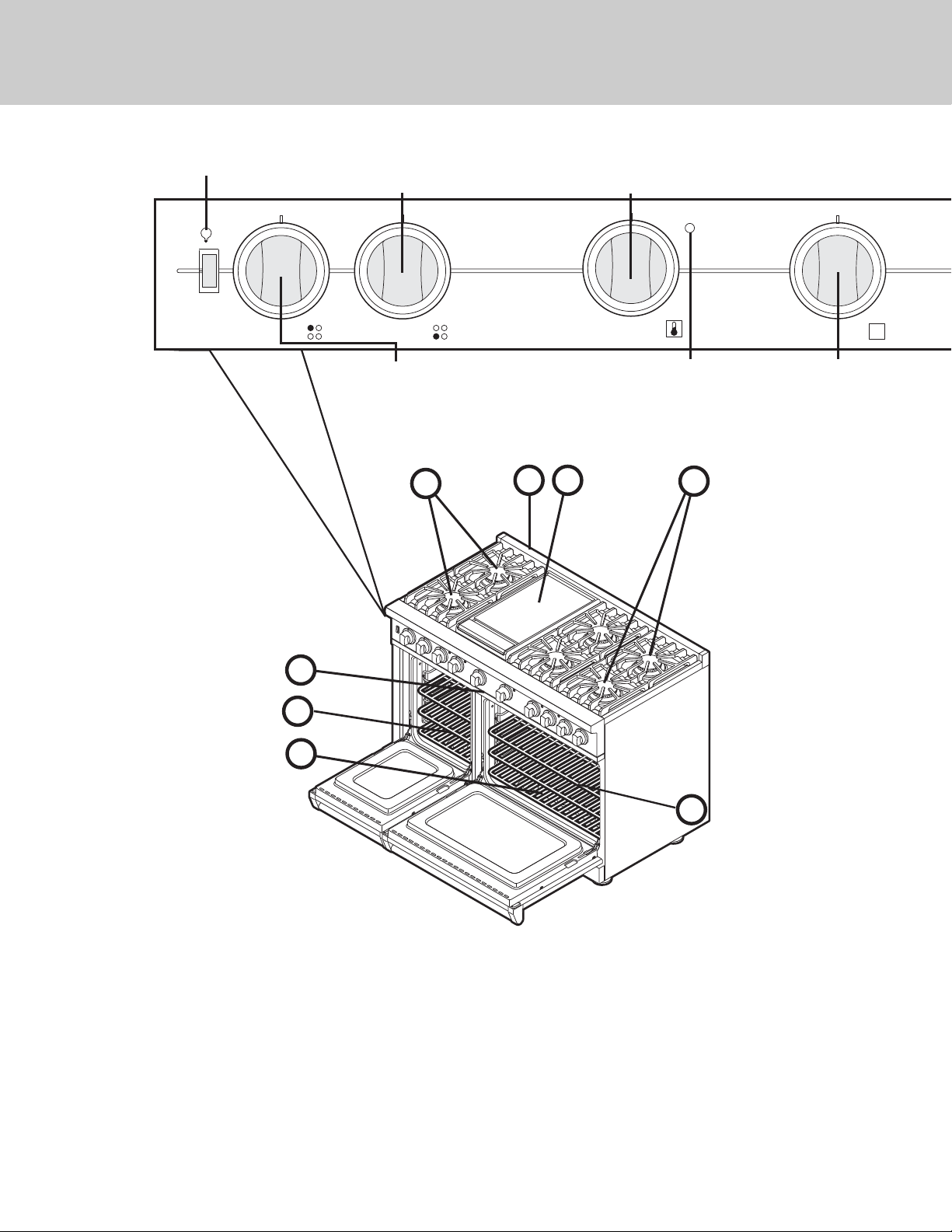

48” Four-Burner/Griddle model shown
2 3
11
5
4
7
Grill
Control
Knob
6
1. Four 15,000 BTU sealed burners with porcelain/
Cast iron caps and automatic ignition/Re-ignition
2. Island trim
3. Griddle (Optional)
4. Identification plate
5. 30” Oven-Two TruGlide racks/One standard tilt-proof rack/Six
rack positions
6. 18” Oven-Two standard tilt-proof racks/Six rack positions
7. Broiler pan–located inside oven
Range Features

9
Range Features
GRIDDLE OVEN
30” Four-Burner 36” Six-Burner 36” Four-Burner/Griddle
48” Six-Burner/Griddle
60” Six-Burner/Grill/Griddle
48” Eight Burner
Denotes models
which have a
TruPower Plus™
18,500 BTU Burner
Right Rear Burner
Control Knob
(15,000 BTU)
Right Front Burner
Control Knob
(15,000 BTU)
Right Oven
Temperature
Indicator Light
Right Oven
Temperature
Control Knob
Convection
Fan
Switch
Griddle
Control
Knob
Griddle
Indicator Light

Oven Functions and Settings
10
BAKE (Natural Airflow Bake)
Use this setting for baking, roasting, and casseroles.
CONVECTION BAKE
Use this setting to bake and roast foods at the same time with minimal taste transfer.
BROIL (Infrared Broil)
Use this setting for broiling dark meats at 1” thickness or less where rare or medium doneness is desired.
CONVECTION BROIL (Infrared Convection Broil)
Use this setting to broil thick cuts of meat.
Convection Dehydrate (CONVECTION BAKE)
Use this function to dehydrate fruits and vegetables.
Convection Defrost (CONVECTION BAKE)
Use this function to defrost foods.
Note: For more information on oven functions see “Operation” section.
Lighting Burners
All burners are ignited by electric ignition. There are no open-flame, “standing” pilots.
Surface Burners-Automatic Reignition
To light the surface burners, push and turn the appropriate control knob counter clockwise to any position.
This control is both a gas valve and an electric switch. Each burner will ignite at any “ON” position with the
automatic re-ignition system. If the flame goes out for any reason, the burner will automatically reignite if the gas is
still flowing. When gas is permitted to flow to the burner, the electric igniter start sparking. You should hear a “clicking” sound. If
you do not, turn off the control and check that the unit is plugged in and that the fuse or circuit breaker is not blown or tripped.
Within a few moments, enough gas will have traveled to the burner to light. When the burner lights, turn the burner control to
any position to adjust the flame size. Setting the proper flame height for the desired cooking process and selecting the correct
cooking vessel will result in superior cooking performance, while also saving time and energy.
Vari-Simmer™
Simmering is a cooking technique in which foods are cooked in hot liquids kept at or just barely below the boiling point of water.
Simmering ensures gentler treatment than boiling to prevent food from toughening and/or breaking up. The size of the pan and
the volume of food can have a significant effect on how high or low a flame is needed for simmering. For this reason, Viking
range and rangetop burners are engineered with a Vari-Simmer setting. The Vari-Simmer setting is not just one simmer setting,
but provides a variable range of simmer settings. This variable range of simmer settings allows you to adjust the flame height to
achieve the best simmer depending on the type and quantity of food being simmered. It is this ability that makes the Vari-
Simmer setting the most accurate and trustworthy simmer on the market.
TruPower Plus™ Burner (where applicable)
Certain model ranges are equipped with a TruPower Plus 18,500 BTU burner in the front right burner position. This burner is
designed to provide extra high heat output, especially when using large pans, and should be used for boiling large quantities or
if you need to bring something to a boild quickly. While the TruPower Plus burner has the extra power needed to bring large
quantities of liquid to a boil rapidly, it is also able to be turned down low enough to provide a very low and delicate simmer
making this burner the most versatile burner on the market.
Surface Operation

11
Surface Cooking Tips
• Use low or medium flame heights when cooking in vessels that are poor conductors of heat, such as glass, ceramic, and
cast-iron. Reduce the flame height until it covers approximately 1/3 of the cooking vessel diameter. This will ensure more
even heating within the cooking vessel and reduce the likelihood of burning or scorching the food.
• Reduce the flame if it is extending beyond the bottom of the cooking vessel. A flame that extends along the sides of the
vessel is potentially dangerous, heats the utensil handle and kitchen instead of the food, and wastes energy.
• Reduce the flame height to the minimum level necessary to perform the desired cooking process. Remember that food
cooks just as quickly at a gentle boil as it does at a rolling boil. Maintaining a higher boil than is necessary wastes energy,
cooks away moisture, and causes a loss in food flavor and nutrient level.
• The minimum pot or pan (vessel) diameter recommended is 6”
(15 cm). Use of pots or pans as small as 4” (10 cm) is possible but not recommended.
Surface Heat Settings*
Heat Setting Use
Simmer
Melting small quantities
Steaming rice
Simmering sauces
Low
Melting large quantities
Med Low
Low-temperature frying (eggs, etc.)
Simmering large quantities
Heating milk, cream sauces, gravies,
and puddings
Med
Sauteing and browning, braising, and
pan-frying
Maintaining slow boil on large quantities
Med High
High-temperature frying
Pan broiling
Maintaining fast boil on large quantities
High
Boiling water quickly
Deep-fat frying in large utensil
Surface Operation
*Note: The above information is given as a guide only. You may need to
vary the heat settings to suit your personal requirements.
Cooking Vessels
Each cook has his or her own preference for the particular cooking vessels that are most appropriate for the type of cooking
being done. Any and all cooking vessels are suitable for use in the range and it is not necessary to replace your present
domestic vessels with commercial cookware. This is a matter of personal choice. As with any cookware, yours should be in
good condition and free from excessive dents on the bottom to provide maximum performance and convenience.
Note: When using big pots and/or high flames, it is recommended to use the front burners. There is more room in the front and
potential cleanup at rear of appliance due to staining or discoloration will be minimized.

12
Griddle/Simmer Plate (on applicable models)
The optional 15,000 BTU griddle is constructed of machined steel with a blanchard finish and is uniquely designed to offer
excellent cooking performance as well as easy clean up. The griddle is equipped with an electronic thermostat to maintain an
even temperature across the griddle once the desired temperature has been set. The griddle has a power “ON” indicator light
which glows when the griddle thermostat has been turned on. This will cycle on and off as needed to indicate the thermostat is
maintaining the selected temperature. Before the griddle is used it is important to season the griddle. This seasoning process
will change the appearance of the griddle plate. However, it will also prevent food from sticking and protect the surface from
moisture.
Seasoning the Griddle Before the First Use
• Scrub the griddle plate with a mixture of one quart warm water and 1/4 cup white vinegar, using a blue Scotch-Brite™pad.
Dry thoroughly.
• Wash griddle with warm, soapy water. Rinse off and dry thoroughly.
• Season griddle by thinly coating the surface with approximately 1⁄2 to 1 teaspoon unsalted vegetable oil. Apply to entire
griddle using a paper towel or clean cloth. Let oil sit on griddle for approximately 1hour and then wipe with a clean cloth or
paper towel to absorb any residual oil. The griddle is now ready to be used.
Griddle/Simmer Plate Operation
• Turn the griddle control knob counterclockwise to the desired temperature setting. The
power “ON” indicator light will glow indicating the griddle thermostat is on.
• The double griddle has two thermostat control knobs which control separate burners
located beneath the griddle.
• When the griddle has reached the desired temperature, the power “ON” indicator light will
turn off indicating the griddle is preheated to the selected temperature.
• Use liquid cooking oil or butter for eggs, pancakes, French toast, fish and sandwiches to
prevent sticking.
• Routinely scrape loose food particles with a metal spatula during cooking to make the
cleanup easier and to avoid the particles mixing with the food.
• To turn the griddle off, turn the thermostat knob clockwise to the “OFF” position.
• ALWAYS turn to the“OFF” position when not in use and lower the heat between cooking loads.
Note: On griddle model ranges, the griddle/simmer plate will not function during the self-clean cycle.

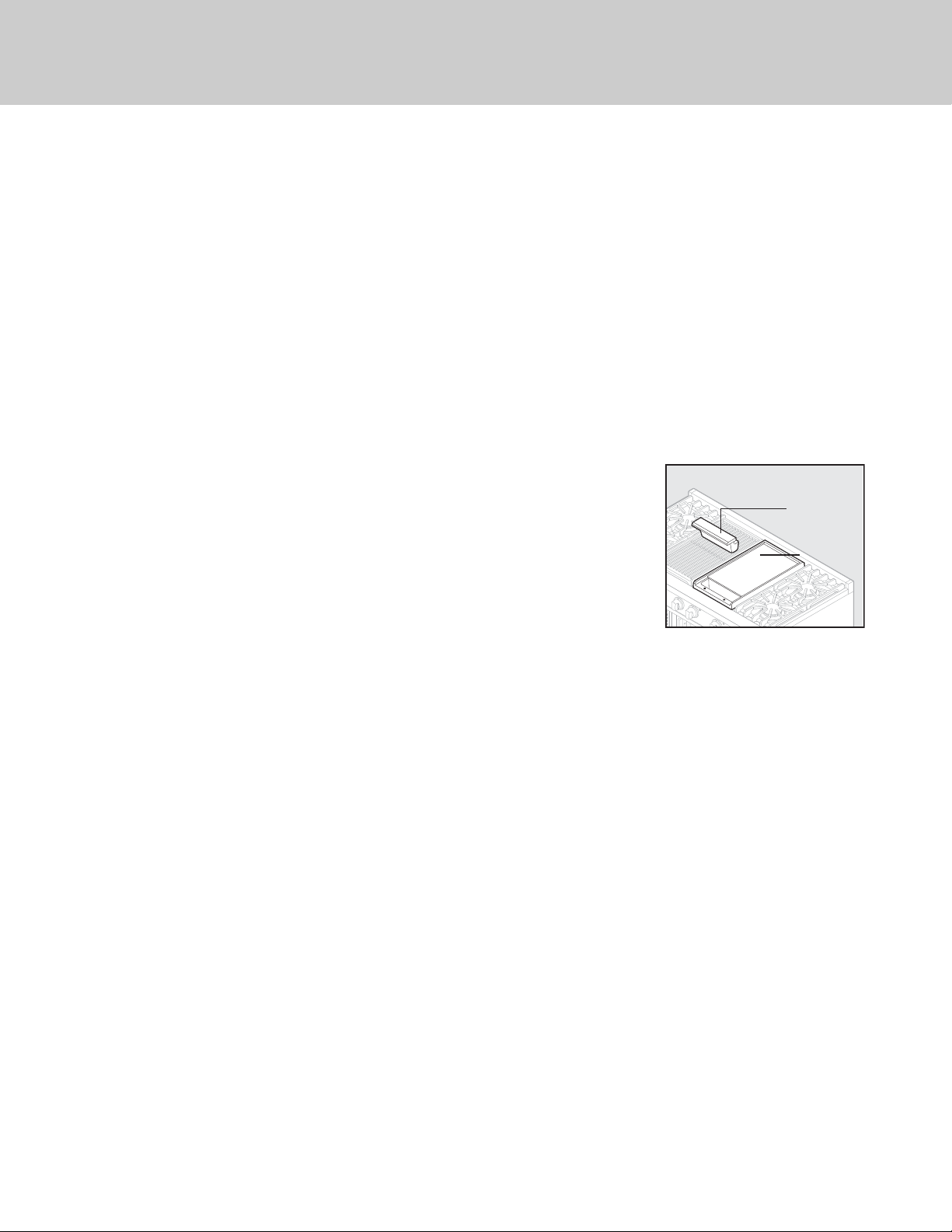

Griddle
Griddle
Grease trough
Griddle
Griddle Assembly
Surface Operation
Griddle/Simmer Plate Clean Up & Care
• It is not necessary to wash the griddle after every use. When light cooking is performed and AFTER the griddle has cooled,
simply wipe down the surface with a clean cloth or paper towel. The oils in the food which cooked on the griddle surface
will naturally season the griddle providing a “natural” non-stick surface.
• After heavy cooking is completed and the griddle is still warm enough to create steam, pour a small amount of club soda
at room temperature directly on the griddle. Using a metal spatula, pull oils and food particles toward the trough in front.
Wipe entire surface with a paper towel. Follow with the seasoning process of applying oil.
• Keeping the griddle well seasoned will prevent the griddle from developing surface rust. If the griddle is not used for a
period of time, it must be re-seasoned. The griddle must be re-seasoned each time after it is washed.
• Non-stick cooking spray is not recommended as it contains a high water content that has a tendency to burn quickly.
• Corn oil is not recommended as it has a high sugar level. It will caramelize and burn on the surface making it very difficult
to remove.
• After using the griddle, always remove the grease trough located in the front. Simply pull the trough towards you and lift
out. The trough or tray trap needs to be cleaned after each use. A fire hazard may occur if grease is accumulated in the
trough.
•
Note: It is normal for the griddle to darken over time. This is the sign of a well seasoned griddle.
• Important: Never flood a hot griddle with cold water. This thermal shock promotes griddle warping and can cause the
griddle to crack if continued over a period of time.
• For heavy duty cleaning, Viking offers a Griddle Cleaning Kit (model #GCK). This fast and effective commercial grade
cleaning system will clean your griddle in a matter of minutes. To order, contact your local Viking dealer or order on the
our website at vikingrange.com in the US or brigade.ca in Canada.

13
Surface Operation
Food Temp (°F) Temp (°C)
Eggs 250-300 121-149
Bacon 300-325 149-163
Pancakes 375-400 191-205
French Toast 400 205
Fish Fillets 300 149
Hamburger 350 177
Steaks 350 177
Griddle Cooking Chart
Char-Grill (on applicable models)
The optional 18,000 BTU char-grill is equipped with a single piece, heavy-duty porcelainized cast-iron grill grate for easy
movement of grilling items. Beneath the grill grate are two slotted porcelainized flavor generator plates which are designed
to catch drippings and circulate a smoke flavor back into the food. Beneath the flavor generator plates is a two piece drip
pan which catches any drippings that might pass beyond the flavor generator plates. This unique grilling system is designed
to provide outdoor quality grilling indoors.
Char-Grill Assembly
Before using the char-grill, you will need to follow these steps to properly assemble the char-grill.
• Remove the two flavor generator plates and grill grate from the cardboard packaging.
• Position the flavor generator plates so that the tab on each plate is inserted in the right, rear hole and left, front hole on the
drip pans. (See char-grill assembly section on following pages.)
• After the flavor generator plates are properly located, place the grill grate on top of the flavor generator plates. After this, the
char-grill is assembled and ready to use.
Char-Grill Operation
• Turn the overhead ventilation on prior to turning the grill on.
• Turn the grill knob counterclockwise to HI.
• Always preheat the grill for 5-10 minutes before placing food on the grill grate.
• Place food items on the grill, cook as desired.
• To turn the grill off, turn the grill knob clockwise to the OFF position.
Char-Grill Cooking Tips
• When grilling chicken, roasts, well-done steaks or chops and thick pieces of meat, sear on HI. Then, reduce the heat
setting to prevent excessive flare-up. This will allow the food to cook through without burning the outside.
• After steaks, chops, or hamburgers have been allowed to sear for approximately one minute, you may slide a spatula
under the meat and turn it approximately 90 degrees so that a waffle pattern will be seared onto the food.
• Use a metal spatula instead of tongs or a fork to turn the meat. A spatula will not puncture the meat allowing juices to
escape.
• Turn the meat over only once. Juices are lost when steaks, chops or hamburgers are turned several times. The best time to
turn the meat is after the juices have begun to bubble to the surface.
• To test for doneness, make a small slash in the center of the meat, not the edge. This will prevent loss of juices.
• Occasionally there may be flare-ups or flames above the grill due to drops of fat falling on the flavor generator plates. It is
normal to have some flare-up during grilling. Use a long handled spatula to move food to another area until the flames
subside.
• For ease of cleaning, leave the char-grill on for 10 minutes when finished grilling. This will help make cleanup easier once
the char-grill has cooled down.

14
Surface Operation
Grill
Two-piece
drip pan
BurnerBurnerBurner
Flavor-
generator
plates
Drip trayDrip trayDrip tray
Grill Assembly
Char-Grill Disassembly for Cleaning
Follow these steps to disassemble the char-grill for cleaning. Make sure the char-grill is completely cool before attempting
to disassemble for cleaning.
• Remove the char-grill grate.
• Remove the flavor-generator plates.
• Remove the drip pan. Note that the drip pan is a two-piece drip pan.
• Located beneath the burner is the drip tray. Under normal grilling circumstances very little if any grease will accumulate in
the drip tray. If any grease has accumulated in the drip tray, simply wipe out with a paper towel or damp cloth.
Char-Grill Clean Up & Care
• Char-grill grates:
o May be cleaned immediately after cooking is complete and before turning off the flame. Before cleaning the grill, turn
the flame down to a lower setting such as “MED” or “LOW”. Use a soft bristle brush to scrub the grill grate. Dip the
brush frequently into a bowl of water. Steam is created as the water contacts the hot grate. The steam assists the
cleaning process by softening the food particles.
o For a thorough cleaning of the grill grate, use grill cleaner according to manufacturer’s directions and then soak 15-20
minutes in a hot water and mild detergent solution. After soaking, scrub with a blue Scotch-Brite™pad. DO NOT use a
steel wool pad or abrasive cleaner, for risk of damaging the porcelain finish. Dry thoroughly.
• Flavor generator plates and drip pan:
o Scrape off all burned on debris. The flavor generator plates and drip pan are dishwasher safe. If you choose to not wash
these components in the dishwasher, then simply soak for 15-20 minutes in a hot water and mild detergent solution.
After soaking, scrub with a blue Scotch-Brite™pad.

15
Surface Operation
Grill Cooking Chart
Food
Weight or
thickness
Flame
size
Suggested
cooking
time (min)
Special instructions
and tips
BEEF
Hamburger 1/2”(1.3 cm) –
3/4” (1.9 cm)
Med 8 – 15 Grill, turning once
when juices rise
to the surface.
We recommend
that ground
chuck be used for
hamburgers, as
it will give you a
juicer hamburger
than ground
round. DO NOT
leave hamburgers
unattended since a
flare-up could
occur quickly.
STEAKS
Rib, Club, Porterhouse, T-Bone, Sirloin Remove excess fat
from edge. Slash
remaining fat at 2”
(5.1 cm) intervals to
keep edges from
curling. Grill,
turning once.
Rare
(140°F/60°C)
1” (2.5 cm)
1-1/2” (3.8 cm)
High
High
8 – 12
11 – 16
Medium
(160°F/71°C)
1” (2.5 cm)
1-1/2” (3.8 cm)
Med
High
12 – 20
16 – 25
Well-done
(170°F/77°C)
1” (2.5 cm)
1-1/2” (3.8 cm)
Med
High
20 – 30
25 – 35
Tenderloin 5 lbs. (2.3 kg) High 30 – 40 Remove surface fat
and connective
tissue. Fold over
thin end to form
uniformly thick
piece. Bind with
string. Grill, turning
to brown evenly.
Brush often with
melted butter,
margarine or oil.
Cook until rare.

16
Surface Operation
Grill Cooking Chart
Food
Weight or
thickness
Flame
size
Suggested
cooking
time (min)
Special instructions
and tips
PORK
Chops 1/2”(1.3 cm) Med 20 – 40 Remove excess fat
from edge. Slash
remaining at 2”
(5.1 cm) intervals to
keep edges.
1” (2.5 cm) Med 35 – 60
Ribs Med 45 – 60 Grill, turning
occasionally. During
the last few minutes,
brush barbecue
sauce, turning
several times.
Ham steaks
(fully cooked)
1/2” (1.3 cm) High 12 – 15 Remove excess fat
from edge. Slash
remaining fat at
two-inch intervals.
Grill, turning once.
Hot dogs Med 5 – 10 Slit skin before
cooking. Grill,
turning once.
POULTRY
Chicken
Broiler/Fryer
– Halves or
Quarters
2 (0.9 kg) –
3 lbs. (1.4 kg)
High 60 – 90 Place skin side up.
Grill, turn, and
brush frequently
with melted butter,
margarine, oil, or
marinade.
Med 40 – 60
FISH AND SEAFOOD
Steaks
Halibut
Salmon
Swordfish
3/4” (1.9 cm) –
1” (2.5 cm)
Med to
High
8 – 15 Grill, turning once,
brush with melted
butter, margarine,
or oil to keep fish
moist.
Whole
Catfish
Trout
4 oz (113 g) –
8 oz (227 g)
Med to
High
12 – 20

17

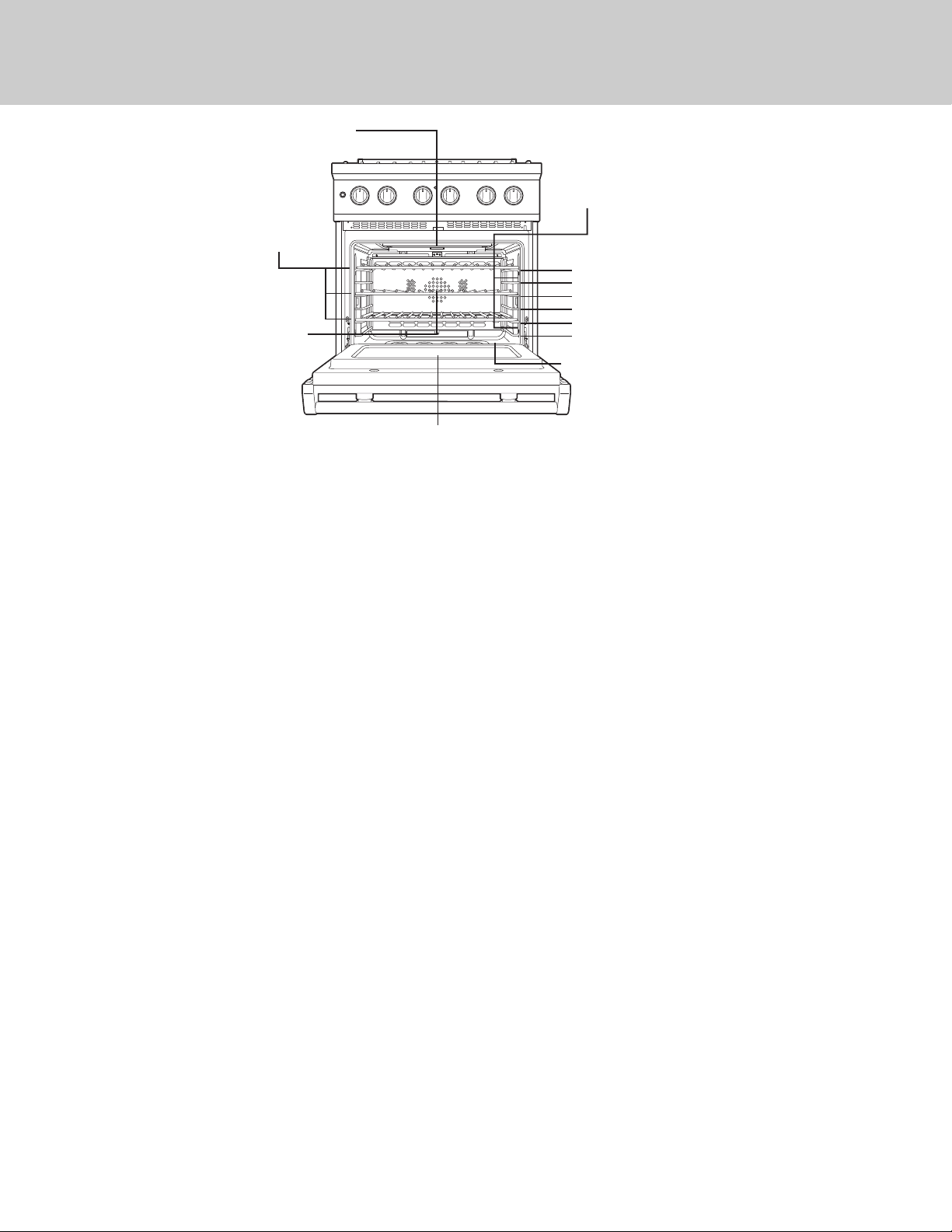

Removable bottom
Broiler element
Convection fan
Oven racks
(2) TruGlide
(1) Standard
Oven lights
Bake burner
6
5
4
3
2
1
Rack Positions
Each 30” and 36” oven is equipped with two full extension glide racks and one standard tilt-proof rack. Each 18” oven is
equipped with three standard tilt-proof racks. All ovens have six rack positions. Position 6 is the farthest from the oven
bottom. Position 1 is the closest to the oven bottom. The racks can be easily removed and arranged at various levels. For
best results with conventional baking, DO NOT use more than one rack at a time. It is also recommended, when using two
racks, to bake with the racks in positions 2 and 4 or positions 3 and 5.
Oven Features
Conventional and Convection Cooking
Because of variations in food density, surface texture and consistency, some foods may be prepared more successfully using
the conventional bake setting. For this reason, conventional baking is recommended when preparing baked goods such as
custard. The user may find other foods that are also prepared more consistently in conventional bake. It is recommended to
use this function for single-rack baking.
Convection Cooking Tips
Convection cooking is a cooking technique which utilizes fan-forced
air to circulate throughout the entire oven cavity creating the optimum
cooking environment. Cooking with convection is intended when performing multi-rack baking and for heavier foods. Below
are some tips which will allow you to get the best results out of your oven when cooking with convection.
• As a general rule, to convert conventional recipes to convection recipes, reduce the temperature by 25°F (10°C) when
using a convection cooking function.
• Cooking times for standard baking and convection baking will be the same. However, if using convection to cook a single
item or smaller load, then it is possible to have 10-15% reduction in cooking time. (Remember convection cooking is
designed for multi-rack baking or cooking large loads.)
• If cooking items which require longer than 45 minutes, then it is possible to see a 10-15% reduction in cooking time.
• A major benefit of convection cooking is the ability to prepare foods in quantity. The uniform air circulation makes this
possible. Foods that can be prepared on two of three racks at the same time
include: pizza, cakes, cookies, biscuits, muffins, rolls, and frozen convenience foods.
• For three-rack baking, use any combination of rack positions 2, 3, 4, and 5. For two-rack baking, use rack positions 2 and
4 or positions 3 and 5. Remember that the racks are numbered from bottom to top.
Using the Oven

18
BAKE
(Natural Airflow Bake)
Full power heat is radiated from the U-shaped bake burners in the bottom of the
oven cavity and is circulated with natural airflow. This function is recommended for
single rack baking. Many cookbooks contain recipes to be cooked in the conventional
manner. Conventional baking is suitable for dishes that require a high temperature.
Use this setting for baking and casseroles.
To Use BAKE Function
1. Arrange the oven rack in the desired position before turning
oven on.
2. Set the oven temperature control knob to desired temperature.
3. Close the door.
CONVECTION BAKE
Heat is radiated from the U- shaped bake burners in the bottom of the oven cavity.
The heated air is circulated by one motorized fan in the rear of the oven providing a
more even heat distribution. Multiple rack use is possible for the largest baking job.
When roasting, cool air is quickly replaced—searing meats on the outside and
retaining more juices and natural flavor on the inside with less shrinkage. This even
circulation of air equalizes the temperature throughout the oven cavity and
eliminates the hot and cold spots found in conventional ovens.
To Use CONVECTION BAKE Function
1. Arrange the oven rack in the desired position before turning oven on.
2. Set the oven temperature control knob to desired temperature and turn on the convection fan switch.
3. Close the door.
Baking Tips
• Make sure the oven racks are in the desired position before you turn on the oven.
• DO NOT open the door frequently during baking. Look through the door window to check doneness whenever possible. If
you must open the door, the best time is during the last quarter of the baking time.
• Bake to the shortest time suggested and check for doneness before adding more time. For baked goods, a stainless steel
knife placed in the center of the product should come out clean when done.
• Use the pan size and type recommended by the recipe to ensure best results. Cakes, quick breads, muffins, and cookies
should be baked in shiny, reflective pans for light, golden crusts. Avoid the use of old, darkened pans. Warped, dented,
stainless steel and tin-coated pans heat unevenly and will not give uniform baking results.
Pan Placement Tips
• When using large (15" x 13") flat pans or trays that cover most of the rack, rack positions 2 or 3 produce the best results.
• When baking on more than one rack, it is recommended to use the 3rd and 5th position for more consistent even baking.
• Stagger pans in opposite directions when two racks and several pans are used in conventional bake. If possible, no pan should
be directly above another.
• Allow 1 to 2 inches of air space around all sides of each pan for even air circulation.
natural airflow bake
convection bake
Baking
Single Rack Pan
Placement
Multiple Rack Pan
Placement

19
Baking
Conventional Baking Chart
Single Rack Time
Food Pan Size Position Temp (min)
BREADS
Biscuits Cookie sheet 3 or 4 400˚ F (204˚ C) 10 - 12
Yeast loaf Loaf pan 3 or 4 375 ˚ F (191˚ C) 30 - 35
Yeast rolls Cookie sheet 3 or 4 400 ˚ F (204˚ C) 12 - 15
Nut bread Loaf pan 3 or 4 375 ˚ F ( 191˚ C) 30 - 35
Cornbread 8" x 8" 3 or 4 400 ˚ F (204˚ C) 25 - 30
Gingerbread 8" x 8" 3 or 4 350 ˚ F (177˚ C) 35 - 40
Muffins Muffin tin 3 or 4 375 ˚ F (191˚ C) 15 - 20
Corn muffins Muffin tin 3 or 4 375 ˚ F (191˚ C) 15 - 20
CAKES
Angel food Tube pan 3 or 4 375 ˚ F (191˚ C) 35 - 45
Bundt Tube pan 3 or 4 350 ˚ F (177˚ C) 45 - 55
Cupcakes Muffin pan 3 or 4 350 ˚ F (177˚ C) 16 - 20
Layer, sheet 13" x 9" 3 or 4 350 ˚ F (177˚ C) 40 - 50
Layer, two 9" round 3 or 4 350 ˚ F (177˚ C) 30 - 35
Pound Loaf pan 3 or 4 350 ˚ F (177˚ C) 60 - 65
COOKIES
Brownies 13" x 9" 3 or 4 350 ˚ F (177˚ C) 25 - 30
Choc. chip Cookie sheet 3 or 4 375 ˚ F (191˚ C) 12 - 15
Sugar Cookie sheet 3 or 4 375 ˚ F (191˚ C) 10 - 12
PASTRY
Cream puffs Cookie sheet 3 or 4 400 ˚ F (204˚ C) 30 - 35
PIES
Crust, unfilled 9" round 3 or 4 400 ˚ F (204˚ C) 10 - 12
Crust, filled 9" round 3 or 4 350 ˚ F (191˚ C) 55 - 60
Lemon meringue 9" round 3 or 4 350 ˚ F (177˚ C) 12 - 15
Pumpkin 9" round 3 or 4 350 ˚ F (177˚ C) 35 - 40
Custard 6 - 4 oz cups 3 or 4 350 ˚ F (177˚ C) 35 - 40
ENTREES
Egg rolls Cookie sheet 3 or 4 400 ˚ F (204˚ C) 25 - 30
Fish sticks Cookie sheet 3 or 4 425 ˚ F (218˚ C) 10 - 15
Lasagna, frz Cookie sheet 3 or 4 375 ˚ F (191˚ C) 55 - 60
Pot pie Cookie sheet 3 or 4 400 ˚ F (204˚ C) 35 - 40
Gr. peppers stuffed 13" x 9" 3 or 4 375 ˚ F (191˚ C) 60 - 70
Quiche 9" round 3 or 4 400 ˚ F (204˚ C) 25 - 30
Pizza, 12" Cookie sheet 3 or 4 400 ˚ F (204˚ C) 15 - 20
Mac. & cheese, frz Cookie sheet 3 or 4 375 ˚ F (191˚ C) 35 - 40
VEGETABLES
Baked potatoes On rack 3 or 4 375 ˚ F (191˚ C) 60 - 65
Spinach souffle 1 qt. casserole 3 or 4 350 ˚ F (177˚ C) 45 - 50
Squash Cookie sheet 3 or 4 375 ˚ F (191˚ C) 50 - 55
French fries Cookie sheet 3 or 4 425 ˚ F (218˚ C) 20 - 25
*Note: The above information is given as a guide only.

*Note: The above information is given as a guide only.
Single Rack Time
Food Pan Size Position Temp (min)
BREADS
Frozen Biscuits Cookie sheet 3 or 4 375 ˚ F (191˚ C) 7 - 9
Yeast loaf Loaf pan 3 or 4 375 ˚ F (191˚ C) 25 - 30
Yeast rolls Cookie sheet 3 or 4 375 ˚ F (191˚ C) 11 - 13
Nut bread Loaf pan 3 or 4 350 ˚ F (177˚ C) 25 - 30
Cornbread 8" x 8" 3 or 4 375 ˚ F (191˚ C) 20 - 25
Gingerbread 8" x 8" 3 or 4 325 ˚ F (163˚ C) 30 - 35
Muffins Muffin tin 3 or 4 350 ˚ F (177° C) 12 - 15
Corn muffins Muffin tin 3 or 4 350 ˚ F (177˚ C) 10 - 12
CAKES
Angel food Tube pan 3 or 4 350 ˚ F (177˚ C) 35 - 40
Bundt Tube pan 3 or 4 325 ˚ F (163˚ C) 35 - 40
Cupcakes Muffin pan 3 or 4 325 ˚ F (163˚ C) 15 - 17
Layer, sheet 13" x 9" 3 or 4 325 ˚ F (163˚ C) 30 - 35
Layer, two 9" round 3 or 4 325 ˚ F (163˚ C) 25 - 30
Pound Loaf pan 3 or 4 325 ˚ F (163˚ C) 45 - 50
COOKIES
Brownies 13" x 9" 3 or 4 325 ˚ F (163˚ C) 20 -25
Choc. chip Cookie sheet 3 or 4 350 ˚ F (177˚ C) 7 -10
Sugar Cookie sheet 3 or 4 350 ˚ F (177˚ C) 7-10
PIES
Crust, unfilled 9" round 3 or 4 375 ˚ F (191˚ C) 7 - 9
Crust, filled 9" round 3 or 4 325 ˚ F (163˚ C) 50 - 55
Lemon meringue 9" round 3 or 4 325 ˚ F (163˚ C) 10 - 12
Pumpkin 9" round 3 or 4 325 ˚ F (163˚ C) 45 - 55
Custard Not recommended
ENTREES
Egg rolls Cookie sheet 3 or 4 375 ˚ F (191˚ C) 15 - 20
Fish sticks Cookie sheet 3 or 4 400 ˚ F (205˚ C) 8 - 10
Lasagna, frz Cookie sheet 3 or 4 350 ˚ F (177˚ C) 45 - 50
Pot pie Cookie sheet 3 or 4 375 ˚ F (191˚ C) 35 - 40
Gr. peppers stuffed 13" x 9" 3 or 4 350 ˚ F (177˚ C) 45 - 50
Quiche Not recommended
Pizza, 12" Cookie sheet 3 or 4 375 ˚ F (191˚ C) 15 - 20
Mac. & cheese, frz Cookie sheet 3 or 4 350 ˚ F (177˚ C) 25 - 35
VEGETABLES
Baked potatoes On rack 3 or 4 350 ˚ F (177˚ C) 50 - 55
Spinach souffle 1 qt. casserole 3 or 4 325 ˚ F (163˚ C) 35 - 40
Squash Cookie sheet 3 or 4 350 ˚ F (177˚ C) 40 - 45
French fries Cookie sheet 3 or 4 400 ˚ F (205˚ C) 15 - 20
20
Convection Baking Chart
Baking
