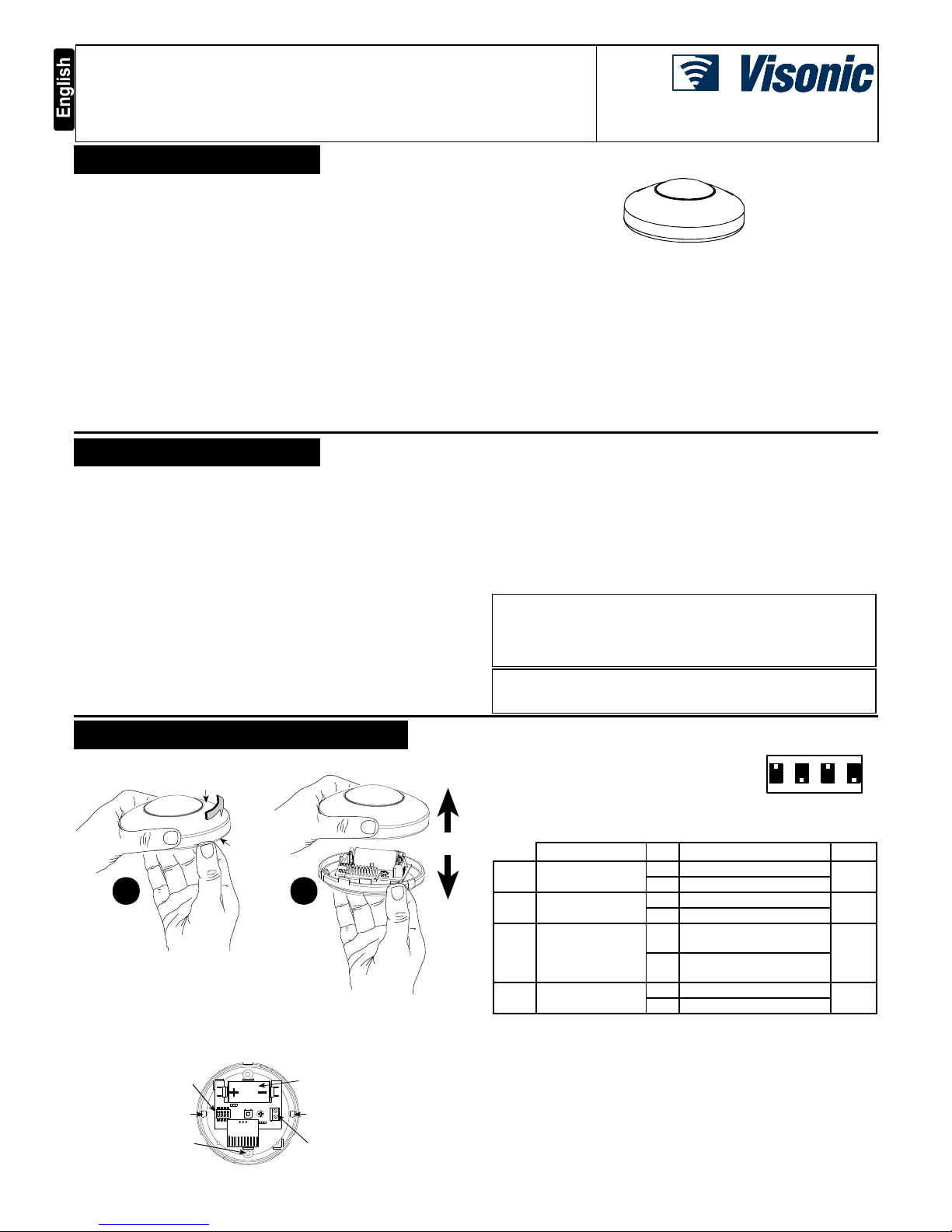

D-301850 MCT-220 User’s Guide 1

MCT-220

Wireless Emergency Button

User Guide

1. INTRODUCTION

1.1 General

The MCT-220 enables people, for example senior citizens in their

home environment, to transmit an emergency call when they are at

some distance from their communication unit.

1.2 Additional Features

•Can be used for panic alarm, when used with a Visonic Amber or

PowerMax family system.

•Can be used for X-10 devices activating when used with a Visonic

PowerMax family system.

•An auxiliary sensor can be connected to the MCT-220. When the

sensor is in an alarm state, the MCT-220 sends an alarm message

from its auxiliary channel.

•Enables people to answer incoming calls when the telephone is out

of reach, when used with a Visonic Amber family system.

•MCT-220 button pressing period - 2 seconds or 300 milliseconds

(selectable by an internal function selector).

Figure 1 – MCT-220

•Supervision signal is regularly transmitted to the communication

unit.

•In low battery voltage state, an alarm message is sent to the

communication unit and the MCT-220 button blinks during

transmission.

•Push button back light can be switched On/Off by an internal

function selector.

•Auxiliary input E.O.L / Normally Close type can be selected by an

internal function selector.

•Auxiliary input alarm restore message can be enabled / disabled

(selected by an internal function selector).

•Water resistant.

2. SP CIFICATIONS

GENERAL

Compatibility: Compatible with all Visonic control panels and

receivers.

Operating Frequencies (MHz): 315, 433.92, 868.95, 869.2125 or

869.

ELECTRICAL

Internal Battery: 3V battery type CR123

Current Consumption: 35 mA (during transmission), 20µA in

standby mode.

Battery Life Expectancy: 5 years (for one alarm per day)

ENVIRONMENTAL

Operating Temperature: 0°to 50°C (32°to 122°F)

Standards: Designed to comply with FCC CFR 47 Part 15, UL 1637,

Directive 1999/5/EC, EN 50131-2, Grade 2, Class II, RSS-210.

PHYSICAL

Dimensions (Diameter x H): 90 x 35 mm (3-1/2 x 1-3/8 in)

Weight: 110g (3.9 oz.)

Color: White

Note: The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this equipment.

Such modifications could void the user's authority to operate the

equipment.

Compliance with standards (Europe): ETSI EN 301 489-3 V1.4.1,

EN 50130-4, & A1: & A2, EN 300 220-2 V2.1.2, EN 300 220-1 V2.1.1,

EN 50131-1, Grade II, Class II, EN 60950-1

This device complies with Part 15 of the FCC Rules and RSS-210 of

Industry and Science Canada. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This device complies with the essential requirements and provisions

of Directive 1999/5/EC of the European Parliament and of the Council

of 9March 1999 on radio and telecommunications terminal equipment.

3. PR PARATION FOR US

3.1 Cover Removal

1 2

COVER

BASE

Figure 2 – Cover Removal

3.2 Function Selector Setting

The MCT-220 has a 4 lever switch (see Fig. 3). Each switch lever

allows you to select one of two options.

BATTERY

MOUNTING HOLE

FUNCTION SELECTOR

WIRING KNOCKOUT

MOUNTING HOLE

AUXILIARY INPUT TERMINALS

Figure 3 – Internal View

Set the switches as desired (see table 1)

prior to applying power. Use a ball point pen

or another pointed object to shift the switch

levers. The ON position is indicated on

the switch body.

1234

Figure 4

Function Selector

Table 1. Function Selector Description

Function Pos.

Selected Option Default

SW1 Back light ON/OFF ON Button's back light ON ON

OFF

Button's back light OFF

SW2 Aux. input type

selector (*)

ON Aux. input is E.O.L. (47 k

Ω

)

OFF

Aux. input is N.C.

SW3 Auxiliary input

restore reports

enable/disable (**)

ON Aux input Restore events

are reported ON

OFF

Aux. input restore events

are not reported

SW4 Pressing period of

push button

ON 2 seconds OFF

OFF

300 milliseconds

(*) SWITCH SW2 determines whether the auxiliary input will behave

as a 47kΩend-of-line (E.O.L.) input or as a normally closed

(N.C.) input.

(**) SWITCH SW3 determines whether the MCT-220 will report a restore

event when the auxiliary input restores from an alarm condition.

3.3 Battery Insertion

Insert battery (see Figure 3) – Verify proper polarity.

Caution! Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the manufacturer's

instructions.

2 D-301850 MCT-220 User’s Guide

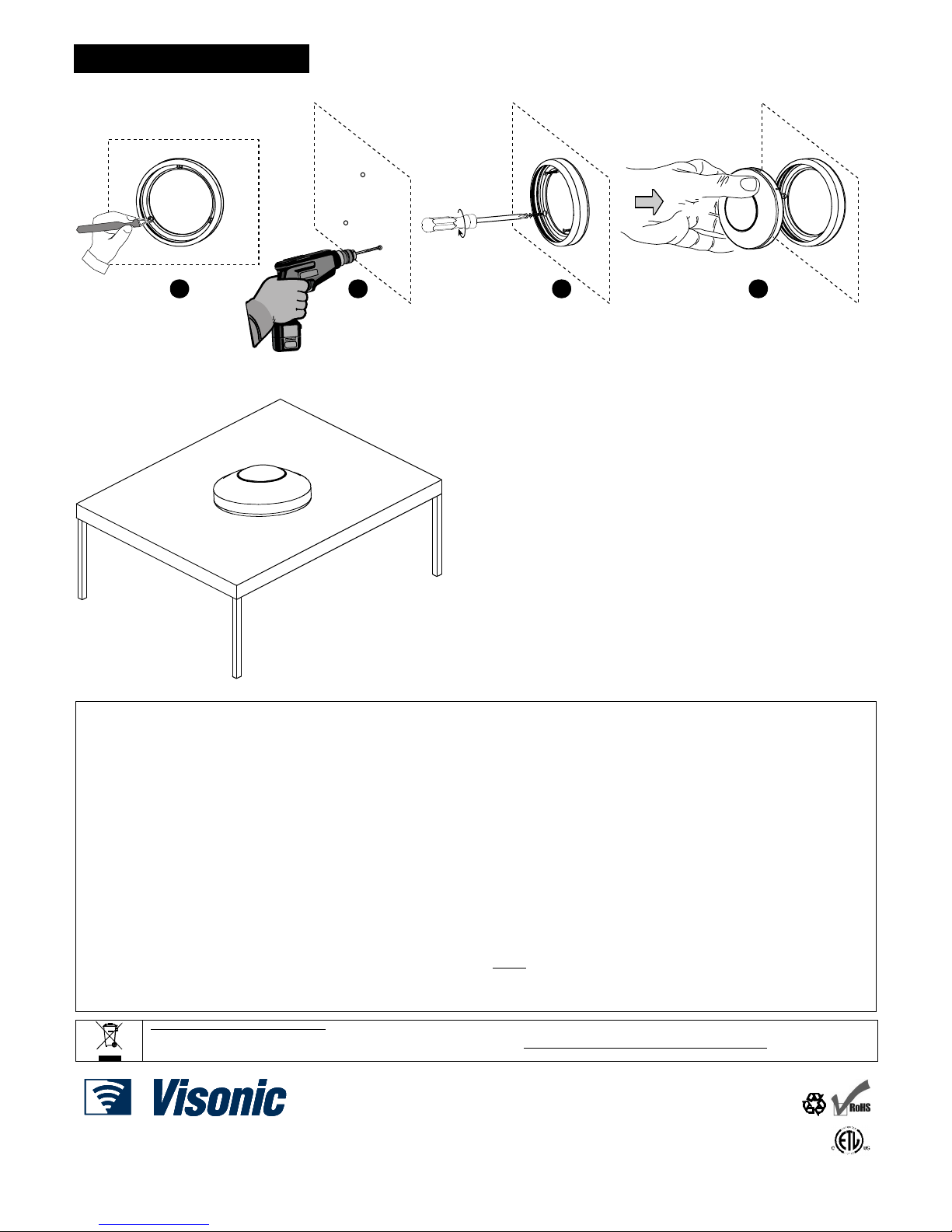

4. INSTALLATION

4.1 Wall Mounting

Mark

1 3

Fasten

Drill Insert into rubber base

Figure 5 – Wall Mounting

4.2 Desktop Mounting

Figure 6 – Desktop Mounting

4.3 Auxiliary input Wiring

Connect the 2 auxiliary device wires to the proper AUXILIARY

terminals GND and IN1 - see figure 3.

4.4 nrolling

The MCT-220 and its auxiliary input should be enrolled into the

communication unit memory, in order that the communication unit will

be able to identify their signals.

If the MCT-220 is used with PowerMax family, refer to the relevant

installer / programming guide, ENROLLING WIRELESS DEVICES

section. If the MCT-220 is used with AMBER, refer to the HHCPC

software user guide.

When you are instructed to initiate transmission:

A. For the MCT-220 enrolling, press the MCT-220 button.

B. For the Auxiliary input enrolling, simulate an alarm event via the

auxiliary detector.

4.5 Test

Perform the following actions and verify that the communication unit

properly responds:

A. Press the MCT-220 button.

B. Simulate an event from the auxiliary input.
