Vissani VPFD05CLW User manual

THANK YOU
We appreciate the trust and condence you have placed in Vissani through the purchase of this freezer. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you
for choosing Vissani!
USE AND CARE GUIDE
Portable Room Air Conditioner
Questions, problems, missing parts? Before returning to the store,
call Vissani Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-VISSANI (1-855-847-7264)
HOMEDEPOT.COM
Item #000-000
Model #VPFD05CLW
DRAFT 2

2
WARNING
To reduce the risk of fire, electrical shock, injury to persons, or damage
when using the air conditioner, follow basic precautions, including the
following:
• Read all of the instructions before using this appliance.
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Do not operate the air conditioner if it has a damaged cord or plug, if it
is not working properly, or if it has been damaged or dropped.
• The air conditioner should be serviced only by qualified service
personnel. Call an authorized service company for examination, repair,
or adjustment.
• Disconnect power before servicing.
• Disconnect power before cleaning.
• Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is
contaminated. Avoid any chemicals coming in contact with your air conditioner.
• Do not store anything directly on top of the air conditioner.
• Use two or more people to move and install air conditioner.
• Never operate the air conditioner without the filters in place.
• Do not use the air conditioner near a bathtub, shower or wash basin or other wet area.
Safety Information
Table of Contents
DANGER: Indicates a hazardous situation which,
if not avoided, will result in death or serious injury.
Limit the use of this hazard statement to the most
extreme situations.
WARNING: Indicates a hazardous situation which,
if not avoided, could result in death or serious injury.
Caution: Indicates a hazardous situation which,
if not avoided, could result in minor or moderate injury.
IMPORTANT: Indicates a reminder of the possible dangers
associated with a hazardous situation.
Notice: Is the preferred signal word to address practices not related
to personal injury.
READ AND SAVE THESE INSTRUCTIONS
NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from the power supply.
Safety Information ..................................2
Warranty ..........................................4
Controls...........................................5
Care & Cleaning ....................................8
Installation Instructions .............................10
Troubleshooting ...................................15
DRAFT 2

3 HOMEDEPOT.COM
Please contact 1-855-847-7264 for further assistance.
Safety Information
WARNING
Risk of Fire or Explosion.
This unit contains flammable refrigerant. Additional safety precautions must be followed.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas
appliance or an operating electric heater.
• Do not pierce or burn refrigerant tubing. Be aware that refrigerants may not contain an odor.
• Keep ventilation openings clear of obstruction.
• When handling, installing, and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.
• Do not drill holes in the unit.
• Maintenance, cleaning, and service should only be performed by technicians properly trained and qualified in the use of flammable
refrigerants.
• Vissani does not support any servicing of the air conditioner.
• Dispose of air conditioner in accordance with Federal and Local Regulations. Flammable refrigerants require special disposal
procedures. Contact your local authorities for the environmentally safe disposal of your air conditioner.
WARNING
How to Insert the Batteries in the Remote Control
• Remove the battery cover by sliding it according to the arrow direction.
• Insert new batteries, making sure that the (+) and (-) of battery are installed correctly.
• Reattach the cover by sliding it back into position.
WARNING
Caution for Ingestion. The battery may cause suffocation if swallowed by children.
READ AND SAVE THESE INSTRUCTIONS
NOTE: • Use 2 “AAA” (1.5 volt) alkaline batteries. Do not use rechargeable batteries
• Remove the batteries from the remote control if the system is not going to be used for a long time.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-
mh, etc) batteries.
DRAFT 2

4
Limited Warranty
EXCLUSION OF IMPLIED WARRANTIES - Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied
warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law.
For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
within the USA. If the product is located in an area where service by a Vissani Authorized Servicer is not available, you may be responsible
for a trip charge or you may be required to bring the product to an Authorized Vissani location for service. In Alaska, the limited warranty
excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal
rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state
consumer affairs office or your state’s Attorney General.
□Customer instruction. This owner’s manual provides
information regarding operating instructions and user controls.
□Improper installation. If you have an installation problem, or
if the air conditioner is of improper capacity, contact your
dealer or installer. You are responsible for providing adequate
electrical connecting facilities.
□Failure of the product resulting from modifications to the
product or due to unreasonable use including failure to provide
reasonable and necessary maintenance.
□Replacement of house fuses or resetting of circuit breakers.
□Failure due to corrosion on models not corrosion-protected.
□Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
□Incidental or consequential damage caused by possible defects
with this air conditioner.
□Damage caused after delivery.
What Will Not Cover:
For The Period Of: Will Replace:
One Year
From the date of the
original purchase
Replacement, repair, or refund of the original retail price for any product which fails due to a defect in
materials or workmanship. If the unit is exchanged, the replacement unit is warranted for the remainder of
your product’s original one-year warranty period. Vissani will, at its sole discretion, replace the product with
a product of the same or comparable functionality and quality or refund the original retail price.
□Properly pack your unit. We recommend using the original
carton and packing materials.
□Return the product to the retail location where it was
purchased.
□Include in the package a copy of the sales receipt or other
evidence of date of original purchase. Also print your name and
address and a description of the defect.
In Order to Make a Warranty Claim During the First 90 Days from the Date of Original Purchase:
□Locate your original sales receipt and make a note of your
model and serial number.
□Call 1-855-VISSANI (1-855-847-7264) or visit HOMEDEPOT.com
to initiate the product replacement process.
□You will be asked to provide your name, address, date of
purchase, model and serial number.
□Vissani will arrange for a carton to be sent to your home to
recover the product.
□Please return all requested materials (postage pre-paid) in the
carton provided. Please include a description of the defect.
□You should receive your replacement product or refund within
7 to 10 business days after your package is received.
In Order to Make a Warranty Claim During the Remainder of the One-Year Warranty:
DRAFT 2

5 HOMEDEPOT.COM
Please contact 1-855-847-7264 for further assistance.
Controls
Features and appearance will vary.

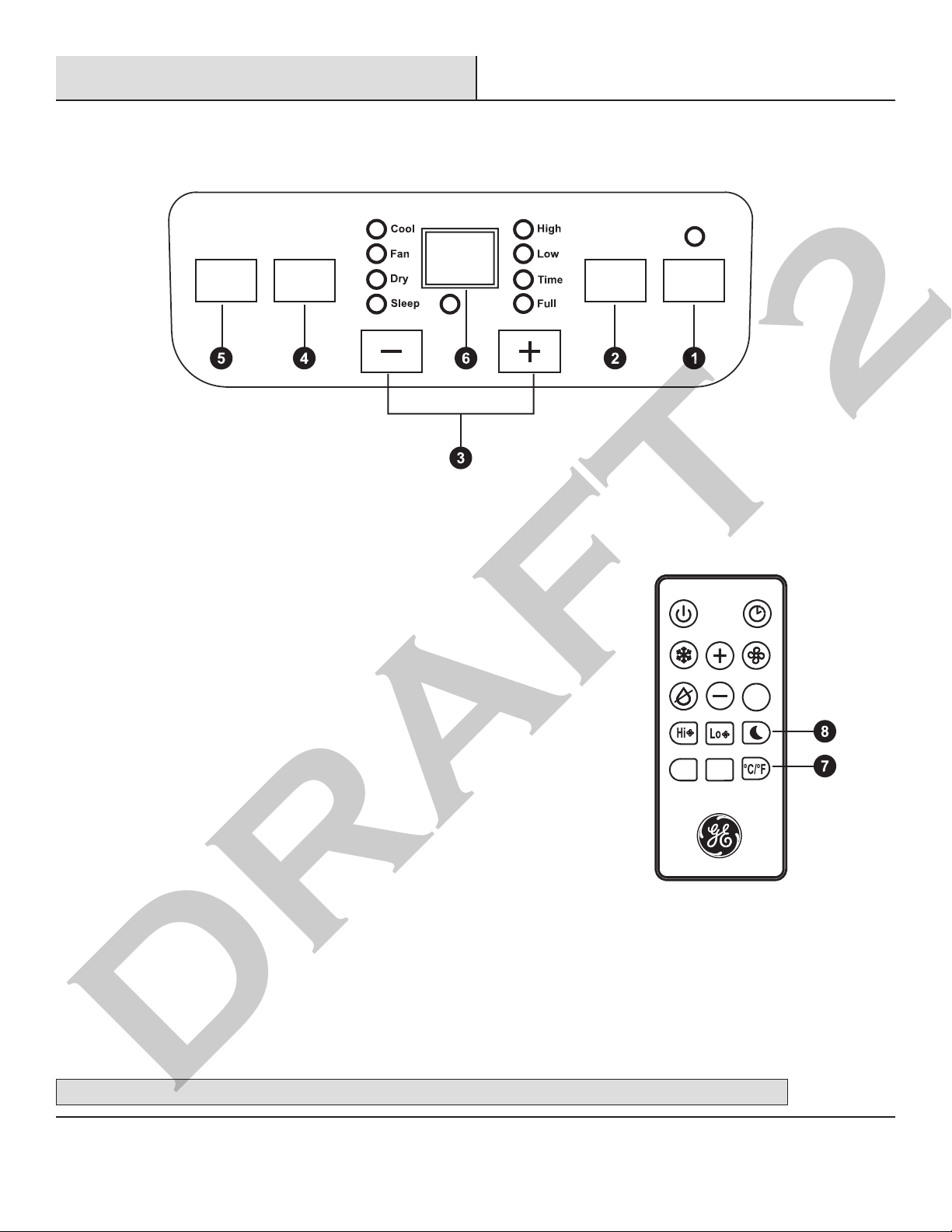

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
1. Power Button
Press the POWER button to turn unit ON/OFF.
2. Fan Speed Button
Press the FAN button to choose High/Low speed.
3. + / – Button for Temperature and Timer
In Cooling mode, press the + or – button to increase or decrease the temperature setting.
In Timer mode, press the + or – button to set time to turn the unit on.
Pressing the + or – buttons together will switch between °C and °F.
4. Mode Button
Press the Mode button to choose Cool, Fan, or Dry.
5. Timer Button
Pressing the Timer button in Standby mode will set the time for the unit to turn ON. Pressing
the Timer button in ON mode would set the time for the unit to turn OFF.
6. Temperature and Timer Display
The window will indicate temperature and time.
7. Temperature Switch Button (on remote)
Pressing the °C/°F button will switch between
°C and °F.
8. Sleep button (on remote)
Pressing the Sleep button is to choose sleep mode.
FanModeTimer Power
FanModeTimer Power
NOTE: If the TIMER was set before the power outage, it will need to be reset after power is restored.
POWER OUTAGE RECOVERY FEATURE
In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored.
DRAFT 2

6
Controls
COOL MODE
Use the COOL mode for cooling.
To set the COOL mode:
1. Press the MODE pad until the COOL indicator light is lit.
2. Press the FAN pad to set HIGH, MEDIUM, or LOW fan speed.
3. Press + or - to set the desired temperature between 64°F and 86°F in 1°F increments.
After settings have been made, the display will not change back to show the room temperature.
The temperature control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level
of comfort. Set the temperature control at a lower number and the indoor air will become cooler. Set the temperature control at a higher
number and the indoor air will become warmer.
Cooling Descriptions
For Normal Cooling — Select the COOL mode and HIGH, MEDIUM, or LOW fan speed with a middle set temperature.
For Maximum Cooling — Select the COOL mode and HIGH fan speed with a lower set temperature.
For Quieter & Nighttime Cooling — Select the COOL mode and LOW fan speed with a middle set temperature.
NOTE: If you switch from COOL or DRY mode setting to
OFF, wait 3 minutes before restarting.
NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take
approximately 3 minutes for the compressor to start and cooling to begin.
Set Temperature will be shown when unit is in operation.
DRY MODE—DEHUMIDIFICATION
Use the DRY mode to provide dehumidification only. The fan will run at a fixed speed at this setting, so a fan speed cannot be set. Keep
windows and doors closed for the best dehumidifying effects.
To set the DRY mode:
• Press the MODE pad until the DRY indicator light is lit.
In the DRY mode, a set temperature will not be displayed. After DRY mode has been set, the display will change back to show the room
temperature.
If using the unit in the DRY mode as a dehumidifier for an extended time.
1 .Unplug the power cord.
2. Connect a drain hose to the upper drain port (see page 10, upper drain #11) and lead hose to floor drain.
3. Reconnect the power cord and press the MODE pad until the DRY indicator light is lit.
NOTE: If you switch from a DRY setting to OFF or to a fan setting, wait at
least 3 minutes before switching back to a DRY setting.
FAN MODE
Use the FAN mode to provide air circulation and filtering without cooling.
To set the FAN mode:
• Press the FAN pad until the desired indicator light for HIGH, MEDIUM, or LOW fan speed is lit.
Since fan only settings do not provide cooling, a set temperature will not be displayed. After FAN speed has been set, the display will
change back to show the room temperature. The exhaust hose and window kit do not need to be installed when operating in fan mode.
DRAFT 2

7 HOMEDEPOT.COM
Please contact 1-855-847-7264 for further assistance.
Controls
Features and appearance may vary.
Icons on the remote control indicate the selected settings.
REMOTE CONTROL
1. Power Button
Press the POWER button to turn unit ON/OFF.
2. Fan Speed Button
Press the FAN button to choose High/Low speed.
3. + / – Button for Temperature and Timer
In Cooling mode, press the + or – button to increase or decrease the temperature setting.
In Timer mode, press the + or – button to set time to turn the unit on.
Pressing the + or – buttons together will switch between °C and °F.
4. Mode Button
Press the Mode button to choose Cool, Fan, or Dry.
5. Timer Button
Pressing the Timer button in Standby mode will set the time for the unit to turn ON.
Pressing the Timer button in ON mode would set the time for the unit to turn OFF.
6. Temperature and Timer Display
The window will indicate temperature and time.
7. Temperature Switch Button (on remote)
Pressing the °C/°F button will switch between
°C and °F.
8. Sleep button (on remote)
Pressing the Sleep button is to choose sleep mode.
FanModeTimer Power
DRAFT 2

8
Care and Cleaning
AIR FILTER
The air filters should be cleaned at least every two weeks for your unit to operate at optimum efficiency.
To remove:
1. Unplug or disconnect power.
2. Pull to remove upper filter panel.
3. Wash or vacuum the dust from the air filters.
4. Reinstall the filters.
5. Plug in or reconnect power.
CLEANING
WARNING: Electrical Shock Hazard
Disconnect power before cleaning. Failure to do so can
result in death or electrical shock.
1. Unplug or disconnect power.
2. Use only a soft cloth dampened with water to clean the cabinet.
3. Dry thoroughly with a soft cloth.
4. Plug in or reconnect power.
NOTE:
• Do not use a liquid or spray cleaner to clean the air conditioner.
• DO NOT use chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or scouring
pads. Some of these chemicals/items may damage and/or discolor your air conditioner.
2 1
Caution: DO NOT operate the air conditioner without
a filter because dirt and lint will clog it and reduce
performance.
NOTE: If washed, gently shake the filter to remove the excess water and dust particles trapped in the filter.
DRAFT 2

9 HOMEDEPOT.COM
Please contact 1-855-847-7264 for further assistance.
Care and Cleaning
HOW TO INSERT THE BATTERIES IN THE REMOTE CONTROL
1. Remove the battery cover by sliding it according to the arrow direction.
2. Insert new batteries, making sure that the (+) and (–) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.
STORAGE
If the unit is not being used for a long period of time:
To Empty the Internal Water Tank:
1. Unplug or disconnect power.
2. Drain the water from the water tank. (See “Internal Water Tank section” above.)
3. Use the original packaging to repack the unit to avoid a buildup of dust or dirt.
4. Store the air conditioner in a cool, dry location.
INTERNAL WATER TANK
The Water Full indicator (“FL” on the control panel display) illuminates when the internal water tank
has filled with condensed water.
To Empty the Internal Water Tank:
1. Unplug or disconnect power.
2. Place a shallow 1 quart or larger pan (not included) below the lower drain located on the back
(near the bottom) of the air conditioner.
3. Remove the cap and the rubber plug and drain the water tank.
4. Re-insert the drain plug and screw the cap snugly into place.
5. Plug in or reconnect power.
NOTE:
• Use 2 “AAA” (1.5 volt) alkaline batteries. Do not use rechargeable batteries.
• Remove the batteries from the remote control if the system is not going to be used for a long time.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.
DRAFT 2

10
Installation Instructions
Questions? Call 1-855-VISSANI (1-855-847-7264)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air
conditioner.
IMPORTANT: Save these instructions for local inspector’s use.
IMPORTANT: Observe all governing codes and ordinances.
ELECTRICAL REQUIREMENTS
Some models require a 115/120-volt AC,
60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong
outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.
Caution: Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power cord of this air conditioner.
Aluminium house wiring may present special problems—consult a qualied electrician.
Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device
should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into
the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air
conditioner and contact a qualified service technician.
RESET
TEST
DRAFT 2

11 HOMEDEPOT.COM
Please contact 1-855-847-7264 for further assistance.
Installation Instructions
LOCATION REQUIREMENTS
• Place the air conditioner on a at, level surface in a location that is at least 30” (76.2 cm) from any wall.
• Maintain a minimum 30” (76.2 cm) clearance around the air conditioner to not block airow.
• Keep the air conditioner free of any obstructions such as drapes, curtains, blinds, etc.
• The exhaust hose should be free of any obstructions.
• Do not place the air conditioner on an unstable or raised surface because it
could fall and cause damage or injury.
• Do not place the air conditioner in direct sunlight or near a heat source such
as baseboard heaters, stoves, etc.
• The window panel can be installed in a window with a minimum 20” (55.88
cm) to a maximum 46” (121.92) opening.
NOTE: A minimum clearance of 30” (76.2 cm) from the air conditioner to the wall must be
maintained to ensure proper airow.
DRAFT 2

12
Installaton Instructions
PARTS INCLUDED
9
3
4
1
2
6
7
8
3
4
5
5
10
9
NOTE: Appearance may vary.
Display No. Description Display No. Description
1 Handle 6 Air Outlet Grille
2 Air Inlet Grille (up) 7 Drainage Hole
3 Control Panel 8 Air Inlet Grille (down)
4 Casters 9 Air Exhaust Duct Assembly
5 Air Outlet Grille 10 Window Sealing Kit
DRAFT 2

13 HOMEDEPOT.COM
Please contact 1-855-847-7264 for further assistance.
Installation Instructions
1 Unpack Air Conditioner
WARNING: Excessive Weight Hazard.
Use two or more people to move and install air conditioner.
Failure to do so can result in back or other injury.
□ Remove packaging materials. Save the carton and the
foam packaging for storing the air conditioner when not in
use.
□ Properly dispose of/recycle all packing material.
□ Handle the air conditioner gently.
□ Keep the air conditioner upright and level. Do not set the
air conditioner on its side, front, back or upside down.

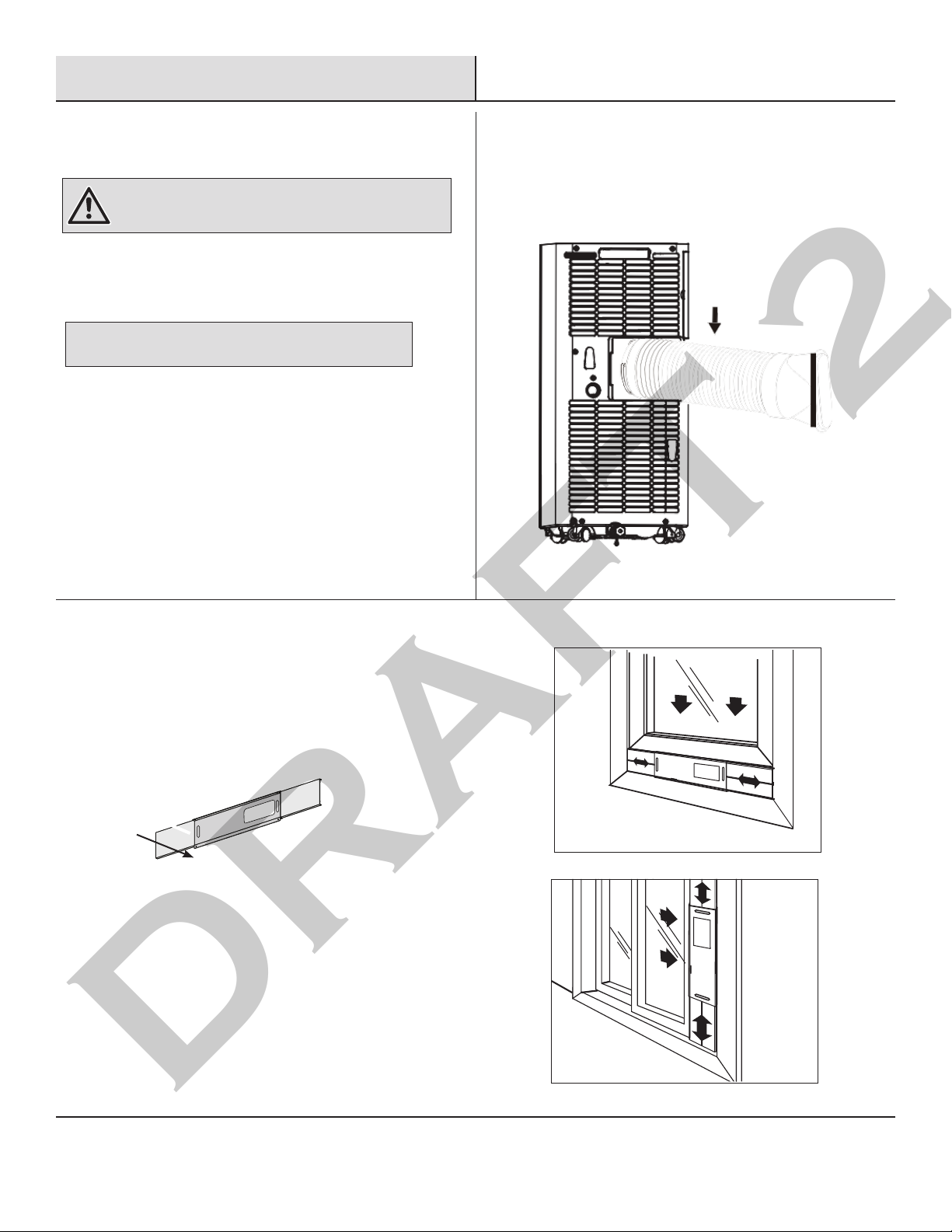

2 Install Exhaust Hose Assembly to
Back of Unit
□ Install the exhaust hose assembly by screwing the hose
counterclockwise into the exhaust port on the back of the
Air Conditioner.
3 Install Window Panels
□ Measure the window opening. For a 20” opening, use
just the middle panel of the Window Kit with the opening
for the Exhaust Hose Adapter. For openings from 20”
to 33”, insert one side panel to the middle panel, for
openings from 33” to 46”, insert both side panels.
Cam lock
□ Place the Window Kit into the window opening (the Cam
Locks should be towards you) and slide the side panels (if
being used) outward to ll the opening. Lock the panels in
place with the Cam Locks. Slide the window shut against
the Window Kit.
Indoor
Indoor
NOTE: There are NO packing materials inside the air
conditioner to remove—Do Not open the cabinet.
DRAFT 2

14
Installation Instructions

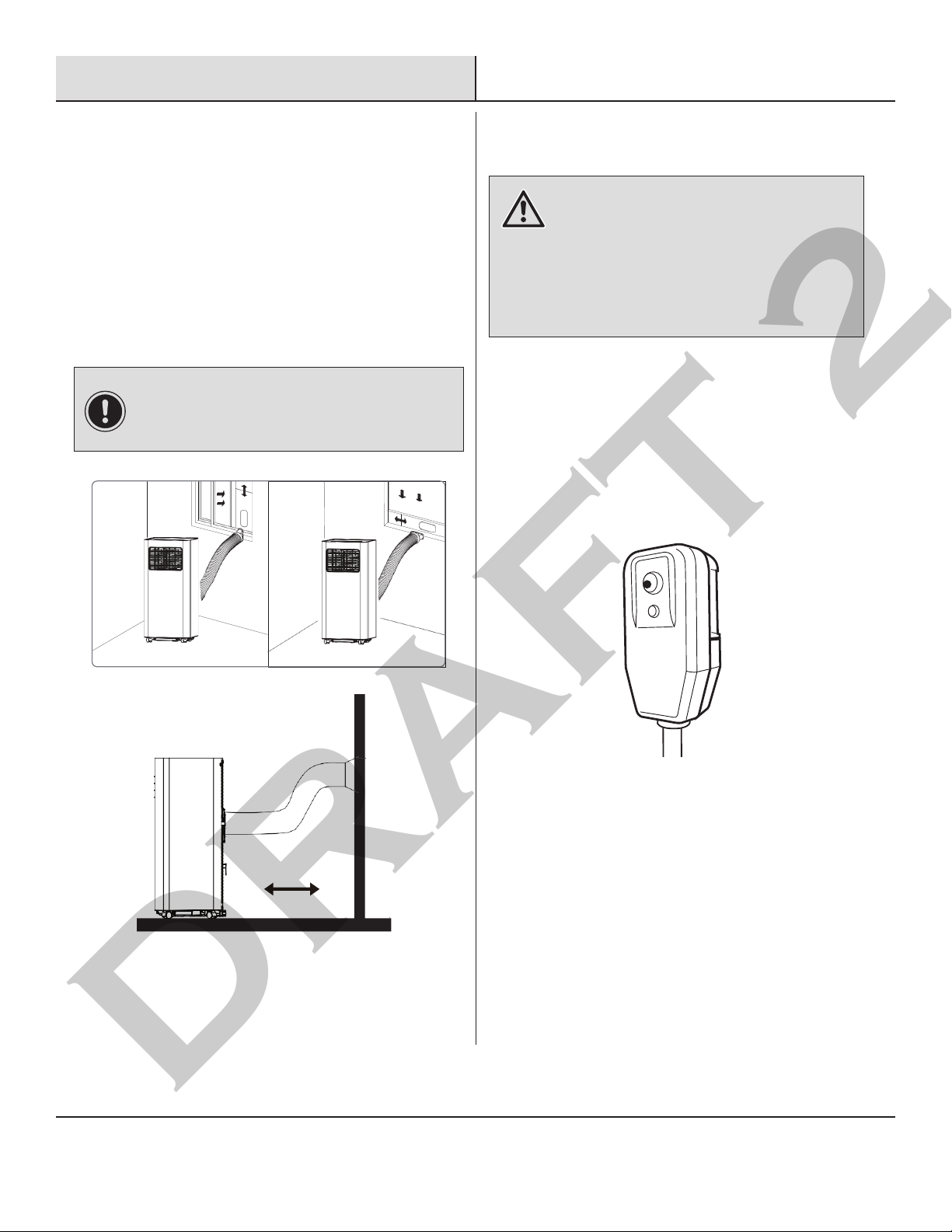

4 Connect Exhaust Hose to the
Window Panel
Place the Air Conditioner close to the window ensuring there
is at least 20” of clearance from the wall and any other
obstructions. Extend the hose so that it reaches the Window
Kit. Insert the Exhaust Hose Adapter into the opening in the
Window Kit and slide it into the locking position. Ensure that
the hose runs straight to the window with no excess extension.
Use the small screw to attach the exhaust hose assembly to the
window sealing plate assembly
5 Complete Installation
□ Plug the power cord into a grounded 3 prong outlet.
□ Press the Reset button on the plug to ensure the safety
plug is providing power to the air conditioner.
□ Allow 20” of clearance around the air conditioner for
proper air circulation.
□ When removing the air conditioner, be sure to remove the
Window Kit.
IMPORTANT: The Air Conditioner must be vented to the
outside. Do not use a longer hose or extend the hose
included with the Air Conditioner or the unit will not cool
properly and will overheat.
50cm
90cm
20”
RESET
TEST
WARNING: Electrical Shock Hazard
□ Plug into a grounded 3 prong outlet.
□ Do not remove the ground prong from the
power cord plug.
□ Do not use an adapter.
□ Do not use an extension cord.
□ Failure to do so can result in death, re or
electrical shock.
DRAFT 2

15 HOMEDEPOT.COM
Please contact 1-855-847-7264 for further assistance.
Troubleshooting
Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Causes Solution
Unit does not start or
operate
Power supply cord is not plugged into an
outlet.
Plug the power cord into a grounded 3 prong outlet.
Power supply cord has tripped. Press and release the RESET button on the power supply
cord.
The Power button has not been pressed. Press the Power button on the Control Panel or Remote
Control to turn ON the air conditioner.
There is no power to the electrical outlet. Plug a working lamp into the outlet to check for power.
A household fuse has blown or a circuit
breaker has tripped.
Replace the fuse or reset the circuit breaker.
The control was programmed for a Time Delay. Cancel the Time Delay. See “Control Panel.”
The batteries in the remote control are dead. Replace the batteries.
The internal water tank is full.
NOTE: The air conditioner automatically turns
off, and the Water Full indicator illuminates to
alert you of this condition.
Empty the water tank. See “Air Conditioner
Care.”
Remote control is not
working
Batteries are dead. Replace the batteries.
Batteries are installed incorrectly. Make sure the batteries are inserted in the correct
position.
Air conditioner is working
but the room is not
cooling.
The room temperature is hot.
NOTE: On extremely hot and humid days,the air
conditioner will take longer to cool the room.
Allow time for the room to cool when you first turn on the
unit.
Make sure the air conditioner has an adequate
BTU rating for the size of the room being cooled.
The control is set incorrectly to Fan or Dehum
mode.
Set the Mode to Cool and the Fan Speed to High.
Airflow is restricted. Remove any obstacles to the airflow and redirect airflow
for uniform cooling.
Temperature set too high. Lower the set temperature.
Air filters are dirty or restricted. Clean the air filter. See “Air Conditioner Care.”
Air conditioner installed incorrectly Check the exhaust hose and window panel for proper
installation.
Doors and windows are open. Close the doors and windows to the room being cooled
to prevent cooled air from escaping.
Error Codes
Code Meaning
E1 The hose temperature sensor is abnormal
E2 The room temperature sensor is abnormal
E4 Anti-freeze protection
FL Full-water
DRAFT 2

Questions, problems, missing parts? Before returning to the store,
call Vissani Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-VISSANI (1-855-847-7264)
HOMEDEPOT.COM
Retain this manual for future use.
DRAFT 2
