FlexTee Stand
Assembly Instructions:
FlexTee Stand is a unique universal stand that have many utility options.
It was specifically designed to be used to support acoustic blankets for mobile acoustic treatment solutions, and as
a stand for Voice Over Mobile recording studio –VOMO. It can also be used to support light, as light truss.
Unlike other similar stands which are usually only 3 feet wide, the Flex Tee stand has a “wingspan”of 6.5 feet (80
inches) and it is also Flexible not only in terms of usage, but also because the arms can be folded forward, which is
especially beneficial if the stand is used for blocking Echo and reverb from audio recording either with microphone,
or video camera. In its current set up the FlexTee Stand requires some assembly.
It comes in a Box:
In a nice Nylon bag:
With Parts wrapped in plastic to keep them nice all the way home!

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
2
Take that plastic off to see the new shiny parts:
The parts have names:
Stand Base (1)
Tee Arms (2)
Knob-Screws (2)
Washers (2)
Wing Nuts (2)
S-Hooks (8)
Tee Bar (1)
Second
Section of the
Stand (1)
Pin (1)
Top Section of the
Stand (1) Hidden inside
the second section
Mic Stand Pole (1)
( if you call them differently, they will not get upset. They are used to that)

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
3
You can lay them out like this, to make sure you got everything, and see how it all fits together:
Start with the first base and line up the second section to go into it:
Base
Second
Section
Second
Section
Base
Third
Section
Pin
Every section has tightening knobs attached. Pin designed to prevent the top
section from sliding under the weight of the blanket

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
4
Now it is time to assemble the arms.
(You can assemble them any time, of course, before or after, your choice.)
Tee-bar
Arm
Arm
Screwy parts
Screwy parts
Screwy parts
These holes need to be aligned

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
5
1
2
3

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
6
Do not overtighten the screws at this point. You need to be able to flex the arms first
( or not).
NOTE: the very first time it might feel tight and the arm does not fold. That is because the parts
cut very close and the fresh paint makes it tight. Give it a little push and it will be OK. Also
please be aware that the arms can only fold forward, and only in one direction.
And it only folds UP TO 90 degrees

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
7
Now Insert the connection pin of the T-bar into the
Top Section of the stand.
(Make sure to unscrew the knob bolt first,
but do not take it all out)
.
)

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
8
Now that you can flex the arms and put them on the stand –spread the legs:
VERY IMPORTANT:
To provide more stability for the stand,
put its best leg forward. Because when
the arms are flexed in front and there is a
blanket on, the center of gravity shifts
forward. Positioning the leg in front, will
add stability to the whole assembly.
Gravity

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
9
Now the Flex tee stand is assembled and ready to work!
So what is the mini Mic stand pole for?
The mini mic stand pole is included to use the stand with VOMO.
To mount VOMO on the stand –remove the T-bar
and install the mini Mic stand pole instead:
After that VOMO can be mounted
on the Mic Stand Pole

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
10
FLEX TEE STAND USE SUGGESTIONS:
As mentioned before the FlexTee stand was designed to work with Acoustic Blankets
Producer’s Choice to control room acoustics.
It can be used as a portable GOBO, as make shift acoustic vocal booth portable acoustic panel
that can be placed at strategic locations and used for example to control reflections on live
stage in different venues.
Below we give some suggestions on how to mount acoustic blankets.
To hang the blankets, we supply eight (8) S-hooks. (That is because Producer’s choice acoustic
blankets have 8 grommets and the FlexTee stand was designed to work with our blankets)
1. Set up the FlexTee stand on the floor and adjust the height, so
the T-bar is at your chest level, or whichever level is the most
convenient for you to hang the blankets at.
2. Insert the S-hooks:

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
11
3. Start hanging blankets from the center –out. This helps to keep the stand balanced.
Then attach the blanket to the hooks on the left and the right side and raise the stand with the
blankets up to the desired height:

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
12
Pin
Forward looking leg
for better balance

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
13
USAGE EXAMPLES
Reflection filter screen/ Acoustic Shield
One Stand and One blanket –protecting the microphone from
unwanted echo from the back and sides

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
14

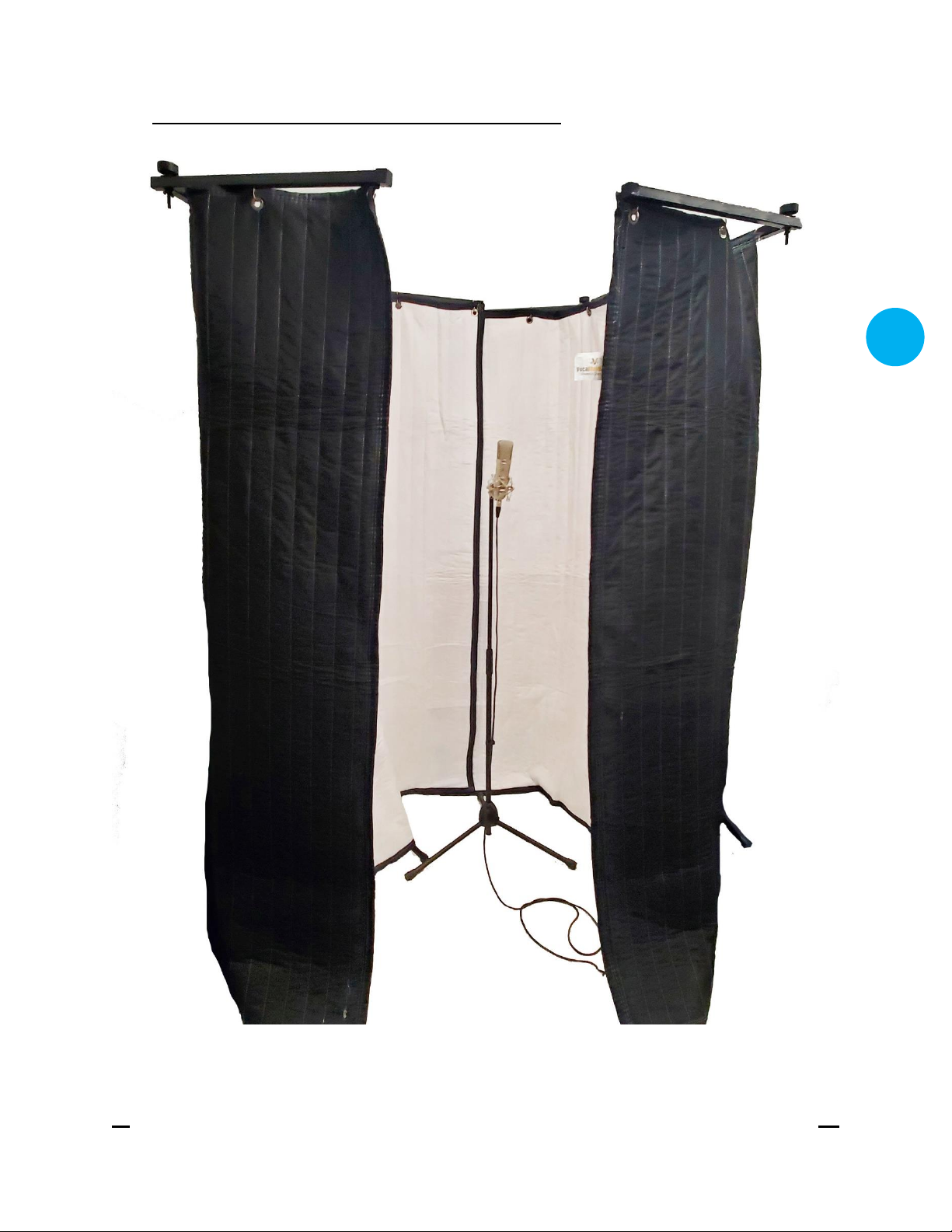

TWO Stands and TWO blankets –
protecting the microphone from unwanted reverberations
coming from the back and most other sides
Your personal anti-reverberation Castle

Email support @ vocalboothtogo.com, Tel: [phone], Fax [phone]
VocalBoothToGo. 7311 Grove Rd, Unit B200, Frederick, Maryland 21704
15
Portable Video Booth/ Photo booth
TWO Stands and TWO blankets –
The flexible arms allow to shield the
camera from all sides yet leave the
space open for unobstructed
filming.
