Introduction
General Safety Instructions 4
Care 4
Transport and storage 4
Warranty 4
Components 5
Technical data 6
Connections 6
Setup 7
Connecting cables 7
Operation 7
Working with Aleasub-10
Mounting the U-bracket 8
Mounting wall holder for hidden mounting 8
Folding handle mounting 8
Overview Accessories 9
Manufacturer‘s declaration
Imprint 10
Contents
Page 4 of 10Manual Aleasub-10 - 2018-07 EN
General Safety Instructions
Loudspeakers produce a static magnetic eld even if they are not connected or are not in use. Therefore make
sure when erecting and transporting loudspeakers that they are nowhere near equipment and objects which
may be impaired or damaged by an external magnetic eld. Persons with cardiac pacemakers must maintain a
safe distance.
The minimum recommended safety clearance is 1 m.
Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems
are capable of causing a sound pressure level detrimental to human health. Seemingly non-critical sound levels
(from approx. 90 dB SPL) can cause hearing damage if people are exposed to it over a long period.
All connected cables must be laid in such a way that they cannot be crushed by objects and that nobody can
step on them! Replace damaged cables immediately and do not use them!
Use only accessory parts specied by Voice-Acoustic or original accessory parts from Voice-Acoustic. Check all
cabinets and accessories regularly for wear and replace them if necessary.
Do not set up the loudspeakers in places where they are permanently exposed to moisture, dust, dirt or direct
sunlight.
Care
Wipe the surface of loudspeakers only with a damp cloth and pure water. In case of heavy pollution, repeat the
above procedure several times if necessary. Do not use any chemical additives or aggressive detergents, as
these may harm and damage the surfaces.
Transport and storage
When transporting and storing the unit, it is important to ensure that the surface and front grill of the loudspe-
aker are not damaged. Moisture can penetrate through exposed wood surfaces and cause the wood to swell.
A bent or broken front grill will no longer adequately protect the sensitive speaker membranes. In addition,
appreciable dust deposits may considerably impair the functionality of a loudspeaker membrane. For this rea-
son, the loudspeakers should be transported and stored in a safe, careful, dry and largely dust-free manner.
The following accessory parts for transport and storage are available from Voice-Acoustic:
■Aleasub-10 handhold for hidden mounting back board (Art.-Nr. 999934482)
Note: The original packaging is unsuitable as permanent storage and transport packaging!
Warranty
The warranty period is 24 months from date of delivery.
On our choice we will eliminate any lack of conformity with repair or with replacement of the faulty goods. The
place of performance for warranty services is Voice-Acoustic headquarters in Dörverden. In case of remedy of
defects, the buyer shall bear all costs resulting from transportation of the goods to Voice-Acoustic headquarters
in Dörverden.
The ordering party is not entitled to remedy the defect by itself or to organise a replacement and to charge
such activities to Voice-Acoustic. In case of self remedy by the ordering party the warranty given by Voice-
Acoustic becomes void.
Warranty doesn’t apply to parts of wear and tear, such as threaded points, Phoenix Contact connectors and the
SpeakON®connectors.
Introduction
Page 5 of 10Manual Aleasub-10 - 2018-07 EN
Introduction
Components
1. 24 and 15 mm multiplex cabinet, Warnex textured paint nish
2. M10 threaded points on both sides for mounting the U-bracket
3. 4 x rubber feet (for mounting with U-bracket only included on request)
4. Micromesh honeycomb grille
5. Ornamental ring
6. M20 Mounting ange for spacer rod
7. M10 Thread point
8. 10“ Ferrit Tieftöner
9. Bass reex port
10. M6 threaded point for safety rope
11. Type plate with serial number
12. 5 x cylinder head screws with hexagon socket for mounting the optional folding handle
13. Connector panel with two SpeakON®connectors
14. Phoenix Contact connectors
410
11
5
6
7
2
3
1
8
9
12
13
14
Page 6 of 10Manual Aleasub-10 - 2018-07 EN
Introduction
Technical data
Components 4 x 4“ Neodym wideband transducer with 0,75“ voice coil
Frequency response 161 Hz - 18 kHz (- 10 dB)
210 Hz - 15,4 kHz (+/- 3 dB)
Coverage range (h x v) 70° x vertical directivity is controlled by the angle between the elements
Powerhandling 120 W AES / 240 W program / 480 W peak at 16 Ω
Sound pressure 116 dB SPL AES / 119 dB SPL program / 122 dB SPL peak
Dimensions / Weight 419 (h) x 119 (w) x 160 mm (d) / 3,2 kg
Finish Warnex texture paint
Connections
The speaker has two loop-through Neutrik NL4 SpeakON®IN/OUT connectors. They use the 2+/2- connection
pins. Additional loudspeakers can be looped through via the second connector. 1 x Phoenix Contact connections,
4-pin divided into 2 x IN/OUT, through-wired with SpeakON®.
Page 7 of 10Manual Aleasub-10 - 2018-07 EN
Setup
The Aleasub-10 is designed for standing, vertical and horizontal operation. A variety of accessories is available
from Voice-Acoustic to securely attach the loudspeaker safely on tripods, distance rods or hanging it from on
trusses, ceilings and walls. Ensure that the loudspeakers are securely attached to prevent personal injury and
damage of property.
Connecting cables
When connecting the cables to the loudspeaker, ensure that the polarity (+/-) and pin assignment (1/2) is
correct. Incorrect connection results in a signicant change in the loudspeaker sound characteristics and may
damage the compression driver.
The two connection sockets on the back of the loudspeaker can be used to link multiple loudspeakers on a
single amplier. Note that parallel connection reduces the total impedance (Ω) seen by the amplier. The total
impedance of loudspeakers connected in parallel must not drop below the minimum operating impedance of the
amplier.
Voice-Acoustic recommends to use the available 4 x 4 mm² Speakon cables for mobile use.
We recommend wiring the basses with at least 4 mm² in installations. The cables of the tops in installations
must be suciently dimensioned according to impedance, power and cable length.
Simplied display without consideration of loudspeaker impedances
Operation
The Aleasub-10 is exclusively intended for operation with Voice-Acoustic system electronics with internal DSP
controller: the HDSP power ampliers.
Make sure the appropriate preset has been selected before connecting the speaker to the system power amp or
self-powered subwoofer.
Using the wrong preset can damage parts of the loudspeaker.
Note: If the Aleasub-10 is not operated on the intended Voice-Acoustic system electronics, the manufactu-
rer‘s warranty for the loudspeaker expires!
Introduction
Page 8 of 10Manual Aleasub-10 - 2018-07 EN

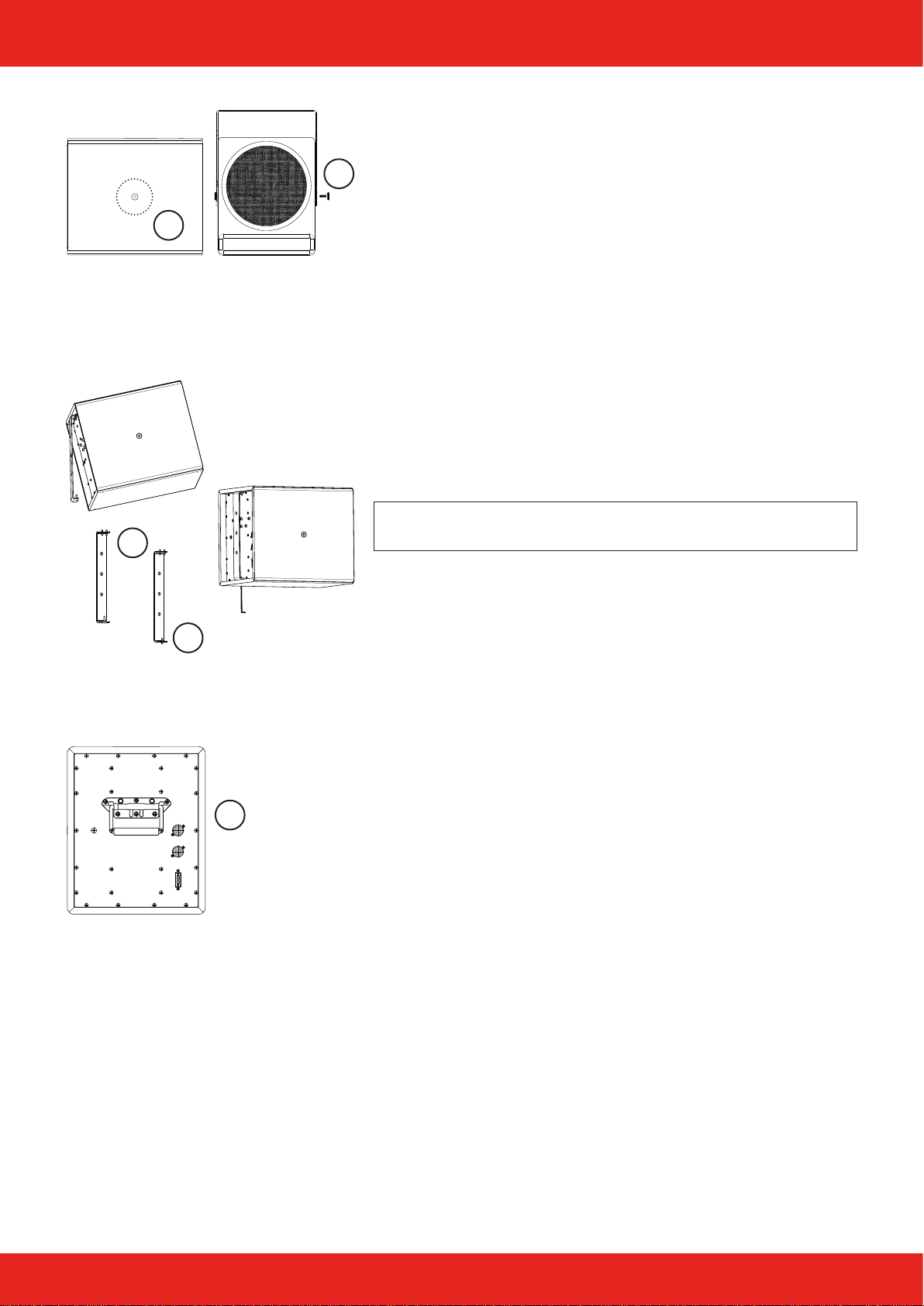

Working with Aleasub-10
Mounting the U-bracket
1. Remove the M10 countersunk screws (A) on both sides of the
subwoofer.
2. Use the supplied M10 knurled screws (B) including plastic was-
hers to mount the U-bracket.
3. To protect the coatings, place the plastic discs between the
knurled screw, U-bracket and subwoofer.
The U-bracket can be used to install the subwoofer on ceilings. The
four rubber feet are not screwed on, only included.
Mounting wall holder for hidden mounting
To install the subwoofer at on the wall, you must use the 4-pin
Phoenix Contact connector in the recessed connector panel.
1. Mount the wall holder at the desired location using the appro-
priate xing material. The side with the two M4 x 20 mm grub
screws (C) points upwards!
2.
Note: The loudspeaker cables must be led out of the wall in the
area of the recessed connection eld!
Connect the subwoofer via the Phoenix Contact.
3. Hang the subwoofer into the two grub screws.
4. Turn the lower grub screw (D) out through the small opening at
the bottom until it is ush with the edge of the housing.
Folding handle mounting
1. Remove the ve M6 x 12 mm cylinder head screws from the
rear panel.
2. Use the ve cylinder head screws to mount the folding handle
to the rear of the subwoofer (E).
A
B
C
D
E
Page 9 of 10Manual Aleasub-10 - 2018-07 EN
Overview Accessories
Phoenix contact 4-fold connector for Alea-4 and Aleasub-10 (Art.-Nr. 997463649)
U-Bracket for Aleasub-10 (Art.-Nr. 401001001)
U-Bracket for Aleasub-10, white with stainless steel knurled screws (Art.-Nr. 401001002)
U-Bracket for Aleasub-10, special color with stainless steel knurled screws (Art.-Nr. 401001009)
Aleasub-10 wall holder for hidden mounting (Art.-Nr. 401002001)
Aleasub-10 handhold for hidden mounting back board (Art.-Nr. 999934482)
Working with Aleasub-10
Page 10 of 10Manual Aleasub-10 - 2018-07 EN
Manufacturer‘s declaration
Imprint
© SRV Licht- & Tonanlagen, all rights reserved.
All specications in this manual are based on information available
at the time of publishing for the features and safety guidelines of
the described products. Technical specications, measurements,
weights and properties are not guaranteed.
The manufacturer reserves the right to make technical modications
according to legal regulations stipulating the continual improvement
of product features. For the safe operation of the unit, this manual
and all other required information must be available to all users at
the time of assembly and disassembly of the unit, and during opera-
tion. Assemble or operate the unit only after reading and understan-
ding this manual, and keeping it at hand at all times at the site.
We are happy to receive your suggestions and proposals for the
enhancement of this manual.
Please send us your ideas to the following address:
SRV Licht- & Tonanlagen - Voice-Acoustic Headquarters
Brocksfeld 3
D-27313 Dörverden
Tel.: + 49 (0) 4234 942 777
E-Mail: [email protected]
