Volt 5500ES User manual
Owners Manual
MODEL-VK5550E
OPEROR'S MANUAL
5500
ES
1.Kids should be kept a safe distance from generator.
2.Don't touch the engine or muffler while generator is running or after shutdown
to avoid injury. Please pay attention to warning sticker on generator.
3. Electrical equipment (including cable and plug connecting component) should
be in good condition before starting.
4. New circuit breaker must be under same level performance, characteristic and
parameters of the former for replacement.
5.Due to high mechanical stress, only rubber sheath cables or parity products
are allowed to be used.
6.When using extension wire or mobile distribution cabinets, wire with 1.5 square
millimeter cross section should not be longer than 60 meters; for 2.5 millimeter
cross section, wire should not be longer than 100 meters.
7.With the engine of manual starting, the danger of change rotating direction
suddenly should be prevented.
8.On standard working condition of circumstance, the generator could only load
on rated output. If the working condition of circumstance is not standard, the
generator should be run at lower output. When temperature, altitude and
humidity is higher than standard working condition of circumstance, the
generator would reduce the output.
9.Before checking and maintenance of generator, the engine must be stopped.
Disassemble the spark plug and and shut of ignition to make sure the engine
does not be started improperly. Then check and maintain the generator on the
scheduled calendar of repair.
10.Except the daily maintenance and cleaning, the checking and readjustment
should be conducted by authorized professional person and source the
requested components by them. (contact with local dealers).
11.The new or just overhauled machine must endure the breaking-in period at
30hours at least, the output should not exceed 75% of rated output.
ATTENTION
caution
m
@
cm
□t A
&
m
CONTENTS
1.SAFETY TIPS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·· ·· ·· · · · · · 1
2.PARTS AND COMPONENTS INTRODUCTION · · · · · · · · · · ·· · · · · 3
3.SPECIFICATIONS · · · · · · · · · · · · · · · · · · · · · · · · · ·· ·· · · · ·· ·· · · 4
4.INSPECTION BEFORE OPERATION · · · · · · · · · ·· · · · · · · · · · · · · 5

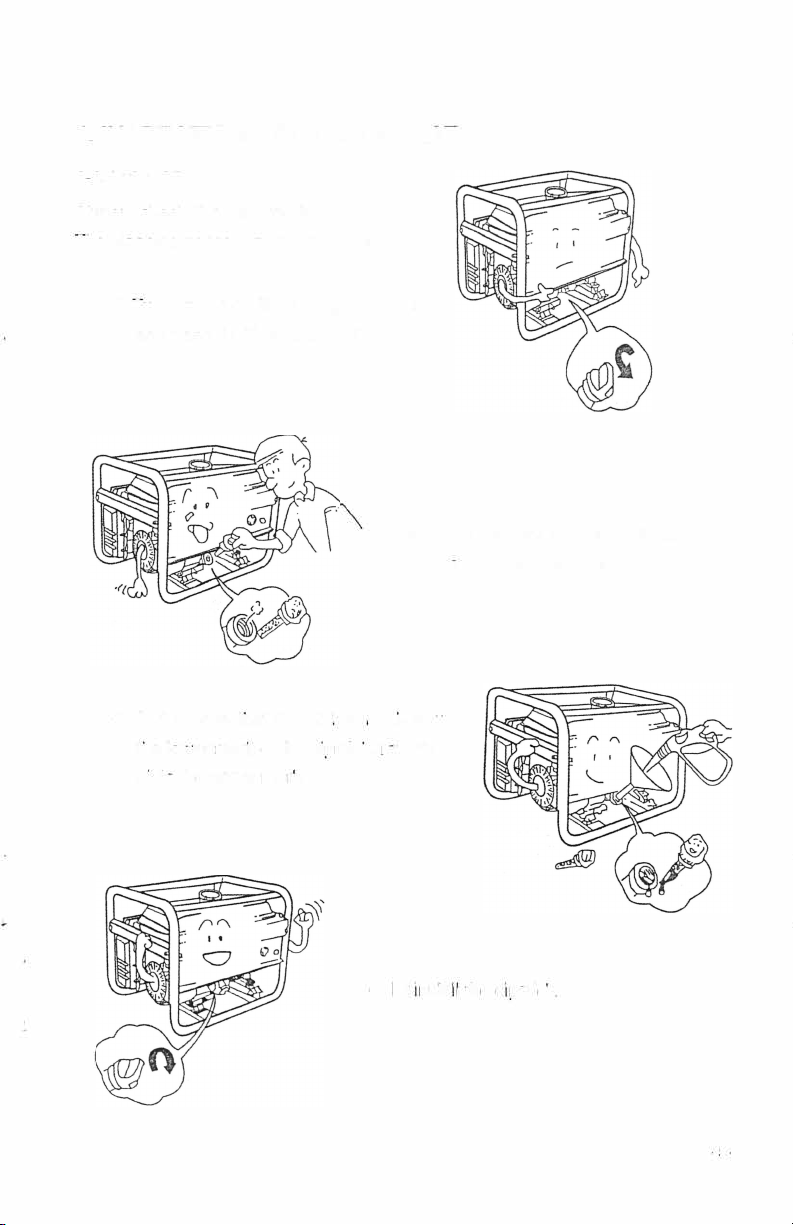

5.STARTING THE GENERATOR · · · · · · · · · · · ·· ·· · · · · · · · · · · · · · 8

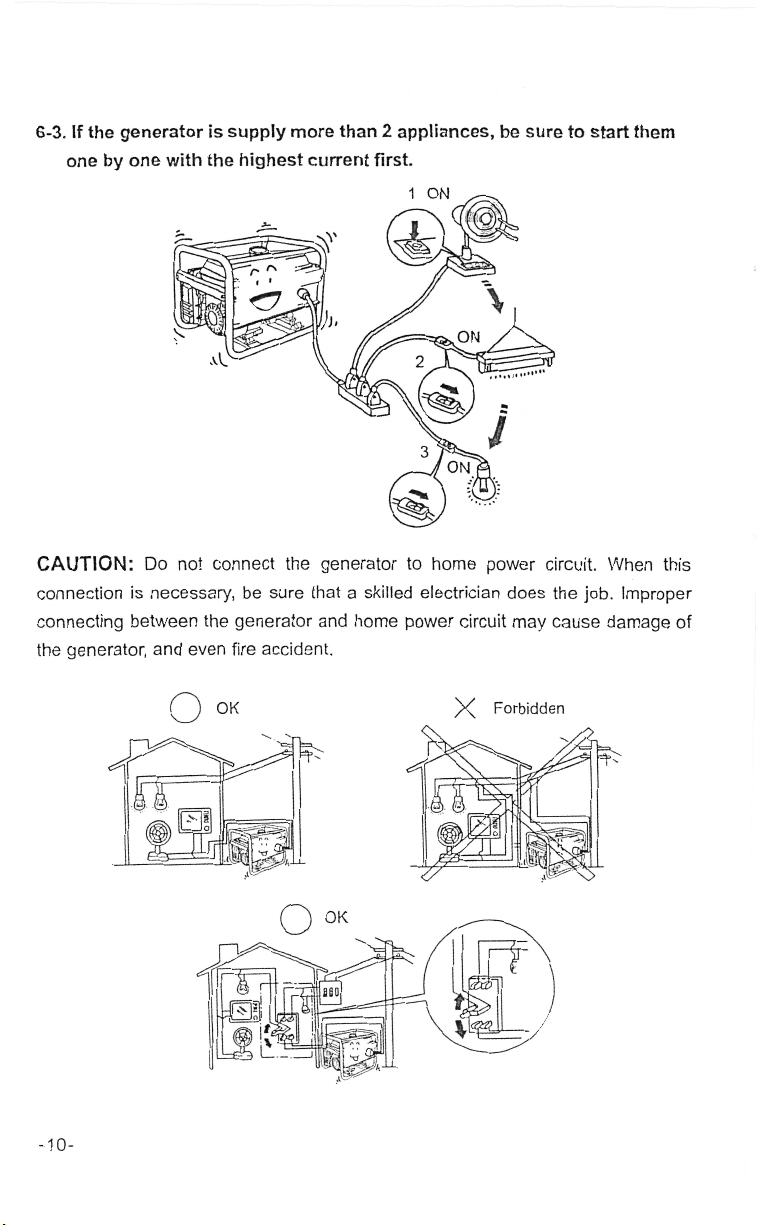

6.ELECTRIC CONNECTING · · · · · · · · · · · · ·· ·· ·· · · · · · · · · · · · · · ·9
7.STOPPING THE GENERATOR· · · · · · · · · · · · · · · ·· · · · · · · · · · · 12
8.REGULAR INSPECTION AND MAINTENANCE · · · · ·· · · · · · · · · ·13
9.STORAGE OF GENERATOR · · · · · · · · · · · · ·· ·· · · · · · · · · · · · · ·17
10.TROUBLE SHOOTING · · · · · · · · · · ·· ·· · · · · · · · · · · · · · · · · · · ·18
11.ELECTRIC DIAGRAM· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·· ·20
-
INTENDED USE/ NOT INTENDED USE
The machines are portable generators with a four-stroke gasoline
engine, with AC, 50Hz / 60Hz and 12V DC output for domestic use.
The gasoline generator set is suitable for temporary power supply. It
may only be operated in a well ventilated area. The product is
intended for household use in accordance with the instructions, all
other applications, such as commercial exploitation, are specifically
excluded. For damage or injury resulting from an abuse, the user /
operator liable and not the manufacturer. Part of the intended use is
also the consideration of the safety and operating instructions in the
manual.
Persons who should operate this machine will be familiar with the
instructions and the possible dangers. In addition, the existing safety
rules are strictly observed. Other general rules of safety and security
areas are respected. Changes to the machines, including the liability
of the manufacturer and any damage from this set, the warranty
expire. The machine must only be operated outdoors or in a
ventilated room.
RESIDUAL RISKS
Even when properly used the machine is always some residual risk
that can not be ruled out.Because of o.g.Use, construction of the
machine can be derived during the use if the following potential
hazards.
•Avoid contact with hot surfaces/ exhaust system(burns)
•Impairment of hearing for non-adherence to the prescribed
hearing protection
•Contact with petrol / oil and the skin
•Inhalation of gasoline fumes
•Contact with the coming-promoting medium
Inhalation of fumes (poisoning danger)

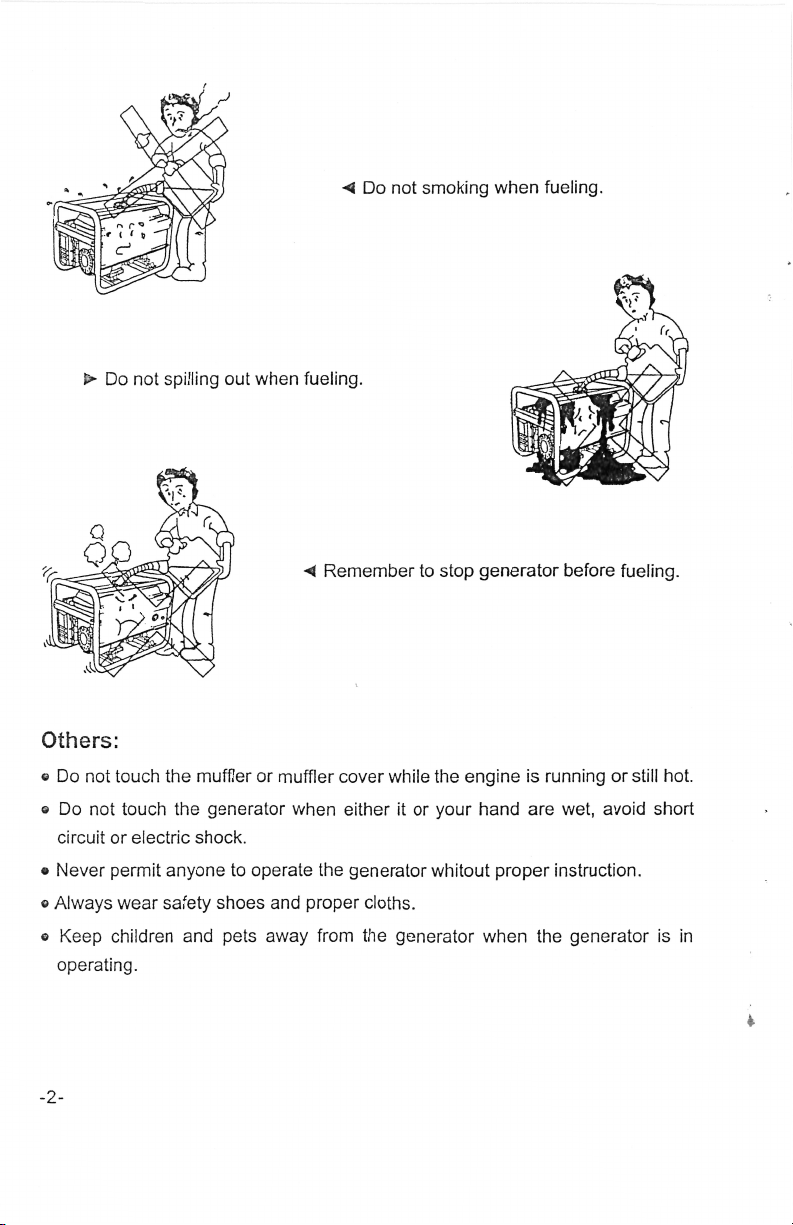

1. SAFETY TIPS
nsnow
oo
r
ss
(4)
4-1. Lube Oil

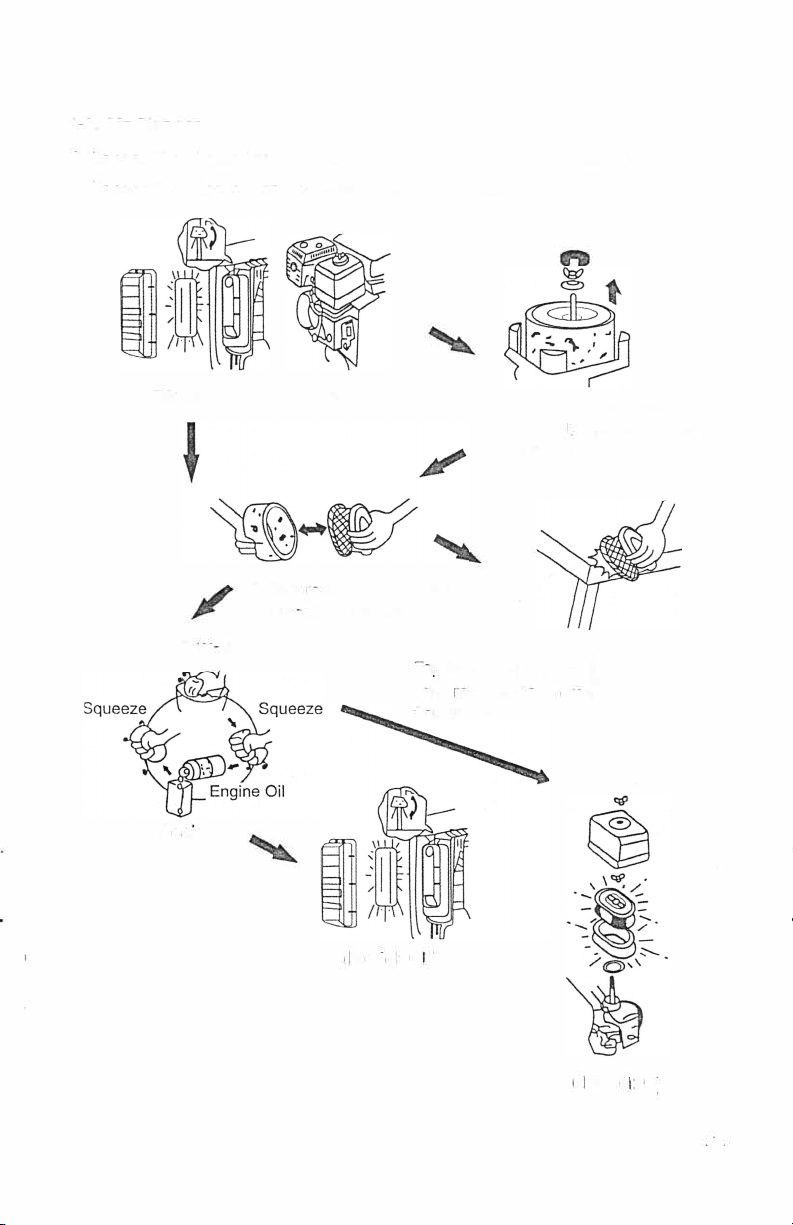

4-3. Air Cleaner
l
&
°
Gap:
This manual suits for next models
